Multipurpose Wireless Ultrasound Probes

A multipurpose wireless ultrasound probe sets out to replace a cart, a cable, and a drawer of single-purpose transducers with one object that fits in a coat pocket. The pitch is broad: abdominal depth, cardiac frame rate, and superficial resolution from a device that streams to a phone over WiFi. Behind the pitch sits a stack of physical compromises, and reading them correctly separates a probe that serves a clinic for a decade from one that disappoints on its second use case.

One pocket. One promise. A stack of compromises holding it up.

Three array geometries, one pocket

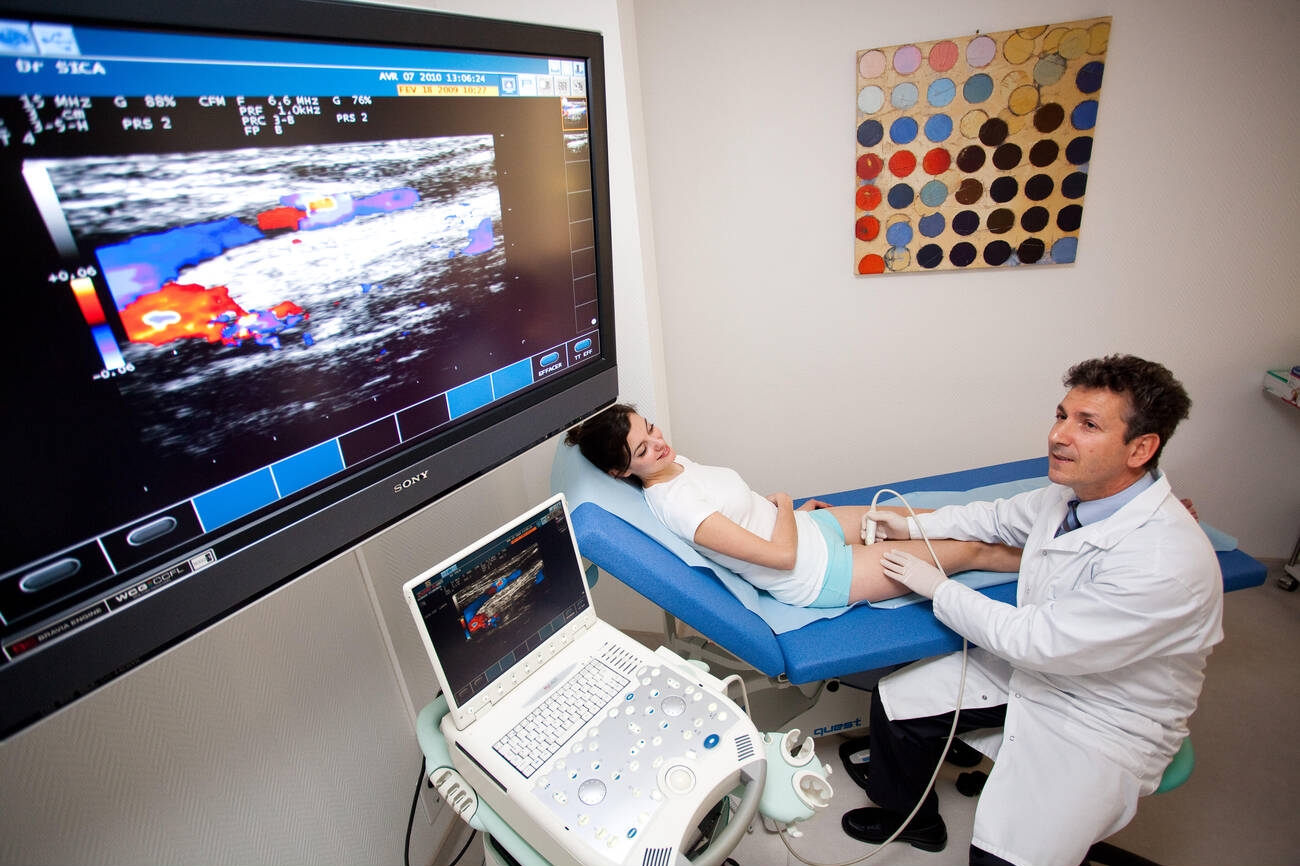

A transducer images cleanly over a narrow band of depth and frequency, and the array geometry fixes that band before any software touches the signal. A linear array packs 128 to 192 elements across a flat face near 38 millimetres and runs 7.5 to 18 megahertz, the band that resolves vessels, thyroid tissue, and tendons in the first few centimetres. A convex array curves its face to spread the beam at depth and drops to 3.5 to 5 megahertz to reach a liver or a third-trimester uterus at 15 to 20 centimetres. A phased array shrinks the footprint small enough to fire between two ribs and steers its beam electrically across a 90-degree sector for the beating heart, the geometry behind handheld transthoracic echocardiography. Element pitch sets the ceiling on steering: spacing the elements near half a wavelength suppresses the grating-lobe artefacts that surface when an array steers too far off-axis, and a coarser pitch saves cost while opening the sector edges to clutter. A quarter-wavelength matching layer eases the acoustic-impedance step from piezoelectric ceramic into soft tissue, and a lens focuses the slice the electronics cannot reach. These layers are the reason a transducer face is a stack rather than a bare crystal, and the reason two probes printed with the same centre frequency on the box can image the same nodule very differently.

The reason no single frequency serves every depth is attenuation. Sound loses roughly 0.5 decibels of amplitude for every centimetre it travels per megahertz of frequency, and a 15 megahertz beam fades to nothing within three or four centimetres while a 3.5 megahertz beam still carries usable echo at twenty. Resolution runs the other way, and it splits in two. Axial resolution, the ability to separate two structures along the beam, improves with shorter pulses and climbs with frequency. Lateral resolution, the ability to separate two structures side by side, depends on how tightly the beam focuses, which also sharpens at higher frequency and wider aperture. Both pull against penetration across the same frequency dial, and that single trade is the reason a drawer once held five transducers instead of one. A pocket probe that claims to cover both the carotid and the heart is asking one crystal stack to live at both ends of that dial at once.

A fourth shape sits at the edges of the pocket format. The microconvex array shrinks the convex curve to a tight radius for paediatric abdomens and for endocavity work, trading field width for access through a small acoustic window.

Where the focusing happens

An array is a row of independent elements, and an image forms because the machine fires them with calculated time delays that make their wavefronts add up at a chosen depth. Steering and focusing are arithmetic performed on dozens of channels thousands of times a second. A 64-channel beamformer runs that arithmetic across twice as many signals as a 32-channel one, building a tighter beam at the cost of more silicon and more heat in the handle. Dynamic receive focusing sharpens the returning echo continuously as it arrives from deeper tissue, and apodisation tapers the contribution of the outer elements to suppress side lobes that would otherwise paint false echoes into the image. The phased array leans hardest on all of this, since its entire sector sweep is electronic rather than mechanical, and a thin channel count shows up first as a cardiac image that smears at the edges of the sector. A converted design that bolts a radio onto an existing 32-channel airframe shows the seam here first, in a sector that looks soft where a purpose-built 64-channel handle stays crisp, and the channel count is silicon the buyer never sees while the image always shows it; apodisation and dynamic receive focusing both ride on that same channel budget.

Two routes to multipurpose

The first route is a single body with interchangeable heads that thread or latch onto a shared connector, each head carrying its own array and matching layer. A clinician swaps a linear head for a phased head the way a photographer swaps a lens. The second route keeps one head and stretches its usable range through a broadband crystal stack and software-driven focusing, covering convex and phased duty from a single face, or pairing two arrays back to back on one head that flips in software.

A connector is a seam, and a seam is where failure starts.

Each route carries a cost. Interchangeable heads multiply the number of connectors, seals, and contact surfaces that have to stay clean and watertight. A single broadband head removes those seams and accepts a compromise in peak performance at the extremes of its range, giving up a little resolution at the top of the band and a little penetration at the bottom in exchange for one sealed shell. The right answer follows the dominant use case rather than the spec sheet with the longest list.

One pocket promises three geometries and hides a dozen trade-offs.

The wireless tax

Moving the beamformer into the handle is the move that made the cable disappear, and it brought a tax with it. A cart system runs 64 or 128 receive channels through a rack of electronics, and a pocket probe has to fold a beamformer, a radio, and a battery into a shell the size of an electric razor. A 64-channel handle resolves a finer beam than a 32-channel one at the same aperture, and the channel count is one of the figures that separates a probe built for cardiology from a probe built for a quick bladder check. The signal then crosses WiFi 802.11n on a dual band to the phone, a hop that adds latency the cart never had between the crystal and the screen. Heat is the other half of the tax. The crystal stack and the electronics both shed waste heat into a sealed housing pressed against skin, with no fan to carry it away, and the surface that touches the patient has a hard ceiling near 43 degrees Celsius that the whole package has to respect. A probe that scans for twenty unbroken minutes at a high frame rate is managing that ceiling the entire time, throttling output as the lens warms toward the limit.

Connection method shapes daily reliability as much as raw performance. A WiFi link frees the probe from any cradle and lets two clinicians share one tablet, at the cost of a radio that drops frames under interference. A USB-C tether removes the radio and the latency and ties the probe to one host. Image quality between the two routes is identical at the crystal; the difference lives in workflow and in how a dropped frame is handled.

The image leaves the probe as data, and data invites a second set of rules. A study that crosses WiFi to a phone and then to a cloud archive is patient information in transit, and the link has to be encrypted and the archive access-controlled. DICOM compliance governs how the study is tagged, stored, and pulled into a hospital record, and a probe whose app exports a flat image with no patient metadata creates a filing problem the radiology department inherits.

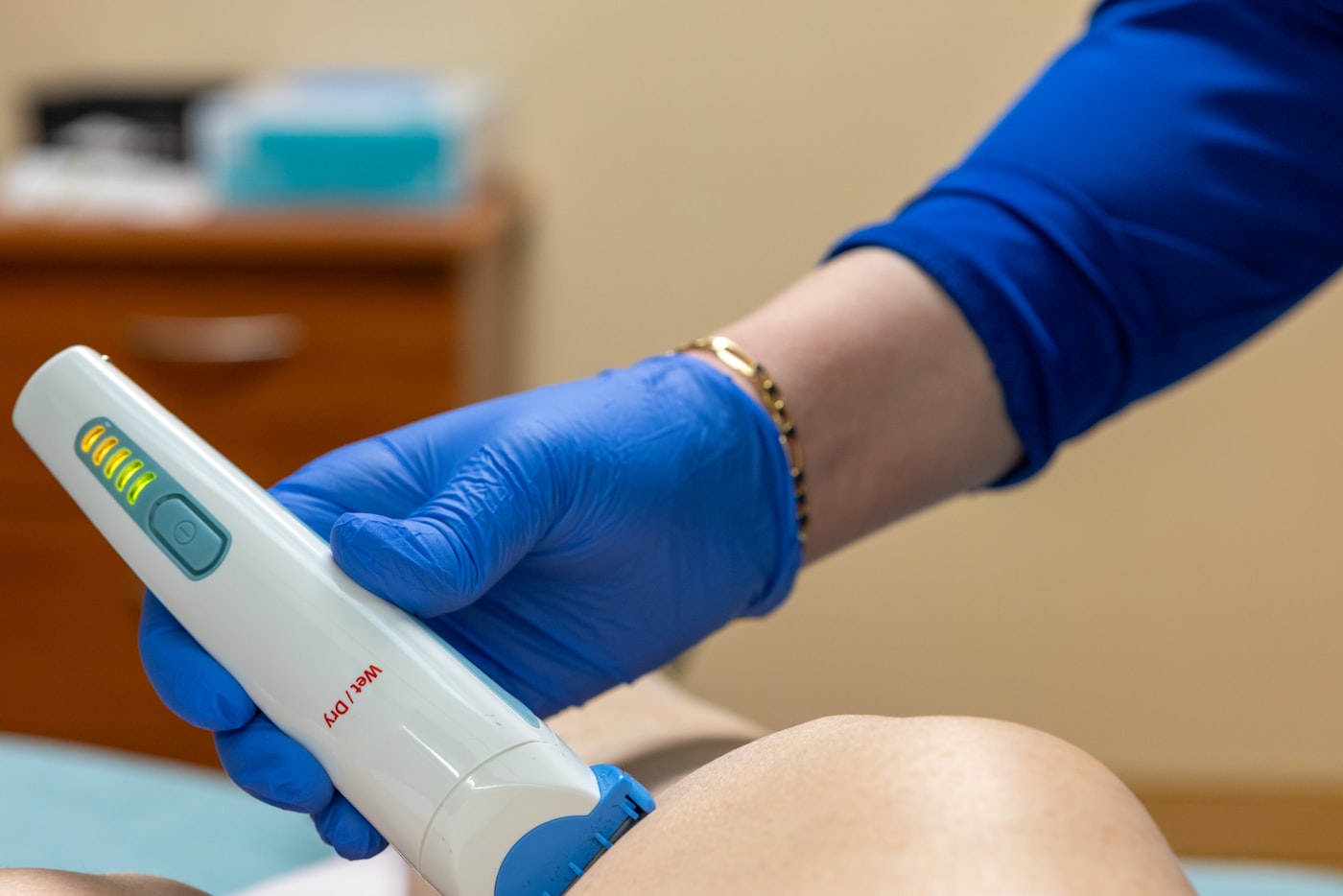

Weight and balance decide whether a clinician reaches for the probe at all. A head-heavy device fatigues a wrist across a busy list, and the grip is not cosmetic.

Where the multipurpose claim breaks down

A single probe stops being credible at the extremes. An 18 to 24 megahertz superficial array for dermatology and small-parts work shares almost nothing with a 2 megahertz deep cardiac array beyond the word ultrasound, and a probe stretched to claim both is good at neither end. Endocavity and transrectal work need a dedicated geometry and a sealed, disinfectable form a general abdominal head cannot meet. A clinic buying one device for genuinely distant tasks is buying a compromise at each, and a clinic with two narrow probes often out-images the one that claims to do everything across the whole depth range.

What clears before any of it ships

A multipurpose probe makes a long list of claims, and every one of them has to survive a regulatory file before it reaches a clinician. Acoustic output, transducer surface temperature, electromagnetic compatibility, biocompatibility, and the security of the image as it crosses a wireless link each answer to a named standard. A probe that images beautifully and breaches a single limit gets sent back. The cluster on the standards a handheld probe has to clear works through IEC 60601-2-37, IEC 62359, ISO 14971, the EU MDR, and the rest, one document at a time.

The display deserves its own line in that file. A consumer screen in a bright room is a different reading environment from a calibrated cart monitor, and the regulatory case has to account for the gap.

Choosing for a real clinic

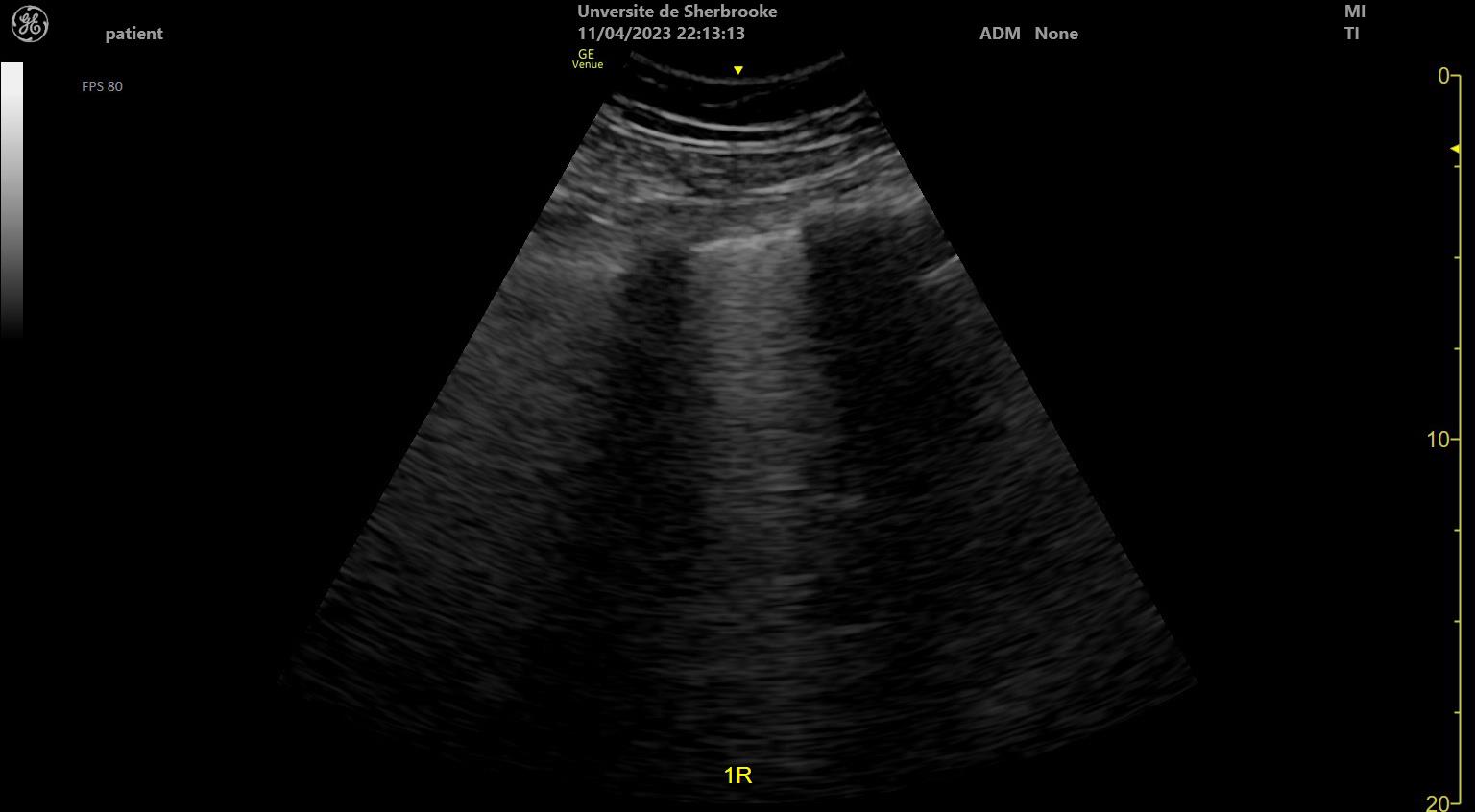

The probe earns its place against the work a clinic does every day rather than the work it might do once a year. A practice that scans lungs, bladders, and lines all shift wants a broadband convex-and-phased head and a fast wireless link. A musculoskeletal or vascular clinic wants a high-frequency linear array and pays little attention to penetration. A mixed emergency department reaches for the interchangeable platform and accepts the extra connectors as the price of one device covering trauma, cardiac, and procedural duty.

Budget frames the whole exercise. A broadband single-head probe lands well under a cart and below an interchangeable platform, and for a clinic with one dominant task it delivers much of the cart’s clinical value at a fraction of the price. The interchangeable platform earns its higher cost only where the case mix genuinely spans depths.

Image processing decides whether the picture is usable at the bedside. A 256 gray-level display separates tissue planes a 128-level screen blurs together, and a frame rate near 24 to 30 per second keeps a moving valve readable.

Service and supply sit underneath all of it. A wireless probe is a sealed unit with a battery that ages and a radio that firmware updates touch, and the maker that ships those updates and stocks spares decides how long the device stays in service. A probe is a five-year relationship with a supplier, and the spec sheet describes only the first day of it. The best pocket probe is the one whose deliberate compromises fall where the clinic feels them least.
