What Thermoplastic Elastomer Is, and Where It Shows Up

Rubber you can melt

If a soft-touch phone case or an old TV remote has ever turned tacky and greasy after a few years, that was TPE showing its worst side. Thermoplastic elastomer is the soft, grippy material moulded onto toothbrush handles, cable sheaths, and the budget end of a lot of products that look unrelated. The name hides a family of fairly different materials.

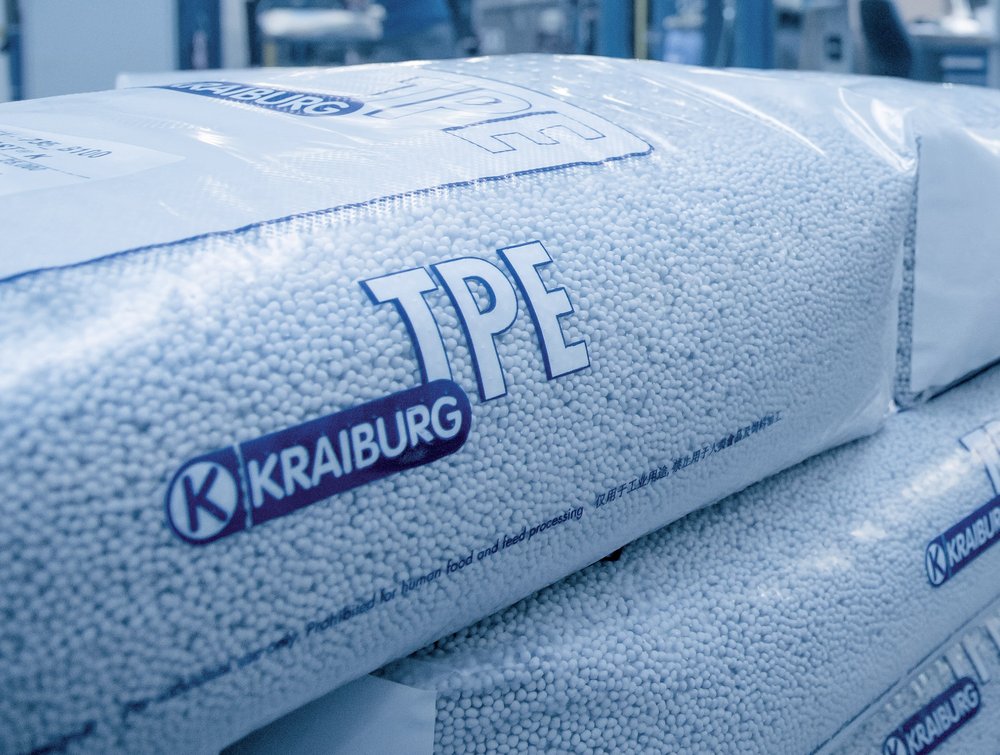

In one line, TPE is a rubber you can melt. Its stretch comes from physical links that soften when it is heated and re-form as it cools, so a finished part can be melted down and moulded again like a plastic, keeping a rubber’s give the whole time. As one reference puts it, the difference between a thermoset rubber and a thermoplastic elastomer comes down to the type of crosslink. That is why a TPE grip can start as a bag of pellets, get injection-moulded in seconds, and be ground up and run through the machine again at the end of its life.

Six branches under one name

The thing that trips people up is that TPE isn’t one material. There are six main branches, and they share the melt-and-remould trick and little else. The one on the bulk of soft-touch gadgets is the styrenic sort, TPE-S, usually built on SEBS and sold under names like Kraton. It’s the cheap, soft, grippy grade, the toothbrush handle and the phone case. The sticky problem described further down lives in this branch. Thermoplastic polyurethane, TPU, is the hard-wearing branch, abrasion- and oil-resistant, the grade in phone-case bumpers, caster wheels, and charging cables that survive being trodden on. Thermoplastic vulcanizate, TPV, sold as Santoprene, handles heat and weather well enough to seal a car door for twenty years. Polyolefin, copolyester (Hytrel) and polyamide fill out the rest, in bumpers, shoe soles and technical gear. The table below lays them out side by side.

Why it went everywhere

TPE spread because it’s fast and cheap to shape. A part is injection-moulded, molten in, chilled, popped out in seconds, hundreds an hour off a single tool, with nothing waiting to cure in the middle. The real payoff is overmoulding. A hard plastic core is moulded first, a drill’s body or a torch handle, then molten TPE is shot straight over the grip areas in a second pass, bonding to the plastic as it cools with no glue. One part comes out rigid in the core and soft under the fingers. That two-shot process is the reason a soft handle went from a feature you paid extra for to a default that costs the maker almost nothing to add.

Reversibility pays a second time. The sprues, runners and reject parts get chipped up on the spot and fed back into the machine. Inside a factory that’s genuine closed-loop recycling, whatever happens to the finished part later at the kerb. Colour goes in as a pellet too, so a run can jump from black to teal between batches with no repaint. That is why so much of the soft world went over to TPE inside forty years.

The two weaknesses

The famous one is the sticky problem. Cheap styrenic grades get their pleasant squish from oils blended into the polymer, and over the years, faster in heat, that oil migrates to the surface. The part turns tacky, then sticky, then grabs lint and leaves a greasy shine. Plasticizer migration is the proper name, and there’s no real fix once it starts, since the oil keeps arriving from inside. Wiping with alcohol buys a few months at best. TPU and TPV barely do it, since their softness comes from the polymer itself, with no blended oil to migrate. That makes the grade the single thing to check on anything you plan to handle for years.

The other limit is heat. The ceiling sits lower than people expect. The soft styrenic grades start losing their shape around 70 to 90 Celsius, so a hot summer dashboard is already close to the edge. TPU, Santoprene and the copolyesters hold higher. None of them reach oven heat. In practice that means no dishwasher for a TPE-handled tool.

Where you meet it

Once you know the feel, TPE is hard to unsee. Grips on tools, toothbrushes and razors. Soft-touch coatings on a mouse, a stapler, a set of headphones. Watch straps, phone cases, shoe soles, cable sheaths, suction cups, the anti-slip feet under a keyboard, the sealing gasket in a travel mug. It runs quiet jobs in the car, the door weatherstrip and the gearstick boot and the soft trim on the dash, and in cleaner grades it turns up in medical gear like IV tubing and syringe plungers, and in a large share of the toys on a shelf. The name almost never appears on the product itself.

Against skin, and companion dolls

The hardest thing TPE gets asked to do against skin is to pass for skin itself. Companion dolls are the headline case. TPE is the material behind the affordable end of that market, the reason a life-size doll can be had for a few hundred. It moulds soft and skin-like and takes a paint job well. The familiar TPE weaknesses run louder here. A porous, oil-softened body takes up dye from dark clothing, picks up stains from a stray receipt, and wants a dusting of cornstarch to keep the surface from tacking. Oil bleed happens on this scale too, slowly, across years. Cleaning has to reach into the pores without roughing up the skin. It’s a real maintenance load, better learned about up front.

For a first doll, a tight budget, or where light weight matters, TPE does the job and keeps doing it for years with a bit of care, and it rewards buying at the name-brand end, where a better grade with less free oil in it goes into the mould. The trade shows up over the long, hot, hard-wearing haul. Anyone who wants a doll still looking untouched a decade on should weigh the material first and the sticker price second.

The short of it

TPE is rubber’s stretch with a plastic’s manufacturing, and it turns up on nearly everything soft you touch. The only way to get burned by it is to buy the cheapest grade for something you meant to keep.
