Compressed Air for 3D Printing and Additive Manufacturing

Compressed air’s role on metal printers is marginal. Chamber door cylinders, powder hopper switching, recoater blade reset, these pneumatic elements total air consumption is very limited. EOS M290 installation manual requirement for compressed air is 0.6 MPa, dew point +3°C, filtration precision 40μm, standard industrial level configuration, refrigerated dryer plus ordinary filter achieves it.

Powder conveying systems have much higher air quality requirements. Pneumatic conveying lines may be dozens of meters long, moisture and oil contamination in between will affect entire batch of powder flowability. Titanium powder getting damp clumps in the hopper, spreads with grooves when recoating, printed parts will have surface defects. SLM Solutions’ PSV powder supply system requires conveying gas source dew point -40°C, residual oil 0.01 mg/m³, this level needs adsorption dryer with multi-stage filtration to achieve.

Binder jetting process dependence on compressed air depends on printhead type. Thermal and piezoelectric heads use internal mechanism to drive droplets, don’t need external gas source. Pneumatic atomizing heads mix compressed air with binder to form atomized jet, sensitive to supply air quality. ExOne S-Max installation documentation requires 0.6 MPa, dew point -20°C, filtered to 0.01μm, similar to electronics factory clean air requirements.

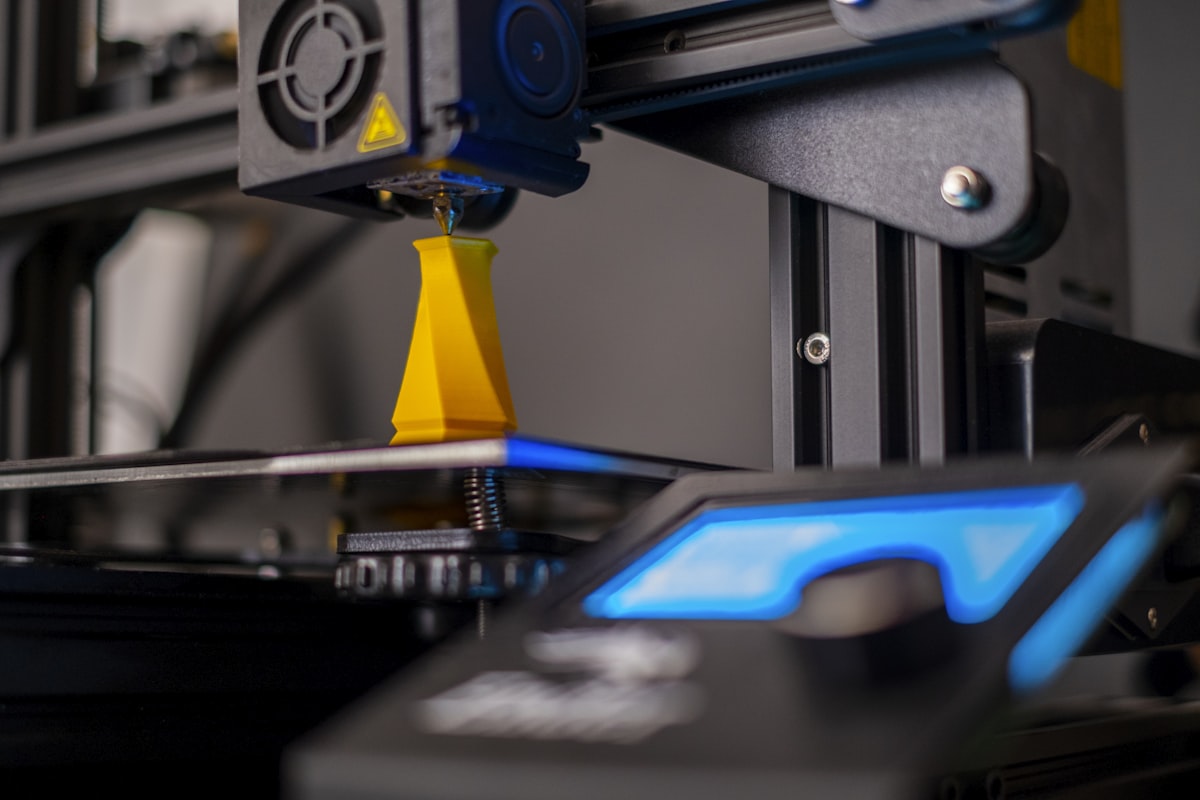

FDM printers have simplest compressed air needs. Industrial equipment marked interface parameters are typically 0.5-0.7 MPa, flow of tens of liters per minute, for local cooling control during high-temp material printing. Desktop machines’ built-in small fans are enough for regular materials, don’t need external gas source at all.

Post-processing stage compressed air consumption is often underestimated. Metal print depowdering is a time-consuming laborious process. Surface adhered powder handled with blow gun is still simple, powder inside internal channels and lattice structures is the trouble. Aerospace parts often have complex internal cavity designs, cooling channels twist and turn, powder stuck deep inside simply won’t blow out. Sometimes parts go on vibration table to vibrate and blow simultaneously, sometimes fluidized bed treatment.

Depowdering process compressed air consumption depends on part complexity and batch size. Simple parts done in minutes, complex parts might need continuous blowing for tens of minutes or longer. Blow gun pressure typically 0.4-0.6 MPa, flow isn’t large but duration is long, accumulated air volume is quite considerable.

Sandblasting is almost standard in metal additive manufacturing post-processing. Printed parts original surface roughness Ra is around 10-20μm, after sandblasting can drop to Ra 3-6μm. Surface quality improved before subsequent machining or coating can proceed. AM bead blasting takes smaller nozzles at 150 to 250 CFM. Sandblasting pressure selected based on material and media, glass bead blasting pressure lower for gentler effect, aluminum oxide pressure higher for better removal efficiency. Titanium alloy parts use ceramic or stainless steel shot, avoid iron media contaminating the surface.

Air quality tiered configuration is a reasonable approach. Use points directly involved in forming process get high standards, like powder conveying system dew point -40°C, residual oil 0.01 mg/m³. Ordinary pneumatic elements use standard industrial compressed air.

Planning additive manufacturing shop compressed air systems, post-processing area needs often account for more than half of the entire line. Production ramp-up phase post-processing equipment utilization rises, if compressed air system didn’t leave enough margin, supply pressure drop problems will appear.

Single equipment or small scale production can use standalone small compressor. Oil-free scroll or small screw machine with refrigerated dryer and receiver, place next to equipment, connect and ready to use. When production scale goes up, connecting to centralized supply makes more sense. Metal printing equipment single build might run for several days, air supply interruption causes build defects, possibly whole batch scrapped.
