Acute Myocardial Infarction Wall Motion Abnormality Handheld POCUS

A wall-motion abnormality is a patch of heart muscle that stops moving the way it should, the mark of a blocked artery behind it. A handheld scan reads the walls of the left ventricle at the bedside and finds the segment that fails to thicken. A clinician maps that still segment to the artery that feeds it. The read turns chest pain into a finding a clinician can act on in minutes.

What a wall-motion abnormality is

The heart wall is muscle that thickens and drives inward with each beat. A clinician reads a healthy wall squeeze the cavity down in step all around. A blocked coronary artery cuts the blood to the muscle it feeds. The starved muscle stops working within seconds of the block. A clinician reads that patch of wall fall still. The rest of the heart beats on around it. The still patch is a wall-motion abnormality, the heart attack made visible. A clinician finds it on the moving picture at the bedside, where the eye picks the lagging segment out of the beating wall. A clinician reads the still segment among the brisk walls around it. The contrast on the moving picture draws the eye to the fault. A clinician marks the segment that falls out of step with the beat.

The block starts a clock on the muscle. A clinician reads the wall stop within seconds of the artery closing. The muscle can come back if the blood returns fast. A muscle left starved too long dies and turns to scar. A clinician reads the still wall as a call to open the artery without delay. The sooner the blood returns, the more muscle a clinician saves. The wall is the heart attack a clinician can watch live on the screen. A clinician moves on the still wall the way the minutes demand. A clinician reads the size of the still patch as the size of the muscle at stake. A large still patch marks a large artery shut high up. A clinician treats a big fresh fault as a race against the clock.

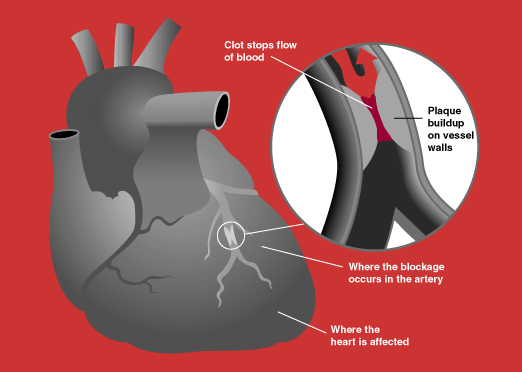

A blocked artery is the common cause of a fresh wall-motion abnormality. A clot on a cracked plaque shuts the artery in a heart attack. A clinician reads the still wall as the sign of that block in a patient with chest pain. An old scar from a past attack leaves a thin, still wall too. A clinician reads the history beside the wall to tell a fresh block from an old scar. The look of the wall and the story together point to the cause. A clinician reads the thickness of the still wall as a clue to its age. A fresh stun keeps the wall at its normal thickness. A clinician reads a thinned, bright segment as muscle long turned to scar. The wall wears its history in its thickness.

A wall-motion abnormality reads as a regional fault, a patch of trouble in a working wall. A clinician reads a single segment fall behind its beating neighbours. The regional pattern points to one blocked artery behind it. A whole heart weak all over points away from a single block, toward a failing pump or a poison. A clinician sorts the regional fault from the global one by where the weakness sits. The pattern of the weak wall names the trouble. A clinician reads the place of the fault as the first clue to its cause. A fault that follows one artery’s territory reads as the fingerprint of a coronary block. A scattered, patchy weakness points to another cause. A clinician reads the shape of the trouble before naming it.

Thickening and inward motion

A clinician reads two things in a moving wall: how far it travels in and how much it thickens. A healthy segment drives toward the centre and fattens as it squeezes. A clinician watches the inner edge of the wall move in with each beat. The thickening is the surer sign, since a segment can be pulled along by its neighbours and do no work of its own. A clinician reads the thickening to catch a wall pulled in by others, a wall doing no work itself. The fattening of the muscle marks the work it does. A scarred wall fails to fatten at all. A stunned wall thickens only a little. The thickening sorts working muscle from still.

A clinician reads the wall in more than one view to be sure of a fault. A segment can look still from a poor angle. A clinician confirms it from a better window before calling it. A clinician sweeps the long axis, the short axis, and the apical views for every segment. The short axis at three levels reads a ring of wall at the base, the middle, and the apex. A clinician covers the whole left ventricle from these few windows. The full sweep keeps a still segment from going unread on a busy night. A clinician sets the depth and the gain for a clean edge on every wall. A clear inner border lets the eye read the inward move. A clinician zooms the ventricle to fill the screen for the apex.

Grading the motion

A clinician grades each segment by how well it moves and thickens. The grade runs on a short scale from a normal wall to a wall that bulges the wrong way. A clinician reads where each segment falls on that scale. A clinician gives each segment a score and sums them for the whole ventricle. The table below sets out the grades and the score for each.

A clinician scores the wall segment by segment around the ventricle, from the base ring down to the apex. A clinician gives each segment a mark for how it moves and thickens. A clinician sums the marks across all the segments for a single index of the damage. A higher sum marks more wall in trouble. A clinician tracks the index over the days and the visits, plotting it from the dated scans. The index turns a read of the walls into a figure a clinician can follow. A clinician reads each segment in turn, since one blocked artery hits its own patch and leaves the rest. A clinician covers every segment so a small fault does not slip the read. A clinician reads the index against the last one to see the heart settle or slide. A score that falls after the artery opens marks muscle saved. A clinician reads the apex and the front wall hardest, since the largest artery feeds them. A weak front wall and apex point to a block in that big vessel. A clinician sets the grade beside the patient’s story and the tracing for the whole picture. The grade of the wall guides the urgency of the care. The wider the patch of trouble, the more the heart has lost. A clinician reads the index as a single number for the size of the attack. A clinician compares today’s index with the last to read the trend. The figure carries the wall read into the chart. A clinician reads a rising index after the artery opens as muscle waking up. A clinician reads a steady high index as muscle lost for good. The number follows the heart through the days.

A clinician reads the grade against the time of the pain. A fresh block leaves a still wall of normal thickness that can recover with fast reopening. A clinician reads a thin, bright wall as an old scar that stays. The thickness tells a fresh stun from an old scar. A clinician sets the wall beside the story to place the attack in time. A clinician reads a wall of normal thickness that fails to move as a fresh event. A thinned, bright wall points to an attack of long standing. A clinician reads the thickness into the timing of the care.

A clinician scores a segment with care to avoid an overcall. A foreshortened view can make a sound apex read as still. A clinician opens the apex fully before reading it. A poor window can hide a fault or fake one. A clinician confirms a segment on more than one view. The score rests on a clean read of a clear wall. A clinician reads the wall at a steady frame rate for a true motion. A dropped frame can fake a lag. A clinician keeps the loop clean before scoring the wall.

A clinician reads the grade as a guide to the artery and the danger. A wide patch of dead wall marks a large attack and a heart at higher risk. The grade and the spread together set the urgency of the care. A clinician carries the read of the walls straight into the call to open the artery. The score names how much muscle hangs on the next minutes. A clinician reads the spread of the still wall as the muscle at stake. A wider patch marks a larger attack. A clinician carries the spread into the call for the lab.

The segments and the arteries

A clinician reads the left ventricle as a set of named segments. The wall divides into the front, the side, the back, and the septum, each at the base, the middle, and the apex. A clinician names a fault by its segment for a clear record. The AHA seventeen-segment model sets out the segments and the way to map them. A clinician reads to that shared model so a colleague reads the same wall the same way. A clinician numbers the segments around the ring and down to the apex. The model gives each segment a name and a place. A clinician writes a fault by its named segment in the report.

Each artery feeds its own territory of wall. A clinician learns which segments belong to which vessel. The big front artery carries blood to the front wall, the septum, and the apex, the largest territory of the three. The right artery supplies the back wall and the lower septum. The side wall draws its blood from the side artery. A clinician maps a still segment to the vessel behind it and names the likely block. A clinician reads a fault that crosses two territories as a sign of more than one diseased vessel. The map of the walls reads the map of the arteries. A clinician carries that map to the team that opens the block.

A clinician reads the pattern of the still segments to place the block. A still front wall and apex point to the big front artery. The pattern names the vessel and the size of the attack together. A clinician carries the named territory to the catheter team for the block they head for. The read points the team at the artery before the picture from the catheter confirms it. A clinician names the territory in the call to the lab. The team heads for the vessel the walls point to. A clinician saves the team the time of a blind hunt.

Reading it in chest pain

A clinician reaches for the handheld in a patient with chest pain. The scan reads the walls in minutes at the bedside. A still segment in a patient with pain points to a heart attack in progress. A clinician reads the wall the moment the patient grips the chest. The wall can show the attack before the blood markers rise. A clinician acts on what the screen shows from the first minutes. A clinician reads the wall while the blood markers are still climbing. The wall shows the attack early, where the first tracing can read clean. A clinician treats the still wall as the early sign it is.

A clinician reads the wall beside the tracing and the story. A still wall with chest pain and a changed tracing builds a clear case. A clinician reads the wall to settle a tracing that does not tell the whole story. The handheld reads the muscle a tracing can miss in some hearts. A clinician finds the still wall the tracing hides behind a paced rhythm or a bundle block. A clinician turns to the wall when the tracing cannot speak for the heart. The muscle shows the attack the tracing buries. A clinician reads the wall as the second witness to the block.

A clinician acts on a clear still wall without a wait. The finding moves the patient toward the catheter lab to open the artery. A clinician reads the wall to sort a chest pain the first tests leave open. The still wall settles many of those cases fast. The bedside read saves the minutes that save muscle. A clinician reads a still wall in a patient whose tracing leaves the call open. The wall settles the doubt and points the way. A clinician moves the patient on the finding without a second scan.

A clinician reads a normal set of walls as a reason to look past the heart for the pain. A sound, moving wall in low-risk chest pain points away from a large attack. A clinician keeps the wall read as one part of the workup. The whole picture calls the risk, beyond the wall alone. A clinician weighs the wall with the tracing, the markers, and the story together. A clinician reads a normal wall as one reassuring piece of the workup. The whole picture calls the patient safe, with the wall as one part of it. A clinician holds the wall in its place among the tests.

Stunned, hibernating, and dead muscle

A still wall does not always mean dead muscle. A clinician reads a stunned wall as living muscle that fails to move for a time after a reopened artery. A hibernating wall holds living muscle starved over the long run. Both of these come back once the blood returns. A clinician watches a still wall over the days to tell the living muscle from the scar.

Complications of a dead wall

A dead wall opens the heart to its own troubles over the days after an attack. A clinician reads the thinned, scarred segment for the problems it breeds. The wall can bulge into an aneurysm, balloon out, or split open. A clinician reads each on the moving picture at the bedside. The handheld catches the trouble early, where it changes the care. A clinician reads the days after an attack as the window for these troubles. A clinician scans the scarred wall at each visit for a new sign. The handheld follows the heart through the risky days.

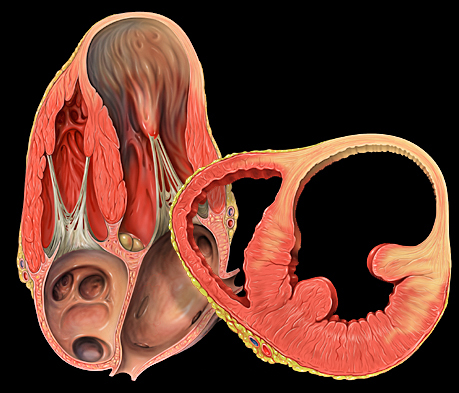

A clinician reads an aneurysm as a thin segment that bulges out and holds its shape each beat. The apex is the usual seat of an aneurysm, where the largest artery feeds. A clinician scans the bulge for a clot that can sit in its still blood. A clot in the bulge can throw a piece to the brain. A clinician reads the aneurysm and the clot together for the risk they carry. A clinician reads the still blood inside a bulge as a place a clot forms. A clinician scans the apex closely for a clot stuck to the dead wall. The handheld catches the clot a clinician must treat.

A clinician reads a sudden crash after an attack for a tear in the heart. A torn wall, a torn muscle, or a hole in the septum each drops the patient fast. A clinician scans the colour for a new leak and the sac for fresh blood. A fresh effusion in a crashing patient after an attack points to a rupture. A clinician moves the patient to surgery on that finding without a wait. A clinician reads a new murmur after an attack as a torn part until shown otherwise. The colour shows the leak the tear opens. A clinician calls the surgeon on the finding.

Following the wall and the recovery

A clinician follows the wall from the crisis into the recovery. A clinician reads the wall again after the artery opens. A wall that wakes and moves marks muscle saved in time. A clinician follows the return over the hours and the days. The recovered wall tells of a good reopening. A clinician reads a wall still down at the follow-up as muscle lost to scar. A clinician marks which segments woke and which stayed still. The pattern names the muscle saved.

A clinician reads the pump’s overall strength at each visit after an attack. A weak pump after a large attack needs close care and the drugs that unload it. A clinician follows the ejection fraction over the months. A heart that recovers its squeeze marks muscle that came back. A clinician reads a falling pump as a heart that needs more care. A clinician reads a large weak area as a heart that needs close follow-up. A clinician sets the drugs and the rehab to the strength the heart keeps. The pump’s recovery guides the road back.

A clinician reads the wall over the weeks to sort the stunned from the scar. A clinician tracks which segments come back over time. A scarred segment stays still through the follow-up. A clinician reads the pattern of recovery for the drugs and the rehab. The walls that wake guide the road back.

A clinician records the wall the way any study is recorded. The note names the segments at fault and the grade of each. A clinician saves a loop of the beating heart for the next reader. A clinician marks the artery the pattern points to. The record lets the next clinician read the change over time. A clinician dates each study to plot the wall’s return over the weeks. A wall that wakes across the scans marks a good recovery. A clinician reads the trend for the muscle that came back.

A wall-motion abnormality is a finding a handheld catches fast at the bedside. A clinician reads the still segment, grades it, and maps it to the artery in one short scan. A fresh still wall in chest pain calls for the catheter lab without delay. A clinician carries the read straight into the plan to open the artery and save the muscle.

Common questions about wall-motion abnormality on POCUS

What is a wall-motion abnormality on ultrasound?

A wall-motion abnormality is a patch of heart muscle that fails to thicken and move inward the way it should. A clinician reads it on the moving picture as a segment that lags or stays still. A blocked coronary artery behind it is the common cause. A clinician maps the still segment to the artery that feeds it.

How does a clinician grade wall motion?

A clinician grades each segment by how it moves and thickens, from a normal wall to one that bulges outward. A normal segment scores one, a hypokinetic two, an akinetic three, and a dyskinetic four. A clinician sums the scores for an index of the damage. The grade guides the urgency of the care.

Which artery does a wall-motion abnormality point to?

The pattern of the still segments names the artery. A still front wall, septum, and apex point to the big front artery. A still back wall points to the right artery. A still side wall points to the side artery. A clinician carries the named territory to the catheter team.

Can a handheld find a heart attack?

A handheld reads the walls of the heart and finds the segment a blocked artery has stilled. A clinician reads the still wall in a patient with chest pain as a heart attack in progress. The wall can show the attack before the blood markers rise. A clinician carries the finding to the catheter lab.

Does a still wall always mean dead muscle?

No. A stunned wall is living muscle that fails to move for a time after a reopened artery. A hibernating wall is living muscle starved over the long run. Both come back once the blood returns. A clinician watches a still wall over the days to tell the living muscle from the scar.
