How to Install a Forklift Battery

Battery installation gets treated as grunt work at most warehouses. Technically it falls under maintenance, but the actual task usually lands on whoever happens to be available: forklift operators, dock workers, sometimes the new hire who hasn't learned to disappear when the battery alarm goes off. Ten minutes of watching someone else do it, and suddenly that person is responsible for swapping 2,200 pounds of lead-acid cells in and out of equipment that costs more than most cars.

The predictable outcome: batteries dying at 800 cycles when the data sheet says 1,500. Trucks developing electrical problems that nobody connects to a battery change six months prior. The occasional tip-over that gets blamed on the operator.

Crown, Hawker, East Penn, Enersys: these manufacturers publish installation specifications covering everything from connector torque values to ventilation clearances. Those documents exist in filing cabinets, unread. OSHA 29 CFR 1910.178(g) fills several pages with battery handling requirements. The average warehouse technician has never heard of it.

The Spec Sheet Trap

Purchasing decisions happen in offices, far from the equipment. A requisition comes through: 48V, 750Ah, dimensions that fit the compartment. The numbers match what's printed on the old battery. Price looks reasonable. Order placed.

What the spec sheet doesn't mention: voltage behavior under load varies wildly between manufacturers. A Hawker battery and an Enersys unit can both claim 48V 750Ah while performing completely differently when a truck demands 350 amps for a heavy lift. One might sag to 43 volts. The other holds at 46. Three volts.

That gap matters because the truck's motor controller was calibrated against a particular voltage curve, probably the one from whatever battery the dealer installed originally. Drop in a battery with a steeper discharge curve and the controller starts compensating in ways it wasn't designed for. Protection circuits trip at unexpected moments. Regen braking feels different. Operators notice something's off but can't articulate what. Maintenance chases electrical gremlins for months without ever suspecting the battery swap.

A Toyota dealership in the midwest tracked this across a fleet of 8FGCU25 trucks. Customer had been running Crown batteries for years, switched suppliers, and within eight months had three trucks with fried motor controllers. The replacement batteries met every published spec. The spec sheets just didn't include discharge curve data.

Amp-Hour Ratings and Reality

The amp-hour number on a battery label assumes a six-hour discharge rate. A 750Ah battery delivers that capacity when discharged at 125 amps steady over six hours. Forklift operation looks nothing like that. Real duty cycles involve repeated spikes: 300 to 400 amps during acceleration, similar spikes during lifting, low draw during travel. Pulsed discharge stresses cells differently than steady discharge. The Peukert relationship describes the phenomenon mathematically, but the practical result is simpler: real-world runtime falls 15 to 25 percent short of what the catalog math predicts.

Depth of discharge adds another layer. Manufacturers and OSHA both specify 20 percent as the minimum state of charge, meaning 80 percent depth of discharge maximum. Production pressure pushes operators past that limit. Running routinely to 10 or 15 percent state of charge accelerates plate sulfation. A battery rated for 1,500 cycles under proper use might only reach 1,000 cycles under abuse. The maintenance budget absorbs early replacement costs without anyone tracking the connection to operational practices.

Cold Storage Complications

Cold storage makes everything worse, but most facilities figure that out the hard way. Lead-acid chemistry loses voltage in cold conditions, roughly half a percent for every ten degrees Fahrenheit below 77°F. A battery holding 46 volts at room temperature might only hold 43 volts in a freezer at -10°F. The controller calibrated for room temperature behavior sees voltage it interprets as a weak or failing battery. Protection modes kick in. Fault codes appear. The maintenance team looks for frozen components or loose connections while the actual problem sits in the mismatch between battery behavior and controller expectations.

Trucks moving between dock and freezer multiple times per shift experience thermal cycling that adds another stress factor. Battery temperature never stabilizes. Voltage behavior shifts constantly. Controllers designed for steady-state operation struggle with the variability.

Weight as Counterbalance

This part gets ignored constantly, which is strange because it's printed right on the truck.

Every forklift has a data plate, usually stamped into the frame near the operator compartment, listing minimum and maximum battery weight. Those aren't suggestions. They're stability calculations. The battery isn't just a power source; it's the counterweight that keeps the truck from tipping forward when the forks are loaded.

A Clark C25 specifies minimum 1,950 pounds. A Hyster H50FT might specify 2,100 pounds minimum. Install an underweight battery because it was cheaper or arrived faster, and lifting capacity drops. Not dramatically. Not enough that anyone notices during normal operation. The margin shrinks invisibly until the day an operator takes a turn slightly too fast with a load at full extension, or hits a floor irregularity at the wrong moment, or shifts a palletized load that wasn't stacked evenly.

OSHA incident reports occasionally mention battery weight as a contributing factor in tip-overs, though it rarely makes the summary. The operator gets blamed. The maintenance records showing a spec-violating battery swap six months earlier sit in a filing cabinet.

Lithium conversions amplify this problem tenfold. An 1,100-pound lithium pack replacing a 2,200-pound lead-acid unit leaves half the counterweight missing. The sales pitch mentions adding ballast. It doesn't mention that ballast placement matters as much as ballast weight: a thousand pounds bolted to the compartment floor in the wrong spot doesn't replicate the mass distribution of a lead-acid battery that filled the entire cavity. The engineering calculations that would determine proper ballast configuration rarely happen. Someone welds in some steel plate, calls it done, and hopes for the best.

The proper approach involves calculating the weight differential, determining ballast placement to match the original center of gravity as closely as possible, and documenting the configuration for future service personnel who will otherwise have no idea why steel plate occupies space in the battery compartment. Most lithium conversions skip all of this.

Disconnection Sequence and Why It Exists

Negative terminal first. Always. This isn't tradition or preference.

The truck chassis connects to battery negative, creating a ground path through the frame. With the negative cable still attached, any accidental contact between the positive terminal and the chassis completes a circuit. A wrench slips, touches the compartment wall, and current flows. Arc flash. Blown fuses. In one documented case, a wedding ring that welded itself to the terminal and had to be cut off along with part of the finger wearing it.

Disconnect negative first and that accident becomes impossible. No return path to the battery means no current flow, regardless of what the positive terminal contacts.

OSHA 29 CFR 1910.178(g)(5) addresses this indirectly through requirements about battery restraint systems, but the actual disconnection sequence appears in manufacturer documentation that most technicians have never seen. The regulation exists. The training doesn't.

Reconnection reverses the sequence: positive first, then negative, for the same reason.

Connector Destruction

Anderson SB connectors (the SB175 and SB350 variants that dominate the industry) can handle thousands of mating cycles. The failure mode isn't the connector wearing out from normal use. The failure mode is technicians grabbing cables instead of connector housings.

Yanking a cable transfers mechanical stress to the internal crimp where wire meets terminal. That crimp fatigues with repeated abuse. Resistance at the fatigue point increases. Increased resistance generates heat. Heat accelerates degradation. The process takes months, sometimes longer, and the eventual failure (intermittent connection, then no connection) never gets traced back to handling technique.

Facilities running three shifts might do thirty battery swaps per day. Thirty opportunities to damage connectors slightly. After a year of that, connector replacement becomes a recurring maintenance item and nobody understands why. The replacement connectors fail at the same rate because nobody changed the handling technique.

Visual inspection while the connector is apart catches problems before they strand a truck mid-shift. Pitting on the contacts indicates arcing, usually from connecting or disconnecting under load. Corrosion means acid contamination got somewhere it shouldn't. Melted plastic around the pins means the connection has been running hot, probably from the resistance buildup described above. Discoloration that looks like heat damage is heat damage.

Replacement connectors cost around $80. The troubleshooting time for an intermittent connection failure costs considerably more.

The Lifting Part

OSHA 29 CFR 1910.178(g)(4) makes mechanical lifting equipment mandatory, not optional. The regulation doesn't care about battery weight or facility resources. Battery trays have lifting eyes for a reason; rigging to anything else (tray rails, intercell connectors, creative attachment points) creates liability that no production deadline justifies.

Two-inch initial lift, full stop, visual check. Hooks seated in eyes? Load balanced? Cables clear of compartment edges? That pause exists because a snagged cable noticed at two inches is an annoyance. A snagged cable noticed at six feet, when it tears a terminal off the cell and sprays acid across the compartment, is a recordable incident and a ruined battery.

Horizontal transport turns the battery into a pendulum. Personnel walking alongside a suspended load (standard practice at facilities that haven't had an incident yet) stand directly in the swing path. The physics don't care about production pressure or how many times nothing bad has happened before.

Lowering speed matters more than people think. Battery trays contacting support surfaces should make even contact across the full footprint. Debris underneath (a dropped bolt, accumulated grime, a piece of broken pallet) creates point loading that can crack the compartment floor or deform tray rails. A flashlight check takes ten seconds.

Compartment Inspection

The window between removing the old battery and installing the new one lasts maybe five minutes before someone starts asking why the truck isn't back in service. That window provides access to components that stay hidden the rest of the time.

White crystalline residue on compartment surfaces means acid spillage. Either chronic overfilling during watering or boil-over during charging. The pattern indicates which: concentrated near cell vents suggests charging problems, spread across the floor suggests handling problems. Either way, the conditions that damaged the previous battery will damage the replacement unless someone addresses them. Neutralizing with baking soda solution before it corrodes structural members takes less time than explaining why a battery compartment rusted through.

Cable inspection matters more than it gets credit for. Heat damage makes insulation brittle. The brittleness might not be visible: running a hand along the cable length catches texture changes that visual inspection misses. Soft spots indicate internal damage where individual conductor strands have broken and the remaining strands are carrying more current than they should. A cable replaced during installation costs far less than the emergency response when that cable fails during operation.

Ventilation passages accumulate debris gradually. Dust, insects, cardboard fragments, shrink wrap. OSHA 29 CFR 1910.178(g)(2) addresses ventilation requirements for battery charging areas. Blocked passages restrict hydrogen dilution during charging. The failure mode isn't gradual degradation: it's a sudden event if hydrogen concentration reaches ignition threshold. Clearing debris takes seconds. Hydrogen explosions have destroyed entire warehouses.

Installing the New Battery

Terminal orientation determines cable routing. The battery has to seat with terminals positioned to reach connection points without strain. Installing with terminals facing the wrong direction means pulling it back out and repositioning: more lifting operations, more time, more wear on equipment.

Restraint hardware follows whatever the manufacturer specified. OSHA 29 CFR 1910.178(g)(5) mandates restraint systems matching original equipment design. J-bolts, hold-down brackets, strap restraints: whatever the truck came with. Torque specs exist for the fasteners. Over-torquing cracks battery cases or strips threads. Under-torquing allows movement that wears cable insulation against compartment edges.

Connection sequence reverses disconnection: positive terminal first, then negative. With positive connected and negative still off, accidental tool contact with the chassis can't complete a circuit.

Verification That Almost Nobody Does

Battery seated, cables connected, restraints torqued. Most facilities call it done at this point. Those facilities also spend more time troubleshooting electrical problems than facilities that take verification seriously.

Multimeter check: voltage at battery terminals, at both connector halves, at the main contactor input. Numbers should match. A half-volt drop between any two measurement points indicates resistance: corroded contacts, damaged conductors, faulty crimps. That resistance dissipates as heat. A half-volt drop at 200 amps means 100 watts heating a connection that wasn't designed to be a heating element. The degradation accelerates until failure.

The complete verification sequence takes five to seven minutes. The troubleshooting it prevents takes hours.

Chemistry Variations

Flooded lead-acid still dominates motive power installations.

Flooded Lead-Acid Handling

Flooded cells contain liquid electrolyte that sloshes during handling. Keeping the battery close to level (within fifteen degrees of horizontal) prevents acid escape through vents. Lost electrolyte cannot be replaced. The damage is permanent. Concentration of the remaining electrolyte changes. Exposed plate surfaces sulfate. A battery tilted too far during one careless lift might lose enough acid to compromise a cell or two, and that damage shows up as premature capacity loss months later.

Cell caps should be in place and properly seated before any handling. Missing caps allow spillage that creates maintenance problems beyond the battery itself. Acid on the compartment floor corrodes structural members. Acid on charging equipment damages components. OSHA 29 CFR 1926.441(a)(3) addresses cap requirements in construction contexts, but the reasoning applies equally to warehouse operations.

Hydrogen evolution during charging creates explosion risk if ventilation is inadequate. OSHA 29 CFR 1910.178(g)(2) specifies ventilation requirements for battery charging areas. A newly installed battery shouldn't sit in the truck overnight waiting for charging: hydrogen evolves in an operating area that wasn't designed to handle it.

Sealed Lead-Acid

Sealed variants (AGM, gel, TPPL) eliminate watering maintenance by immobilizing the electrolyte. The tradeoff: no cell caps means no specific gravity checks, no water additions, no direct assessment of what's happening inside. Problems manifest as reduced runtime or charging failures, symptoms that don't obviously connect to causes. Pre-installation verification matters more because post-installation diagnostic options are limited.

Date codes should be checked before installation. A battery sitting in warehouse inventory for eighteen months may already have self-discharge damage. Sealed batteries have tighter charging voltage tolerances than flooded cells: verify charger compatibility before installation to prevent overcharge damage.

Lithium Iron Phosphate

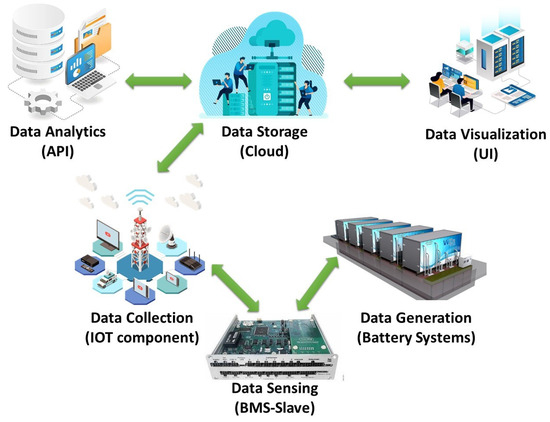

Lithium involves electronics that flooded lead-acid doesn't have. Battery management systems monitor cell voltage, temperature, and current flow. BMS configuration varies by manufacturer: some units self-configure when connected, others need software setup before first use. Installing without checking manufacturer documentation risks operating with parameters mismatched to the application.

Cold-environment lithium packs often include heating systems that draw current during idle periods to maintain cell temperature above minimum thresholds. Disconnecting one of these packs in a freezer warehouse over a long weekend allows cells to cool below safe charging limits. The damage from charging cold lithium cells (lithium plating on anodes) is permanent and invisible until capacity testing reveals it. The battery looks fine. It performs worse with each charge cycle. Nobody understands why until someone runs diagnostics that most facilities don't have equipment or training to perform.

Multi-Shift Operations

Everything changes when battery swaps happen constantly instead of occasionally. A single-shift facility might change a battery quarterly. A three-shift operation might change every truck every shift, potentially hundreds of swaps per week across a fleet.

The fundamental procedures don't change. The pressure does. Production measures swap time against targets. Three minutes versus five minutes, multiplied across 150 daily changes, equals meaningful cost and availability differences. That arithmetic pushes toward shortcuts: skipping verification, rushing lifts, deferring connector inspections. The time savings evaporate when skipped steps cause failures.

Facilities achieving both speed and quality invest differently. Purpose-built extraction equipment (operator-aboard battery extractors that cost $40,000 or more but reduce handling time and eliminate most manual lifting). Standardized procedures that remove guesswork and hesitation. Pre-staged battery pools at point of use that eliminate transport time. Trained personnel who understand what they're doing rather than just following motions. The capital cost pays back through reduced swap time and lower failure rates. Facilities trying to achieve speed without investment accumulate problems.

Rotation Tracking

Battery rotation tracking seems like administrative overhead until failure patterns emerge. Without rotation discipline, operators grab whichever battery sits nearest or looks most convenient. Some units accumulate cycles twice as fast as others. Over-cycled batteries age out early. Under-cycled batteries develop sulfation from sitting at partial charge states too long.

First-in-first-out rotation (using whatever finished charging first) distributes wear evenly across the pool. The battery that came off the charger first goes into the next truck that needs one, regardless of where it sits in the staging area.

A clipboard and numbered tags work for small pools. Colored tags indicating charge completion time. Manual logging of which battery went into which truck. The system works if people actually follow it, which depends on supervision and accountability.

Larger operations need electronic tracking to maintain discipline. Barcode scanning. RFID identification. Automated indicators showing which battery should be next. The systems cost money but remove human judgment from decisions that benefit from consistency.

Connector and Cable Failures

These failure modes appear often enough that they deserve attention during every installation.

Connector Degradation

Heat and resistance form a cycle that continues until something breaks. A connector with slight corrosion resists current flow. Resistance generates heat. Heat accelerates oxidation. More resistance, more heat, faster degradation. The cycle continues until the connector fails, usually during a shift, with no warning beyond gradually declining performance that operators attributed to normal battery aging or cold weather or whatever explanation seemed reasonable.

Inspection during every battery change (the only time connectors are accessible without special effort) interrupts this cycle before failure. Thirty seconds looking at contact surfaces catches degradation while replacement remains a minor maintenance item rather than an emergency repair that stops a truck mid-shift.

The corrosion comes from somewhere. Acid contamination from overfilled cells. Moisture intrusion from pressure washing equipment without protecting electrical connections. Outdoor storage in humid climates. Identifying the source matters as much as replacing the damaged connector: otherwise the replacement connector follows the same path.

Cable Termination Failures

Cable terminations fail invisibly. Crimp connections inside the cable assembly carry full battery current through mechanical contact between conductor strands and terminal fittings. The crimps fatigue from vibration and flexing during normal operation. Individual conductor strands fracture. Remaining strands carry increasing current density. Resistance rises at the fracture points. Heat builds.

Performance stays normal until enough strands fail that the connection can't handle operating current, then sudden failure, mid-shift, no warning. The truck stops moving. The battery reads full charge. Nobody suspects the cable until someone starts tracing the power path with a multimeter.

Tactile inspection along cable lengths catches localized warmth that indicates resistance heating. Terminal discoloration suggests chronic overtemperature. Suspect cables replaced during installation avoid field failures that are much more expensive to address.

Routing Damage

Routing through the compartment creates abrasion points where cables contact edges, brackets, or restraint hardware. Each installation cycle that tightens a bracket against a cable removes material from the insulation jacket. The damage accumulates invisibly. A hundred battery swaps, each one pressing that bracket against that cable slightly.

Eventually conductor contacts bracket. Ground fault if the cable is negative: parasitic drain, potential shock hazard. Dead short if positive: blown fuses at minimum, potential arc flash. Verifying cable routing clears mechanical contact points prevents damage accumulation that leads to these failures.

The problem compounds when replacement cables get routed differently than originals. A maintenance technician replacing a cable runs it wherever seems convenient without checking how the original was routed. The new routing passes through a pinch point that the original avoided. Six months later, another cable failure that nobody connects to the routing change.
