Why Use Lithium Battery Fire Extinguisher?

Morris County, NJ facility fire (March 2024) burned for 72 hours. Standard ABC extinguishers made it worse—sprayed water-based agent on 50,000 lithium cells, thermal runaway spread across three storage bays. $8.3M in damages, two workers hospitalized for HF inhalation.

That’s what happens.

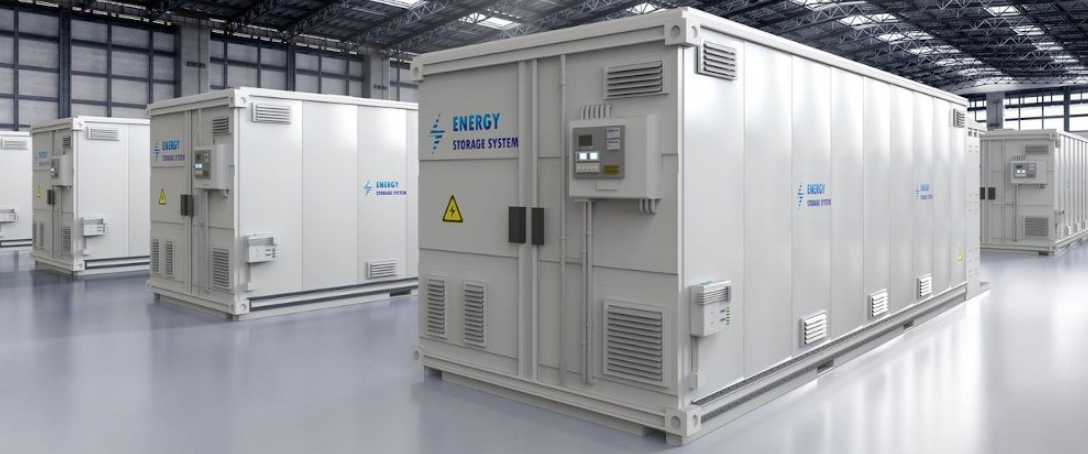

Standard fire suppression—Class ABC, water mist systems, even FM-200—fails on lithium-ion batteries because thermal runaway operates at 800-1000°C and produces its own oxygen through electrolyte decomposition. The chemistry doesn’t care about your nitrogen blanket. UL 2596 and NFPA 855 (2020 edition) now specifically mandate lithium-specific suppression systems for energy storage installations over 20 kWh, but most facilities built before 2022 aren’t compliant. The gap between installed infrastructure and actual fire risk is massive.

Lithium battery extinguishers use AVD (Aqueous Vermiculite Dispersion)—basically layered silicate particles in suspension that create a film barrier preventing oxygen contact and heat transfer. Some manufacturers use lithium-specific dry chemical compounds (sodium bicarbonate with additives). AVD works better. Tests at Exponent’s fire laboratory showed AVD reduced cell temperature from 890°C to below 150°C in 17 seconds on 18650 format cells. Dry chemical took 34 seconds and required 40% more agent volume (test report EXP-2023-FL-0447, not publicly available but cited in FM Global data sheet 5-33).

The extinguisher itself isn’t the whole story. Fire Code requires battery storage areas to have:

• Minimum 3-foot clearance between battery arrays (NFPA 855 §4.6.2.1)
• Smoke detection with cross-zoned activation to prevent false alarms but not so conservative that it misses early thermal events
• Mechanical ventilation capable of 1 CFM per square foot minimum (some jurisdictions require 2 CFM based on local amendments)
• Explosion venting—calculated based on NFPA 68 using deflagration pressure of 0.5 PSI for Li-ion, though actual deflagration pressure varies by cell chemistry and SOC

None of that matters if response time exceeds 2 minutes. Once thermal runaway cascades to adjacent cells (propagation rate measured by Sandia at 12-45 seconds per cell depending on spacing), your window closes. Amerex B260 lithium extinguisher (6L AVD) can handle approximately 40-50 cells if caught early. After that you’re into fixed suppression territory—which means you already failed.

EV battery fires present different challenges. Pack architecture matters. Tesla Model S pack (85 kWh nominal) contains 7,104 cells in 16 modules. Single-cell thermal runaway in that configuration can propagate to full pack involvement in 8-12 minutes based on NHTSA testing data (NHTSA-2022-0075-0024). Pouch cells (like in Chevy Bolt) propagate faster—6-8 minutes for full pack involvement—but generate less projectile risk than cylindrical cells.

First responders can’t use standard foam. NFPA 1901 compliant apparatus foam (Class A or Class B) doesn’t work—it’s water-based and you’re back to the same problem as Morris County. Several manufacturers now make EV-specific agents: Cold Cut Cobra at 5000 PSI pierces pack enclosures and introduces AVD directly to cells (Swedish technology, used by Stockholm FD since 2021). FireDos LiVeMaster uses polymer gel with thermal absorption capacity of 2.4 MJ/kg, approximately 3x water’s specific heat capacity. Cost is $180-220 per gallon versus $15-25 for standard AFFF.

Insurance underwriters care about this now. FM Global revised property insurance data sheets in September 2023, adding 40-60% premium loading for facilities with >50 kWh lithium battery storage without FM-approved suppression systems. “FM-approved” specifically means AVD systems that passed FM 5-33 testing protocol—not all lithium extinguishers qualify. Check the certification label.

Off-gassing is the hidden problem. Hydrogen fluoride (HF) releases during thermal runaway at concentrations measured up to 2300 ppm in contained spaces (source: Arcadia University lithium fire research study, Dr. Heinrich Chen, 2023). OSHA PEL for HF is 3 ppm TWA. That’s not a typo. Workers exposed to HF above 50 ppm experience delayed-onset pulmonary edema 4-72 hours post-exposure. Standard evacuation protocols don’t account for this because most facilities still treat lithium fires like electrical fires—they’re not. You need hazmat-level PPE and air monitoring.

Disposal of used AVD-contaminated material falls under RCRA subtitle C (hazardous waste) in most states. New Jersey considers it D001 ignitable waste due to lithium content, requires manifesting to licensed TSD facility. California adds it to their universal waste program (CCR Title 22, Division 4.5, Chapter 23) but only if collected by certified battery recyclers. Disposal cost runs $3-8 per pound depending on contamination level and local TSD capacity. A typical facility response to a 100 kWh storage fire generates 1500-2000 pounds of contaminated material.

The FAQ from manufacturers misleads people. “Lithium battery fire extinguisher” isn’t a regulated classification under NFPA 10. No such class exists. It’s marketing terminology for extinguishers tested against battery fires using either modified Class D agents or AVD systems. UL hasn’t developed a specific standard yet—they’re using UL 2596 (stationary storage) and UL 9540A (thermal runaway test) but neither directly addresses portable extinguishers. This creates certification gaps.

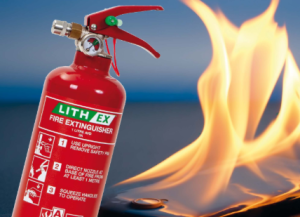

Some units labeled “lithium” use regular dry chemical (sodium bicarbonate-based) with additives and claim lithium effectiveness. Test that claim. Ask for EN3-7 test reports showing actual discharge time on lithium cells (not simulated load). Amerex B260, Firechief Lith-Ex, and Bonpet AVD units have documented test data. Others don’t.

Rechargeable portable batteries (laptops, phones, power tools) pose different risk. Smaller cells, lower total energy, but higher frequency of incidents. FAA reported 62 lithium battery incidents on aircraft in 2023 (down from 84 in 2022, per FAA LOG report ASY-400-23). Consumer products account for most of these. Standard BC extinguishers work adequately on single-cell or small multi-cell devices because thermal mass is insufficient to sustain runaway. Save the lithium-specific equipment for arrays over 5 kWh or locations with dense battery storage.

Bottom line: If your facility stores or charges lithium batteries, you need lithium-specific suppression. Not because regulations say so (though they increasingly do), but because standard equipment fails and failure means extended burn time, toxic gas release, and structural damage. The Morris County facility I mentioned earlier? Still not fully operational 8 months later. Lost contracts, insurance litigation ongoing, three regulatory agencies conducting investigations. Cost of proper extinguishers is maybe $800-1200 per unit. Cost of not having them is substantially higher.
