What Are Lithium Battery and Their Role in Modern Technology

Global demand for rechargeable power storage exceeded 1 terawatt-hour annually in late 2024, with lithium-ion technology capturing over 80% of this massive market. This dominance stems from three decades of continuous improvement since commercial introduction in 1991, during which volumetric energy density tripled while costs dropped by 90%. These rechargeable power sources now enable everything from smartphones to electric vehicles, fundamentally reshaping how society stores and uses electrical energy.

Understanding Lithium Battery Technology

The term “lithium battery and” encompasses a family of energy storage devices that use lithium ions as the primary mechanism for storing electrical charge. At the most basic level, what is a lithium battery depends on whether it contains metallic lithium (primary, non-rechargeable) or uses lithium compounds in an intercalation process (rechargeable lithium-ion). The rechargeable variants have become the dominant commercial form, powering portable electronics and electrified transportation worldwide.

The fundamental breakthrough came through work spanning the 1970s and 1980s. M. Stanley Whittingham conceived intercalation electrodes in the 1970s, John Goodenough expanded this work in 1980 using lithium cobalt oxide as a cathode, and Akira Yoshino developed the first prototype using a carbonaceous anode in 1985. Sony commercialized the technology in 1991. These three scientists received the 2019 Nobel Prize in Chemistry for their contributions, recognizing the transformative impact of their work.

What are lithium batteries made of varies by specific chemistry, but all share common principles. They store energy by creating an electrical potential difference between negative and positive poles. An insulating separator divides these poles while allowing lithium ions to pass through. During discharge, ions move from anode to cathode, creating electron flow through external circuits to power devices. Charging reverses this process.

The chemistry designation matters significantly. “Lithium-ion battery” has become a generic term involving at least 12 different chemistries, each optimized for different performance characteristics. The cathode material primarily determines voltage, capacity, and safety profile, while anode materials affect charge acceptance and cycle life.

Core Components and How They Work

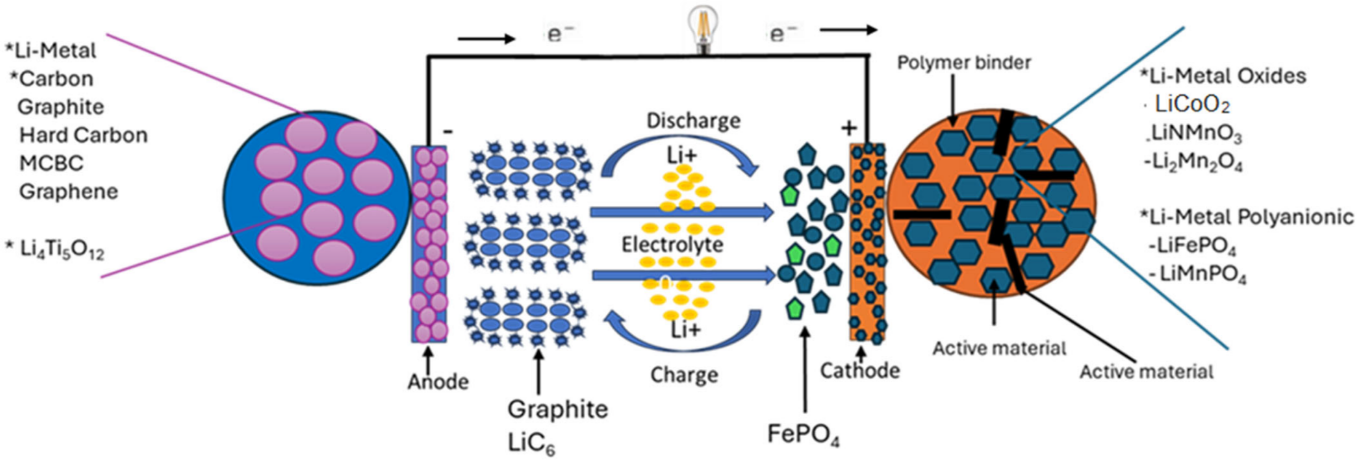

Every rechargeable lithium cell contains five essential components working in precise coordination. The anode (negative electrode) stores lithium ions when charged, typically constructed from graphite, though silicon is increasingly mixed in to boost capacity. The cathode (positive electrode) serves as the lithium source and determines the cell’s voltage and capacity. Common cathode materials include lithium cobalt oxide (LiCoO₂), lithium iron phosphate (LiFePO₄), and lithium nickel manganese cobalt oxide (NMC).

The electrolyte carries positively charged lithium ions between electrodes. Traditional designs use lithium hexafluorophosphate dissolved in organic carbonates, though solid-state alternatives are under development to eliminate flammable liquid electrolytes. The separator, a porous polymeric film, prevents physical contact between electrodes while permitting ion flow. Finally, current collectors—conductive foils at each electrode—connect the cell to external circuits and transmit electrical current.

During discharge, lithium atoms in the anode ionize and separate from electrons. These ions migrate through the electrolyte and separator to the cathode, where they recombine with electrons to electrically neutralize. The separator blocks electron flow inside the battery, forcing them through the external device being powered. This migration creates voltage—the electrical potential difference that drives current through circuits.

Charging reverses the process. When connected to a power source, lithium ions release from the cathode and travel back to the anode. The ions insert between graphene layers in graphite anodes through intercalation, a process where the layered structure accommodates ions without physical warping. This reversibility enables thousands of charge-discharge cycles.

The Battery Management System (BMS) serves as the intelligent controller in modern battery packs. This small computer monitors cell voltage, temperature, and current flow. It prevents overcharging by ceasing charge at safe limits (typically 4.2V per cell for lithium-ion), protects against over-discharge that can permanently damage cells, and manages thermal conditions to prevent overheating. Advanced BMS systems also balance charge across multiple cells in series configurations, ensuring uniform aging and maximum pack lifespan.

Cell voltage varies by chemistry. Standard lithium-ion cells operate at nominal 3.6-3.7V, ranging from approximately 3.0V when empty to 4.2V when fully charged. Lithium iron phosphate cells run at lower 3.2V nominal voltage. When you see a “12V lithium battery,” it contains four LiFePO₄ cells connected in series (4 × 3.2V = 12.8V), offering a drop-in replacement for traditional 12V lead-acid batteries.

Types of Lithium Batteries and Their Applications

Six primary chemistries dominate commercial applications, each engineered for specific performance requirements. Lithium Iron Phosphate (LiFePO₄ or LFP) leads in safety and longevity. These cells deliver 2,000 to 5,000+ cycles at 80-100% depth of discharge, making them ideal for renewable energy storage, RV house banks, marine applications, and electric buses. LFP cells operate safely across wide temperature ranges and resist thermal runaway. The tradeoff comes in lower specific energy compared to other chemistries, and reduced performance in extreme cold.

Lithium Cobalt Oxide (LCO) batteries offer the highest specific energy but lowest specific power. They excel in applications requiring sustained power delivery over extended periods rather than high burst currents. Smartphones, tablets, laptops, and digital cameras traditionally used LCO cells. However, the high cost of cobalt and safety concerns have driven manufacturers toward alternative chemistries. Modern flagship phones increasingly adopt NMC or blended chemistries.

Lithium Manganese Oxide (LMO) creates a three-dimensional spinel structure that enhances ion flow and current handling while reducing internal resistance. Medical devices, power tools, and some electric vehicles use LMO for its thermal stability and safety characteristics. These cells can deliver high discharge rates without overheating, making them suitable for power tools that demand sudden high current draws.

Lithium Nickel Manganese Cobalt Oxide (NMC) represents the balanced approach that dominates electric vehicle applications. By combining nickel’s high specific energy with manganese’s stability and cobalt’s proven performance, NMC delivers competitive range, reasonable cost, and acceptable safety. Tesla, BMW, and most major EV manufacturers rely on NMC or its derivatives. Different ratios (like NMC 811: 80% nickel, 10% manganese, 10% cobalt) optimize for energy density versus stability.

Lithium Nickel Cobalt Aluminum Oxide (NCA) provides high specific energy and power with extended cycle life. Tesla’s earlier models used NCA cells from Panasonic, achieving industry-leading range. These cells supply relatively high current for extended periods, crucial for highway driving range. The aluminum addition improves stability compared to pure nickel-cobalt formulations.

Lithium Titanate (LTO) uses titanium compounds in the anode instead of graphite, enabling ultra-fast charging and exceptional cycle life exceeding 10,000+ cycles. Public transit buses and grid storage systems employ LTO despite lower energy density because rapid charging and extreme longevity justify the capacity tradeoff. These cells can charge to 80% in minutes rather than hours.

Real-world deployment shows chemistry selection matching application requirements. In April 2025, CATL unveiled its Shenxing Plus battery, the first lithium iron phosphate (LFP) battery claiming 1,000 km range on a single charge with 4C ultra-fast charging (600 km range added in 10 minutes). This breakthrough demonstrates how continuous innovation pushes perceived chemistry limitations, potentially disrupting the NMC-dominated EV market.

Performance Characteristics and Advantages

Energy density separates lithium technology from alternatives, measured in watt-hours per kilogram (Wh/kg). Modern lithium-ion cells achieve 250-330 Wh/kg compared to roughly 75 Wh/kg for lead-acid batteries. This 3-4× advantage translates directly into lighter weight for equivalent capacity. A 100Ah lithium battery pack weighs approximately 30 pounds versus 120+ pounds for lead-acid, enabling applications where weight matters critically—aircraft, portable equipment, RVs, and marine vessels.

Power density, measured in watts per kilogram (W/kg), indicates how quickly a battery can deliver its stored energy. Think of energy density as pool size and power density as drain rate. Lithium-ion excels at both. High-quality cells deliver 1,500-3,000 W/kg, allowing rapid acceleration in electric vehicles and high current draw for power tools without voltage sag that plagues older chemistries.

Voltage characteristics provide additional advantages. Lithium-ion cells deliver 3.6V compared to 2.0V for lead-acid or 1.2V for nickel-metal hydride. This 1.5-3× voltage advantage reduces the number of cells needed in series for a given system voltage, simplifying battery pack design and reducing connection points that can fail. Higher voltage also improves efficiency in power electronics.

Cycle life represents the number of charge-discharge cycles before capacity drops below 80% of original. Quality lithium-ion cells provide 500-1,000 cycles, while LiFePO₄ variants deliver 2,000-5,000+ cycles. Compare this to 200-300 cycles for standard lead-acid batteries. Over a 10-year period, one lithium battery replaces 3-5 lead-acid batteries, often making total cost of ownership lower despite higher upfront investment.

Self-discharge rate measures how quickly batteries lose charge when sitting idle. Lithium-ion batteries self-discharge at approximately 2-3% per month compared to 5-20% for nickel-metal hydride and 4-6% for lead-acid. This low self-discharge enables seasonal equipment to sit for months and remain functional. A lithium battery at 50% charge can store for 6-12 months without recharging, while lead-acid batteries require maintenance charging every 30-60 days to prevent sulfation damage.

The absence of memory effect eliminates a major frustration of older nickel-cadmium batteries. Lithium batteries can be partially charged and discharged without capacity loss. You can top off a lithium battery pack at 60% charge without waiting for full discharge, maintaining convenience without performance penalty. This flexibility suits modern usage patterns where devices charge opportunistically rather than on fixed schedules.

Temperature tolerance varies by chemistry but generally spans -20°C to 60°C (-4°F to 140°F) for operation. LiFePO₄ cells handle temperature extremes better than LCO variants. Storage should occur at moderate temperatures (15°C/59°F optimal) to minimize degradation. Some modern designs include heating elements that automatically warm cells in cold weather, enabling charging below freezing when standard cells cannot accept charge.

Calendar life—how long batteries retain capacity regardless of cycling—typically spans 5-15 years depending on chemistry and storage conditions. A lithium battery stored at 40% charge in a cool, dry location will retain 80-90% capacity after 5 years. Proper storage at partial charge significantly extends usable life compared to storing fully charged or depleted.

Practical Guidelines for Use and Maintenance

Charging optimization extends battery lifespan substantially. Research from the University of Michigan identified nine best practices, with charge level management proving most impactful. Minimize time spent at 100% or 0% state of charge—both extremes stress cells and accelerate aging. Modern research recommends maintaining charge between 20-80% for daily use. Samsung and LG suggest recharging phones at 20% rather than waiting for lower levels. If charging to 100%, unplug promptly rather than leaving connected indefinitely.

Charging speed affects longevity. Fast charging (1C rate or higher) degrades cells more quickly than standard charging (C/3 to C/2 rate). For a 10Ah battery, 1C charging delivers 10A current, while C/3 provides approximately 3.3A. The slower charge generates less heat and reduces electrochemical stress. Use fast charging only when time constraints require it, not as default practice. For overnight charging, select slower chargers when available—your battery will thank you with additional years of service.

Temperature management during charging matters critically. Most manufacturers specify minimum ambient temperature of 0°C (32°F) for charging. Charging cold batteries can cause lithium plating on the anode, permanently reducing capacity and creating safety hazards. Modern batteries with low-temperature protection automatically prevent charging below safe thresholds. For storage or charging, aim for 15-25°C (59-77°F). Avoid charging in direct sunlight, hot vehicles, or freezing conditions.

Depth of discharge (DoD) determines cycle count. A battery discharged to 50% DoD before recharging will deliver significantly more total cycles than one regularly discharged to 100% DoD. Data shows a 50% DoD pattern can provide 2-3× the cycle count compared to 100% DoD cycling. For applications where full capacity isn’t needed daily, partial discharge patterns dramatically extend service life. Power tools that don’t require full runtime benefit from recharging after moderate use rather than complete depletion.

Storage protocols preserve batteries during extended non-use. Store at 40-50% state of charge in a cool, dry location. Batteries stored at 100% charge degrade faster due to elevated voltage stress on electrodes. Conversely, storage below 20% risks over-discharge that can render cells unrecoverable. Check stored batteries every 3-6 months and recharge if voltage drops below manufacturer minimum (typically 3.0V per cell for lithium-ion, 3.0-3.1V for LiFePO₄).

For long-term storage (6+ months), follow this protocol: Charge to 50% SoC, disconnect from all loads, store in moderate temperature (15-20°C ideal), check voltage quarterly, and recharge to 50% if voltage drops 10% from storage level. This regimen can preserve 90%+ capacity over 5 years of storage. Some manufacturers recommend one full cycle annually for stored batteries to maintain capacity and recalibrate BMS systems.

Using manufacturer-specified chargers ensures proper charge termination, voltage limits, and current control. Third-party chargers may lack safety features or use incorrect voltage profiles that overcharge cells. The slight cost savings from aftermarket chargers risks premature battery failure or safety incidents. Original equipment chargers include firmware matched to specific battery chemistries and capacities.

Monitor battery health through runtime tracking. Note how long a new fully-charged battery powers your application. As the battery ages, compare current runtime to this baseline. When runtime drops below 80% of original, the battery approaches end-of-life for primary applications but may serve less-demanding secondary uses. Voltage measurement under load also indicates health—cells showing significant voltage sag under rated current require replacement.

Physical inspection catches problems early. Examine battery cases for swelling, which indicates internal gas generation from cell damage. Swollen batteries present fire hazards and require immediate removal and proper disposal. Check for corrosion at terminals, which increases resistance and generates heat. Clean terminals with contact cleaner and ensure tight connections to prevent voltage drop and excess heating.

Safety Considerations and Best Practices

Lithium-ion batteries contain flammable electrolytes that pose fire and explosion hazards when damaged, overheated, or misused. Understanding risks and following safety protocols prevents incidents. In 2023, New York City alone recorded 268 fires caused by lithium-ion batteries, predominantly in e-bikes and e-scooters, highlighting the real-world consequences of improper use or defective products.

Purchase batteries from reputable manufacturers displaying Underwriters Laboratories (UL) certification marks. UL testing verifies products meet nationally recognized safety standards. Given the nascent e-mobility industry and lack of comprehensive federal standards, many imported batteries lack adequate safety features. The price premium for certified batteries buys protection against thermal runaway, the cascade failure mode where one damaged cell ignites adjacent cells.

Thermal runaway occurs when a cell reaches temperatures where internal chemical reactions become self-sustaining. The cell generates heat faster than it dissipates, leading to rapid temperature increase, electrolyte vaporization, and potentially explosive rupture. Causes include physical damage (punctures, crushing), electrical abuse (overcharging, over-discharging, short circuits), manufacturing defects, and extreme external temperatures.

Warning signs precede most failures. Cells may bulge or swell before catastrophic failure as internal pressure builds. Unusual heat during charging or use indicates problems. Electrolyte leakage—visible as oily residue or unusual odors—signals cell damage. Any battery exhibiting these symptoms should be immediately removed from service, placed in a safe location away from flammable materials, and disposed of through proper channels.

If a battery fire occurs, the National Fire Protection Association recommends specific protocols. For small fires (single cell), a class ABC or CO₂ fire extinguisher can suppress flames. However, lithium fires generate dense white smoke containing toxic gases. Evacuate the area immediately, call emergency services, and ventilate if safe to do so. Large battery fires require professional firefighting response and copious water to cool surrounding cells and prevent cascade failure.

Storage safety requires dedicated consideration. Store batteries in cool (15-25°C), dry, well-ventilated spaces away from direct sunlight and heat sources. Never store batteries in extreme temperature locations like vehicle interiors, attics, or outdoor sheds exposed to weather. Maintain separation from flammable materials. For larger battery banks, consider fire-resistant enclosures or dedicated battery rooms with automatic ventilation and fire suppression systems.

Charging safety prevents most incidents. Never leave charging batteries unattended for extended periods. Charge on non-flammable surfaces (concrete, metal, ceramic tile) rather than wood, carpet, or upholstered furniture. Avoid charging on beds or couches where heat buildup can ignite bedding. Use surge protectors to prevent voltage spikes from damaging battery management systems. Ensure adequate ventilation during charging as some cells vent gases if overcharged despite BMS protection.

Transportation regulations classify lithium batteries as hazardous materials requiring special handling. Commercial shipping demands compliance with UN 38.3 testing standards and Department of Transportation regulations. Batteries must be packaged to prevent short circuits—terminal protection through insulation, individual plastic bags, or purpose-built cases. Airlines restrict or prohibit lithium batteries in checked baggage due to fire suppression limitations in cargo holds. Carry devices in cabin luggage where crew can respond to incidents.

Disposal and recycling require specialized facilities. Never place lithium batteries in household trash or recycling bins. Damaged batteries can ignite garbage trucks and recycling facilities. Most municipalities offer hazardous waste collection days or drop-off locations. Major retailers including Home Depot, Best Buy, and battery specialty stores provide free recycling drop-off. Organizations like Call2Recycle operate nationwide collection networks.

Before disposal, protect terminals with non-conductive tape to prevent short circuits during handling and transport. Electrical tape works best, though any non-metallic adhesive tape suffices. Alternatively, place each battery in a separate plastic bag. These precautions prevent fires during collection, transport, and processing. Some facilities require batteries be partially discharged (30-50% SoC) before acceptance to minimize fire risk during recycling operations.

Frequently Asked Questions

How long do lithium batteries typically last?

Service life depends on usage patterns and chemistry. Calendar life spans 2-15 years, with LiFePO₄ variants achieving 10-15 years and standard lithium-ion lasting 2-5 years. Cycle life ranges from 300-500 cycles for consumer electronics to 5,000+ cycles for LiFePO₄. Factors affecting longevity include charge level management (avoiding extreme 0% or 100%), temperature exposure (heat accelerates degradation), and discharge rates (high current drain reduces lifespan).

Can lithium batteries be recycled?

Recycling reclaims valuable materials including cobalt, nickel, manganese, and lithium. Current processes recover 50-95% of materials depending on technology and chemistry. Cobalt, nickel, and manganese are routinely recovered and reused in new batteries. Lithium recovery is improving but often requires additional processing for reuse. Recycling prevents toxic waste, reduces mining demand, and recovers critical minerals essential for continued battery production.

What causes lithium batteries to fail or degrade?

Multiple mechanisms contribute to capacity loss and performance decline. Solid-electrolyte interphase (SEI) formation on anodes gradually increases resistance. Lithium plating occurs during fast charging or charging at cold temperatures, permanently removing active lithium from the cycle. Cathode material degradation and dissolution reduces capacity. Electrolyte decomposition and separator degradation increase resistance. High temperatures accelerate all degradation mechanisms.

Are lithium batteries safe for home energy storage?

Modern residential battery systems from reputable manufacturers incorporate multiple safety layers making them suitable for home installation. Quality systems include: cell-level BMS monitoring, thermal management (active cooling), fire-resistant enclosures, automatic disconnect systems, and compliance with electrical codes (UL 9540 for energy storage systems). Professional installation per local codes and manufacturer specifications ensures safe operation. Over 3 million home battery systems operate globally with incident rates below 0.001%.

How do I know if my lithium battery is damaged?

Physical indicators include case swelling or bulging (internal pressure), unusual heat during charging or use, electrolyte leakage (oily residue), corrosion at terminals, and physical damage (dents, punctures, cracks). Performance indicators include rapid voltage drop under load, significantly reduced runtime compared to baseline, extended charging time, and failure to accept charge. Any of these symptoms warrant immediate replacement.

Can I use any charger with lithium batteries?

Charger compatibility depends on voltage, current, and charge termination method. Lithium-ion requires precise voltage control (4.2V per cell) and current limiting. LiFePO₄ charges to 3.65V per cell. Generic chargers designed for lead-acid batteries can damage lithium cells through overcharging or incorrect voltage profiles. Always use manufacturer-specified chargers or confirmed-compatible alternatives with appropriate voltage and current ratings for your battery chemistry.

Conclusion

The lithium battery family represents three decades of electrochemical engineering refinement, delivering energy storage solutions that enable modern portable electronics, electric transportation, and renewable energy integration. Different chemistries serve distinct applications—LiFePO₄ for longevity and safety in stationary applications, NMC for balanced performance in electric vehicles, and LCO for energy-dense portable electronics.

Maximizing performance and lifespan requires understanding fundamental operating principles and following evidence-based maintenance practices. Maintaining charge between 20-80%, avoiding temperature extremes, using appropriate charging rates, and proper storage protocols can double effective battery life. Safety consciousness—purchasing certified products, recognizing warning signs, and following proper handling procedures—prevents the incidents that generate headlines while millions of battery systems operate reliably daily.

As solid-state batteries approach commercialization and production capacity doubles every few years, lithium battery technology continues evolving. Current innovation focuses on increasing energy density, reducing costs through materials substitution (reducing cobalt content), improving safety through solid electrolytes, and enhancing recyclability. The foundation established by Whittingham, Goodenough, and Yoshino continues enabling the global transition toward electrified transportation and renewable energy systems.

Key Takeaways

Lithium-ion batteries achieved 3× energy density improvement and 90% cost reduction since 1991 commercialization, now capturing 80% of the 1+ TWh global rechargeable battery market
Six primary chemistries optimize for different applications: LiFePO₄ for safety/longevity, NMC for EVs, LCO for electronics, each with distinct performance characteristics and ideal use cases
Maintaining 20-80% charge levels, avoiding temperature extremes (store at 15-25°C), and using appropriate charging speeds (C/3 to C/2 rate) can double effective battery lifespan
Cell voltage varies by chemistry (3.2V for LiFePO₄, 3.6-3.7V for lithium-ion) with battery management systems preventing overcharge (>4.2V) and over-discharge (<3.0V) to ensure safety
Safety requires UL-certified products, monitoring for warning signs (swelling, excessive heat, electrolyte leakage), and proper disposal through hazardous waste facilities rather than household trash

References

Wikipedia – Lithium-ion Battery (Updated November 2025) – https://en.wikipedia.org/wiki/Lithium-ion_battery
U.S. Department of Energy – How Lithium-Ion Batteries Work – https://www.energy.gov/energysaver/articles/how-lithium-ion-batteries-work
Clean Energy Institute, University of Washington – Lithium-Ion Battery (August 2025) – https://www.cei.washington.edu/research/energy-storage/lithium-ion-battery/
University of Michigan – Tips for Extending Lithium-Ion Battery Lifetime (June 2023) – https://news.umich.edu/tips-for-extending-the-lifetime-of-lithium-ion-batteries/
U.S. EPA – Frequent Questions on Lithium-Ion Batteries (May 2025) – https://www.epa.gov/recycle/frequent-questions-lithium-ion-batteries
FDNY – Safety Tips for Lithium-Ion Batteries (August 2024) – https://www.fdnysmart.org/be-fdnysmart-when-using-any-devices-powered-by-lithium-ion-batteries/
Battery University – BU-808: How to Prolong Lithium-Based Batteries – https://batteryuniversity.com/article/bu-808-how-to-prolong-lithium-based-batteries
IEA Commentary – The Battery Industry Has Entered a New Phase (2025) – https://www.iea.org/commentaries/the-battery-industry-has-entered-a-new-phase
