How Do Battery Packs Lithium Work?

Your smartphone powers through an 18-hour workday. Electric vehicles travel 300 miles on a single charge. Power tools deliver consistent torque without cord limitations. The common thread powering these capabilities is lithium battery technology—specifically, how individual cells connect into sophisticated pack systems that balance performance with safety. Global lithium-ion battery pack production exceeded 1 terawatt-hour in 2024, with pack-level demand projected to reach $92.8 billion by 2035. Understanding how these systems function reveals why battery packs lithium have become the dominant energy storage solution across consumer electronics, transportation, and industrial applications.

Power Behind Modern Devices

Battery packs lithium serve as the primary energy source across applications ranging from 3.7V smartphone batteries to 800V electric vehicle systems. The fundamental advantage stems from energy density—lithium-ion chemistry stores 150-300 watt-hours per kilogram compared to 25 watt-hours for lead-acid alternatives. Recent 2025 data shows energy densities now reaching 400 Wh/kg in advanced configurations, enabling manufacturers to reduce pack weight while extending runtime.

Electric vehicle manufacturers like Tesla utilize battery packs containing thousands of individual cells configured to deliver both high voltage (400-800V) and substantial capacity (75-100 kWh). Consumer electronics require different specifications—laptops typically use 10.8V packs with 4000-6000mAh capacity, while power tools operate at 18-60V depending on torque requirements. The flexibility of lithium battery systems allows engineers to scale voltage and capacity by adjusting cell count and connection patterns.

Industrial applications demonstrate another performance dimension. Forklift batteries now deliver 48V systems with 200-300Ah capacity, replacing lead-acid units while reducing weight by 60-70%. Solar energy storage installations use 48V modular packs that scale from 5kWh residential systems to multi-megawatt commercial arrays. This versatility explains why battery packs lithium captured 89% of the rechargeable battery market by late 2024.

Performance metrics vary significantly by application. Smartphone batteries prioritize energy density to minimize device thickness. Electric vehicle packs balance energy density with power density—measured in watts per kilogram—to enable rapid acceleration while maintaining range. Grid storage systems emphasize cycle life, with modern LFP chemistry delivering 5,000+ charge-discharge cycles versus 800-1,000 for traditional lithium-ion variants.

Table: Battery Pack Specifications Across Applications

Application	Voltage	Capacity	Energy Density	Cycle Life	Weight
Smartphone	3.7V	3000-5000mAh	250-300 Wh/kg	500-800	40-60g
Laptop	10.8-14.8V	4000-6000mAh	200-250 Wh/kg	500-1000	300-400g
Power Tool	18-60V	2-9Ah	180-220 Wh/kg	1000-2000	500-1500g
EV	400-800V	75-100kWh	250-400 Wh/kg	1500-5000	400-600kg
Grid Storage	48-800V	10-100kWh	160-200 Wh/kg	5000-8000	Varies

Core Mechanism Explained

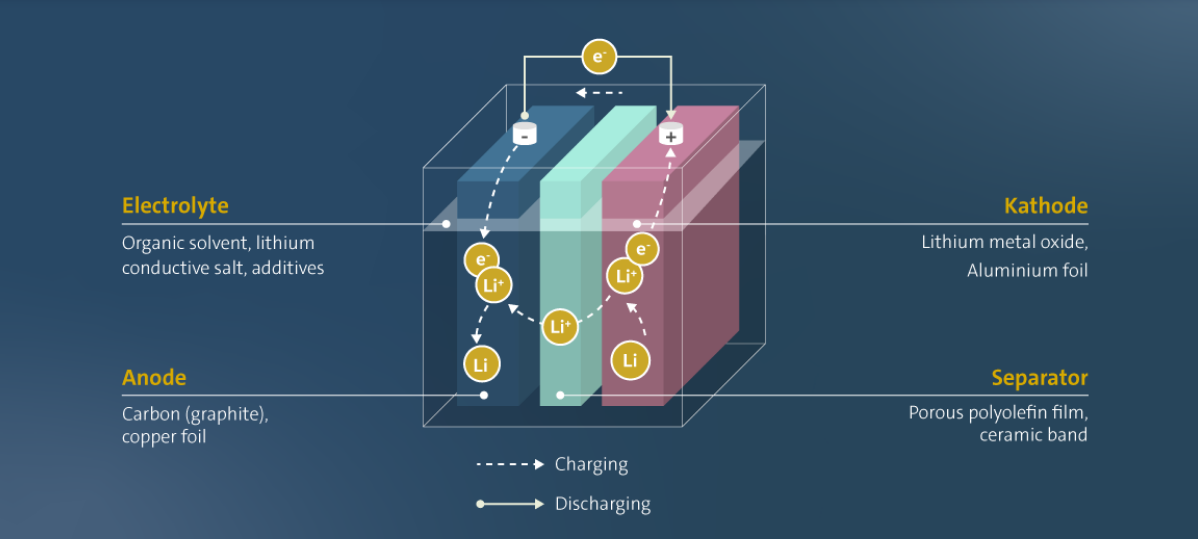

Lithium-ion cells function through reversible electrochemical reactions that move lithium ions between two electrodes. During discharge, lithium ions travel from the negative electrode (anode) through an electrolyte solution to the positive electrode (cathode). This ion movement generates an electrical current as electrons simultaneously flow through the external circuit to power connected devices.

The anode typically consists of graphite or increasingly silicon-enhanced materials that can intercalate lithium ions within their crystalline structure. Modern silicon anodes increase energy capacity by 40% compared to pure graphite but require sophisticated engineering to manage volumetric expansion during charging. The cathode material determines battery characteristics—lithium cobalt oxide (LiCoO₂) provides high energy density for consumer electronics, while lithium iron phosphate (LiFePO₄) offers superior safety and longevity for electric vehicles and stationary storage.

The electrolyte medium enables ion transport between electrodes. Traditional liquid electrolytes use lithium salts—typically lithium hexafluorophosphate (LiPF₆)—dissolved in organic carbonate solvents. This solution allows lithium ions to move freely while preventing electron flow, which would cause internal short circuits. A microporous separator membrane physically isolates the anode and cathode while allowing ionic conduction through its pores.

Charging reverses the discharge process. External voltage from a charger forces lithium ions to migrate from the cathode back to the anode, where they reinsert into the graphite or silicon structure. This process requires precise control—charging lithium-ion cells above 4.2V per cell or below freezing temperatures can cause lithium plating, where metallic lithium deposits on the anode surface. This phenomenon reduces capacity and creates dendrite formations that may penetrate the separator and cause dangerous internal shorts.

Charge/Discharge Cycle Process:

Discharge Phase: Lithium ions move anode → cathode; electrons power load
Voltage Drop: Cell voltage decreases from 4.2V to 3.0V cutoff
Charge Phase: External voltage forces ions cathode → anode
Constant Current: Charger supplies steady current until 4.2V reached
Constant Voltage: Current tapers while maintaining 4.2V until fully charged

The Department of Energy notes that a single lithium-ion cell generates 3.7V nominal voltage—significantly higher than the 1.5V from alkaline AA cells. This voltage advantage allows manufacturers to use fewer cells in series to achieve target operating voltages, reducing pack complexity and potential failure points.

Pack Architecture and Configuration

Individual lithium-ion cells must connect in specific patterns to deliver required voltage and capacity specifications. Engineers use two fundamental connection methods: series and parallel arrangements. Series connections increase voltage while maintaining cell capacity—four 3.7V cells in series (designated 4S) produce 14.8V nominal voltage. Parallel connections maintain voltage while adding capacities—two 3000mAh cells in parallel (designated 2P) deliver 6000mAh total capacity.

Complex battery packs combine both methods in configurations like 10S4P (10 cells series, 4 cells parallel) or 13S2P. Electric vehicle packs typically use hundreds or thousands of cells in mixed configurations. The Tesla Model 3 Long Range employs approximately 4,416 cylindrical 21700 cells arranged in modules, ultimately configured to deliver 350V nominal voltage with 82kWh capacity. This modular approach allows manufacturers to scale pack size while maintaining standardized cell production.

Three primary cell formats exist in commercial battery packs. Cylindrical cells (18650, 21700 formats) dominate consumer electronics and power tools due to established manufacturing processes and robust mechanical structure. Prismatic cells use flat rectangular housings that maximize volumetric efficiency in applications like electric vehicles where every cubic centimeter matters. Pouch cells eliminate rigid casings entirely, achieving the highest gravimetric energy density but requiring external compression to prevent swelling during charge cycles.

Pack construction requires electrical interconnections that minimize resistance while maintaining mechanical stability. Bus bars—typically copper or aluminum conductors—connect cells within modules. These bars must handle substantial current flow (potentially 100-1000A in automotive applications) while resisting vibration and thermal expansion. Manufacturers use laser welding or ultrasonic bonding to attach bus bars to cell terminals, creating permanent connections that maintain low contact resistance throughout the pack’s operational life.

Thermal management becomes critical as cell count increases. Battery packs generate heat during both charging and discharging, with rates varying based on C-rate (charge/discharge rate relative to capacity). A 1C rate means discharging the full capacity in one hour; 2C discharges in 30 minutes. Higher C-rates generate more heat, potentially degrading performance and safety. Advanced packs incorporate cooling systems—either passive air cooling for lower-power applications or active liquid cooling for high-performance EVs—to maintain optimal operating temperature ranges between 20-30°C.

Series vs. Parallel Configuration Comparison:

Configuration	Voltage Effect	Capacity Effect	Use Case
Series (nS)	Multiplies by n	Unchanged	Increasing voltage for motor systems
Parallel (nP)	Unchanged	Multiplies by n	Extending runtime in fixed-voltage devices
Mixed (nSnP)	Both increase	Both increase	EV packs requiring high voltage and capacity

Battery Management Intelligence

Every lithium battery pack requires a Battery Management System to ensure safe and optimal operation. The BMS functions as the pack’s central computer, continuously monitoring cell voltages, pack current, and temperatures while controlling charging and discharging processes. Without proper BMS protection, lithium-ion cells face catastrophic failure risks including thermal runaway—a self-accelerating exothermic reaction that can result in fire or explosion.

Voltage monitoring represents the BMS’s primary safety function. Individual cells within a pack naturally develop slight capacity variations due to manufacturing tolerances and usage patterns. Without intervention, these differences compound over charge cycles—some cells reach full charge while others remain partially charged, or conversely, some cells deep discharge while others retain charge. The BMS measures each cell’s voltage (typically with ±15mV accuracy) and implements cell balancing to equalize charges across the pack.

Two balancing methods exist: passive and active. Passive balancing dissipates excess energy from higher-charged cells as heat through resistors, slowly bringing all cells to the same voltage level. This simple approach works well for low-power applications but wastes energy. Active balancing transfers energy from higher-charged cells to lower-charged cells using DC-DC converters or capacitors, improving efficiency in larger packs. Modern EV battery systems employ sophisticated active balancing that operates continuously during charging, discharging, and rest periods.

Current monitoring protects against overcurrent conditions that could damage cells or create hazards. The BMS tracks instantaneous current flow and integrates it over time to calculate state of charge (SoC)—the pack’s remaining capacity expressed as a percentage. Accurate SoC estimation requires complex algorithms that account for temperature effects, aging, and self-discharge. Advanced BMS implementations also estimate state of health (SoH), predicting remaining useful life based on capacity fade and internal resistance increases observed over time.

Temperature management involves multiple sensor points throughout the pack. The BMS monitors individual cell temperatures and ambient conditions, adjusting charging rates or activating thermal management systems when thresholds are exceeded. Lithium-ion cells perform optimally between 20-30°C but can operate from -20°C to 60°C with reduced performance. Charging below 0°C causes metallic lithium plating that permanently damages cells, so the BMS must disable charging or activate pre-warming systems in cold conditions.

BMS Protection Functions:

Overvoltage Protection: Terminates charging if any cell exceeds 4.2V
Undervoltage Protection: Disconnects load if any cell drops below 2.5V
Overcurrent Protection: Limits peak current to prevent cell damage
Over-temperature Protection: Reduces current or shuts down if temps exceed limits
Short Circuit Protection: Immediately disconnects pack if short detected
Cell Balancing: Equalizes charge across all cells for uniform aging

Communication interfaces allow the BMS to report pack status to host devices. Consumer electronics typically use I²C or SMBus protocols to transmit voltage, current, temperature, SoC, and SoH data. Electric vehicles employ CAN bus networks that integrate battery data into broader vehicle control systems. Some industrial applications utilize wireless connectivity for remote monitoring of stationary storage installations.

Performance Factors and Longevity

Multiple factors influence battery pack performance and lifespan beyond basic specifications. Depth of discharge significantly impacts cycle life—shallow discharges (20-80% SoC range) extend battery longevity compared to full 0-100% cycles. Research data from 2024 indicates that limiting discharge to 30-70% SoC can triple cycle life from 800 to 2,400 cycles in consumer-grade lithium-ion cells. This explains why many electric vehicles recommend charging to 80% for daily use, reserving 100% charges for long trips.

Temperature effects dominate degradation mechanisms. Battery University research demonstrates that storing fully charged lithium-ion cells at elevated temperatures accelerates capacity loss exponentially. A pack stored at 25°C with 40% charge retains 96% of capacity after one year, while the same pack stored at 60°C with 100% charge loses 40% of capacity in the same period. Manufacturers specify optimal storage conditions around 15°C with 40-60% SoC for long-term preservation.

Charging rate affects both immediate performance and long-term health. Standard charging at 0.5C-1C (taking 1-2 hours) generates manageable heat and minimizes stress on cell materials. Fast charging at 2C or higher enables convenient 30-minute recharges but accelerates electrode degradation through increased heat generation and mechanical stress from rapid lithium-ion insertion. The 2025 lithium battery market has addressed this trade-off through thermal management improvements and modified cell chemistries that tolerate higher charge rates without proportional degradation.

Calendar aging occurs even without use—lithium-ion packs gradually lose capacity simply due to time elapsed since manufacture. Internal chemical reactions slowly consume lithium ions and degrade electrode materials. Most consumer lithium battery packs exhibit noticeable capacity loss after 2-3 years regardless of cycle count. Commercial-grade cells used in electric vehicles employ more stable chemistries and sophisticated BMS algorithms to extend calendar life to 8-15 years while maintaining 70-80% of original capacity.

Environmental factors beyond temperature affect performance. Humidity can cause corrosion of external pack components and terminals if water penetration occurs. Vibration and mechanical shock can damage internal connections or cause electrode material delamination in poorly constructed packs. Quality manufacturers implement robust enclosure designs with IP67 ratings (protected against temporary water immersion) and vibration-resistant construction for demanding applications.

Factors Affecting Battery Pack Life:

Depth of Discharge: Shallow cycles (30-70% SoC) extend life 2-3x vs. full cycles
Temperature: Each 10°C above 25°C roughly halves lifespan
Charge Rate: Faster charging (>1C) increases degradation 20-40%
Storage Conditions: Cool temperatures (15°C) and partial charge (40-60%) optimal
Calendar Age: 2-3 year degradation regardless of usage in consumer cells
Mechanical Stress: Vibration and shock accelerate internal damage

Frequently Asked Questions

How long do lithium battery packs typically last?

Consumer-grade lithium battery packs deliver 500-800 full charge cycles before capacity drops to 80% of original specification. This translates to 2-3 years in typical smartphone or laptop usage patterns. Electric vehicle packs using advanced chemistries and thermal management achieve 1,500-5,000 cycles, corresponding to 8-15 years of service. Stationary storage applications with LiFePO₄ chemistry extend cycle life to 5,000-8,000 cycles, potentially lasting 20+ years with proper maintenance.

Can lithium battery packs be safely discharged completely?

Complete discharge below the manufacturer’s specified cutoff voltage (typically 2.5-3.0V per cell) causes irreversible damage to lithium-ion cells. The BMS prevents this by disconnecting the load when the lowest cell reaches the cutoff threshold. However, self-discharge during prolonged storage can still drive voltages below safe levels. Manufacturers recommend recharging packs every 3-6 months during storage to prevent deep discharge damage that renders cells permanently unusable.

What causes lithium battery packs to swell or bulge?

Swelling results from gas generation inside cells, typically caused by electrolyte decomposition at elevated temperatures or during overcharging. Manufacturing defects, physical damage, or extended operation outside safe voltage ranges accelerate this process. Swollen packs indicate imminent failure and pose fire risks—discontinue use immediately. Quality BMS implementations prevent most swelling through voltage and temperature controls, but mechanical damage can bypass these protections.

How do series and parallel configurations affect pack performance?

Series connections increase pack voltage while maintaining individual cell capacity—essential for high-voltage applications like power tools and electric vehicles. Parallel connections maintain voltage while adding capacities, extending runtime in fixed-voltage devices. Most complex packs combine both methods: a 13S4P configuration uses 52 cells total to deliver 13× voltage increase and 4× capacity increase relative to a single cell, optimizing both power delivery and energy storage.

What maintenance do lithium battery packs require?

Modern lithium battery packs are largely maintenance-free due to integrated BMS protection and sealed construction. Users should avoid temperature extremes (particularly storage above 30°C), partial discharge rather than full cycles when practical, and periodic recharging during extended storage periods. Industrial applications benefit from monitoring BMS data logs to identify degrading cells before they affect pack performance. Physical inspection for swelling, corrosion, or connection damage should occur quarterly in critical applications.

Are lithium battery packs safe for everyday use?

Properly designed packs with functional BMS protection demonstrate excellent safety records across billions of devices worldwide. The BMS prevents overcharging, deep discharge, overcurrent, and thermal runaway conditions that could lead to failures. However, physical damage—puncturing cells or crushing pack housings—can bypass protection systems and create hazards. Users should avoid exposing packs to extreme heat, water immersion, or mechanical abuse. Counterfeit or poorly manufactured packs lacking adequate BMS implementation pose significantly higher risks.

Key Takeaways

Battery packs lithium store 6-12× more energy per kilogram than lead-acid alternatives, enabling portable electronics and electric vehicle applications
Individual cells connect in series (increasing voltage) and parallel (increasing capacity) patterns to meet specific application requirements
Battery Management Systems provide essential protection against overcharging, deep discharge, and thermal runaway while balancing cell voltages
Performance longevity depends heavily on depth of discharge (30-70% optimal), temperature management (15-25°C ideal), and charge rate limitations
Modern lithium battery technology delivers 500-8,000 charge cycles depending on chemistry and application, with recent advances pushing energy density toward 400 Wh/kg
