What Is a Low MOQ Clothing Manufacturer?

A low MOQ clothing manufacturer accepts small production runs of garments. MOQ stands for minimum order quantity: the smallest quantity a supplier agrees to produce under its order terms. In clothing manufacturing, that minimum may apply separately to each style and color. Some suppliers allow the quantity to be divided across several sizes. (shopify.com)

For a new clothing label, a small first batch can provide stock for an initial release. The purchasing budget also covers the development work required to get that garment into production. Fabric sourcing, patterns and samples can create expenses before the finished pieces are ready to sell. (shopify.com)

What Does a 50-Piece Minimum Cover?

“50 pieces per style per color” assigns a separate minimum to every design-and-color combination. Under those example terms, a black T-shirt requires 50 pieces. Adding the same design in cream brings the T-shirt order to 100. A hoodie in black and gray adds two further batches, producing a collection of 200 garments.

Within the black T-shirt batch, an illustrative size allocation could be 8 small, 18 medium, 16 large and 8 extra-large pieces. That totals 50. The supplier must accept mixed sizing for this arrangement to apply. An order with a minimum for each individual size would require a different calculation.

Published starting quantities show how suppliers define their offers. Hawthorn advertises custom clothing from 50 pieces per design, permits size splits and states that different clothing categories can carry different minimums. (hawthornintl.com) Billoomi Fashion lists 25 pieces per style per color, with mixed sizes, and raises its published minimum to 100 pieces per style for custom printed or embroidered designs. (billoomifashion.com)

A coordinated outfit introduces another purchasing unit. Fifty hoodie-and-jogger sets contain 100 individual garments. For an order packed as sets, a medium hoodie paired with small joggers contributes one medium to the hoodie quantity and one small to the jogger quantity. The order can therefore have a different size distribution for each component.

What the Manufacturer Makes

The Fabric Purchase Behind a Small Batch

A custom fabric supplier may sell by the meter and set a minimum for each construction and color. Lebenskleidung’s custom-production service publishes starting quantities of approximately 45–60 meters per color for knitted fabrics and 50–240 meters for woven fabrics, depending on the construction. Yarn purchases, machine setup and dye-house quantities contribute to those conditions. (lebenskleidung.com)

Several garment styles can draw from the same fabric purchase when their material specifications match and the supplier accepts the combined requirement. A skirt and a sleeveless top made in the same cloth and color could use material from one order. Each garment would retain its own sewing minimum. Adding a second color creates another purchasing requirement wherever the mill applies its minimum per color. This is a possible purchasing arrangement to establish with the suppliers involved. (lebenskleidung.com)

The cutting department works with the usable cloth in the rolls received. A skirt panel and a bodice section occupy different amounts of space across that width. Their placement changes with the size assortment, affecting the length needed for the order. Roll inspection establishes usable width, shade, shrinkage, usable length and defects before spreading and cutting. (cbi.eu)

Any balance left after cutting remains material inventory. Under an agreement where the brand purchases the full fabric quantity, the remaining rolls can be assigned to that brand for later use. Storage duration and holding charges belong to that arrangement. A subsequent cutting plan draws against the remaining usable quantity. (cbi.eu)

For a design that can use an existing fabric, the manufacturer can source from available stock. The chosen article already has a defined construction and color range. CBI identifies stock materials and suppliers working with stock yarns as ways to increase production flexibility for smaller orders. (cbi.eu)

A First Production Budget

Illustrative budget for 50 printed T-shirts, in USD. All prices below are assumptions. The production charge includes stock fabric, cutting, sewing and the specified front print. Development, branding, inspection and transport are charged separately. Import duties, taxes and clearance charges require additional allowances.

The total allocates $33 to each production garment. Reserving two pieces for photography and reference leaves 48 available to sell. Allocating the same expenditure across those 48 garments gives approximately $34.38 per sellable piece.

Development contributes $6 to the cost allocated to each of the 50 production garments. The factory also has preparation work associated with the style. Its labor cost reflects the operations needed to make the garment, including time spent organizing production. Custom trims may carry purchasing minimums or small-order surcharges from their suppliers. (cbi.eu)

For this example, suppose the development charge is payable upfront and the production deposit is 40% of the $1,000 manufacturing charge. The initial payments total $700: $300 for development and a $400 production deposit.

The later payments comprise the $600 production balance, $50 branding charge, $100 inspection charge and $200 transport allowance. Together, they account for the remaining $950.

Developing the Garment and Checking the Finished Pieces

An example fit comment for a T-shirt could read:

Reduce the medium body length from 70 cm to 68 cm at the lower body. Retain the finished hem depth and the neckline-to-print measurement shown on the sample.

That instruction places the 2 cm reduction above the hem turn-up. Because the print stays at its existing distance below the neckline, the gap between the artwork and the bottom hem becomes 2 cm shorter. The revised sample shows the print’s position on the shortened garment.

The medium measurement chart receives the revised body length. Other sizes receive their corresponding dimensions through grading, using the agreed increments for each measurement point. Technical packs connect these dimensions to drawings, construction notes and revision information. (techpacker.com)

The pre-production sample brings the resulting shape together in the intended production fabric and trims. Its decoration and finishing follow the version being prepared for the main run. For a garment-washed style, the specified wash forms part of that sample’s construction and finishing requirements. (techpacker.com)

In this example, the production specification could set the medium body length at 68 cm with a tolerance of ±1 cm, measured from the high point of the shoulder to the bottom hem on a flat, relaxed garment. The acceptable range would be 67–69 cm. A production piece measuring 68.4 cm would meet that length requirement.

Inspection coverage establishes how many finished garments receive each check. CBI describes quality control during production and examination of completed garments before packing. The actual order can define its own workmanship and measurement coverage within those stages. (cbi.eu)

For the illustrative 50-piece T-shirt batch, a proposed scope might include visual examination of all 50 garments and complete measurements on three pieces from each of four sizes. The resulting measurement sample would contain 12 garments.

A record for medium garment M-07 could show the actual 68.4 cm body length, the measuring point and the applicable tolerance. Its print placement would have a separate recorded measurement from the neckline. If that garment required a correction, its reinspection entry would identify the corrected feature and the result.

Where the Order Spends Its Time

Billoomi publishes approximately two to three weeks for sampling and six to eight weeks for production, subject to its stated service conditions. These are supplier-specific estimates for separate stages of the order. (billoomifashion.com)

For a collection with a required warehouse-arrival date, the delivery calculation begins with the transport arrangement. The carrier-handover date sits before the estimated transit period. Factory completion must leave room for the agreed finishing, inspection and packing work before collection. CBI treats these as distinct operations within apparel production. (cbi.eu)

The manufacturing period in a quotation also needs a starting event. Under terms requiring the deposit, confirmation of the pre-production sample and material availability, production becomes ready to start when the last of those conditions is met. The factory’s booked production slot establishes the scheduled start. Material readiness includes the components required by the order, such as fabric, fastenings, labels and packaging. (cbi.eu)

A newly developed fabric places another production schedule earlier in the calendar. Lebenskleidung’s custom-production page gives an approximate reference of eight to ten weeks from order confirmation, plus transport, and names yarn availability, season and dye-house capacity as influences on timing. The specific fabric order requires its own delivery dates. (lebenskleidung.com)

Requesting a Quote for a Small Clothing Order

Subject: Quote request for 50 custom boxy T-shirts

I’m developing a black boxy T-shirt in 100% cotton single jersey at 240 GSM. The first production order will be 50 pieces: S: 8, M: 18, L: 16 and XL: 8. The design has dropped shoulders, a ribbed crewneck and a straight hem. Reference photographs, artwork and a proposed measurement chart are available for development.

The front print is 26 cm wide. Each garment also needs a woven neck label and individual packaging. Please quote for this specification and confirm that the proposed size split meets your minimum.

I need pattern development and grading included in the development price. The sample quotation should identify the sample types, sizes and revision rounds covered, together with the pattern and measurement files supplied at completion. Show the charge for the 50 production garments separately.

For the fabric being priced, include its article number, composition, weight, finish and black color reference. Any additional material or component purchases should be itemized, including quantities left after production and the terms for retaining them.

Please state the inspection coverage for visual workmanship and complete measurements. I also need the payment amounts and due dates, sampling schedule, production lead-time starting conditions and proposed factory dispatch date. The delivery quotation should identify the manufacturing location, transport method and charges included for the U.S. destination address supplied.

Solar Panel Condition After 20 Years

A module with twenty years of paperwork behind it

Guessing at what two decades do to a panel becomes unnecessary once modules with full records turn up. Three multicrystalline modules from a renewable energy park in Norway carry one of the better paper trails. Installation happened in the summer of 2000, at 100 watts each on the nameplate. Eleven years of outdoor operation followed. The park came down in 2011, with maximum power estimated by then at roughly 90 percent of original. Storage indoors ran another ten years. In 2021 the three modules went under a curve tracer and returned 82.2, 84.1 and 82.1 watts, normalised to standard test conditions. Efficiency had fallen from 13 percent to somewhere near 10.8.

Published measurements on those three modules put the average loss near 0.8 percent a year across twenty calendar years. Reading that figure carefully matters. Only eleven of those years were spent outdoors. The 2011 number was an estimate of about 90 percent taken at decommissioning, while the 2021 numbers came off an instrument and were corrected to standard conditions. Part of the gap between 90 and 83 is real ageing during storage at room temperature. Part of it is the distance between a field estimate and a laboratory measurement. Both readings need stating. A headline of 0.8 percent a year hides which is which.

Eighty-three watts from a panel sold as 100 sounds like a failure to a buyer and reads as ordinary to an engineer. Chemistry inside a laminate carries on running after a panel leaves its factory. What counts is whether the panel still does its job. A 100 watt module delivering 83 watts fills a battery in a fifth more time. Nothing about it is unsafe, nothing has to be thrown away, and its array keeps running. Panels get retired for economic reasons far more often than for electrical ones.

Splitting the loss into three causes

Power out of a panel is the product of three measurable quantities. Open circuit voltage, short circuit current and fill factor multiply together to give maximum power. Fill factor is defined as the fraction of the voltage-current rectangle a panel actually delivers, which makes that product an identity with no approximation in it. Each one degrades for its own physical reason, which turns an IV curve into a diagnosis. On those Norwegian modules short circuit current fell from 6.7 amps to about 5.95, a drop of 11 percent. Fill factor fell from 70 percent to about 66.5, a drop of 5 percent. Open circuit voltage fell from 21.6 volts to about 20.8, a drop of 3.7 percent. Multiply the three survivors back together. Twenty point eight volts times 5.95 amps times 0.665 gives 82.3 watts, landing on the measured figure.

Reading those three drops assigns blame. Short circuit current counts photons reaching the junction. An 11 percent fall means light stopped arriving, which browning encapsulant and delaminated pockets do exactly. Fill factor tracks series resistance in ribbons, solder joints and fingers, and 5 percent buys twenty years of thermal cycling on solder. Open circuit voltage answers to recombination and shunt paths, with 3.7 percent pointing at slow damage around the junction. Optical loss took more than half the total on these panels. A panel losing light is a different repair problem from a panel losing contact. The numbers say which arrived.

Numbers of that kind only compare after correction. Standard test conditions mean 1,000 watts per square metre at a cell temperature of 25 degrees. A panel measured outdoors at 800 watts and 55 degrees reads far below its rating for two reasons having nothing to do with age. Current scales almost in proportion with irradiance. Dropping to 800 watts costs 20 percent straight away. Thirty degrees above the standard costs another 30 times the temperature coefficient, around 12 percent on an older module at 0.40 percent per degree. Multiply 0.80 by 0.88 and 0.70 comes out. A panel reading 70 percent of its rating under those conditions is performing to specification. Owners reporting that a panel lost a third of its output have usually measured it warm and hazy.

What the glass looks like after twenty summers

Encapsulant shows age before anything else does. Ethylene vinyl acetate sits between glass and cells as a clear adhesive. Ultraviolet light breaks acetate groups off the polymer backbone, releasing acetic acid and leaving conjugated double bonds behind. Conjugation absorbs blue light, which is what a browning panel is doing chemically. Acetic acid then sits inside the laminate attacking cell metallisation and ribbon solder. One reaction feeds two failures, optical and electrical, out of a single cause. Modules built before roughly 2005 used encapsulant formulations with weaker ultraviolet stabilisers than current recipes carry. Where the acid goes matters as well. A polymer backsheet breathes slowly, letting acetic acid and moisture diffuse out of the laminate over months. A glass-glass module seals both faces, trapping whatever the encapsulant produces. Manufacturers building glass-glass modules moved to polyolefin encapsulants partly for that reason, since polyolefin has no acetate group to lose. Twenty year old panels almost all pair ethylene vinyl acetate with a polymer backsheet. Ageing of that combination is the best documented case there is.

Delamination follows another route. Adhesion between encapsulant and glass, or between encapsulant and cell, fails where water and heat cycle together. A delaminated pocket holds air, and air against glass reflects light that used to cross into the cell. Surveys of twenty year old multicrystalline fleets have found optical degradation on roughly 90 percent of panels examined. Another survey put heavy encapsulant discolouration on about 40 percent of its modules, with delamination present on nearly all of them while covering under half the surface. Neither number describes a failed panel. Both describe panels working in the low eighties as a percentage of rating.

The back of a panel ages on a schedule of its own. Polyester backsheets chalk, going powdery to the touch as the surface layer erodes. Cracking follows in some product families, running along the cell gaps where the sheet flexes most. Once a crack opens, moisture reaches the ribbons and corrosion starts. Aluminium frames pit in coastal air and grow white oxide bloom, cosmetic until the earthing path through the frame turns high resistance. Junction box adhesive lets go at the corners on plenty of twenty year old panels, leaving the box hanging by its own cables. A visual inspection catches most of that in ten seconds a panel.

Heat gathers where the light stops working

An infrared camera reads the consequences of all of that. Thermography on the Norwegian modules found a spread of about 10 degrees between the warmest and coldest cells across a single panel. Physics behind the spread is plain. A cell converting light into current exports energy. A cell behind a browned or delaminated patch absorbs identical light and converts almost none of it, leaving heat as the only outlet. Warmer polymer degrades faster, the patch spreads, and that cell warms again. Local degradation feeds itself. Even fading is the exception.

Series wiring turns a weak cell into a heated one. Cells in a string carry identical current, set by the weakest member. A cell no longer able to supply that current gets driven into reverse bias by the others, dissipating power as heat in place of producing it. Bypass diodes exist to stop that, clamping a substring once its voltage reverses. Diodes cover a whole substring of perhaps twenty cells, which leaves room for one degraded cell inside a healthy substring to cook quietly. That mechanism produces the burn marks turning up in failure analysis, with charring around a broken interconnect.

The parts that fail outright

Gradual loss rarely decides when a panel comes off a roof. Discrete failures do that. Each one leaves a signature a person can find. Junction boxes head the list. Adhesive holding the box to the backsheet gives up after fifteen or twenty summers of expansion and contraction, water enters, and terminals corrode. Potting compound inside cracks and shrinks, exposing the connections it was meant to seal. Bypass diodes fail in two directions with opposite consequences. A diode failing short circuits its substring permanently, removing a third of the panel’s voltage while the panel carries on at reduced output. A diode failing open removes shade protection with no visible symptom at all, which nobody notices until a shaded cell burns. Backsheets crack along cell gaps in certain product families, letting moisture into the laminate where it corrodes ribbon solder and raises series resistance. Ribbon corrosion appears on an electroluminescence image as dark fingers spreading out from the busbar. Glass breaks from hail, from thermal shock when cold rain hits a hot panel, from a dropped tool and from mounting clamps overtightened at installation. A shattered module often keeps producing power, since tempered glass holds together inside its laminate while the cells underneath stay connected. Producing power with broken glass is the dangerous case, because water now reaches live conductors while the insulation resistance of a healthy laminate has gone. Frames corrode at the earthing point in salt air. Cable insulation hardens and cracks where a cable has rested on a hot roof surface, and connector contacts pit and heat once their seals age. Mating two different connector families, common on repowered arrays, produces a joint running warm from its first day. Each of these arrives with no warning. Encapsulant browning is the one failure that announces itself slowly. Field data on retired panels reflects that ordering. Modules taken out of service divide into two groups. A large group measured fine and came off because the site was repowered. A smaller group carried a discrete fault. Almost none come off for crossing a degradation threshold. Owners replace panels when the roof needs work or when the inverter dies.

Two twenty-year fleets, two answers

Installations of similar age return very different numbers. Seventy-six polycrystalline modules from an off-grid system on Ratones Island in Brazil came down after more than twenty-two years, a 4.7 kilowatt array that had replaced diesel generation. Testing after decommissioning covered visual inspection, IV curves at one minute resolution, electroluminescence imaging, insulation resistance and drone thermography. Remaining power came in at 87 to 88 percent of original, about 0.4 percent a year at module level. System level loss ran near 0.7 percent a year, with the difference produced by mismatch between modules and by nothing inside the modules themselves. Sixty-eight percent of them passed every test and were approved for reuse.

Two fleets at similar ages landed on 0.4 and 0.8 percent a year. Climate, mounting, encapsulant recipe and cell quality separate them, with no single factor carrying the whole gap. Variation between installations swamps variation between years inside one installation. Any figure quoted for how a panel looks at twenty years describes a distribution with a factor of two across its middle. Buyers reading a single number off a marketing page are reading the centre of that distribution with the width removed. Swiss systems past thirty years have measured between 0.16 and 0.24 percent a year, sitting far below both of these.

Climate alone fails to explain that pair. Norway is cool, Brazil is hot, and faster loss showed up at the cool site. Measurement design covers a good part of the difference. Three modules is a sample, seventy-six is a fleet. One figure mixes a field estimate at year eleven with a laboratory measurement at year twenty. The other comes from a single testing programme applied to every module at once. Product vintage covers more of it. A 100 watt module of 13 percent efficiency from the year 2000 sits two technology generations behind what Brazil had running. Comparing two published degradation numbers means comparing two experiments before comparing two panels.

Testing a panel that old

Two instruments settle most questions about an old panel. A multimeter across the terminals in full sun reads open circuit voltage, which should sit within a few percent of the datasheet figure once corrected for temperature. Voltage well down points at a shorted bypass diode or a damaged cell string. Short circuit current needs a clamp meter or a meter rated for the current, measured with the terminals joined. Current scales almost linearly with irradiance, making a bright clear noon the only fair moment to take it. Compare measured current against the datasheet, scaled by the irradiance at that moment. One number then covers the optical health of the panel.

Safety testing matters more than performance on a panel this old. Insulation resistance measured dry passes on almost anything, since a dry laminate insulates well even with cracks running through it. The test that finds trouble wets the module first. IEC qualification asks for insulation resistance times module area above 40 megohm square metres under a wet leakage test, with the panel in a water bath and voltage applied for two minutes. Field-aged panels passing dry and failing wet turn up often enough to have their own literature. A panel in that state works, produces power and pushes current into its frame whenever it rains.

Electroluminescence imaging finds what an eye cannot. Feeding current backwards through a panel makes the cells emit infrared. A camera with its infrared filter removed photographs the result at night. Cracked regions go dark. Corroded fingers show as dark stripes running out from the busbar. Inactive cell areas appear as black patches with sharp edges. A modified consumer camera and a bench supply do the job on a driveway for the price of an afternoon. Nothing else shows cell-level damage without dismantling the panel.

Results sort old panels into three groups. Panels measuring above 80 percent of nameplate with clean insulation go back into service. Panels with a discrete fault, a dead diode or a wet junction box, get repaired for parts costing very little. Panels with broken glass, failed insulation or dark regions across many cells go for recycling. Sorting runs to perhaps fifteen minutes a panel with the right equipment. Second-life dealers work in container loads for that reason.

Second life or scrap

An old panel misbehaves in a new string. Series wiring drags every module down to the weakest current in the string, which makes mixing a twenty year old panel with new ones a way to waste the new ones. Old panels belong in an array of their own on a charge controller of their own, where matching each other is all they have to do. Voltage matters as much as current. A module from 2000 with 36 cells opens at around 21 volts, sitting nowhere near a modern 144 half-cell module at 45. Combining those in series works electrically and throws away capacity through mismatch. Separate strings on separate MPPT inputs solve it cleanly.

Scrap value explains why so many working panels get crushed. Glass carries 70 to 76 percent of a module’s mass, the aluminium frame another 8 to 13, silicon 3 to 5. Recovering the glass is easy and pays almost nothing per panel. Recovering silver out of the fingers pays better per gram and needs chemistry that only works at volume. Transport cost for a 20 kilogram object of low value drives the economics harder than the material content does. An off-grid builder pays more for that panel than a glass recycler does.

What a folding panel looks like at twenty

Twenty year old folding panels barely exist as a category. Portable panels at this size and price arrived alongside lithium power stations after about 2015, which puts the oldest of them near a decade. Anything sold as a twenty year old folding panel comes out of the marine or expedition market. Predictions past ten years for this product class rest on material behaviour. Field records do not exist yet. Portable panels reach twenty years differently, when they reach it at all. Construction is the reason. A folding panel has no tempered glass to break, no aluminium frame to corrode and no roof-mounted junction box baking in place. Front sheet polymer stands where glass would be. PET clouds and yellows under ultraviolet, losing transmission across the whole surface at once, which a folding panel that has spent its life outdoors shows plainly. ETFE holds transmission far longer. Cells inside see less total exposure than any rooftop panel, since a portable panel spends most of its calendar life folded in a bag. Twenty calendar years of weekend use puts less dose on those cells than a roof delivers in two.

What fails is the folding itself. Hinge lines crease the laminate at fixed positions, and cells nearest those lines pick up microcracks from every fold. Stitching on fabric hinges wears through. Cable entry points at the junction box take strain each time the panel gets picked up by its cable. Connectors see a plug cycle every trip, where a rooftop connector sees two in its life. Expecting twenty years out of a folding panel means expecting twenty years out of a hinge, a zip and a connector. Choosing ETFE, storing the panel dry and never lifting it by the cable are the decisions that matter. All of them sit outside the cells.

Yearly Degradation Rate of Mono Panels

A warranty figure and a measured figure are different objects

Performance warranties on crystalline panels follow one shape. Output through the first year has to stay above 98 percent of nameplate. From year two onward the guaranteed annual loss is capped at 0.55 percent of nameplate. Twenty-four of those years take 13.2 points off, and 98.0 minus 13.2 lands on 84.8 percent at year 25. Datasheets print that figure as a headline. Nothing in the arithmetic came from measuring a panel. A warranty floor is a legal promise about the worst panel a manufacturer is willing to pay out on, set by a finance department around a claims rate the company can carry. Publishing a floor of 84.8 costs nothing when the typical panel finishes several points higher.

Two warranties travel together on a datasheet and get confused constantly. A product warranty, commonly 10 or 12 years, covers workmanship and outright failure of the hardware. A performance warranty, commonly 25 years, covers output alone. A panel making 90 percent of nameplate at year 12 with a cracked frame is a product warranty case with the performance clause untouched. A panel making 78 percent at year 20 with nothing visibly wrong is the reverse. Claims under the second clause stay rare. Proving output loss on an installed array takes an independent flash test at the owner’s expense.

A measured degradation rate is a slope. Record the output of a panel or a system over years, correct for irradiance and cell temperature, then fit a line through what remains. Field work at that scale exists. A US fleet study covering almost 8 GW across roughly 2,500 commercial and utility sites put the median loss at 0.75 percent per year across data running from 2008 to 2022. Systems in hot climate zones came in at 0.88 percent per year against 0.48 percent in cool ones. Ninety percent of the fleet lost under 2 percent per year. Figures of that kind describe populations, and one system inside the study could sit anywhere across the spread.

Fleet numbers also count more than panels. A system rate absorbs inverter ageing, soiling nobody washed off, string outages that went unnoticed for a month, connector corrosion and monitoring drift. Module-level measurements, taken by pulling panels off a rack and flashing them under a solar simulator, come out lower. Published module rates for crystalline silicon cluster near 0.5 to 0.6 percent per year at the median. That gap between 0.5 and 0.75 is real work sitting in the balance of system hardware and in maintenance that never happened. A panel datasheet and a fleet statistic report two different measurements.

Linear on paper, compound in the field

Warranty arithmetic subtracts a fixed slice of nameplate every year. Physics removes a fraction of whatever is left. Those two produce different curves from an identical percentage. Run the compounding version of the warranty clause. A panel losing 2 percent in year one and 0.55 percent of its remaining output in each year after that finishes at 0.98 times 0.9945 raised to the 24th power, which works out to 85.9 percent of nameplate at year 25. Reading the identical clause as a straight line gives 84.8. Compounding is the gentler of the two by 1.1 points. Landing exactly on 84.8 through compounding takes 0.60 percent per year. The linear wording is quietly the stricter of the two readings.

Twenty-five years is a warranty term. Treating it as a service life gets the physics wrong. Push the median module rate of 0.5 percent per year forward and ask when output reaches 80 percent of nameplate. The answer is the log of 0.8 divided by the log of 0.995, which comes to 44.5 years. Panels from the 1980s back that arithmetic up. Six Swiss installations built in the late 1980s and early 1990s were measured after more than 30 years of operation at 0.16 to 0.24 percent per year, well under the 0.75 to 1 percent the industry plans around. What ends a panel’s working life is rarely the slope. Hail, a failed junction box or a roof replacement gets there first.

Year one belongs to its own mechanism

First-year loss has a name and a mechanism behind it. Boron-oxygen light induced degradation appears in p-type Czochralski silicon within hours of first sunlight. Boron sits in the crystal as the dopant that makes the wafer p-type. Oxygen arrives during crystal growth, dissolved out of the fused silica crucible that holds the melt. Under illumination those two form a recombination-active complex. Carrier lifetime drops, and current falls with it. Published measurements on PERC cells put the peak near 2.3 percent at eight hours of exposure, settling back to about 1.3 percent by 96 hours. Float-zone silicon, grown with no crucible touching the melt, carries far less oxygen and shows almost none of the effect.

Swapping the dopant removes the complex. Gallium makes silicon p-type as boron does, with no defect formed against interstitial oxygen. Manufacturers knew that for two decades. A patent held the method closed until it expired in May 2020, after which the industry moved onto gallium doped p-type wafers within a couple of production cycles. Cells built that way still show a small residual drop, around 1.2 percent at 96 hours in one published comparison, arriving from a separate mechanism. N-type wafers avoid the problem from another direction entirely. Phosphorus doping puts no boron in the crystal at all. TOPCon and heterojunction cells are built on that material.

A datasheet clause allowing 2 percent in year one was written for boron-era panels. Gallium doped and n-type panels never spend that allowance. Their first-year loss lands closer to 1 percent. Later years then start from a higher base. Shifting the whole curve up by a point at year one carries that point through to year 25. Buyers reading a 2026 datasheet against a 2016 one see identical warranty language covering two different physical situations. The clause stayed put while the panels underneath it improved.

Checking which kind of panel is on offer takes one line of a datasheet. Cell technology reads as PERC, TOPCon or HJT. Wafer type reads as p-type or n-type, with gallium doping sometimes named in the wafer description. A p-type PERC panel built before 2020 carries the boron-oxygen problem in full. Anything built on n-type material never had it. Portable panels lag the utility market by a few years on cell technology, since folding laminators take whatever cell format runs at volume. Most folding panels on sale today still run p-type PERC cells.

The defect that waits for a hot afternoon

A second degradation mode turned up after PERC went mainstream. Light and elevated temperature induced degradation needs both conditions in its name. Illumination on its own does little. Above roughly 50 to 60 degrees at the cell, output starts falling across hundreds of hours of operation, reaches a minimum somewhere near a thousand hours, then partially recovers over thousands more. Reported magnitudes in PERC modules run to about 10 percent in bad cases, with individual measurements above that. Field studies have recorded 7 percent power loss after a thousand hours of laboratory exposure, corresponding to roughly three years installed. Suspicion points at hydrogen. Firing the silicon nitride layer drives hydrogen into the wafer to passivate defects. Too much of it appears to build the defect structure behind LeTID.

Cell temperature crosses that threshold routinely. Nominal operating cell temperature describes what a module reaches under 800 watts per square metre with 20 degree air and a light breeze, and 45 degrees is a typical datasheet figure. Scaling that 25 degree rise to full sun at 1,000 watts gives about 31 degrees above air temperature. A 35 degree afternoon puts the cells near 66. Every summer day in a hot climate runs a slow LeTID experiment on the array. A curve that falls for a thousand hours and then climbs back fits no straight line at all. A rate measured across the first three years of a LeTID-prone module reports a slope that will not continue. Production lines now run stabilisation steps, injecting current at controlled temperature to push the defect through its cycle before shipping.

What actually wears out

Wear-out is a collection of separate failures competing to arrive first. Encapsulant browning cuts the light reaching the cells. Each percent of transmission lost is a percent of current lost. Solder bond fatigue works along a different path. Twenty-five years of daily heating and cooling flexes the joints between interconnect ribbons and cell metallisation, cracks propagate through the solder, and series resistance climbs. Arithmetic makes the difference between those two mechanisms concrete. A 100 watt panel operating near 18 volts draws about 5.56 amps at its maximum power point. Adding 0.1 ohm of series resistance costs 5.56 squared times 0.1, which is 3.1 watts, over 3 percent of the panel. Losing 1 percent of transmission through a yellowed encapsulant costs 1 watt. Current enters the resistance loss squared, which is why interconnect fatigue dominates the wear-out phase in field data while optical losses accumulate gently. Cracked cells sit between the two. A crack costs nothing until it isolates part of the cell from its fingers, at which point that area stops contributing current. Backsheet cracking lets moisture into the laminate, corrosion follows on the ribbons, and resistance climbs again. Bypass diodes fail short or open, taking a third of the panel out in the first case and removing shade protection in the second. Potential induced degradation needs a driving voltage between cells and a grounded frame, which utility strings at 1,000 or 1,500 volts supply and a portable panel does not. Reading the mechanism off a measurement is possible with nothing opened up. An IV curve sweep separates them cleanly. Transmission losses drop short circuit current while leaving fill factor and open circuit voltage near their original values. Series resistance losses flatten the knee of the curve and cut fill factor while current and voltage hold. Shunting and PID pull open circuit voltage down and bite hardest at low light. Three mechanisms, three signatures, one instrument. Technicians use exactly that logic before deciding whether a string needs washing, rewiring or replacing. A yearly percentage hides the fact that these processes run on different clocks. Optical loss is roughly linear with dose. Fatigue accumulates with cycle count and turns up as a knee in place of a slope. Averaging them into one number per year works for a fleet and misleads for a panel.

Heat sets the clock

Every chemical process behind those failures speeds up with temperature. Arrhenius gives the shape, with rate scaling as the exponential of minus an activation energy over kT. The fleet data has a factor of two sitting in it already, 0.88 percent per year in hot zones against 0.48 in cool ones. Work backwards from a doubling across 10 degrees near room temperature. Activation energy equals the log of 2 times the gas constant, divided by one over 298 minus one over 308. That comes to 52.9 kilojoules per mole, or 0.55 electron volts. Polymer hydrolysis, metal diffusion and corrosion reactions inside a laminate all sit in the 0.5 to 1.0 electron volt band. Ordinary chemistry accounts for the field ratio with nothing exotic invoked. Carry that ratio out to year 25 and the cost turns visible. A module losing 0.88 percent of its remaining output annually sits at 80.2 percent after 25 years. At 0.48 percent it sits at 88.7 percent. Eight and a half points separate a desert install from a coastal one, with identical panels on both racks.

Module temperature runs well above air temperature. That difference is large. A panel in full sun with air moving behind it runs about 30 degrees above ambient. Mounting one flat against a roof with no gap runs hotter still. Anything improving airflow behind the laminate buys years at the far end of its life. Site choice does more than panel choice for a fixed array. A folding panel gets identical physics with a twist, since fabric backing traps heat against the cells while the panel lies on hot ground. Propping it on its own stand keeps air moving underneath. Ten degrees of module temperature is worth a factor of two on every reaction in the laminate.

Why the rate is hard to measure at all

Measuring 0.5 percent a year against weather that varies by several percent a year is a signal to noise problem. Annual insolation at a site swings with cloud cover. Correcting output for measured irradiance and cell temperature removes most of that, leaving residual year-to-year scatter of 2 to 3 percent in normalised annual yield. Fitting a straight line to N annual points gives a slope whose standard error is sigma times the square root of 12 divided by N times N squared minus 1. Numbers make the consequence plain. At 3 percent scatter, five years of data give a standard error of 0.95 percent per year.

Extending the record shrinks that quickly. Ten years brings the standard error to 0.33 percent per year, fifteen years to 0.18, twenty years to 0.12. Separating a 0.5 percent slope from zero at two standard errors needs the error under 0.25, which arrives around year twelve. Below that, a single system supports only a wide range. The fleet study whose median came out at 0.75 percent had a mean system age of five years. That result holds up because averaging thousands of noisy slopes gives a precise average. Asking an identical dataset for the rate of one particular site returns something close to a shrug.

Vendor claims of measured degradation deserve that arithmetic applied to them. A panel tested for two years and reported at 0.3 percent per year carries an uncertainty several times the number quoted. Accelerated tests answer a different question again. IEC 61215 runs 200 thermal cycles between minus 40 and plus 85 degrees, 1,000 hours of damp heat at 85 degrees and 85 percent humidity, ten humidity freeze cycles and 15 kilowatt hours per square metre of ultraviolet preconditioning. Passing means under 5 percent power loss across the sequence. Those tests screen out design faults and manufacturing mistakes. Converting hours in a chamber into years on a roof has never worked reliably.

A folding panel ages by other rules

Portable panels skip several of the mechanisms that dominate rooftop ageing. Potential induced degradation needs hundreds of volts between cells and a grounded frame. A folding 100 watt panel opens at around 20 volts into a power station, carries a fabric edge in place of an aluminium frame and has nothing bonded to earth. That driving voltage is absent. Glass corrosion cannot happen with no glass present. What takes the place of glass matters a great deal, since the front sheet is a polymer laminate, usually PET or ETFE. PET yellows under combined ultraviolet and heat, and hydrolysis breaks the polymer chains once moisture gets in above about 45 degrees. Transmission falls as the sheet goes amber. ETFE is a fluoropolymer, holds its clarity far longer and costs more. On a folding panel the front sheet sets the service life before the cells get a say.

Exposure accounting cuts the other way, in the owner’s favour. A fixed rooftop array collects somewhere near 1,500 to 1,900 kilowatt hours per square metre every year for decades. A folding panel used twenty days a year at 5 kilowatt hours per square metre a day collects 100. Ultraviolet dose and thermal cycling accumulate roughly fifteen times slower on the second one. Ten calendar years on a camping panel is closer to one year of rooftop exposure in optical terms. Mechanical wear replaces photochemical wear as the thing that finishes it off. Folding puts a crease line across the laminate at every hinge, cells near the fold pick up microcracks, the junction box gets tugged by cable strain, and connectors wear with every plug cycle. Panels stored in a hot vehicle age their polymer with no light and no output to show for it. Rates quoted per year, written for panels that sit still for 25 years, describe this product badly.

What to expect from a panel you own

A rigid mono panel on a rack gives numbers a buyer can plan around. Expect a first-year drop of 1 to 2 percent depending on wafer type, then somewhere between 0.4 and 0.7 percent a year in a temperate climate, closer to 0.9 in desert heat. Output at year 25 lands near 85 to 90 percent of nameplate for a panel that survives mechanically. Most panels lost before then are lost for reasons with nothing to do with the slope. Hail, a cracked junction box and a chewed cable end more panels than photochemistry does.

Folding panels need a different frame of expectation. Cell degradation barely registers across a decade of weekend use. Front sheet clouding, hinge wear and connector damage arrive well ahead of it. Buying decisions follow from that ordering. ETFE over PET, a stand that lifts the panel off hot ground, a case that keeps grit out of the folds, and cables long enough that the junction box never takes strain. Checking output once a season against a known load catches a failing bypass diode or a wet junction box long before the loss grows obvious. A panel reading 15 percent low at noon on a clear day has something broken inside it.

Anti Reflective Coating Efficiency Gain

A third of the light bounces straight back

Polished silicon is a mirror. Anyone who has seen a bare wafer knows it. A large mismatch in refractive index between air and the material is the reason. Fresnel gives the size of the problem at normal incidence. Reflectance equals the difference of the two indices divided by their sum, all squared. Air sits at 1.00. Silicon around the middle of the visible band sits near 3.9. Put those in. The difference is 2.9. The sum is 4.9. That ratio squared is 0.350. Thirty-five percent of the light arriving at a bare polished wafer leaves again without ever entering the silicon. Bare silicon carries a surface reflection of over 30 percent by that arithmetic. Silicon sits that high because of what it is. Refractive index measures how strongly a material’s electrons respond to a passing field. A semiconductor with a small bandgap has electrons that respond very readily. Glass manages 1.5 by the opposite route: its electrons are tightly held.

Index also changes with wavelength, which matters later. Silicon runs higher in the blue and lower in the infrared. Reflection to be cancelled is itself a moving target across the spectrum. Any single film is solving a slightly different problem at every wavelength it meets. No amount of work on the cell underneath recovers that third. Carrier lifetime, junction depth, contact design and grid layout all operate on photons that got inside. A third of them never did.

Cancelling one reflection with another

The fix is interference. Arrange a second reflection that arrives out of step with the first. Put a transparent film on the silicon and light now meets two boundaries. Some reflects at the top surface, where air meets film. The rest travels through the film, reflects where film meets silicon, then travels back out. One detail decides whether the argument works at all. A wave reflecting off a denser medium flips its phase by half a cycle. Both boundaries here are steps upward in index, air into film and film into silicon. Both reflections flip. Two identical flips cancel out of the comparison. Path difference is left setting the relative phase alone. Those two returning waves overlap. Make the round trip through the film exactly half a wavelength longer than the direct path. The second wave then comes back with its crests where the first has troughs. The two cancel. A round trip means crossing the film twice. A half-wavelength round trip needs a quarter-wavelength film. Everything about anti-reflective coating design follows from that sentence. Notice what the argument never used: the film’s colour, its hardness, its chemistry. Interference cares about optical thickness and index step, nothing else. That is why one line of reasoning describes an oil slick on a puddle and a coating on a solar cell. Two consequences fall out immediately. Both belong to manufacturing. A film cancelling green light has to be a quarter of a green wavelength thick inside itself, which is a distance of tens of nanometres and a few hundred atoms. Depositing that repeatably across a wafer, batch after batch, is the engineering problem behind a step that sounds like painting.

Wavelength inside the film is what matters. Light slows in a dense medium and its wavelength shortens by the index. Six hundred nanometre light becomes 300 nanometre light inside a film of index 2.0. A quarter of that is the 75 nanometres the arithmetic produced.

The two numbers a coating has to hit

Cancellation needs two conditions met at once. Both come out of that interference argument. Thickness is the first. Optical thickness has to equal a quarter of the design wavelength. Physical thickness equals that wavelength divided by four times the film’s refractive index. Take 600 nanometres as the design wavelength and a film index of 2.0. The thickness works out at 600 divided by 8, which is 75 nanometres. Index is the second. It decides how complete the cancellation is. Two waves only cancel fully when they have equal amplitude.

Amplitude at each boundary depends on the index step there. The film needs to sit at the geometric mean of what lies on either side. Hitting a target index is a deposition question. Plasma deposition builds silicon nitride from silane and ammonia. The ratio between those two gases sets the composition of the film. More silane leaves the film silicon rich and raises its index. More ammonia leaves it nitrogen rich and lowers it. Published work spans indices from about 1.57 to 2.76 on that lever alone. A cell designer needs nothing outside that range.

Run that for a cell in air. The geometric mean of 1.00 and 3.9 is 1.975. Silicon nitride deposited near an index of 2.0 lands within a whisker of the ideal. Residual reflection at the design wavelength falls to about 0.02 percent. Thirty-five percent has become effectively nothing. The film doing it is thinner than a wavelength of the light it cancels. Depositing it costs a few seconds in a tool. Pushing the index higher has a cost that the reflection arithmetic hides. A silicon-rich film absorbs light itself, most of it at the blue end. A photon absorbed inside the coating is lost outright. Reflection at least sends a photon somewhere it might bounce back from. Parasitic absorption ends the story. Film recipes sit where index, absorption and passivation quality are all acceptable, never where any one of them is optimal.

Why the design wavelength is 600 nanometres

A quarter-wave film cancels perfectly at one wavelength. Away from that wavelength the round trip stops being exactly half a wave out of step. Cancellation weakens. Reflection climbs back. Choosing the design wavelength means choosing where to be perfect. The industry settles near 600 nanometres. Two curves multiplied together explain the choice. Solar irradiance peaks in the visible band. Silicon responds across a wide range, weakly at the blue end where photons are absorbed very near the surface and recombine before collection. Response stops entirely past about 1,100 nanometres, where photon energy falls under the bandgap. Multiply the spectrum by that response and the useful power piles up in the middle. Response falls at both ends for different reasons, which is worth separating. Blue photons carry more than enough energy. They are absorbed within the first fraction of a micron, where the emitter is heavily doped and recombination is fast. Infrared photons past 1,100 nanometres carry too little energy to free a carrier at all. Silicon is transparent to them. Neither loss is anything a coating can fix. A film moves photons across the boundary. What happens to them afterwards belongs to the silicon, to the junction depth and to the carrier lifetime underneath.

Six hundred nanometres sits in that pile. A coating tuned there gives up performance in the deep blue and the near infrared, where less was on offer. Its gain lands where photons and response overlap.

Why a finished cell looks blue

Colour on a coated cell is a direct readout of the design. Wavelengths near the design point are being cancelled. They do not come back to the eye. Wavelengths far from it reflect more strongly. Those are what a person sees. Cancel green and yellow and the two ends of the visible band are what returns. Mixed together they read as the deep blue that the industry has used for decades. Thickness controls the colour directly. It sets which wavelength gets cancelled.

A film deposited thin cancels shorter wavelengths and returns a purple. A film deposited thick cancels longer ones and returns a gold or a straw colour. Operators use that as a first-pass check on a deposition tool before any measurement is taken. Nothing about it requires an instrument, a log sheet or a trained eye beyond a few weeks on the line. Every deposition tool in the industry gets watched that way between formal measurements. Colour is coarse as an instrument. An eye separates purple from blue from gold, which brackets thickness to perhaps ten nanometres, where an ellipsometer resolves a fraction of one. The value of the colour check is speed. It happens while the boat is still being unloaded.

Uniformity across a wafer is the harder half of the colour question. A deposition tool running 5 nanometres thicker at one edge of the boat than the other produces wafers with a visible colour gradient. Those cells land in different bins on optical grounds, before any electrical test happens.

Buyers who notice mottled colour on a finished module are looking at exactly that variation, cell by cell. Output differences between those cells are usually far smaller than the colour difference suggests. Anyone who wants a black panel is asking for a coating detuned away from its optimum. Cells can be made to look almost black. That colour costs current. A surface reflecting nothing visible has been arranged to cancel away from where the photons are.

The layer of plastic that changes the answer

Everything above assumed the cell sits in air. A finished module has the cell laminated under encapsulant and glass. That changes the optics in a way worth working through. Encapsulant is usually ethylene vinyl acetate, at a refractive index near 1.48. The glass above it sits near 1.5. Light reaching the coating arrives from a medium at 1.48, never from air at 1.00. Redo the geometric mean with that number. The square root of 1.48 times 3.9 is 2.40. The ideal coating index for an encapsulated cell is 2.40. A bare cell wants 1.975. Consequences follow immediately. A film tuned at 2.0 for air leaves about 3.3 percent reflection once encapsulated. A film at 2.40 under that encapsulant cancels almost completely. Thickness moves as well, because quarter-wave thickness depends on the film’s own index. Six hundred divided by four times 2.40 gives 62.5 nanometres in place of 75.

Glass carries its own reflection above all of this. Air meeting glass at 1.5 gives a Fresnel loss of 4.0 percent by the identical formula, before any light reaches the encapsulant. Module glass is often given its own coating for that reason. It works on a 4 percent problem where the cell coating works on a 35 percent one. Different suppliers make the two treatments to different specifications. Both are worth doing, at very different scales of reward. A percent recovered at the glass is a percent recovered on every photon that follows. Textured glass does a related job by geometry, scattering light forward at the outer surface in the way pyramids scatter it at the cell. Manufacturers design the coating for the module, never for the bare cell. A bare cell coated for encapsulation looks wrong in the factory and performs correctly in the field.

Two layers, and a graded index

One film cancels at one wavelength. Widening the band means adding another film on the identical principle. A double layer coating stacks two transparent films of different index, the higher one against the silicon and the lower one facing outward. Each interface now contributes a reflection. The design arranges three of them to cancel across a broader range, in place of two cancelling at a point. The gain is measurable. Published work on double layer silicon nitride reports reflectance falling from over 30 percent to under 2 percent across the working band. A single layer does worse than that away from its design point. Cost is what keeps the count low. Each additional film is another pass through a deposition tool, another recipe to hold, another chance to introduce a defect on a surface that has already been through a dozen steps. Two layers earn their keep in the field. Three rarely do.

Extending the idea gives a graded index, where the film’s index changes continuously from near that of the surrounding medium at the top to near that of silicon at the bottom. A perfectly graded layer has no boundary anywhere. No boundary means no reflection. Moths solved the problem that way. Their corneal surfaces carry sub-wavelength structures that grade the index in place of stepping it. Coating literature calls the effect moth-eye, and manufactured versions exist for specialist optics. Depositing one is the hard part. A continuously varying composition means changing the gas mixture during the deposition itself. The tool has to hold a whole schedule of setpoints on every wafer in every boat, and hold it identically each run. The industry mostly stops at two layers. A third costs more than it returns.

Texture and coating working together

Coating is only half the anti-reflection story on a modern cell. Texturing does the other half. The two multiply, with no simple addition between them. A textured surface carries millions of microscopic pyramids. Light striking a pyramid face reflects sideways onto a neighbouring face in place of straight back out. Each bounce is another chance to be absorbed. Texture reduces reflection by geometry alone, before any film is deposited. Coating then works on what texture left behind. A photon that reflects off one pyramid and hits another meets the coating twice. Residual reflection after two encounters is roughly the square of the residual after one. Two surfaces at 3 percent leave about 0.09 percent between them. Counting bounces is the reason texture and coating multiply. Real texture does better than two bounces in places and worse in others, since a random pyramid field sends some rays out after one encounter and traps others for three. Averaged over a surface the effect is large enough that texture alone, with no coating at all, takes bare silicon from 35 percent down to a fraction of that. High index buys angular tolerance for a second reason. This one is worth deriving. Snell’s law compresses angles on entry to a dense medium: the sine of the angle inside equals the sine outside divided by the index. Light arriving at 60 degrees to a film of index 2.0 travels inside it at 25.7 degrees. Path length through the film grows by one over the cosine of that angle. That comes to 1.109, an 11 percent stretch for a 60 degree swing outside. Compare a low index film. At index 1.5 that 60 degrees outside becomes 35.3 degrees inside. The path stretches by 1.225. The high index film has held its tuning almost twice as well. A quarter-wave design on silicon holds its angle well as a side effect of needing a high index in the first place. Angle behaves better on a textured surface as well. A quarter-wave film is designed for light arriving perpendicular. Light arriving at a slant travels a longer path through the film, which detunes the cancellation. Pyramids turn slanted light into something closer to perpendicular at the facet it meets. The coating stays near its design condition through more of the day.

What the coating is worth in watts

Current from a cell scales with photons absorbed. Removing reflection raises current almost in proportion. Take the extremes first. A bare polished wafer loses 35 percent of incident light to reflection. Coating and texture together bring that down to a few percent. The photons recovered are close to a third of everything arriving, and current rises accordingly. Historical order matters when reading old figures. Early cells were coated but untextured, then textured and coated. Each improvement was reported against whatever came before it. A gain quoted as several percent may describe adding a second coating layer to an already textured cell. That is a different claim from the one-third recovery above.

One number carries all of that in practice, and datasheets rarely print it. Weighted average reflectance integrates measured reflection across the spectrum, weighted by the solar irradiance and by how well silicon responds at each wavelength. A coating perfect at 600 nanometres and poor at 450 scores worse than its headline suggests. Laboratories quote that weighted figure because a single-wavelength number can be made to look like anything. Anyone comparing two coatings on one printed number should check which wavelength, and whether the measurement was taken on a bare cell or through encapsulant. Reading that table sideways shows where the engineering effort goes. The three encapsulated rows are the ones a module buyer is actually living with. One more constraint sits behind all of it. The film has to passivate as well as it reflects, since the surface it covers is where dangling bonds sit and carriers recombine fastest. A recipe optimised purely for optics can leave the surface electrically poor. A recipe optimised purely for passivation can land at the wrong index. Production recipes are a settlement between three demands on one layer. Getting from 35 percent to a fraction of one percent at a single wavelength is easy physics. Holding a low figure across the whole band takes far more work. Add a range of incidence angles, a sheet of encapsulant above, and twenty-five years of service. Durability closes the account. A coating that degrades gives its gain back. This film sits under glass and encapsulant, where nothing reaches it mechanically. What ages is the encapsulant above. It yellows under ultraviolet and cuts transmission before light ever reaches the coating.

Monocrystalline Silicon Cell Manufacturing

Sand, carbon and an electric arc

Silicon is the second most abundant element in the crust, locked up almost entirely as oxide. Getting it out means taking the oxygen off, and that reaction needs heat on an industrial scale. Quartzite goes into a submerged arc furnace with a carbon source, usually coal, coke and wood chips. Electrodes carry current down into the charge. Temperatures near them reach around 2,000 degrees. Carbon strips oxygen from silicon dioxide. Molten silicon collects at the bottom while carbon monoxide leaves the top. What tapped out of that furnace is metallurgical grade silicon, about 98 percent pure. That grade is entirely adequate for aluminium alloying and for silicone chemistry, which consume most of world production. Two percent of anything else is catastrophic for a solar cell. Put that in units the industry uses and the gap becomes clear: 2 percent is 20,000 parts per million. Electronic grade material is specified below one part per billion. Bridging that gap means removing impurities by a factor of about twenty million. Every step that follows exists to do it.

Nine nines, by way of a gas

Purification runs through a gas because gases can be distilled and solids cannot. Ground metallurgical silicon meets hydrogen chloride in a fluidised bed reactor. The reaction produces trichlorosilane along with a mixture of related chlorosilanes. Distillation does the actual cleaning. Chlorosilanes boil at different temperatures from the chlorides of the metals contaminating them. Repeated fractional distillation strips iron, aluminium, boron and phosphorus down to trace levels. Nothing about that stage is exotic chemistry. A refinery works on that principle, with a feedstock whose specification is a billion times looser. Repetition is what reaches parts per billion. A single distillation stage separates two liquids by some factor, and putting the product through another stage applies the factor again. Three stages each cutting an impurity a hundredfold leave a millionth of what went in. Columns run continuously with dozens of theoretical plates for exactly that reason. An impossible-sounding specification is an ordinary separation run many times over.

Deposition puts the silicon back into solid form. Purified trichlorosilane and hydrogen flow into a bell jar containing U-shaped silicon seed rods heated to about 1,150 degrees. Silicon comes out of the gas and grows onto the rods. Days of that thickens them into columns of polycrystalline material. The rods get broken up into the grey chunks that arrive at a crystal puller. Conventional Siemens material lands at nine nines of purity, with impurity levels under one part per billion. That number is the reason a solar cell works at all. Every impurity atom is a potential recombination centre. The whole value of a single crystal disappears once the crystal is dirty.

Pulling one crystal from a melt

Polysilicon chunks go into a crucible of fused quartz inside a graphite susceptor. Dopant goes in with them, boron or gallium for p-type material, in quantities measured against a melt of hundreds of kilograms. Heaters bring the charge above the melting point of silicon at 1,414 degrees. Argon fills the furnace at reduced pressure. A seed crystal of known orientation descends until it touches the surface. Surface tension holds the melt against it. The seed then rises, slowly, while seed and crucible rotate in opposite directions. Silicon freezes onto the seed following the lattice orientation it finds there. Argon is doing a job as well. Silicon at 1,414 degrees reacts with anything available. An inert atmosphere at reduced pressure keeps oxygen and nitrogen away from the melt. It also sweeps away silicon monoxide evaporating from the melt surface, which would otherwise condense on cooler parts of the furnace and fall back in as particles. A particle landing on the growth front ends the dislocation-free run instantly. Rotation is not decoration. It stirs the melt, evens the temperature around the growth front, averages out asymmetries in the heater. Pull rate and rotation speed together set the diameter. An operator holds it by adjusting both against a camera watching the meniscus. The crucible pays a price for all of this. Molten silicon attacks fused quartz. Oxygen enters the melt continuously and ends up dissolved in the growing crystal. A quartz crucible survives one pull. Every ingot carries the chemical signature of the vessel it came from. That crucible then goes to scrap. Length is limited by that vessel too. A charge of a few hundred kilograms feeds one pull, and once the melt runs low the growth front sits closer to the crucible wall where the temperature field is worse. Recharging systems drip fresh polysilicon into the melt during growth to stretch a run. One crucible then pays for more metres of crystal.

The thin neck that fixes everything

Touching a cold seed to a melt at 1,414 degrees does violent things to a crystal lattice. Thermal shock generates dislocations at the contact. Those dislocations propagate down the length of the crystal unless something stops them. The standard fix is elegant enough to be worth understanding. After contact the operator pulls fast and hot, narrowing the crystal to a neck of a few millimetres diameter over a length of a few centimetres. Dislocations in silicon glide on planes inclined to the growth direction. In a thin neck they travel sideways and reach the free surface within that short distance. What emerges below the neck is dislocation free. Everything about the method looks alarming. A neck of a few millimetres carries a body weighing over a hundred kilograms by the end of the pull. The whole crystal hangs from it. Puller design has spent decades on that tension.

Research has found ways around it. Heavily boron-doped or germanium-doped seeds suppress dislocation generation through solid solution hardening. Dopant atoms strain the lattice enough to resist dislocation motion at the seed interface. Crystals up to eight inches in diameter have been grown dislocation free with no thin neck at all.

Squaring the cylinder and slicing it

A finished ingot is a cylinder with a domed crown and a tapered tail. Both ends get cut off. The crown solidified before growth stabilised. The tail carries the impurities the growth front rejected all the way down. Squaring comes next. Four flats get ground along the cylinder to produce the pseudo-square section. Corners stay rounded where the original diameter ran out. Everything ground away goes back to the melt for the next pull. Nothing removed at this stage is wasted. Crown, tail, grinding swarf and broken wafers all return to a future melt, since the material is still pure silicon and only its shape is wrong. The energy that went into growing that crystal does not come back with it. Wafering is where the material accounting gets uncomfortable. A diamond-impregnated wire finer than a human hair runs at speed through a web. That web saws hundreds of wafers from one brick at a time. Industrial wafers land around 160 to 180 micrometres thick. Wire diameter sets the floor on that loss. A core wire carrying diamond grit measures tens of micrometres across. The slot it cuts runs wider than the wire by the grit standing proud of it. Thinner wire cuts a narrower slot and snaps more readily under tension. Wire suppliers and wafer makers negotiate that trade continuously.

Work out what the saw eats. A wire producing a 160 micrometre wafer while removing a 60 micrometre kerf converts 60 out of every 220 micrometres of ingot into slurry, which is 27 percent of a crystal that took days to grow. Diamond wire narrowed that slot considerably against the slurry sawing it replaced. Thinner wafers push the ratio the wrong way. Kerf shrinks more slowly than thickness does.

Etching the saw damage into pyramids

A wafer off the saw is mechanically wrecked at the surface. Microcracks run some microns deep on both faces. Any crack is a recombination site sitting exactly where light is absorbed. Alkaline etching removes that layer and produces something better while doing it. Silicon in a hot sodium hydroxide bath etches at different rates on different crystal planes. The slowest planes survive as facets.

On a single crystal cut along its usual orientation those facets emerge as random pyramids a few microns tall, covering the whole surface. Pyramids earn their place through geometry. Light striking a flat surface reflects once and leaves. Light striking a pyramid face reflects toward a neighbouring pyramid. The wafer gets a second chance to absorb it. Reflection falls substantially before any coating goes on.

Pyramid height has an upper limit set by what comes next. Facets a few micrometres tall trap light well and still accept a uniform coating. Push the texture taller and the deposited nitride thins on the peaks. Printed paste then bridges the valleys in place of filling them. The cell loses more at the contacts than the texture gained in absorption. Etch time and bath chemistry are set against that ceiling. A second benefit shows up later in the line. Screen-printed paste fills the pyramidal texture better than it wets a flat surface. Contact between metal and silicon improves, which lowers series resistance in the finished cell. Texturing is one of the few steps that pays twice.

Building the junction in a furnace

Doped silicon on its own is not a solar cell. A cell needs a junction between p-type and n-type material. Industry builds one by driving phosphorus into the surface of a boron-doped wafer. Wafers enter a quartz tube furnace at 800 to 900 degrees, where phosphoryl chloride vapour and oxygen react at the surface to deposit a phosphosilicate glass. That glass is the dopant source. Phosphorus diffuses out of it into the silicon during the deposition, then further during a drive-in step with the gas supply shut off. Depth and concentration are the whole game. Too shallow and the metal contacts punch through the layer. Too deep or too heavily doped and recombination in the emitter eats the blue response of the cell. Furnace time and temperature set the profile. Process engineers spend careers on that trade. Sheet resistance is the number a process engineer actually watches. It describes the emitter as ohms per square, measured by a four-point probe on a test wafer from each run. Depth and doping arrive as one figure in seconds. A furnace drifting warm shows up as sheet resistance falling before any cell has been finished. That is why the measurement sits at the furnace exit. Uniformity across the wafer matters as much as the average. A furnace loads dozens of wafers in a boat. Gas has to reach every surface at one rate. Gas flow, boat spacing and tube geometry all end up in the recipe. Wafers at the ends of a boat see conditions the ones in the middle do not, which is why boats get loaded to a pattern and the end slots sometimes stay empty. Cleanup follows. The phosphosilicate glass gets etched off in hydrofluoric acid. The junction has also formed around the wafer edges, shorting front to back. An edge isolation step removes it with a laser or a plasma. A cell that skips edge isolation has a permanent shunt across its junction. One layer goes on after the junction and does three jobs at once. Plasma-enhanced deposition lays down silicon nitride, which cuts reflection, passivates the front surface by tying off dangling bonds, and carries hydrogen inside the film itself. That hydrogen is the third job. It waits for the firing step. Heating the cell drives hydrogen out of the nitride in atomic form. Some of it diffuses into the silicon underneath, attaches to defects in the bulk and quietens them. A layer deposited for optical reasons ends up improving carrier lifetime deep inside the wafer. Film composition and density control how much hydrogen is available. Nitride recipes get tuned against lifetime measurements, with colour only a first check.

Printing the metal on

Current has to leave the cell somehow. The contact grid is where optical and electrical demands collide. Every strip of metal on the front face collects current from the silicon under it. It also blocks light from reaching that silicon. Screen printing puts the pattern down. A stainless mesh screen, typically 200 to 325 threads per inch, carries the emulsion pattern of fingers and busbars. Silver paste gets forced through the open areas onto the wafer. A low temperature dry near 120 degrees drives off solvent before anything else happens.

Firing turns printed paste into a contact. Cells pass through an infrared belt furnace between roughly 700 and 1,000 degrees for a minute or two. Organic binders burn away. Glass frit in the paste eats through the anti-reflective nitride layer underneath. Silver reaches the silicon and forms an ohmic contact, a trick the industry calls fire-through. Rear aluminium paste alloys with the silicon during that pass. Colour is a free process check at this stage. Nitride thickness sets the interference condition. The film reflects whatever wavelength it fails to cancel. A correctly deposited layer reads dark blue to the eye. A batch coming out purple or gold has been deposited too thick or too thin. An operator sees that across a room before any instrument gets consulted. Every dimension in that grid is a compromise.

Wider fingers carry current with less resistance. They also shade more silicon. Narrower fingers shade less and lose more to resistance. Taller printing helps both at once, which is why fine-line printing and multi-busbar layouts have absorbed so much development effort. Current mainstream cells add two steps at the rear that a basic line does without. A dielectric stack goes onto the back surface to passivate it. An unpassivated rear recombines carriers that reached it.

That stack also blocks electrical contact. A laser opens fine lines through it before the aluminium paste goes on, leaving contact only where the pattern allows. Both steps exist to raise one quantity: how long a carrier survives before recombining. A rear that reflects light back into the cell adds a second gain. Long-wavelength photons that reached the back get another pass through the silicon.

Testing, sorting and what the yield costs

Finished cells go under a flash tester. A xenon lamp delivers a calibrated pulse approximating the standard spectrum. The tester sweeps the current-voltage curve during that flash. Out come the numbers a datasheet is built from. Flash duration matters more than it sounds. The pulse lasts milliseconds, short enough that the cell has no time to warm, which keeps the measurement at the 25 degrees the standard demands. A steady lamp would heat the cell during the sweep and report a figure several percent low. Sorting follows immediately. Cells that fail outright get pulled here as well. A cracked or shunted cell caught at this station costs one cell. The identical fault reaching a finished module costs the module. Bins are narrow, often a few watts wide at module scale. A factory running one product line accumulates bins it cannot use until enough cells arrive to fill a batch. Cells get binned by power output. A module gets built from one bin, never from a mixed batch. That practice traces back to one fact about a series string. A string delivers what its weakest member allows. Mixing a strong cell with a weak one wastes the strong one on every cycle.

Cost sits mostly upstream of the cell line. Anyone comparing two cell prices is mostly comparing two wafer prices with a thin layer of processing on top. Polysilicon, crystal growth and wafering carry the energy-intensive steps and the expensive consumables, which puts the majority of a finished cell’s cost behind it before the first etch bath. Cell processing adds silver, chemicals and furnace time. That distribution explains a two-decade chase after wafer thickness and kerf. A percent saved on silicon outweighs a percent saved almost anywhere else. Yield compounds in a way that punishes long lines. Run ten sequential steps at 99.5 percent each and the survivors come to 0.995 raised to the tenth, which is 95.1 percent. Drop each step to 99 percent and the line delivers 90.4. Half a percent per step decides whether a factory keeps five wafers in a hundred or ten. Handling has been automated for exactly that reason. Line speed compounds the pressure, since a modern cell line processes thousands of wafers an hour and a jam that breaks one wafer can break the ones behind it. Wafers move in cassettes and transfer on belts and vacuum pickups. Human hands touch them as little as the process allows.

Breakage haunts the whole line. A 160 micrometre wafer is a sheet of brittle crystal the size of a dinner plate. Every transfer, bath and print is a chance to crack one. Thinner wafers save silicon and break more often. Yield is the constraint keeping thickness where it is. Count the thermal excursions a wafer survives and the achievement looks larger. Melting at 1,414 degrees, diffusion near 900, firing near 800, with etches and rinses between them. Each high-temperature step is a chance for impurities to move where they are not wanted. The purity spend at the front of the line is what makes the rest possible.

Real World Output of 100W Mono Panel

The shape of a day, and why it is not a rectangle

Ask what a hundred watt panel produces in a day and most answers multiply two numbers. Rated watts times hours of daylight. Ten hours of summer sun suggests a kilowatt-hour. No hundred watt panel has ever delivered that. Output through a day traces a curve. Power climbs from zero at sunrise, peaks somewhere near solar noon, falls back to zero at sunset. Nothing about that curve is rectangular. The area beneath it is the energy reaching the battery. Approximate the curve as a half sine and the arithmetic becomes exact enough to trust. The average of a half sine equals two divided by pi, which is 0.637. A panel peaking at 85 watts across a twelve hour day delivers about 85 times 12 times 0.637, which is 650 watt-hours. A rectangle would have promised 1,020. That single factor accounts for a third of the gap between expectation and meter.

Day length sets the width of that curve and latitude sets day length. A site at 50 degrees north sees about 16 hours of daylight in late June and under 8 in late December. That site’s noon sun stands 63 degrees above the horizon in June and 16 degrees in December. Cosine loss and air mass both change with it. Latitude squeezes the curve from two directions at once. The December penalty runs far worse than the change in day length alone suggests.

That half sine answers a more useful question: how much of the day is worth protecting from shade. Integrate the curve across its middle third and the answer is exactly half the day’s energy. Widen to the middle two thirds and it reaches 87 percent. Four hours either side of noon carry almost everything. The first and last hours of daylight carry almost nothing.

Peak sun hours is the industry’s way of collapsing that curve into one number. A location described as having 4.5 peak sun hours received the equivalent of 4.5 hours at full test irradiance, spread across whatever the actual day looked like. The convention exists because the curve is awkward. Area under it is the quantity that matters.

Air mass, and why morning light is thinner

Sunlight at eight in the morning is weaker than sunlight at noon for two separate reasons. Panel angle is only one of them. The other is atmosphere. Light arriving at a low angle travels a longer path through air before reaching the ground. Air absorbs and scatters along the way. The industry measures that path with air mass, defined as the ratio of the actual path length to the vertical one. Air mass equals one divided by the cosine of the solar zenith angle. Put numbers through that. Sun directly overhead gives a zenith angle of zero and an air mass of exactly 1. At 48.2 degrees from vertical the cosine is 0.667 and the air mass reaches 1.5, which is the condition the whole industry rates panels against. At 60 degrees the cosine is 0.5 and air mass doubles to 2. At 75 degrees it reaches 3.9. Every one of those multiplications is more atmosphere for the light to cross.

Spectrum shifts along with intensity. Atmosphere scatters short wavelengths hardest, which is why a low sun looks red. Silicon responds across a broad band. The shift costs less than the intensity loss. A panel under a red sunset is short of photons more than short of the right kind. Cloud produces an asymmetry worth deriving, because it explains why a panel keeps working under a grey sky. Current from a cell tracks the photon supply almost exactly. A tenfold drop in light gives a tenfold drop in current. Voltage sits inside a logarithm. Open-circuit voltage runs as the thermal voltage multiplied by the natural log of light-generated current divided by saturation current. Thermal voltage is about 26 millivolts at room temperature.

Push a factor of ten through that logarithm. The natural log of ten is 2.303. A tenfold fall in light costs roughly 26 times 2.303, which is 60 millivolts per cell. Multiply by 36 cells and a whole panel loses about 2.2 volts out of 22.6, under a tenth of its voltage, while giving up 90 percent of its current. That asymmetry is the reason overcast light still charges anything. A panel at a tenth of full sun still presents voltage well above what a battery needs. The controller can still transfer the small current on offer. Voltage collapse waits for genuine darkness. The useful part of a cloudy day runs longer than it feels.

How hot the cells actually get

Panel temperature runs above air temperature by more than most owners assume. A datasheet publishes the number needed to predict it, usually called nominal operating cell temperature and measured at 800 watts per square metre, 20 degrees ambient, one metre per second of wind, with the module on an open rack. The standard estimate follows in one line. Cell temperature equals ambient temperature plus the quantity nominal operating cell temperature minus 20, divided by 800, multiplied by the actual irradiance in watts per square metre. Work an ordinary summer afternoon. A module rated at 45 degrees nominal, sitting in 30 degree air under 900 watts per square metre, reaches 30 plus 25 divided by 800 times 900, which comes to 58 degrees. That figure is 33 above the 25 degrees the rating assumed. At a power coefficient of minus 0.35 percent per degree the panel has already given up 11.6 percent. Nothing else in the chain has taken its share yet.

Two variables in that equation are within an owner’s control. Irradiance is not one of them. Ambient air is not one of them either. Mounting is. A panel lying flat on a hot roof or a car bonnet runs several degrees above one standing in open air on a frame. Sandia’s refinements to the model add explicit terms for wind speed and for mounting standoff. That standoff correction reaches 18 degrees for a module fixed close against a surface.

Angle, and the reflection nobody counts

Irradiance on a panel falls with the cosine of the angle between the sun and the panel’s perpendicular. Thirty degrees off aim costs about 13 percent. Sixty degrees off costs half. That much is arithmetic every solar guide repeats. Reflection adds a second loss on top. That one gets forgotten. Glass reflects around 5 percent of light arriving straight on. That share is already inside the panel’s rating. Reflectance climbs slowly with angle, then sharply past about 60 degrees of incidence. The air-glass interface starts turning light away in earnest. Modelling packages carry a correction for exactly this, called the incidence angle modifier. Published values sit between 0.96 and 0.98 across the useful range. Standard parametrisations overestimate the modifier above 60 degrees. Real panels do worse at extreme angles than the simple models predict.

The practical consequence is that early and late output falls faster than the cosine alone suggests. A panel aimed at midday collects most of its energy in the four hours around noon. The ends of the day contribute comparatively little, which is a second reason the half sine beats a rectangle. Diffuse light changes those rules on a grey day. The standard spectrum carries a letter for it: AM1.5G, where the G stands for global and covers direct beam plus everything scattered by the sky. Under heavy cloud almost all of the remaining light is diffuse. It arrives from the whole hemisphere in place of one direction. Aim stops mattering much once that happens. A panel tilted 30 degrees away from where the sun would be loses little under overcast, since there is no beam to miss. Owners notice the effect as a panel that seems insensitive to position in poor weather and fussy about it in good weather. Both observations are correct. What separates them is the ratio of beam to diffuse in the light of the moment.

What your location supplies

Everything above describes physics that applies anywhere. How much light arrives is the part that differs by location, and that quantity is mapped in detail worldwide. Read the scale along the bottom. Daily totals in the United States run from about 2.8 kilowatt-hours per square metre in the Pacific north-west to over 6 in the desert south-west, with most of the country between 4 and 5. Those figures are long-term averages across two decades of measurement. Multiply the local figure by the panel rating for a theoretical daily energy. A hundred watt panel at 4.5 kilowatt-hours per square metre gives 450 watt-hours. At 6 it gives 600. At 2.8 it gives 280. The whole continental spread is a factor of about two. That gap matters more to a portable owner than any difference between two panels of one rating.

Season splits each of those numbers further. A site averaging 4.5 across the year commonly sees 6 in June and 2 in December. December decides whether a setup works through winter. Annual averages describe a year that never actually happens.

Dirt, dew and the slow losses

Soiling accumulates quietly. Published measurements put the optical loss at an annual average near 0.24 percent per day, which sounds negligible until it runs unchecked. Three weeks without rain at that rate costs 5 percent. Two months costs 14. Sites under trees, beside gravel tracks or downwind of farmland accumulate faster than the average. Coastal salt films build in their own way. Rain resets most of it on a tilted panel. Flat mounting holds water and the dust it carries, drying into a film that rain no longer clears. Tilting a portable panel earns its keep for that reason alone. Dew behaves differently and matters less than dust does over a season. Morning condensation scatters light for the first hour, then evaporates as the panel warms. The energy lost sits at the low-irradiance end of the day where output is small anyway. Bird droppings and leaf litter are the exception worth acting on. Both arrive suddenly and stay until removed, which puts them in a different class from dust that builds over weeks and washes off in an afternoon of rain. Those block a cell completely in place of dimming a whole surface. A fully blocked cell forces its bypass diode to conduct, which removes a third of the output on a 36-cell module. A single dropping can cost far more than a season of dust.

Shadows move, which makes them harder to notice than dirt. A pole, a mast or a branch throws a stripe that crosses a panel over the space of an hour, taking a large bite of output while it sits on a cell and giving it back when it leaves. Owners who check the display twice a day rarely catch it. Size matters less than position. A shadow covering 5 percent of a panel’s area costs far more than 5 percent if it falls across one cell in a string, because that cell limits every other cell wired with it. That shadow spread thinly over many cells costs close to its area. Anything narrow and dark, a washing line or an aerial, is worse than its width suggests.

Deployment fixes most of it for free. Walk the site once at mid-morning and once at mid-afternoon before settling the panel, and put it where nothing crosses it during the four hours around noon. Those hours carry the majority of the day’s energy. Protecting them beats any amount of cleaning.

A measured day, hour by hour

Assemble the effects and a real day appears. Take a hundred watt panel, tilted toward the midday sun, in clear July weather at a site averaging 4.5 peak sun hours, with ambient air at 28 degrees and a module rated 45 degrees nominal. Early morning delivers very little. Irradiance near 150 watts per square metre puts the panel at roughly 15 watts, cells barely above air temperature, incidence angle steep enough that reflection is taking a visible share. Mid-morning brings 500 watts per square metre and about 48 watts from the panel. Cells sit near 44 degrees by then, losing about 6.7 percent to heat.

Sum the curve and the day comes to roughly 460 watt-hours at the panel terminals. The table steps two-hourly for readability. A finer interval adds a little at each shoulder without moving the total far. Cable and connector losses remove a few percent. The charge controller removes a few more converting to battery voltage. Somewhere between 400 and 430 watt-hours reaches the cells, against a rated 100 watts and a theoretical 450. Notice which line does the damage. Peak output never reached the rating, because the cells were 33 degrees too hot at exactly the moment the light was strongest. Heat and full sun arrive together. The panel gives up most of its temperature loss during the hours that matter most.

Measuring your own panel honestly

Two instruments answer two different questions, and mixing them up wastes an afternoon. A watt meter reads power at this instant, useful for checking aim and for spotting shade. A watt-hour meter totalises energy across a day, which is the number that fills a battery. Panels get judged on the second, aimed on the first.

An inline watt-hour meter on the panel lead settles the question in one day. Fit it between panel and machine, start it at sunrise with the battery well below full, and read the total after sunset. Battery state decides whether the number means anything. A machine that reaches full charge at two in the afternoon stops accepting current. Everything after that moment is sunlight the panel could have delivered. Any honest measurement needs the battery hungry from dawn to dusk.

Timing the start matters as much as reading the total. A meter switched on at nine has already missed the morning shoulder, and one left running overnight collects the controller’s idle draw as a negative that some meters cannot show. Start at first light and stop after dark. Record four things alongside the total. The day’s weather in plain words. Peak ambient temperature. Panel tilt and rough aim. Whether the machine hit full at any point. A watt-hour figure without those four describes nothing that can be repeated.

Compare against the theoretical figure. The rating is the wrong yardstick. Rated watts times local peak sun hours gives the ceiling. A measured figure landing at 60 to 75 percent of that ceiling is a panel working correctly. A figure under half points at shading, a hot flat mount, a controller limiting early, or a battery that filled. Portable owners have a second figure to calculate. No datasheet prints it. Divide the day’s measured watt-hours by the mass carried. A folding hundred watt panel at 4 kilograms returning 300 watt-hours has delivered 75 watt-hours per kilogram for that day. A rigid module of the identical rating at 7.5 kilograms returns 40. The figure changes what counts as a good panel. Two panels of one rating at one price stop being equivalent objects once one of them has to be carried up a hill. Rate them by watt-hours per kilogram per day at the site you actually use. The box lid stops deciding the answer.

What to expect across a year

Summer and winter are different machines. A hundred watt panel at 4.5 annual peak sun hours can return 400 or more watt-hours in June. December brings under 150, on a shorter day with a lower sun and more cloud. Snow behaves in its own way. A dusting slides off a tilted panel within an hour of sun. A settled layer stops output completely. Even thin snow blocks nearly all light, which leaves the panel producing nothing to warm itself with. Clearing it by hand is the only fix. Anything harder than a soft brush costs more in scratched glass than the recovered energy is worth. Cold weather does return something. A panel at 5 degrees ambient under bright winter sun runs cells near 15 degrees. That is 10 below the rating condition. The power coefficient works in the owner’s favour for once. Peak output can exceed the nameplate on a clear cold morning. Daily energy still falls. The sun sets at four. Cloud is the larger seasonal variable in most climates. Overcast light around 200 watts per square metre leaves a panel producing near a fifth of its rating. A week of it produces less than a single clear day. Averages hide that pattern completely. Controllers add a small start-up delay at each end of the day. Most need panel voltage some margin above battery voltage before they begin. They also consume a little themselves while idling. The voltage side is rarely the obstacle, since a panel at a tenth of full sun still shows most of its voltage. What ends the day is current too small to overcome the controller’s own draw, which happens well before the light disappears. Plan against the worst month. Anybody depending on solar through winter needs more panel than the summer requires, or a charging route that skips the sun. Finding that out in December is the expensive way.

Monocrystalline Versus Polycrystalline Efficiency

Two ways to freeze a tonne of silicon

Both cell types start from the identical raw material. Purified polysilicon arrives as grey chunks of nearly pure element. The difference appears entirely in how that material is turned back into a solid. The monocrystalline route pulls a crystal. A seed of known orientation touches the surface of molten silicon in a quartz crucible, then rises slowly while rotating. Atoms attach to the lattice already present, following its orientation. Hours later a cylinder emerges that is one continuous crystal from the seed to the tail, with the lattice unbroken along its whole length. Sawing that cylinder into wafers gives cells with no internal boundaries at all. The multicrystalline route casts a block. Molten silicon is poured into a square crucible and cooled from the bottom upward. Solidification advances as a front through the melt. Crystals nucleate at many points along that front and grow until they meet each other. What freezes is a solid brick made of many grains, each with its own lattice orientation, packed against its neighbours. Sawing the brick into wafers cuts across those grains. The finished cell shows the flecked pattern that gave the material its popular name.

Cooling from the bottom upward does a second job that the name directional solidification hides. Silicon dissolves most impurities far more readily as a liquid than as a solid. Iron, carbon and nitrogen all carry a segregation coefficient well under one. The freezing front rejects them back into the melt in place of trapping them in the growing solid. Contamination rides ahead of the front and concentrates in whatever freezes last. Casters exploit that by cutting the top off the finished block and scrapping it, which removes the dirtiest fraction in one operation. The pulled crystal purifies itself by that identical route. Its melt keeps the impurities the growing cylinder refused. Casting is the cheaper operation by a wide margin. It needs no seed crystal, no slow pull, no rotation. What comes out is a square block in place of a cylinder. Techniques for producing multicrystalline silicon are simpler, and cheaper, than those required for single crystal material. Cheapness was the whole reason the cast route existed.

What a grain boundary does to a carrier

A photon absorbed in silicon frees an electron and leaves a hole behind. That pair has to survive long enough to reach the junction and be collected. Anything that lets the two recombine on the way is a loss. Average survival time carries the name minority carrier lifetime. Grain boundaries attack that lifetime directly. Where two lattices meet at different orientations, bonds cannot line up. The mismatch leaves dangling bonds and dislocations behind. Those defects introduce extra energy levels inside the bandgap.

A carrier that would otherwise need a full 1.12 electronvolt jump can drop into one of those intermediate levels and recombine there. That makes a boundary a highly localised region of recombination. Two further effects come with the boundary. It blocks carrier flow across itself. Carriers generated in one grain struggle to reach a junction beyond it. It also provides shunting paths across the p-n junction. Some of the collected current leaks back there in place of leaving through the terminals.

Follow that through into the voltage equation and the connection becomes exact. Open-circuit voltage equals the thermal voltage multiplied by the natural log of the light-generated current divided by the saturation current. Recombination is what the saturation current measures. More recombination raises that current. The ratio inside the logarithm falls. A lower open-circuit voltage is where the cell settles. A multicrystalline cell gives up voltage for a mechanical reason: its lattice is interrupted. Impurities compound the effect. Grain boundaries act as collection sites, gathering metallic contamination and precipitates during the long cool-down after casting. Performance in cast material is limited mainly by recombination at dislocations and intragrain defects of exactly that kind.

The counterintuitive turn in grain size

Larger grains sound obviously better. Fewer boundaries per wafer means less boundary area for carriers to meet, and early cast material was pushed toward grains as large as the process could manage. Grain sizes on the order of at least a few millimetres are needed before boundary recombination stops dominating the result. Then the industry went the other way. High performance multicrystalline material, the last generation of the cast route, used seeded growth to produce grains deliberately smaller than the previous norm. Smaller grains create lower stress at the boundaries. A boundary under less stress carries fewer dislocations, which leaves it less electrically active. The lesson generalises past this one material. Boundary count was never the quantity that mattered. Boundary quality was. A wafer full of small, clean, low-stress boundaries can outperform one with a few large boundaries loaded with dislocations.

Dislocation clusters are the specific enemy that stress creates. A boundary between two grains at a large misorientation angle carries a dense array of them. Each dislocation is a line of broken bonds threading into the crystal. Impurities decorate those lines during cooling, which turns a geometric defect into an electrical one. Seeded growth attacks the problem at its origin by keeping misorientation angles small. That refinement bought the cast route several years of competitiveness. It never closed the gap. A single crystal has no boundaries at all. No boundary quality problem exists there to solve.

The efficiency numbers as they stand

Current polycrystalline modules deliver 15 to 17 percent efficiency. Monocrystalline modules in general production deliver 19 to 22 percent, with the best mass-produced lines quoted at 22 to 24. The gap at module level sits somewhere around four to six percentage points. Efficiency here means the fraction of incident light energy leaving as electricity, measured under 1,000 watts per square metre of test light. A 17 percent module receives 1,000 watts on each square metre and delivers 170. A 21 percent module delivers 210 from the identical square metre. Cell efficiency and module efficiency are separate measurements. The difference matters when comparing datasheets. A module includes the gaps between cells, the frame, the glass reflection and the resistance of every ribbon. Quoting a cell number where a module number belongs inflates the figure by several points. The substitution is common in this market.

Manufacturers track the shortfall as cell-to-module loss and spend real engineering on shrinking it. Gaps between cells, ribbon resistance, glass reflection and the frame all live in that number. Two modules built from identical cells can differ by a point of module efficiency on the strength of layout and interconnection alone, which is why cell efficiency makes a poor proxy for what a panel delivers. Record laboratory cells sit far above either production figure. Those records come from processes nobody runs at volume. They set a direction of travel. What arrives in a box is described by the production figures.

The square that is not quite square

Here the geometry pays part of the efficiency gap back, and almost nobody mentions it. A cast block is square. Wafers cut from it are full squares. They tile a module with no wasted corners. A pulled crystal is a cylinder. Wafers cut from it start round. Squaring a round wafer means cutting away the edges. Cutting all the way to a full square would waste enormous quantities of silicon. The industry settled on the pseudo-square: a square with four corners left rounded where the original cylinder ran out. That shape is why monocrystalline cells have chamfered corners and cast cells do not. Work out what the chamfers cost. A 125 millimetre pseudo-square cut from a 150 millimetre cylinder covers 14,858 square millimetres against 15,625 for a full square, which is 4.91 percent of the footprint given away. Move to a 156 millimetre cell from a 200 millimetre cylinder and the loss falls to 1.81 percent. Modern 166 millimetre cells from 223 millimetre cylinders give up 0.51 percent.

Those percentages are module-level figures. Sawing takes its own cut before any of that. Every wafer separated from a cylinder or a block leaves behind a slot of silicon turned to dust, and for decades that kerf loss ran comparable to the thickness of the wafer itself. Diamond wire sawing narrowed the slot and sped the cut, which lowered the silicon consumed per wafer across the industry. The change helped the pulled cylinder more, since a cylinder costs far more per kilogram than a cast block and every gram saved is worth more. A monocrystalline module carries slightly less active silicon per square metre of glass than a polycrystalline module of the identical dimensions, and part of the cell efficiency advantage is spent covering that. The effect was substantial on older small formats. It has nearly vanished on current large formats. The mono advantage reads larger today for that reason alone.

What four points of efficiency buys

Efficiency reaches a portable owner as area and weight. Take a hundred watt panel as the unit and work both cases at test conditions. A 17 percent module makes 170 watts from a square metre. One hundred watts needs 0.59 square metres of aperture. A 21 percent module makes 210 watts from a square metre. A hundred watts there needs 0.48. The difference is about 0.11 square metres, which on a folding panel is a whole extra panel section to carry, hinge and store. Weight follows area for framed modules, since glass and frame dominate the mass. A rigid hundred watt panel at 7.5 kilograms built on 17 percent cells would want roughly a fifth more glass area than one built on 21 percent cells. That is roughly 1.5 kilograms of extra glass and frame on a hundred watt module. Scale the comparison to a machine worth filling and the area difference stops being academic. Four hundred watts of panel at 21 percent covers 1.9 square metres. The identical 400 watts at 17 percent covers 2.35. Those extra 0.45 square metres amount to another folding section, another hinge, another kilogram. The case stops closing on the back seat. Fixed installations absorb the difference by using more roof. Anything carried absorbs it by getting heavier. Mounting hardware scales with area as well. A larger panel needs a longer stand, a wider bracket, more roof rail. It also presents more sail area to wind. Portable owners meet that as a folding case that no longer fits behind a seat. Fixed installations meet it as a rack bill. Energy per day scales with nothing except rated power, which is the part people get wrong. Two hundred watt panels of different efficiencies produce the identical energy under the identical sun, because both are rated at a hundred watts. Efficiency decides how much surface those hundred watts required, never how many watt-hours they deliver.

Heat, dim light, and the flaw that was mono alone

Temperature coefficients differ between the two materials by less than most comparisons imply. Published averages put monocrystalline at about minus 0.38 percent per degree and polycrystalline at about minus 0.40. Run that over a 40 degree rise above test conditions and the difference amounts to 0.8 percent of rated power. Cell architecture moves that number far more than crystal structure does. Monocrystalline n-type back-contact cells reach about minus 0.30 percent per degree. Heterojunction cells reach about minus 0.25. Those are differences of 0.10 to 0.15 percent per degree against the mono average, several times the gap between mono and poly. Low light behaviour follows a similar pattern. Both materials produce current in near proportion to irradiance. Both hold voltage reasonably well as light falls. Claims that one chemistry dramatically outperforms the other under cloud rarely survive a measurement. Low light response is set by shunt resistance and junction quality, with grain structure a long way down the list.

One weakness belonged to the pulled crystal alone. Closing it took the industry twenty years. A Czochralski melt sits in a quartz crucible. Quartz is silicon dioxide. The growing crystal takes up interstitial oxygen from its own container. Industrial Czochralski silicon carries significant quantities of it. Where the wafer is also doped with boron, light exposure drives boron and two oxygen atoms into a complex. That complex acts as a recombination centre, and output falls in the first hours of sunlight.

The literature calls it the boron-oxygen complex. It is the dominant light-induced degradation mechanism in this material. Cast silicon carried far less of that burden. A graphite-lined crucible and a faster process leave less dissolved oxygen behind. For a while that was a genuine advantage held by the cheaper material. The fix arrived in the dopant, leaving the crucible alone. Replace boron with gallium and the complex has no boron to form from. Gallium-doped Czochralski silicon is immune to that degradation mode. The industry moved across.

Appearance is the one place the difference is unmistakable. Monocrystalline cells look uniformly dark because a single lattice presents one orientation to the light. Polycrystalline cells look flecked and blue because each grain meets the surface at its own angle and scatters differently. A buyer can identify the material across a car park, with no datasheet in hand and no meter.

Why one of them disappeared

Cast silicon existed for one reason: cost per watt. The process was cheaper per kilogram of usable wafer, and for two decades that saving outweighed the efficiency it gave up. Three changes removed the saving. Diamond wire sawing replaced slurry sawing and cut kerf loss for every wafer, which helped the pulled cylinder more than the cast block. Crystal pullers grew larger and ran longer, spreading the fixed cost of a pull across far more wafers. Cell architectures that reward good material, PERC among them, arrived and returned more efficiency on a single crystal than on a cast one. The third of those deserves unpacking. It explains why the gap widened. A passivated emitter and rear cell adds a dielectric layer across the back surface to stop carriers recombining there. That improvement only pays when rear recombination is what limits the cell. In cast material the bulk already dominates, because carriers meet a grain boundary long before they reach the back face. Passivating the rear of a wafer whose interior is the problem returns very little. Applying it to a single crystal, where the bulk is quiet, returns a great deal. Every architecture that rewards good material behaves that way. Each generation of cell design pushed the two further apart.

Cost per watt is where the decision actually got made. The arithmetic is short. Divide the price of a finished wafer by the watts that wafer becomes. A mono wafer costing 15 percent more than a cast one, yielding 25 percent more watts, is already cheaper per watt. Every reduction in pulling cost moved that ratio one way. Cast silicon lost its advantage without ever getting more expensive. Market figures record the outcome. Monocrystalline products hold the dominant share of the photovoltaic wafer market and continue to grow, with PERC alone accounting for close to half the technology segment. Polycrystalline panels are now described in the trade as largely obsolete. Two practical consequences follow for a buyer. New polycrystalline panels in the portable class are increasingly hard to find at any price. Second-hand and old-stock polycrystalline panels are cheap. For a fixed installation with space to spare they remain serviceable hardware.

Buying a portable panel today

Anyone shopping for a folding panel will find monocrystalline on nearly every listing. The supply chain has already made that choice. What remains is checking the stated efficiency against the stated size.

Check the claim against the physical size. Divide rated watts by the unfolded area in square metres, then divide by 1,000 to get module efficiency as a fraction. A hundred watt panel measuring 1.13 by 0.595 metres covers 0.672 square metres and works out at 14.9 percent. That is a polycrystalline-class number on a listing that says monocrystalline.

Two innocent explanations exist for a gap like that. The quoted dimensions may include the fabric border and the stitching, which carry no cells. The rating may be a peak figure measured somewhere other than Standard Test Conditions. Both deserve a question to the seller.

Second-hand stock is where most people will meet cast silicon now. Panels pulled from ten and fifteen year old roof arrays reach the market in quantity, typically 240 to 280 watts in a frame close to 1.65 by 1.0 metres. Those are excellent value for a shed, a workshop or a fixed off-grid rack. They weigh 18 to 20 kilograms each, need real mounting hardware, and present an open-circuit voltage in the high thirties that most portable machines will refuse. Buying one to feed a power station is a common and expensive mistake. Check the plate against the machine before the money moves. Comparing one panel with another panel answers a different question. Any open-circuit figure above the machine’s stated input ceiling rules the panel out, whatever its price per watt says.

Where a genuine polycrystalline panel turns up cheaply, weigh area against price. For a roof, a shed or a boat with room to spare, cast silicon at half the price per watt does the identical job with more surface. For anything carried, the extra 0.11 square metres per hundred watts eventually decides the matter.

Monocrystalline Solar Panel 100W

What the hundred watt class actually is

A hundred watts names a size class. Buy a rigid monocrystalline panel of that rating and a fairly predictable object arrives. Roughly a metre long, two thirds of a metre wide, three centimetres thick in its aluminium frame, weighing about 7.5 kilograms. Typical published dimensions run 1000 by 665 by 30 millimetres. Module efficiency for that footprint lands near 18 percent on older designs and past 20 on current ones. Check the efficiency claim against the footprint before believing it. One metre by 0.665 is 0.665 square metres. Test light delivers 1,000 watts to every square metre. That aperture receives 665 watts. A hundred watts out of it is 15 percent. Datasheets in this class often print 18 percent alongside those exact dimensions, which is cell efficiency standing where module efficiency belongs. The arithmetic takes ten seconds and catches the substitution every time.

Buyers reach for this class because of what it feeds. Anything smaller struggles to keep pace with a machine’s own standby drain across a cloudy week, and anything larger stops fitting behind a seat. One panel of this size suits a small station, a van fridge, a boat light circuit, a shed. Two of them suit a mid-size machine. Manufacturers standardised on it early. Mounts, cables, connectors and stands are all sized around it.

Portable versions of the identical rating look nothing alike. A folding hundred watt panel drops the glass and the frame. Published weights for laminated folding panels run 2.2 to 5 kilograms. Folded dimensions cluster near 600 by 565 by 55 millimetres, unfolding to something like 1130 by 595. Wattage matches the rigid module. Almost nothing else does. Both objects deliver a hundred watts under laboratory light. What separates them is how they survive being owned, and how much of a car boot they claim while doing it. Cell format complicates the picture for anyone reading a modern datasheet. Wafer sizes have grown through 166 millimetres, 182 and 210, known in the trade as M6, M10 and G12. Run the arithmetic on the first of those. A 166 millimetre square is 0.0276 square metres. At test irradiance of 1,000 watts per square metre and 22 percent efficiency it makes about 6 watts. Thirty-six such cells add up to a 216 watt module. Small panels either stay on older 156 millimetre cells or cut larger ones down. Two panels of identical rating can end up with very different cell counts.

Thirty-six cells and the twelve volt habit

Silicon cells hand over about half a volt each. Panel voltage is a count. That half volt is the one number in the panel that size cannot change.

Open-circuit voltage comes out of a logarithm. The standard expression is Voc equal to nkT over q, multiplied by the natural log of the light-generated current divided by the saturation current. Two things live in that line. The first is kT over q, the thermal voltage, worth about 26 millivolts at room temperature. The second is the saturation current. It measures how fast carriers recombine before collection.

Silicon has a bandgap of 1.12 electronvolts, which on a naive reading promises about 1.1 volts a cell. Commercial cells deliver around 690 millivolts. Laboratory records reach 764. The missing 400 millivolts is called the bandgap-voltage offset. It is recombination, sitting inside that logarithm as the saturation current. A better cell recombines less. Voc rises a few millivolts at a time.

Two consequences follow for anyone holding a panel. Cell area cannot raise voltage, since a bigger cell collects more photons and produces more current at the identical half volt. Voltage has to come from counting cells in series. A 36-cell module lands near 22 volts open-circuit. A 60-cell rooftop module lands near 38. Thirty-six cells in series is the traditional answer for this class, chosen decades ago to charge a twelve volt lead-acid battery through a simple controller with margin left for heat. Work backwards from the footprint and the cell size falls out. Thirty-six cells sharing 0.665 square metres leaves about 0.018 each, gaps included. That points at a 125 millimetre pseudo-square, five inches across the flats, cut from a round ingot with its corners chamfered. Three watts a cell at that size and the module lands near its hundred. The 36-cell convention grew up around that format. It survives in small panels long after large modules moved to 166 millimetres and beyond.

Numbers from a representative 36-cell hundred watt module show what that produces. Open-circuit voltage 22.6 volts. Voltage at maximum power 18.4 volts. Current at maximum power 5.43 amps. Short-circuit current 5.87 amps. Multiply the two maximum-power figures and 100 watts comes back out. Those four numbers hide a fifth that nobody prints. Divide rated power by the product of open-circuit voltage and short-circuit current. For this module that is 100 divided by 22.6 times 5.87, which comes to 0.754. That figure is the fill factor. It measures how square the current-voltage curve is. A perfect cell would hold full current right up to full voltage and score 1.0. Real cells lose the corner to series resistance in the fingers, ribbons and contacts, and to shunt paths across the junction. Good crystalline modules land between 0.75 and 0.82. Anything much under 0.70 in this class announces resistance where none should be. The calculation takes ten seconds on any datasheet.

Read the four together and the working envelope appears. Open-circuit is the highest voltage the panel ever presents, reached with nothing connected. Short-circuit is the highest current, reached with the terminals bridged. Neither extreme delivers power. The useful point sits inside both. A controller spends its life hunting for it.

Shading is where a series string turns dangerous, which is the reason those diodes exist at all. Cells in series carry one current. Cover one cell and it can no longer supply that current. The other thirty-five then drive it backwards into reverse bias. The shaded cell then dissipates the power the rest are producing, as heat, in a patch of silicon under a sheet of glass. That is a hot spot. It can crack a cell or scorch a backsheet.

Bypass diodes come with the cell count. Standard practice puts one across every 18 to 24 cells, giving two of them in a nominal 12 volt module and three in a 24 volt one. Their effect on voltage is dramatic when they conduct. A 36-cell module presenting about 22 volts open-circuit drops to roughly 11 with one diode engaged. Half the string has been bridged out.

An owner who sees a panel reading half its expected voltage in dappled light is usually watching a diode do its job. Cell layout has moved on since the 36-cell convention. Halving each cell and running the module as two parallel strings cuts the current in each string. Resistive loss follows the square of current. Half the current leaves a quarter of the loss in the ribbons and fingers carrying it. The cells themselves are unchanged. All of the gain comes from the wiring between them. Modules built that way carry a higher cell count at a similar voltage. The arithmetic that matters to an owner stays identical: volts times amps at the maximum power point.

The layers between the glass and the cable

A framed panel is a sandwich under glass. Tempered front glass takes the weather and the impacts. Encapsulant, usually a cured sheet of ethylene vinyl acetate, holds the cells in optical contact with that glass and keeps moisture off them. Cells sit in the middle, joined by flat tinned copper ribbons soldered across their front and rear busbars. A backsheet closes the underside. An aluminium frame grips the edges through a bead of silicone sealant. A junction box hangs off the back. Inside it the bus ribbons terminate, bypass diodes bridge groups of cells, and two cables leave with connectors moulded on. Bypass diodes matter more than their size suggests. A shaded cell would otherwise sit as a resistance in the series string and heat up. The diode routes current around its group.

Portable folding panels rearrange that stack. Glass gives way to a laminate, commonly a fluoropolymer film over the cells, bonded to a flexible or segmented backing and sewn into a fabric case. Frames disappear altogether. The junction box shrinks or moves into the case. Cables terminate in whatever connector the machine expects. Each substitution buys portability and spends something else. Laminate scratches where glass would not. A sewn hinge flexes where an aluminium frame would hold. Neither choice is wrong. They answer different questions about where the panel spends its life. Sealing decides how long the box on the back survives. Junction boxes carry an ingress rating, commonly IP65, IP67 or IP68. A quality module built for 25 years outdoors uses one of the better two. Water that finds its way in has two routes to cause trouble. It corrodes the ribbon terminations, raising resistance at the one point in the panel where every amp passes. It also provides a leakage path from live conductors to the earthed aluminium frame, which a wet leakage current test exists to catch. Neither shows up as an obvious symptom. Both show up as a panel quietly producing less than its neighbours.

Rigid or folding at the identical wattage

Weight decides most purchases in this class. A rigid hundred watt module runs about 7.5 kilograms. Folding laminates of that rating run 2.2 to 5. Carrying one to a campsite is a different act from carrying the other. Packed size follows. A rigid panel is a metre-long rectangle that cannot be made smaller. A folding panel collapses to something near 600 by 565 millimetres and 55 thick, roughly a large briefcase. Vehicle owners with a roof rack often prefer the rigid module for exactly the reason campers avoid it: it can be bolted down and left. Durability runs the other way. Glass under an aluminium frame survives decades of weather because that construction has been refined for decades. A laminate over a sewn backing survives being folded, dropped and stuffed behind a seat. Ask either to do the other job and it disappoints.

Laminate chemistry separates the good folding panels from the cheap ones. Fluoropolymer films, sold as ETFE, hold their transmission under years of ultraviolet. Cheaper polyester laminates yellow and haze on a shorter clock. A hazed front surface costs output every hour the panel is used afterwards. The difference rarely appears on a specification sheet in this class. Find the material name before buying. Warranty length tells that story from another direction. A framed glass module in this class carries 12 years on materials and 25 on power output. Folding panels commonly carry one to three years on everything. That gap is the manufacturers’ own estimate of which construction lasts. Deployment differs as well. A folding panel arrives with a stand sewn into the case, which sets its own angle in seconds. A rigid module needs a mount, a bracket or a wall. The folding version also lets an owner chase the sun through the day. A bolted panel stays where it was fixed.

What one panel returns in a day

Rated watts describe an instant under laboratory light. A day’s harvest needs the local sun figure and a system factor. Multiply the rating by the site’s peak sun hours for the theoretical number. Take between 60 and 75 percent of that for angle, temperature, dirt, cable and controller losses combined. Run that for a hundred watt panel at four and a half peak sun hours. The theoretical day is 450 watt-hours. The realistic day lands between 270 and 340. Winter in a cloudy country can halve that again. A bright cold spring morning can beat it. Those numbers set expectations for what a single panel supports. Three hundred watt-hours refills a small station overnight. It runs a 45 watt van fridge for most of a day. A two kilowatt-hour machine needs a week of good weather from one panel this size. Cloud changes the picture in a way the daily average hides. Current from a silicon cell tracks irradiance almost proportionally. Under 200 watts per square metre of overcast light a panel produces close to a fifth of its rated output. Voltage holds up far better, dropping only slightly. That combination is why a panel still charges under cloud where a naive reading would expect nothing. Low irradiance performance is a named item in the IEC 61215 qualification sequence for exactly that reason. Put those watt-hours against real loads and the panel’s place becomes clear. A 25 watt router draws 600 watt-hours a day if it never sleeps, which one panel of this size cannot cover in winter. A 15 watt phone charger run for three hours takes 45. A 45 watt van fridge cycling at roughly a third duty draws about 360 watt-hours across 24 hours, which one good summer day of a hundred watt panel almost matches. Seasonal spread does more damage than any of those averages suggest. A site averaging four and a half peak sun hours across the year may see six in June and two in December. Sizing a panel against the annual average leaves an owner short for a third of the year. Sizing against December means carrying more panel than needed all summer. Most portable owners carry a second panel for winter. Recorded output from a hundred watt panel outdoors comes in a quarter to a third under nameplate on clear days.

Matching a panel to a machine

Two figures decide compatibility, and only one of them is the wattage. Open-circuit voltage has to stay under the machine’s maximum input voltage at the coldest temperature the panel will see. Charging current has to stay under the machine’s maximum input current. A 22.6 volt panel suits almost anything with a solar input. Machines commonly accept 11 to 60 volts, sometimes wider, which leaves generous headroom for one panel of this class. The margin narrows once panels get wired in series, since voltages add. Current sets the other wall. One hundred watt panel supplies about 5.4 amps at its maximum power point. A machine rated for 10 amps of solar input accepts two such panels in parallel with room to spare. A third would exceed it. The controller then limits the current, with no damage done.

Two panels of this class can be wired either way. Arithmetic decides which suits a machine. In series their voltages add: 45.2 volts open-circuit at 5.43 amps. In parallel their currents add: 22.6 volts open-circuit at 10.86 amps. Both arrangements carry the identical 200 watts. A machine with a 60 volt input ceiling takes the series pair comfortably. A machine capped at 10 amps of input current rejects the parallel pair and accepts the series one. One warning belongs here for anyone shopping outside the portable market. A residential rooftop module of 400 watts or more presents 40 to 50 volts open-circuit, built for strings feeding a grid inverter. Those panels cost less per watt than anything in this class. They also arrive as a two-metre sheet of glass weighing over 20 kilograms, and their voltage sits at or past the input ceiling of most portable machines. Cheaper per watt stops counting once a machine refuses the input.

Current runs the opposite way, for a reason worth knowing. Warming narrows the bandgap slightly. A few more low-energy photons then carry enough energy to free a carrier. Short-circuit current rises about 0.06 percent per degree. That gain is real and far too small to matter against the voltage loss, which is why the power coefficient stays firmly negative. Cell-level figures for maximum power run 0.4 to 0.5 percent per degree in the textbooks. Module datasheets for current cell types quote 0.29 to 0.37. A module is a different measurement, and newer architectures lose less.

Cold weather makes that decision for you at the top end. Open-circuit voltage climbs roughly 0.3 percent for every degree below 25. That percentage can be derived in one line. A silicon cell loses about 2.2 millivolts of open-circuit voltage per degree of warming, and gains it back on cooling. Divide 2.2 millivolts by a cell’s 690 and the answer is 0.32 percent per degree. Multiply the millivolts by 36 cells and a whole panel moves about 79 millivolts per degree. A 22.6 volt module at 25 degrees becomes roughly 24.2 volts at minus 5. That 45.2 volt series pair presents about 49 volts at minus 5. Any ceiling below that gets crossed on the coldest, brightest morning of the year. Charging time follows from the machine’s own limit. A station accepting 200 watts of solar fills at that rate regardless of how many panels are connected beyond it. Adding panels past the input cap buys earlier starts and later finishes on cloudy days, never a higher peak.

Tolerance, warranty and what the paperwork promises

Rated power carries a tolerance, and reputable manufacturers now publish it as positive only. One 36-cell hundred watt monocrystalline module states a tolerance of 0 to plus 3 watts, alongside a twelve year warranty on materials and workmanship and a twenty-five year linear power output warranty. A panel sold that way never measures under its label when new. Two warranties are doing different jobs there. The materials warranty covers the object: delamination, frame corrosion, a junction box that fills with water. The power warranty covers performance against a declining line. It guarantees a minimum output at each year of the term, with no single figure standing for the whole. Linear power warranties have a shape worth knowing. Most treat the first year separately, allowing a larger initial drop, then hold the panel to a much smaller annual loss across years 2 to 25. Published allowances for those later years run 0.25 to 0.55 percent a year. That line ends at the familiar guarantee: 80 percent of rated power after 20 to 25 years.

Read the two warranty terms as different promises about different objects. Materials cover the panel as a thing. Power covers the panel as a generator. A frame that corrodes at year eight is a materials claim, whatever the output line says. A module quietly producing 70 percent at year fifteen is a power claim with the frame still intact. Owners who conflate them find out at the worst moment which clause their problem falls under. Certification sits behind both. IEC 61215 is the design qualification sequence, IEC 61730 the safety one. A panel carrying neither has not been through the testing. In this price class the marks deserve a look. That linear warranty caps loss near 0.55 percent of nameplate a year. Annual degradation measured on real monocrystalline panels sits at 0.5 to 0.6 percent a year at the module median, close enough to suggest the clause was drawn around the physics. The condition of a panel after twenty years settles where that line ends up and what physically fails first.

Where the efficiency was won

Solar Panel Photovoltaic Foldable Monocrystalline

What a panel is, and the conditions behind its rating

A photovoltaic panel produces direct current in proportion to the light falling on it. No storage happens inside it, no regulation, no conversion to mains voltage. Cloud passes over and the output drops within a second. The sun sets and the output reaches zero. Everything useful a panel does depends on the machine behind it banking the energy while the light lasts. That division of labour explains the shape of this pillar. A panel is one component in a chain that runs light, silicon, cable, controller, battery, socket. Each link carries its own losses, its own rating convention, its own failure modes. The seven areas below take them one at a time.

Two numbers describe almost any panel in a sentence. Rated power in watts, measured under laboratory conditions, and open-circuit voltage, which decides what the panel is safe to connect to. A 100 watt panel with an open-circuit voltage of 23.5 volts is a different object from a 100 watt panel at 45 volts. The wattage matches. The second one may sit outside the input window of a small machine. Cells are the atoms of that arithmetic. Silicon cells produce roughly 0.5 to 0.6 volts each regardless of size. Cell count in series sets the panel’s voltage. Cell area sets its current. Two more figures on that label describe the working point between those extremes. Voltage at maximum power sits a few volts under open-circuit, and current at maximum power a fraction under short-circuit, because the point where volts multiplied by amps peaks lies inside both limits. Multiply those two and the rated wattage comes back out. Controllers work at that inner point, never at the extremes printed beside it. Thirty-six cells in series gives the familiar nominal 18 volt panel that suited 12 volt lead-acid charging for decades. Modern panels for portable machines run higher cell counts and higher voltages.

Panel wattage comes from Standard Test Conditions. Three numbers inside that phrase decide how much of the rating an owner ever sees. Irradiance of 1,000 watts per square metre. Cell temperature of 25 degrees. An air mass 1.5 spectrum. That last one describes sunlight on a sun-facing surface tilted 37 degrees, the sun 41.8 degrees up. It is solar noon at the equinoxes in the continental United States.

Read those three together and the problem announces itself. Bright sun delivers something near 1,000 watts per square metre for a couple of hours around noon on a clear day. A panel sitting in that sun reaches 50 degrees or more, well past the 25 the test assumed. The spectrum shifts with the season and the hour. Real panels commonly deliver 75 to 90 percent of their rated wattage under conditions a person would call excellent.

A second rating exists precisely to say so. Nominal Operating Cell Temperature testing uses 800 watts per square metre, 20 degrees ambient, a metre per second of wind. The resulting figures land 10 to 15 percent below the Standard Test Conditions numbers. Manufacturers publish both on the datasheet. Marketing quotes the first. Working backwards from a datasheet takes about a minute and settles most arguments. Divide rated power by module area to recover the efficiency claim: 100 watts across half a square metre is 20 percent, since the test condition supplies exactly 1,000 watts to every square metre. A panel advertising 200 watts in the footprint of a 100 watt module is either using cells nobody else can buy or quoting something other than Standard Test Conditions. Physical area is the check that cannot be dressed up.

Where the silicon comes from

Monocrystalline means one crystal. A seed is dipped into molten silicon and drawn out slowly while rotating. The lattice follows it. What emerges is a cylinder of one continuous crystal from end to end. Sawing that cylinder into wafers gives cells with no grain boundaries in them, which is where the efficiency advantage comes from. The round cross-section also explains the chamfered corners on almost every mono cell. Mass-produced monocrystalline modules now reach 22 to 24 percent efficiency, which is the fraction of incident light energy leaving as electricity. Efficiency reaches a portable owner as area. A 22 percent panel needs about half a square metre to make 100 watts under test conditions. Drop to 17 percent and the identical 100 watts wants nearer 0.6 square metres. That is a bigger object to fold up and carry.

Most portable buyers start in the 100 watt monocrystalline class. A day, a year and two decades of returns from one such panel get worked out there.

Heat takes its cut first

Silicon loses voltage as it warms. Datasheets state the effect as a temperature coefficient of maximum power, quoted in percent per degree. Mono PERC cells sit around minus 0.35 percent per degree, with published figures spanning minus 0.34 to minus 0.37. Newer cell architectures do better: TOPCon near minus 0.29, heterojunction near minus 0.24. Turn the coefficient into a number an owner meets. Modules on a warm day run somewhere between 50 and 70 degrees, which is 25 to 45 degrees above the test condition. At minus 0.35 percent per degree that removes 8 to 16 percent of the rating before anything else in the chain touches it. Cold bright weather runs the other way. A panel in winter sun can briefly exceed its nameplate. Voltage carries its own coefficient, separate from the power figure and larger. Open-circuit voltage on a silicon module climbs roughly 0.3 percent for every degree below 25, which is the mechanism behind cold-morning controller damage. A string measuring 45 volts on a warm afternoon presents about 49 at minus 10. An input limit of 48 volts has been crossed before the owner is awake.

Shading behaves differently and worse. A cell in shadow stops contributing and becomes a resistance in series with the cells still lit. That is why a single leaf or a pole shadow across one cell can cost far more than its share of the area. Bypass diodes in the junction box limit the damage by routing current around a shaded group. Dirt sits between the two. A dusty surface scatters light before it reaches the cell. Loss accumulates slowly enough that owners stop noticing. Temperature, shadow and surface condition get measured separately in the environment a panel has to work in.

Counting the day in peak sun hours

Watts describe an instant. Watt-hours fill a battery. Bridging the two needs a figure for how much sun a location supplies across a day. Peak sun hours is the convention for it. Orientation multiplies into that figure before anything else does. A panel flat on the ground collects far less than one tilted toward the sun, since irradiance falls with the cosine of the angle between the panel’s normal and the incoming light. Thirty degrees off aim costs about 13 percent. Sixty degrees off costs half. Portable owners rarely track the sun through the day. The practical move is to aim at where the sun will sit in the middle of the useful window and accept the cosine loss at both ends. Because peak solar radiation is 1 kilowatt per square metre, the count of peak sun hours is numerically identical to the average daily insolation in kilowatt-hours per square metre. A site receiving 5 kilowatt-hours per square metre per day has five peak sun hours.

Continental United States figures run from about 3.5 peak sun hours a day in western Washington and Oregon to about 6 in Las Vegas, inland southern California and western Arizona, with most of the lower 48 between 4.2 and 5.5. Those are annual averages. December in Seattle looks nothing like the average, and neither does July. The arithmetic that follows is short and worth doing before buying anything. Rated watts times peak sun hours gives a theoretical daily energy. A 200 watt panel at 4.5 peak sun hours suggests 900 watt-hours. Then the derates land: temperature, angle, dirt, cable, controller. A realistic figure for a portable setup lands between 60 and 75 percent of the theoretical. That 200 watt panel arrives nearer 540 to 675 watt-hours on a good day.

Folding costs weight and buys carriage

Portable panels fold because a rigid 200 watt module is roughly a metre by a metre and a half of glass. Folding replaces the glass with a laminate over a flexible or segmented backing, hinges the segments together, and puts the whole thing in a zipped case with a stand sewn in. The trade is real on both sides. A folding panel survives carriage and storage in a way no glass module does. It gives up some efficiency per unit area, along with some of the twenty-five year outdoor durability a glass laminate offers. Hinges become the part that decides service life. Every fold works the wiring that crosses the joint. A panel folded twice a week for years accumulates cycles no laboratory sequence covers. Junction boxes on portable panels take that abuse differently. They get dragged across gravel and left in rain, never bolted to a roof for a decade.

Sizing follows carriage. Two hundred and forty watts in one folding case is one object to carry and one cable to route, while three 100 watt panels give redundancy and let a person deploy part of the array in the shade of a van. Both arrangements have their place. The 240 watt folding class settles the comparison with real generation figures and real case dimensions. Weather resistance on a portable panel is a design problem, with no rating attached. Hinges, junction boxes, stands, hail and years of ultraviolet each attack a folding panel differently from a framed one. How a folding panel is built to survive outdoors takes them in turn.

From several panels to one battery

One panel rarely fills a machine of any size. Panels get combined, which changes what the controller sees. Series wiring adds voltages while current stays at the level of the weakest panel. Parallel wiring adds currents while voltage stays at the level of the lowest panel. Both totals have to land inside the machine’s input window. That window has two walls. The upper wall is absolute. Open-circuit voltage rises in cold weather. A string sized against its warm-day voltage can exceed the input limit on a bright winter morning, taking the controller with it. The lower wall is practical. Panel voltage has to sit some margin above battery voltage before a controller transfers anything at all.

Mixing panels of different ratings brings its own arithmetic, since a series string is limited by the lowest current and a parallel set by the lowest voltage. Combining panels in series and parallel works through those limits. The voltage and current figures there decide which arrangement a given machine accepts.

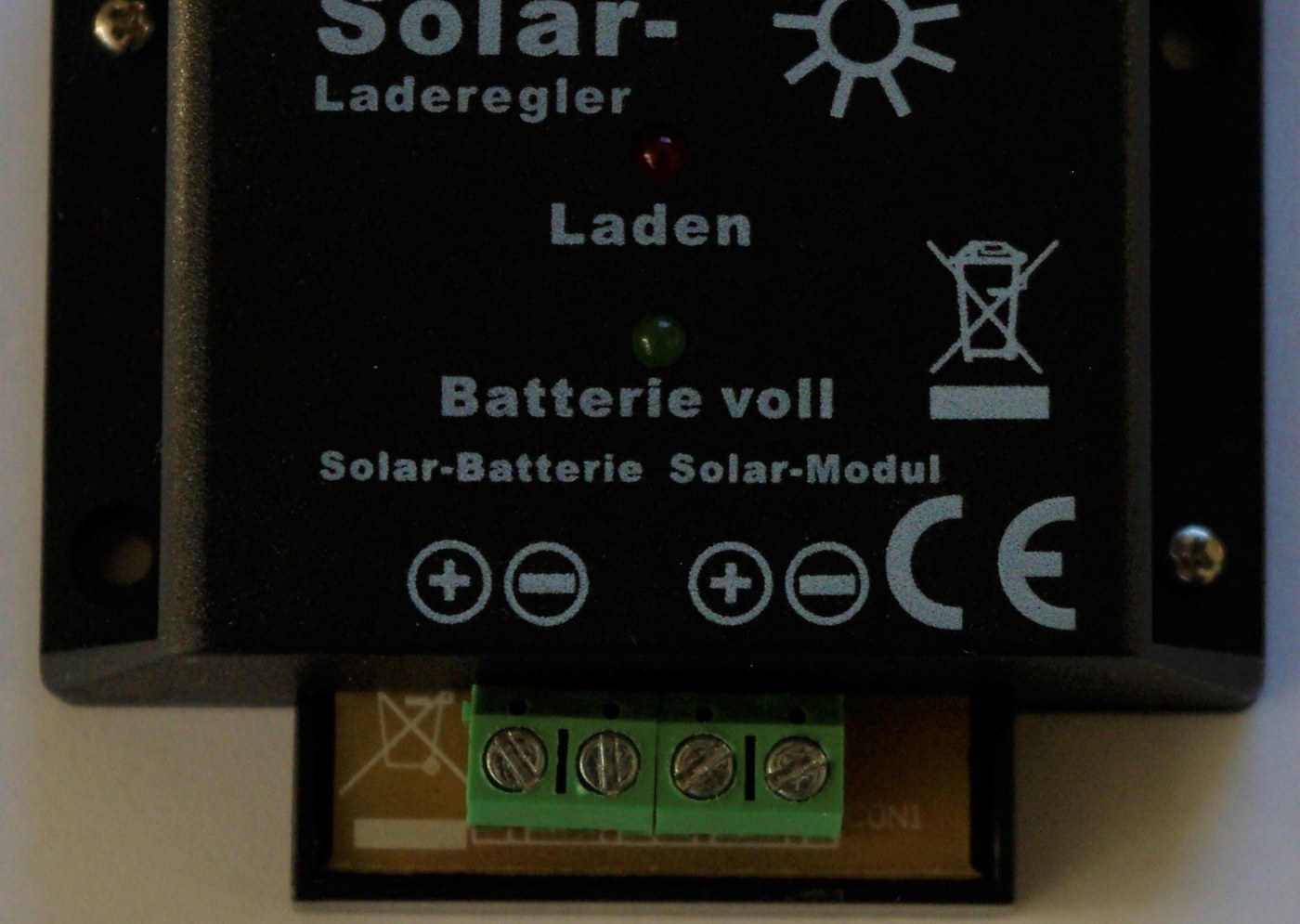

A panel and a battery cannot simply be wired together. The panel’s voltage swings with light and temperature, the battery wants a controlled charge profile, and something has to sit between them deciding how much current flows. That something is the charge controller, built into almost every portable power station and sold separately for larger installations. Maximum power point tracking is the technique that earns its keep. A panel has one voltage at which the product of volts and amps peaks, and that voltage moves with irradiance and temperature. A tracking controller hunts for it continuously and converts whatever it finds down to battery voltage. A simpler pulse width modulation controller pulls the panel down to battery voltage. On a cool bright day that leaves a substantial fraction of the available power unclaimed.

Tracking speed matters on broken-cloud days, when the peak moves every few seconds. Input voltage limits matter on cold mornings. Multiple tracking channels matter when panels face different directions. All of it belongs to the controller that decides how much of the panel’s output reaches the cells.

Cables, connectors and the losses in between

Everything after the panel is copper, and copper charges rent. The industry standard connector is the MC4 family, covered by IEC 62852, typically rated 30 amps and 1,000 volts DC under the IEC scheme with 1,500 volt variants under UL. The standard sets what the connector has to survive. Contact resistance stays under 1.5 milliohms after 1,000 mating cycles. Thermal cycling runs 2,000 hours between minus 40 and plus 85 degrees.

Cable loss follows from resistance and distance. Copper resists about 1.68 hundred-millionths of an ohm-metre. Work that through a ten-metre run of 4 square millimetre cable, counted out and back: roughly 84 milliohms. At 8 amps that costs two thirds of a volt and about 5 watts of heat. On an 18 volt panel nearly 4 percent of the harvest is gone before the controller sees it.

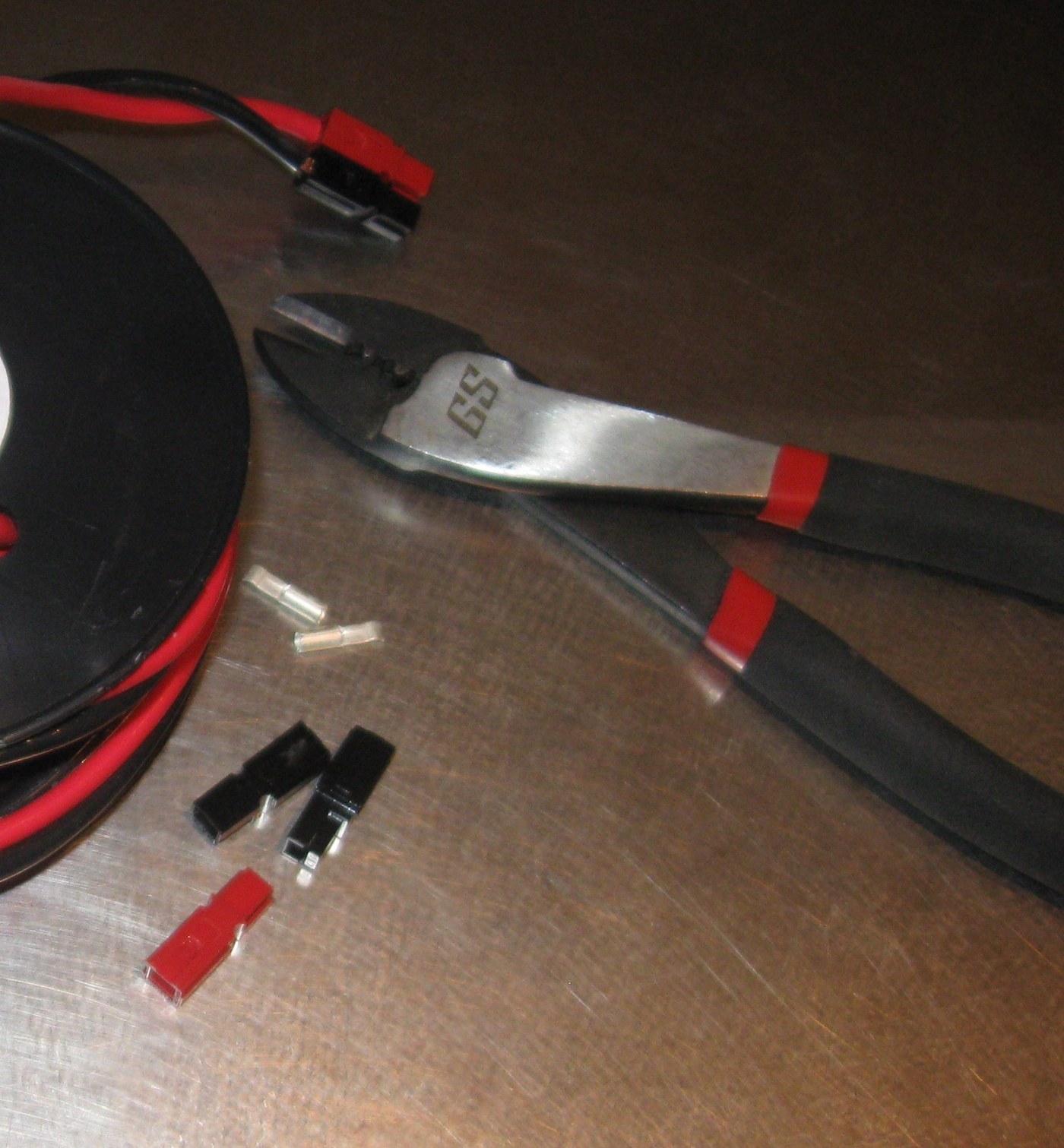

Adapters add their own joints. A portable machine with an Anderson input and a panel with MC4 leads needs a conversion. Every conversion puts two more contact interfaces in the current path. Kits exist to remove the guesswork. Cables, connectors and kit bundles cover which combinations pair with which machines.

Twenty-five years of slow decline

Panels fade. Outright failure is the rare case. Published degradation runs about 0.5 percent a year, which leaves roughly 88 percent of the original output at year 25. Manufacturer warranties bracket that with a guaranteed maximum annual loss, commonly 0.25 to 0.55 percent per year. An end-of-warranty floor of at least 80 percent of rated power stands at 20 to 25 years. Two international standards stand behind those claims. IEC 61215 is the design qualification and type approval sequence, covering thermal cycling, humidity freeze, mechanical load and hail impact. IEC 61730 covers safety qualification. A panel without both marks has not been through the sequence, whatever its datasheet says. What ages is not only the silicon. Encapsulant yellows. Backsheets crack. Junction box seals harden. Aluminium frames corrode at the earth bond. Every one of those is a materials problem in the laminate and the housing, running on its own clock beside the silicon’s. A panel at 90 percent of rated output with a cracked junction box has become a maintenance problem. Which of those arrives first depends on climate. That question sits inside the monocrystalline pillar. Two failure patterns dominate the field reports. Potential-induced degradation shows up as a whole module producing far below its neighbours, driven by leakage between cells and a grounded frame at high system voltage. Cell cracking is the other, invisible from outside and usually traced to a mechanical event: hail, a foot on the glass, a panel dropped during transport. Neither shows on a sunny-day output check, since a cracked cell can carry current until the crack opens under thermal cycling. Both are what the qualification sequences in IEC 61215 exist to bracket.

Reading a panel specification honestly

Six figures on a datasheet decide whether a panel suits a machine. The marketing headline is one of the six. Rated power in watts under Standard Test Conditions. Open-circuit voltage, which is the number that must stay under the machine’s input limit at the coldest temperature expected. Voltage at maximum power, which is what the controller actually works with. Current at maximum power. The temperature coefficient of power. Module efficiency, the figure that converts the rest into physical size. Work an example through and the six stop being abstract. A 200 watt folding panel quotes 24.8 volts open-circuit, 20.6 volts at maximum power, 9.7 amps at maximum power, minus 0.35 percent per degree, 21 percent efficiency. Multiply 20.6 by 9.7 and the 200 watts comes back, confirming the headline describes the maximum power point. Divide 200 watts by 210 watts per square metre of output at that efficiency and the panel needs about 0.95 square metres of aperture, which is the real size of the object in a car boot. Take the open-circuit figure to a cold morning at minus 5 and it rises by about 9 percent to 27 volts, which has to stay under the machine’s input ceiling. Put the panel in July sun at 60 degrees and the power coefficient removes 12 percent, leaving 176 watts as the peak worth writing down. Multiply that by 4.5 peak sun hours and the theoretical day is 792 watt-hours. Apply the 60 to 75 percent system factor for angle, dirt, cable and controller and the machine sees somewhere between 475 and 594. Every step in that chain came off the datasheet or off a published condition. That finishing number is under a third of what the box lid implies for a 200 watt panel across a summer day. Nothing in the sequence required a measurement the buyer could not take from the label.

Nothing in that table is a secret. All of it appears on a proper datasheet. Arithmetic explains the gap between the headline and the working figure. What a buyer needs is the habit of reading past the first line.

Recycling Pathway for Retired Lithium Batteries

Four places a retired pack can end up

Four destinations wait for a pack that has finished its working life inside a power station. Three of them are legitimate. It can move into a second application sized around the capacity it still holds. It can stay in the machine at reduced capacity for several more years, which is the destination nobody counts and the one that costs least. It can enter the recycling chain and come back as material. Or it can go into a household bin, which is the option that sets fire to bin lorries. Choosing between the first three takes a measurement and a phone call. The fourth needs no decision at all.

From where the owner stands, the choice rarely looks that tidy. Weight comes first. Behind a sealed panel sits a glued-in pack. That collection box at the supermarket door is sized for AA cells. Twelve kilograms of dead power station will not go through any of those slots. A household waste site with a battery bay takes an item that size.

The destination that starts fires

Batteries in general waste do damage out of all proportion to their number. British waste operators recorded more than 1,200 battery fires in bin lorries and at waste sites across a recent year, up 71 percent on the 700 counted in 2022. Around 94 percent of local authorities now report battery fires as a growing problem, with the trade body for the sector putting the cost to the country above 100 million pounds a year. Across the United States and Canada, one fire-safety firm counted 448 fires at waste and recycling facilities during 2025. Damage passed 2.5 billion dollars. That was the worst annual total since the firm began tracking in 2016.

The mechanism is simple enough to picture. Collection vehicles compact their load, and shredders at sorting facilities tear it apart. Either action crushes a cell, which shorts it internally, which heats it until the electrolyte vents. That happens inside a load of paper, card and plastic film, in a steel body nobody can open quickly. A single cell from a vape or a toy is enough to start it. A power station pack holds hundreds of times more energy than a vape. Recycling facilities carry that risk from the other side. Sorting lines built for cardboard and cans have batteries arriving in them daily. Fire-suppression equipment then gets retrofitted at an expense paid for by everybody who uses the service. The cost lands on councils and operators, then on households through waste charges.

Small devices drive most of that count. Disposable vapes are the item waste operators name most often, each holding a single small cell. Reported incidents across North America rose by about a fifth when the years from 2022 onward are set against the five before them. A portable power station carries the energy of hundreds of those cells in one welded assembly. A compactor folds that case flat without opening it.

What recycled means in the rules

Two families of number get quoted under one word, and separating them clears up a good deal of confusion. Recycling efficiency measures how much of what goes into the process comes back out as usable material, counted by mass across the whole battery. European rules require recyclers to reach 65 percent for lithium-based batteries by the end of 2025, rising afterwards. Material recovery measures how much of one named element gets pulled out of the waste stream. For lithium the requirement is 50 percent by the end of 2027 and 80 percent by the end of 2031. Copper, cobalt, lead and nickel sit at 90 percent.

A third family sits alongside those, pointing the other way. Recycled content rules govern what new batteries must contain, at 6 percent lithium, 6 percent nickel and 16 percent cobalt from 2031, moving to 12 percent lithium and 15 percent nickel by August 2036. Read the two sets together and the gap is obvious. Recovering four fifths of the lithium from old packs while requiring one sixteenth of the lithium in new packs to be recycled describes a supply that exceeds the mandated demand, which is a deliberate choice about how fast to force a market into existence. None of those percentages describes what happens to any individual pack. They are obligations on recyclers and on producers, measured across national tonnages, audited annually. A machine handed in at a collection point enters a system with those targets over it. Whether that particular pack gets processed carefully or stockpiled awaiting a viable buyer depends on economics the targets are trying to overcome. Auditing works on tonnages, with recyclers reporting input and output masses while producers report what they placed on the market against what came back. A collection rate expressed as a percentage of what was sold years earlier carries an obvious weakness, since the batteries arriving now were sold into a much smaller market than the one operating today. Everybody involved understands that. The targets force treatment capacity into existence ahead of the volume. A plant takes years to build. A battery takes a decade to retire.

Where the pack physically goes

The journey starts with sorting, because chemistry decides the route and packs arrive unlabelled more often than anybody would like. Sorted material moves to stabilisation, where packs get discharged to a safe state before anything mechanical happens to them. Discharging a large pack takes time and produces energy somebody has to absorb, which is one of the quiet costs inside the whole business. Cells that cannot be discharged safely, because of damage or a locked protection circuit, go down a separate and more expensive path. Discharging is less trivial than it sounds at scale. A facility taking in tonnes of packs a week has to absorb the energy still inside them, through resistive loads that turn it into heat or through equipment that returns it to the grid. Packs whose protection circuits have latched refuse to discharge through their terminals at all, leaving mechanical handling under inert conditions as the only route left. Every one of those steps costs money before a single gram of material has been recovered.

Dismantling follows for anything worth taking apart. Casings, wiring, boards and cooling components come off for conventional metals and electronics recycling. What remains gets shredded, usually under inert gas or a liquid, producing the powder the industry calls black mass. That powder is the actual product of the front half of the chain: a mixture of electrode materials, carbon and residual metals that recyclers buy and sell as a commodity. Black mass acquired a legal status of its own in March 2025, when the European list of waste added battery-related codes and classified it as hazardous. The practical effect runs through the Basel Convention and the waste shipments rules: exports for recovery to non-OECD countries are barred, and movements inside the EU or to other OECD states need prior notification and consent. Lithium-based, nickel-based and zinc-based waste batteries carry hazardous codes under that update. For a European recycler the change keeps feedstock inside the region. Collection points ask for documentation on something that looks like a box of scrap.

Black mass then goes to one of three families of process. Pyrometallurgy smelts it, reducing transition metals into an alloy of cobalt, copper and nickel while burning off the organics. Lithium ends up in the slag, where it usually stays, and graphite and aluminium are lost as well. The process is energy hungry and mechanically simple. It dominated the industry for years.

Hydrometallurgy leaches the black mass with acids or bases, then separates individual elements by precipitation or solvent extraction. Recovery rates reach as high as 98 percent for elements including nickel and lithium, which is what makes the European targets achievable at all. Direct recycling forms the third family, aiming to keep the cathode material’s structure intact for reuse in a new cell without breaking it down to elements first. The technique demands feedstock of known chemistry in known condition.

The iron phosphate problem

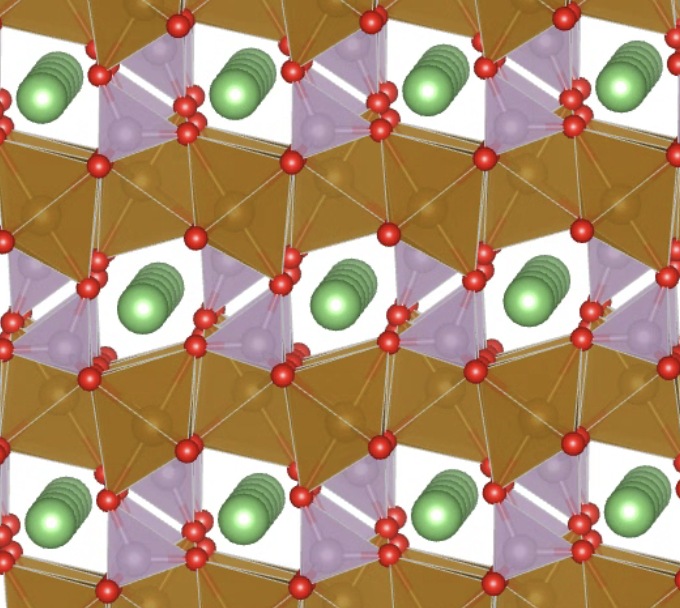

Everything that makes lithium iron phosphate a good choice for a power station makes it a poor prospect for a recycler. That contradiction sits at the centre of this subject. The chemistry contains no nickel and no cobalt. Those absences are what make it cheaper, safer and longer-lived than the alternatives. Those two absent metals are also where the money in battery recycling has historically been. A recycler processing nickel manganese cobalt material recovers metals with a substantial market price attached to them, enough to pay for the process and leave a margin. A recycler processing iron phosphate material recovers lithium, iron, phosphate and graphite, of which only the lithium carries real value, and iron phosphate cells carry proportionally less lithium than the alternatives do. The result is documented plainly in the trade literature: end-of-life iron phosphate batteries change hands at negligible value or get handled as hazardous waste, and recyclers with limited capacity favour the nickel-bearing feedstock every time. Regulation is pushing hard against that arithmetic through recovery targets, which is precisely what a target is for, since a market that would have done it unaided needs no obligation. The gap gets closed in a few ways at once. Lithium prices move. Every rise makes iron phosphate feedstock more attractive. Processes designed specifically for this chemistry keep improving, with low-cost mechanical pre-treatment attracting research attention because it avoids the expensive steps entirely. Closed-loop arrangements, where a battery maker supplies its own scrap and takes back its own material, remove the price negotiation from the middle of the chain and look increasingly like the model the industry settles on. Volumes matter as much as prices. A recycler sizing a plant for iron phosphate feedstock needs a predictable stream of it. What arrives today came from machines sold years ago into a far smaller market than the one selling them now, which leaves plants built for tomorrow running below capacity through the years in between. An owner reading all of that should draw one conclusion from it. The pack in the garage is worth close to nothing as scrap today. Handling it responsibly costs money. Producer funding under law covers that cost.

Take-back is an obligation, not a favour

European rules place the duty on the seller. Retailers and municipal collection points must take back waste portable batteries free of charge, with no requirement on the person handing them over to buy anything. Producers fund the collection system covering the territory where they sell. Transport onward forms part of that duty.

Volume targets sit over the whole arrangement. Article 59 sets collection rates for waste portable batteries at 45 percent by the end of 2023, 63 percent by the end of 2027 and 73 percent by 2030, measured against what producers placed on the market. Missing a target lands on the member state and on the producer schemes operating there, never on the person handing in a battery. Two consequences follow for an owner. Collection points multiply as the deadlines approach. Schemes grow more willing to take awkward items, a retired power station among them, because every kilogram counts toward a number somebody has to report. Knowing the obligation exists changes the conversation at the counter. A shop assistant who has never been asked will often say no by reflex. The store’s waste contractor works to that arrangement. A manager or the retailer’s own website settles it in a minute.

Funding for all of it comes from the producers, collected through the scheme each country runs. A fee attaches to batteries at the point they are placed on the market. That money pays for collection points, for transport and for treatment. Owners handing in a retired pack are drawing on something already paid for on their behalf, which is worth knowing when a counter assistant suggests otherwise. Schemes publish their collection networks. That network map is usually the fastest way to find somewhere willing to accept an item too large for a shop box. Local authority household waste sites remain the more reliable route for anything large. Most operate a battery bay, and staff there handle lithium packs regularly enough to know where each type goes. Some sites take large lithium items only at set times, and only from hand to hand.

Preparing a pack for handover

Terminals get taped, which is the one preparation step everybody skips. Clear packing tape across the contacts removes the possibility of a short against another battery or a piece of metal in transit. Cells that read as dead still hold enough energy to generate heat through a chance contact. A box of loose batteries jostling in a car boot is exactly the scenario the tape exists for. Containers matter almost as much. A plastic box, a cardboard carton or a bag keeps items separated, where a metal tin invites the contact everybody is trying to avoid. Packs that will not come out of a machine without force should stay where they are, with the whole machine handed over intact, since the damage done levering a glued pack out with a screwdriver is precisely the damage that starts fires. Storage between retirement and handover deserves a thought too. Somewhere cool, out of direct sun, clear of anything combustible, with the pack resting on a hard surface that will not burn: a garage shelf beats a hall cupboard on every count. Weeks in that condition change nothing. Two years takes a pack down to its protection threshold.

A swollen pack is a different problem

Visible swelling, a hissing sound, heat with nothing connected or any smell of solvent moves a pack out of the routine category entirely. Gas generation inside a cell means the internal chemistry has already gone wrong. The pouch or can holding it has been doing the last of the work. Such a pack should go outside, away from anything combustible, resting on something that will not burn, with nothing stacked on it. Transport rules recognise the distinction, and damaged or defective cells are excluded from the ordinary shipping arrangements that cover healthy ones. Posting one is not an option. A phone call to the local waste authority describing the item comes next. Most run a separate route for damaged lithium. Describe the swelling on the phone. The site will tell you which entrance to use and what to carry it in.

Second life before recycling

A pack retired from portable duty at 70 or 80 percent of its original capacity has lost none of its usefulness for a gentler job. Off-grid lighting, a garden shed, a workshop battery for tools that draw modestly: none of those cares whether the pack holds what it held when new. Extending a working life postpones both the recycling cost and the manufacturing of a replacement, which is the environmental argument in its entirety. Doing it properly needs more than optimism. Cells want testing individually before anything gets reassembled, because a pack retired for one bad cell behaves differently from a pack retired for even fade across the whole string. A management board suited to the new duty has to go on, correctly configured for the cell count and chemistry. The pack needs a home that suits its age, meaning somewhere non-combustible, ventilated and away from anything irreplaceable.

Testing means numbers written down, never impressions. A capacity check on each cell or module at a modest current shows what is really there. A resistance reading taken with a known load shows how hard the pack can still work. A rest voltage recorded a day later shows whether anything is quietly self-discharging, which is the single most useful test for catching a cell with an internal defect. Three measurements, written down with dates beside them, separate a pack worth rebuilding from one worth handing in. Commercial second life operates on precisely those principles at a scale where testing pays for itself. For an individual with one retired power station, honesty is worth more than enthusiasm. A pack with a known history, retired for capacity fade, is a reasonable candidate for a quiet job. A pack that failed suddenly, swelled, got wet or spent years flat goes into the recycling chain.

What an owner can reasonably do

Measure before deciding anything. A machine reporting a short runtime may hold 75 percent of its original capacity, which describes a working machine with a reduced specification, no retired one. Several years of ordinary service usually remain in that condition.

Ask the manufacturer next. Some run take-back schemes for their own machines, occasionally with a discount on a replacement attached. A brand that arranges collection has solved the logistics. The pack then enters a stream where its chemistry is known.

Timing matters more than most owners expect. A pack that has been retired and forgotten keeps discharging through its own management board. A machine put aside at 20 percent charge can reach the protection threshold within a year or two of sitting untouched. Below that threshold it becomes a more difficult object for everybody who has to handle it afterwards. A pack handled while it still holds a moderate charge never reaches the protection threshold.

Failing that, the local waste site with a phone call ahead covers it. Tape the terminals, keep it in something that does not conduct, take the whole machine if the pack resists coming out, and mention that it is lithium when you arrive. That sequence takes an afternoon. Most household waste sites are open at weekends for exactly this kind of errand.

Battery Pack Replaceability in Power Stations

Three different things people mean by replaceable

Ask whether the battery in a power station can be replaced and you will get three answers, because there are three questions hiding inside the one word. The first is whether an owner can swap a module in the field, the way a cordless drill takes a fresh battery. The second is whether a service centre can open the case and fit a factory pack. The third is whether anybody at all can rebuild the pack out of individual cells and put the machine back into service. Most portable machines answer no, yes with conditions, and technically yes with several serious caveats. The distinction matters because the three routes carry completely different costs, different safety exposure and different consequences for the certification the machine was sold under. A marketing claim of a replaceable battery names none of the three.

Manufacturers rarely spell out which of the three applies. Specification sheets list cycle life and capacity while saying nothing about whether the pack has a part number. Support pages describe warranty claims for machines under three years old, then go quiet about year six. Two questions settle it: does a service pack exist as an orderable item, and who is allowed to fit it.

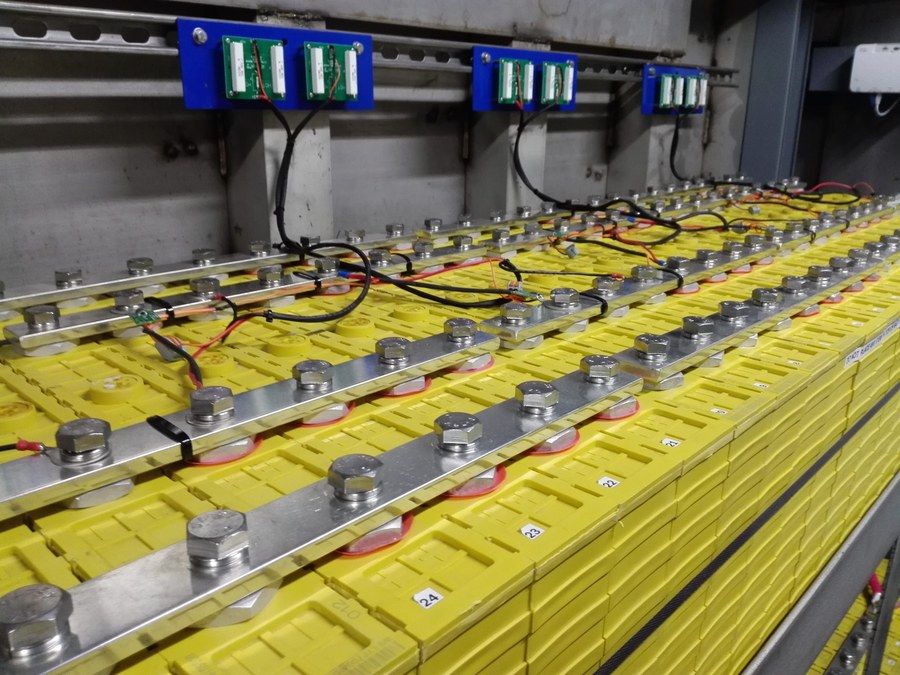

What is actually inside the case

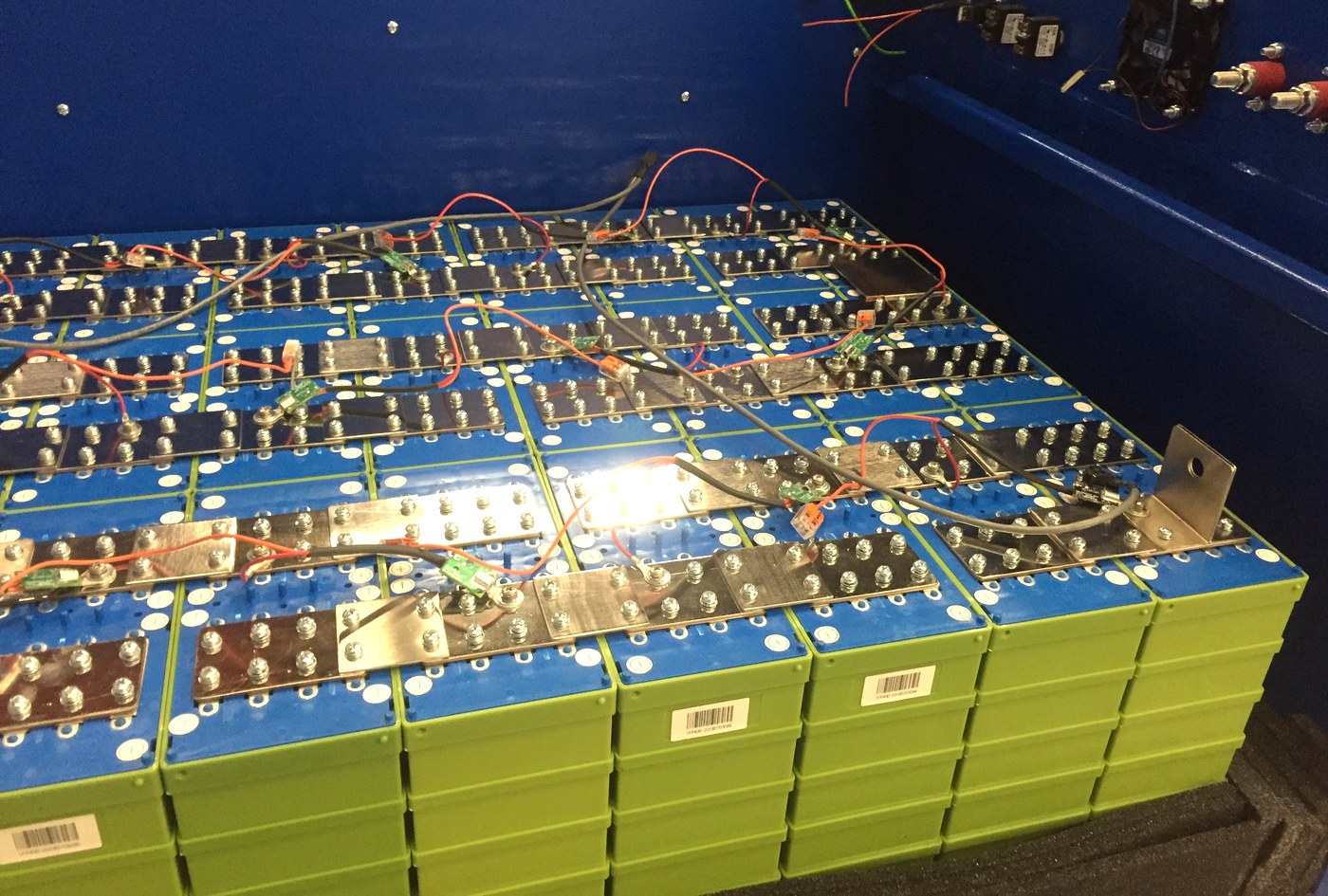

Cells are sealed objects with nothing serviceable inside them. Electrodes and separator are wound together into a jelly roll, dropped into a steel can, filled with electrolyte, then closed with a cap that carries the safety vent. Welding attaches the tab that connects the winding to the outside world. Opening one destroys it and exposes materials that react with air and moisture. Cells become a pack through more welding. Nickel strip runs between terminals in a pattern that sets the series and parallel arrangement, held by resistance spot welds. Above or beside the group sits a management board, its sense wires tapped to every series junction. Foam, adhesive and heat-shrink hold the assembly rigid. Cells that move rub their welds until the welds crack.

All of that is the opposite of a design intended to come apart. Assembly is fast, cheap, mechanically stable and electrically excellent, which suits a factory building thousands of units. It suits an owner with a screwdriver considerably less. Build methods get chosen for the machine’s working life, with disassembly treated as a scrap operation. Sense wires make the assembly harder still. Every series junction carries a thin wire back to the board so each cell can be watched individually, which on a sixteen cell pack means seventeen conductors threaded through the stack in a fixed order. A rebuild has to reproduce that order exactly. One wire on the wrong junction leaves the board balancing a cell it is not measuring. No error message follows.

The joints are the reason it is welded

Solder looks like the obvious home alternative to a spot welder. Electrical arithmetic explains why the industry declines it. A resistance spot weld between nickel and a cell terminal measures something like 0.3 to 0.5 milliohms. A hand-soldered joint in the identical position measures 2 to 5 milliohms. One joint at a time the difference sounds trivial. A sixteen cell pack has thirty-two of them.

Sixteen cells in series need two joints each, giving 32 joints in the current path. Welded, those joints contribute roughly 10 to 16 milliohms in total. Soldered, they contribute 64 to 160. A healthy 12 volt pack measures around 3 milliohms all in. The soldered version has added twenty to fifty times the pack’s own resistance to the path. Every watt of that turns into heat next to a lithium cell at exactly the moment the machine is working hardest. Heat during assembly is the second objection. Cell makers specify surface temperature limits in the region of 60 to 80 degrees. A soldering iron held against a terminal long enough to wet nickel goes well past that. The can then conducts it straight to the electrodes and electrolyte. Sustained heat degrades the interphase film on the anode and shrinks the separator locally, which raises the risk of an internal short in a place nobody can inspect afterwards. Every commercial cylindrical pack assembly line uses resistance spot welding for the cell connection.

Nickel strip thickness enters the calculation as well. Strip too thin for the current heats under load and wastes voltage. Too thick a strip leaves a hobby welder unable to deliver the energy needed to fuse it properly, which produces joints that look sound to the eye while measuring badly. Commercial lines use welders that can be characterised and joints that get pull-tested. A weld holding mechanically can still carry a poor electrical connection.

The cell you cannot simply swap in

Series strings deliver whatever their weakest member can deliver. Charge stops when the first cell reaches its upper limit, discharge stops when the first cell reaches its lower one, and everything in between is arithmetic decided by whichever cell is furthest from the rest. Dropping one healthy cell into a string of tired ones does nothing for the pack. The new cell holds capacity that no charger fills and no load reaches.

Manufacturers avoid the problem by grading cells before assembly. Industry practice groups them within about 1 percent on capacity, meaning 30 milliamp-hours on a 3,000 milliamp-hour cell, and within about 1 milliohm on internal resistance. Those tolerances exist because a pack behaves as a population of parts, never as a set of independent ones. Populations are only as good as their spread. Resistance mismatch does damage of its own beyond the wasted capacity. Cells sharing a parallel group divide current in inverse proportion to their resistance. Healthy cells take the largest share. Tired ones take least. In a series string the effect reverses into something worse: the high resistance cell sees the deepest voltage excursions, gets driven closest to its cutoffs, and heats up more than its neighbours. Capacity fade depends strongly on temperature and rate. The mismatched cell ages faster than the pack around it.

Rebuilding a pack properly means replacing all of it with matched cells from one batch. Patching the worst position leaves the string at its next-weakest cell. That single fact removes most of the appeal of a home repair, since the cells for a full rebuild cost a large fraction of what the whole machine cost when new. Service widens the spread that grading narrowed. Cells leaving the factory within 1 percent of each other drift apart across years, because position inside the pack decides how warm each one runs, and warmth decides how fast each one ages. A cell against the inverter heatsink lives a different life from one in the cold corner of the case. By year six a pack that started matched can hold a spread of several percent, which is why a competent rebuilder grades the old cells before deciding anything. That measurement separates one early failure from a population that has moved together.

The certificate covers the machine, not the cells

Portable power stations are certified as complete products under UL 2743, the standard for portable power packs, which covers units built around one or more lead acid or lithium ion batteries with one or more inputs and one or more outputs. It sorts them by where they are meant to live, separating outdoor use from temporary outdoor use from indoor only. It caps aggregate lithium ion capacity at 20 kWh, above which a product moves to UL 9540 as an energy storage system. Every clause in that scope describes an assembly. The tested article is that enclosure with those cells inside it, that management board watching them, that wiring loom, that charging circuit and those output sockets, evaluated together under fault conditions. A certificate is a statement about a configuration, never about a component in isolation. Change the pack for a different one and the assembly in the room stops being the assembly that was tested, whatever the mark on the case still says. None of this makes a repair illegal for a private owner in most places. The distinction is worth understanding before somebody leans on the mark as reassurance. A rebuilt machine carries whatever safety its rebuilder gave it. Insurers, landlords, employers and event organisers occasionally ask to see certification for equipment brought onto their premises. A machine with a workshop-built pack inside a certified shell is difficult to describe honestly on that form. Capacity matters at the boundary as well: a 20 kWh ceiling sounds enormous beside a 2 kWh portable machine. That ceiling is the line the standard draws between a portable power pack and a stationary storage system. Manufacturer service exchange avoids the whole question, because a factory pack fitted by an authorised centre restores the configuration the certificate describes. That is the practical argument for paying more for the official route. The cells inside a factory pack are the cells the machine shipped with.

What the law will require from 2027

European rules are moving toward forcing the question. Article 11 of the batteries regulation requires portable batteries incorporated into products to be readily removable and replaceable by the end user, with the removability and replaceability requirements applying from 18 February 2027. Replacement batteries have to work in the device without posing a safety risk, without altering its technical parameters and without reducing its performance. Narrow derogations exist. One covers devices built to work around splash water or underwater, where replacement may be reserved for independent professionals.

Guidance published in January 2025 filled in what the derogations cover. Devices built for regular use in splash, jets or submersion keep their sealed construction, on condition that an independent professional can still carry the replacement out. The exemption covers the route, never the outcome: a battery in one of those products remains removable and replaceable, with the work moved from the owner to somebody equipped for it. Portable power stations rated for temporary outdoor use, stored indoors between jobs, sit outside that description. Scope decides who this touches, and scope turns on a definition. A portable battery under the regulation is one that is sealed, weighs 5 kg or less, is not designed specifically for industrial use, and is neither an electric vehicle battery, nor a light means of transport battery, nor a starting and ignition battery. Five kilograms is where the definition stops. A finished iron phosphate pack runs about 100 to 120 watt-hours per kilogram once cells, board, wiring and structure are counted.

Run the arithmetic against real machines. A finished iron phosphate pack lands somewhere around 100 to 120 watt-hours per kilogram once cells, board, wiring and structure are counted, which puts 5 kg at roughly 500 to 600 watt-hours of pack. Small stations sit inside that boundary. A 2 kWh machine carries something closer to 20 kg of pack and sits well outside it. Where any particular product falls is for its maker to determine and declare, and buyers in Europe can reasonably expect the small end of the market to become genuinely user-serviceable before the large end does. Guidance attached to the requirement is unusually specific about what removable has to mean. Batteries count as readily removable where the end user can take them out using commercially available tools, defined as tools anybody can buy without proving proprietary rights and use without restriction. Specialised tools disqualify a design unless the maker supplies them free with the product. Proprietary tools, thermal energy and solvents are ruled out altogether, which quietly outlaws the adhesive-and-heat-gun construction common in sealed consumer electronics. Tool classification in EN 45554 is cited as the reference for drawing those lines.

Parts pairing and the software side

Mechanical access solves only half the problem. Some manufacturers give components unique serial numbers and pair them to an individual unit in software. A replacement part then gets refused or partially disabled until the maker authorises the pairing remotely. Applied to a battery, that turns a physically simple swap into something only an authorised centre can finish. The European repair directive addresses the practice directly. It prohibits manufacturers from using contractual clauses, hardware techniques or software techniques that impede repair, which is aimed squarely at parts pairing and at the refusal of compatible and second-hand spare parts. The obligations become enforceable from 31 July 2026, ahead of the battery removability deadline the following February.

Identification arrives on that date too. From 18 February 2027 every electric vehicle battery and every industrial battery above 2 kWh sold into the European market carries a digital battery passport, reached through a QR code on the product. The record holds identification, type, model, chemistry and key technical characteristics, with state of health and remaining lifetime among the data the regulation names. Portable machines below that threshold sit outside the requirement for now. A pack with a documented identity is one a service centre can match a replacement to.

Spare part availability sits in that body of rules. For the product categories the directive lists, manufacturers must keep spare parts in stock for at least ten years and supply them within fourteen days at a price that keeps repair economically sensible against buying new. Ecodesign rules already impose their own version, requiring parts to remain available for seven years after a model is discontinued. Those dates describe a direction of travel. No guarantee attaches to a machine on the shelf today.

Getting a pack to where the machine is

Even a willing manufacturer runs into transport rules. A battery travelling on its own is dangerous goods under UN 3480, and since 1 April 2016 standalone lithium ion cells and batteries carried by air have had to be at a state of charge no greater than 30 percent of rated design capacity. Deviating from that limit needs written approval from the state of origin and the state of the operator under a special provision. Air freight of a replacement pack becomes a documented dangerous goods shipment, no ordinary parcel. The consequences reach the customer as price and delay. Surface transport avoids some of the difficulty at the cost of weeks. Many manufacturers resolve it by holding regional stock, by shipping a whole exchange machine, or by declining to sell loose packs at all. A brand with no service presence in the country may have no pack to send, whatever the design allows.

Classification explains part of why manufacturers behave the way they do. A battery travelling on its own falls under UN 3480. A battery installed in the equipment it powers, or packed alongside it, falls under the separate entry UN 3481. Those entries carry different paperwork, different packing instructions and different handling, which is one reason a brand may offer to swap a complete machine while declining to post a bare pack. A bare pack is the harder of the two to ship.

What a competent replacement involves

Discharge comes first. A pack at 30 percent charge holds far less energy to release into a slipped screwdriver than one at full, which is the identical reasoning behind the air transport limit. Work happens with insulated tools, one connection at a time, with nothing conductive resting on the bench. Cells come next, all of them, from one batch, graded to the tolerances described above. A rebuild that reuses half the old cells inherits the spread of the old pack and reproduces the fault it was meant to cure. Connections get spot welded to nickel. Soldering stays on the strip, away from the cell terminal. Strip thickness follows the current the pack has to carry.

Balancing takes far longer than first-time rebuilders expect. Passive balancing bleeds current through a resistor across whichever cell sits highest, at something in the region of 50 to 200 milliamps. It engages only near the top of charge, where cell voltages separate far enough to be told apart. Run the arithmetic at 100 milliamps against a 100 amp-hour cell: shifting 1 percent of that cell’s capacity takes ten hours of bleeding. A pack built from cells at genuinely different states of charge can need a week of long charges before the string comes into line, with every session having to run all the way to the top, since switching off part way through hands the board nothing to work with. Cells matched and brought to a common voltage before assembly save every hour of that.

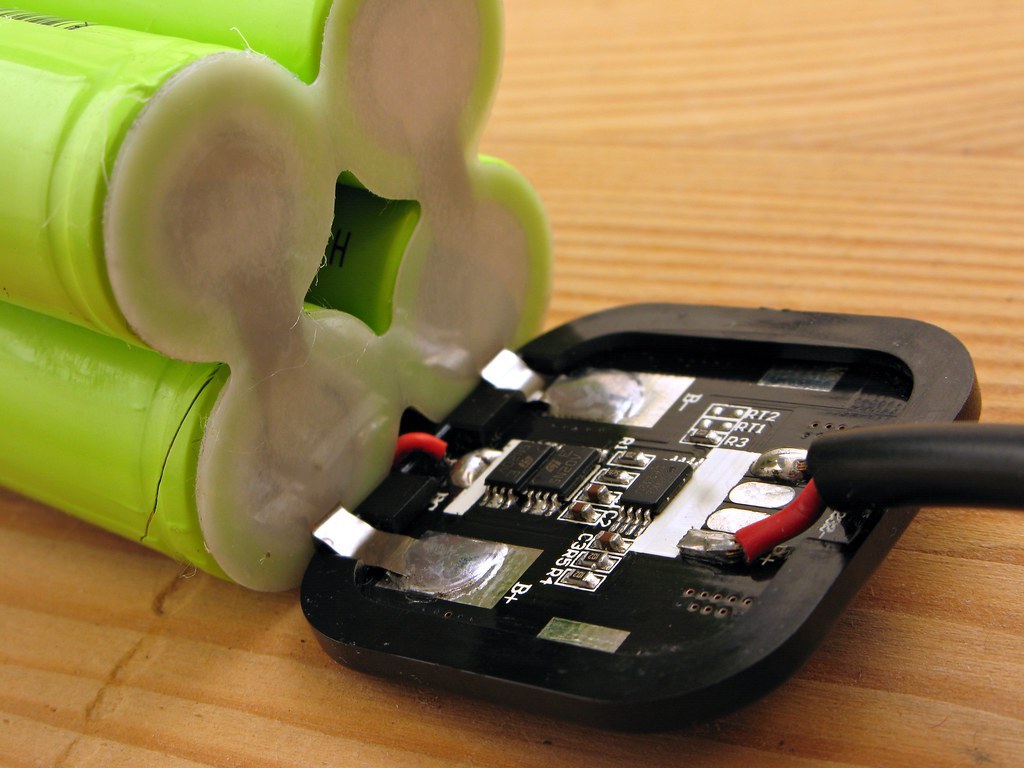

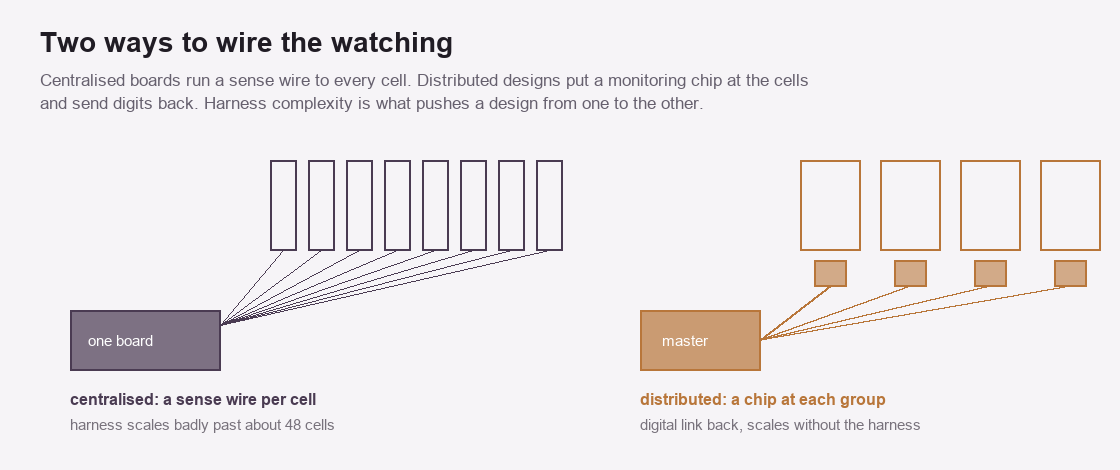

Management boards need attention people forget to give them. Sense wires belong on the correct series junctions in the correct order, because a wire on the wrong tap makes the board balance the wrong cell. Some boards need a reset or a fresh capacity learning cycle after a pack change before their reported percentage means anything. First charging belongs under supervision, somewhere non-combustible, with somebody in the building. Cell voltages want checking at the top of that charge to confirm the string balances, with no pair of cells drifting apart. A resistance measurement taken at the end gives a baseline for the years ahead. Every step on that list belongs to a workshop procedure. Manufacturer service exchange covers that work at a fixed price.

Buying with replacement in mind

Construction gives the first clue. Screws suggest a machine somebody expected to open. Ultrasonic welds and glue suggest a machine designed to be replaced whole. Look for a pack that arrives as a module with a plug on it. A connector cuts the job from an afternoon to fifteen minutes.

Support answers the rest. A manufacturer that lists a service pack as a part number, publishes a price for it, and has an address in your country is offering something meaningfully different from a brand that sells only complete machines. Asking before purchase costs nothing. The part number either exists or it does not.

A machine that accepts external battery modules gives its owner a second route entirely. Capacity that lives outside the main case gets added, removed or replaced with the case still shut. Capacity added that way never requires opening the main case.

Four questions cover most of it. Is there a part number for the battery pack. What does it cost. Who is allowed to fit it. How long will it stay available. A brand that stocks service packs answers all four from a parts list.

Battery Aging Impact on Output Power

Energy and power are two separate losses

A battery loses two different things as it ages, by two different mechanisms, on two different schedules. Capacity fade comes from loss of lithium inventory and loss of active material, which is the store of energy shrinking. Power fade comes from impedance rise, described in the literature as growth in voltage polarization, which is the pack becoming less able to deliver current at a useful voltage. Owners meet them as separate complaints. A pack down on capacity runs a kettle for fewer minutes. A pack down on power struggles with the kettle at all. Most writing about aging quietly collapses the two into one number. State of health gets quoted as a percentage, the percentage refers to capacity, and power gets left out of the conversation entirely. That works until somebody asks why a machine reading 85 percent capacity trips out on a load it carried without complaint three winters ago. Nothing about the capacity figure predicts that, because the two properties can drift apart. Impedance rise is the quantity that decides how much current a pack can push before the voltage collapses under it.

Measurement practice has caught up with the distinction even where the marketing has not. Direct current internal resistance is widely used as a health indicator in its own right, because it takes seconds to obtain and climbs reliably as a cell ages. A capacity test needs a full discharge and most of a working day. A resistance test needs a known load and two voltage readings. Both measurements belong in the record, each labelled with the test that produced it.

Where the volts go when the load arrives

Terminal voltage under load is resting voltage minus current times internal resistance. Every symptom below comes out of that one line of arithmetic. A modern iron phosphate cell starts life with remarkably little resistance to work with. Published data sheets put a 3.2 volt 100 amp-hour cell at 0.39 milliohms plus or minus 0.05, or at half a milliohm as an upper limit for a different manufacturer. Four of those in series, plus the management board and the internal wiring, land a healthy 12 volt pack somewhere under 3 milliohms in total. Commercial packs quote a ceiling of 12 milliohms on that specification line.

Put numbers into it. A 3 milliohm pack pulling 100 amps drops 0.3 volts, arriving at the inverter at 12.8 volts from a resting 13.1. Double the resistance to 6 milliohms and the drop becomes 0.6 volts. At 12 milliohms the loss reaches 1.2 volts, which is a tenth of the working voltage disappearing into heat inside the pack before any of it reaches a socket. That heat is real: 100 amps through 12 milliohms dissipates 120 watts inside the case, warming the cells that produced it. Notice which variable the arithmetic punishes. Doubling the resistance doubles the loss at every current. Doubling the current doubles the loss as well, then doubles the heating a second time, since dissipation follows the square of current. Aging pushes on the first term. Ambitious loads push on the second. A pack that has gone from 3 to 9 milliohms behaves normally on a laptop charger. A circular saw finds it out.

Resistance outside the pack enters the arithmetic on equal terms. It can dwarf whatever sits inside. Copper resists roughly 1.68 hundred-millionths of an ohm-metre. Work that through for a two-metre run of 4 square millimetre cable, counted out and back, then compare the results: the cable lands near 17 milliohms, comfortably more than a healthy pack contributes. Undersized leads, a terminal screw that was never properly tightened and an oxidised crimp all add their share in series with the cells. An owner chasing an apparent battery fault should read the voltage at the pack first, then at the far end of whatever cable feeds the load. Whatever separates those two readings has nothing to do with aging cells.

What makes the resistance climb

Several unrelated processes push impedance upward at once, which is why resistance growth rarely tracks capacity loss neatly. Passivating layers keep growing on the electrode surfaces through the whole life of a cell. On the cathode side, structural change into a rock-salt phase interferes with the kinetic transport of lithium ions across the interface. Both of those obstruct the movement of charge without necessarily consuming much lithium inventory, which is precisely why a pack can hold most of its energy while losing its grip on delivering it quickly. Mechanical damage contributes a second, separate share. Particles crack as they expand and contract through cycling. Cracked particles lose electrical contact with the conductive network around them, and material that has lost contact contributes neither capacity nor conductivity. Analysis of aged cells names contact loss of active material particles among the principal degradation modes.

Diffusion turns out to carry more of the blame than intuition suggests. Impedance work on aged cells identifies low-frequency diffusion as the largest single source of the total rise, meaning the slow business of moving lithium through the electrolyte phase and into the particles. Most descriptions concentrate on the fast interfacial steps and miss it. That distinction matters to an owner, because diffusion limitations get sharply worse in the cold. Everything outside the cells adds its own share on top. Terminal corrosion, a management board with tired switching devices, oxidised connectors and crimps that have relaxed all sit in series with the cells and all count toward the number the load actually experiences. The photograph beside this paragraph shows a cell that ended its life with visible corrosion at the negative terminal. Corrosion products at that contact measure in milliohms of their own.

Cold stacks on top of age

Temperature moves resistance faster than years do. Charge transfer resistance in an iron phosphate cathode measures around three times higher at minus 20 degrees than at room temperature. The consequences reach the owner as delivered energy: at 0 degrees a pack returns roughly 80 percent of its rated capacity, and laboratory work on an iron phosphate electrode at minus 20 recorded 45.4 milliamp-hours per gram, which is 31.5 percent of what the identical electrode gave at 23 degrees. Those two effects multiply for an owner. Neither of them waits its turn. A six-year-old pack at 9 milliohms in a warm room might sag 0.9 volts at 100 amps, which nothing on the machine objects to. Take that pack outside in February and the resistance it started from is higher before the load arrives. Sag that was tolerable indoors becomes a shutdown in the driveway. No new fault has appeared.

Which explains the seasonal pattern in complaints about aging machines. The failure gets reported in winter, attributed to the pack finally giving up, then quietly stops happening in April. Both observations are correct. The impedance was there in July as well.

The 0.3 seconds that decides whether the fridge starts

Motors ask for their worst current at the instant they start, before the rotor turns and before back electromotive force builds up to oppose the supply. Compressor nameplates carry the figure as locked rotor amps, the current drawn with the shaft stationary. Published guidance suggests planning for two to six times the running current of a refrigeration appliance, with field ranges of 600 to 1,800 watts at start for domestic fridges that run at 80 to 280 watts. Individual machines exceed the rule of thumb comfortably. One clamp meter capture on a full-size kitchen fridge recorded 1,420 watts for roughly 0.3 seconds at compressor start, settling to 145 watts running, which is close to ten times the steady figure for a third of a second. That third of a second is where an aged pack fails. The inverter converting to 230 volts has to pull the corresponding current out of the pack for the whole surge, which on a 12 volt machine means something above 120 amps for a 1,420 watt demand once conversion losses are added. Work the current back from the wattage first. A 1,420 watt demand at the socket, through an inverter running near 90 percent, pulls close to 1,580 watts from the pack. At a sagging 12.5 volts that comes to about 126 amps. A pack at 3 milliohms concedes about 0.4 volts during that instant, arriving at the inverter with plenty of headroom. A pack that has aged to 12 milliohms concedes 1.5 volts, and one that has aged further in a cold garage concedes more than 2. Terminal voltage during the surge is what the inverter reacts to, sampled far faster than any display refreshes. The machine either rides the dip or reports a fault and stops, all inside a third of a second, long before an owner sees a number change. Freezers ask a similar question with different numbers. Field measurements put chest freezer starts at 500 to 1,200 watts and upright freezers at 600 to 1,400, with defrost heaters drawing 300 to 700 watts of their own whenever the cycle calls for one. A machine sized against running watts alone meets every one of those the hard way. This is also why a station that ran the fridge for four summers refuses it in the fifth while still showing plenty of capacity in a runtime test. Nothing about the energy stored has changed much. What changed is the pack’s willingness to give up 120 amps without its voltage falling through the floor. A compressor either starts or stalls.

Why it stops with charge left in the pack

Every shutdown in a portable machine happens on a voltage threshold. Nothing in the box measures remaining energy directly. The management board watches individual cells and disconnects when one of them falls under roughly 2.5 volts. The inverter watches its DC input and quits on its own threshold, which sits between 10.5 and 11 volts on typical 12 volt equipment. One published 600 watt inverter specification warns at 10.7 volts and shuts down at 10.0. A common default pre-alarm setting sits at 10.9. Those thresholds were chosen for a pack with low resistance. Feed them a pack with high resistance and they fire early, because the voltage they are watching includes the sag. A cell sitting at 3.1 volts of true open-circuit potential, with 50 amps flowing through the resistance in front of it, can present under 2.9 at the terminal. Push the current to 150 amps and it presents less again.

The practical result is a machine that stops at an indicated 30 percent, then reads 45 percent five minutes later once the load has gone and the cells have relaxed. Both readings are honest. The pack genuinely could not hold voltage under that load. It genuinely still holds energy that a gentler load can reach. Owners reasonably interpret this as a broken gauge. The gauge is reporting one thing while the protection circuit acts on another, which is a consequence of the design and no sort of defect at all. A pack in this state still delivers most of its rated energy into a small load.

That effect also shortens the runtime a heavy load appears to achieve. The machine cuts out early. The owner records a short runtime. That figure then gets attributed to lost capacity. Measured gently the following day, the pack gives up far more energy. Neither measurement is wrong. One measures capacity. The other measures the pack under load.

Measuring the resistance at home

Resistance is easier to measure than capacity. The whole business needs about four minutes. Let the machine rest for twenty minutes with nothing connected and record the resting voltage at the pack or at a 12 volt output. Switch on a load you can quantify. Read the voltage again a second or two after the load settles, before anything warms up. Divide the voltage difference by the current and the answer is the resistance of everything between the cells and your meter. Repeatability comes from holding the other variables still. Do it at a similar state of charge each time, ideally somewhere in the flat middle of the range. Do it at a similar room temperature, since a cold measurement reads high for reasons that have nothing to do with age. Use a load big enough to produce a readable difference. A 20 watt lamp on a healthy pack moves the voltage by a few millivolts.

Probe placement decides what the number describes. Reading at the battery terminals measures the pack by itself. Reading at the output socket measures the pack plus every cable, contact and shunt between the two. Both readings have a use. The difference between them is the wiring’s contribution, obtained for free. One reading alone means little. A series of readings across years means a great deal. Resistance that has crept from 4 milliohms to 5 over three years describes a pack aging normally. Resistance that has trebled describes a pack whose ability to deliver current has gone, whatever its capacity test says. Direct current internal resistance serves as a health indicator across the industry. It rises reliably with age.

Small loads never notice

None of this makes an aged pack useless. The arithmetic that condemns it under heavy load exonerates it under light load. A 20 watt router draws about 1.7 amps from a 12 volt pack. At 12 milliohms that current produces 20 millivolts of sag, which is invisible to every protection threshold in the machine. Run that pack at 200 amps and it loses 2.4 volts. Resistance is a fixed property that only becomes a problem when multiplied by a large number. Which suggests the obvious way to keep an old machine in service. Charging phones, running lights, keeping a router and a laptop alive through an outage, driving a 12 volt fridge for days: all of that sits in the region where impedance rise barely registers. A 12 volt compressor fridge drawing 45 watts pulls under 4 amps from the pack, which at 12 milliohms comes to 45 millivolts of sag, a figure lost in the noise of an ordinary meter. Ask that pack for a 1,500 watt kettle and it has to find 130 amps, where 12 milliohms costs it a volt and a half. Power tools, kettles, microwaves and compressor starts all sit in the region where impedance decides everything. The identical pack can be useless for one job and adequate for the other.

What the specification sheet actually promises

Rated output on a portable machine describes the inverter, tested with a good pack behind it. The number tells you what the electronics can convert. Whether the pack can feed those electronics at that rate, at the temperature and the state of charge and the age you happen to be at, is a separate question the number does not address. Three ceilings apply at once. Whichever of them sits lowest wins on any given day. The inverter imposes its continuous rating and its surge rating, the second usually specified for a few seconds. The management board imposes its own current limit, set by the switching devices and by the sense resistor. The pack imposes the third limit, and that one moves with age. A new machine is normally limited by the first two. An old one increasingly gets limited by the third.

Turn the surge rating into pack amps before trusting it. A 300 watt machine quoting 600 watts of surge has to find roughly 55 amps from a 12 volt pack for those few seconds. A 2,000 watt machine quoting 4,000 has to find 370. Resistance costs voltage in proportion to that current. The larger machine works its pack harder during a surge than the small one ever does. Surge specifications deserve particular scepticism on an aging machine. A rating of double the continuous output for a few seconds assumes the pack can supply the DC current for those seconds without the voltage collapsing. That assumption held when the specification was written and the pack was new. Nobody re-tests it at year seven. The number printed on the case stays where it was in year one.

Living with a pack that has aged

Warmth is the cheapest intervention available. A pack brought indoors for a few hours before a heavy job starts from a lower resistance than one pulled out of a cold van, which can be the difference between a compressor starting and a fault code. Warming a pack indoors takes a few hours. Cells in a van left overnight at 2 degrees need most of a morning indoors before they reach room temperature.

Peak demand is the next lever. Starting one motor at a time, letting a compressor settle before switching on a second load, and choosing the lower setting on anything with a heating element all reduce the current at the moment it matters. Sag is proportional to current. Removing half the peak removes half the sag, with no work done on the pack itself.

State of charge helps as well, since resistance is lowest and open-circuit voltage highest through the upper middle of the range. A pack asked to start a compressor at 20 percent charge is being asked at its worst moment on both counts. Keeping an aging machine above half charge when heavy work is expected buys headroom that costs nothing to arrange. The pack pays nothing for it either, provided the machine goes back to a mid-range charge for storage afterwards.

Power Station Condition After 10 Years of Use

Two decades that both count as ten years

Ten years of ownership covers two machines with almost nothing in common. One of them went camping twenty weekends a year and spent the other thirty-two on a shelf, at whatever temperature the garage happened to reach in August. The other ran a fridge in an off-grid cabin every night for a decade. Both owners will describe their machine as ten years old, which is true and close to useless as a description of its condition. The cells in those two boxes have lived unrelated lives. So have the capacitors, the fans, the gaskets and the connectors. Each ages on a schedule of its own. Manufacturers write the distinction into their paperwork without drawing much attention to it. A residential iron phosphate warranty commonly reads ten years, four thousand cycles, or 37 megawatt-hours of throughput, whichever comes first, with a minimum of 70 percent capacity retention at the end of the term. Three clocks run at once inside that sentence. One counts days and never stops. One counts cycles. One counts energy pushed through the pack. Whichever limit arrives first closes the cover, and for any particular owner the answer becomes obvious as soon as the arithmetic gets done. A machine cycled every night exhausts its cycle allowance well before the calendar runs out. A machine used four times a year is still inside every cycle limit when the tenth anniversary arrives.

Counting the decade in cycles

One cycle means a full charge and a full discharge worth of energy, totalled up whichever way it was delivered. Two half-discharges count as one. Published cycle life for lithium iron phosphate cells runs from 3,000 to 5,000 full equivalent cycles before capacity falls to 80 percent of the original figure. Nickel manganese cobalt cells, the chemistry that filled portable machines through the second half of the last decade, carry ratings of 1,500 to 2,500 on that identical measurement. Both bands come from cells on a test bench at a comfortable temperature and a moderate rate. A machine in a garage stays under them.

Set those ratings against how a portable machine actually gets used. Twenty camping trips a year at one cycle each comes to 200 cycles across ten years. Weekly use makes 520. Every other day reaches 1,825. Nightly use arrives at 3,650. Only the last of the four lands inside the rated band for iron phosphate, and only the last two give a nickel manganese cobalt pack anything to think about. Twenty full discharges a year across a decade spends 4 to 7 percent of the cell rating. Which puts the cycle clock in its place for most owners. It is the clock that matters for an off-grid installation working every night. For a machine bought to cover power cuts and holidays it barely moves at all. For the second group the deciding constraint sits elsewhere. Chemistry keeps working on an untouched machine.

What sitting still does to a cell

Capacity fade during storage follows the square root of time. Most of the loss happens in the first weeks after manufacture, then the curve flattens out and keeps flattening. There is a physical reason for the shape. The film that grows on the graphite surface, called the solid electrolyte interphase, consumes lithium as it forms. Growth then throttles itself, because the film obstructs the transport that feeds it. Year ten costs a fraction of what year one cost. A pack down 2 percent after twelve months is nowhere near 20 percent down after a hundred and twenty. Somebody eventually ran the experiment for long enough to check the prediction. A hundred commercial 26650 iron phosphate cells sat at 50 percent charge and 6 degrees for ten uninterrupted years, with the absence of interruptions documented across the whole period. Check-up measurements taken directly after storage found every cell holding 96 to 98 percent of its initial capacity. Resistance changes came out negligibly small. Rate capability up to 3C matched fresh cells. Cell-to-cell spread stayed inside the range of a fresh production batch.

Six degrees is a cool cellar. Warm storage moves the number hard in the other direction. At 45 degrees, calendar aging on its own can finish a cell in roughly a thousand days. Storage at 55 degrees and 90 percent charge for 36 months has been measured with an interphase film past 300 nanometres and conductivity down by more than a fifth. Temperature exerts more influence on the outcome than state of charge does. Two pieces of advice fall out of that. Keep the machine somewhere that never bakes, which for most people means anywhere except a sealed car, a metal shed or a loft. Leave it at 40 to 60 percent charge for storage longer than a month, since a pack held at full charge for years ages measurably faster than one held at half. Neither habit costs anything.

The decade that ends in a lockout

A machine on a shelf is not electrically idle. Chemical self-discharge for an iron phosphate cell runs 1 to 3 percent a month at room temperature. The management board draws its own current on top of that. Between the two, the board is frequently the larger consumer. A modest 3 milliamp standby draw on a 100 amp-hour pack removes 2.16 amp-hours a month. Bluetooth radios, displays that wake on a button press, and idle supervision of the inverter all come out of that budget. Cheap current sensors with zero-point drift add error of their own on top. Run the arithmetic forward across a few years of neglect and the pack crosses a line it cannot cross back over unaided. Protection engages when cells fall below about 2.5 volts each, which on a sixteen-cell pack means the terminals read somewhere near 40 volts against a normal low-voltage cutoff nearer 44. The iFixit field manual for one large station calls deep discharge lockout the most common failure mode in stored or rarely used units. The gate drivers cannot activate, for want of bootstrap voltage to switch them.

Below that protection threshold the chemistry starts doing damage of a different kind. Over-discharge drives the anode potential up until the copper current collector begins to corrode and dissolve into the electrolyte. Copper then plates out on the cathode, on the anode and across the separator, which has been confirmed by electron microscopy on over-discharged cells and which points directly at internal short circuits. A machine found flat after several years in a cupboard may be in that state. Charging it to find out drives the reaction further.

What a genuinely old machine is made of

Anyone holding a portable power station that has genuinely seen ten years of service in 2026 is holding a machine sold around 2016, which settles a question most buyers never think to ask. Portable stations of that era were built almost entirely on nickel manganese cobalt cells, usually 18650 cylindrical cells in a welded pack, because iron phosphate carried a weight and cost penalty that nobody wanted in a box designed to be carried. Iron phosphate reached the mainstream of this product category around 2021 and 2022, before which it was reserved for flagship models aimed at cabins and serious van builds. The gap between the two chemistries decides how a ten-year-old machine reads today. Nickel manganese cobalt is rated at 1,500 to 2,500 cycles to the 80 percent mark against 3,000 to 5,000 for iron phosphate. Heat treats it worse as well: at 45 degrees its cycle life falls 40 to 50 percent below the rated figure, where iron phosphate under identical conditions gives up 20 to 30 percent. Everything written about a decade-old machine, every forum thread and every anecdote about a pack that swelled or a runtime that halved, comes from the chemistry with the shorter fuse and the worse temperature behaviour. That matters in both directions. It means the horror stories are real and were earned honestly. It also means they describe a product nobody sells any more. The ten-year question about an iron phosphate machine bought in 2024 has no field evidence behind it yet, only laboratory storage data, warranty terms and the cycle arithmetic. Anybody claiming to know how a current machine will read in 2034 is extrapolating from those three. Cell formats moved as well. An 18650 of that era held somewhere between 2,500 and 3,500 milliamp-hours. Mass-produced cells today top out near 3,600. The format itself gained far less across a decade than the chemistry did.

Capacitors and the ten degree rule

Cells get all the attention. Whether a ten-year-old machine still switches on is usually settled by the aluminium electrolytic capacitors in the charger and the inverter. They fail by drying out. Electrolyte diffuses slowly through the rubber seal at the base of the can. Capacitance falls as it goes. Loss factor climbs with it. Somewhere along the way, the supply that depends on those parts starts misbehaving. Manufacturers publish a design lifetime at the maximum rated ambient temperature, normally 105 degrees. Published figures run from 1,000 hours to 10,000 hours and beyond. Those published hours count down to a defined condition, never to a bang. A part reaches the end of its rated life once capacitance falls to 80 percent of its initial value, or once equivalent series resistance climbs to twice what it started at. Loss tangent and leakage current carry their own limits alongside. A capacitor at that point still works. What it no longer does is filter as well as the circuit around it expects, which shows up first as ripple the supply was designed to remove. Manufacturers publish those end-of-life ratios so a designer can decide how much margin the circuit needs at year ten.

The rated hours mean nothing on their own. Aluminium electrolytics follow the Arrhenius relationship closely enough that the industry uses a simple version of it, known as the ten degree rule: every 10 degrees of reduced operating temperature doubles the expected life. A part rated 2,000 hours at 105 degrees returns 4,000 hours at 95 and 16,000 hours at 75. Run the identical part hot and the arithmetic collapses just as fast in the other direction.

Now add the duty cycle, which is where portable machines part company with a mains power supply that runs continuously. A station used 200 hours a year accumulates 2,000 hours of running across a decade. Those hours are the only ones that count against the capacitor rating, because a switched-off machine holds its capacitors at ambient with no ripple current heating them from inside. Ten years of weekend use spends about a tenth of what a part rated 2,000 hours at 105 degrees survives at 75. The cabin machine tells the opposite story. Running an inverter continuously for ten years is 87,600 hours, past every figure in the table above. Those hours also accumulate at an internal temperature well above room ambient, because the heatsinks and transformer are working the whole time. A weekend owner reaches 2,000 hours over an identical ten years.

Which explains a pattern that repair notes keep reporting: the inverter electronics on an old machine tend to give up before the cells do. Gate drivers and power semiconductors die from overvoltage and overcurrent events. Capacitors dry out on hours and heat. Iron phosphate cells sitting behind all of it stay relatively stable through normal operation.

Fans and the hours they never accumulated

Fan ratings come with a letter and a number that deserve reading properly. L10 life is the point at which 90 percent of a large population of that fan is still working within specification. Ball bearing fans reach an L10 of 60,000 to 70,000 hours, which works out at roughly eight years of continuous running. Sleeve bearing fans manage about half of that, or three to four years of continuous duty. Manufacturers quote these numbers at a stated condition, normally 40 degrees and 65 percent relative humidity. L10 carries a second meaning. At the quoted hour count a tenth of that population is already outside specification, which makes the figure a description of a distribution with no promise attached to any individual fan. Conditions matter as much as the hours do. A rating quoted at 40 degrees assumes air at 40 degrees. Air circulating inside a working enclosure sits well above whatever the room thermometer reads. A fan drawing 55 degree air past its own bearing is being measured against a number it was never rated for. A fan in a hard-working machine sounds different by year eight.

How sharply becomes clear at the top of the range. Fan life falls by close to half for every 10 degree rise, matching the behaviour of the capacitors nearby. In testing above 70 degrees, ball bearing fans still logged 45,000 hours while sleeve bearing fans became inoperable altogether. Portable stations only spin their fans under load, which puts a weekend machine at a few hundred fan hours per decade and leaves the bearing nowhere near its rating. A grinding or rattling noise from a machine that has been worked hard for years is the bearing announcing itself. MOSFETs deprived of airflow fail in seconds. A fan that has grown noisy is cheaper to replace than the power stage behind it.

Ports, buttons and the seal around the lid

Connectors carry a published durability rating that most owners will never approach. USB Type-C is specified for 10,000 insertion and extraction cycles, with extraction force required to stay between 6 and 20 newtons even after all of them. Type-A is rated at 1,500. Plugging something in twice a week for ten years comes to about 1,040 insertions. That count sits inside the Type-C figure and close to the Type-A one. Plating decides the real number. Inexpensive pins made with tin over copper typically tolerate around 15 mating cycles before the plating wears through to the base metal, which is a figure two orders below the connector standard beside it. Gold over nickel survives far longer at a cost nobody puts on a 12 volt accessory socket. Mating cycles turn out to be the wrong worry for a machine that mostly sits still. Fretting corrosion is the real one. Tin plating is sensitive to micro-motion, and vibration or thermal cycling produces exactly that: repeated microscopic movement at the contact interface, generating oxide debris that accumulates and raises contact resistance. Higher temperatures increase the extent of the oxidation. The symptom is intermittency. A port works again after being wiggled.

Seals age on a third schedule again. A gasket under permanent compression gradually loses the ability to return to its original thickness, and once it has taken a set it can no longer press outward hard enough to keep the joint closed as the housing expands and contracts through daily temperature swings. Silicone holds its springiness through years of compression better than most alternatives. EPDM stiffens in the cold. Warming under load and cooling overnight then works microscopic cracks into the stiffened rubber. A ten-year-old seal no longer holds the rating printed on the case.

When the percentage stops being true

The number on the screen comes from counting coulombs in and out, with corrections. Counting alone drifts. Error accumulates at 1 to 2 percent every ten partial cycles when the system never reaches a state it recognises, and reaches 2 to 5 percent over a few days in systems with mediocre current sensing. Iron phosphate makes the problem worse by being extraordinarily flat: a 12 volt pack sits between roughly 13.0 and 13.3 volts from about 20 percent charge to 90 percent. That 0.3 volt window covers 70 percent of the usable capacity. Voltage tells almost nothing through the middle of the range. Recalibration is what stops the drift. It needs an end of the range to work with. A board resets its counter to 100 percent when cell voltage climbs to the full charge point around 3.65 volts, and to zero when a cell hits the discharge cutoff near 2.5 volts. Owners who top up from 60 to 80 percent and never do either give the board no reference point for years at a time. That produces the familiar complaint of a display reading 40 percent on a machine that shuts down four minutes later. Nothing has gone wrong with the pack in that story. The board has had no full charge to reset its counter against.

What ten years looks like when it goes well

A machine kept in a house, cycled a few dozen times a year and stored part-charged has a good chance of reading between 70 and 80 percent of its original capacity at ten years, which is also where the industry sets its warranty floor. That is not the end of anything. A pack at 75 percent still runs every load it ran when new, for three quarters as long. Capacity carries on slipping away after that, slowly, along a curve that keeps flattening out year by year.

What tends to be in worse shape is everything the owner never thought about. Rubber will have taken a set. Tin contacts will have grown oxide. The fan, if the machine worked hard, may be audibly rougher than it was. The capacitors will have spent their hours according to how the machine was used, which for a light user leaves plenty in hand and for a cabin installation leaves none. Dust inside the vents does its own damage by insulating the heatsinks it settles on. Vents never cleared in ten years hold a felt of it visible through the grille.

None of that argues against buying a machine expected to last a decade. Ten years of gentle use ends with a pack in good condition and electronics at a few hundred hours. Ten years of continuous duty ends with a pack near its cycle rating and a power stage past 80,000 hours.

Third Party Measurement of Rated Capacity

Three numbers that all get called capacity

Ask what a power station holds and three answers exist, all of them defensible. The cells carry a nameplate in amp-hours. The machine carries a nameplate in watt-hours, arrived at by multiplying those amp-hours by a nominal voltage. What comes out of the sockets is a third figure, always the smallest. That one decides whether a fridge runs through the night. Nobody’s being deceptive by quoting the first two. A 1024 watt-hour label on a machine built from sixteen 3.2 volt cells rated 20 amp-hours is straightforward arithmetic. The label describes energy stored in the chemistry, measured under laboratory conditions with a formal definition behind them. It says nothing about how much of that energy reaches a device.

Third party measurement exists to close the distance between those numbers. Somebody puts a known load on a full machine, times the discharge, and reports what came out. That result belongs to a specific test at a specific rate and temperature. Two honest testers can publish figures ten percent apart on one machine.

What the cell figure is defined as

Amp-hour ratings on cells are not loose claims. The method for portable lithium cells is laid down in IEC 61960: charge at 0.2C, rest, then discharge at 0.2C to the manufacturer’s cutoff voltage, with the whole thing held at 20 degrees plus or minus 5. Read the rate carefully. A 0.2C discharge empties a cell over five hours. A 100 amp-hour cell tested that way gives up 20 amps for five hours, which is a gentle stroll compared to almost any real use. The standard exists precisely to stop capacity being overrated. It fixes the rate, the temperature and the endpoint that two laboratories must both work to.

Generous conditions produce a generous number. That is the root of nearly every disappointment an owner meets later. Nobody is at fault for it. A figure obtained over five hours at room temperature describes an upper bound. Everything a person does with a portable machine sits below it. Pull harder and a cell hands over less. Nothing exotic drives it. Internal resistance turns some of the stored energy into heat. Voltage sags toward the cutoff sooner. The discharge ends before the chemistry does.

Published figures put numbers on the slope. A cell delivering 100 amp-hours at C/5 typically gives 85 to 90 at 2C, and around 70 at 5C. Between those extremes sits the rate most testers actually use. At 0.5C a healthy iron phosphate cell returns 95 to 98 percent of its rating. A purchase check runs well at that rate.

Thirty percent separates the gentlest test from the harshest. A cell that looks 30 percent short at 5C is not faulty and has not degraded. It was asked a different question and answered it honestly. Rate matters more on small machines than large ones. A 500 watt-hour unit running a 1000 watt kettle is discharging at 2C, deep into the region where the label stops applying. The identical kettle on a 3 kilowatt-hour machine is a 0.33C load, close to the laboratory condition.

Cold, and the units the label uses

Temperature belongs in that conversation too. The standard says so directly. Alongside the room-temperature test, IEC 61960-3 specifies discharges at 0 degrees and at minus 20, both at 0.2C, with expected results of at least 70 percent of nominal at freezing and somewhere between 50 and 60 percent at minus 20. Those aren’t failures. A cell at minus 20 holding half its rated capacity is behaving to specification. It returns the missing half once it warms. Lithium moves more slowly through cold electrolyte. Internal resistance rises with it, which brings the cutoff forward. Run a capacity test in an unheated garage in February and the number is one nobody should record. Measure indoors, or measure the temperature alongside the capacity and state both. Cells get rated in amp-hours because that is what the chemistry delivers: a count of charge moved, independent of the voltage it moved at. Machines get rated in watt-hours because that is what runs a device. Converting between them needs a voltage. The voltage chosen changes the answer.

Multiply amp-hours by a nominal voltage and the answer assumes the cell sat at that voltage throughout. It did not. An iron phosphate cell starts a discharge near 3.4 volts and finishes near 3.0, spending most of the middle around 3.2. Nominal voltage is chosen to make the arithmetic land close to the truth, and on a gentle discharge it does. Push harder and the assumption slips. Voltage under load sits lower for the whole discharge, which makes an identical count of amp-hours carry fewer watt-hours out of the machine. A pack that measures its full amp-hour rating at 2C can still deliver noticeably fewer watt-hours than the label promises. No charge went missing. The energy went into heating the cell’s own resistance. Anybody comparing a measured figure against a nameplate wants watt-hours on the meter. Watt-hour meters on the output settle the question directly and skip the conversion entirely.

What testers actually find

Cells from the top tier tend to beat their labels. Grade A cells from established manufacturers typically deliver 2 to 5 percent above the rated figure, which puts a nominal 280 amp-hour cell somewhere between 285 and 295 when tested properly. Manufacturers build in that margin deliberately, since a cell that measures short is a warranty claim waiting to happen and a cell that measures long costs almost nothing extra to produce. The second tier tells a different story, worth knowing about before buying. Cells sold as grade B carry a lower guaranteed minimum, often stated a few amp-hours under the headline number. One documented set of grade B cells carried a 277 amp-hour minimum specification. After a year of service and 67 cycles they measured between 267.8 and 270.9 amp-hours. Both figures sit under the guaranteed floor. Grade B stock is sold on exactly that basis, at a discount matching the shortfall.

Neither result is remarkable on its own. Both matter enormously to somebody assembling a pack, because a string of cells behaves like its weakest member and a 268 amp-hour cell in a bank of 285s drags every cycle down to its own level. That is why serious builders test every cell before assembly, on the principle that a carton label is a promise and a meter is evidence. The test is slow, needs a programmable load, and produces the one figure that determines what the finished pack will do. Skipping it saves a weekend and costs whatever the weakest cell decides to cost, every cycle, for years. Portable power stations hide all of this behind a sealed case. An owner cannot test individual cells without opening a machine that was never meant to open. The measurement left available is a pack measurement.

Cells in series all carry the identical current. Whichever one reaches its cutoff first ends the discharge for the whole string, however much the others still hold. That single fact explains why pack capacity almost never equals the average of its cells. A bank of sixteen cells averaging 285 amp-hours, with one at 268, behaves like a bank of 268 amp-hour cells. The other fifteen finish each discharge with energy left in them that nobody can reach. They do it on every cycle for the life of the pack. Balancing helps at one end only. A balancing circuit works near the top of the charge, bringing cells level before the next discharge, which stops the string drifting further apart over time. What it cannot do is add capacity to a cell that never had it. A weak cell stays weak. The pack stays sized by it. For measurement that has a blunt consequence. Testing a sealed machine reports the weakest cell in it, with no way to tell whether the shortfall came from one bad cell or from fifteen slightly tired ones. Telling the two apart needs the case open.

What the board keeps and the inverter takes

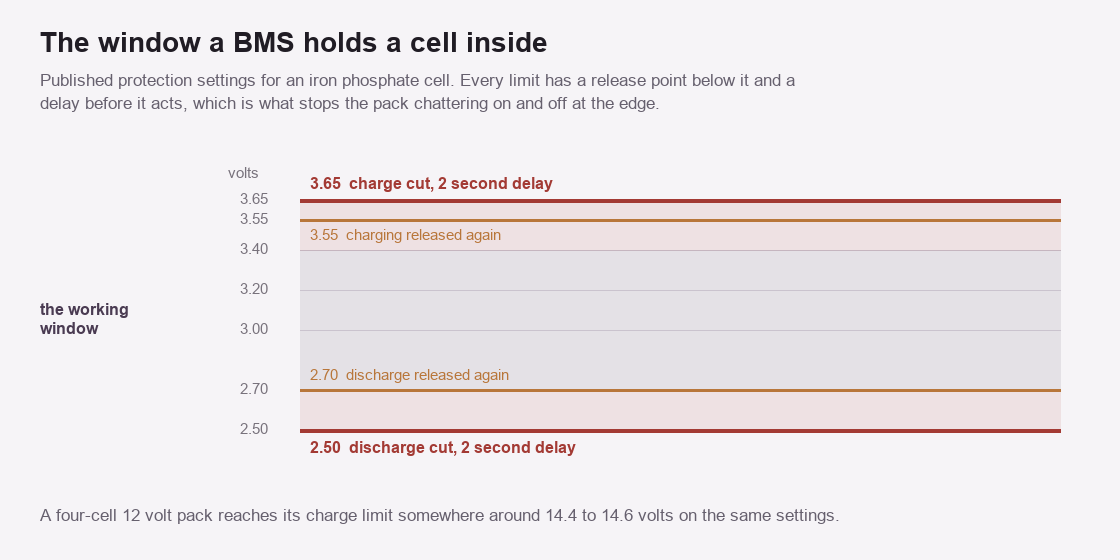

No battery management system lets a pack reach either electrical extreme. Charging stops before the cells are chemically full. Discharge stops with useful energy still in them, because operating at the edges shortens life fastest. Published estimates put that reserve at roughly 5 percent of the pack on a typical portable machine. None of it is visible from outside. A display showing zero percent sits above a pack that still holds charge. A display showing 100 sits below the chemistry’s actual ceiling. Reserve is a feature, never a deduction. What it means for measurement is simple. A test that runs a machine until it switches off has measured accessible energy. Stored energy is a larger figure. The difference between them is a number the manufacturer chose. Energy leaving through an AC socket passes through a conversion stage, and conversion is never free. Estimates for portable machines put the inverter’s share at 10 to 15 percent of what leaves the battery. Stack that against the board’s reserve and the arithmetic arrives at a familiar place. A machine labelled 1000 watt-hours commonly delivers around 850 at the socket, with roughly 50 held back by the board and the remainder lost in conversion. Load size moves the figure again. That 1000 watt-hour machine running a 100 watt load can return 850 watt-hours. Put a 1500 watt space heater on it and the figure may reach 780 before the board intervenes. Heavy loads mean higher currents, deeper voltage sag and an earlier cutoff, which is the cell-level rate effect showing up one level higher in the system. Anybody comparing a measured figure against a nameplate needs to know which of these paths the measurement took. Testing at the 12 volt port skips the inverter entirely and lands much closer to the label. Room temperature belongs in the note beside every one of those figures.

Running the measurement yourself

Equipment for it is short, and you probably own most of it. A resistive load of known draw, an energy meter that totalises watt-hours, and somewhere to leave the machine running for several hours will do it. Incandescent lamps make excellent test loads because their draw is steady and nearly resistive. Charge the machine to full and let it settle for an hour. You’ll want the hour. A pack straight off the charger carries what the trade calls surface charge, a thin excess sitting at the electrode faces that reads as voltage and vanishes within minutes of any real load. Start a timed discharge on top of it and the first few minutes deliver energy the pack never actually stored, which flatters the total by a percent or two. An hour of rest lets the cells equalise internally and gives a starting point that means something. The identical rest applies at the other end.

A machine that has just shut down on low voltage recovers a little as its cells relax, and switching it straight back on produces a few more minutes of runtime that the recovery earned, with the measurement already finished. Record the ending once and leave it there. Start the load and the meter together, record the room temperature, and leave it until the machine shuts down on its own. Whatever the meter totalled is the delivered energy. Write down the resting voltage afterwards as well, taken twenty minutes after the load comes off.

That figure separates two different endings. A pack that stops at a genuinely low resting voltage has been emptied. A pack that stops while its resting voltage is still comfortable has been stopped by something else, usually one cell hitting the cutoff ahead of its neighbours or a protection threshold set conservatively. Two machines can report the identical delivered energy with those two endings behind them, and only the voltage reading tells them apart. Divide by the nameplate and the result is the fraction that reached your load through whichever port you used.

Repeat the identical test each year on the identical load. The absolute number matters less than the trend. A single measurement carries all the uncertainty of one room temperature and one meter. Three measurements across three years describe a machine. Test gear introduces errors of its own. Cheap gear introduces the largest ones. Incandescent lamps make good loads because they are almost purely resistive, which keeps the power factor near unity and stops an inverter reporting apparent power as real power. Filament draw drifts a little as the glass warms, settling within seconds and staying put afterwards. Electronic loads hold a set current or a set power exactly. They cost considerably more.

Plug-in energy meters vary widely. The good ones read within a percent or two on resistive loads at reasonable power. Those identical meters can be well out at very low draw, where their own consumption and their resolution start to matter. Testing a 1 kilowatt-hour machine with a 15 watt load stretches the discharge past sixty hours and puts the meter into exactly that region. A load around a tenth of the machine’s rated output dodges both traps. That range keeps the meter in its accurate band and the inverter above its worst efficiency. The test finishes inside a working day.

Testing a machine you cannot open

Sealed machines withhold the one measurement that would settle things. Cell voltages sit behind a case designed never to be opened. A shortfall arrives as one number, with no way to see whether fifteen tired cells produced it or a single bad one did. Three things remain observable from outside, and together they narrow the answer. Delivered energy under a known load gives the headline. Voltage sag under a known load, read a second after the load settles, tracks internal resistance and rises as a pack ages. Charge acceptance is the third. A healthy pack takes its rated input for most of the charge. A tired one tapers early. One cell reaches the charge cutoff ahead of the rest.

Read together those three separate the common cases. Falling delivered energy with steady sag and steady charge acceptance looks like ordinary even fade across the whole pack. Falling delivered energy with rising sag and an early charging taper points at one cell running ahead of its neighbours, which no amount of gentler use will fix. Neither pattern justifies opening a sealed machine. What they do justify is a warranty conversation. Claims exist for the second pattern.

Reading somebody else’s test

Four facts have to travel with a published capacity figure before it means anything. Load, in watts. Port, AC or DC. Room temperature. Whether the machine was allowed to shut itself down or was stopped at some chosen display reading. Reports that omit those four aren’t reporting a measurement. They’re reporting an impression. A reviewer quoting 780 watt-hours from a 1,000 watt-hour machine has either found a poor machine or used a 1,500 watt load, and only one of those conclusions should change a purchase. Comparisons need the conditions to match as well. Two machines tested by different people at different loads cannot be ranked against each other honestly, whatever the two numbers appear to say. Where a shortfall is genuine, the useful next step is a second test at a gentler rate. A machine that returns 78 percent under a heavy load and 88 percent under a light one is describing its inverter and its sag. Missing cells would show at both loads. Rate sensitivity of that size points at resistance inside the pack, and resistance climbs with age and with cold.

What a shortfall usually turns out to be

A machine that measures short has a short list of explanations. Working through them in order of likelihood saves a lot of worry. Load size comes first, because it explains most cases on its own. A test at half the machine’s rated output includes voltage sag and poor inverter efficiency that a test at a tenth avoids entirely. Ten points can separate the two figures on a machine with nothing wrong with it. Repeat the measurement gently before believing anything. Temperature is second and costs nothing to rule out. A pack at 5 degrees returns noticeably less than the identical pack at 20, and returns it again once warm. A recorded test carries a room temperature beside the figure.

Instrument error is third. Cheap plug-in meters read badly at low power. A test designed to be gentle can push one into exactly the region where it stops being trustworthy. Cross-check with a second meter, or pick a load that keeps the reading in a sensible part of the range. Only after those three does genuine capacity loss belong on the list. A pack measured properly, warm, on a decent meter, at a modest load, that still returns 80 percent of what it returned when new, has genuinely lost a fifth of its capacity. That is a real finding. Load, temperature and instrument have each been ruled out first.

Common questions

Lithium Cell Battery Lifespan Replacement

What the number on the box leaves out

Every portable power station quotes a cycle count. Three thousand, four thousand, six thousand on the ambitious ones. The figure looks like a property of the cells, in the way that a mass or a voltage is a property of them. It’s nothing of the sort. A cycle count is the result of one test, run under conditions the marketing copy never states, and four of those conditions decide the answer between them. Test temperature comes first, since 25 degrees is the standard and anything warmer shortens the count. Depth of discharge comes second, because a cell taken to 30 percent and back survives many times more cycles than one worked from full to empty every time. Charge and discharge rate come third, with slow charging at or below 0.5C promoting even lithium diffusion and gentler ageing. The end-of-life threshold comes fourth, and moving it from 80 percent capacity down to 70 raises the published figure without anybody touching the cell.

The end-of-life line itself is settled by IEC 61960-3 for anybody who follows it, which fixes end of life at the point where capacity falls to 80 percent of the original rating. The other three stay open to whoever writes the datasheet. Two manufacturers can both quote honest numbers that differ by a factor of three, on cells off one production line, which is why comparing two cycle counts without their test conditions compares nothing at all.

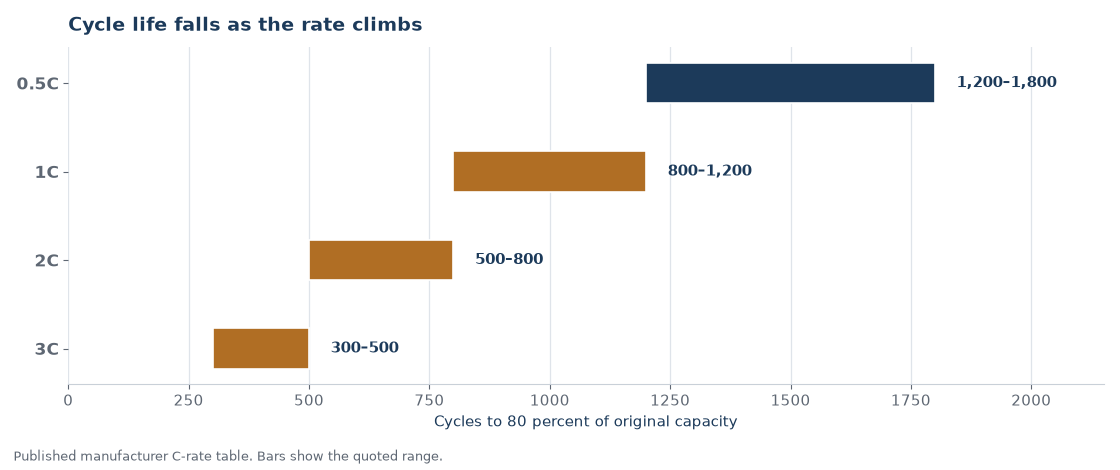

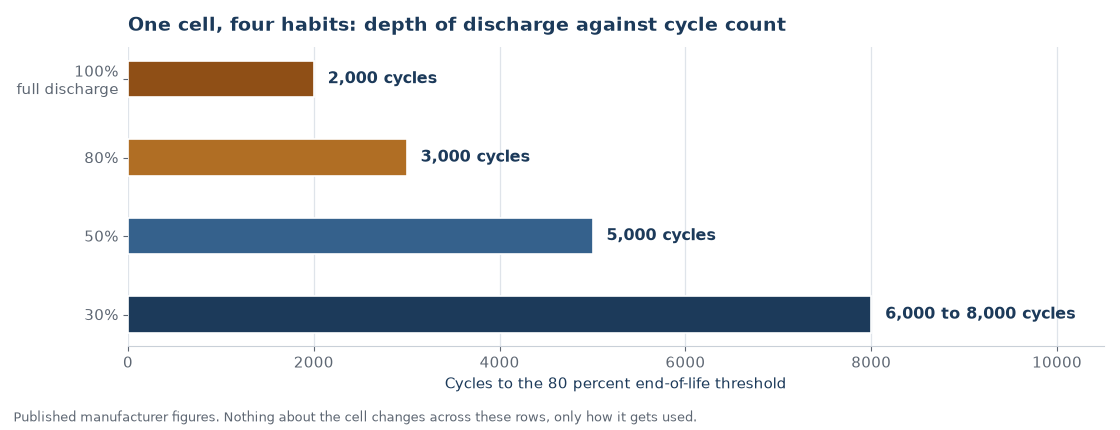

Depth of discharge is the variable with the widest leverage, and published tables show it plainly. One manufacturer’s figures put a full 100 percent discharge at around 2,000 cycles, 80 percent at around 3,000, 50 percent at around 5,000, and 30 percent at somewhere between 6,000 and 8,000. Translated into daily use, that table runs from five or six years at the deep end out to twelve or more at the shallow one. Nothing about the cell changes across those rows. Only the habit of the person using it changes.

Switch from counting cycles to counting energy and the picture sharpens further. Two thousand full cycles on a 1 kilowatt-hour pack move 2,000 kilowatt-hours in total. Five thousand half cycles move 2,500. Shallow use delivers more energy across the working life of the pack and asks less of it on any given day, which is the whole argument for leaving headroom at both ends of the range. Charging to 80 and stopping at 20 costs nothing you’ll ever notice on a machine sized correctly in the first place.

Published tables also disagree with each other. The disagreement is itself the point. No single table is defective. Some datasheets put a full discharge nearer 500 cycles and a 10 percent one nearer 10,000. Nothing reconciles the two sets of numbers except reading the test conditions behind them. Checking a figure against a real machine takes a load and a meter, which is the ground third party measurement of a cell’s rated capacity covers in detail.

Heat is the other multiplier

Temperature works on a cell whether or not anybody is using it. Published guidance puts nominal cycle life at temperatures between 10 and 35 degrees. Run the identical cell between 45 and 60 and the figure drops by 20 to 40 percent, through accelerated growth of the passivation layer on the anode surface. Past 60 degrees the loss reaches 60 percent or more. The mechanism changes character as well, with surface chemistry giving way to structural damage inside the electrode material itself. No amount of careful use afterwards reverses that. Those percentages come straight off the cycle count. A pack rated 3,000 cycles at 25 degrees is a pack rated somewhere near 2,000 in a hot shed, on a specification sheet that prints 3,000 either way. Nobody’s lying. The test was run at 25 and the shed isn’t 25. The rule of thumb behind those bands is simpler than the bands themselves: every 10 degrees above 25 speeds the chemistry up, which is why guidance for hot climates puts the loss at 15 to 30 percent of the rated cycle life before anybody has cycled anything. A machine sold on a 3,000 cycle figure and shipped to a place where sheds sit at 45 all summer was quoted a number from a different country.

How fast heat escapes depends partly on how the cell was built, which is one of the quieter arguments inside the trade-off between cylindrical and prismatic cells. A steel can with a small cross-section moves heat to its surface one way. A large flat face clamped hard against its neighbours does it another. The difference shows up across years, never across an afternoon.

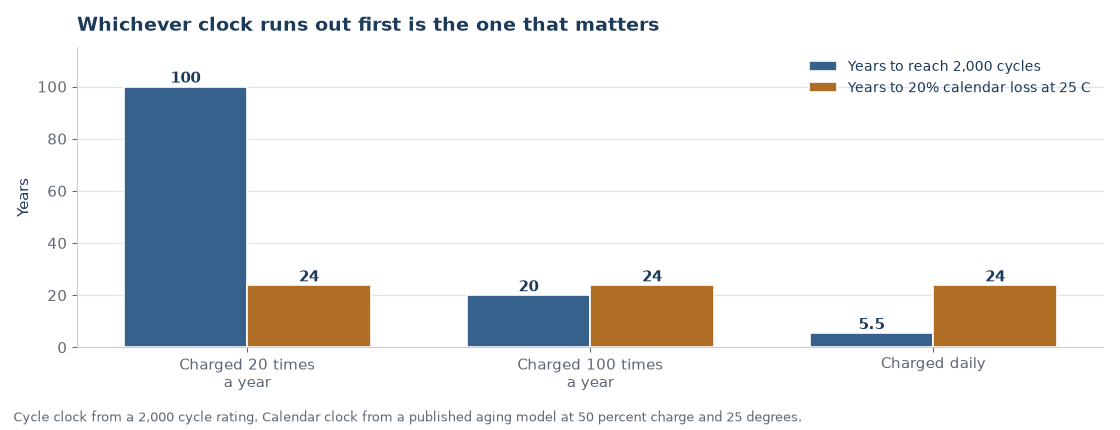

Two clocks, and the one most owners never read

A pack ages two separate ways at once. Cycle aging is the one everybody quotes. Each charge and discharge moves lithium in and out of the electrodes, strains the material a little, and costs a small fraction of the capacity. Calendar aging is the other. It runs whether the machine works daily or sits in a cupboard untouched. Its mechanism is the slow growth of the solid electrolyte interphase, the passivation film on the anode, which consumes active lithium and raises internal resistance as it thickens. That growth follows a square root of time law, which makes the first weeks of a pack’s life cost more capacity than any equivalent stretch a decade later. Research into low-usage cells is blunt about which clock wins: where cycle depths and currents stay low, calendar aging dominates the result outright. Put numbers against a real household machine and the gap turns startling. A unit charged twenty times a year needs a century to reach a 2,000 cycle rating. One published calendar-aging model puts the wait for a 20 percent capacity loss at around 23.8 years with the pack held at 50 percent charge and 25 degrees, falling to about 8.7 years at 40 degrees. The cycle number never becomes the limit for that owner. The calendar does. It arrives roughly four times sooner than the figure printed on the box would suggest. Storage temperature and storage charge level decide the outcome, which makes where a machine spends its idle months matter more than what it does on the days it works. Heavy users invert the whole picture. A machine cycled daily reaches 2,000 cycles inside six years, at which point cycle aging is the binding constraint and the calendar has barely started counting. Somewhere between twenty charges a year and three hundred and sixty-five lies a crossover. Every owner sits on one side of it. Working out which side you’re on takes one year of counting charges. An owner on the calendar side should spend their attention on where the machine sleeps and at what charge. An owner on the cycle side should spend it on depth of discharge and charge rate, since those are the only two levers that touch the count.

What the warranty actually covers

Cycle ratings and warranty terms come from different departments. The gap between them is easy to measure. Published cycle claims across the major brands run 3,000 to 4,000, with one premium range reaching past 6,000. Warranty terms line up nothing like that. One maker offers five years as standard across its whole catalogue, covering both cell degradation and the electronics around them. A second ships two to three years depending on the model and where it was bought, with three years available for buying direct and an extension to five sold separately. A third lands in that two to three year band as well. The pattern holds across the category: the cycle figure belongs to the cells, the warranty belongs to the company, and nobody ever negotiated the two together.

Set one against the other. A 3,000 cycle rating consumed at one cycle a day takes 8.2 years to exhaust. A three year warranty covers 1,095 of those cycles, a little over a third. The cell specification and the commercial promise are describing different lengths of time, and only one of them carries an obligation. Warranty wording repays reading closely for a second reason. The better terms cover capacity falling below 80 percent inside the period, which converts the IEC threshold into something enforceable. Weaker terms cover defects alone, meaning a pack that fades on schedule has no claim attached to it, whatever its owner feels about the fade.

Neither arrangement is dishonest. A buyer who reads the cycle number as a guarantee has simply read the wrong document. The guarantee’s the shorter number, further down the page.

Eighty percent, and the shape of the curve

End of life sounds terminal. What it describes is a cell holding 80 percent of the capacity it shipped with. On a 1 kilowatt-hour machine that’s 800 watt-hours and a device that still does most of what it did before. The threshold exists for two practical reasons. Degradation accelerates past that point on several chemistries. A line has to be drawn somewhere for warranty arithmetic to function. Iron phosphate cells routinely carry on for thousands of cycles beyond it at slowly declining capacity, which makes a pack reaching its rated count a reason to measure it before replacing anything.

Predictions about the far end of that curve are cheap. Measurements are not. The few long studies that exist are worth more than any datasheet projection. The honest version of a ten-year answer separates two populations: machines cycled hard for a decade land in one place, machines that spent it on a shelf at a sensible charge level land somewhere much closer to where they started. Anybody who wants that detail with figures attached should read the condition of a power station after ten years of use.

Capacity loss is not a straight line drawn from new to worn out. The fade follows a root curve against elapsed time, running fastest when the pack is newest and slowing steadily from there. Anybody watching a display closely through the first months is looking at the steepest part of the whole trajectory, and reasonably concludes the machine is in trouble. Extrapolating from that early slope produces alarming answers that turn out wrong. A pack giving up 4 percent in its first year is not on course to surrender 40 percent by year ten. Grid-scale iron phosphate installations are generally expected to lose somewhere between 20 and 30 percent across a first decade of daily work, a far gentler average than the opening months suggest.

The mechanism explains the shape. A fresh anode grows its passivation film quickly, since bare surface is available for the reaction. As that film thickens it slows its own growth, because lithium has further to diffuse before reaching anything unreacted. Chemistry that starts fast and then throttles itself produces exactly the curve the long datasets show.

Power fades before energy does

Capacity is the number everybody watches. Internal resistance is the one that changes the experience first, in a way the percentage display cannot show. As the passivation layer thickens, resistance climbs. Voltage under load sags further than it used to, bringing the pack to its low-voltage cutoff sooner and making a heavy load behave like a heavier one. A machine that started a compressor without complaint in year one can trip on that identical compressor in year seven, on a pack still holding 85 percent of its rated energy. Runtime on small loads looks almost unchanged. Starting current is where the age announces itself, which is why the first symptom an owner meets is usually something refusing to start, well before anything runs short. Watching that happen from the outside, and separating it from a genuine fault, is the subject of how battery aging affects output power. Catching it early costs one measurement a year. Put a known heavy load on a full pack, read the voltage a second after it settles, and write the figure down. Voltage sag under an identical load, measured identically each year, tracks internal resistance more honestly than any percentage the machine chooses to display.

Measuring what you actually bought

A load, a meter and an afternoon settle every figure quoted so far. Discharge a full pack at a steady modest rate, time it, then multiply the two. Delivered energy in watt-hours falls out. Compare that against the nameplate and against last year’s figure. Two cautions apply to the method. Measure at a low rate, since a hard discharge understates capacity through voltage sag and inflates the apparent loss. Measure at room temperature as well, because a cold pack delivers less and gives it back once warm. Neither caution needs equipment beyond a known resistive load and a watt-hour meter. A 100 watt lamp and a plug-in energy monitor will do it on an AC output. A car bulb with a cheap DC meter handles the 12 volt side. What matters is repeating the identical setup, since the absolute figure matters less than the difference between this year’s and last year’s. Measuring at an AC socket puts the inverter inside the measurement. An inverter running at a small fraction of its rating wastes a large share of what passes through it. A pack that looks 15 percent down on an AC test can be 5 percent down at the cells, with the other 10 sitting in a conversion stage that was never part of the question.

Run the identical test annually on the identical load and you’ll see the drift long before it turns into a problem. Three data points across three years say more about a specific machine than any figure a manufacturer prints about a population of cells.

When the pack outlasts the machine around it

Cells are rarely the first component to fail. Fans seize. Connectors corrode. Firmware stops receiving updates, a display cracks, a fuse blows in a way that needs the case opened. Each of those has a shorter life than a lithium iron phosphate pack kept at sensible temperatures, which puts the cells at the wrong end of a queue nobody expected them to be in. A pack still holding 85 percent at year eight is a perfectly good pack trapped inside a machine whose fan died in year five. That imbalance makes one design decision matter more than any cycle rating on the specification sheet. A machine built so the pack comes out has a second life waiting whenever something else gives up. A sealed machine reaches end of life when its weakest component does, whatever the cells still hold at the time. How replaceable the battery pack is in a power station decides which camp a given unit belongs to. Establishing that before purchase costs nothing at all.

Cells that do come out have somewhere to go afterwards, which isn’t true of a pack nobody can reach. Iron phosphate contains no cobalt and carries less recoverable value than the nickel chemistries do, which shapes the economics of collection without removing the obligation to collect. Where a retired pack ends up, and who pays for the journey, is laid out in the recycling pathway for retired lithium batteries. Plan the replacement at purchase. A machine with an accessible pack, from a maker still selling modules in year eight, is a different proposition from one that turns into waste the day its cells drop below useful. That difference rarely shows in the price.

Common questions

IP54 Waterproof Durability Temperature

Leave one outside for a year

Stand a power station on a site for twelve months and count what attacks it. Rain and spray. Airborne grit. Salt, if the coast is anywhere near. Ultraviolet light every clear day. Vibration from the truck that brought it. A drop onto concrete. Heat in August, frost in January, condensation on the mornings in between.

Nine separate hazards, give or take. The panel carries a rating that speaks to two of them, and that’s the whole of it.

Only two of them appear in the code printed on the box. Most of the rest do have a standard behind them, published by a body whose name never reaches the packaging.

What the two digits promise, and what they don’t

IP54 is a code from IEC 60529 with exactly two fields. The first digit ranks protection against solid objects, the second against water. Five means dust-protected: dust may enter without reaching a quantity that interferes. Four means splashing water from any direction. Read as written, the code is a narrow promise. Nothing in those two digits addresses salt, sunlight, impact, vibration or temperature. The narrowness is not a flaw in the standard. IEC 60529 was written to answer two questions and it answers them precisely, with defined nozzle rates, defined durations and a defined dust chamber. The test method is where a dust and moisture proof sealing structure earns those two digits. Trouble starts when a buyer reads the code as a general fitness certificate. It’s a measurement of two things, taken on a new sample, in a laboratory, on a machine that wasn’t even switched on. Impact has its own standard, and almost nobody quotes it on a consumer specification sheet. IEC 62262 grades an enclosure from IK00 to IK10 by the energy it survives.

Put numbers on the top of that scale. IK08 means 5 joules, delivered by a 1.7 kilogram mass falling 300 millimetres. IK10 means 20 joules, from 5 kilograms falling 400 millimetres. Four times the energy separates two ratings that sit two steps apart. Impact and ingress are independent of each other, which is why a case can hold an excellent IP code and still crack when a scaffold pole lands on it. That independence leaves vibration and drop resistance in the internal support to a completely separate body of work, inside a case whose IP code says nothing about any of it. North America runs a parallel system. NEMA enclosure types cover that ground in different words. The words reach further. Type 4X is the interesting one. On top of the dust and water performance, it demands corrosion resistance. That test is no formality: published comparisons describe more than 1,200 hours of exposure to moist air carrying carbon dioxide and sulfur dioxide. Types 3 and 3R add an external icing test. Type 3 also requires a gasket aging test, which measures the seal at the age when it actually has to work. None of that appears in an IP code. Stated plainly in one published comparison: NEMA 4X includes corrosion resistance testing that IP66 does not cover. That source also records an IP66 installation that failed inside eighteen months in salt air.

That failure mode is the reason tolerance of a coastal salt spray environment gets measured on its own clock. A machine can pass every water test written and still lose its fasteners to chloride in under two years.

Sealing and cooling pull opposite ways

Every watt a power station wastes turns into heat inside the case, and that heat has to leave. A vented machine lets air do the work. Air enters cool at one end, picks up heat from the transformer and the switching devices, and leaves warm at the other. Convection through moving air is the cheapest cooling anybody has ever built. Seal the case to keep grit and water out and that path closes. Heat now has to conduct through the walls and radiate off the outside surface, which is a far slower business. Industrial practice tells the story: enclosures that must stay sealed against contaminants get fitted with heat exchangers or air conditioners, because passive walls alone cannot shift the load. Internal circulating fans buy some of it back. Moving air against the inside surface lifts the effective transfer coefficient into the region of 10 to 15 watts per square metre per kelvin, without anybody opening a single hole. None of this makes the sealed machine worse. It makes the sealed machine a different design, with a lower continuous rating for the identical silicon inside. A manufacturer choosing IP65 over IP54 accepts a thermal penalty and pays for it somewhere, usually in the continuous watts printed on the box or in the temperature at which the machine starts backing off. Anyone comparing two units on ingress rating alone has compared one number and ignored the one it was traded against. The compromise leaves a signature on any specification sheet. A high ingress figure beside a modest continuous rating usually means the designer chose sealing. Reverse the two and airflow won. Neither choice is wrong. Only one of them suits a machine that spends its life in a dusty yard, and only the other suits one working hard in a hot shed.

The backing off has its own page. Power derating under high temperature is where that trade gets settled in practice, on a staircase the firmware walks down as the internal sensors climb. Ventilation runs on a spectrum. Most portable machines sit somewhere in the middle of it, with filtered intakes and an ingress rating that records where the designer landed. Dust gets treated as a mechanical nuisance. Its first effect is thermal. On a heatsink, a layer of fine dust works as an insulating blanket. A partially blocked intake mesh cuts airflow, which raises internal temperature, which brings the derating staircase forward. The machine’s quieter about it than you’d expect, since nothing has failed and no alarm has any reason to fire.

Working out protection for a dust and high wind environment means accepting that a filter fine enough to stop the grit is also fine enough to choke the airflow. That trade has no clean answer, only a maintenance interval. Take a machine up a mountain and the cooling gets worse before anything else does. Air density falls by roughly 1 percent for every 100 metres of elevation, taking convective cooling capacity down with it. IEEE and IEC equipment standards both treat 1,000 metres as the ceiling for an undated rating. Above that point a rule of thumb of 1 percent per 100 metres applies. Above 2,000 metres a further thermal allowance of one degree per 305 metres gets applied. A unit rated for 2,000 watts at sea level is a smaller machine at 3,000 metres, on a spec sheet that never mentions elevation.

Sunlight, plastic and metal

Ultraviolet light does its damage without any single event to notice. Case plastics take the damage. Inside standard ABS sits a butadiene rubber phase that oxidises under sunlight, and once that phase goes the material loses toughness before it loses its looks. Polycarbonate yellows. Formulate a grade for outdoor service and it carries hindered amine light stabilisers and ultraviolet absorbers, which push accelerated performance out to around 2,000 hours in a QUV chamber. Two thousand QUV hours corresponds roughly to five to seven years of outdoor exposure in a temperate climate. Coated polycarbonate stretches service life from the two to five years an uncoated sheet manages to somewhere between ten and fifteen. One 2023 study put untreated sheet at 12 percent tensile strength lost per year in subtropical conditions.

Park a machine in permanent shade and you buy back most of that clock, which is why long term outdoor storage protection talks about parking as much as it talks about charge level. Left in the sun, a case ages on QUV time whether or not anybody switches it on.

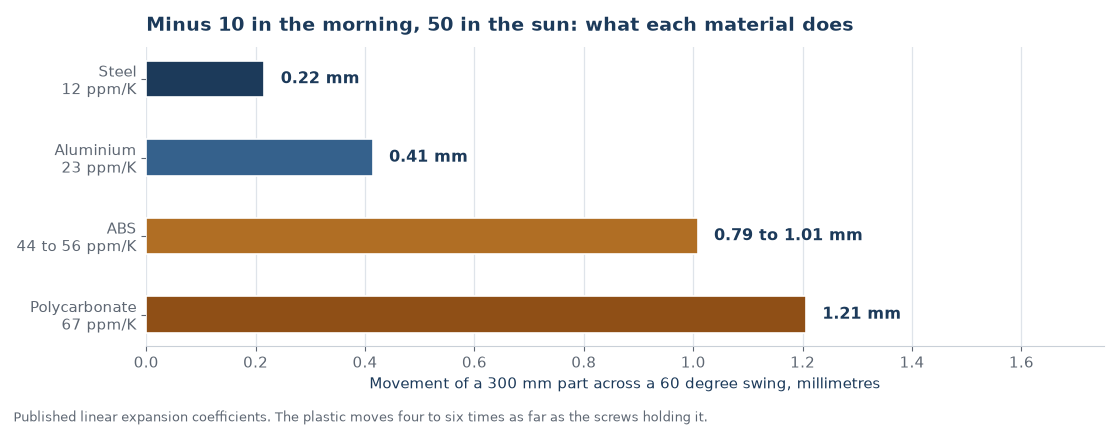

A case is never one material. Polymer panels, metal fasteners, an aluminium heatsink and a rubber seal all meet one afternoon of weather and respond to it at different rates. The coefficients tell you how differently. Steel expands at roughly 12 parts per million per degree. Aluminium runs near 23. ABS lands somewhere between 44 and 56, and polycarbonate reaches about 67, which puts the plastic between four and six times more mobile than the screws holding it. Work an example. A 300 millimetre polycarbonate panel taken from a frosty morning at minus 10 degrees to 50 degrees in afternoon sun crosses a 60 degree swing, which moves it about 1.2 millimetres. Steel screws through that panel move 0.22. Something has to absorb the remaining millimetre, every single day.

Designers handle it with slotted holes, oversized clearances and fasteners that do not clamp the plastic hard. Get it wrong and the failure arrives as a hairline crack at a screw boss, usually after a couple of seasons, on a machine that never took an impact of any kind. The IK scale would rate that case perfectly. Nothing hit it.

A seal is a spring that forgets

Gaskets fail slowly, by a mechanism with its own name and its own number.

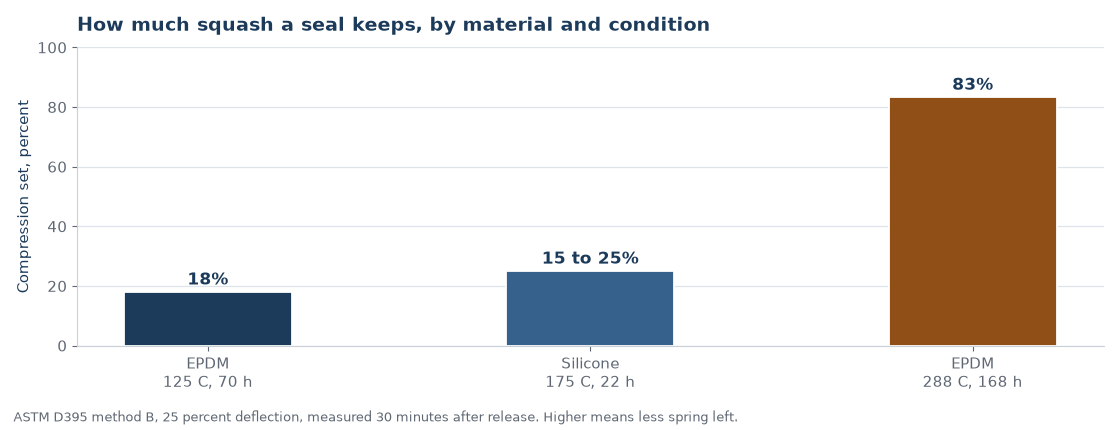

Compression set measures how much of the squash an elastomer keeps after the load comes off. A seal works by pushing back against its groove. Lose that push and water arrives, on a machine whose IP code was earned years earlier by a seal that no longer exists in that condition. ASTM D395 puts numbers on it. The common test squashes a sample 25 percent, holds it at somewhere between 70 and 150 degrees for 22 hours, releases it, and measures what fails to come back after 30 minutes. EPDM, the usual choice for outdoor weather sealing, shows around 18 percent compression set after 70 hours at 125 degrees. Push the conditions far enough and the figure runs away: the identical material reaches 83 percent after 168 hours at 288 degrees. Post-cured silicone lands at 15 to 25 percent under a 175 degree, 22 hour test.

Daily thermal cycling is what does this to a power station. Each hot afternoon presses the seal a little further into its groove. Each cold night asks it to spring back. NEMA Type 3 includes a gasket aging test for exactly this reason, run on elastomer that has already been heat-aged. Sealing keeps outside water out. It also traps whatever was in the air on the day the case was closed. Air carries water as vapour, and how much it can hold falls sharply as it cools. Take air at 30 degrees carrying 9 grams of water per cubic metre. Cool that same air to 10 degrees and it reaches saturation. Cool it any further and the surplus has to go somewhere, which means onto the coldest surface available. Inside a sealed machine, that surface is usually a circuit board. Nothing has leaked. The dew point of the trapped air was fixed at the moment the case was closed, and cooling never removes moisture from a sealed volume. All it does is bring surfaces down to meet the water already present.

Because of that, assembly humidity ends up as a design parameter, and manufacturers care what the factory air was doing that day. It also explains the small membrane vents fitted to sealed equipment. Those equalise vapour and pressure without letting liquid water through. Their existence is the reason a genuinely sealed case is rarer than the marketing suggests.

Cold sets limits the case never mentions

Temperature is where this turns counter-intuitive. A machine keeps more than one window open. Their edges sit in different places. Charging stops at zero degrees on iron phosphate cells, because lithium arriving at a cold anode plates onto the surface as metal in place of entering the graphite. Discharging carries on well below that, with reduced capacity and a lower voltage under load. An owner sees a machine that’ll run a lamp happily and won’t accept charge, reads it as a fault, and is looking at correct behaviour. Where those edges actually sit gets settled by the operating temperature range and its derating, the one specification here that changes what a machine will do today. The rest govern how long it lasts. Machines built for cold climates carry heaters. The energy has to come from somewhere. Heating from the pack itself is the honest arrangement and the expensive one, since every watt-hour spent warming cells is a watt-hour unavailable later. Heating from the incoming charger spares the reserve. It only works when a charger happens to be connected. A preheating strategy for a cold start decides which arrangement a machine uses and how long the wait runs before charge current flows. Twenty minutes of warm-up on a cold morning is a normal figure.

The tests behind the numbers

Temperature, vibration and shock all have proper standards. None of them lives inside an IP code. IEC 60068 is the series that covers them, split into lettered tests. Test Ab handles cold. Test Bb covers dry heat on an unpowered sample, over a span running from 30 degrees upward and durations from 2 hours out to 1,000. Test Cab is damp heat held steady, typically 40 degrees at 93 percent relative humidity, run for anything from 4 days to 56. Mechanical hazards get their own letters. Test Fc sweeps vibration from 10 hertz to 500, sometimes to 2,000, at accelerations between 0.5 and 20 g, which is where resonances in a badly braced pack show themselves. Test Ea delivers shock as a half-sine pulse between 15 and 100 g, lasting anywhere from half a millisecond to thirty.

A manufacturer who has run these can name them. Ask which parts of IEC 60068 a machine has been through and the answer separates the companies that tested from the companies that specified. Nothing obliges a portable power station to carry any of it, which is exactly why asking is worth the trouble. Every figure quoted so far came out of a chamber. Chambers simplify. An IP test uses clean water at a defined rate on a machine that is not running. Salt spray chambers use a continuous fog at a fixed concentration, which no coastline ever produces. Dust chambers use talc of a controlled particle size. QUV cabinets run one wavelength band at one intensity with a fixed wet cycle.

Real environments combine what the chambers separate. Grit arrives with wind that drives it into seals that ultraviolet light has already made brittle, on a machine that is running warm, in air that carries salt. A specification sheet lists these hazards on separate lines because that is how they were tested, never because that is how they arrive.

Two protections that undo each other

Almost every defence listed so far costs something on another front. A tighter seal closes the airflow path, which lowers the continuous rating. A filter fine enough to stop grit is fine enough to choke the intake. A heater that lets a pack charge in winter draws its energy from the pack it is warming. Shade protects the case from ultraviolet and takes the solar panel out of the sun along with it. Rubber mounts that absorb vibration let the pack move further during a drop. None of these has a clean answer. Every one of them is a position on a slider, chosen by an engineer who knew which hazard the machine would meet most often. The IP digits describe what water does to the machine. They say nothing about what water does to the operator. Most portable machines leave the factory with a floating neutral, where neither output conductor is referenced to earth. Wet ground under a person holding one conductor does not complete a circuit, since the other conductor connects to nothing that person is touching. The arrangement is deliberate. Read safe operation in rain and snow for where the hazard actually sits once extension leads and metal tools enter the picture. The case rating was never the safety boundary.

Eleven rows, two digits

Eleven hazards, five standards bodies, one code on the box.

Every row has a standard behind it. Nine of the eleven sit outside the code printed on the box, which is the point: IP54 answers two lines of an eleven-line question. One rating cannot be read without the environment it will meet. Near salt water, corrosion outranks everything. An IP figure on its own won’t tell you what you need. On a dusty site, the intake design and the cleaning interval matter more than the second digit. In a hot climate, the ventilation compromise decides the continuous rating, which is the number you will actually feel. Somewhere cold, the charging cutoff decides whether the machine works at all in the morning. Ask a manufacturer which of those rows it tested, and for what. The honest ones answer with test names and hours. The rest quote an IP code and change the subject, which is an answer too.

Common questions

AC DC USB Type-C Anderson Output Ports

What does a row of ports actually cost you?

Count the openings on a mid-size power station and you land on eight or ten. Two or three AC sockets. A round 12 volt port. A pair of USB-C, a couple of USB-A, and on larger units an Anderson pair bolted to one end. The panel presents them as equals. Behind each opening is a different converter running at a different efficiency. The wrong choice for a given load can cost a third of the runtime on a pack you’ve already paid for. Nothing on the front tells you any of it. A label gives a watt figure beside each opening and stops there, which leaves the owner to work the rest out from a manual or from a meter. Inside the case everything hangs off a single DC bus at pack voltage. Large machines sit somewhere near 51.2 volts. Small ones run 25.6, or 14.4.

From there the exits fall into two families, separated by how much conversion stands behind each one. Deepest of them all is the AC socket. Pack voltage climbs to a high-voltage DC bus, gets chopped into a sine and filtered, then leaves the case at 230 or 120 volts. Each stage takes a cut on the way through. A round port on the front takes the shortest path of the four. Pack voltage drops to a regulated 12 or 13.8 through one buck stage and goes out of the door. That short path explains most of the common uses of the DC 12V port, since anything designed for a car was designed for exactly this rail.

The efficiency ladder, and the stage that must stay awake

Two published numbers settle the ranking. An inverter converts at around 85 percent on typical published figures. Feed its output into a laptop brick and a second conversion begins. United States rules set a floor under that brick: external power supplies rated between 49 and 250 watts have to reach 87 percent in active mode under the Department of Energy’s Level VI standard. Multiply the pair and 74 percent of what left the battery reaches the laptop. Do that job in one step with a buck converter and it clears 90 percent. No sine wave gets manufactured. No brick gets involved. Sixteen points separate the two routes before anything else has been counted. The larger cost hides somewhere else entirely. An AC socket only works while the inverter stage is powered. That stage draws current whether or not anything is plugged into it. Measured idle figures for it run from about 14 watts on a compact unit up to 30 or 40 on a large one. Switch the inverter off on a machine at the top of that range and the draw falls to somewhere between 10 and 20 watts. Set that against a small load and the arithmetic turns ugly fast. Running a 20 watt router through the AC socket of a machine idling at 30 means 50 watts leaving the battery to deliver 20. Move the router onto the 12 volt port and the inverter goes back to sleep.

What a connector standard promises

Every opening on the panel answers to a different document. The round 12 volt port follows SAE J563, a standard written for cigar lighters and later stretched over accessory outlets. It fixes the shape at roughly 21 millimetres across. Between American and European cars there are two variants, a Type A and a Type B running 0.4 millimetres larger. Four tenths of a millimetre is why a plug can feel loose in the wrong socket. AC couplers answer to IEC 60320, where the C13 and C14 pair most stations use carries a rating of 10 amps at 70 degrees. The outlet face is a separate question altogether, since AC output socket types vary across countries with no international agreement standing behind any of them. USB-C answers to the USB Implementers Forum. Negotiation happens in silicon before any current moves, which is a promise none of the older connectors make.

A connector datasheet carries a number most buyers never look at. It says how many times the thing can be plugged in before the contacts stop meeting properly. USB-C is rated at 10,000 mating cycles. Plug something in three times a day and you arrive there in nine years, which is roughly when the rest of the machine gives up anyway. Anderson quotes a figure an order of magnitude higher. The contacts on a Powerpole are rated for 100,000 no-load insertions, which is what happens when a connector gets designed for people who rebuild cables in a field. An AC coupler goes in once and stays there, which is why nobody bothers advertising its cycle count at all. Most connectors come in pairs, one male and one female, and somebody has to stock both halves. Anderson’s Powerpole housings drop the distinction, since two identical parts rotate against each other and mate. The 15, 30 and 45 ampere versions share one plastic housing and differ only in the metal contact pushed into it, which is why a workshop stocks one shell and three inserts. Above that the family keeps going, with single-pole versions rated to 180 amperes and industrial multipole variants reaching 700. Mating is what the makers call cis connectivity: pin one meets pin one, pin two meets pin two, and polarity stops being something anybody has to think about. Up to 55 amps travels through a single pole on wire from 20 down to 10 AWG. One design choice shapes the application scenarios an Anderson connector suits more than any figure on the datasheet, because a field engineer can build any cable in the van out of one bin of parts.

Shape, budget and heat at the opening

Barrel plugs are where this turns serious. A 5.5 by 2.1 millimetre barrel and a 5.5 by 2.5 fit each other well enough to make contact. The voltages behind them are frequently nothing alike. Polarity is the other half of the problem. Centre-positive and centre-negative barrels are physically identical twins. Reverse one and a device gets fed backwards through its own protection. Port keying and reverse insertion protection answers both with shape and with silicon. A moulded trapezoid or a size step refuses the wrong plug outright. Behind that stands a transistor for whatever shape can’t catch. USB ports on a power station share one supply. Four openings on the panel rarely means four independent budgets. Standard Power Delivery tops out at 100 watts, built from 20 volts at 5 amps. The extended range reaches 240. What a station will actually hand over sits below both, since the USB and Type-C port power output cap is set by the converter behind the whole row and then divided across it.

Cables carry a declaration of their own. One rated for 3 amps caps a 5 amp negotiation no matter what either end had in mind. Read a port rating as a promise about temperature rise, measured at one ambient temperature and one airflow. Push a connector to its rating and it warms. Push two neighbouring connectors to their ratings at once and each one warms the other. Behind them is a shared piece of plastic breathing shared air. Continuous use is where this bites. A figure quoted for brief peaks says nothing about an hour, which is the whole subject of heat and derating on high power ports.

Shorts, both directions, and the five volt relic

Drop a spanner across a 12 volt pair and the pack will try to supply whatever the circuit asks for. Iron phosphate cells can push hundreds of amps into a dead short without complaint. Guards run in a cascade. Under 200 microseconds is all a comparator watching the shunt needs to fire the MOSFETs. Slower over-current protection takes 1 to 5 milliseconds. A fuse waits behind both as the one-shot backstop. Each port carries its own version of that chain. The AC side behaves differently again, which is the ground that surge and short circuit protection on ports has to cover. One opening on the panel does a job none of the others manage. A USB-C port on a modern station charges your laptop in the evening and charges the station itself in the morning, through the identical socket and often the identical cable.

Getting that right takes a small negotiation. On USB-C, two configuration channel pins exist to advertise a role. When a port acts as the source it presents a pull-up on those pins. Acting as the sink, it presents a pull-down. Silicon on both ends reads the other side and settles the question before a single watt moves. A dual-role port has to guess first. It toggles between the two states every 75 milliseconds, offering source, then sink, then source again, until the far end answers with the opposite. Plug two dual-role devices together and both sides toggle at once, at which point a randomised process breaks the tie. Seventy-five milliseconds is why a cable sometimes feels like it takes a moment to decide. Nothing’s broken during that pause. Two pieces of silicon are working out which of them is the battery.

USB-A openings survive on power stations for one reason. Everybody owns cables that end in one. What they carry is another matter. A USB 2.0 port supplies 500 milliamps at 5 volts, which comes to 2.5 watts. USB 3.0 lifts that to 900 milliamps. A dedicated charging port under the Battery Charging specification reaches 1,500 milliamps, or 7.5 watts. Set the best of those against a Power Delivery port negotiating 20 volts at 5 amps and the gap is a factor of thirteen. A phone on the USB-A opening of a station whose USB-C port sits idle is a phone charging at a fraction of the speed available two centimetres away.

Pulling a plug under load

Alternating current does its users an enormous favour a hundred times a second. Twice per cycle the waveform passes through zero, and any arc drawn between separating contacts goes out on its own at that instant. Direct current never offers that courtesy. The voltage stays where it is. The arc keeps feeding. It burns on until the gap grows wide enough to break it. That threshold sits lower than most people assume. Arcs appear between separating contacts once source voltage clears roughly 15 volts and current clears about half an amp. A 24 volt pack running a 5 amp load is comfortably inside arc territory. What comes out of it is pitted metal, carbon on the contact face and a slow rise in resistance that nobody notices until something runs hot. Anderson published the honest version of this. Powerpole contacts carry two separate durability numbers. With no load on them the figure runs to 100,000 insertions. Pull the plug at full load and it becomes 250, a ratio of four hundred to one. The connector is a fine piece of engineering either way. Its contact geometry does break an arc cleanly. The datasheet still says what it says.

Order of operations is the whole lesson. Kill the load at a switch, then pull the plug. On a power station that means turning the DC output off from the panel before unplugging a fridge lead, which takes a second and doesn’t cost you anything. No such discipline applies to the AC socket. Zero crossings handle it, which is why nobody has ever been taught to switch off a lamp before unplugging it.

A milliohm is not a small number

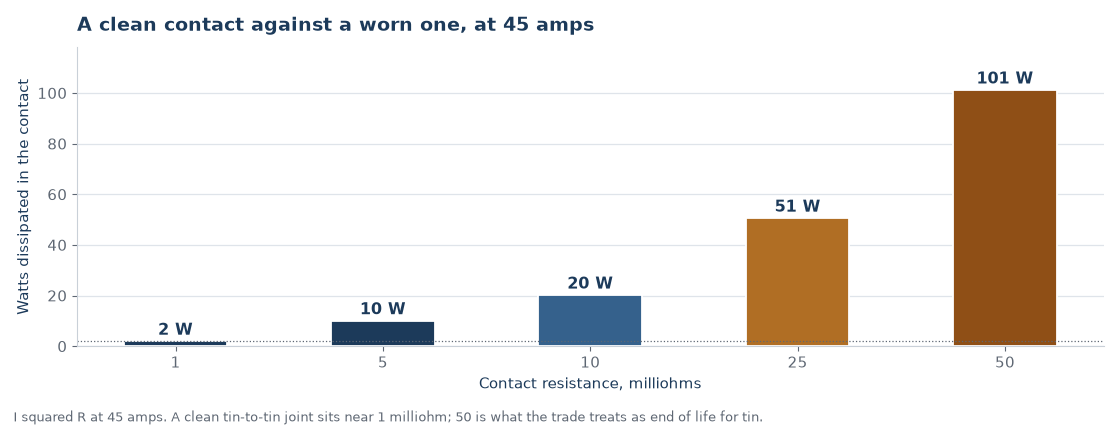

Contact resistance gets quoted in milliohms, a unit small enough to ignore right up until you multiply it by current squared. A clean tin-to-tin interface sits around a milliohm. Push 45 amps through that and the contact dissipates two watts inside a piece of metal the size of a fingernail. Two watts in that volume is warm to the touch. Nothing’s wrong yet. Now let the interface degrade. Tin is sensitive to micro-motion, and vibration or thermal cycling grinds oxide debris into the joint, a process the trade calls fretting corrosion. Resistance climbs. At 50 milliohms, which the industry treats as the practical end-of-life limit for tin, that same 45 amp load puts 101 watts into the contact. That’s a soldering iron running inside your connector.

Contact force is what holds the slide off. Tin interfaces are specified to keep more than 2 newtons of normal force at end of life, which is why a plug that wobbles in its socket is a plug on its way to trouble. Plating decides how fast the slide happens. Gold resists fretting far better and costs accordingly. Engineers settle it with a rule of thumb known in the trade as fifty-fifty-fifty: tin is the economical choice as long as you never expect contact resistance to exceed 50 milliohms across the working life of the joint. Above that threshold the 101 watt case comes into reach. Gold stops looking expensive at that point. One rule matters more than the rest: never mate a gold contact against a tin one. The harder gold frets the softer tin, tin transfers onto the gold face, and tin oxide builds up on the surface that was supposed to stay clean. A gold-plated adapter pushed into a tin-plated socket is a slow failure you’ve paid extra for.

Warmth at a plug means resistance where there should be none. The fix is a clean contact, or a new one. More current is never the answer.

Four exits, one laptop

Figures below are for a 1024 watt-hour machine carrying one 60 watt laptop through each of the four doors in turn.

The Anderson row carries a caveat. It hands over pack voltage more or less as it stands, which suits a load built for that rail and suits nothing else. Feed it something expecting a regulated 12 and you’ve moved the conversion somewhere else.

Take a 60 watt laptop and a 1024 watt-hour pack. Route one leaves through the AC socket. An inverter has to be awake for that, which costs 30 watts on a large machine before the laptop asks for anything. Conversion through the inverter runs near 85 percent, the laptop’s own brick clears 87 under Level VI, and the two multiply out to 74. Delivering 60 watts to the laptop takes 81 watts off the bus, plus the 30 the inverter spends on itself, for 111 watts leaving the battery. A 1024 watt-hour pack lasts 9.2 hours on that arithmetic. Fifty-one of the watts it cost never reach the laptop at all. Route two leaves through the USB-C port. Negotiation settles on 20 volts, one conversion stage runs above 90 percent, and no inverter needs powering at all. Sixty-seven watts leaves the battery to deliver 60. That identical pack now runs 15.3 hours. Six hours separate the two routes on one machine, one battery and one laptop. Route three uses the 12 volt port with a DC-to-DC laptop lead. It lands beside route two at 67 watts and 15.3 hours, since conversion count is the thing that matters and both routes have exactly one. Nothing about the connector shape changes that arithmetic. A round barrel and an oval USB-C opening are equally good doors as long as only one converter stands behind each. None of this appears anywhere on the panel. The socket that looks most ordinary is the one that costs most. The port that looks like an afterthought is the one that stretches an evening into a night. Both DC routes leave the inverter switched off, which is the single decision doing most of the work in that table. Anyone planning a long stretch off grid wants to work out which loads can leave through a DC exit and switch the inverter off for everything else. Plan power allocation across multiple ports that way and a machine behaves like a bigger one.

As the load shrinks, that gap widens. A 10 watt load through the AC socket on a machine idling at 30 spends three quarters of its draw on the inverter alone.

It narrows as the load grows. At 500 watts that 30 watts of idle is 6 percent. What remains is the conversion penalty.

What overload looks like, and what the panel hides

Every port has a plan for the moment you ask too much of it. The plans differ, which is why one machine dims a load politely and the next one drops its whole output. Current-limit circuits generally begin working when output current passes the rating by 10 to 20 percent. What follows is a design choice with four common answers. Constant current, sometimes called fold-forward, holds current at the limit and lets voltage slide towards zero. Take the overload away and normal voltage returns on its own. Fold-back behaves differently past the knee, since current drops to a lower value as voltage falls, which spares the internal devices a great deal of stress. Constant current with shutdown limits first and then gives up altogether once output voltage hits a preset floor, occasionally wanting a power cycle before it comes back. Hiccup mode drops to zero, waits, and tries again on a timer.

Capacitive loads are where fold-back earns its reputation. A device with a large input capacitor looks like a short for the first few milliseconds. A fold-back supply reads that as an overload and settles at reduced current before it ever reaches full voltage. The load never starts. Nothing is faulty, and nothing on the display explains why. Finding out which one you own takes a single experiment. Overload a port on purpose with something you don’t mind stalling, pull the load off, and watch what the panel does next. If it recovers without a button press, you have constant current. Silence until somebody intervenes puts you in one of the other three.

Three figures decide most of what a port row is worth. None of the three is printed anywhere on it. First comes the conversion count between the battery and the device. Second is whether the inverter has to be powered for a given port to work at all. Third is the combined ceiling once several ports run together. A fourth figure matters on any machine carrying an Anderson pair: whether that port is regulated or wired more or less straight to the pack. Regulated means one conversion and a voltage that holds. Wire it more or less straight to the pack and you get no conversion at all, on a rail that slides from about 58 volts down towards 40 as a 16-cell iron phosphate pack empties. Loads built for that range cope with it, which is why anything expecting a fixed rail belongs on the regulated port.

One afternoon with a meter answers all three. Plug one load in at a time, watch what leaves the pack, and write the numbers on a card taped to the case.

Common questions

Solar AC Car Charger MPPT Input

Four doors into one battery

A portable power station takes charge from four places. A wall socket, a solar panel, a car’s accessory socket and a USB-C port cover nearly every unit on sale. Larger machines add a generator inlet, or accept two sources at once. Each door has its own converter behind it. The AC inlet feeds a rectifier and then a step-down stage. A maximum power point tracker waits behind the solar port. The car socket leads into a DC-to-DC converter working upward from 12 volts. USB-C is different again, since a negotiation controller has to agree a voltage with whatever is plugged in before any current moves. All four end in one place. Parallel multi input charging is possible because the doors stay independent right up to the battery, where a single charge controller decides what the cells receive. A unit with an 1100 watt AC inlet and an 800 watt solar port often caps the pair at 1500 watts, well under the 1900 the two ports promise separately.

Every figure printed beside an input port is a claim about the door. The battery makes a claim of its own. It wins every argument. Charge current, cell temperature and the point the pack has reached on its curve each narrow what any door may deliver, moment by moment. Reading input specifications without that in mind is how people end up surprised that two fast chargers don’t halve the clock.

What a panel delivers, and the window that accepts it

Panel ratings come out of a laboratory. Standard test conditions put 1000 watts per square metre of light onto the panel and hold it at 25 degrees. Neither condition survives contact with a real field. Angle, haze, cell temperature, cable loss and the controller’s own conversion together cut the real world power output of solar charging to nearer 140 watts from a panel rated 200 on a good day. Planning guides fold all of it into a single derate factor of 0.75 to 0.85.

Heat is the slice people miss. Because a panel runs hotter than the air around it, the silicon inside gives up voltage all afternoon. A solar input carries two numbers beside it, a minimum voltage and a maximum. Panels have to land between them before any charging starts at all.

A tracker needs headroom to work in, which is the whole reason for an MPPT controller’s voltage window range. It holds the panel at whatever voltage produces the most power, then converts that down to what the battery wants. A panel sitting at 30 volts feeding a 12 volt battery has its surplus voltage turned into extra current.

The older approach threw that surplus away. A PWM controller drags panel voltage down to battery voltage and the difference leaves as heat. An 18 volt panel on a 12 volt battery runs at 12 volts. Measured across 2024 testing the two land about twenty points apart: 98 to 99 percent conversion for MPPT, 76 to 79 for PWM. There is the origin of the familiar claim of 15 to 30 percent more harvest. Cold weather widens the gap. Open-circuit voltage climbs as temperature falls, which pushes a panel toward the top of the window on a January morning and hands the tracker more surplus to convert.

The opposite failure comes out of that identical effect. A string sized comfortably in August can overshoot the maximum in winter and shut the port down.

The wall, the cable and the car socket

Mains charging is the one door with a speed control. Most machines let you pick a rate, sometimes as a slider inside an app. Neither end of that dial is free. Heat in the conversion stage and fan power spent removing it are where the efficiency loss between AC fast and slow charging actually goes. Filling a 1000 watt-hour station pulls 1100 or more from the wall. A good charger converts at 92 to 95 percent. Current is what the loss tracks. Resistive heating follows the square of it, which means doubling the charge rate roughly quadruples that share of the waste. When the fan gets loud, that is the arithmetic you are listening to. USB-C arrived late as a charging input and changed what a small machine has to carry. One cable now covers a laptop, a phone and the power station itself.

Stations set the Type-C PD charging input power cap anywhere between 60 and 240 watts. Standard Power Delivery tops out at 100 watts, built from 20 volts at 5 amps. The extended range reaches 240. Both ends negotiate before current flows. The cable declares a limit of its own as well, which is why a thin one quietly caps a charger you paid extra for. Charging a power station from a 12V car socket meets a fuse nobody thinks about. Most cars protect that circuit at 10 or 15 amps, which allows 120 to 180 watts at 12 volts. Put that beside the AC inlet and the gap is stark. A station able to take 500 watts from the wall still draws 120 through the socket. An hour of driving adds about what you’d get from a quarter of an hour at home.

When the engine is the grid, and why the tail is slow

Stay off grid long enough and the wall socket has to be manufactured. That leaves hybrid generator charging for a power station, on one condition. The condition is waveform quality. At a charger’s front end, a rectifier feeds a switching stage. Rough power confuses it. Inverter generators produce a clean sine and portable stations accept them without complaint. Out of an older open-frame machine comes something coarser. Many stations either charge slowly on them or refuse outright. Sizing matters in the other direction too. Because the charger presents a load that arrives all at once, a generator has to exceed the station’s input by a comfortable margin. The station then works as a buffer. From the engine’s side, output stays steady into the pack. Household loads draw from the pack at whatever rate they please. Charging happens in two phases and only the first one is quick.

Constant current comes first. A charger rated 1000 watts drives 1000 watts into the pack and holds it there. Cell voltage climbs slowly as charge accumulates. That phase covers most of the capacity. Every headline charging figure gets measured inside it. Once the highest cell reaches its charge voltage, around 3.65 volts on iron phosphate, the charger stops raising current and begins holding voltage steady. Current then falls on its own, quickly at first and afterwards in a long taper. The pack counts as full when that taper reaches roughly 0.05C, five amps on a 100 amp-hour battery, at which point a decent charger terminates. Everything between the changeover and termination is the constant voltage phase. It’s slow by construction. Nothing’s gone wrong. Chemistry sets the pace, since pushing more current at that point would drive cell voltage past its limit. Published guidance puts that constant voltage phase at the last 5 to 10 percent of the charge. Two other jobs happen inside the identical window. Cell balancing runs here, because balancing only operates in charge mode and only once a cell has climbed clear of the flat plateau where voltage says nothing useful about charge. The board also takes a state of charge reading against a known point, resetting a count that has been drifting since the last full charge. A machine that never finishes a charge never balances and never recalibrates. There is the hidden cost of stopping at 80 percent every time. Across a few hundred cycles it turns into a real one. The absorption window itself lasts anywhere from six minutes to two hours depending on how far apart the cells have drifted, which is why two charges of one pack can finish at noticeably different times. None of this appears on a specification page, where a single number describes the fast half of a process that has two halves.

Exactly that fast half is what gets quoted as a power station’s 0 to 80 fast charging time. On a 1024 watt-hour pack charging at 1000 watts, 80 percent is 819 watt-hours, arriving in about 49 minutes before losses. The remaining 205 watt-hours can take as long again. Temperature moves the clock too. A cell specified for 1C charging at 25 degrees may need derating to 0.3C at zero to avoid plating, which turns a fifty minute claim into something closer to three hours on a cold morning. Finish the job properly once a week and the board gets what it needs.

Working while charging, and what comes back out

Pass-through is the feature that lets a machine take charge in one side and deliver power out the other at once. Anything used as backup depends on it, since a unit left on mains has to keep the fridge going the moment the mains disappear. Doing both jobs together costs heat. Fans start earlier and stay on longer. A pack held warm through repeated cycling ages faster than one left alone. UPS duty asks for more than pass-through by itself. The machine also has to hold its output up through the changeover, which is a question about transfer time, separate from anything on the charging side. A unit that supports pass-through and still takes 30 milliseconds to switch will drop a desktop every time.

Manufacturers split on it. On cheaper machines with weak heat paths, pass-through is either disabled outright or flagged with a warning that heavy use shortens pack life. Units built on iron phosphate cells with active cooling treat it as an ordinary operating mode. Since the front panel looks identical either way, the manual is the only place that says which one you’ve got.

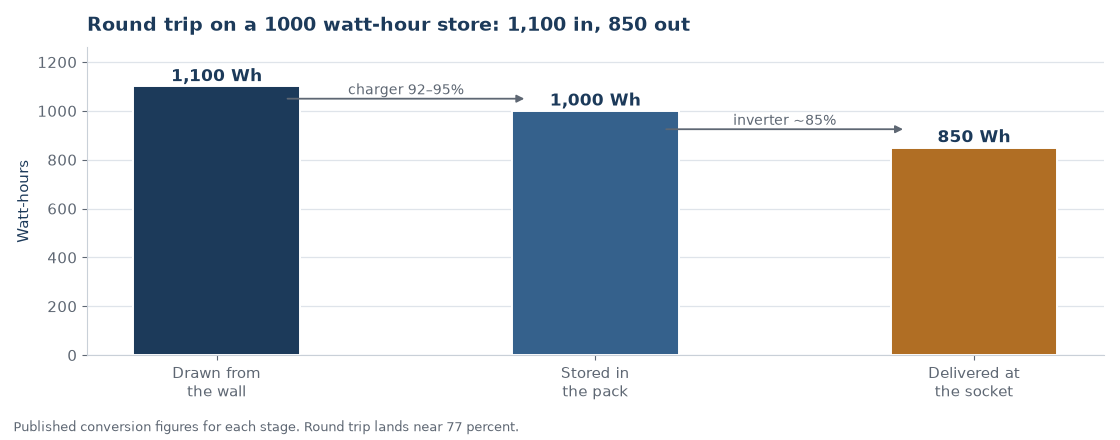

Between a wall socket and a laptop sit two conversions. On the way in, alternating current comes down to pack voltage. On the way out, pack voltage goes back up to alternating current. Neither step is free. Line the published numbers up end to end. Storing 1000 watt-hours costs about 1100 from the wall, since a good charger converts at 92 to 95 percent. Recovering that energy through the inverter lands near 85 percent on typical figures, which turns the stored 1000 into roughly 850 at the socket. Eleven hundred in, eight hundred and fifty out. The round trip works out near 77 percent. No specification page prints that number. Some analyses land lower once the reserve a board holds back and the depth of discharge limit are counted, arriving near 765 watt-hours of genuinely available AC from a 1000 watt-hour nameplate. If you’re budgeting a night’s power off a capacity figure, knock a fifth off before you start.

The charge you leave it at, and what speed costs

A machine spends most of its life doing nothing at all. Whatever charge it holds through that idle time decides how much of the pack survives to be used. A 2025 study recommissioned 100 commercial 26650 iron phosphate cells after ten years of uninterrupted shelf storage at 50 percent charge and 6 degrees. They came back holding 96 to 98 percent of their original capacity. Resistance changes were too small to matter. Rate capability was unchanged up to 3C. Ten years on a shelf cost those cells two to four percent.

Temperature is what does the damage. In one published calendar-aging model, the wait for a 20 percent capacity loss at 50 percent charge runs around 23.8 years at 25 degrees and about 8.7 years at 40. Storing full accelerates it further. What the data asks for is cool and half charged, against every instinct to put a machine away with a full tank. One snag comes attached to that advice. The percentage a machine reports is a drifting count. It only gets corrected at a full charge. Storing at an indicated 50 percent after months of partial cycles may really mean 40, or 60. Charge to full once before putting a machine away, then run it back down to half. The number you leave it at is then a number you can trust.

As the rate climbs, published cycle-life figures fall steadily. One manufacturer’s published C-rate table puts cycles to 80 percent capacity at 1200 to 1800 for 0.5C, 800 to 1200 at 1C, 500 to 800 at 2C and 300 to 500 at 3C. Between 1C and 2C the quoted cut runs 30 to 50 percent. Guidance elsewhere sets the penalty for habitual 1C charging at 20 to 40 percent against 0.5C. Capacity itself shrinks at rate. A cell delivering 100 amp-hours at C/5 may give 85 to 90 at 2C and around 70 at 5C. None of that energy is gone. It just can’t come out that fast.

Work out what the rate means for a given machine before choosing. A 1024 watt-hour pack filled in one hour is charging at 1C. Filled in two, at 0.5C. The slider that halves your charging time is the slider that shortens the working life of the thing.

Sizing an array, and heat on the way in

A solar port rated 800 watts is a ceiling on what the port will accept. It says nothing about how much panel you need to reach it. Work backwards from the 70 percent that panels actually yield. Around 1150 watts of panel is what an 800 watt port needs to see its limit, and even then only through the middle hours of a clear day. For a daily yield, one more number is needed. Peak sun hours condense a whole day of light into equivalent hours at full test intensity. Where you are decides the figure: 5.5 to 7 across Arizona and New Mexico, 4 to 5 through the American southeast and midwest, 3 to 4 in the Pacific northwest and northeast. Southern Spain averages 5 to 5.5. In Britain and northern Europe the figure is 2.5 to 3.5.

Multiply and the picture arrives. Four hundred watts of panel in a four peak-sun-hour region, derated to 0.8, yields roughly 1280 watt-hours a day. On that, a 1024 watt-hour station fills with something to spare. Take the identical array to a British winter at 2.5 hours and it yields 800, which no longer covers one full charge in a day. Charging has an upper temperature limit as well as a lower one. Published charging windows for iron phosphate run 0 to 50 degrees. Individual cell datasheets are often tighter. EVE’s 280 amp-hour cell specifies 45 degrees for charging against 55 for discharging. Thermal protection on the board arrives much later, somewhere between 60 and 80. Those two charging figures disagree by five degrees. A machine follows whichever one its designer wrote into firmware. Nothing on the outside says which.

Between those figures lies a gap where a machine works normally and quietly ages. Sustained heat accelerates capacity loss without tripping anything at all. Board protection sits 15 to 35 degrees above the cell maker’s own charging limit. Nothing inside that band raises a fault. Leave a machine charging in a hot car boot and you are in that band. So are you charging it in direct sun with a dark case. No fault appears in either case. The life they spend never shows up on a display.

Reading an input spec line

An input spec line folds four decisions into one row of text. Each figure constrains something different. Reading them out of order is how people end up buying the wrong panel. The AC number is a maximum draw, usually adjustable downward from an app. A solar entry carries two things, a voltage window and a watt cap. That window decides whether your panels work at all. Read it first. A car figure near 120 watts tells you the designer assumed an ordinary fused socket. A Type-C figure of 100 means standard Power Delivery. Anything at 140 or 240 means the extended range. Then find the combined figure, which usually hides in small type or in the manual. Add 1100 and 800 together and the machine rarely agrees with the answer. Whatever the machine caps them at is the number that governs a storm-prep fill. It’s also the one figure on the row that most buyers never look for. Four doors, four ceilings, one battery. Figures are for a 1024 watt-hour pack before conversion losses, which makes every hour shown optimistic by roughly a tenth. One thing the table cannot show is two doors open at once. That case runs on the combined cap, which usually falls below the sum of any two rows.

Common questions

BMS Battery Management System Protection

Watching every cell at once

A battery management system is the board that sits between the cells and everything else. It reads each cell’s voltage, reads temperature at a few points, counts current in and out, then holds a switch able to cut the pack off from the rest of the machine. Its job is protection against a short list of conditions. The standard list runs to over-charging, over-discharging, over-current on charge, over-current on discharge, over-voltage, under-voltage, over-temperature, under-temperature, over-pressure and ground fault detection. Each of those has a number attached to it. Everything else a management board does follows from that list. The numbers are where a design shows its character.

Take the voltage limits first, since they carry the heaviest load. A published setting for an iron phosphate cell puts the charge cut at 3.65 volts. The board releases charging again once the cell falls back to 3.55. Discharge cuts at 2.50 volts and releases at 2.70. Both actions carry a delay of about two seconds. Three separate mechanisms hide inside those two sentences. First comes the limit itself. It comes from the cell datasheet. No board designer picks that number. No setting screen should offer to move it. The release point follows. The gap between limit and release is hysteresis. Take the hysteresis away and a pack sitting exactly at 3.65 volts would cut, recover, cut and recover several times a second, wearing the switch and confusing everything downstream of it. Third is the delay. Wait two seconds and a brief spike travelling through the pack passes without consequence. A genuine condition still gets caught long before it does harm. Every threshold on that protection list carries all three parts, which is why a specification quoting only the limit has told you a third of the story. Pack-level numbers follow from the cell-level ones by arithmetic. Four iron phosphate cells in series reach the charge limit somewhere around 14.4 to 14.6 volts, which is why a 12 volt charger for this chemistry looks wrong to anybody expecting lead-acid figures. Sixteen cells in series put that limit near 58 volts. The board watches individual cells throughout, since a string sitting at a correct total can still hold one cell above its own limit and another below. What the board does at a limit varies with how far the design has been thought through. Opening an internal switch is the blunt response. Either a relay or a MOSFET in the current path performs it. Asking the connected equipment to reduce or stop is the graceful one. It needs a data link, plus equipment willing to listen. Some designs work on the environment. Heaters or fans bring a cell back inside its window with nothing disconnected at all. A fourth response exists in firmware alone, where the board slows a processor or drops a clock to shed heat without touching the pack at all.

Temperature limits follow that pattern with different consequences. A charge window that closes below freezing is a hard limit. Below that point the board refuses charging outright. Current limits carry the shortest delays of all. A dead short pulls hundreds of amps within microseconds. The hardware that catches it acts before any software has looked. None of these numbers appear on a machine’s outside. They live in the board’s firmware. The only route to them is the manual or an app.

The switch, the wiring and the measurement

Protection needs something that’ll open. Small packs use MOSFETs in the current path. Larger packs use a contactor, a relay built for the current a big pack delivers. Either way the board’s decisions arrive as a mechanical or solid-state disconnection. A switch in the main path costs something to have. MOSFETs drop a little voltage and turn it into heat. Hold a contactor closed and it draws current for as long as it stays there. Neither cost is large. Both are permanent.

A centralised board runs a wire to every cell and does all the reading in one place. Design and manufacture stay simple, which is why the arrangement dominates small packs. Its harness is what limits it. Complexity climbs with cell count and gets awkward somewhere past 48 cells. Long analogue sense wires pick up electrical noise on the way back.

A distributed design puts a monitoring chip at each cell or group and sends digits back to a controller over one communication link. Scalability improves and fault tolerance improves. You pay for it in more electronics in more places. Modular designs sit between the two, with a handful of controllers each handling a subset of cells. Portable machines below a few kilowatt-hours almost all use the centralised arrangement, since a 16-cell pack sits well inside where a harness stays manageable.

Voltage measurement is the easy part. It’s the part every board gets right. Modern front-end chips resolve millivolts. Consistency between channels is what counts here. Absolute precision matters less. Current measurement runs through a shunt or a Hall sensor. Integrating that current over time is how the board tracks charge in and out. The accuracy of a state of charge calculation rests on that integration alone for most of the pack’s range. Between 20 and 80 percent charge an iron phosphate cell moves from about 3.26 volts to 3.35. Ninety millivolts covers sixty percent of the capacity, which leaves voltage almost nothing to correct a drifting count with.

Cell-to-cell differences are the third measurement. They count for more than the absolute figures do. Moving charge out of a full cell into a low one at 1 to 10 amps is the job of active balancing across multiple series cells. Between 85 and 95 percent of what leaves arrives. A passive board burns that excess off through a resistor at 30 to 100 milliamps. At that rate a 10 amp-hour imbalance takes a hundred hours to close.

Talking to the rest of the machine

A management board inside a portable machine reports to the inverter and the charger over a data link, usually CAN or a serial bus. Charge current gets requested, never assumed. The charger obeys a limit the board sends it. Three numbers travel over CAN for coordination between the BMS and the inverter: a charge voltage limit, a charge current limit, and a discharge current limit. On better packs all three get recalculated from cell voltage, charge state and temperature as conditions move. The inverter switches off its own charge algorithm once those arrive and the battery’s figures take over. New limits land in about a second. The control loop needs another second or two to act on it. Without the link an inverter sees terminal voltage and nothing else, which leaves a hard cut-out as its only move. Detection precedes disconnection. That’s where boards differ. Give a board self diagnosis on its own faults and it can tell a genuine cell fault from a broken sense wire, which stops a wiring problem from shutting the machine down.

Not every fault deserves an identical response. Thirty millivolts out of line is information. Nobody needs waking up for it. A cell above its limit is an action. Three separate numbers make up tiered handling of abnormal BMS alarms on a single cell over-voltage event. Charging stops at 3.65 volts a cell. Then it waits two seconds. Charging resumes when the cell falls back to 3.55. A single threshold would chatter the charge circuit on and off across that gap all afternoon. A board that treats every reading as an emergency teaches its owner to ignore the panel. Logs matter more than alarms in the end, since they’re what a technician reads. A board that records what it saw, with a timestamp, turns a mystery shutdown into a readable event.

Cold, and the first millisecond

Below freezing an iron phosphate cell stops accepting charge properly. Lithium arriving at the anode plates onto the surface as metal in place of working its way into the graphite. Plated metal never comes back. Capacity drops permanently. The deposits can grow into dendrites, which raises the risk of an internal short. The board’s answer is blunt. A low-temperature charge cutoff disables charging outright once the sensors read below zero. Published guidance for the 0 to 5 degree band limits charge current to 0.1C, a tenth of the rated capacity expressed in amps. On a 100 amp-hour pack that works out at 10 amps, closer to a trickle than to charging.

Discharge is where the window turns asymmetric. A pack refusing to charge at minus five will still deliver current at that temperature, with less capacity and a lower voltage under load. Owners read the refusal as a fault, since the machine plainly still works. It is working exactly as designed. Anything used outdoors through winter wants charging indoors, or charging after a run long enough for the cells to have warmed themselves. Connect an inverter to a pack and its DC input capacitors travel from zero to full pack voltage almost at once. Nothing limits current during that instant except cable resistance and whatever the internals contribute.

The figures run larger than most people expect. Epoch Batteries puts initial inrush at 800 to 2500 amps on a 12 volt system in a low-resistance installation. A 24 volt system sees several hundred to over a thousand. At 48 volts the number reaches several thousand amps across the inverter bank. A board watching for over-current sees that and opens. The machine appears to fail at the moment of connection, every single time. Raising the threshold to stop the nuisance trip pushes the problem into the MOSFETs, which then absorb the full spike on every startup for the working life of the product. Contactors carry their own failure mode here and can weld closed.

A precharge resistor is the fix. Current runs through it first and fills the capacitors slowly. Only then does the main path close. Published values run 6 ohms at 50 watts for 12 volt systems with a 5 to 15 second hold, 22 ohms at 100 watts for 48 volt systems with a 15 to 30 second hold. None of this shows on a sealed portable machine, where the precharge lives inside and is sized around the one inverter it was built for. There is a real difference between a factory-matched unit and a pack somebody wired to an inverter by hand.

Two speeds of over-current, and an idle balancer

Over-current and a dead short are separate conditions with separate hardware behind them. A short-circuit comparator watches the voltage across the sense shunt continuously and fires the gate drivers in under 200 microseconds, with some implementations quoted below 7. Ordinary over-current protection takes 1 to 5 milliseconds, which is ample for a load that has simply grown too large. Thresholds separate too. A short-circuit trip typically comes in at five to ten times the rated continuous current. On a board rated 100 amps continuous that puts the threshold between 500 and 1000. A spanner dropped across the terminals crosses it in microseconds and the board opens before the busbar has time to heat. What happens afterwards separates them further. A short-circuit trip latches the board off. It stays off until the fault clears and somebody resets it, or until a configured timeout expires. An over-current trip usually clears itself once the load drops away. Balancing looks broken to anybody watching a display. The current reads zero for hours at a stretch. Nothing about that is a fault.

Orion’s manual states the rule plainly: balancing runs only when the board is powered in charge mode. Beyond that, one cell has to cross a start-balancing voltage before the algorithm begins at all. The board then finds the lowest cell and loads every cell sitting more than the allowed delta above it, with 10 millivolts the recommended setting. It pauses regularly to let voltages settle and re-reads the spread before carrying on. Above 50 degrees on the heatsink it stops entirely. The reason lives in the curve. Below roughly 3.4 volts an iron phosphate cell tells you almost nothing about its charge, which is that flat plateau doing its work again. Two cells both reading 3.28 volts might be 20 percent apart. Only near the top does voltage separate far enough to identify which cell genuinely holds more. A board balancing down in the flat region would be shuffling charge on the strength of measurement noise. Standing idle is correct behaviour. It also explains why a pack never charged to full never gets balanced.

What it costs while nothing happens

A board never stops drawing current. Monitoring channels take 30 to 100 microamps each. Add communication and the figure climbs, since a smart board running Bluetooth, RS485 or UART draws milliamps. Sleep mode answers that. With no current flowing, no communication and no wake signal, a board can drop below 800 microamps. Some designs go under 50, which is the figure worth hunting for on anything that spends months in a cupboard. Put those two through a year and the difference shows. A steady 800 microamps removes about 7 amp-hours over twelve months. A 1 kilowatt-hour pack at 51.2 volts holds roughly 20 amp-hours. A third of that can disappear into a board doing nothing. At 50 microamps the yearly total falls under half an amp-hour.

The arithmetic decides whether a stored machine survives. Unoptimised sleep states are reported to cost 2 to 5 percent of capacity a month. Six months of that is close to a third of the pack. Fall under the under-voltage threshold in storage and the machine may refuse to wake at all. Recharging every three to six months keeps cell voltage above the point where the board latches off. It is the one piece of routine care an iron phosphate machine genuinely asks for. Counting coulombs drifts. Every measurement carries a small offset. Integrate an offset over hours and it becomes a large error. A board needs a reference point to reset against. Full charge is the obvious one. Once the pack reaches its charge cut and current tapers away, the board knows where it stands and writes 100 percent into the count. The bottom of the curve gives the second reference, since below roughly 20 percent an iron phosphate cell finally starts to move in voltage. That knee is sharp enough to locate.

Between those two points the board flies on dead reckoning. A machine living between 40 and 70 percent for months, never filled and never emptied, gets no opportunity to correct itself. The percentage on its display drifts quietly the whole while. Charging to full occasionally has nothing to do with the cells at all. It gives the board somewhere to take a fix.

Certificates and the protocol that never was

Three marks turn up on iron phosphate machines and they cover different ground. UN 38.3 is about transport. It tests altitude, vibration, shock and thermal cycling so a pack can legally travel by air, sea or road. Nothing in it describes how the pack behaves in service. UL 1973 is the stationary storage standard and it does reach the board. Its method assumes a failure will happen and asks what contains it. The BMS has to meet functional safety requirements, with UL 991 covering the hardware and UL 1998 covering the software. IEC 62619 is the international counterpart and comes at that territory from a long-term performance angle. A machine carrying UN 38.3 alone has been certified safe to ship. That is a smaller claim than it looks.

Closed-loop communication rests on something flimsier than most buyers imagine. Pylontech published its CAN message format around 2015 to let inverter partners talk to its batteries. No IEEE specification sat behind it. No certification body, no compliance testing, no conformance suite. It was internal documentation, shared. Enough batteries adopted it that the format turned into a de facto standard by weight of numbers. Other manufacturers reverse engineered the message structure and copied it, message IDs and byte positions included. Inverter makers added support because too many packs on the market spoke it to ignore. Reverse engineering leaves gaps. One battery and inverter pairing runs faultlessly for years. Another pairing, both sides claiming the identical protocol, throws intermittent communication errors that nobody can pin down. Closed-system inverters remove the question altogether. They refuse to talk to anything except their maker’s own packs. No amount of configuration changes that.

A sealed portable machine sidesteps the whole problem. Its board and its inverter were written to work together and never have to negotiate with a stranger. That is worth remembering when comparing an integrated machine against a pack and an inverter bought separately.

What it will not do

A management board protects cells from conditions. It does nothing about cells that were poorly matched when the pack was built. It can’t recover capacity that ageing has taken. It won’t make a small pack deliver a large current, since its limits come from the cells. It has no opinion about how the machine gets used, beyond refusing the operations that would damage it. Owners sometimes read a good board as a guarantee of pack quality. Those two are unrelated. A good board on mediocre cells protects mediocre cells accurately, reports their decline honestly, and disconnects them at the right moment. The cells still decide what the machine can do.

Pure Sine Wave Inverter Power Output

Two ways to build the same output

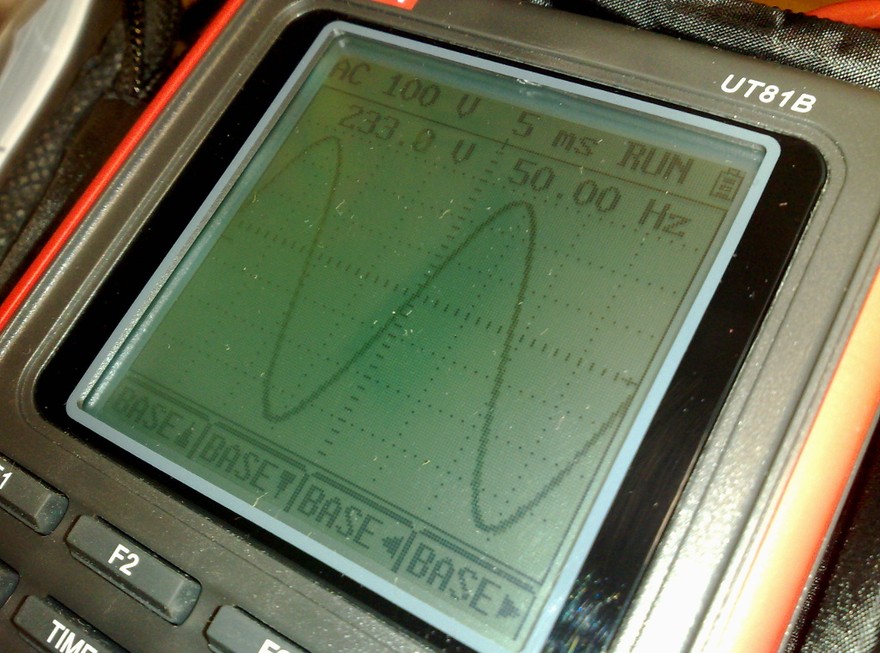

A power station stores direct current. Every socket on its front panel wants alternating current. The inverter is the block that makes the conversion. Its rating is the ceiling on everything the machine will ever run. Two stages make up the working principle of a 5000 watt inverter. Every half cycle, a 230 volt RMS output peaks at 325 volts. The first stage has to lift the pack above that figure. The second chops the raised bus back down into a sine at 50 hertz. Two construction families dominate. They both produce a clean waveform at the socket. Everything turns on the transformer. That one component decides weight, surge, idle draw and efficiency together.

A high-frequency design switches the direct current at 20 to 100 kilohertz and passes it through a small ferrite-cored transformer. Ferrite works at those frequencies where iron can’t. Run a transformer that fast and it needs almost no core material. Efficiency reads high. Published figures run 95 to 98 percent, with idle draw starting around 30 watts on the better units. Thirty watts running around the clock is 720 watt-hours. On a 1 kilowatt-hour machine left switched on between jobs, idle power consumption eats into runtime by close to three quarters before a single tool gets plugged in. The 95 to 98 percent is a peak at one particular load. Most of reading an inverter efficiency rating comes down to asking which load produced it, since a unit at a tenth of its rating never reaches the printed figure.

The cost lands on surge. A 2 kilowatt high-frequency unit typically delivers 3 to 4 kilowatts for 3 to 5 seconds. Portable machines almost all use this family, since a compact case leaves no room for iron.

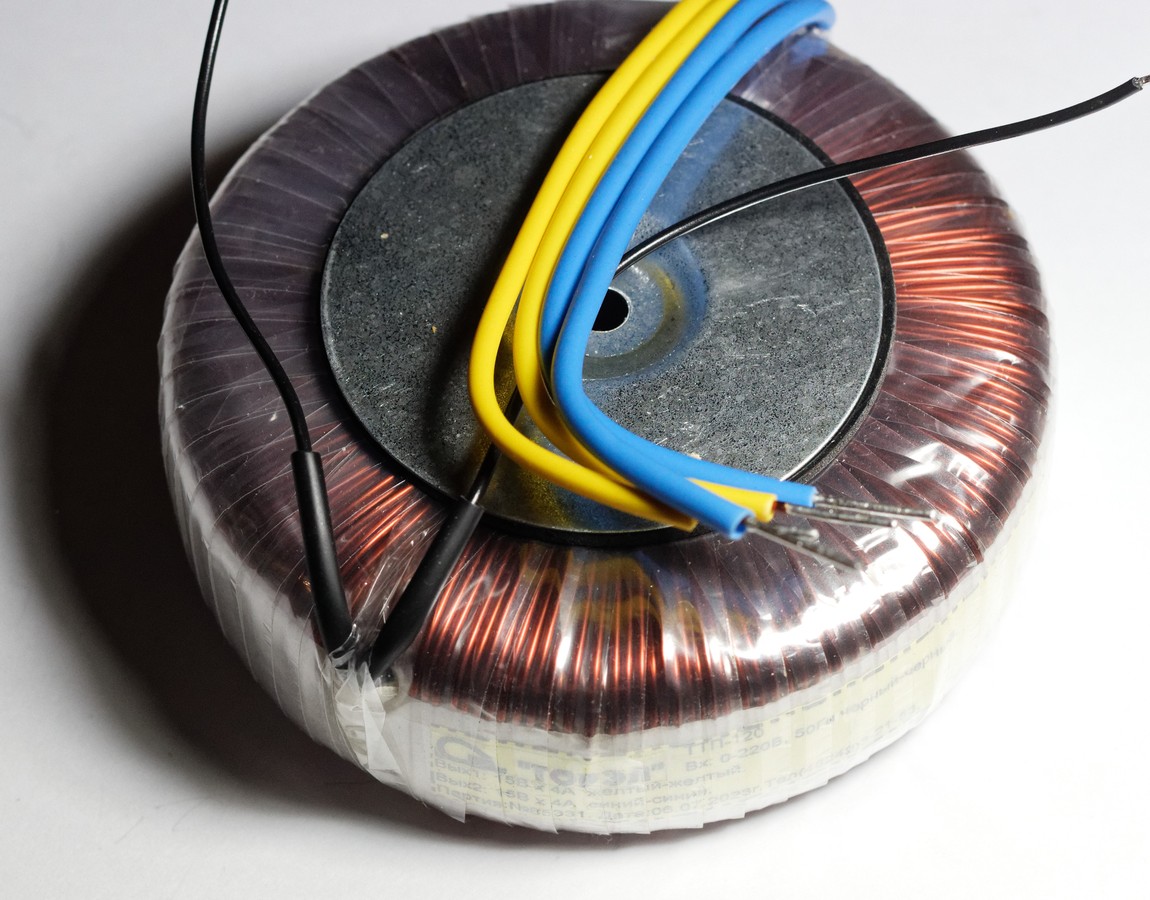

A low-frequency design uses a transformer wound on an iron core running at 50 or 60 hertz, matching the output frequency. That core is physically large. It stores a great deal of energy. Stored energy is what a motor wants at the moment it starts. A 2 kilowatt low-frequency unit delivers 6 to 10 kilowatts of surge and holds it for 10 seconds or more. All of that stored energy exists for the surge support that starting heavy appliances asks for. Twenty seconds at three times the continuous rating is a common published figure on the iron side. Inside that window a compressor can pull its starting current for a second or two with room to spare. Ferrite units typically manage twice the continuous figure for a few hundred milliseconds. The core sets the gap between continuous load and peak surge power. Two machines with identical continuous ratings can behave nothing alike at the moment a compressor kicks in.

The bill arrives as mass and idle consumption. Efficiency sits around 85 percent. Published idle figures start at 180 watts. Inverters of this type are floor-standing objects.

What the transformer decides downstream

Topology decides more than the specification sheet admits. Following one choice through the machine shows why. Start with the transformer, since everything else hangs off it. A ferrite core at 50 kilohertz can be a few centimetres across. That sets the size of the case, which sets what a person can carry, which is the whole product category. At 50 hertz an iron core has to be sized for the flux at that frequency. It arrives measured in kilograms. Every one of those kilograms is mass a portable machine can’t spend. Efficiency follows that fork too. Switching losses at high frequency are real. Modern devices have pushed them low enough that the family reaches 95 to 98 percent. An iron transformer carries copper and core losses that sit there whenever the machine is powered. Idle draw is that story measured differently, since a large core magnetised at mains frequency draws its magnetising current whether or not anything is plugged in. Surge reverses the ranking completely. Energy stored in a magnetic core is available instantly. An iron core holds enough of it to carry a motor through its starting seconds. A ferrite core holds little, which leaves the design to survive on its capacitors and its silicon. The waveform itself sits outside all of this. The output stage settles how a pure sine wave differs from a modified sine wave. Total harmonic distortion is the measurement that splits them, under 3 percent on one side and around 25 percent on the other. That 25 percent comes from a stepped square with a dead band at the zero crossing. The transformer feeding either shape has no say in which one comes out. There is a fairly short answer to why precision equipment needs a pure sine wave. Manufacturer compatibility lists name laser printers, photocopiers, dimmers, fan speed controls, mains-timed clocks in coffee makers and microwaves, and transformerless devices such as razors and smoke detectors. Those clocks give the mechanism away. They count zero crossings. Because nothing crosses zero cleanly, they miscount. Switching the output frequency between 50 and 60 hertz happens in firmware on modern designs, which is why a unit sold into a 60 hertz market and one sold into a 50 hertz market can share a part number. Everything about implementing a dual voltage 110 and 220 volt output comes down to how the output winding is tapped. Neither family has an advantage there. A specification sheet lists all of this in one column, which hides how little the entries have to do with each other.

Reading a specification sheet gets easier once that fork is visible. A light machine with a modest surge figure is a high-frequency design whatever the marketing says. A heavy machine with a surge figure three times its continuous rating has iron inside it. Isolation is the other property the iron brings. A mains-frequency transformer separates the output winding from the input side completely. No conductive path runs between the pack and the socket. A high-frequency design can provide isolation too, at its own transformer. Some transformerless topologies dispense with it altogether. That choice reaches the earthing arrangement on the front panel. Silicon carries the difference in the other direction. Devices switching at 50 kilohertz spend a fraction of each cycle in transition. Every one of those transitions costs energy, which is what sets the upper limit on switching frequency for a given device technology. Faster switching shrinks the transformer further. It also heats the semiconductors. Where those two curves cross is where the design settles.

Matching the output, and reading its efficiency

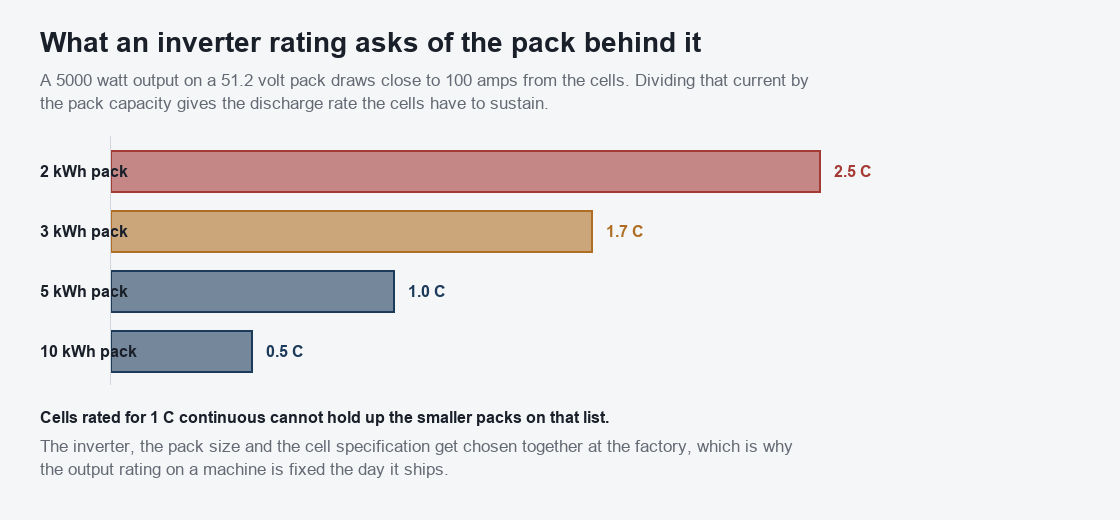

Output rating sets a demand on the cells that owners rarely calculate. A 5000 watt output drawn from a 51.2 volt pack pulls close to 100 amps. Divide that current by the pack capacity and you have the discharge rate the cells must sustain. Small packs feel that arithmetic hardest. A 5000 watt inverter on a 2 kilowatt-hour pack asks 2.5 C of the cells, a rate few iron phosphate cells will hold continuously. On a 5 kilowatt-hour pack that output is 1 C. That’s why the inverter, the pack size and the cell specification get chosen together at the factory. A machine’s output rating is fixed the day it ships. There isn’t a way around that. No bigger inverter goes in later.

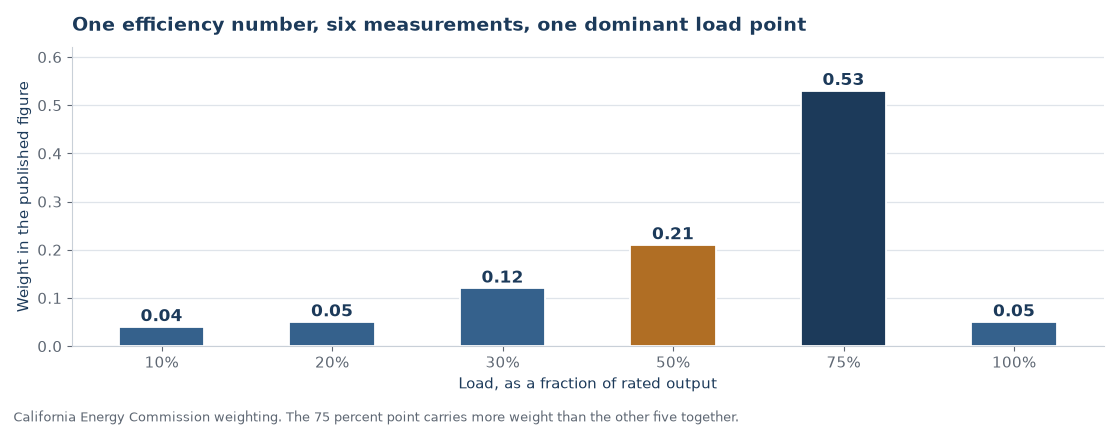

Solar ran into this problem twenty years ago and answered it with arithmetic. Under the California Energy Commission test protocol an inverter gets measured at six power levels: 10, 20, 30, 50, 75 and 100 percent of rated output. Every level runs at three DC input voltages, minimum, nominal and maximum. Eighteen measurements come out the far end. Those eighteen collapse into one number through fixed weights. The 75 percent point carries 0.53, more than everything else put together. Fifty percent carries 0.21 and thirty percent carries 0.12. The 10, 20 and 100 percent points carry 0.04, 0.05 and 0.05 between them. Apply that weighting to a residential string inverter with a 98.4 percent peak and the published figure lands between 97.5 and 97.8.

Portable power stations publish nothing of the sort. One peak figure appears on the page with no indication of where on the curve anybody took it. That gap bites harder here than on a roof, since the loads are smaller. Plug a 60 watt laptop into a 2000 watt inverter and the machine is working at 3 percent of rated output, below the lowest point the CEC protocol bothers to test. What happens down there goes unpublished by everyone. Anyone who wants the number can measure it. Run a known load, watch what leaves the pack, divide one by the other. An hour of that tells you more about a machine than its specification page does.

Watts, volt-amps and what a motor asks for

A resistive load keeps them identical. A kettle pulling 10 amps at 230 volts consumes 2300 watts and 2300 volt-amps, since current and voltage rise and fall together. Hang a motor on that socket and the two separate. Current lags voltage. Part of every cycle carries energy into the winding’s magnetic field and back out again without doing any work on the way. Real power is volts times amps times power factor. Apparent power drops the last term. Manufacturers quote whichever figure flatters. Victron’s MultiPlus-II 12/3000 carries two ratings on one line: 3000 VA and 2400 watts. The second assumes a power factor of 0.8. Load a 5000 VA machine to 5000 VA at that power factor and 4000 watts of actual work comes out of it.

Two specification sheets only compare when both quote one measurement. A page listing watts alone, with no power factor anywhere near it, has told you less than it appears to. Copeland puts locked rotor current at six or more times a compressor’s rated running amperage. It lasts 100 to 300 milliseconds, until the rotor starts turning. Trade sources elsewhere put the multiple between five and seven times full load amps. Read that against the surge column and the emphasis shifts. Duration turns out not to be the scarce thing. A fridge wants its inrush for a fifth of a second. Twenty seconds of surge headroom is generous past any use a domestic compressor will ever make of it. Machines fail on the multiple. A 150 watt fridge compressor at six times running current asks for roughly 900 watts, which almost any 2000 watt machine covers without noticing. A 900 watt well pump on that identical inverter asks for 5400. There is the arithmetic behind a power station that runs a fridge all summer and trips the instant a pump starts.

Frequency, voltage and heat

Synchronous speed follows straight from the supply. A four-pole motor turns at 1500 revolutions a minute on 50 hertz. That motor reaches 1800 on 60. Move a machine built for 60 hertz onto a 50 hertz supply and roughly 16.7 percent of its speed disappears. Output falls by a similar margin. The second effect does more damage and announces itself less. Flux in a motor or a transformer core tracks the volts-per-hertz ratio. A 460 volt motor designed for 60 hertz works out at 7.67 volts per hertz. Feed it 460 volts at 50 hertz and the ratio climbs to 9.2, a rise of 20 percent. The core moves toward saturation. Magnetising current climbs. Losses come out as heat.

Correcting it means dropping the voltage in proportion. A motor rated 230 volts at 60 hertz wants about 190 volts once the frequency falls to 50. An inverter switching between the two in firmware pays nothing at all for the change. Everything plugged into it does the paying. Five thousand watts leaves a 230 volt socket as 22 amps. That identical figure at 110 volts is 45 amps. Cable, connectors and the output stage all size themselves around current, never around watts. There is the reason a dual voltage machine tends to publish a lower ceiling on its 110 volt side. Long extension leads punish it twice over, since resistive loss in a cable follows the square of the current.

Continuous ratings get quoted at 25 degrees, which is a laboratory number more than a working one. Victron’s published MultiPlus 3 kVA specification lists 2400 watts at 25 degrees and 2200 at 40. Eight percent of the rating goes to nothing more interesting than a warm room. Portable machines do this too, with far less ventilation to work with. Most begin folding back their output somewhere around 45 to 50 degrees internal. A sealed case in direct sun reaches that on its own, before any load has been applied at all. Anyone sizing a machine for a summer job should read the continuous figure as a ceiling that travels downward as the day goes on.

The neutral question, and what certification covers

House wiring ties neutral to earth at one point. That bond is what gives a residual current device something to measure against. Current leaving on the live conductor should equal current returning on the neutral. Any difference means some of it found earth on the way. Most portable power stations leave the neutral floating. Neither output conductor holds a reference to earth, which changes what a fault even looks like. Touch one output conductor while standing on wet ground and no return path runs through you, since the other conductor connects to nothing you are in contact with. Seen that way, the floating arrangement is a safety feature. It also means a plug-in residual current device may never see the imbalance it exists to catch. Some tools with onboard protection refuse to run at all on a floating supply. Bonding plugs that tie neutral to earth get sold for exactly this situation. Several manufacturers forbid their use on the grounds that the machine’s own protection was designed around a floating output. Read the manual before buying one, since the answer varies by machine and getting it wrong takes protection away.

Certification covers construction. Performance stays outside its scope. IEC 62109-1 applies to power conversion equipment where a uniform level of safety is necessary. It addresses electric shock, energy, fire and mechanical hazards. Part 2 adds the requirements specific to DC to AC inverters, battery storage included. UL 1741 covers that ground in North America. It reaches inverters, converters, charge controllers and interconnection equipment for stand-alone or grid-connected systems. Neither standard promises the machine’ll run your fridge. They promise it won’t electrocute or ignite while trying.

Transfer time, and what it draws doing nothing

A power station standing in as backup has one specification that decides whether the trick works at all. When the mains drop, the machine has to notice and take over. Published transfer times cluster between 10 and 20 milliseconds. Measured behaviour across the category runs wider, from 10 out to 50. Facing that gap is the hold-up time of whatever was plugged in. An ATX desktop supply is designed to ride through at least 16 milliseconds of missing input. Most land between 15 and 25. Those two numbers only mean something read against each other. A machine transferring in 20 milliseconds, feeding a supply that gives up at 16, reboots the computer every time the mains flicker.

Dedicated hardware does better. An offline UPS transfers in around 8 milliseconds and a line-interactive design in about 5. Commercial units quote 2 to 6 and cap the specification at 10. That margin is the entire reason the dedicated product still exists. A power station covers a fridge or a router without trouble, since neither notices 30 milliseconds. A desktop on an older supply is the case that catches people out. Measured idle figures scatter far more than the marketing suggests. Reviewers put the Jackery Explorer 2000 V2 at roughly 17 watts and the Jackery 1500 near 15. EcoFlow’s Delta 2 lands around 14 to 16, the Delta 2 Max between 14 and 24, and the Delta 3 Max at about 27 with its inverter on and nothing drawing from it.

The Delta Pro shows where the loss actually lives. Inverter on and no load, it gives up 30 to 40 watts. Inverter off, that falls to 10 to 20. Most of the standby loss belongs to the inverter stage by itself, which turns the AC-off button into the most useful control on the panel for anybody leaving a machine switched on for days. A 25 watt difference held for a week is 4.2 kilowatt-hours, more than most portable packs hold in the first place. None of these figures appear on a specification page. Every one of them came from a reviewer with a meter. The number that decides whether a machine is still useful after three days in a van is the number nobody prints.

Choosing by what you run

One number decides the purchase ahead of all the others. What is the largest motor the machine has to start? Resistive loads draw what they say they’ll draw, and anything with a motor asks for several times its running figure during the first second. Answer that question honestly and the family chooses itself. The surge column separates the two constructions by a factor of two or three. Every other specification sits within a few percent. Portable owners running lights, laptops, fridges and power tools are served by high-frequency designs. That’s what portable machines carry. Anyone starting a deep well pump, a large compressor or a workshop saw is looking at iron whether they’d wanted a light machine or not.

Cylindrical Versus Prismatic Cell Trade Off

Inside the two winding shapes

Under the wrapper of any lithium cell sit one set of layers. Anode foil, separator, cathode foil, wound or stacked, then sealed into a container with two terminals. The container is where the two families part company. It’s the container that decides almost everything downstream. A cylindrical cell rolls those layers into a spiral and drops the roll into a drawn steel can. A prismatic cell winds a flattened roll or stacks flat sheets, then seals the assembly into a rectangular aluminium shell.

They hold identical chemistry. Iron phosphate behaves one way in either shape. The differences that follow come from the container.

What a steel can gives a cell

A drawn steel can is a pressure vessel. Roll a cylinder from thin steel and it resists internal pressure without help from anything else, because a curved wall carries hoop stress in place of bending. That’s why a cylindrical cell needs no external structure to stay the shape it left the factory in.

Standard sizes follow from that self-sufficiency. An 18650 measures 18 millimetres across and 65 long. It holds somewhere between 1.0 and 3.5 amp-hours, according to chemistry. A 21700 runs 21 by 70 millimetres and reaches 4 to 5 amp-hours in iron phosphate. A 32700 measures roughly 32 by 70 and carries 5 to 8. Those numbers have been fixed for years, which means holders, spot-welding fixtures, chargers and test gear all exist off the shelf.

Heat leaves a small cylinder easily, which isn’t an accident of design. A narrow can puts every part of the roll within a few millimetres of a metal wall. The outside of that can is all surface. Cooling a cylindrical bank is a matter of moving air between the cells.

A cell that vents does it through a designed relief in one end, along a path the pack designer knows about beforehand.

The price of many small cells

Small cells arrive in quantity. A 5 kilowatt-hour bank built from 21700 iron phosphate cells at roughly 16 watt-hours each needs somewhere over 300 of them. Every one of those cells carries two connections. That puts more than 600 welded joints in the pack before anything else goes in.

Each joint is a place that can fail. Ultrasonic and laser welds are reliable one at a time. Reliability multiplied six hundred times over turns into a manufacturing question. Resistance at a poor joint shows up as local heat under load.

Monitoring gets harder in proportion. Cells go in parallel groups to keep the channel count manageable. A group of a dozen cells reports one voltage to the management board. A single weak cell inside that group stays invisible until the group as a whole starts to drift.

Where a prismatic case wins volume

Volume is where the rectangular shell pays for itself, on grounds of geometry. Round sections cannot tile a plane. Pack cylinders as tightly as arithmetic allows, in the hexagonal arrangement, and they still occupy only 90.7 percent of the space they sit in. The remaining 9.3 percent is air between the cans. That air is unavoidable, since it follows from the shape itself. A rectangular cell has no such penalty. Stand prismatic cells side by side in a rectangular enclosure and the walls touch. The box then holds cells and little else. On a portable machine that difference lands directly on the specification sheet, because a case of fixed external size holds a fixed volume. Every cubic centimetre lost to the gaps between cans is a cubic centimetre unavailable for storing energy. Prismatic cells also come in capacities that suit a whole product. Commercial iron phosphate cells run from 50 amp-hours up past 300. A 280 amp-hour cell at 3.2 volts holds close to 900 watt-hours on its own. Six of those cells in series produce a 5 kilowatt-hour bank at 19.2 volts. Sixteen produce that energy at 51.2 volts. The count stays in single or low double figures throughout. Everything downstream simplifies with it. Twelve to thirty-two bolted terminals replace hundreds of welds. The same arithmetic runs at every size. A 2 kilowatt-hour bank needs roughly 125 cells of the 21700 size, or three prismatic cells of 280 amp-hours. Mass follows the same count. A 280 amp-hour prismatic cell weighs about 5.4 kilograms on its own. Sixteen of them come to 86 kilograms of cells before anything else goes into the case. The management board watches each cell individually, since sixteen channels is a normal specification. Individual cell voltages mean a weak cell announces itself long before it takes a group down with it. That visibility counts for as much as the volume does. It’s the part buyers rarely think about when they read a capacity figure.

Aluminium shells help the weight figure too. A drawn aluminium case carries equal internal pressure at lower mass than steel of matching strength.

Terminals change character as well. A prismatic cell presents threaded posts or laser-weldable tabs sized for the current a large cell delivers. A bolted busbar can be checked with a torque wrench.

None of this makes the format automatic. The rectangular shell trades away the one property the steel can had for free.

A flat wall has no hoop stress to carry pressure with. It bends.

Swelling, and what holds it

Iron phosphate cells grow. Thickness increases by 10 to 20 percent across a working life. Each charge adds a few tenths of a millimetre that largely comes back on discharge. A cell left to expand freely delaminates its own layers in the end.

Constraint isn’t optional. It’s part of the cell specification. Published module practice puts stack pressure at full charge somewhere between 400 and 800 psi. One manufacturer’s jig for a 50 amp-hour cell calls for steel or aluminium plates over 8 millimetres thick held by four M6 bolts. Pack construction has its own page in this pillar. A prismatic cell isn’t a self-supporting object. The fixture around it belongs to the specification.

Getting hold of them

Supply follows format. Cylindrical cells live in a consumer ecosystem. A hobbyist can buy 30 matched 21700 cells, a spot welder and a set of nickel strip on one website.

Large prismatic cells don’t. They live in an industrial channel. Minimum orders, freight class and grading between A-grade and B-grade stock all apply. One 280 amp-hour part number varies in real capacity between suppliers.

That difference reaches the owner through repairability. A machine built on standard cylindrical cells can in principle be rebuilt from parts anybody can buy. A machine built on large prismatic cells depends on that part number staying available.

The number that settles it

One number decides more than either format does. Cells arrive graded. Grade describes how closely a batch matches itself on capacity and internal resistance. A series string runs at the level of its weakest member. A bank assembled from cells within one percent of each other behaves as a unit for years. Mixed stock starts drifting on the first deep cycle and doesn’t stop. Grading is invisible in a finished machine, absent from every specification sheet, and responsible for a large share of the difference between two products that look identical on paper. It’s also why one format gives completely different results in different hands. Ask a maker how the cells were matched before asking what shape they are.

What portable machines carry

Portable machines below about a kilowatt-hour mostly use cylindrical cells. The pack is small enough that the packing penalty costs little in absolute terms. Cells are cheap and everywhere.

Above two kilowatt-hours the industry has moved to large prismatic cells. The volume argument grows with the size of the box. A 5 kilowatt-hour machine built from cylinders would carry hundreds of extra welds inside a case that ends up larger.

Stackable systems sit firmly in prismatic territory. The reason isn’t capacity. A module designed to bolt to another module wants flat faces, rigid end plates and a fixed height, all of which the rectangular format already provides.

Neither format tells you what the machine’s going to do. Cycle life, usable capacity and the quality of the management board decide that. All three are set by choices the format leaves open.

When a cell has to come out

Replacement is where the shapes diverge in practice. A cylindrical bank with a failed group needs the pack opened, welds cut and new cells welded in, which is bench work with equipment.

A prismatic bank needs the busbars unbolted and one cell swapped, then the stack re-clamped to its original pressure. The obstacle is finding a cell that’ll match the rest of the string after two years of use.

Buy from a maker who sells cells and modules as spare parts, since a pack nobody can supply parts for is a disposable product that happens to carry a long warranty.

Safe Operation in Rain and Snow

01Working a machine in the wet

Safe operation in rain and snow is the set of choices that keeps current inside its intended path when water is landing on everything. Rain arrives in grades that forecasters put numbers on. Under 2.5 millimetres an hour counts as light. Moderate runs 2.5 to 7.5. Heavy runs 7.5 to 50. A downpour is anything past 50. A W-series or L-series machine on a site works through all of those.

The instinct is to worry about water reaching the electronics. A machine rated for outdoor work handles falling rain on its own. The hazard that puts people in hospital sits somewhere else entirely. Water changes the electrical circuit that runs through the person holding the plug.

Grab the wrong thing on a wet slab and the machine’s own ingress rating has nothing to do with what happens next. Rain arriving with a thunderstorm changes the question again. Outdoor trades work to the 30-30 rule. Thunder within 30 seconds of the flash puts the strike inside six miles, since sound covers a mile in roughly five seconds. That’s the moment to stop. Work resumes 30 minutes after the last thunder. A fully enclosed building with wiring and plumbing counts as shelter, and so does a hard-topped vehicle with the windows up. A site shed doesn’t.

02The neutral you cannot see

Portable machines mostly leave the factory with a floating neutral. Neither output conductor connects to the case or to earth. That arrangement is deliberate and it carries a genuine safety logic. With nothing referenced to ground, a hand on one output conductor and boots on wet ground gives current no complete loop to travel. A bonded machine ties neutral to the case. Bonding is what makes a residual current device work, since a fault to the case then produces real current returning outside the pair of conductors the device watches. Both arrangements are defensible. What isn’t defensible is the assumption owners bring to them. People treat the socket on the front as protected the way a house socket is protected. On a floating machine a first fault to the case can flow nowhere and trip nothing. That case sits at line potential with no indication anywhere. A second fault completes what the first one started, or a hand bridging the case and a puddle does it. Manufacturers who fit ground fault protection to the outlets bond the neutral for exactly this reason. The manual is the only place that says which arrangement you’ve got. Read that page before working in the wet, because the answer changes what every protective device around the machine can do.

03What water does to a body

Dry skin is the largest part of a person’s electrical resistance. Water removes it. IEC 60479, the standard that collects the research on shock effects, puts total body impedance somewhere between 0.5 and 2 kilohms once skin resistance stops contributing. Tissue underneath the skin sits near 300 ohms on its own.

Put 230 volts across a kilohm and 230 milliamps flows. The threshold where ventricular fibrillation becomes a risk starts near 40 milliamps. That gap is why wet-condition work has its own rules everywhere in the trades.

Protective devices are calibrated for that gap. A North American ground fault circuit interrupter opens at 5 milliamps, chosen around the current where a person can still let go. An IEC residual current device for personal protection opens at 30 milliamps, chosen to sit under the fibrillation threshold for the fraction of a second it takes to operate. The other approach works on the voltage. British construction sites run portable tools on 110 volts centre-tapped to earth, a system BS 7671 defines as no more than 110 volts line to line and no more than 63.5 volts line to earth. The centre tap puts each leg at 55 volts relative to earth. The worst touch voltage on a site tool comes to 55. Across a kilohm of wet body that comes to 55 milliamps, a figure that still sits above the fibrillation threshold.

Both numbers assume fault current has somewhere to go. That’s the assumption a floating output quietly removes.

04Cables and sockets on wet ground

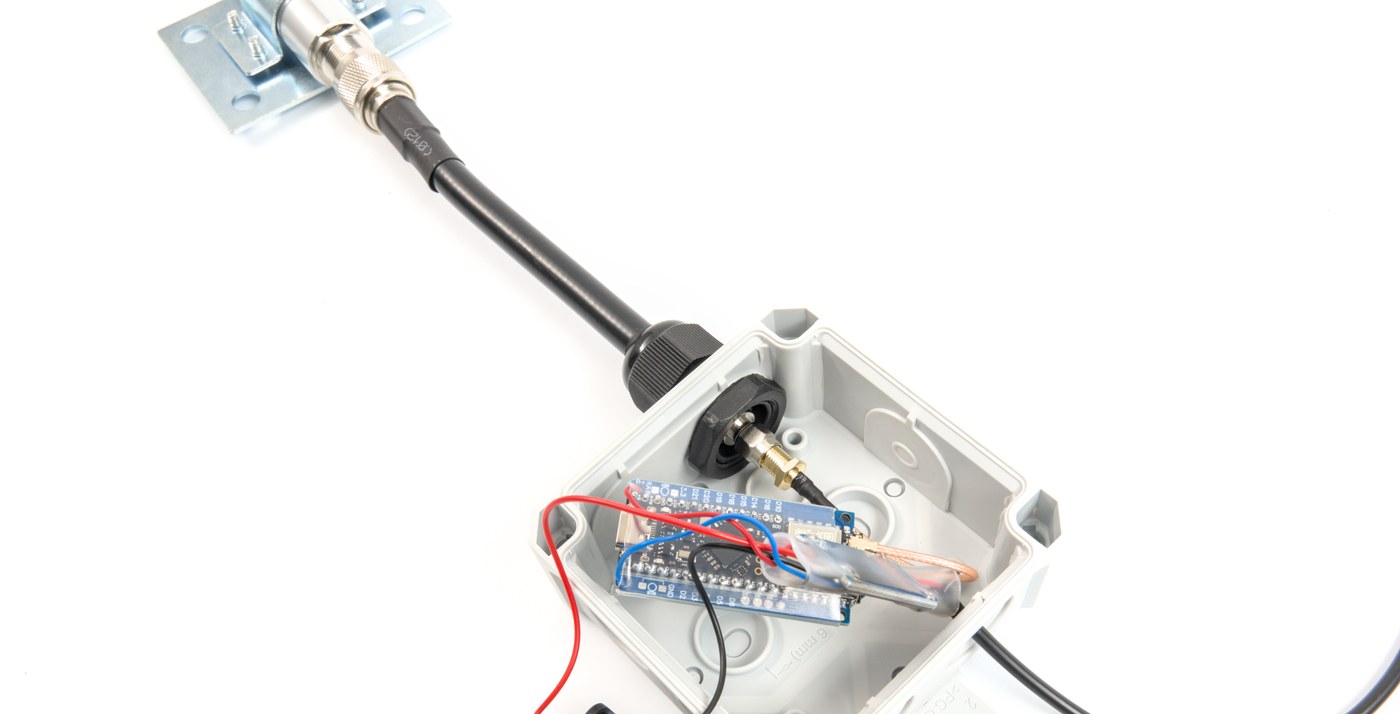

Cable ends are where rain gets in. Gravity does the work for you once the geometry is right. Hang a drip loop in every lead, with the low point of the cable below the socket it plugs into. Water runs to that low point and falls off. A straight run into an upward-facing connector feeds the socket.

Connections belong off the ground. A puddle rising over a coupler puts water inside two connector bodies at once. A weatherproof enclosure rated for outdoor use costs a few pounds and settles it for good. Extension leads want the outdoor rating too, since indoor flex takes on water at the moulding. Keep the machine itself out of standing water. The ingress rating on the case says nothing about the sockets on its front panel with something plugged into them.

05Snow asks different questions

Snow lands as weight before it lands as water. Fresh light snow runs near 50 kilograms per cubic metre. Settled snow reaches 200. Wet packed snow reaches 400. The thoroughly wet grade climbs to 750.

A quarter of a square metre of top surface under 30 centimetres of wet packed snow carries 30 kilograms. Half a metre of the wettest grade on that lid reaches 94. Vents and fan grilles disappear under a fraction of that.

Melt is the second act. Snow sitting on a warm running machine turns to water at the case and finds every seam. A machine that goes cold overnight refreezes what soaked in. Ice in a vent blocks airflow completely.

Cold carries its own charging rule. A pack below freezing mustn’t be charged until it warms.

Clear snow off before running. Brush it, since scraping finds the vents. Keep the intake and exhaust faces clear by hand. Raise the machine above the snow line on a board or a crate. A unit sitting directly on snow melts a well for itself and settles into standing water by afternoon.

06The case is not the safety boundary

Owners treat the enclosure as the line between safe and unsafe. Electrically it’s nothing of the sort. The reason changes how the whole machine gets handled in weather. Insulation inside an enclosure is specified against two separate distances. Clearance is the shortest path through air between two conductors. Creepage is the shortest path across the surface of the insulating material between them. Creepage is the one weather attacks. Damp air carrying dissolved salts or dust settles as a film on a printed circuit board. That film has a resistance. A slow leakage current begins to run across a surface designed to carry none at all. Standards handle this by defining pollution degrees, from a clean sealed environment up to a conductive-pollution environment. A board specified for the clean end and then stood in the dirty one is being used outside what its spacings were calculated for. That is the real mechanism behind a machine that works for two winters and then starts tripping its own protection on damp mornings. None of it is visible. The tracking damage it leaves is permanent, because leakage current carbonises the board surface, and carbon conducts better than the film that started it. Meanwhile the metalwork carries its own question. A case that is bonded to the output earth is safe to touch during a fault only if fault current can flow somewhere and open a protective device. A case that floats is safe to touch as long as nothing else is touching it, which is a condition nobody can guarantee on a wet site with people and cables around. Driving an earth rod does not settle it either. An electrode gives lightning and static a path. It does little for a fault inside a floating machine, since earth resistance of several tens of ohms can’t pass enough current to open anything. What settles it is bonding. That’s a decision the manufacturer made before the machine was boxed.

Keep everything metal in one electrical group, so any exposed metalwork near the machine shares a connection with the machine’s own earth terminal. Put a portable residual current device between the machine and anything with a long lead when the manufacturer confirms the neutral is bonded.

Ask a supplier one question before a wet job. Is the neutral bonded to the chassis, and does the outlet carry ground fault protection? A supplier who can answer that has thought about the case where a machine’s outdoors for a week.

Dust and High Wind Environment Protection

Wind is a force you can work out

Dust and high wind protection is the hardware and the habits that keep airborne grit out of a machine’s air path and keep the case itself from moving. The moving half is the one you can put a number on. Dynamic pressure in pascals comes out as 0.613 times the square of wind speed in metres per second. Force is that pressure multiplied by the area facing the wind. A W-series case presents something like 0.16 square metres side-on. The 18 metres per second that MIL-STD-810 uses for its blowing sand procedure sits inside the range these numbers cover.

Run the arithmetic and the machine itself looks safe. At 20 metres per second, a strong gale, dynamic pressure reaches 245 pascals. The push on that case works out near 39 newtons, about 4 kilograms. Take the wind to 30 metres per second and the push reaches 88 newtons. Even at 40 metres per second it stays around 157 newtons, roughly 16 kilograms on a case weighing twice that or more. A machine sitting flat on the ground isn’t going anywhere.

Now put a tarpaulin over it. Two square metres of cover at 30 metres per second collects 1104 newtons, which is 113 kilograms trying to lift and drag. The cover is the sail. The machine underneath is only what it’s tied to. Loose covers, cardboard, empty crates and site boards all behave this way. Wind damage on open sites usually arrives by that route.

Anchor the cover at every edge, or take it off. Put the machine low and behind something solid. Keep cables off the ground where wind can whip them, since a flailing lead damages its own connector long before anything else gives.

Grit sorted by size

Both halves matter on a W-series unit, since that class of machine works on open sites where nothing shelters it. Grit is not one substance with one behaviour. Sort it by size and it separates into bands that do completely different damage.

The filtration industry standardised those bands decades ago. ISO 12103-1 defines test dusts milled from Arizona desert sand, mostly silicon dioxide, in grades that filter makers buy by the kilogram. A1 ultrafine runs 0 to 10 micrometres. A2 fine spans 0 to 80 with a twin-peaked distribution around 4 and 20. A4 coarse covers 1 to 150, with a median grain of 29 micrometres and a tenth of its mass above 94. Military testing draws the line at the same place from the other direction. MIL-STD-810 Method 510 calls anything under 150 micrometres dust and anything from 150 to 850 micrometres sand, then tests the two with separate procedures. The dust procedure runs a concentration of 10.7 grams per cubic metre through the chamber at air speeds from 1.5 up to 8.9 metres per second, for six hours at ambient temperature and six more at the high operating temperature. The sand procedure drops the concentration to somewhere between 0.18 and 2.2 grams per cubic metre and lifts the wind to 18 metres per second or above, for at least 90 minutes on every face that gets exposed in service. Those chamber figures sit well above anything the weather produces. Air quality stations near Phoenix logged a peak hourly PM10 of 1974 micrograms per cubic metre during a major haboob. One station passed 6000. The Phoenix dust storm scale opens its category one at 1000 micrograms per cubic metre and puts category five at 5000 and above. Ten point seven grams per cubic metre in a test chamber works out near two thousand times the severe end of that scale.

Anything above roughly 75 micrometres gets caught on the first mesh it meets and builds a mat on the outside face. The 10 to 75 band goes through that mesh, loads the filter behind it, and scours fan blades and duct walls on the way. From 1 to 10 micrometres the grit passes the filtration a portable machine carries and settles out on boards and heat sink fins. Under a micrometre it barely settles at all. Particles that fine follow the airflow into any place the air can reach.

Grit off a desert floor is largely quartz. Quartz is harder than the aluminium a heat sink is cut from. Blown grains cut. A fan running in dusty air machines its own blade tips slowly for as long as it keeps turning.

Charge in the air

Blowing sand generates electricity. Grains colliding in the saltation layer near the ground swap charge in a way that sorts by grain size and leaves the fine fraction negative. Fields above 100 kilovolts per metre have been measured in blowing sand, in dust storms and inside dust devils. One study recorded 166 kilovolts per metre less than two centimetres off the ground. Fair-weather atmospheric field strength sits near 120 volts per metre, a thousand times smaller. Charged fine dust clings to surfaces electrostatically, which is part of why it reaches places gravity would never take it. An ungrounded metal case in a charged airstream also floats to a potential of its own. The first person to touch it provides the discharge path. Equipment immunity has a scale of its own. IEC 61000-4-2 sets four levels. They run from 2 kilovolts of contact discharge at level 1 up to 8 kilovolts contact and 15 kilovolts air discharge at level 4. Level 4 is the one written for industrial installations. Ask which level a machine was tested to before taking it somewhere the air is charged.

The mesh you can see through

A coarse mesh over an intake is a cheap part that does a real job. It stops leaves, insects, seeds and the sand grains you can see. It keeps a hand out of the fan too. Don’t confuse it with filtration, because the band it catches is the band that was never going to reach the electronics.

Open area is the property to check on a mesh. A fine wire screen can block a third of the intake before a single grain arrives. That reduction lands on the fan exactly as a dirty filter would. Coarse wire on a wide frame costs almost no airflow.

Three things a filter cannot do at once

Filter selection is a three-cornered argument between capture efficiency, pressure drop and service interval. No element wins all three. Push efficiency up with finer media and the resistance to airflow climbs with it. Efficiency has a published scale behind it. ISO 16890 rates a filter on what it captures in three size groups, with ePM1 covering 0.3 to 1 micrometre, ePM2.5 covering 0.3 to 2.5, and ePM10 covering 0.3 to 10. Anything catching under half of a group gets labelled ISO Coarse and carries no ePM number at all. Ratings round down to the nearest 5 percent. An element taking 73 percent at one micrometre, 79 at 2.5 and 92 at ten is sold as ISO ePM1 70 percent. On the MERV scale used in North America it sits around MERV 14. The top group stops at ten micrometres, the upper edge of the band that reaches boards and fins. A clean particulate element in an equipment enclosure typically costs something like a tenth to a quarter of an inch of water gauge. That sounds trivial until you put it beside a fan curve. Small axial fans, the type that fits inside a portable machine, deliver their rated airflow into almost no back pressure at all. Their output falls away steeply once resistance appears. Add a filter and the working point slides down that curve immediately. Dust then starts loading the element. Resistance climbs further. The fan responds by slowing down or by pulling more current, according to how it’s driven. Airflow falls the whole time. A partly loaded element captures finer particles than a clean one. The filter is doing its job better at exactly the moment the machine behind it is getting less air. A filter that looks like it’s working can be the filter that’s strangling the cooling. Nothing on the front panel reports the difference. HEPA practice puts the replacement point at around two inches of water gauge of accumulated resistance, roughly ten times a clean element’s figure. Equipment filters get changed on far tighter numbers. A construction site loads an element in weeks. The interval is a property of the place. Ask a maker for the element’s part number before buying the machine, because a filter nobody stocks turns into no filter at all by the second season. Ten grams of airborne solids in every cubic metre of air is what a filter faces during that test, sustained for six hours. A fan on a portable machine moves cubic metres of air every minute.

Folding media into pleats multiplies surface area inside one frame, which drops face velocity through the media and cuts pressure drop at equal efficiency. Every serious element is pleated for that reason.

Positive pressure is the other escape. Sealed industrial enclosures use it. One filtered inlet feeds the box. The box leaks outward through every other gap. Unfiltered dust never finds a path in. Portable machines rarely have the fan headroom for that approach. Where a site is dusty enough to justify the effort, an external filtered plenum around the intake achieves it.

Check what happens when a filter blocks completely. A design that derates, warns and keeps running has thought about the owner who forgot the element. Overheating is what happens where nobody thought about it.

Some enclosures fit a spring-loaded bypass. It opens when pressure drop crosses a threshold and lets dirty air through in place of no air. On a battery machine that trade keeps the machine running and leaves a maintenance debt behind it.

Heat is where the dust shows up

Dust reports itself as temperature long before anything fails. A layer on heat sink fins works as insulation. It also narrows the channels the air moves through. One fan then moves less air across a surface that has become worse at giving up heat.

What an owner sees is a machine that derates earlier in the day than it used to, or a fan that runs at full speed in weather that never called for it. Both are readings. The habit that pays is comparing this summer with last summer at one load.

A fan whose bearings have taken fine grit gets louder and moves less air at one speed. Grit inside a sleeve bearing shortens its life dramatically. Listen for a note that has changed since spring.

Cleaning, and whether to run at all

Compressed air is the instinct and it’s usually the wrong tool. A jet drives fine grit deeper into the machine, past gaskets and into bearings that were doing fine. Spinning a fan backwards on its own airstream damages the bearing it was meant to clean. Vacuum from outside, with a soft brush to lift the mat off the mesh. The dust then leaves the box altogether.

Filters come out of the machine to be cleaned. Tap a pleated element out unless the maker says the media survives water, since media that goes back in damp becomes a mould problem on top of a dust problem. Note the date on the frame with a marker each time. Two dates give an interval. That interval tells you whether the site’s getting worse.

A machine that runs through a dust storm draws air through the storm. The filter takes a season’s loading in an afternoon. Whatever fine fraction gets past it settles on boards that will be there for years.

Where the load can wait, shut down and cover up before the front arrives, with the cover anchored properly. A machine that isn’t drawing air is barely accumulating dust at all. Where the load can’t wait, run it inside a vehicle or a tent with the intake facing away from the wind. Change the filter once the storm has gone through, on its own schedule.

Give it an hour after the air clears before opening anything up. Fine dust stays in suspension long after the wind drops.

Coastal Salt Spray Environment Tolerance

What an hour count on a spec sheet buys

Salt spray tolerance testing is the chamber run that puts a number on a machine’s coastal life. A fan atomises salt water into a sealed box held at a set temperature. The sample sits in that fog for a stated count of hours. Whoever paid for the test then prints the count on a datasheet. ASTM B117 sits behind nearly every hour printed that way. It fixes the fog at 5 percent sodium chloride, the chamber at 35 degrees and the pH between 6.5 and 7.2. Fog has to collect at 1 to 2 millilitres an hour for every 80 square centimetres of horizontal area. Labs check that rate with a funnel 10 centimetres across, at two or more places in the chamber, because a chamber that fogs unevenly gives one corner of the sample an easier ride. What changes from one product claim to the next is the duration alone.

What the number does is rank. Two finishes run through one chamber come out in order. B117 delivers that order with tighter repeatability than any other corrosion test, which is why quality departments keep buying it. The one question it leaves open is how long a W-series machine survives on a quayside.

Why the chamber and the coast disagree

Real salt air works in cycles, wet then dry then wet again.

Inside a B117 run the fog never stops. A sample stays wet from the first hour to the last. A machine on a boat deck gets wetted by spray, then dried by sun and wind, over and over, several times a day in working weather. A great deal of coastal damage happens during the drying half, because salt left on the surface concentrates once the water goes, and crystals growing under a coating lift it off the metal mechanically. Park a sample in permanent fog and none of that ever happens to it. The laboratory selling the test says so on its own page. It warns that the conditions do not accurately replicate humidity swings, temperature fluctuations, complex salts or industrial pollutants. The same page notes that some coatings pass the chamber before failing in service. Sunlight is absent too, along with the sulphates and grit that ride in real coastal air. IEC 60068-2-52, test Kb, was written for electronic equipment and builds the wet-dry rhythm into the schedule itself. One published severity puts the sample in salt mist at 35 degrees for two hours, then holds it at 40 degrees and 93 percent relative humidity for the remaining 22, with a seven-day cycle repeated four times. Six severity levels are defined in all. The first two are aimed at equipment living in or beside the sea. Levels 3 to 6 cover hardware that swings between salt-laden and dry air, which is a fair description of a machine carried on and off a vessel. Automotive engineers reached this conclusion decades ago and adopted SAE J2334, ISO 11997 and GM9540P, all of which track field corrosion better than continuous fog does. Salt spray hours aren’t even one test. ISO 9227 covers three of them, with severe differences between the three. Neutral salt spray runs at the familiar pH of 6.5 to 7.2. Acetic acid salt spray drops the pH to between 3.1 and 3.3. Copper-accelerated acetic acid salt spray adds copper chloride on top of the acid and runs the chamber at 50 degrees. The acid variants bite far harder than the neutral one. An hour count carries no meaning until somebody names which of the three produced it.

Which standard, and at which severity. Those two questions get a spec sheet to give up what it knows. A machine quoted at 720 hours of B117 and a machine quoted at four Kb cycles at severity 2 have not sat one exam between them. Neither figure converts into the other.

Ask for the report before the headline. It names the standard, the severity, what got inspected afterwards and what counted as a pass. A pass defined as no red rust on the enclosure leaves contact resistance at the connectors untested.

A maker who has run neither test is telling you something by the silence.

Chloride against the oxide film

Aluminium and stainless steel aren’t noble metals. Both are reactive, and both grow a thin oxide skin within seconds of meeting air. That film is the whole defence. Chloride ions attack the film. The metal beneath stays untouched until the film gives way at a weak point. Bare metal then dissolves at the bottom of that break.

What follows is a pit. Since the hole is narrow, the liquid inside goes stagnant and turns acidic, and acid stops the film rebuilding. From there the pit drives itself deeper with no help from outside. A surface can look close to perfect and still carry pits that have gone deep into a wall, which is why coastal inspection means hunting for small dark spots. Alloy choice moves the threshold where pitting starts, and metallurgists rank it with the pitting resistance equivalent number, worked out as the chromium percentage plus 3.3 times the molybdenum plus 16 times the nitrogen. Grade 304 comes out between 18 and 20. Grade 316 carries 2 to 3 percent molybdenum and comes out between 23 and 28.5. In marine immersion trials 316 takes ten to fifteen years to pit.

Damp salt conducts. It turns ordinary condensation into an electrolyte and connects things that were never meant to be connected. Two adjacent pins on a connector, bridged by a film of salty damp, will pass a leakage current between them.

Two metals and one wet path

Put two different metals in contact, wet them with something conductive, and you’ve built a battery. Aluminium sits at roughly minus 700 to minus 900 millivolts against a saturated calomel reference. Stainless steel sits near minus 100 to plus 200. The gap of 0.6 to 0.8 volts between them is the driving voltage. Seawater makes an excellent electrolyte. Aluminium holds the more negative potential of the pair and takes the anode role. The anode is the one that dissolves.

How fast it dissolves comes down to area. Designs go wrong here. All the corrosion concentrates on the anode. A small anode wired to a large cathode gets eaten quickly, since the whole galvanic current crowds into a few square millimetres of metal. Reverse the areas and that current spreads thin over a wide surface and does little to it.

Stainless fasteners through an aluminium panel are acceptable, because the fasteners are the small noble part in a large sacrificial panel. Aluminium fasteners into stainless are close to unusable at the coast. Anyone specifying a mounting kit for a boat deck should check which way round the metals sit before checking anything else on the drawing.

Isolation breaks the circuit outright. A nylon shoulder washer, an insulating sleeve through the hole, a smear of jointing compound across the mating faces: any one of them stops metal touching metal. The cell can’t run once that path is gone. The barrier has to stay unbroken. One nick from over-torquing a bolt puts the two surfaces back in contact.

Marine practice puts stranded tinned copper on every conductor, called up by ABYC E-11 to UL 1426 boat cable, since bare copper greens over in salt air. The oxide raises resistance at every strand and every terminal. Solid conductor’s out entirely, because vibration works it until it breaks. On a machine feeding a boat’s DC system the leads an owner adds are often the weakest metal there.

The gap nobody inspects

Crevices do damage that open surfaces get blamed for. Under a washer, inside a threaded hole, between a gasket and its groove, around the base of a connector pin, there sits a pocket of liquid sealed off from the bulk solution. Oxygen in that pocket gets used up first. With no oxygen the passive film can’t rebuild. The trapped liquid turns acidic. Chloride migrates in to balance the charge. What forms is a small self-feeding cell that keeps running whether or not the outside has dried. Crevice attack kicks off at lower chloride levels than pitting needs. It also hides completely. A machine that looks clean from three feet away can carry a corroded ring under every washer.

How far from the water

Distance from the sea is the cheapest variable an owner controls. ISO 9223 sorts atmospheres into corrosivity classes and hangs real numbers on each, measured as first-year metal loss. Marine sites land in C5. Splash zones and offshore platforms land in CX, where zinc gives up 8.4 to 25 micrometres in the first year. ISO 9223 also grades the salt itself by deposition rate, caught on a wet candle and counted in milligrams per square metre per day. Class S0 runs to 3, S1 from 3 to 60, S2 from 60 to 300, and S3 from 300 to 1500. Published measurements put deposition under the S3 limit by 200 metres inland and under 150 milligrams per square metre per day by 2500 metres.

Prevailing wind decides more than the map does. Salt aerosol gets carried inland on onshore wind. Less of it reaches each kilometre further back. The sheltered side of a building a few hundred metres back can sit a full class below the exposed side of one at the same address. Put the machine on the leeward side, out of direct spray, and the class it lives in improves without a single component changing.

Rinsing, and what it changes

Salt only works when it’s sitting on the machine. Rinse it off with fresh water and the clock stops. Do it after any trip that involved spray. Do it before the salt has dried into the seams, since dried salt needs soaking to shift.

Rinsing isn’t pressure washing. A jet drives salt water through gasket lines and into connector bodies, past seals designed for falling rain. Low pressure, plenty of volume, all the way round including the underside, then somewhere with air moving so water trapped in crevices can leave. A machine put straight back into a closed case after a rinse has swapped salt water for fresh water and kept the wetness.

Cap every unused outlet before the machine goes near spray, because an open port collects a conductive film across its pins. Contacts that have been wet want drying before they carry current again. Solid green water over the deck makes it a wet machine, which is a different problem from a salty one.

When it has already started

Corrosion splits into the kind you clean off and the kind that ends the machine. White powdery bloom on an aluminium case, light surface rust on a fastener head, a dull film across an exposed contact: all cosmetic, all removable. Clean the area, dry it properly, put a corrosion-inhibiting film back over the bare metal.

A pit your fingernail catches has gone further than it looks, and no repair puts that metal back. On a structural bracket or on a case wall carrying a seal, pitting means replacement, because the wall thickness the design counted on is no longer there.

Green or blue crystal growth on a board, a connector gone high-resistance and warm, a fastener that corrosion product has swollen in its own hole: any of these means the machine stops working for a living. Salt inside a live enclosure builds leakage paths between conductors. Leakage paths on a box holding kilowatt-hours are how fires start. Anyone finding crystals inside should stop using it and get it looked at before the machine misbehaves.

Long Term Outdoor Storage Protection

What runs while the machine sits

Long term outdoor storage protection is what you do to a power station that’s going to sit outside, unused, for a season or more. Cells leak charge on their own. So does the board that watches them, at a rate of its own. Shut a unit in a garden shed in October and it can read something else entirely by March.

On paper, lithium iron phosphate cells lose under two percent of capacity a month at room temperature, low enough that chemistry on its own would let a pack doze for years. The board is the problem. It never fully switches off. Even shut down it keeps reading cell voltages, holds the output devices in a known state and answers a wireless radio if the machine carries one. Double that figure and you’re about right for a machine that’s genuinely off, three to four points a month.

Leave the AC output switched on and an idle inverter keeps drawing whether or not anything is plugged in. Measured idle figures land around 5 to 15 watts on a 1 kWh machine, 10 to 20 watts behind a 1000 watt inverter and 20 to 40 behind a 2000 watt one. One 3.8 kWh unit was measured pulling over 70 watts just to stay switched on. A well-behaved 4 kWh machine tested at 12. Do the division. Fifteen watts empties a 1 kWh pack in under three days. Many machines carry an eco setting that drops the inverter after a stretch with no load, on a timer you set in the menu. Switch it on before walking away. On some units the power button only kills the display. Radio, sensing and the charge controller stay live underneath at a lower rate. The manual will tell you which one you’ve got.

The number to leave on the display

Storage charge is the one setting you pick and then don’t touch for months. Hold a lithium cell at full charge and it sits at its highest voltage, where the slow side reactions that eat capacity run fastest. A pack left full for a year at room temperature gives back roughly 80 percent of what it held. Take the storage charge down to 40 percent and that year costs about four points. The lab answer is 40 to 60 percent. Anywhere in there is fine. Regulators arrive at the same place from the safety side. From 1 January 2026 the IATA dangerous goods rules require lithium batteries packed with equipment above 2.7 watt-hours, and battery-powered vehicles above 100 watt-hours, to fly at no more than 30 percent of rated capacity. A machine that turns up from the factory reading low was shipped that way on purpose. Makers aim higher than the lab figure when they publish one at all. Jackery tells owners to hold a station between 50 and 80 percent with a check every one to three months. Bluetti asks for 50 to 70 percent, stored between zero and 25 degrees, with a look every three months and a top-up to 50 or 60 whenever the pack falls under 30. EcoFlow’s number is 60 percent, with a run down to 30 every three months and back up again.

What makes that number hard to trust is the chemistry itself. An iron phosphate curve stays flat almost the whole way and sits near 3.2 volts a cell from a quarter full right through to nine tenths. The percentage on the display comes from a running count of amp-hours in and out.

There is no margin left in a pack put away nearly flat. Three or four points a month walks it into the cut-off region before spring. Where does the full-charge habit come from? Lead-acid genuinely wanted a full plate on the shelf.

Hitting a middling number takes a little planning, since a station charges to whatever it was told and then stops. Run a kettle or a work light for twenty minutes and you’re down from full. Machines with an app take a chosen percentage as a stop point. Trust the reading only so far. Coulomb counting drifts across months with no full charge to recalibrate it. A display showing 55 in November can be a real 45 by March. One full charge followed by one deep run under load resets the count. Both belong on the last visit before storage. Charge level and temperature multiply.

When a stored pack reaches the floor

In an unheated shed in October, a machine goes away reading 20 percent. Its owner figured a battery left alone stays roughly where you left it. By the turn of the year the display is close to zero. The pack keeps sinking past that, because zero on a screen is a calibrated guess sitting well above the bottom of the chemistry. Somewhere near 2.2 to 2.5 volts a cell the management board opens the pack to protect it. Opening the circuit does not stop the board drawing its own small current. Sleep mode pulls that down to something like 80 to 350 microamps. An awake board runs nearer 600. Microamps sound harmless. The pack they are emptying has nothing left to give. Cell voltage keeps sliding underneath the protection with nothing left to stop it. Battery University puts the hard limit at two volts a cell, past which a recharged cell can turn unstable. Below that mark copper from the current collector begins dissolving into the electrolyte. On any later charge it plates back out as metal in places it has no business being. That is the mechanism behind internal shorts in over-discharged cells. What does the owner meet in March? The charger goes in and nothing happens. No light comes on and no fan starts. Plenty of chargers won’t start into a pack reading far below its nominal voltage, since a charger can’t tell a sleeping pack from a shorted one. Try pulling everything off it for a quarter of an hour first. On plenty of boards that clears the protection latch. After that you’re into low-current work. Put a bench supply near a tenth of the pack’s amp-hour rating and hold it there until the cells climb back over roughly 2.8 volts. The normal charger takes over from there. In the field, paralleling a healthy pack of matched voltage onto the flat one achieves it, at whatever current the two settle on between them. Makers who expect this failure supply a wake button or a dedicated charger for it. Published recovery times run from a couple of hours for a mild case out to a day and a half for one taken right down. It comes back holding less than it went in with. Cells taken all the way to negative voltage don’t come back. Letting a battery flatten itself in a shed counts as your doing. The exclusion usually sits beside the storage instruction in the manual.

Where it sits outdoors, and what that costs

Chemists use a rule of thumb where every ten degrees roughly doubles the reaction rate. Around 15 degrees is the temperature usually named for storing lithium. Run the doubling rule forward and a shelf at 35 degrees ages a pack in six months about as far as a shelf at 25 takes a year to manage. Against a shaded north wall in a hot state, a case can live cooler than one sealed into a loft in a mild one.

The loft is the trap. Uninsulated and badly ventilated, one runs 40 to 60 Fahrenheit degrees above outside air, which puts a typical summer loft at 120 to 150 Fahrenheit, or 49 to 66 in Celsius. Hot regions push past 160. A shed with air moving through it tracks much closer to the outdoor temperature. The sealed metal box in full sun is the one to worry about. Concrete floors and cellar walls hold the previous season’s temperature and smooth the daily swing. A garage floor against an inside wall is one of the better spots a household has. Raise the machine off the slab on a pallet or a shelf to keep it clear of standing water and of the cold damp a slab holds well into spring.

Cars are the worst store available and the one people reach for first. Interior air in a car parked in the sun has been measured up to about 70 degrees, with dashboards approaching 100. Park a pack in a boot for July and it sits at temperatures where a year of storage takes a third of the capacity out of a full battery. It collects that bill in weeks. Work vans are the same story all year round, since the van is out every day and the machine never comes indoors.

A lithium pack sitting near freezing point loses barely anything across a year. Storage windows narrow as the storage period lengthens. Manufacturer pages put general storage at 0 to 35 degrees, with best performance between 15 and 35. Cell datasheets add a second line for duration. A month tolerates roughly minus 30 to 60. A year wants zero to 35. A cold pack mustn’t be charged until it has warmed. Carry a machine from a frozen shed into a heated kitchen and water condenses inside its case. Bring it in, leave it sealed and let it reach room temperature before opening anything or plugging anything in.

A dry outbuilding with a lock on it beats a convenient corner in the open, since theft takes a machine as completely as a flat pack does and an unattended box on a boat deck or a site compound stays visible for six months at a stretch. On top of that come the bills from salt air and blown grit.

The solar panel left plugged in

Leaving a panel connected through the storage months sounds like free maintenance. It isn’t. An MPPT input tops the pack back up on every sunny day and holds the machine at full charge for the whole season. Each morning the controller wakes to hunt for the maximum power point. Electronics that should be asleep end up working a daily shift.

As emergency backup, you keep it high on purpose and pay the ageing bill with your eyes open.

What a season outdoors does to the shell

ABS chalks and turns brittle quickly in direct sun. Polycarbonate holds its clarity for something like five to seven years without a protective coating and yellows a good deal sooner under hard exposure, inside a year or two in moderate sun and inside months where it’s fierce. Sheet makers co-extrude ultraviolet absorbers into the surface layer, which buys a panel years of extra service on identical resin underneath. Nothing on the case tells you which one you’ve got. The parts that fail first are the ones that get handled: port flaps, latches, the carry handle and the display window. Throw a tarpaulin over it and the problem goes away at no cost.

A machine that isn’t running has no warm electronics keeping dew off its insides. Every day the case breathes out warm air and pulls cooler air back in through whatever vent or gasket path exists. Moisture rides in with it, a gram at a time. Water that condenses inside stays there through the cold hours. Keep it under cover and off cold concrete, cap the ports that came with caps and drop silica gel in with it. The packaging trade works in 26 gram units and reckons on at least 1.2 of them for every cubic foot of enclosed air. Dry gel takes up around a third of its own weight in water. Contacts left open through a wet winter come back with a dull film that a dry cloth takes off.

Because their incisors never stop growing, mice and rats gnaw constantly. Cable insulation gets chewed whether or not there’s anything edible nearby. Modern wiring jackets often use soy-based plasticiser, which upgrades a cable from available to appetising. A quiet, dry, unattended box in an outbuilding is exactly the sort of hole a nest wants. What turns up in spring is a chewed DC lead, bedding in the fan duct or droppings across the panel. Keeping feed and birdseed out of that building does more than any repellent. Traps set nearby handle the rest. Vents have to stay clear, which rules out blocking them off.

Coming back every three months

Quarterly is the interval makers keep landing on. Look at the machine in the photograph: the instruction sits on a factory sticker across the top of its case, with the warranty attached to it. Three months is short enough that a pack starting from the middle of its range never approaches the cut-off, even allowing for a hot site and an older board drawing more than it should.

Makers write for the customer who forgets. Full charge is what survives a forgotten year. The sticker asks for exactly that. The capacity cost of that lands on the owner. Anyone who does keep the calendar can take the gentler number.

The visit itself takes ten minutes. Read the display and write the number down somewhere you’ll still have it, since two or three readings turn into a drain rate. Sixty percent in September reading 53 in December is a machine losing 2.3 points a month, which projects to a comfortable 32 by the following September. Top the pack back up into the storage band. Then comes the walk around the case: chew marks, water tracks, a sagging tarpaulin, a port cover that has worked loose. Lift the machine slightly to check nothing is pooling underneath it.

Three cases want checking monthly: hot sites, older machines and anything you put away lower than you meant to. So does any unit that dropped further than the last visit predicted. A machine losing charge faster than roughly four points a month has something awake inside it.

The day it goes back to work

Bring the machine indoors and leave it closed until it reaches room temperature, which handles the condensation and the cold-charging lockout in one wait. Then go over it properly: cable jackets, port covers, the AC outlet faces, the fan grilles and anything a rodent or a winter might have got at. Only after that does the charger go in. Give it a full charge and watch that the current comes up normally and the fan runs when it should. That charge does more than fill the pack. Passive balancing only fires near the top, once a cell reaches something like 3.5 to 3.6 volts. A resistor then bleeds the high cell at 50 to 100 milliamps. Even in daily use that window lasts 30 to 60 minutes a charge. A machine parked at 60 percent for six months never once reached that window. Its cells have been drifting apart the whole time with nothing able to pull them back. That is the hidden cost of a mid-range storage number. The quarterly full charge matters for more than the percentage it puts back. A machine that charges at half its usual rate, or trips out part way, is telling you something before you’ve connected a single load.

Then run it down once under a known load. The watt-hours it gives back show what the storage months took.

Vibration Drop Resistance Internal Support

What shaking breaks first

The internal support in a power station is the set of clamps, cradles, pads and anchors that holds the cell block and the electronics rigid through road shaking and keeps them in one piece through a fall. Ten and more kilograms of cells ride inside the case. The W-series class of machine lives on truck beds, boat decks and site floors; the L-series stacks travel in vans between jobs. A leaf-sprung flatbed hands its load 2 to 8 hertz of body bounce, washboard gravel adds 10 to 30, an idling engine hums past 100; at highway pace, corrugations arrive thirty a second. Boat decks add the slam of chop, single hits reading closer to small drops. A W-class case carries 25 to 40 kilograms all told; at 2 g of washboard the support hardware is holding an 80-kilogram push, twice a passenger, thousands of times a day.

Mechanical damage arrives on two clocks. Vibration works slowly, millions of small flexes at a few g apiece. A drop works once, hundreds of g for a few milliseconds. The two clocks also meet in one place, the crack a drop starts and vibration then grows. Site generators met the shaking half a century ago with rubber feet and lock-down kits; battery packs run the approach with rules tightened to match, live conductors riding where a generator carried castings.

Each clock leaves its own wreckage. Shaking cracks solder joints and cell tab welds first, hairline fractures that lift internal resistance long before anything rattles; busbar bolts back off a fraction of a turn and start to heat, oxide growing in the gap; connector pins walk out of their housings a millimetre a month; screws that left the factory tight arrive at the next inspection loose, thread by thread. The BMS sees that side before any ear does, cell-group resistances spreading apart in the monthly log. A drop leaves cracked case corners, bent cell stacks, a BMS board torn at its mounting holes, a display shifted off its bezel and leaking light at one edge; stacked modules add connectors half-seated after a shift in transit. Fatigue leaves polished, ring-marked fracture faces a loupe picks out.

Joints carry the fatigue

Metal that bends a little and often eventually cracks, the cracking stress sitting far below the one-pull breaking load. The smallest metal in the machine bends first. A cell tab is a strip of nickel or aluminium a tenth to a fifth of a millimetre thick; the weld that ties it to the busbar is smaller still, an ultrasonic spot the size of this o, strong in shear, weak in peel, the loading the clamp geometry rules out. Aluminium spends fatigue budget on any flex, no matter how small the stress; the design goal is zero relative motion. Left free to flex with each bump, a tab collects cycles at the road’s own rate; thirty hertz of corrugation is a hundred thousand flexes an hour, the million-cycle mark falling inside a working week. UN 38.3, the lithium transport standard, shakes every certified battery across exactly that territory, a logarithmic sweep from 7 to 200 hertz and back in 15 minutes, twelve passes per axis on three axes, nine hours in all, displacement held at 0.8 millimetres between 18 hertz and the g-cap. Packs over 12 kilograms cap at 2 g on the sweep; the cap for lighter packs sits four times higher, a heavier mass already carrying more punch at the same g. Pass criteria run to no leakage, no venting, no fire and no voltage loss, and samples tear down afterwards for weld inspection against the drawings. The crack that follows shows up as a cell group reading a few milliohms above its neighbours, the rise doubling under load current as the crack opens with heat.

Cell groups clamped to move as one body, cells and busbars together, put their welds on holiday; the flexing happens where the designer parks it, in a deliberate S-bend of the busbar that works as a strain loop, a wide flat conductor bent to absorb the small motion that clamping can’t erase. Laminated flexible links, thin copper leaves stacked loose, bend a hundred times more willingly than the solid bar they replace; the stiff runs stay bolted and hand every millimetre of the dance to the leaves. Heavy cables between the pack and the inverter follow the rule, a finger of slack tied down at both ends, the bend soaking up movement that would otherwise work the lugs. Copper work-hardens as it flexes, stiffening on the way to cracking; a lug quiet for two years can open in a month once the hardening turns over.

Bolted joints fight vibration with preload and memory. A bolt stretched to its proper torque behaves as a spring holding the joint shut; thread-locking compound and serrated washers keep the stretch from unwinding one micro-slip at a time, wedge-lock pairs taking over on the premium current paths. An M6 busbar bolt runs to a spec near 8 to 10 newton-metres, wrench-clicked on the line; fuse blocks and busbars share the stripe habit on the DC side, any joint over 20 amps repaying the paint. Production lines paint witness marks across bolt heads on the big current paths; the paint costs pennies a joint. A sheared stripe reads at arm’s length. Re-torque intervals on site equipment run yearly. A quarter turn of recovered torque at that check is normal settling; finger-loose is the finding that stops the day.

The soft-mount mistake

Support that works clamps the mass stiffly enough to push the assembly’s natural frequency well above the 5-to-30-hertz band a chassis delivers, out where road energy runs thin. Any spring-and-mass pair keeps a natural frequency. A floppy rubber mount under everything lands it at a handful of hertz, square inside the band the vehicle feeds; driven at its own frequency, the pack bounces harder than the truck bed underneath, the mount working as an amplifier at that frequency. The rubber that remains in such a build is thin, firm and there to spread contact stress, a gasket for force; durometer numbers tell the two rubbers apart in any catalogue; load-spreading pads read 60 Shore A and up, twice the hardness of the isolation grades. Isolation by softness belongs to instruments weighing grams, shipping crates using the trick correctly with centimetres of foam under almost nothing. A 30-kilogram pack would need a mattress-deep cushion for that kind of isolation; the cushion would let it walk the load bay. The first mode lands past 50 hertz by design, twice the top of the road band. Aftermarket gel pads sold for tool boxes sit squarely in the trap, sized around the grams of a drill; under the kilograms of a battery they tune the pack straight into the road band. The number to ask a maker for is the first mode of the packed assembly. Shaker time prices the design loop besides, a full certification sweep costing a working day per axis on a rented table; first modes get found with the bench mallet first.

How the pack is held

Prismatic cells stack between rigid end plates, steel a few millimetres thick or glass-filled nylon moulded to the cell face, pulled together by straps or through-rods into a single pre-compressed brick; the preload is set to outlast cell swelling, holding faces flat against each other across years of cycling, clamp force running to tonnes across the stack on the big prismatics. Between plate and cell face sits a millimetre of micro-cellular foam sheet, evening the clamp across the whole face; hard spots on a cell wall are their own slow damage. Straps come as steel bands or woven composite, tensioned and crimped; through-rod builds drill the plates and let four bolts carry the tonnes, torqued in a cross pattern, evenness ruling here as at the parting line. Compression stops individual cells from breathing apart under shock and turns forty loose parts into one stiff body with one predictable natural frequency. That brick sits in a cradle moulded into the case floor, ribs and pockets keyed into the block against sliding, firm elastomer pads at the contact faces spreading load into the plastic. Cradle pockets grip the block low, under its centre of gravity; a block held only at the top would lever its mounts on each sway. Pads stay firm and thin, spreading stress at zero added bounce. End plates carry threaded bosses for the hold-down bolts, the load path running steel to steel from case floor to plate without pinching a cell anywhere; the bolts sit loaded in shear, the direction they hold best. On a shaker table the sum reads as one number, the frequency where the assembly first sings. Design reviews chase that number upward until it clears the road band with margin. A rubber mallet with an accelerometer repeats the measurement in a minute on any bench.

Around the block, clearances are deliberate. A finger of space to walls that flex on impact stays empty or padded, filled only where a pad can compress; anything stiffer than a pad stays clear of the span. Walls flex millimetres by design, crumple stroke banked for the corner day, the block staying clear of them mid-flight. The finger of space doubles as the access a service driver needs.

Cylindrical-cell packs swap the end plates for a welded holder grid, hundreds of 18650 or 21700 cells each located top and bottom, the grid doing what brick compression does elsewhere. Grid cells double as bond surfaces on glued packs, adhesive laid in beads with gaps left for heat to move, the cured array reading as one plate. Grid nylon carries glass fill for stiffness; the bare polymer creeps under cell weight through a summer.

On the heavy stackable systems each module carries its own captive frame. Stack interlocks add alignment pins that take the shear a cornering van applies and leave the electrical connectors floating free of any structural duty. A tall tower rides bolted to a floor; otherwise it travels split, module by module in its own box. Pins wear brass on steel, the sacrificial pair; a wobbly stack asks for new pins first, the cheap part.

Potting compound fills the gaps around boards and small assemblies on the harshest builds, circuit and support becoming one solid piece. Potting prices itself in kilograms of resin and in a unit nobody can repair, the reason it stays on the industrial side of the range; some builds pot the lower third of the electronics alone, the compromise that keeps service alive.

Small parts, separate anchors

A plain friction fit works itself loose under months of road vibration. Automotive-grade housings answer with a moulded latch plus a secondary lock, a wedge that stops the latch from backing off; pin retention on that class of part is specified in tens of newtons per pin. Fretting is the connector’s slow death under vibration, plating rubbed through by years of micro-sliding; the secondary lock exists to stop the sliding. Dielectric grease slows it further on serviceable joints, a smear displacing the oxygen the micro-wear feeds on; fretting leaves red-brown dust around steel joints, powdered iron marking where a fastener has been micro-sliding. Wiring looms tie down at hand-span spacing, each cable tie an anchor that keeps a metre of copper from swinging as a pendulum on the joints at its ends; grommets guard the looms where they cross metal edges. A worn cable jacket shows copper a season before the copper parts.

Circuit boards crack at their screws when the span between supports is long enough to flex. Boards in the W-class carry mounting points a palm apart and heavy components parked next to anchors; a transformer in the middle of an unsupported span works as a hammer on every bump. Display modules and the front-panel sockets get their own sub-frames, the parts a drop reaches first tied to the structure that can take it; a panel-mount socket spreads plug torque into the frame, a lead yanked sideways levering steel before it levers solder. Six screws on a palm-sized board is the vibration-duty norm. Daughter boards ride screws besides their connectors, the socket left with no mass to carry; heavy electrolytic capacitors get a dab of structural glue at the base, the tallest parts on a board being the first to lever their pads.

Falling onto concrete

A case slipping off a tailgate at 46 centimetres meets the ground at 3 metres a second; on a 30-kilogram unit that is about 135 joules arriving at once, the energy of a full sledgehammer swing. Stopped across the 2 centimetres a compressed pad allows, the cells inside feel an average near 23 g, a hard knock a clamped block shrugs off. Doubling the height to a metre lifts the landing to 4.4 metres a second and the energy to a shade over double. Handle height on the W-class sits near 90 centimetres, a slip from the grip already carrying twice the tailgate energy. Stopped by bare plastic on concrete, the same 3 metres a second dies in a millimetre or two. Deceleration climbs toward 400 g and past it, the regime where boards tear at their screws and stacks bend. Every added millimetre of controlled squash divides the peak, the reason corner bumpers and internal pads buy protection out of proportion to their size. The US bicycle-helmet standard runs this exact sum on a rig, headforms dropped 2 metres onto a flat anvil with a pass mark under 300 g, centimetres of foam doing the dividing there too.

Certification puts its own numbers on the impact side. UN 38.3 finishes with a shock table, 150 g half-sine pulses of 6 milliseconds for small cells, 50 g across 11 milliseconds for packs, three per direction across six directions, eighteen in all. ISTA 3A, the courier protocol, drops a boxed unit under 32 kilograms nine times, 46 centimetres for eight of them and 91 once, corners and edges before faces, the machine expected to work afterwards with the packaging sacrificed; nine drops model a courier’s worst week. Development labs run stricter private versions, bare units onto steel, the results feeding rib thickness before tooling locks; change the cell generation and the pack re-tests. Neither rig recreates a working life. Engineering margins above the standard, doubled anchor counts and internal test bars with added g, exist for the years the rigs compress into hours; the owner’s version costs nothing: keep the original box, a certified crumple package on a shelf for the next move.

Certification rigs beside the road they stand in for (field row shows typical figures)

Test	Method	Severity	Duration
UN 38.3 T3 vibration	log sweep 7-200-7 Hz, 15 min a pass, 12 passes, 3 axes	to 8 g under 12 kg; to 2 g above	9 h
UN 38.3 T4 shock	half-sine pulses, 3 per direction, 6 directions	150 g / 6 ms small; 50 g / 11 ms large	18 pulses
ISTA 3A parcel	free-fall onto rigid surface, corners and edges before faces	46 cm ×8, 91 cm ×1, boxed, under 32 kg	9 drops
Corrugated road, 60 km/h	continuous excitation at the deck	1 to 2 g near 30 Hz	hours a day

Corners concentrate the blow of a landing, the whole footprint’s share poured into one point. Parcel protocols aim their first drops at corners on that logic. Case ribs thicken in the corner webs on the same logic, doubled stiffness at a few grams each.

Site-grade shells add separate rubber corner boots, replaceable after the fall that used them. A corner that hit hard enough to matter usually prints a white stress mark in the plastic first. A dropped corner that still latches can hide a cracked rib; a firm press on each corner, feeling for new give, settles it. On sealed builds the service leak test doubles as the crack finder. A cracked corner also opens the sealing question.

Riding strapped down

A unit strapped so case and deck move together sees the road as filtered by the suspension, a few g of well-damped sway; loose in a load bay, that machine writes its own drop test at each pothole, centimetres of free flight ending on a steel floor, dozens of small impacts an hour. Soft lashings, rope and bungee, creep by millimetres that grow into centimetres of slack inside two hours. Ratchet webbing holds its length, click-stop teeth doing the holding. Ratchet straps run over the case body, clear of handles and port covers, with the pull spread by the packaging foam or a folded blanket where the strap crosses an edge; a folded moving blanket under the base gives back the crumple centimetre the tight strap takes away. Two straps crossed beat one over the middle; four tie-downs make the case part of the vehicle. Anchor points spaced wider than the case beat anchors underneath it, the spread adding down-force to the pull. Webbing tags print a working load limit cut to one-third of the breaking strength, the 3-to-1 rule the cargo trade runs on; transport rules want that tag legible on any securement gear. A strap tagged at the case weight already holds triple it in reserve. Straps pull down and slightly outward, the geometry that loads anchors in their strong direction; fresh webbing settles in the first ten minutes of driving and gives back a click of tension at the next stop. A cargo net over the loose gear nearby finishes the job, tools kept from turning into hammers against the case under braking. Deck rings rated in tonnes sell for single-digit money at any chandlery.

Rock the strapped case by hand before driving off; nothing inside should answer. A new rattle that appears mid-season is a fastener asking for a screwdriver, still a ten-minute job at that stage. Straps re-route off any port cover they crossed at the next stop; a unit rebooting on rough tracks is showing the loose joint from the electrical side.

Dust and Moisture Proof Sealing Structure

Two digits on the nameplate

Stamped near the serial number of a weather-hardened power station sits a short code, IP54 on the common outdoor build. The first grades the barrier against solids on a scale that tops out at 6: the lower rungs grade out fists, fingers, tools and wire at 50, 12.5, 2.5 and 1 millimetres, a 5 means dust protected, a little powder getting in, too little to hurt; a 6 means none gets in at all. The second grades water, its scale climbing to 9: a 4 covers splashes thrown from any direction, the 9 at the top covers 80-degree water at 80 to 100 bar from a nozzle 10 to 15 centimetres away, the wash-down rung on vehicle and food-plant gear, grown out of a German vehicle standard. Supplementary letters trail the digits on some plates, a W for weather conditioning among them. Neither digit promises the other’s job. The system dates to the 1970s under IEC 60529. Both scales sit catalogued line by line in the IP code tables.

Indoor-grade stations commonly wear IP20, the 2 standing for that 12.5-millimetre finger stop and the 0 for no water claim at all. It isn’t a swimming certificate. The 4 stops well short of hoses and immersion, separate test rigs further up the table. On a shop listing the quick filter is the second digit alone: 0 through 2 stays indoors, a 3 handles spray to 60 degrees off vertical, 4 and up can face real weather.

Where water finds a way in

Lid meets body along a parting line that runs the full perimeter; a soft gasket rides in a groove along it, squeezed by 20 to 30 percent of its height once the screws pull the halves together, the target the O-ring handbooks print for a static face seal. Rubber under that squeeze flows into the microscopic valleys of both plastic faces. Contact pressure is the seal. Assembly manuals stagger the screw order to land the squeeze even, a gasket pinched hard at one corner folding a channel open at the far one. Designers run the line under an overhanging lip besides, standing droplets meeting plastic first and rubber second. Silicone stock holds its spring from around minus 60 to 200 degrees; the cheaper thermoplastic gaskets on budget builds give up their elasticity decades of degrees sooner at each end. Foamed gasket strip takes a softer squeeze across wider gaps and forgives wobbly moulding; cheap shells lean on it.

AC outlets, the 12-volt socket and the USB bank each sit behind a hinged silicone plug, a stretched cap whose moulded lip presses into the recess around the socket. Industrial builds swap the flap for a threaded cap on the heavy connectors, a screw thread loading the seal harder than any press-fit lip manages. A quarter turn past finger-tight is all it wants; the O-ring does the sealing, the thread just holds it there. Plugs do their work only when seated. Leave one hanging after a phone charge and the whole machine is down to the rating of that one open hole. Moulded lanyards tie the caps to the case. USB and 12-volt recesses carry low voltage and forgive the lapse for a spell. The AC recess forgives least. Rocker switches get the membrane treatment on sealed builds, a continuous elastic skin over the mechanism with the click transmitted through it.

Fan openings dwarf all the other entries. Cooling air has to cross the wall somewhere, and there’s no gasketing a hole the size of a palm. Sealed designs route the airflow through a labyrinth in place of a straight hole: a hooded intake facing down, a baffle wall behind it, drainage slots at the lowest point of the bend where thrown water falls out of the airstream and runs back outside. The bends tax the fan a little, flow resistance a straight grille skips, paid for in a slightly larger fan. Splash arrives with little momentum, which lets two changes of direction strip nearly all of it. Exhaust faces get the folded path in reverse, plus a lip that stops roof runoff from walking straight in. Drain slots double as mud traps in dusty rain; a matchstick clears what a season deposits.

Boards inside sealed machines commonly carry a last line of their own, a conformal coating laid 25 to 75 micrometres thick across tracks and solder joints, the film band the IPC coating standard sets. Droplets that beat the labyrinth land on varnish. What would have been a short circuit dries into a stain for the next service to wipe off. Acrylic coatings go on the serviceable boards, the type a rework station softens; harder urethanes cover the sealed-for-life ones, and silicone films go on at double the thickness.

Dust on the intake side

Dust rides the cooling air. A machine breathing site air pulls its own contamination in through the intake, the labyrinth knocking out the heavy grit, the fine fraction sailing on through the bends. Mesh screens on the intake face catch what matters once the holes sit under half a millimetre; the pad rinses clean under a tap, dried before it goes back. Cement dust and plaster sanding are the harsh cases, powders milled far below that mesh size; on those sites the screen buys time between cleanings and little more. A vacuum beats compressed air on a dusty grille, blown air driving the fine fraction deeper past baffles a nozzle can’t follow.

Powder that settles on a sealing lip is a slow abrasive: every open-and-close of a port plug grinds whatever sits on the lip into the rubber face, wearing grooves that water later follows. Grit under a lip shows early as a grey ring on pale rubber, the wear signature to check for. Wiping a plug’s seat with a thumb takes five seconds; it’s the cheapest maintenance the machine gets. Seats clean with a damp cloth and dry fully before closing, since trapped droplets under a fresh cap ride straight into the recess.

Dust that reaches a heatsink asks for more airflow at every load. Sealing only decides how much arrives. A labyrinth plus a screen holds the arriving fraction to grams a season in ordinary outdoor service, a teaspoon by spring. Fine powder clings by static besides; a damp cloth lifts what dry brushing spreads around.

The hole that has to stay open

Cooling and sealing pull the same wall in opposite directions. A 2-kilowatt inverter sheds a couple of hundred watts of heat at full load; air is the only practical carrier at that scale, which writes a permanent opening of tens of square centimetres into the wall. High waterproof grades drop the fan altogether. Fanless industrial builds pour the heat into a finned metal case, aluminium conducting around a thousand times faster than the ABS of an ordinary shell, the whole skin working as one heatsink with fins doubling the surface; the price is a lower continuous rating per kilogram, the trade that buys IP65 on the W-series class of machine. The trade reads in kilograms too, sealed siblings running heavier on the identical electronics, the difference cast as aluminium fin. A fanless case runs hot to the touch on purpose. The skin is the radiator. On the fan-cooled mainstream, IP54 sits close to the ceiling the physics allows.

What the laboratory does

The 4 in IP54 is earned on a specific rig. IEC 60529 mounts the sample on a turntable under an oscillating tube, a semicircle of spray nozzles swinging 180 degrees to either side of vertical, one full swing each 12 seconds or so, the table walking the case round to hand each face to the arc, water metered at 0.07 litres a minute per square decimetre of the sample’s surface. On a mid-size station wearing half a square metre of shell, the metering works out near 3.5 litres a minute, 35 litres across the ten-minute run, delivered from each angle the swing reaches. The pass is judged afterwards with the case open: water may have entered only in amounts that touch nothing live and pool nowhere harmful. A pass means the interior stayed harmless. Rig water runs cool on purpose, well under the skin temperature of a machine that worked all morning; the gap primes the indrawn breath a warm case takes when cold water lands. Technicians seat all the plugs and fit fresh gaskets before the rig starts; the rating describes that machine on that day, seals new from the mould. The report behind the rig lists where water sat, photographs of the opened case filed beside the verdict; a maker chasing a borderline pass redesigns the drain slots before any retest. Development labs test past the rating on purpose, production lines then spot-checking against the standard’s letter. Ten minutes of spray is all the 4 ever promises. Ratings stack no further than their own rig. Each line of the table is its own test and its own pass, the reason a spec sheet sometimes quotes IP54 for the machine beside a separate IPX7 claim for one sealed accessory pod.

The 5 comes out of a different room altogether. Talcum stands in for the world’s dust because it packs fine, flows badly and jams whatever it enters. Milled to a band where three-quarters of the grains sit between 32 and 250 micrometres, it hangs suspended at 2 kilograms per cubic metre of chamber air, circulation held under 2 metres a second, for eight hours on the common cycle. Equipment whose duty cycle heats and cools its own interior is tested with a vacuum pump drawing air through the case, the standard’s way of forcing the breathing a real machine does across a working week. Powder found inside afterwards is weighed against the identical judgement: present, harmless, away from anything it could jam or short.

A 5 in the water column means a 6.3-millimetre nozzle delivering 12.5 litres a minute from 3 metres, a garden-hose class jet held on each face; a 6 steps the nozzle to 12.5 millimetres and the flow to 100 litres a minute, fire-hose territory. A 7 means half an hour fully submerged, the metre measured down to the lowest point of the case.

The five water rigs of IEC 60529 that turn up on and above portable gear

Rating	Rig	Water delivered	Duration
IPX3	oscillating tube, swing to 60 degrees off vertical	0.07 L/min per dm² of surface	10 min
IPX4	oscillating tube, swing 180 degrees each side	0.07 L/min per dm², near 35 L on a mid-size case	10 min
IPX5	6.3 mm nozzle at 3 m, jet on each face	12.5 L/min	1 min per m², 3 min floor
IPX6	12.5 mm nozzle at 3 m, jet on each face	100 L/min	1 min per m², 3 min floor
IPX7	full immersion, lowest point 1 m down	static	30 min

Splash-proof, weather-resistant and rainproof carry no test rig behind them; IP54 does. A listing that names the standard and the digits has agreed to be measured.

An X in either slot, IPX4 say, means untested for that column, no claim either way. Plenty of honest gear wears an X on the solids side; the maker paid for the water rig alone.

The case that breathes

A sealed box changes temperature and its air obeys. Warmed 30 degrees across a sunny afternoon, the internal air grows by a tenth; that tenth has to go somewhere, and out it goes through whatever path exists. The evening plunge pulls the identical volume back in, now carrying the damp of the hour. Overnight cycles run that pump in miniature, cupfuls of air a night on a 20-litre interior, grams of water a season. Months of them can walk enough moisture past a good gasket to fog a display from the inside. The pane fogs first because glass runs coldest of the interior faces. The dust chamber’s vacuum-pump clause exists for exactly this behaviour.

Engineered builds answer with a vent that passes air and stops water. Expanded-PTFE membrane vents, coin-sized patches with pores near 0.2 micrometres, let air and vapour cross at the smallest pressure difference; liquid water beads on the surface, droplets thousands of times wider than the openings. Data sheets on the screw-in vents quote airflow near 7.6 litres a minute at 70 millibars of difference; a daily cycle asks for a tiny fraction of that. A case wearing one equalises in seconds; a sun-baked machine meeting a cold downpour, the pressure drop that would suck at each seam, passes the moment without strain. Builds without a vent breathe anyway, slower, through the gasket’s imperfections. Storage sheds run the cycle too, milder swings on more days; a boxed machine with a pouch of gel sits out a season drier than a bare one on a shelf. Industrial gear carries them as M12 screw-in plugs; a vent capped in field mud stops equalising until a wipe clears the membrane. Drilling a case to retrofit one trades a warranty for a hole. The feature belongs at the design stage, on a high face clear of pooled water.

Rain-day habits

Under a tailgate, an awning or a table, thrown water arrives rarely and from few directions; the splash rating covers stray hits with margin to spare. A metre of overhang removes the whole vertical component of a rainfall, leaving the wind-driven fraction, the share the 4 was scored against. Ground contact is the quiet risk of a wet day, since a downpour lays a moving sheet of water across any hard surface; a crate under the case keeps the base out of it. Rain falls near vertical in still air. Wind tips it toward the horizontal, straight onto the port face. That’s the one the caps have to stop.

A lead running downhill into a socket delivers each drop it catches straight to the pins. Dressed with a sag below socket height, the identical lead drips at its low point, the drip loop electricians tie in by reflex. A fist of slack makes the loop; depth does the work. Coiled excess lives off the ground on a hook or the handle, clear of the sheet water. Plugs point down or sideways in weather. Bag a working machine in plastic and it turns into a condensation tent by morning, the warm case sweating under the film; a roof with air moving underneath keeps it dry. Bags belong on machines that are off and cold, as dust covers in storage.

Close each cap the moment the cable leaves, wipe the lip when it turns gritty, glance at the seat before pressing home. An IP44-rated outdoor socket box closes over the extension joint for a few pounds. On the AC side, wet hands and live outlets stay apart regardless of any rating.

Seals age faster than boxes

Rubber holds a seal by pushing back. Years of compression teach it to stop. A gasket that has lived flattened takes a permanent set, keeps its dent after the screws loosen, meets the lid with less pressure each season. Sunlight works the exposed parts in parallel, ultraviolet hardening silicone plugs until a cap that once stretched over its recess cracks at the hinge. The case outlives its rubber by years. Laboratories age gaskets on the bench by baking them compressed, a day at 70 degrees standing in for seasons, the recovered height afterwards scoring the material.

The spring check is a one-minute job. Press each plug and watch the spring-back, run a fingertip along the parting-line gasket feeling for hard or chalky stretches, look for any cap sitting proud of its recess. A missing plug is the loudest finding of all. Swapping a parting-line gasket stays a screwdriver job on serviceable builds, new cord pressed dry into its groove, the groove doing the holding. A film of silicone grease on lips and O-rings twice a year keeps the rubber supple; solvent sprays of the workshop-lubricant kind swell and soften seals. Replacement plug sets and gaskets sell as ordinary spares for single-digit money. Figure on five-year rubber for a ten-year case outdoors.

After the soaking

Loads off first, then the input, then a dry cloth over the shell. Switching it on just to check is the one move that turns a wet board into a burnt one; a board that would have dried clean switches on into its own wet film. Tip nothing and shake nothing; water that settled low stays clear of more electronics than water sloshed around the interior. The case stays closed through all of it, service voltages inside persisting after the plugs leave.

A day or two in warm moving air with every cap open drains the accessible spaces; a lidded crate with a kilogram of silica gel pulls the last damp out, the beads holding around a third of their own weight in water. Indicating gel shows spent by colour, pink or green by type. A low oven at 120 degrees for a couple of hours recharges the batch. A display still fogging from inside after the dry-out says moisture stayed; back to the crate for another round. False readings an hour after rain are usually damp in a connector, cleared by the drying that clears the rest. Muddy water leaves grit in the labyrinth after it dries, a job for the next vacuum pass. Spray on the shell shrugs off the day it lands. A dunk in a puddle calls for a service bench whatever the display claims afterwards; salt water doubles the case, conductive residue staying behind after the water has gone.

Preheating Strategy for Cold Start

A charge that waits for warmth

Preheating moves a frozen lithium pack back over its charging floor with heat made on purpose, spent into the cells until the charge may begin. Every charge circuit carries that floor, zero degrees at the cells on the common design, a few degrees higher on cautious ones. It’s there to keep cells clear of metal plating, the one fault a warm afternoon won’t undo. Below the line the charger holds its current at nothing and waits. The reading that rules the wait is the cell bead’s, a temperature trailing the weather by hours inside a closed case.

The rulebook is lopsided in the owner’s favour: spending power stays allowed down to minus 20 on the ordinary datasheet, 20 degrees below the charging floor. Self-heating designs just spend a slice on themselves. Thin resistive films glued between the cell groups draw current from the cells they warm, a loop that needs nothing from outside. The films are sized well inside the discharge rating, drawing at a twentieth of C and less. On the coldest packs the BMS warms in pulses, seconds of draw between rests, holding cell strain under the cold-discharge line.

Not every model carries the films. Spec sheets flag the fitted ones with a self-heating line low in the electrical table, commonly phrased as a second charging range that opens at minus 20 with the heater at work. The hardware behind the line weighs a few hundred grams and borrows its power electronics from the charger. Specialty cells rated to accept a reduced charge at minus 10 sit in Battery University’s low-temperature charging note; industrial fleets are where they show up. Everything else warms up the slower way, on borrowed heat: a heated room, a running car, sun on a dark case.

Four places heat can come from

Mains power outranks every other source when a socket is in reach. A charger asked to fill a frozen pack routes its first watts to the films alone. During that stage the machine draws steady power from the wall with the battery gauge parked at its old number. The machine is fine; the watts are arriving as temperature. A unit wired to a 2000-watt circuit still pulls its 200 and no more during the warm-up, the charger’s full appetite arriving behind the gate. Mains-fed films run bigger than their self-heat cousins, 200 to 300 watts on 2-kilowatt-hour machines, since wall power owes the reserve nothing. Firmware treats the warm-up as part of the charge itself, one button and one sequence, the films retiring the moment the cells take over. First light wakes the array, the films take its opening 100 watts, the cells commonly cross the gate near the point the input curve steepens toward midday. A car’s 12-volt outlet feeds the films on the move, engine warmth easing the boot air around the case on top; draw through that socket stays inside the plug’s 10-amp comfort, 100 to 120 watts of film.

With no source at hand the pack heats itself. The BMS pulls discharge current out of the pack and into the films, drawn through a channel rated to minus 20. Published self-heating packs put real numbers on the loop: a 1.3-kilowatt-hour pack carries a 100-watt pad set, the 2.5-kilowatt-hour size steps up to 150 watts. Cold thickens the electrolyte and lifts internal resistance. That stiffness feeds the warm-up: a cold cell pushing current through its own raised resistance makes heat inside the casing, on top of what the films deliver. Films cut from positive-temperature-coefficient stock regulate themselves. Their resistance climbs as they warm and chokes the current back; no controller sits in that loop. The steepest stock multiplies its resistance several times over between freezing and 60 degrees. A film crossing 40 degrees has already throttled itself to a fraction of its cold draw. Below a floor of charge the firmware refuses to open a self-heat, a line published designs draw in the 10-to-20-percent band. Spending the last of the reserve on warmth would leave nothing to bank afterwards. Owners up north keep winter packs above half; that leaves the day’s work covered on top of any warm-up.

From button press to full current

Plugged in and asked to charge on a morning at minus 8, the machine reads its buried pack bead at minus 5, refuses the cells, and posts a snowflake beside a heater glyph, the app labelling the stage a warm-up on newer screens. Input settles at 200 watts, every one of them bound for the films; the charge percentage sits pinned at 62, the wall meter counting away beneath it. Fans hold silent through a warm-up, the case quieter than under any load; from the outside it doesn’t look like anything is happening. Warmth moves through the pack as a front. Film faces climb into double figures early, then hand their heat to centimetres of wound electrode a layer at a time; a second bead near the block’s edge runs 4 degrees ahead of the buried one all the way up, the spread firmware watches to catch a lopsided warm-up. A hand on the case top meets the first mildness once that front has crossed the block and begun escaping, past the halfway mark of the wait. On the app’s little graph the buried bead is the slow line, minus 5 giving way to 2, then 4, the final approach crawling in tenths of a degree. At the 5-degree mark the snowflake drops and a trickle of charge current steps in near a fifth of full rate. Current through cold cells heats layer on layer where no film reaches; the steps walk up through quarter, half and three-quarter rate. Input climbs off 200 toward the high 400s, the charger folding the film budget back into charge current. The plain 500-watt charging screen a mild day would have shown at the first press arrives 44 minutes after the button, about 140 watt-hours of wall power behind it.

The gate sits at 5 degrees on many designs, above the floor itself. Self-heating packs on the market run the heaters from below 5 degrees and hold them on until the cells reach 10, a wider margin still. The margin covers both the slow fade of plating risk above freezing and the tolerance of a degree or two in the bead. The soft start behind the gate follows the stepped cold-band rates every lithium charger keeps, half rate below 10 degrees on a common map, three-quarters to 15, full above. Nothing about the gate is user-set. A pack that drifts back under 5 mid-charge sees its current step back down the ladder. Gate values sit a degree or two apart across brands, a line in the charging spec on the models that print it.

Films press on the outside of a cell block; the governing bead sits buried at its centre. A wound cell moves heat across its layers tens of times slower than along them, the rolled construction working as its own insulation. A 280-amp-hour prismatic cell weighs 5.4 kilograms on its published sheet. The bead on its skin answers for mass it cannot see directly. Designs wait on the buried reading; a film face at 10 degrees proves nothing about a core still short of the floor. Stacked systems warm bank by bank, the controller sequencing films to keep the total draw inside the charger’s budget. A 300-watt-hour picnic unit carries under two kilograms of cells and warms in a corner of the time.

A warm-up can also stall. Heat leaves the case as fast as the films add it once the gap to the outside air grows wide; at some depth of cold a 200-watt film holds a pack at 1 or 2 degrees, the gate out of reach. A 5-metre-per-second wind roughly doubles what a bare case loses beside still air. Firmware won’t chase it forever; after thirty to sixty minutes it gives up and writes the fault to the log. Standing the case on a crate behind a windbreak commonly carries the retry over the gate; cardboard taped up works as the windbreak on an exposed tailgate.

An interrupted warm-up keeps its progress. Heat already delivered lives in the mass of the cells, draining away over an hour and more. Restarted inside the half hour, the attempt resumes close to where the block left off. Firmware doesn’t keep a saved state for it.

The arithmetic of a warm-up

Twelve kilograms of cells is what a 2-kilowatt-hour station carries, give or take. Laboratory measurements put lithium cells at 800 to 1100 joules per kilogram per degree, the bulk of results settling near 1000, a shelf between water’s 4200 and steel’s 500. The plain heat equation, mass times specific heat times the rise, prices a lift from minus 10 to plus 5 at 180 kilojoules, an even 50 watt-hours. The films themselves convert at close to unity, resistance heating wasting nothing to speak of. Casework, busbars and losses along the way roughly double the bill; 100 to 120 watt-hours, measured at the pack, covers a real warm-up of that depth. Set against the pack it serves, the spend runs five or six percent of a full charge. Makers that print the figure at all quote a five-to-ten-percent band in the printed specs. A stacked 5-kilowatt-hour bank warms on two and a half times the budget. A 200-watt film clears the job in a bit over half an hour, 100 watts in twice that, 60 watts of self-heating in closer to two hours. Wind bends those times upward hardest at the low-power end, where a small film barely outruns the loss. Makers publish waits that line up with the sums: 30 to 60 minutes from minus 10 and 70 to 100 minutes from minus 20 on a 1.3-kilowatt-hour self-heating pack, 100 to 150 minutes from deep cold on the 2.5-kilowatt-hour size. A start from minus 20 asks for a 25-degree climb, two-thirds more energy than the minus-10 case. Set beside the 40-watt trickle a frozen pack accepts raw, a finished warm-up opens the full 500-watt rate. The heater gets its money back inside twenty minutes of the faster charge.

Where the heat has to reach

A socket spends grid energy and leaves the state of charge alone, the cheapest watt-hours on the list. Grid electricity prices the warm-up in fractions of a cent. Morning array output makes a close second on machines that route it to the films, power the frozen pack couldn’t bank anyway. Self-heating belongs to the situations with nothing else on offer. Warmth borrowed from a room or a vehicle runs on time alone. Reserve spent on a dawn warm-up comes back through the panels by ten on an off-grid morning.

Case plastics live below 70 degrees, cell faces below 45, the number the hot end of the charge window itself guards. A hair dryer parked against the shell, a heat gun, a stove top or an open oven all cross those lines in minutes, on a patch of surface the internal sensors may not even carry. Room air does the job with zero drama; twenty degrees can’t deliver seventy, no matter how long it tries. Park the machine a hand’s width from a radiator and give the block’s centre its hours. A dry hot-water bottle under the case stays inside the safe band on its own, 50-degree water sitting well short of the 70-degree line. Radiant heat from a wood stove obeys distance squared; doubling the gap quarters what lands on the case. A point-and-read thermometer settles any doubt about a warm patch in seconds. Sun through a windscreen counts as gentle heat, the glass spreading it across the case.

Choosing between the routes turns on three numbers, the power on hand, the depth of cold, and the time of day.

Warm-up routes for a 12-kilogram pack from minus 10, timed against the 100-to-120-watt-hour bill (typical figures)

Route	Power into heat	Time to the gate	Cost to the pack
Mains-fed film	150 to 300 W	25 to 45 min	none (wall power)
Solar-fed film	100 to 200 W by light	40 to 70 min	none (morning output)
Self-heating	60 to 100 W	1.5 to 2 h	5 to 10 percent of charge
Indoor rest	room air, passive	2 to 4 h	none
Running vehicle	12-volt film plus cabin warmth	1 to 2 h	none (fuel already burning)

A case set straight onto snow feeds it heat by conduction, melting its own cold sink into place under the machine; every gram of melt swallows a third of a kilojoule, latent heat that returns nothing. A board, a crate or a foam pad under the base cuts the path; a pallet does the job on site, the air gap under the boards beating any solid sheet. Two bricks under the corners lift the case onto still air in a pinch. Snow shovelled clear beats snow compacted flat, meltwater against the base stealing fastest of all.

Keeping warmth that is already there

A machine that sleeps indoors walks out the door already warm. Twelve kilograms of cells leaving the house at 20 degrees hold about 50 watt-hours of warmth above the charging gate, twenty-odd minutes of film time. An overnight charge in the house, the machine carried out with the gear at dawn, covers the ordinary winter day with no film ever switched on. Owners charging indoors at night for cheap tariff windows collect the thermal head start free on top. A van parked with the unit inside beats a tent porch by ten degrees on a January night. A night in a car boot leaves the machine several degrees ahead by morning. Twenty minutes of cabin heater before departure puts another ten into the load space for the price of idling. Machines in steady use rarely cool to the floor. A steady 300-watt load leaves 20 to 30 watts inside the case as conversion loss; that trickle heater runs the whole shift. Delivery crews do this at scale; the stations going over the tailgate at eight are still holding bedroom temperature.

Three centimetres of foam wall cut the heat leaving a warm pack to a small fraction of the bare-case figure, turning a two-hour reserve into the better part of a day. A blanket wrapped over a preheating case keeps borrowed and film heat in; pull it clear of the vents the moment charging begins, since fans that stayed idle through the warm-up start moving air with the current. Wool and sleeping-bag fill hold more of that heat than a cotton throw. A foil emergency blanket over the outside adds a windproof skin at the weight of a few grams. A warm pack boxed with its own charger gains a second small heater, the brick’s idle losses now working inside the walls. A 2-litre bottle of 50-degree tap water boxed beside the pack carries close to 70 watt-hours of heat. That’s a film’s entire run, done with a kettle. Foam picnic coolers fit mid-size stations with room to spare, and their shape leaves the vent faces open on its own. One foam box does double duty, slowing a January cool-down and flattening the after-sunset plunge that catches gear left on open truck beds.

A winter routine that spends less

Deep cold rewrites the plan around avoidance. At minus 25 and beyond, film warm-ups run long, stall often, and spend a tenth of the reserve per attempt; past two hours much of the film’s output is standing still against the leak. The working answer is to quit fighting the weather and charge indoors. Butane stoves and cabin heaters make any hut a mains-grade preheat; a pot of water kept near boil holds refills for the hot-water-bottle route all day. Expedition users run that split for weeks at a time, the cabin hours doing all the charging. The half-full winter floor from the self-heat rule keeps the day and its warm-ups covered. Lead time counts for more than power at those depths.

Milder winters are a timing game. Midday holds the warmest air and the strongest sun inside one two-hour window; a charge scheduled there may need no preheat at all on a pack that worked through the morning. Frost still sitting on the panel glass at nine argues for the later slot on its own. An hour of discharge before the charge does that priming on machines without films, the load’s conversion loss standing in for the heater. The array’s best output lands just when the cells sit nearest the gate.

A vehicle-mounted unit rides a 12-volt feed all day, films first when needed, charge behind them. Loads run off the pack through the drive keep it warmer still. Fleet installs wire the feed through the ignition, the films barred from draining a parked starter battery. Nights ask one decision, cab or cargo bay. The cab’s residual warmth wins the morning by an hour of preheating time.

The machines that never need it

The test isn’t complicated: what temperature is the pack at the moment the charger goes in? A station that discharges on a frozen job site all day and rides home to a heated garage every night charges warm its working life. A garage that merely keeps frost out, holding 5 or 8 degrees, already keeps every charge above the gate. That rule takes in backup units living indoors beside their loads, apartment balconies in mild climates, and any routine pairing outdoor work with indoor charging. An unheated stairwell commonly holds above zero and sits on the exempt side too. Three questions settle it: where the charging socket lives, when the charge usually runs, and how cold that spot runs in January.

Charging outdoors from panels or a generator through freezing weeks is the picture that justifies the self-heating line on the spec sheet. Ice fishing, high-country photography, unheated site cabins and winter vanlife all charge where they stand; site-hire fleets often charge in unheated containers. A machine bought without the films for that duty spends every January morning on borrowed-heat workarounds. Second-hand listings rarely print the line at all; the maker’s model listing settles it in a search box. The premium for the films runs to a small slice of the machine price on current ranges.

Power Derating Under High Temperature

An order of retreat

Power derating under high temperature is a power station giving ground in a fixed order. Fans answer first, spending a few watts on airflow ahead of any sacrifice. Charge current tapers away second. The inverter’s ceiling walks down third, and a complete shutdown stands last of all. The whole ladder spans roughly 20 internal degrees on a 2-kilowatt class unit, first fan to final cutout.

The order follows plain cost. Moving air costs a few watts of fan power. A slower charge costs time that rarely matters by nightfall, the pack full before anyone checks. The output cap is the first cut a user feels. Shutdown sits behind it as the move of last resort, built so the smallest loads outlive the largest. The exact rungs vary by maker; the order almost never does. The levers all sit in firmware.

Hot silicon wastes more of every watt

Inside the inverter, the transistors that chop battery current into a mains waveform lose a slice of every watt as heat, the toll of their on-state resistance. That resistance moves with temperature. A power MOSFET conducts worse as its die warms, the on-resistance climbing steadily with junction temperature until, near the rated ceiling, it can stand half again above its room-temperature figure. The cause sits in the crystal itself. A warmer lattice shakes harder. Electrons crossing it meet more collisions on the way. Junction temperature runs well above anything a probe can touch; between the die and the sensor stand solder, tab, insulator and heatsink, each step shaving degrees off what the firmware can know. Junction ratings sit near 150 degrees, a shade higher on industrial-grade parts. The firmware’s stage limits sit 80-odd degrees below those ceilings.

The copper shares the habit. Metal resistivity rises with temperature, copper’s by about 0.4 percent per degree. A transformer winding running 50 degrees above the room carries a fifth more resistance than it held at rest. That climb continues through every joint and busbar downstream, the arithmetic already priced at the connectors by the port-heat rules. Cell resistance eases as a pack warms, ion movement quickening inside the electrolyte. All of it exits through the case. A passive surface sheds only a handful of watts per square metre for each degree it runs above the air.

Loss follows the square of the current. Heat lifts the resistance, which adds heat of its own at the same current. A 2000-watt unit at 90 percent efficiency turns 200 watts into heat inside a case the size of a picnic cooler, a soldering iron’s output. Efficiency itself dips a point or two as the die warms. Trimming output by a quarter cuts the conduction loss by nearly half. Firmware is the light half of a cooling budget that would otherwise be paid in kilograms of aluminium.

Where the machine takes its temperature

A station takes its temperature in several places at once, half a dozen separate readings on a mid-size unit, more on a stackable system. Thermistor beads ride the cell groups inside the pack, seated against the middle of the block where heat from every neighbouring cell collects. Packs carry more than one bead to keep a single warm corner from hiding. The inverter’s power stage carries its own sensor on the heatsink, an IC or a bead bolted where the transistor tabs land, millimetres from the hottest solder in the machine. Bigger machines add one at the transformer and another sampling the incoming air at the intake grille. The transformer’s probe guards the slowest-cooling mass in the box, windings wrapped in their own insulation.

Each guard answers its own sensor. Firmware ranks the readings and acts on whichever runs closest to its limit, the reason two identical units in one room can derate minutes apart. A displayed temperature, where a unit offers one, is a single member of that committee. Some firmware reads the intake sensor as a forecast, trimming early on a hot draught ahead of any internal confirmation. A failed thermistor shows as a stuck extreme on the app. Event logs on app-connected units time-stamp each stage change.

Down the staircase

The descent runs in steps. Each trim shrinks the heat being made until the cooling holds the new level. The machine sits at that stage until the balance breaks again, in either direction. Every stage carries a dwell, a minimum stay of seconds to minutes that keeps the ladder from chattering when a reading hovers at its threshold; a capped ceiling holds for whole minutes after a cloud crosses the sun. Three to five output stages cover the run on a typical unit.

The rungs land at familiar places on the common machine, drawn a few degrees apart. Fans reach full speed around 45 degrees at the power stage. Charge current starts folding back as the pack passes its own mark near 40. The output ceiling begins walking down around 55 at the silicon. A full cutout waits near 65 to 70. The pack’s 60-degree discharge limit stands behind everything, an ease of maximum discharge current beginning above 50 on many packs. Manuals print the whole shape as a derating curve, full output flat to a knee near 40 or 45 ambient with a straight fall beyond it. The continuous rating on the badge assumes the knee’s left side. Two machines wearing one badge can carry knees ten degrees apart. Reading the knee against the destination beats reading the badge for anything bound for a tin shed or a van.

The rungs of a typical ladder (internal readings; each maker draws its own)

Stage	Trigger reading	What changes	What the display shows
Fans to full	~45 C at the power stage	airflow spends a few watts ahead of any cut	numbers unchanged, noise arrives
Charge taper	~40 C at the pack	input folds back in steps, half-rate then quarter-rate	input watts sag, no icon
Output cap	~55 C at the silicon	ceiling walks down 3 to 5 stages, near 80, 55, 30 percent	maximum reading below the badge
Cutout	65 to 70 C	AC output stops; DC circuits ride on	the temperature icon, the named event
Recovery	readings falling	rungs restore in reverse, 5 to 10 shaded minutes a stage	ceiling lifts stage by stage

A unit capped at 60 percent of its badge still runs the fridge, the lights, the router, the whole quiet end of a household, since the cap works as a lowered trip line and dims nothing. Output voltage never sags; a 1200-watt grill under a 1400-watt ceiling runs exactly as it ran in spring. A capped AC side also says nothing to the DC circuits; the 12-volt fridge crosses the whole afternoon unbothered. One 2000-watt hour delivered as two 1000-watt hours makes half the conduction heat in the silicon for identical work.

Each stage wears its own face on the display. Fan noise arrives with unchanged numbers. The input figure sags during a charge taper with no icon beside it. A capped ceiling shows as a maximum reading lower than the badge. The final stage posts the temperature icon brands reserve for the event. App screens on some units print the active ceiling as its own field.

The quietest retreat

One casualty never appears on any readout. Surge headroom, the margin an inverter holds above its continuous figure for motor starts, rides on the ceiling that derating walks down through the afternoon. A compressor asks for three to six times its running current at every start, in any weather. The plate on its side prints the figure as locked-rotor amps, the number to divide into a summer ceiling. A start needing 2400 watts of instant reach can meet a stage willing to give 1900. Hot silicon gives up part of its pulse rating on top, the short overload it tolerates shrinking with die temperature. The trip that follows reads as a mystery on the panel. It clears in seconds and returns at the next start until the load list changes, a rhythm easy to mistake for a failing appliance. Inverter-driven fridges with soft-start compressors shave the multiple to under two. Sizing motor loads against the derated figure, the summer number, keeps the mystery off the panel altogether.

Charging bows out early

The charger stands first in line for a cut because a slower charge injures nothing. An afternoon taper that halves a 500-watt input for three hours defers three-quarters of a kilowatt-hour of energy, a deficit one cool evening hour erases. Mains charging answers the pack sensor exactly as solar does.

Above roughly 40 degrees at the cells, charge current folds back the way it does in the cold band, the BMS walking the amps down in coarse steps as the pack climbs, half-rate and quarter-rate rungs on many designs. Past the charge window’s 45-degree lid the process closes entirely. The industry formalised the shape years ago in the JEITA charging guideline, stepped charge zones by temperature. On cooling the steps retrace.

Input watts sag on the display with no icon and no message. Solar owners read the sag as a passing cloud. One look at the pack temperature in the app settles the question. Half an hour of shade often restores more input than an hour spent re-angling the panels.

Passthrough makes the hardest hour of the retreat on any machine that allows it. Charging and discharging at once run the charger and the inverter together, two converters spending their losses inside one case: a 500-watt charge leg adds its 40-odd watts of conversion heat to the inverter’s 150. Manuals that warn against summer passthrough are pricing exactly that stack. Units parked in permanent passthrough as house backup spend every hot afternoon in it, the strongest case for keeping such a machine in the coolest room available. Dropping the charge leg through the heaviest load hour is the working answer.

The sun that feeds the array also heats the case, which parks the day’s best charging in the morning hours. Full summer sun lands about a kilowatt on each square metre it strikes. A dark case lid the size of a tea tray soaks up 80-odd watts of it. Shade removes the whole figure, a pale case or a draped cloth returning a share of it unabsorbed. Any cloth trick drapes the lid alone, clear of every vent. An eight o’clock charging start banks its watt-hours cool.

Dust, clearance, and the fans

Fans hold a ladder of their own, still, then low, then full, keyed to the power-stage probe. Small units run fanless below a set load, a silent envelope of a few hundred watts that ends the moment the stage warms. The first breath of the fan on a quiet evening marks the load that crossed it. App-connected units that report fan speed hand that reading to a phone.

Dust rewrites the ladder from below. Filmed over, a heatsink sheds heat badly and asks for more airflow at every stage. A machine humming at rest is wearing a season of grit. One vacuum pass across the intakes at the turn of each season restores the old curve. Open grilles on the common machine make that seasonal pass the entire maintenance schedule. A fan that has died folds every rung downward at once, cutouts arriving under loads the badge covers; the cure is a replacement fan.

Air enters one face and leaves another. Furniture pressed against either throttles the pair. A palm of open space around every vent holds the intake near the true ambient; the exhaust side needs the same courtesy, since a unit backed into a corner rebreathes its own output within minutes. Ten centimetres of free wall behind the exhaust face restores near-open-air numbers in a still room. A light breeze across the fins outperforms any still interior, the reason the shaded windward side of a vehicle beats its lee on a working day. Altitude thins the coolant itself. Air sheds about a tenth of its density with every kilometre climbed. Fans move volume, handing the heatsink less mass for identical heat. Datasheets answer with an altitude clause, commonly a one-percent trim for every hundred metres past the first thousand or two.

Climbing back

Recovery runs on minutes, the pace of thermal mass. Once tripped, a power stage sheds heat through the metal that soaked it up, falling out of its cap in five to ten shaded minutes. Rung by rung the ladder restores as the readings drop. The pack trails the silicon on the way down, kilograms of cells against grams of die, putting full charge current at the back of the queue on the hottest days. Pulling the load during a cooldown shortens it; the pack stops making the heat it still holds. Cooling runs fastest where the gap to ambient stands widest, the first shaded minutes doing half the work. On the display, the restored ceiling is the go signal for the heavy load. A few models latch the final stage until a button acknowledges it, a design that puts a human eye on the cause before power returns to a possibly blocked or sun-baked machine.

A fan still turning after the output cuts is the cool-down finishing its work.

A hot afternoon, timed

One logged afternoon puts numbers on the whole ladder. A 2-kilowatt-hour unit works a market stall through 36-degree shade, parked in sun at the stall’s edge, running a drinks fridge at 90 watts steady and a 1200-watt contact grill through the lunch rush, a solar array feeding 500 watts of charge behind it all through the midday window. The load list rides one extension lead to the counter, the array flat on the stall roof. At noon the app shows the pack at 39 degrees and 58 percent full, the power stage at 44, the fans turning on low.

At 12.10 the power-stage probe reads 48 and the fans go to full. The stage settles at 52 by 12.25. By 12.40 the input figure has sagged from 500 to 260 under a clear sky, the pack past 41 and tapering its own charge; the stall owner blames haze and re-angles a panel that answers with the identical number. The output ceiling posts 1400 at 13.15 with the stage at 56 and the pack at 44, the app printing the active ceiling beside the badge. The grill and fridge carry on beneath the cap untouched, the numbers on their plugs unchanged, 1290 watts moving under a 1400-watt lid. At 13.30 a blender joins for the lemonade run, its 900-watt motor asking for close to triple that on the first spin, a surge the capped stage cannot source. Its overload trip lands on a machine whose badge reads twice the running load, the fridge riding through the reset on its own DC circuit. Moved behind the counter into shade at 13.40, the unit keeps the fridge and drops the rest, the input paused, the fans at full, the pack cresting at 46 on its own stored heat. By 13.50 the hum is the loudest thing at the stall, 90 watts out and everything else waiting. The stage reads 49 by 14.10 and the ceiling lifts back to the badge; the pack turns downward two minutes later, the slower of the two bodies, the pack at 45 on the app beside the stage’s 49. Charge current walks back up to the array’s full 500 by 14.30, the state of charge climbing off its 55 percent floor toward the evening’s 70. By the afternoon rush the grill returns on a restored ceiling, the badge figure back on the display, the fans easing to low.

In the evening the log reads as a list of rungs with time-stamps, fan full at 12.10, charge taper at 12.38, output cap at 13.14, overload at 13.31, restore at 14.09. The day’s peak internal reading, 58 at the stage, files beside the trip entry. Tomorrow’s version of that afternoon starts with the unit behind the counter from the first sale, a spare tablecloth over the case at noon, and the grill’s heavy hour booked against a full ceiling.

Operating Temperature Range and Derating

The two windows a station keeps

A power station carries more than one temperature range, and the difference between them catches out almost every first-time owner. The charging range runs far tighter than the discharging range on every lithium machine sold. A datasheet that prints a single friendly figure is quoting the generous window.

The two windows come straight from the chemistry. By Battery University’s figures a common lithium cell charges only between 0 and 45 degrees. Its discharge band runs far wider, from minus 20 all the way to plus 60. A unit sitting in a minus-10 tent runs a lamp through the night and then refuses the solar panel at first light. Nothing about that machine is broken.

Cold-weather planning turns on the charge number. A camper who reads only the minus-20 discharge figure packs a machine that dies each morning with a full solar array pointed at a pack that will not take a watt. On a real sheet the block reads something like 0 to 40 for charging, minus 20 to 40 for discharging, minus 20 to 45 for storage.

What sets the printed number

Cells draw the sharpest limits among a boxful of parts that each carry a range of their own. A liquid-crystal display slows and then blanks as it nears minus 20, the electrolytic capacitors in the inverter shed capacitance in deep cold, the case plastics turning brittle enough to split under a knock that summer would shrug off. Whichever part surrenders first prints the rating. On the typical machine the battery’s charge window sets the cold-end number, the screen a close runner-up. Seals and adhesives cast their own votes at the hot end, softening and creeping where the cells still hold. Component grade decides the margins, industrial-temperature parts holding curves that consumer-grade silicon abandons, one of the quiet differences between a machine priced for work sites and its look-alike. Ratings also assume sea-level air; thin mountain air carries heat away less ably, one more quiet subtraction at altitude.

A datasheet rarely offers one temperature figure. It offers three or four, a charging range, a discharging range, a storage range, sometimes a humidity line alongside. Two machines wearing one badge wattage can print different windows, the packs inside them built around different targets. The windows also move with the machine’s own cooling, a unit with a stronger fan holding its full output deeper into a hot afternoon than a sealed sibling.

The temperature windows a lithium station keeps (typical figures)

Window	Typical range	What sets it	What happens past it
Charging	0 to 45 C	lithium plating below 0; cell aging above 45	charge circuit blocked cold, capped hot
Discharging	−20 to 60 C	electrolyte and resistance cold; cell stability hot	runtime falls cold; output cut hot
Storage	−20 to 45 C	no current flows to strain a cell	fastest aging when full and hot
Best storage	15 to 25 C, ~50% charge	aging chemistry idles slowest	capacity kept longest

The cold that forbids charging

Forcing current into a lithium cell below freezing does something a warm cell never does. Charging works by sliding lithium ions into the graphite layers of the anode, a process the cold slows to a crawl. When the current arrives faster than the chilled anode can absorb, the surplus lithium has nowhere to go and deposits on the surface as metal. Plating, the industry calls it. Graphite holds lithium by intercalation, ions sliding flat between its atomic sheets into berths that leave the metal’s structure alone. Cold slows the acceptance far more than it slows the current a charger pushes. Each deposit of plated metal seeds the next, a fault that compounds every time a frozen pack meets a charger.

That deposited lithium does not slide back into the chemistry on the next discharge. Every sub-freezing charge shaves a permanent sliver off the pack’s capacity. Plated lithium grows in fine needle-like spikes called dendrites. One that reaches across to the opposite electrode punches a hole in the separator and shorts the cell from the inside. A pack charged cold enough times becomes a fire risk. A dendrite short grows inside the cell, past every sensor and every port fuse, the reason the freezing block is drawn so strictly. The freezing rule binds every lithium chemistry alike, plating on a sub-zero charge being a property of the graphite anode they share. A cell opened after repeated cold charging shows the plating as a dull grey film across the anode face, the diagnostic photograph in every study of the failure.

Because the harm hides inside the cell and adds up over time, the rule is a hard block written into the firmware. A station’s battery management system reads a temperature sensor pressed against the cells and opens the charge circuit the instant that reading drops below zero. Placement of that sensor decides how well the block tracks the cells, since a probe on the casing lags the core by degrees. A sensor buried among the cells reads the temperature that matters, which is part of why the freezing block on a well-built pack errs a degree or two toward caution. Sun can pour onto the solar panel at a frozen dawn and the pack will accept nothing, the input line holding at zero watts until the cells climb above freezing on their own. A ski trip lives or dies on this line, a machine that discharges to minus 20 still refusing the panel at minus 5. The refusal shows on the display as an input icon with no watts behind it, the moment that sends a first-time winter user hunting for a broken panel.

The block does not switch on sharply at the freezing mark. Charge acceptance falls off well above it, since the anode grows reluctant as it cools even in the safe band. Reference figures already trim the allowable charge current once the cell drops to 5 degrees. By minus 30 the safe rate drops to 0.02C, a trickle that would need fifty hours to fill an empty pack. A machine advertised as charging in the cold is charging at that trickle. Silicon and other anodes shift the numbers and remain rare in portable packs for now. A handful of premium units carry a heater that lifts the cells into the normal window first, turning those fifty hours back into three or four. The rest hold the charge circuit shut and wait for the pack to climb above zero on the sun’s warmth or the day’s. A pack riding a heated cabin on the drive out reaches its window before the campsite does, the cheapest preheat available. Twenty minutes of sun on a dark case can add the last degree or two the sensor needs, the panel warming the machine before the machine accepts the panel.

The cold that only slows discharging

Pulling energy out of a cold cell breaks no chemical rule, which is why the discharge floor sits twenty degrees below the charge floor. What the cold takes on the way out, it later gives back in full. The electrolyte grows thicker as the temperature falls, the lithium ions drift through it more slowly, the cell’s internal resistance rising with the chill. A load that saw 3.2 volts at room temperature meets a sagging 3.0 under an identical draw at minus 15, the runtime shrinking as a fifth or more of the pack seems to disappear. The sag deepens with the draw, showing soonest under the heaviest loads. A cold cell under heavy load can dip below the low-voltage cutout early, the gauge calling an early empty well ahead of the true state of charge, the reading recovering the moment the load eases and the voltage rebounds. A short rest between heavy pulls buys back visible capacity in hard cold, the pack settling to a truer state of charge each time the current drops.

None of that vanished capacity is gone for real. Bring the pack back to room temperature and the electrolyte thins, the resistance falls, and the full rated amp-hours read on the gauge once more. A cell near full strength at 25 degrees holds roughly nine-tenths of it at freezing. By minus 20 the figure sits closer to seven-tenths, every point of it returning as the pack warms. The retention curve runs steeper for high-drain loads than gentle ones, heavy current dragging the sagging voltage to the cutout sooner. Gauges that estimate by voltage mislead furthest in the cold, percentage figures leaping upward as the pack warms.

A fridge that ran twelve hours in summer might manage eight on a hard winter night, the pack reading empty earlier than its watt-hours promise. Warmed indoors the next day, that unit returns to its full figure with nothing lost. A pack kept in the sleeping area overnight starts the day warmer than one left in the awning and hands back an hour of the lost runtime.

The machine makes its own weather

The pack lives at its own internal temperature under load, apart from the air around it. Current driven through the cells’ internal resistance turns part of itself into heat. Working hard, a pack warms several degrees above the air surrounding it. Discharging in a cold garage, a unit lifts its own cell temperature as it runs, the reason a machine that felt sluggish at first light limbers up under a steady load an hour later. On a 40-degree afternoon a heavy load stacks its own warmth onto a pack already near the ceiling. The internal temperature that triggers the derating climbs above the reading on any wall thermometer. Enclosure makes the stacking worse, since a sealed case with poor airflow traps the heat the pack generates. Shut inside a cabinet, a given machine derates sooner than one standing in open shade at the identical air temperature. A pack rated to 45 degrees can reach its internal cutout on a 38-degree day under a punishing load in a closed box. Airflow around the case buys real margin at the hot end, a hand’s width of clearance and a shaded spot doing more for sustained output than the printed number suggests. Indoors after a frozen night, the lag works against the charger. Brought inside, a cold machine needs time for its core to reach the charge window through to the center, a large pack lagging the room by half an hour or more, the surface deceiving a hand into judging it thawed hours ahead of the center the charge sensor watches. A machine stored overnight in the vehicle starts the morning at the night’s lowest temperature and holds it well into the day unless brought somewhere warmer. Standing a frozen unit in a warm room for an hour before expecting a charge is the habit that avoids a puzzling refusal at the socket.

The hot end both windows share

Heat closes both windows from one side, each at its own mark. Charging gives up first, its acceptance commonly capped at 45 degrees and refused outright above 50. Discharging pushes on to 60 on the reference chart, since a warm cell handing out current sits under less strain than a warm cell being forced to swallow it. The electronics carry a hot limit of their own, the inverter’s transistors and capacitors rated to a ceiling near 60 to 70 degrees, high enough that the cells reach their limit first on the common machine. At the band’s edge good firmware gives ground before it quits, trimming the ceiling in stages as the internal temperature climbs, a unit that carries 2000 watts in spring holding perhaps 1500 in a heatwave, the surplus heat never made because the surplus power never flows. A lull that lets the pack cool hands the headroom back.

On many units the fan climbs ahead of the trim, an audible warning arriving before the numbers move. Warmth speeds the side reactions that age a cell, thickening the film on the electrodes that steals capacity across months and years. The rate roughly doubles for every ten degrees above room temperature. A pack worked and stored at 40 wears out several times faster than one kept near 25. The film in question is the solid-electrolyte interphase, a passivating skin on the anode that grows a little with every cycle and faster in heat. A station run hard through a 45-degree afternoon takes no sudden harm. It spends that afternoon burning through its calendar life at a multiple of the normal rate.

Push past the discharge ceiling and the slow tax turns into an acute risk. Above about 60 degrees a cell begins to lose the internal stability that keeps its layers inert. The reactions that release heat start to feed on the heat they release. That runaway is the failure mode behind every lithium fire. The BMS trims output as the cells warm and then cuts it entirely well before the danger band. Lithium-iron-phosphate holds its composure far higher than the nickel chemistries, its thermal runaway onset up near 270 degrees, far above the 150 to 200 of a typical NMC cell, part of why the heavier phosphate packs dominate stations sold for hot climates. Tripped hot, a guard will not restore until the pack cools several degrees below the cutout, the hysteresis that stops a machine flickering on and off at the exact threshold.

Baking in a sealed car boot through a summer, a machine sits under a slower version of the hot-end threat. Frozen in a winter shed, the same machine merely waits for warmth. A desert job turns on this end, output falling well before the cutout arrives. Shade drops the effective ambient by ten degrees or more against a body left in sun, the cheapest derating relief a site offers. A closed car cabin in summer sun runs 20 to 30 degrees above the street, the harshest ordinary environment a machine meets and the strongest argument against parking a working pack in one.

Derating shows on the panel as a smaller number, one mistaken too easily for an error.

Storage, the widest window with a catch

Doing nothing, a machine tolerates a broader range than one at work, since no current flows to plate an anode or to drive a cell toward runaway. Storage limits commonly run from minus 20 to 45 degrees. A pack left in a freezing shed across a winter takes no harm from the cold on its own, provided nothing attempts to charge it while it sits below zero. Disconnect switches or storage modes on many units cut the standby drain to near zero for a long parking, the setting to find in the manual before a season away. A note taped to the case with the parked date and charge level saves the spring guesswork about what the winter cost.

The catch lives in the charge level and the calendar. Held near half charge in a cool spot, somewhere around 15 to 25 degrees, a lithium pack keeps longest, the aging chemistry idling at its slowest. Storage aging answers to two dials at once, the temperature and the charge level, both turned down together for the longest life. Parked full in the heat of a loft, a pack loses capacity quickest of every combination. A pack sitting full is under more chemical stress than one at half. Heat multiplies that stress well beyond a simple sum. A unit headed into a hot summer of storage wants its charge drawn down toward half and a cooler corner found. Deep cold storage asks nothing beyond a warmup before the next charge. A quarterly top-up covers the pack’s self-discharge in storage, a few percent a month that would otherwise drift the state of charge toward empty. Half charge also leaves headroom in both directions, room to absorb a trickle of solar in a bright shed, room to feed a sudden need without a top-up first.

A unit riding a car through the seasons answers to the storage range against both extremes the cabin reaches.

Surge and Short Circuit Protection on Ports

The screwdriver across two terminals

A screwdriver rolls loose in a toolbag and lands across the two exposed studs of an Anderson pigtail. Nothing dramatic happens for a millisecond. Then the battery behind the port, a lithium pack holding a couple of kilowatt-hours at low resistance, tries to empty itself through a steel shaft with almost no resistance at all. Current rockets toward several hundred amps. Somewhere in the chain a guard fires, the port goes dead, and the app logs a fault.

Two events send a port over its limit. The panel shows an identical blank socket for both. A surge is the harmless one, a brief legitimate spike from a motor starting or a capacitor charging, gone in milliseconds. A short circuit is the dangerous one, a fault path of near-zero resistance that would draw current until something melts. A good port tells them apart in real time, riding the surge and killing the short.

These faults live on the output side, downstream of the keying and reverse-insertion guards. The threat here flows outward, from the pack through the port into whatever a user connected or dropped. High-current DC ports carry the sharpest version, since the battery sits closest and the connectors run bare. An Anderson stud or a battery post exposes bare metal at pack current, the one place on the panel a careless second can turn into a spot-welder.

Why the battery is the thing to fear

Danger scales with the source. A station carries one of the densest sources a consumer ever handles, a reservoir far larger than the sockets suggest. Behind a wall socket sit a breaker and a long thin supply run that limit fault current on their own. A lithium pack sits centimetres from the port behind a few milliohms of internal resistance, a reservoir engineered to deliver current without complaint. Engineers name the figure a source can deliver into a bolted fault the prospective short-circuit current. For a station it runs into the hundreds of amps. Every guard on the panel has to interrupt a fault without being overwhelmed by that number, a property called breaking capacity that separates a real protective device from a switch that only melts and arcs over.

The arithmetic behind it is unforgiving. Short-circuit current equals the pack voltage divided by the total resistance in the loop. Put 20 milliohms of cells and wiring behind a 12.8-volt pack and it drives roughly 640 amps into a dead short, reaching that height in the time a contact takes to touch. Fault current arrives at full height before any mechanical part can begin to move. The first line of defence has to be a fuse already carrying the load or an electronic switch watching the current every microsecond. Relays and contactors take milliseconds to open. The arc stands established across their parting contacts long before that.

The pack keeps a hard limit of its own. The battery management system watches total current and opens the main contactor or its MOSFET stage when the draw crosses a ceiling, commonly a few hundred amps, as a last resort. That cutoff protects the cells from the fault and halts the runaway before the pack itself becomes the casualty. Reaching the BMS ceiling means every guard closer to the port already failed. The BMS threshold also carries a short deliberate delay of a few milliseconds, enough that a legitimate surge never trips the whole pack offline. That delay is why a nearer, faster guard has to catch the true short first, clearing it inside the window before the pack’s own protection has to act.

Heat and welding make the short worse than the number suggests. Hundreds of amps through a contact point the size of a pinhead deposits enough energy to melt metal in that instant. A direct-current arc carries no natural zero crossing to snuff itself out. At a bare DC terminal that short can weld the metal solid, fuse a switch shut, or spot-weld a dropped spanner to the studs it bridged.

Direct current makes the interrupting job harder at any given voltage. A battery holds its voltage flat and gives an arc no natural instant to die, the free instant that alternating mains hands over at each of its hundred zero-crossings a second. Guarding that steady arc builds a DC fuse or switch heavier for its rating and holds it to a lower voltage than an alternating-current part.

A cascade of guards

Protection on a port comes in layers, each guard faster and closer to the fault than the one behind it. The fuse or electronic limiter nearest the socket sits sized just above the port’s rating. An electronic limiter catches a hard short in microseconds. A fuse takes seconds over a slower overload. Deeper in, the converter stage carries an overload trip of its own, and the inverter watches its AC transistors on a fast timescale suited to silicon. The pack’s BMS waits underneath as the slow, absolute floor, moving only when everything nearer has already failed. Any fault wakes the one guard tuned to its speed and nearest its position.

The order is a deliberate design choice. The cheapest and readiest part to replace sacrifices first. The pack protects itself only when all else fails. A blade fuse costs pennies and swaps in seconds. A welded BMS contactor costs a service visit and a stripped-down pack. The port fuse guards only the wire behind it, the load in front being no concern of the fuse. A fault in a thin accessory lead opens a fuse sized to that thin wire long before the cable can heat. A fuse chosen for the appliance, oversized for the thin cable it feeds, is the classic error that lets a lead cook inside its own insulation.

The surge a port must welcome

Cutting current cleanly is only half the job, because a great deal of the current a port must pass looks momentarily like a fault. Every switching power supply charges an input capacitor at the instant of connection. That empty capacitor behaves like a short for a few milliseconds, pulling a spike many times the device’s running draw. A motor pulls three to six times its running current as it breaks away from standstill. The port has to swallow every bit of it and stay on, then cut the genuine fault that never ends. Charging through a resistance, a capacitor follows a curve, pulling its heaviest current at the first instant and tapering as it fills, the whole event measured in milliseconds and set by the size of the capacitor and the resistance in the path. Behind a big supply, a large filter capacitor can pull a spike ten or twenty times the running current at that first instant. For its opening moment the port sees a waveform indistinguishable from a fault, then settles into an ordinary load. A guard that cannot tell the shape of a fading spike from the flat line of a real short would cut power to fully half the devices ever plugged into it. Reading those first few milliseconds settles the question. A current already falling by the window’s end passes as inrush. A current still holding at full height reads as the fault.

A transformer can draw 10 to 15 times its rated current for several cycles, a figure the toroidal kind pushes as high as 60 times; an incandescent lamp reaches 14 times its steady current for a few milliseconds. A power converter’s input capacitance does likewise on a smaller scale every time it connects. Trip on any of these and the port becomes useless, dropping a fridge every time its compressor kicked. Inside a 12 volt fridge the sealed motor draws its running 4 or 5 amps for hours, then spikes to 20 or 30 for the fraction of a second its rotor breaks free at each restart, dozens of times a day.

Discrimination in time is the answer. Protection carries a time-current character, tolerating a big current briefly and cutting a moderate overload held long. A 10-amp port might pass a 40-amp inrush lasting 10 milliseconds. The same port opens on a mere 20-amp overload once that overload persists. Slow-blow fuses build that patience into a fat element that takes time to melt. Electronic limiters build it into a timer that allows a set overcurrent for a set window. What a fuse integrates is the current squared multiplied by time, the let-through energy an engineer writes as I-squared-t. Low let-through marks a fast fuse and protects delicate semiconductors. High let-through marks a slow one and survives inrush. One printed number marks a single point on that curve. That whole curve decides what the fuse passes and what it clears.

Capacitive inrush earns a second look on the high-power ports. A big inverter or a second battery connected to an Anderson stud presents a bank of capacitors that can pull a spike into the hundreds of amps for a millisecond, enough to spark visibly at the contact and pit the metal over time. Pre-charge circuits and soft-start resistors exist to tame that spark on the largest connections, easing the capacitor up to voltage before the full contact closes. Through a deliberately restrictive path, a pre-charge resistor carries the first inrush for a second, letting the capacitor fill gently. Once the voltage matches, a contactor bypasses the resistor. Large battery banks and high-power inverters connect this way as standard practice. Touching an Anderson connection half-home for a moment before seating it is the hand-tool version of that idea.

The first millisecond of a fault

Every real short runs a fixed sequence too fast to watch. Current climbs toward the pack’s ceiling within microseconds, the fuse element or the sense resistor heats or reports, the electronic switch turns off or the fuse metal vaporises. Any arc that tries to follow snuffs at the fuse’s sand filler or starves against the open switch. The port reads zero, the display flags the fault, the whole event finished before a human registers the click. A quick guard set with too low a rating fails in the worst way, melting its element and then arcing across the gap it opened, passing the fault it was meant to stop. Breaking capacity, printed on a quality fuse as an interrupting rating, is the promise that the device clears the pack’s full prospective current without that arc-over. Class-T battery-bank fuses answer this with an interrupting rating in the thousands of amps, printed on the body beside the current figure for anyone who reads past the headline number.

One-shot metal against a resettable switch

A fuse protects by destroying itself. Calibrated to melt at a known current-time product, the metal element breaks the circuit for good, and holds that broken state permanently. Blade fuses colour-code the rating into the housing, tan for 5 amps, red for 10, blue for 15, yellow for 20. A glance reads the value off the colour, and a replacement matches it by the same code. Certainty of that kind costs a drawer of spares plus a dead port until someone swaps the part. Fuse speed comes in grades. A fast-acting element clears a fault in a millisecond and guards silicon that cannot survive longer. A time-delay element rides inrush for a full second before it commits, the grade a motor circuit wants.

The blade-fuse colour code (ATO/ATC standard) and where each rating sits on a station

Body colour	Rating	Typical port or circuit
Tan	5 A	USB feed, small electronics
Brown	7.5 A	lighting, small pumps
Red	10 A	cigarette socket
Blue	15 A	accessory circuits
Yellow	20 A	compressor fridge, heavier DC
Clear	25 A	Anderson branch
Green	30 A	high-current feed

Electronic protection keeps the port alive through a fault and out the far side. Sensing the current continuously, a MOSFET turns off within microseconds of a fault, then retries on its own after a cooldown, restoring the port the moment the short clears. USB and USB-C ports run this kind of guard as a matter of course, which is why a shorted phone cable kills the port for a second and the port returns the instant the cable comes out. Silicon costs more than a fuse. It adds a chip of its own that can fail. The payoff is a port that heals without a toolbox. The electronic limiter often runs in a hiccup mode under a lasting fault, trying for a moment, resting, and trying again, keeping its own temperature safe as it waits for the short to clear.

Polymer resettable fuses sit between the two. A polymeric PTC device conducts normally, then meets a lasting overload, heats, and lets its resistance climb steeply to choke the current down to a safe trickle, holding that trip until the power comes off and it cools. Its tripped resistance settles up to four times its initial value. A cooldown of a few seconds restores much of its conduction, with the device holding a slightly raised resistance for hours afterward. Small DC and USB ports lean on these, since they self-recover without a chip and without a spare.

AC shorts are a different animal

No fuse is fast enough for the inverter. Its output transistors would fail in microseconds under a short, far ahead of any mechanical element melting, which forces the inverter to watch its own output current electronically and fold back the instant a fault appears. That foldback drops the voltage to near zero, holds for a moment, then retries, a hiccup pattern that probes whether the short has cleared without pouring energy into it. On an AC socket a dead short produces a quiet clicking cycle of tries. Retry intervals space the attempts far enough apart to keep the transistors cool, a second or two between probes. A socket left shorted clicks on that rhythm until the load comes off or the machine latches the output down.

Two kinds of surge reach the AC side from opposite directions. Inrush pushes outward from the load, a motor or supply drawing its brief multiple at switch-on, and the inverter rides it on the same peak rating that starts a compressor. A transient overvoltage pushes inward from the world, a spike riding a long cable or thrown off by a nearby switching event, and a metal-oxide varistor across the output swallows it by turning the spike into heat. The varistor is the guard a mains power strip carries, sized for the lower energy a station output ever sees. A varistor carries a joule rating for the energy it can absorb before it wears out. Each large spike it clamps shortens its life a little, an ageing part that quietly does its work until a final surge ends it. Its clamp voltage opens a window a few tens of volts wide on a mains-voltage output, high enough to ignore the normal peak and low enough to catch a harmful spike.

What the panel shows and what to do

Tripped, a port announces itself plainly by going dark, a single dead socket among running neighbours. The AC side may click as it retries, the DC side may need a button or an app tap to restore. A resettable guard may heal by itself after a pause. A single trip after a plug went in wrong is the protection doing its job. Clearing the fault and restoring the port ends the matter. One first trip carries almost no information beyond the fact that a guard worked. Useful signal lives in what happens on the retry. Removing the suspect load and resetting calmly is the correct first response to any single event.

A repeated trip changes the reading. Trip again the moment it restores, and the port has found a fault still present, a shorted cable, a failed device, a stud still bridged. Hunting that cause beats resetting into a live short. A port that trips under a load it used to carry points at a device drawing more than it should, an early warning that earns a meter check.

Prevention costs almost nothing on the ports that matter. Bare high-current terminals, the Anderson and the battery studs, are the ones a dropped tool or a stray coin can bridge. Capping an unused socket and keeping a tidy bag around a live one remove the commonest short at the source before it can start. Fuses belong in every home-made lead at the source, sized to the wire behind them. A fault in a cable then opens a cheap fuse of its own, one that clears the trouble far short of the pack’s last-resort ceiling.

Heat and Derating on High Power Ports

What derating means on a warm panel

Derating is the reduction applied to a port’s printed current rating as the conditions around it leave the cool bench where that rating was measured. On a W-class or L-class station the heaviest sockets gather onto one panel, the Anderson feed, the high-current DC stage, the big AC outlets. That panel warms under load. That moulded figure beside each socket assumes a cool, still, single-port world. Derating is the arithmetic that turns the catalogue number into the current a port holds where it genuinely sits.

The rating and the derating answer two questions. Rating names the current a port carries at a reference temperature with nothing drawing beside it. Derating is the honest reduction of that figure, the fraction left after a warm afternoon, a bundled loom, a neighbour pulling its own heavy load. High-power ports feel the effect hardest, because heat climbs with the square of current and the big ports carry the big currents.

The stakes live in the plastic. Every degree the contact climbs passes first into the housing gripping it. That housing softens far below the melting point of the copper it holds. A port pushed past its derated current gives no clean cutoff. It warms, discolours, loosens its grip, and drifts toward a failure slow enough to smell before anything visible happens.

Where the watts turn into heat

Heat begins at the contact resistance. High-power connectors aim for a figure under one milliohm, a tenth of what a tired cigarette socket shows, the whole reason the heavy families exist. Two metal faces pressed together touch only across their high points, a true contact area smaller than the shiny metal suggests. That constriction funnels every amp through a resistance measured in milliohms. Power lost to heat follows the square of the current. Half a milliohm sheds a quarter of a watt at 25 amps and a full watt at 50, the whole of it concentrated in a junction the size of a fingernail. Concentration matters more than the total. One watt spread across a room warms nothing; one watt inside a contact patch a few square millimetres wide lifts that spot tens of degrees.

This square law drives the entire derating question. Doubling the current quadruples the heat at that same junction. A contact untroubled at 20 amps meets four times the heating at 40. That ignored ceiling arrives quickly under a heavy load. Wire feeding the port obeys the identical square, warming along its whole length as the contact warms at a point. A five-metre run of 8-gauge cable holds close to 20 milliohms round trip. A 40-amp load through that resistance spends over 30 watts of heating in the wire alone, dwarfing the contact’s share and moving the hot spot away from the connector entirely.

The rating is a temperature-rise promise

A port’s current rating is a temperature-rise figure wearing an amp label. That number names the current lifting the contact a fixed amount above the air around it, commonly 30 degrees. A connector’s rated amps are a thermal figure with no hard wall behind them, the ground the Anderson port’s own rating stands on. An SB50 marked 50 amps reaches its 30-degree rise at 50 amps in reference air, no more. Read the other way, the figure is a permission the port grants only in cool still air, good for 50 amps in that condition and silent everywhere else. It falls silent on the current the port holds where the air does neither.

Reference air is the buried term. Connector ratings assume an ambient near 20 to 25 degrees, the temperature of a test lab. That assumption rides invisibly inside every printed amp figure on the panel. It stops being true the moment the machine works a hot garage, a sealed vehicle, or a sunlit deck.

Housing sets the real ceiling. Nylon and its filled variants, the usual connector plastics, hold their shape to somewhere near 105 degrees and lose it above that. Plastic decides the limit, reached long before the copper inside feels any strain. A design keeps the contact comfortably under the housing’s number across every ambient the machine is rated to see. The margin is a deliberate choice. A maker who caps the contact at 85, a full 20 below the housing’s 105, leaves room for the surprises of a real install, the sun on a black case, a blocked vent, a neighbour port working harder than planned.

Arithmetic settles it in one subtraction. A contact rising 30 degrees in 25-degree air lands at 55, with 50 degrees of headroom below a 105-degree housing. The identical current in 45-degree air puts the contact at 75, the headroom halved. Push the ambient to 65 and those amps reach 95, a hair under the plastic. Any bundling that lifts the rise beyond 30 degrees crosses the line into damage. The current never changed; the room around it did, that single shift governing the whole result.

Reference conditions rarely hold on a working station. A machine earning its high-power ports runs them at a work site in summer, inside a van, beside its own warm inverter, exactly the settings that erase the cool still bench the rating assumed. Derating restores honesty to the number by naming the current that keeps the 30-degree rise landing somewhere safe. None of this appears on the socket. The moulded amp figure carries the best case. The derated current lives on a chart in the manual or in the head of whoever sized the build.

The derating curve

Allowable current falls along a predictable curve as the air warms. The contact may climb to a fixed cap, set by the housing. The current has to shrink as the ambient eats the gap between room temperature and that cap. This relationship follows a square root, because heating tracks current squared. Half the headroom means roughly seven-tenths of the current. The square root falls out of the physics directly. Heat scales with current squared, temperature rise scales with heat. The current that fits a given rise then scales with the square root of the headroom that rise is allowed to fill.

Worked figures show the shape. Cap a 50-amp port’s contact at 85 degrees and the full 50 amps holds in 25-degree air, the whole 60-degree gap available for the rise. Warm the air to 35 and the gap narrows to 50 degrees, the allowable current easing to about 46 amps. Warm it to 45 and the gap is 40 degrees, the current down near 41. Push to 55 and 35 amps is the ceiling; reach 65 and the figure falls close to 29, the port now holding barely more than half its badge. Each step costs current the load never sees returned. No fault attends the loss, only air. A concrete van build makes the numbers real. A fridge compressor and an inverter share a rear panel that idles at 30 degrees in spring and bakes to 55 on a July afternoon behind glass. The Anderson feed rated 50 amps at the bench holds 46 in spring and 35 by high summer, a 30-percent swing driven by the season alone. A builder who sized the feed at 45 amps for the fridge and a winch discovers the winch tripping the thermal cutback on the hottest day of the year, exactly as the derated figure for that ambient predicts. Cold air widens the gap to the cap and hands the port current back, the quiet bonus a summer-only spec never mentions. A build sized for its hottest expected day carries margin every cooler day of the year. The lesson repeats at every current level. A 30-amp port and a 100-amp port trace the identical curve shape, each losing an equal fraction of its badge as the air warms toward the cap, the arithmetic scaling cleanly from a small DC socket to a battery-bank feed. One number anchors the whole family: a contact capped at 85 degrees and referenced at 25 holds its full badge at the bench, seven-tenths of it at 55-degree ambient, and half of it as the air approaches 70, a curve to keep in the head of anyone who wires heavy loads for a living.

Derating a 50 A high-power port as the panel warms (contact capped at 85 C, referenced at 25 C)

Ambient air	Headroom to cap	Derating factor	Allowable current	Contact at that current
25 C	60 C	1.00	50 A	85 C
35 C	50 C	0.91	46 A	85 C
45 C	40 C	0.82	41 A	85 C
55 C	30 C	0.71	35 A	85 C
65 C	20 C	0.58	29 A	85 C

Names on connectors often quote the best case. That 60 in XT60 is a peak figure measured on heavy wire in open air. Continuous duty sits well below it, closer to 35 or 40 amps on the wire a station commonly fits. The honest specification lists a continuous rating beside the ambient it assumes. A machine built with care prints both.

Manufacturers publish the curve as a derating chart, current against ambient, one line per connector family. Reading it takes a moment and settles the sizing for a whole build. A port asked to run near its rating on a hot day wants either a bigger connector or a cooler location, both decisions made off the chart before any cable gets crimped. A builder who skips the chart discovers the derating the slow way, through a connector that runs hot in July after a comfortable spring, the derating landing on time for anyone who skipped the chart.

The wire is half the port

Cable feeding a high-power port derates on the identical logic. A thin wire behind a big connector is the true weak link, because the rated amps follow the smallest part of the chain. Copper carries more current in open air than bundled inside a loom, where the strands heat each other; a single 8-gauge conductor in free air holds around 70 amps, that conductor grouped in conduit only 50. Its own insulation rating of 60, 75, or 90 degrees sets how hard the wire may be pushed before the jacket suffers. A port fed by wire chosen for the free-air number, then bundled into a tidy loom, meets its limit at the wire long before the contact complains. This fix is boring and total. Choose the wire for the bundled figure, step up a gauge for a hot run. The connector regains the headroom its rating assumed.

Neighbours share the heat

Ports side by side warm one another. Load every socket at once and the panel runs hotter than any single rating predicts, each contact adding its watts to a shared pocket of air. The derating that applies to one port deepens when its neighbours work too. Two ports at 40 amps each in still air can push their shared pocket past what either would see alone, the sum of their watts warming the air both of them breathe. Bundled cables behind the panel repeat it, every loaded strand lifting the temperature of the loom around it.

The inverter is the loudest neighbour of all. High-power AC conversion sheds real heat through the inverter case. Any DC port mounted on that panel breathes it whether the port draws current or not. A build that runs the inverter flat out under a heavy DC load on the shared panel stacks two heat sources into one derating sum. Spreading the load in time, kettle now and compressor later, keeps the panel cooler than firing everything at once. Staggering costs nothing and buys real margin. Held below its full heat load at every moment, the panel never reaches the ambient its worst-case derating assumed.

Airflow decides how far the neighbours reach. In open air a panel sheds its heat and the ports stay near their rated curves. Enclosure changes the picture, a cabinet or a van wall trapping the warmth so every port derates deeper as the shared air climbs, the physics that pushes bundled wire below its free-air number. One small fan changes the picture entirely, sweeping the shared warmth away and lifting every port back toward its open-air curve, the reason high-power stations carry active cooling on the heavy stages. The fan’s own draw is trivial against the current it protects, a few watts spent guarding hundreds, the cheapest insurance on the whole panel.

Continuous against brief

Rated current usually means continuous, held until the temperatures settle. A short burst rides on thermal mass, drawing a current no all-day load could match. The contact and its wire own a thermal mass that takes minutes to heat through. A two-minute kettle rides that mass, pulling a current no hour-long load could sustain. Heat needs time to arrive, and a brief load finishes ahead of it. Thermal time constants for a heavy connector run to several minutes. The honest question for any load becomes its duration against that clock. Only a load that outlasts the clock meets the steady rating in full.

Simple sequencing follows from that. A compressor cycling for hours wants a current comfortably inside the derated figure, since it runs long enough to reach full temperature. Pulling a hard surge for seconds, a tool may sit above the continuous rating, its burst gone before the contact climbs. Matching the load’s duration to the port’s thermal patience keeps a build honest without a meter. The display’s own power line confirms the steady figure once the surge passes. Drawing 45 running amps behind a 120-amp start, the compressor is the textbook case. The port sizes to the 45, the surge passing in under a second, gone before the contact registers the spike. Motor starts draw three to six times running current for a fraction of a second, a load the thermal mass swallows whole.

Thermal runaway, the quiet danger

Heat feeds on itself at a failing contact. Resistance in a metal junction climbs as it warms. A hot contact then dissipates more watts at a fixed current, driving the temperature higher again. A healthy connection sits far from the tipping point and stays stable for years. Vibration or oxidation nudges a connection toward that point, starting the loop that ends in a melted housing. The tipping point is sharp. Below the tipping point a contact self-limits, its heat leaking away as fast as it arrives. Past that point the heat outruns the escape, the temperature climbing until something gives.

Oxidation is the usual first cause. Arcing on insertion, or corroding in a damp footwell, a contact grows a resistive film that lifts its heat at every amp. Silver plating on a quality high-power contact resists that film. Insertion wipes the metal clean on the way in. Both features earn their cost precisely on the ports carrying the heavy currents. A tin-plated bargain contact skips both defences, growing its oxide film in a season of damp and lifting its own resistance with every week of service.

Looseness is the second path to trouble. Working free under vibration, a connector loses contact pressure and shrinks its true contact area, raising its resistance exactly where the current runs highest. Locking housings and detented latches exist for this reason on the high-power families, holding the pressure that keeps the resistance low across thousands of road miles. The spring behind a good high-power contact holds its force for the life of the connector, the pressure that keeps a joint from loosening into the runaway loop.

The runaway announces itself before it finishes. Entering the loop, a contact discolours brown, then black, and gives off a faint hot-plastic smell. Under load a growing voltage drop reports that trouble to anyone who checks. Catching it at the smell stage costs a new connector. Missing it costs the socket and whatever the melted housing shorts on the way down. The economics favour the early catch by a wide margin. A connector costs the price of a coffee; the panel it sits in, plus the load it was feeding, cost a great deal more.

Reading the heat on the panel

Panel temperature reads to a hand and a meter. Run inside its derated figure, a high-power connector sits barely warm after an hour. Warmth past the point of comfortable touch, roughly 50 degrees, marks a port near or past its limit. The back of a hand near each loaded socket is a five-second survey a build repays. The hand reads relative heat well. A port markedly warmer than its neighbours doing similar work is the one to meter, the outlier the fingers find before the numbers confirm it.

A meter sharpens the reading further. Voltage lost across a connector under load equals its resistance times the current. A clip on each side of a loaded contact turns that heat into a number. Good high-power joints drop a few hundredths of a volt. A drop climbing over tenths, or rising visit to visit, names a contact entering the runaway loop, caught at the stage a new connector still fixes cheaply. A drop of 30 millivolts at 40 amps points to a milliohm of resistance, healthy for a heavy contact. The same port reading 120 millivolts has tripled its resistance and its heat, the reading that calls for a fresh connector before the next long unattended job.

The machine keeps its own watch. A W-class or L-class station carries temperature sensors on its heavy stages and trims output when a port or the inverter runs hot, the firmware applying its own derating in real time. A port that fades under a sustained heavy load on a hot day is often the machine protecting itself in place of a fault. The behaviour belongs to the physics the derating curve describes.

Discolouration is the slow record. Run hot for months, a socket carries a brown halo around its contacts, a stain that reports a history of heat no meter caught in the moment. A used machine wears its thermal past on the panel. A clean set of contacts on a high-power station says its previous owner sized the loads with room to spare.

Thermal imaging makes the whole panel legible at once. Cheap clip-on cameras show the loaded ports glowing against the cool housing, the hot contact standing out in exactly the way the industrial thermogram reveals a failing fuse block. A single frame under load finds the port working hardest, the survey a careful installer runs before trusting a build to a long unattended job. The industrial thermogram makes the point at larger scale. A bright terminal against cool neighbours, the reading climbing toward a housing’s limit, is a fault caught by a camera that a hand on a live panel could never safely find.

Planning around the heat

High-power thermal planning reduces to four moves made before a cable is cut. Size the connector well above the steady load. The derated figure on a warm day then still clears the current. Choose wire for the bundled ampacity, the free-air number being a lab convenience a tidy loom never delivers.

Placement and timing finish the plan. Mount the heavy ports where air reaches them, away from the inverter’s warm case. Spread the big loads across time in place of firing them together onto one shared panel. A build that budgets a little thermal headroom on every high-power port runs cool, quiet, and free of the slow brown failure for the life of the machine.

Port Keying and Reverse Insertion Protection

Two lines of defence on one panel

Port keying is the set of shapes, sizes and pin layouts that lets a plug enter only the socket meant for it. Reverse insertion protection is the electronic backstop behind the shapes, the circuitry at the input and output stages that absorbs whatever wrong connection geometry missed. A power station’s panel carries both layers at once. Every socket on the face was drawn with some class of mistake in mind: the oval that accepts either orientation and sorts the wiring out in silicon, the barrel sized to one diameter, the trapezoid moulded for one orientation.

Plastic turns away the wrong plug at the doorway, silently, thousands of times over a machine’s life. The mistake that defeats plastic arrives through correct-looking hardware, a lead crimped backwards in a shed, a battery clamp landed on the wrong post; that class belongs to the electronics. Neither layer advertises itself. A buyer reads about inverter watts and pack chemistry; nobody puts keying on a shopping list. Moulded keying survives a decade of sand and boots and never asks for attention.

Direct current is the half of the panel with stakes. Current flows one way, out of the positive terminal and back into the negative. Every chip, capacitor and motor downstream is built around that order. The convention runs deep, red for positive, black for negative, a colour code older than any connector on the machine. Twelve volt gear grew up around vehicles, where the chassis itself is the negative side, one more reason the black lead’s job never changes.

The stakes are concrete. Reversed supply drives current backwards through parts that conduct that direction with almost no resistance; the heat arrives in milliseconds. Polarised capacitors vent. Semiconductor junctions cook. A reversed 12 volt feed at 10 amps dumps 120 watts into the first path that conducts, wherever that happens to run. Repair forums index the failure by smell; the phrase about letting the magic smoke out exists because the failure is exactly that visible.

What a flipped feed does

Unprotected electronics meet reverse voltage the way a valve meets backwards flow. Some parts block, some fail open, one path somewhere carries everything. The electrolytic capacitor is the classic first casualty. Its chemistry is directional, marked by the stripe down the can; reverse bias breaks the oxide layer down in seconds. Silicon follows through its substrate junctions, structures that conduct once reverse supply passes about 0.6 volts, opening paths never sized for current. An ordinary fuse measures current magnitude alone; a modest reverse flow sails under the rating unnoticed for as long as the connection lasts. Boards that survive owe it to sacrificial traces, thin copper necks placed to burn first, a fuse drawn in copper.

The timing removes any chance of reaction. Milliseconds for junctions, seconds for capacitors, a wisp of smoke as the announcement.

The coaxial barrel and its size ladder

The round DC barrel is the oldest keying scheme on the panel. A centre pin sits inside a sleeve; the plug is a tube around a hole. The geometry admits exactly one arrangement, pin into hole. Rotation changes nothing because the parts are round. Nobody has ever inserted a barrel plug backwards. Inside the jack a leaf spring rides the plug’s sleeve, the wiping contact that keeps small sockets honest through hundreds of insertions. Some sockets add a hidden switch, a contact that opens as the plug seats, the mechanism radios use to drop their internal batteries the moment external power lands. The leaf wears with the plug; a socket gone loose after years of daily insertions answers to a gentle re-tension, the whole repair a screwdriver’s width. The catalogue line for a jack of the size adds one more number, a 5,000 cycle insertion life, the figure behind years of nightly plugging.

Size is the barrel’s real language. The Japanese electronics industry wrote that language into a standard, EIAJ RC-5320A, which assigns each supply voltage band its own plug dimensions: up to 3.15 volts rides a 2.5 millimetre barrel, 10.5 to 13.5 volts rides a 5.5 millimetre barrel with a 3.4 millimetre pin, 13.5 to 18 volts moves up to 6.5 millimetres. A plug from one band meets the wrong dimensions in another band’s socket. Voltage keying by moulding, decades before smart handshakes existed. The ladder shows its age in one detail: the classes stop at 18 volts, written for radios and tape decks, leaving today’s 19 and 20 volt bricks outside the system, one root of the barrel confusion.

The market outside that standard is messier. Two plugs dominate small gear worldwide, both 5.5 millimetres outside, one with a 2.1 millimetre hole and one with a 2.5 millimetre hole; the pin diameter is the entire difference. The pair looks identical from arm’s length. A 2.5 plug drops over a 2.1 pin and wobbles, the contact coming and going with cable movement. The loose fit is the sneaky failure, flickering for months before anyone blames the plug. Mismatch in the other direction announces itself at the doorstep, a 2.1 hole stopping on a 2.5 pin before the sleeve ever seats. CCTV gear answers with threaded locking collars on the 5.5 millimetre barrel, a knurled nut that turns insertion into a screwed joint. Universal adapter tips add their own trap, a tip that seats two ways onto its lead and flips polarity with it; the horseshoe diagram on the brick stops meaning anything past that joint.

Barrel identities on and around a station panel

Plug	Pin / hole	Barrel OD	Voltage band	Common home
EIAJ-02	1.7 mm	4.0 mm	3.15–6.3 V	handheld gear
EIAJ-04	3.4 mm	5.5 mm	10.5–13.5 V	12 V equipment
EIAJ-05	4.4 mm	6.5 mm	13.5–18 V	older laptops
5.5 × 2.1 (market)	2.1 mm	5.5 mm	9–12 V typical	routers, CCTV, station DC out
5.5 × 2.5 (market)	2.5 mm	5.5 mm	12–19 V typical	laptop bricks, radios
Locking barrel	2.1 mm	5.5 mm + thread	12–48 V	CCTV, PoE injectors

Polarity on a barrel is pure convention. The convention varies by industry. Centre positive dominates general electronics. The dot-in-horseshoe diagram printed beside every socket states the wiring; reading it takes three seconds. Guitar pedals built to the Boss standard run centre negative through the identical 5.5 by 2.1 plug, the oldest working proof that geometry promises nothing about the wiring upstream of it.

Stations keep the barrel family deliberately small. A typical panel offers one or two 5.5 millimetre outputs at 12 volts, centre positive, fused inside at 3 to 10 amps; the printed figure beside the socket is the entire specification a matching lead needs. Router at half an amp, dashcam at one, LED string at one more; the fuse upstream sits far above the sum. A heated CPAP hose, five amps with the humidifier working, is the one common load that needs the jack’s fuse rating read first.

Gendered pairs and moulded trapezoids

Solar wiring solves polarity with gender. An MC4 pair has a male half and a female half, locking tabs that click, one way to join. Panel leads come moulded from the factory with genders assigned, which chains panels end to end with polarity forced at every joint. The forcing holds exactly as far as factory moulding reaches. A field-crimped extension with swapped cores reverses everything downstream of it. The lock clicks regardless; the click reports mechanical seating alone. Unlocking needs the small MC4 spanner, a plastic fork that releases the tabs, cheap insurance against pliers chewing a live connector. Panels ship with short factory pigtails; any distance beyond them rides on field-made extensions, the joint where the polarity question re-enters. The family’s own ratings run at solar scale, a 30 amp class certified past 1,000 volts DC, numbers from the rooftop world sitting far above anything a portable panel bay asks.

The RC hobby gave batteries the XT60, a yellow trapezoid moulded around two gold-plated 3.5 millimetre bullets. The housing enters one way, corners cut asymmetrically and mirrored in the mating half, with 60 amps moving through a block the size of a thumbnail. The bigger XT90 steps up to 4.5 millimetre bullets in a shell that stays out of XT60 sockets. Bullet contacts mate with a wipe along their whole circumference, which is why the family tolerates hundreds of pack swaps; worn bullets announce themselves with warmth at the shell after heavy draw. Stations wear these on expansion-battery leads and high-current accessories, the joints carrying pack-level current in user hands, sized for gloved fingers in the dark.

The Anderson port runs its own colour-key system, voltage bands segregated by housing colour, written up with the Anderson port itself. Round aviation-style connectors, the threaded metal shells on some expansion ports, key by pin count and a slot in the shell wall; a three-pin plug never seats in a four-pin shell. The threaded collar shrugs off the vibration that works friction fits loose. Every one of these schemes is a moulding decision made years before any user touches the machine.

The oval that needs no key

USB-C walked away from mechanical keying. The oval is rotationally symmetric with duplicate contacts on both rows, four power pins and four grounds sharing the current whichever way the cable lands. A pair of dedicated pins named CC reads orientation the moment the plug seats. The socket wakes cold, offers a whisper of detection voltage, and turns on 5 volts only after the handshake identifies a legitimate device; the newest contracts ride that one oval to 48 volts on the strength of the sequence. The wattage steps and their caps belong with the USB panel. A port full of pocket lint that refuses to charge is the handshake declining to complete, keying still at work with no moving parts. Damaged CC pins read as no device at all, the reason a port sometimes charges through one cable orientation only; flipping the plug lands the request on the intact contact. The keying itself is the CC exchange, finished before power exists to flow the wrong way. The receptacle spec sets mechanical life at 10,000 insertions, sized for a cable that moves every day.

Where reversal enters the system

Moulded connectors have made reversed insertion nearly extinct at the panel face. The mistake now enters through wiring, in four repeatable ways. Bare-wire connections come first: battery clamps, screw terminals on a charge controller, chassis grounds. Red on the wrong post is a two-second slip made at arm’s reach from the station’s car-charging input. Cross-checking costs one look, the red clamp’s lever and the battery’s raised plus moulding in one eyeline before anything conducts. A glance at the meter across the clamps, before the lead’s far end goes anywhere, settles it.

Home-crimped leads come second; a mirrored pair passes every visual inspection ever invented. Third come adapter leads bought loose online, moulding immaculate, wiring following whatever the cheapest factory did that month. A meter across the far end before first use answers in ten seconds; a minus sign on the screen is the entire diagnosis. Fourth, centre-negative gear plugged into centre-positive supplies through a barrel that seats perfectly.

All four arrive through hand wiring. Any lead that did not come sealed deserves one meter check before it touches the station, ten seconds of cost, once in the lead’s life. Sealed factory leads earn a pass on the check; their failure mode is wear at the strain relief. A lead that has started dropping out under a wiggle earns retirement, no meter needed.

The car socket deserves its own line. Trucks, coaches and many marine helms carry the socket unchanged at 24 volts, handing a 12 volt only device double voltage through a perfect mechanical seat; the sticker beside the socket is the only warning anyone gets. Compressor fridges absorb the range, built for 12 and 24 together. Anything built for exactly 12 wants the vehicle checked before the plug lands. The fridge’s own data plate reads 12/24V DC, a two-second confirmation.

The transistor standing guard

Behind every charging input on a modern station sits a solid-state one-way valve. The old version was a diode, a part that conducts forward and blocks reverse, spending 0.6 volts of headroom around the clock as the price. At 10 amps of charging that drop wastes 6 watts as heat, real money inside a sealed box that pushed designers to a transistor switched on only when the applied polarity is correct. A MOSFET doing that duty drops millivolts at full charge current, close enough to free that every modern input carries one. Stations with dual charge inputs, wall plus solar, run one guard per input; the pair doubles as an ORing stage that hands the load to whichever source stands higher. Back-feed toward the resting input dies at its own guard. Reverse arrives and the transistor stays off, leaving the input an open circuit with nothing to heat.

The behaviour from outside is undramatic. Clamp a car lead backwards onto a battery and the input line reads zero, the app logs an input fault, nothing warms up. Swap the clamps and charging starts as if nothing happened, the auto-restart that better spec sheets name. Recovery specifics vary by brand; some units want the input re-plugged before they resume, a detail the manual settles in one line. The solar input carries the twin of that guard plus a working voltage window, territory that belongs with the MPPT controller; a reversed panel string parks harmlessly against the blocking stage. The block earns its keep at night too, standing between the pack and a dark string that would otherwise drain it backwards. Units that keep fault logs preserve the record; a second-hand listing with a clean input-fault history says the previous bench was careful.

Output sides carry a different worry, current pushed back into the port by charged batteries or capacitive loads; a mirrored one-way stage meets it. The per-port fuse stays the final line behind every socket. The sacrifice runs in designed order, transistor first, fuse second, with hardware damage a distant third.

What shape cannot promise

Nineteen volts through a 12 volt door is the mistake keying never sees. Laptop bricks, router supplies and CCTV supplies share the two common barrel sizes across a spread from 5 to 48 volts. Nothing on the plug face distinguishes a 5 volt brick from a 19 volt one. The drawer holding three black wall adapters is the highest-risk square metre in the house. The brick’s own moulded fine print carries the truth, OUTPUT 19V followed by the solid-over-dashed DC mark; reading that line is the whole defence. PoE injectors already push 48 volts through the familiar 5.5 millimetre barrel, the top of the spread and the loudest argument for labelling every lead.

Tolerance decides the outcome. Tolerance is invisible from outside. A device built for exactly 5 volts meets 12 and dies in silence. Universal laptop bricks with switchable output add a dial that moves the trap between 15 and 19 volts and holds whatever its last borrower chose. The label on the device states its appetite; the fine print on the brick states the supply; the two lines agree on healthy gear. Vehicle electronics carry wide-input converters as a class, 9 to 36 volts on the label, built for the automotive rail’s bad manners.

Aviation-shell connectors repeat the trap at kit scale. Two four-pin shells from different vendors thread together; the pin meanings inside follow each vendor’s private drawing. Expansion-battery links between brands fail here, the reason stacking systems stay brand-locked. Adapters between brand systems exist on marketplaces regardless; each one is a private pinout guessed by a third party, live current through an unverified drawing. The shell standard covers mechanics alone.

The moulded layer filters three things, diameter, orientation and gender. Volts, amps and pin meanings ride through untouched. Labels and meters exist for exactly that gap.

One habit closes the bulk of the gap. A strip of tape on every non-sealed lead, written at the bench the day the lead is made, carrying volts, amps and polarity. The lead outlives the memory of its making by years.

An afternoon at the bench

One real afternoon shows the layers cooperating. The job: outfit a station-based camp kit with three leads, a 5.5 millimetre barrel extension for a 12 volt router, an Anderson pigtail for the fridge circuit, and an MC4 extension to reach a shaded panel bay. Twenty minutes of crimping sit ahead; every keying decision lands at the bench before a connector touches wire. The barrel lead gets centre positive, checked twice against the router’s horseshoe diagram. The Anderson pair gets red-right-tongue-up, matched against the station port. The pigtail runs 8 gauge over two metres to a fused block, 30 amp contacts crimped in four squeezes, the fridge’s 5 amp branch fused at 7.5. The router extension gets 18 gauge, generous for half an amp over three metres. The MC4 extension gets male on the end the panel’s female expects, cores traced by colour before the crimper closes. Then the meter pass: 12.04 volts tip-positive at the barrel’s far end, 13.2 on the Anderson with the station idling, the panel string reading 19 point something open-circuit through the new extension, correct sign on all three. The near-miss of the day sits in the parts drawer the whole time, a 19 volt laptop brick wearing the exact barrel plug the router expects, bought years ago for a machine long gone. It gets a strip of tape reading 19V laptop only and moves to a different drawer. Evening comes and the kit goes live with the station’s display as the last verification layer, input line showing the panel’s contribution, output line stepping up as the router and fridge land, no fault codes, no warm cables. Plugs seated before switches turned, the small sequencing that keeps DC connectors from arcing at make. The morning after reads clean, 3.8 degrees held in the fridge log, zero router drops, 24 percent of the pack spent, every joint in the chain either moulded right at a factory or checked once at a bench. Reverse insertion protection never fired, because the shapes and the meter did their work upstream of it, exactly the order the designers intended.

The session generalises to a rule of thirds. A third of the protection came moulded from factories. A third was wired and verified once at the bench. The electronic third waited behind the ports the whole weekend with nothing to do. Idle is that layer’s best case; careful bench work keeps it idle for years. The bench third is also the cheapest, one meter and one roll of tape against the price of anything the other layers guard. Kits that travel between vehicles earn a fourth habit, one voltage per connector family across the whole box, barrels for 12, XT for pack current, C for everything negotiated.

Reading the protection lines

Spec sheets compress the whole layer into scattered lines. Input sections carry reverse polarity protection as three plain words, sometimes with the recovery spelled out, auto-restart on correct connection. Output sections list per-port fusing. The lines that deserve trust name numbers, an input window in volts, a fuse in amps, a recovery mode; a sheet written that way has an engineering document behind it. A sheet that stays silent on reverse protection usually still has it, the feature costing cents at design time. Recovery is the line to hunt for. Auto-restart carries one concrete meaning, correct the connection and charging resumes with no button pressed and no fuse hunt inside a sealed box.

Absence tells its own story on the accessory side. Loose adapter leads rarely publish polarity at all. The moulded dot-in-horseshoe beside a station’s barrel socket is the one printed promise on the whole panel face; any lead that contradicts a meter loses the argument. Meters earn a spot in the lid of the kit box; the cheapest auto-ranging unit reads polarity as fast as the flagship; one glance at the sign closes the question.

Power Allocation Across Multiple Ports

The question every loaded panel raises

A station’s panel invites plugging everything in at once: a kettle on the AC socket, a fridge on the 12 volt port, a laptop on USB-C, a phone beside it. Whether the machine can feed all of that together is the allocation question. The printed specs answer it less directly than buyers expect. A 2000 watt unit is not a machine that hands out 2000 watts to whoever asks. It is a set of separate supplies with separate ceilings, sharing one battery underneath. The shares take ten minutes to learn, the price of never meeting a dark socket at dinner.

Three layers of limits stack up inside. Each port carries its own cap, the printed per-port figures of the 12 volt, USB, and Anderson groups. Above the ports, each family of ports draws from a supply stage with a budget of its own. Above everything sits the battery’s willingness to discharge, the ceiling the whole machine answers to. Allocation is how a real load walks through those three layers.

The reassuring part comes early. The layers mostly stay out of each other’s way. Loads split across different families barely interact. The everyday mix of a kitchen appliance plus a fridge plus some electronics runs with room to spare on a mid-size unit. The interesting cases, the trims and the trips, live at the edges. In a family kit the edge is nearly always a heating element or a motor start.

Two highways out of one battery

AC and DC leave the battery on separate highways, the fact that organises everything else. The inverter takes battery power and builds mains voltage for the AC sockets; that is one road. The DC ports, the 12 volt socket and the Anderson and the USB panel, each run off their own converter stages wired straight to the battery; those are other roads entirely. The 2000 watts printed on the front describes the inverter alone. It says nothing about the DC side. Each DC family carries its own stage size: around 120 to 160 watts behind the 12 volt group, 100 to 200 behind the USB panel, several hundred behind an Anderson where one is fitted. Small supplies, sized to their ports, running in parallel with the big one.

The consequence surprises people pleasantly. A machine rated 2000 watts can deliver 2000 through the AC sockets and feed the DC ports on top, both at once, because the DC watts never pass through the inverter. A fridge on the 12 volt port costs the AC budget nothing. A laptop on USB-C costs it nothing either. The marketing habit of printing one big number hides a machine that is genuinely wider than the number. A 2000 watt unit with loaded DC ports is honestly moving 2200-odd watts, a fact the display confirms and the front panel never mentions.

The separation reaches down into the hardware. An inverter is a heavy stage with its own transformer, its own cooling, its own protection. The DC converters are small buck stages, kin to the ones running the USB ports, each with its own current limit. They share the battery terminals and nothing else. One side can fault, restart, or switch off with the other side running straight through the event. Repairs follow that boundary. A failed inverter takes the AC sockets with it and leaves a working DC machine behind, which is why second-hand units sometimes sell as DC-only survivors.

Efficiency splits there as well. AC watts carry the inverter’s conversion cost, a slice lost to heat on every appliance. DC watts skip that toll, which is the standing reason the fridge belongs on the 12 volt port. Allocation starts before any budget maths, with the choice of which highway each load rides. One family of gear gets no choice, since anything with only a mains plug rides the inverter, overhead included, the case for buying the 12 volt version of whatever lives on the machine full-time.

The ceiling above all of it

The battery sets the grand total. A lithium pack tolerates discharge up to a current its chemistry and BMS allow. The common shorthand for that ceiling is the C-rate: a 1C rate discharges the entire battery in one hour, so a 2048 watt-hour pack at 1C is moving roughly 2000 watts. Everything the machine outputs, AC and DC together plus its own overhead, adds up against that figure. Overhead counts in the sum. The inverter’s conversion slice and the idle draws ride one battery, so the pack drains a shade faster than the output line alone predicts.

On the common sizes the grand ceiling sits at or above the inverter figure, so it hides. A 2048 watt-hour unit with a 2000 watt inverter reaches the battery’s comfort zone only with the AC side flat out and the DC side loaded on top, a corner of the map ordinary use never visits. Small packs paired with big inverters live closer to the line, so compact high-power units lean on surge tricks and firmware caps. A 512 watt-hour pack behind a 1200 watt inverter runs at 2.3C flat out, hard work for any chemistry. Units built that way hold the full figure for minutes at a time and guard the pack with temperature and time limits underneath. The layer exists on every machine; the question is only how much headroom separates it from daily life.

How the AC sockets share

Every AC socket draws from the one inverter, so the printed AC figure is a shared pool. Three sockets on a 2000 watt unit offer 2000 watts between them, in any split the loads happen to ask for. One kettle can take nearly all of it. Six phone chargers can sip from it together. The sockets are taps on one tank. The tank is the number that governs. Extension strips change the face count without touching the tank, the socket-count arithmetic again. A strip full of chargers still answers to the one inverter figure, through any number of faces.

Loads add plainly on that side. A 1500 watt kettle beside a 400 watt rice cooker asks for 1900, inside the pool with a sliver spare. Add a 300 watt blender and the sum crosses 2200; the inverter carries brief excursions on its surge margin. A sum that stays high trips the AC side off. The arithmetic never gets subtler than addition. A pencil and the appliance labels settle any planned menu in a minute. Sequencing is the free fix on tight menus. Boil first, cook second, and the pool only ever meets one heat appliance at a time.

Surge belongs to that shared pool as well. The inverter’s peak rating, commonly double the continuous figure, exists for motor starts and compressor kicks. One appliance’s start can occupy the entire margin for its half-second. Two motors starting in one instant is the classic mystery trip on a panel that looked comfortably loaded. Staggering heavy starts by a few seconds costs nothing and removes the coincidence. Fridges make the habit easy, since their starts wander in time; tools and pumps start when the trigger says, which puts the stagger in the operator’s hands.

Big sockets change none of it. A 20 amp socket on an American unit widens the door for one cord, a socket-standards detail; the pool behind every door stays the same size. Trip behaviour and reset steps are protection territory. For allocation, the AC side is a single budget wearing several faces.

The inverter also spends a little on itself. Holding mains voltage ready costs idle watts whether anything draws or not, an overhead of its own with one habit attached. An AC side switched off spends nothing, so the switch is part of allocation too.

The one live instrument

The output line on the display adds the whole allocation up in real time. Every port, every family, every layer lands in that single watt figure. Watching it as loads switch on turns the abstract budgets into a moving number. A plan drawn on paper gets checked against it in seconds. App-connected units break that figure out per family. The sum on the main screen stays the instrument that matters, one number, live, for the whole machine. Units charging and discharging at once show input and output lines side by side; the pack’s net movement is one subtraction away, the read that settles whether solar is keeping up with the evening.

The DC side keeps its own books

The 12 volt family runs on its own stage with its own budget, commonly 10 to 13 amps across the cigarette socket and the barrel plugs together, a fine-print figure from the 12 volt story. Loads inside the family share that small pool the way AC loads share the big one. A fridge plus a dash camera plus a lighting string is the working example, 8-odd amps of the 10 available, comfortable until someone adds an inflator. The family trips as a family. Cross its shared amps with the inflator running and every small load on the group drops together, then returns together after the reset.

The Anderson port, where fitted, rides its own heavier stage at 25 to 50 amps and holds its budget apart from the small DC family. A fridge pair on the Anderson leaves the cigarette-socket pool untouched for the small loads. Builders lean on that separation, heavy feed on its own stage, housekeeping loads on theirs, so no single appliance can starve the rest of the DC side. The same layout keeps voltage clean, since heavy draw on one stage leaves the other stage’s rail untouched. USB runs as a third pool with its own arithmetic. Port families are separate purses. The machine only merges them at the battery.

An AC overload shuts the inverter down. Ten seconds later the fridge on the 12 volt port has not noticed.

How the USB pool splits

USB allocation happens once, at plug-in. Each USB-C port negotiates a power contract the moment a cable seats. The contracts draw from the family’s shared budget, the mechanism behind the fine print that reads 100 watts alone or 65 plus 45 with two devices. Contract sizes follow the fixed PD steps, the voltage ladder from the USB story, so the pool splits in coarse chunks. A contract sets a ceiling only. The port reserves the wattage and the device draws what it chooses under it. The display shows the live draw; the contract stays invisible.

Plug order can decide who gets the big contract. A laptop arriving first on an empty pool negotiates the full 100 and keeps it; a phone arriving second takes what remains. Reverse the order and the phone may hold a contract sized for a phone, leaving the laptop the larger share. The contracts persist until something unplugs, so the fix for a bad split is mechanical: pull both, plug the hungry device first. Powered USB hubs muddy the water, presenting one negotiation for many downstream devices; a heavy laptop does better on its own port than behind a hub. A legacy A-to-C lead caps the handshake near 15 watts too, the quiet reason a fast phone sometimes charges at a crawl on the wrong cable. The negotiation also reruns after any firmware restart, so a machine that rebooted overnight can hand out different contracts by morning.

Renegotiation also triggers on its own when a device sleeps or finishes charging, so the pool drifts toward sensible splits over time. The drift is slow. Anyone watching the display after a replug sees the new contract land inside a second, which makes the pull-and-replug habit the fast path whenever the laptop is starving.

USB-A ports sip small fixed amounts and barely dent the pool. The budget drama on the USB side is a two-device affair, the laptop and whichever fast-charging phone shares the panel with it. Everything else rounds to noise. Wireless charging pads, where fitted, draw from the family budget too, at 10 or 15 watts, one more small contract on the pile.

An evening, fully loaded

Walk one loaded evening through all three layers. A 2048 watt-hour unit runs a camp kitchen: at seven, the 1500 watt kettle goes on for tea, the compressor fridge hums on the 12 volt port at its usual 45, a laptop draws 65 through USB-C, a router 10 beside it, phone at 18 on the second C port. The display’s output line reads a little over 1700, the inverter carrying 1500 of it and spending its own conversion slice, the DC stages carrying the rest straight off the battery. No budget anywhere is close. The AC pool holds 500 in reserve, the 12 volt family is a quarter used, the USB pool sits at 83 of its 130. The battery is discharging under 1C with margin. The kettle clicks off at four minutes and the line falls to 240. At eight the rice cooker takes the kettle’s place at 400. A second phone joins USB. Still nothing anywhere approaches an edge. At nine someone borrows the panel for a 1900 watt space heater with the rice cooker still on; the AC sum crosses 2300, the inverter rides its surge margin for a few seconds and trips the AC side dark. The fridge keeps cycling. The laptop keeps charging. The router never blinks. The 12 volt family and the USB pool ran through the whole event on their own stages, exactly as the hardware promised. Resetting the AC side takes one button once the heater has moved to a wall socket. The evening resumes exactly where it left off. By morning the pack reads 34 percent, tea and rice and twelve hours of electronics accounted for, with the only incident of the night filed under arithmetic, no fault anywhere in it. The whole night, read back, used every rule once: separate highways, one shared AC pool, small pools keeping their own books, and a battery that never came close to noticing.

The lesson generalises into the planning habit of budgeting each layer against its own ceiling, on paper, before the trip. Sums inside every pool mean a quiet panel. One pool oversubscribed means one side of the machine down, with the other sides indifferent. Written once on the lid of the kit box, the three ceilings turn every future trip’s planning into filling three blanks.

Overheads, switches, and quiet losses

Each enabled side spends standing watts. An idling inverter burns its overhead around the clock; the DC stages burn far less; the display and radios sip their own trickle. Numbers give it scale. Fifteen idle watts across a ten hour night is 150 watt-hours, seven percent of a mid-size pack, spent on holding a socket ready that fed nothing. That arithmetic belongs to the idle-consumption story. Allocation touches it in one place. Sides that are off spend zero, so the AC switch is a budget decision, made twice a day. Units with app control make the switch remote, the difference between walking to the machine at midnight and tapping a phone from the sleeping bag.

Auto-off timers embody that decision in firmware. Many units drop an unused AC side after a set idle period, a default that saves overnight users from their own forgetfulness. The same default occasionally surprises someone running a load too small for the sensor to count as a load. The threshold sits in the settings. Knowing it exists converts the surprise into a feature. CPAP owners meet the sharp edge of it. A night set to a gentler pressure can dip the draw under the sensor’s line and go dark at 2 a.m. Checking the threshold against the lightest load in the house is five-minute insurance.

Fans follow load. A heavily loaded inverter runs its cooling, a lightly loaded one stays silent, so the same 200 watts costs slightly less energy on the DC side than through the inverter, overhead counted. High combined loads on hot days can pull thermal limits into play.

Self-use rounds out the ledger. The display, the app radio, the BMS itself draw single-digit watts continuously, visible as the output line refusing to read zero on an idle machine. None of it is a fault. Ready electronics cost watts even at rest.

None of the quiet losses change the allocation rules. They shave the totals, a few percent here and a standing handful of watts there, the reason measured runtimes land under paper runtimes. Planning with a tenth of margin absorbs all of it, matching the allowance the charging arithmetic uses on the way in.

Planning on paper

The whole business compresses into a three-column exercise. List the AC loads and sum them against the inverter figure. List the 12 volt family against its amps, the Anderson against its own, USB against the pool. A plan where every column clears its ceiling runs without a single trim, whatever the combination, because the layers hold apart.

The evening plan against the worked unit’s ceilings

Pool	Ceiling	Loads in the plan	Sum	Margin
AC sockets, shared	2000 W continuous, 4000 W surge	kettle 1500 W	1500 W	500 W
12 V family	10 A shared, ~130 W	fridge 45 W, camera 10 W	55 W	75 W
USB pool	130 W stage, split by contract	laptop 65 W, phone 18 W, router 10 W	93 W	37 W
Anderson port	own stage, ~600 W	none in the plan	0 W	600 W
Battery layer	2048 Wh at ~1C, ~2000 W	every pool plus overhead	~1780 W	~220 W

The battery line gets one extra check for heavy plans: total watts against roughly the pack’s watt-hours, the 1C shorthand. Under it, the plan is safe from the grand ceiling too. The battery check matters on exactly two occasions: an all-electric kitchen running flat out, and a small pack asked to behave like a big one. Put numbers on the kitchen case. An 1800 watt ring plus an 800 watt oven totals 2600, past the 1C line of a 2048 watt-hour pack even where the inverter itself could carry it. Camp kitchens, work sites, and outage setups all pass or fail on the same three columns and one sum. The exercise takes five minutes with the appliance labels.

The output line then audits the plan on day one. Switch loads on in the planned combination, read the number, compare it to the paper sum. Agreement inside ten percent means the plan and the machine understand each other. Disagreement points somewhere specific, a label that overstates, a device drawing surge where the paper said steady, or a pool already carrying something forgotten.

What the spec sheet promises

A spec sheet quotes the layers separately. Reading it that way removes the ambiguity from the big number. Inverter watts describe the AC pool. DC amps per family describe the small pools. USB watts describe the handshake budget. No single line adds them, because no single load ever meets the sum; each load meets exactly one pool plus the battery behind everything. Comparing machines gets easier read this way too, since two units with one headline number can differ by triple on the DC stages behind it.

The one figure a sheet rarely prints is the grand total the machine can move at once. The omission is honest. The answer is the battery’s discharge ceiling. The pools rarely let a user assemble a load that reaches it. A buyer who checks that each pool covers its intended loads has done the whole allocation homework a purchase needs. The check runs in minutes against a packing list. Kettle and cooker against the inverter figure, fridge against the DC amps, laptop against the USB pool. The machine then either fits the household or names the port that falls short.

Application Scenarios for Anderson Connector

The heavy door on the DC side

Under a rubber cap on the front of W and L class stations sits a squarish socket with two flat silver contacts, wider than anything else on the DC panel. That is the Anderson port, the heavy door on the low-voltage side. It hands out 12 volts at three to five times the round socket’s current, through a connector built to hold that flow for hours and stay cool. On many units the port idles under its lid for much of the year, then carries the whole trip once the fridge kit comes out. Loads that outgrew the small round socket are what it exists for.

Direction deserves one line before anything else. On W and L class stations the Anderson port is an output. The arrow or label printed beside the port settles what a given socket does, because a few machines on the market use the identical connector shape for their solar input. Everything below assumes power flowing out. The cap’s underside usually names the family and the amps, the first place to look on an unfamiliar machine.

Why the shape exists at all

The cigarette socket tops out near 10 amps, about 120 watts at 12 volts. That ceiling comes from its construction: a sprung centre tip and two side leaves gripping a smooth barrel; the contact area amounts to a few square millimetres. The design dates from a dashboard lighter coil and was never meant as a power connector. Every van owner who has run one warm knows where its limits sit. Fuse ratings inside those plugs run 10 or 15 amps for the same reason; the format itself is the limit, whatever the load wants.

An Anderson connector carries current through a different geometry. Two broad, flat, silver-plated contacts press against each other across their full faces, held by leaf springs, wiping clean against each other with every insertion. Silver oxide conducts, the quiet reason silver plating suits a connector that lives outdoors; the wipe plus the chemistry keeps resistance flat across years of mating cycles. Contact resistance lands in the fraction-of-a-milliohm range. At 30 amps, a half-milliohm joint drops about 15 millivolts and dissipates half a watt; the connector stays cool at currents that would cook a sprung barrel. Heat is the whole ballgame in connector ratings; a datasheet current is a temperature-rise figure in disguise, the amps at which the contact warms a fixed number of degrees over ambient. The flat contact starts that race further back.

That geometry is what lets a 12 volt port grow past the size of a night light. A PP45 pair moves up to 45 amps, 576 watts at a nominal 12.8 volts. An SB50 moves 50 amps and 640 watts. The barrel geometry cannot scale to those numbers; pressing a bigger spring against a bigger tube multiplies the same small contact patch. Flat-on-flat is the geometry that scales. Those are AC-appliance numbers flowing through a palm-sized DC plug. They arrive without an inverter in the path, which spares the round trip up to 230 volts and back down.

Voltage stability matters as much as the ceiling. Compressor fridges, radios, and diesel heater controllers all watch their supply voltage. Some shut down when it sags. A fat contact plus the heavy cable it crimps to holds the voltage at the load close to the voltage at the station. The loads downstream see a stiff supply, which is half of what people are buying when they buy the port. Numbers make the point. A five metre lead of 8 gauge wire runs about 20 milliohms out and back; at 10 amps the cable drops a fifth of a volt and the connector itself a hundredth. The load sees nearly the source voltage, compressor starts included.

The last piece is mechanical. Dovetailed side by side and stacked, a red-black 12 volt pair travels as one block that cannot be plugged half-in. Insertion wipes the contacts clean of oxide. There is no thread to cross and no latch to snap off. The connector survives thousands of cycles of field handling. It was designed for forklift and telecom service first; camping gear inherited an industrial part. SB blocks began life as forklift battery connectors, sized for charge currents in the hundreds of amps and thousands of connect cycles a year. Telecom rooms adopted the family for the same reasons, rack batteries swapped hot by technicians in a hurry. The camping version of that duty is light work.

Powerpole and SB, the two families

Anderson is the company; the connectors on stations come from two of its families. The small modular one is the Powerpole, the red-and-black pair a few centimetres across. Its trick is that the 15, 30 and 45 amp versions share one plastic housing and differ only in the metal contact inside. A PP15 on thin wire mates with a PP45 on heavy wire without complaint. The rating of the connection follows the smaller contact and the thinner wire inside. In practice that means one crimper and one housing stock cover a whole kit: 15 amp contacts on accessory leads, 45 amp contacts on the feed, every plug in the drawer able to mate with every other. The 30 amp contact is the workhorse in station pigtails, matched to 12 gauge leads; 45s appear where a maker expects fridge-pair or charger duty.

The SB family is the single-piece block, moulded as one housing that carries both contacts. SB50 is the size found on stations and camper wiring; SB120 and SB175 run winches and machinery. SB housings are keyed by colour: grey mates with grey, red with red, blue with blue. The mechanical keying keeps a 12 volt grey plug out of a 36 volt blue socket on a forklift charger. Colour on an SB is a voltage label enforced in plastic. Camper leads and station pigtails arrive grey almost without exception, the colour that market settled on.

Stations carry one or the other depending on class. A Powerpole pair suits gear that hops between radio kits and small panels. An SB50 suits a single heavy feed to a vehicle installation. Both do the same job at these power levels. The rest of a person’s gear usually casts the deciding vote. Mixed fleets bridge with a short jumper, PP pair on one end and SB50 on the other, a lead every van shop sells ready-made. Labels beat memory across a mixed kit; a strip of tape naming volts and amps outlives anyone’s recall of what a grey block feeds.

The connector family on and around stations (typical figures at 12.8 V nominal)

Connector	Rated current	Wire it takes	Watts at 12.8 V	Note
Cigarette socket	10 A	fixed leads	~128 W	legacy plugs, fuse in the tip
Powerpole PP15	15 A	20–16 AWG	~192 W	accessory leads
Powerpole PP30	30 A	16–12 AWG	~384 W	the common station pigtail
Powerpole PP45	45 A	14–10 AWG	~576 W	fridge-pair and charger duty
SB50	50 A	12–6 AWG	~640 W	one-piece block, colour-keyed

What runs off it

The compressor fridge pair is the load that sends people to this port. One 50 litre fridge-freezer averages 40 to 60 watts through a warm day. Two of them, a fridge and a dedicated freezer, run 80 to 120 sustained with compressor starts on top. A long weekend of that duty wants thick copper the whole way. Fed through an Anderson on 8 gauge wire, the pair sees full voltage at every start. Starts are the test that matters: a compressor pulls three to five times its run current for under a second, and a supply that sags through that second is what invites the guard to trip. The low-voltage guard never trips on this feed. Drawer systems and fridge slides in utes wire the same way, one heavy feed running forward, the fridge riding wherever the load space wants it. Runs of four to six metres are routine in those layouts, the distance the heavy gauge exists to cover.

Van and camper distribution is the second big case. One Anderson feed runs from the station to a fused distribution block. The block fans out to lights, sockets, a water pump, a heater controller, USB outlets. The Anderson-to-fuse-block pattern, a copy of how camper electrics are already laid out, turns the station into the house battery of a small van build with no rewiring of the van. Unplug one connector and the whole house side lifts out with the station. The pattern scales from a two-way block with a pair of loads up to an eight-way busbar build, on identical wiring grammar. Swap-in weekends come with it: the same van block accepts a friend’s station, any brand, so long as the pigtail family matches. Rental and loaner stations slot into the same builds for the same reason.

DC-to-DC charging rides the same port. A battery-to-battery charger pulling 20 to 30 amps tops up a trailer battery or a second pack from the station’s supply, a job flatly past the round socket’s ceiling. The charger holds its current for hours at a time; hours at full current are exactly the duty the flat-contact design was rated for. Heavy 12 volt tools sit here too: air compressors above the tyre-inflator class, winch remotes, high-output lighting rigs for a work site or a film shoot. Field camera departments run the same pattern, one station feeding a cart of chargers and monitors through a fused strip, with no inverter fan to stand beside a live microphone.

Amateur radio leans on the plug for standardisation first and wattage second. A 100 watt HF transceiver draws about 20 amps on transmit, inside Powerpole territory and past the comfortable range of anything else on the DC panel.

Two identical halves

An Anderson connector has no male and no female; the two mating halves are identical. Wikipedia’s word for it is hermaphroditic. Any cable end fitting any other of the family means extensions chain without adapters and a supply lead doubles as a charge lead. The box of gendered spares never gets bought. One shape covers every role a cable can play. Stock shrinks to one crimper, one bag of housings, one habit. Loan a lead, keep a lead; nothing about it has a wrong end.

The ham radio connection

Amateur radio standardised on the Powerpole years ago. The emergency services within the hobby, ARES, RACES and WICEN among them, adopted it as the common 12 volt connector. On that standard any operator’s radio plugs into any other operator’s supply at a field site, no adapter hunt. Distribution strips with six or eight Powerpole outlets are standard shack furniture. A power station wearing the same connector drops into that ecosystem as one more supply, which is exactly how clubs use them at Field Day and at emergency exercises. Transmit duty is the sizing detail. Digital modes hold the full 20 amps for a whole transmission, the hardest case the port meets, covered by the rating with margin to spare. Club distribution boxes add per-outlet fuses and a master switch, the same block-and-branches grammar a van build uses.

The standardisation logic runs on the genderless design. A battery can source power or soak it up. A connector that never declares current direction lets one plug standard cover radios, supplies, batteries and chargers alike. That is the property the emergency groups were buying. The same property lets one station charge a drained field battery in the morning and run from a full one at night through one unchanged lead.

A weekend on one feed

Watch the port work through an ordinary van weekend. Friday evening, one SB50 lead runs from the station to the van’s six-way fuse block, one plug insertion for the whole house. The fridge and freezer pair settles into its cycle, 90-odd watts when a compressor runs. The diesel heater fires at ten. Its glow plug pulls a hard 8 amps for ninety seconds before dropping to a half-amp hum, and the fridge compressor happens to start in the same window. The block still reads 13.1 volts, because 8 gauge cable and half a milliohm of contact do not notice 20 amps. The heater’s controller, the fussiest voltage-watcher in the van, boots without a flicker. Nothing resets, nothing chirps. Saturday runs lights, a diagnosis laptop for the van’s own electrics, a compressor topping the tyres, phone charging off the block’s USB pair, the radio on through the afternoon. Twenty amps flow whenever the operator holds the key down; the fuse block’s voltage dips a tenth and settles. The heaviest coincidence of the weekend stacks the heater start on a fridge start on the air compressor, 35 amps for a few seconds. The SB50 carries it the way a motorway carries three cars; the weekend’s worst case still leaves fifteen amps of headroom. Sunday morning the station reads 41 percent, the arithmetic of two days of real living. The display’s DC output line has spent the weekend wandering between 15 and 350 watts without one event to remember. Packing up is one thumb under the connector body and a straight pull. The van keeps its fuse block and wiring; the station rides home to charge; the next trip starts by pushing two identical halves back together. That is the whole experience the port sells: one thick, boring, dependable feed under everything, sized far above any combination of starts and surges.

Vibration is the one field condition to engineer for. Powerpoles hold by friction alone, and a washboard road can walk a loose pair apart over hours. Retention clips and roll pins exist for exactly this; installers in rough country fit them as a matter of course. SB housings grip harder, one reason vehicle installs lean that way.

Crimping decides more reliability than any other choice. A properly crimped contact grips the wire in a gas-tight joint that survives years of flexing. Soldered joints wick stiffness up the strands. The wire eventually fatigues right where the solder ends, a failure vehicle wiring standards have documented for decades. A bargain crimper on a 45 amp circuit costs more than it saves. Ratcheting crimpers with the correct die close to a calibrated depth and release only when the joint is made, the feature that separates them from pliers. Two crimps, a tug test, and a look at the wire entry cover quality control for a lead built at home. The retention spring inside the housing holds each contact at a set depth; a contact seated a millimetre short shows up later as heat under load, the fault the tug test exists to catch.

Cable gauge has to match the contact. A 45 amp contact crimped to thin lamp wire makes a connector rated by its weakest part, the wire. Ratings stack downward: housing, contact, crimp, cable. The smallest number wins. A workable bench habit is one grade of wire per current class, 8 gauge for feeds and 14 for branches, so a glance at the copper says the rating. Anyone building leads writes the ampacity of the finished cable on the sleeve, because a year later nothing about its outside says what is inside.

Weather sits last. The standard housings sit open at the back. Wet weather calls for a drip loop, a position under cover, or the sealed marine variants built for wetter duty. Overland builds sometimes pot the back of a fixed socket in silicone up to the mating face, a half-seal against spray that still lets the halves part. Tinned marine cable resists the green corrosion bare copper grows in damp footwells, a cheap upgrade on any lead that lives outdoors.

Assembly and the one trap

Powerpole housings arrive loose and dovetail together. The dovetails permit several arrangements. The one trap in the whole system is assembling a red-black pair mirrored relative to the gear it must mate with, at which point the connectors refuse to seat, or worse, seat with polarity crossed on a non-standard pair. The amateur radio world settled a convention decades ago, red on the right with the contact tongue up. Nearly all commercial gear follows it. One sentence covers the practical rule: match the arrangement on the station’s own port before crimping anything, and check red-to-red alignment on first insertion.

Polarity itself stays honest after that. The housings only mate aligned, colour against colour. A correctly assembled pair cannot reverse. The five-minute check at the workbench buys years of blind plugging-in at night, in rain, in gloves.

First assembly is also the moment to load the roll pin or clip if the install will vibrate, since retrofitting one into a wired loom is fiddly work. Pins drop into a moulded channel between the dovetails and lock the pair against working loose; clips do the same job from the outside. Everything about the system rewards deciding at the bench.

None of this needs special tooling past the crimper. The contacts push into the housing by hand and click over a spring; a misloaded contact backs out with a small screwdriver. Repair in the field is realistic, which is one more reason expedition and radio people trust the family. A spare pair of housings and four contacts ride in a glovebox and weigh nothing.

Adapters and the limits they carry

Adapters bridge the port to older gear. An Anderson-to-cigarette-socket pigtail lets legacy plugs ride the heavy feed. Each such adapter carries the old socket’s ten amp ceiling along with it, whatever shape sits on the end. Ring-terminal leads go the other way, putting an Anderson on gear that arrived with bare lugs: a compressor, a fixed radio, an old spotlight. Ten minutes of crimping folds legacy kit into the same one-plug system. The pigtail kit that ships in many boxes covers the first two of those jobs on day one.

Anderson-to-ring-terminal leads, Anderson extension cables, and Y-splitters fill out the kit. Splitters divide the port’s current budget across their legs. A fuse block remains the better version of the same idea, one fuse per branch.

A station also splits its total output across every port at once, one budget per port family under the battery’s total.

Reading the spec row

On a spec sheet the port reads as a line like: DC output, Anderson, 12.8 V, 30 A max. The connector name says the shape, the amps say the ceiling. Multiplying the two gives the honest watt figure, 384 in that example. Ratings differ machine to machine inside one brand, which leaves the printed row to settle it every time. A row that names PP45 or SB50 with no amp figure still hides a ceiling, set by the station’s internal fusing. The connector name carries shape information only. Sometimes a second number rides the row, a per-port fuse rating. Replacing that fuse with a bigger one strips the wiring behind it of its protection.

Fusing behind the port is the station’s business. Every branch wired after it wants its own fuse sized to its own cable, the same discipline as any vehicle circuit. The port’s amp rating protects the connector itself.

Shortlist the port whenever the DC loads stop being gadgets: a fridge pair, a van build, a radio kit, a second battery to keep charged. Everything lighter lives happily on the round socket and the USB panel. Bigger loads, when they arrive, land on the Anderson.

USB and Type-C Port Power Output Cap

The number is a ceiling, not a delivery

A phone on a station’s 100 watt USB-C port draws 27 watts and holds there. Move a laptop onto an identical port beside it and the figure climbs to the full hundred. The wattage printed by a USB or Type-C socket marks a ceiling the port can supply. What flows under that ceiling is whatever the device asks for. The gap between the printed number and the delivered one trips up more buyers than any other figure on the panel. Sellers quote the ceiling because it is the biggest true number they can print. Nobody is lying; the reader takes a ceiling for a delivery.

Every modern USB-C port runs a negotiation the instant a cable seats home. Device and port trade messages across the connector’s signalling pins, a conversation done in well under a second. The device lists the power profiles it accepts. From the overlap with its own menu, the port grants the highest one on offer. The 100 on the label is an opening bid, nothing a device is bound to take. Watching a station’s own wattage readout during a charge shows the settled figure, which lands wherever the quieter party set it.

Three parties set the delivered figure, one more than a buyer tends to count. The port caps it from above; the device asks only for what its charger circuit can use; the cable, third and least expected, imposes a ceiling of its own. Delivered power lands at the lowest of the three. Whichever party runs stingiest on the day sets the rate. The cable is the one nobody thinks to check.

The practical habit is to read three things before expecting a fast charge: the port’s number, the device’s appetite, the cable’s rating. On the way out, a station acts as the charger, its battery the energy behind the socket and its PD chip the negotiator. Charging the station through that same port reverses the roles, a mirror case handled separately. Read as an output, the port is the simpler half of the story, the half a buyer touches every day.

Volts times amps, and the two hard edges

Watts are volts times amps. USB output lives entirely inside that one equation. The connector carried 5 volts and half an amp in its first generation, two and a half watts, power for a mouse and no more. Power Delivery kept the equation and lifted both terms: the voltage up a ladder toward 20 and past it, the current from half an amp as high as five. The product climbed from single digits to 240 watts across two decades, the plug itself unchanged. Doubling the voltage does the heavy lifting: raising volts moves more power down the same thin wire than raising amps ever could, without the heat that extra current brings. This is the reason the ladder climbs in voltage first.

One boundary inside that range governs almost everything a buyer meets. Below 3 amps a plain cable copes without complaint. At 3 amps and 20 volts the port reaches 60 watts, the figure a standard USB-C cable tops out at. Past 60 watts the current has to rise toward 5 amps, a level that needs a cable built and marked for it. That single step, 60 watts to anything above it, is where fast-charge disappointment usually begins. Below the step, life is easy and any cable serves. Above it, the cable turns into a chosen component, picked for its rating.

The voltage ladder the port climbs

Power Delivery offers power in fixed rungs, a stepped ladder with no smooth dial. The standard profiles sit at 5, 9, 15, and 20 volts, each paired with a current the port can hold. A device asks for a rung; the port grants it when it carries that rung; both hold the voltage steady for the length of the charge. Five volts runs the small stuff. Nine and fifteen suit phones and tablets. Twenty volts carries the laptops. Odd voltages between the rungs do not exist in the fixed set; a device that wants 12 volts takes 9 or 15 and manages the difference inside its own circuit.

Above 20 volts a newer tier opens, the Extended Power Range. Its rungs climb to 28, 36, and 48 volts. At 48 volts and 5 amps sits the 240 watt figure. EPR is what puts a gaming laptop or a small power tool on a USB-C cord. Few small stations reach it yet; the S-class units this concerns tend to stop at 100 watts, the 20 volt rung at 5 amps. The ceiling a port advertises names the highest rung it will ever grant. Reaching that rung asks the device to want it and the cable to carry it, both true at once.

One profile bends the fixed ladder into a slope. Programmable Power Supply, PPS, lets a device and port settle on a voltage in fine steps of twenty millivolts, smoothing the rungs away. The point of it is heat. A phone charging on a fixed 9 volt rung drops that 9 down to its own cell voltage inside its body, a conversion that turns to warmth against the battery. On PPS the port hands over a voltage already near what the cell wants. The phone stays cool. The cooler the cell, the faster it takes a charge and the longer it holds capacity, one reason PPS belongs on the short list of specs to check on a small station. Not every phone speaks PPS. Phones that do gain their biggest advantage on the busiest part of a charge, the first climb to 50 percent.

None of this is set once and forgotten. The pair renegotiates whenever the draw changes, a laptop waking from sleep or a phone crossing 80 percent and easing off. Voltage can step from 20 down to 9 mid-charge as a device’s need falls, the port following in real time. The label figure is the peak the port can hit, touched only when a device both wants and can take the full amount.

Read the port’s number as a maximum voltage-and-current pair, then. A hundred watts means 20 volts and 5 amps available at the top of the ladder. Everything below that the port can also do, one rung at a time, whenever a device calls for less.

PD voltage rungs and the watts a cable can carry at each (illustrative)

Voltage rung	At 3 A (plain cable)	At 5 A (e-marked)	Typical use
5 V	15 W	15 W	phones, small gear
9 V	27 W	45 W	phones, tablets
15 V	45 W	75 W	tablets, light laptops
20 V	60 W	100 W	laptops
28–48 V (EPR)	n/a	140–240 W	gaming laptops, tools

The cable in the middle

The cable earns its own section because it sets the ceiling more often than either box, quietly and without warning. Every USB-C cable carries a current rating of 3 or 5 amps. Above 3 amps that rating has to be declared by a chip inside the plug, an e-marker the port reads during the handshake. A cable without that chip counts as a 3 amp cable, capped at 60 watts whatever the port and device could manage between them.

This is the answer to the complaint that dogs USB-C charging. A 100 watt port, a laptop that accepts 100 watts, a charge that crawls in at 60: the cable is the missing 40 nearly every time. The thin lead that came with a phone, or a generic one from a drawer, carries 3 amps and stops there. Nothing in the port or the laptop announces the shortfall; the number on the screen sits lower than the spec sheet promised and gives no reason. A 5 amp e-marked cable is the one fix that works. No firmware update, no menu setting, and no amount of waiting lifts a 3 amp cable past 60 watts.

Telling a 5 amp cable from a 3 amp one by eye runs close to impossible, which is the trap. The rating lives in the chip, invisible from the jacket. Heavier cables and ones sold for laptop charging tend to carry it. EPR cables for the 140 and 240 watt tiers are marked again separately, rated for the higher voltage as well as the 5 amps. For a station capped at 100 watts, one known-good 5 amp cable kept with the unit settles the matter for every device that will ever plug in. Braided cables sold with a printed wattage on the sleeve are the safe buy; the wattage on the packet is the maker declaring the e-marker inside.

Three limits on one plug

Put the three ceilings together on a single connection. A 100 watt port, a laptop asking for 90, a 5 amp cable able to pass the full 100: the laptop gets its 90, held back by nothing, its own request the lowest number in the room. Swap the cable for a 3 amp one and the same laptop drops to 60, the cable now the floor. Swap the laptop for a phone asking 27 and the figure falls to 27, the port and cable both idling far above it. The delivered watt is always the smallest of the three offers on the table. Knowing which of the three is smallest is the whole diagnostic skill. Two of the three sit in plain sight on labels. The cable’s rating is the hidden one, which is why it wins the guessing game so often.

What real devices ask for

Phones sit at the bottom of the useful range and rarely climb far up it. A current flagship pulls 20 to 45 watts at its fastest, holding that peak only through the first stretch of a charge before the taper. Mid-range phones settle near 18 to 27. A 30 watt port already charges nearly any phone at its own ceiling. A 60 or 100 watt port spends the extra headroom on nothing a phone can use. Fast-charge records on phones come from the phone’s own charger and firmware, not from a bigger port behind them.

Tablets and handheld consoles ask for a little more, 30 to 45 watts for the larger ones. The gap from a phone stays small enough that a 45 watt port covers the whole handheld world at full speed. Portable monitors and the powered accessories that ride USB-C sit in the same band, tens of watts, never near a laptop’s demand. One cable can run a portable monitor and pass its touch data at the same time, the power and the signal sharing the connector.

Laptops are the loads that justify a high cap. A thin ultrabook charges at 30 to 65 watts and runs happily off a 60 watt port. A 14 inch workhorse wants 65 to 96. A gaming or workstation laptop asks 100 to 240 and treats a 100 watt port as slow, drawing what it can and leaning on its own battery while it runs. The cap that matters is the one that meets the heaviest laptop in the house. Buy for that machine and the phones and tablets ride underneath it without a thought.

A device asking more than a port offers does not fail. It takes the ceiling and works within it. A 240 watt laptop on a 100 watt port charges at 100, slowly, drawing on its own battery when the workload runs hot. That undercharge is the cap doing its declared job. The charging light stays on, the percentage climbing slower than a wall brick would manage, sometimes dipping under a heavy render. An undersized cap only ever slows a charge; nothing on either end takes harm from it. Overspeed is the danger the standard was built to prevent. Negotiation is the mechanism that prevents it, a port never forcing more than a device agrees to take.

USB-A, the five-volt relic

The rectangular USB-A ports on a station are a different animal, frozen at 5 volts. No Power Delivery runs on the older connector; it cannot raise its voltage, so its power lives entirely in current. A typical A port gives 5 volts at 2.4 amps, 12 watts. Better ones reach 3 amps, 15 watts. That is the whole envelope, fixed by the connector’s age. USB-A predates Power Delivery. No revision has bolted the newer protocol onto the older shape.

Some A ports break the 5 volt rule through a side channel. Qualcomm’s Quick Charge and a few similar schemes signal a compatible phone to accept 9 or 12 volts on the old connector, reaching 18 watts and past it. The scheme is proprietary, tied to the phone’s chipset, invisible to anything that cannot speak it. A Quick Charge port and a Quick Charge phone run fast together; either one alone falls back to plain 5 volt charging. Reading the A port’s label for a QC or SCP tag tells the buyer whether the trick is present at all.

The split between the two connectors is plain in use. Anything shipped with a USB-C cable belongs on a C port, where the voltage climbs to meet it. Older gear on an A-to-C or A-to-micro cable runs fine on an A port at the slower 5 volt rate. A laptop on an A port draws nothing on the usual machine, the 12 watts on offer sitting below its floor. A device charging slowly on A moves to C as the first thing to try. Half the slow-charge puzzles on a station end there, at the wrong connector.

One budget behind many ports

The wattages printed beside two ports do not always add up to a promise. Many small stations feed all their USB-C ports from one internal supply on one shared budget, so a port marked 100 watts alone drops to 65 the moment a second device joins it. Some labels say so in small type, 100 watts alone or 65 plus 45 with two devices; others leave the buyer to find out. One device on one port sees the full number. Load every port at once and the total divides across them. The split favours whichever device negotiated first on some machines. Others divide it evenly. The manual names the rule for a given unit.

A second, larger budget sits above that one. On many machines the whole output side, AC and USB together, draws from one inverter total, so a heavy AC load can quietly pull the USB ceiling down. How a machine splits its watts across everything running at once is its own topic, handled where allocation is the subject. For the USB ports alone, the rule to carry is that a printed per-port number assumes that port is working by itself. Charging one laptop fast means giving it a port to itself, the neighbouring sockets left empty for the duration.

Reading the label and the slow charge

A USB row on a spec sheet packs four facts into a short line. Take a spec line reading USB-C 100W with PPS, USB-C 30W, USB-A 18W with QC: two C ports at 100 and 30 watts, one of them with programmable voltage, an A port with Quick Charge at 18. The wattages are per-port ceilings, the PPS and QC tags name the tricks each port can do, and any shared-budget note the maker prints sits nearby. Four numbers and two tags settle what the panel can drive. Nothing else in the row changes the outcome for a device with a cord.

Follow one slow charge to its cause, the way an owner meets it in the kitchen. A 96 watt-hour laptop goes onto a station’s 100 watt USB-C port and the screen reads charging. An hour in, the battery shows only 40 percent, a pace near 45 watts where 90 were hoped for. First suspect the cable, the part that fails oftenest here and clears cheapest: the lead in the port is the thin one from a phone box, 3 amps, capped at 60 watts before any other limit is even weighed. A 5 amp e-marked cable goes in to rule it out. The pace lifts partway, the charge now closer to 65 watts than 90. Second suspect the shared budget: a phone is charging on the station’s other C port, on a panel that splits 100 into 65 and 45 with two devices busy. Unplugging the phone frees the full 100. The laptop’s own 90 watt draw now flows clean, the battery climbing at the rate the spec sheet named. Had the pace stayed low with a good cable and an empty second port, the last suspect would have been the laptop itself, holding its own intake down because its cells were warm or its processor was eating power as fast as the port fed it. Each step of that hunt is a number set against a number: delivered watts against the port’s cap, the cable’s rating, the device’s request, the load on the neighbouring port. None of it needs a meter beyond the wattage the station already shows on its own screen. The three suspects come in the order of how often each is guilty, cable first by a wide margin, shared budget second, the device itself a distant third. The rarer cases surface by elimination, one swap at a time, the live readout scoring each attempt as it is made. By the third swap the number has either reached the laptop’s 90 or named the part still holding it back.

Buying comes down to the heaviest device that will lean on the port. A household of phones and tablets is served by 30 watt ports and gains nothing from more. One laptop in the mix lifts the floor to 60 or 100, set by which laptop it is. The rare gaming laptop or the pro-video machine is the one reaching for 140 or 240, tiers still scarce on small stations. Match the top port to the top device, and every lighter load rides comfortably underneath. Headroom above a device costs nothing in use; a 100 watt port charging a phone runs no hotter than a 30 would.

Port count answers a different question than port cap. Four USB ports let four things charge at once. Cap is the separate axis, governing how fast any one of them goes. A weekend of phones is a count problem; add one hungry laptop and it turns into a cap problem. The two rarely compete on a single machine. Ports are cheap to add. High wattage is the feature that runs up the price. A four-port panel of 30 watt sockets and a two-port panel with one 100 watt socket can cost a maker about the same to build.

One more line hides on many USB-C ports: the same socket that powers devices can charge the station from a wall brick or a car adapter. That reverse direction carries its own ceiling, a matter handled elsewhere. As an output, the port asks only to be read for its three numbers and fed a cable that can carry them.

Where the small numbers land

The USB figures on a small station decide more of daily life than the big inverter number does, since phones and laptops are what a person charges every day. The whole behaviour reduces to one line held in the head: delivered power is the smallest of port, device, and cable, so a fast charge needs all three sized alike.

On a real morning the panel does its quiet work, a phone off the 30 watt port at breakfast, a laptop off the 100 through a good cable while the coffee brews, both full before the day starts. The numbers that made that happen were read once, in a shop, off a spec sheet: two ports, two caps, one cable rating to match. Everything after is plugging in. The socket keeps no memory of the choice and asks nothing further of the owner.

Common Uses of the DC 12V Port

A car socket that answers to a battery

A round car-style socket sits on every station’s output panel, the 21 millimetre opening dashboards have carried since the sixties. Anyone who has owned a car knows it on sight. On a power station it runs as an output: a dedicated converter behind it turns pack voltage into a steady 12 volt rail, and power flows outward only. Charging a station from a vehicle happens at an input, a subject of its own. The shape is pure car heritage; the electronics behind it owe a car almost nothing.

Ten amps is the usual ceiling, 120 watts at nominal voltage, printed beside the opening or in the output row of the spec sheet. Compact units sometimes hold the line at 8 amps; big ones stretch to 15. The shape stays constant across all of them. Next to an inverter’s thousands the figure reads small, sized for loads that read small themselves. Ten amps at twelve volts still feeds a fridge, a router, and lights together, with budget spare.

Car fridges, tyre inflators, CPAP machines, dash cameras, routers on 12 volt bricks, LED camp lighting, cool boxes, vacuum cleaners shaped like thermos flasks: an entire product culture lives on the far end of that socket, decades deep, every item arriving ready-terminated in the matching plug. A power station adopts that whole catalogue in one stroke. No adapters, no new cords. Second-hand markets and truck stops keep the catalogue cheap and everywhere. A household can equip an entire outage kit around this one socket for the price of a single AC appliance.

The port also carries the quietest efficiency story on the panel. Small DC loads served at DC skip the inverter entirely, along with the overhead an idling inverter charges just for being awake. A pack feeding a 12 watt router through this socket spends its watt-hours on the router alone. Small loads with 12 volt cords belong on the 12 volt port. The rest of the case for that rule is a story about idle inverters, told separately.

The regulated rail behind the port

The socket format grew up in vehicles, where the 12 volt rail leads a rough life. Engine off, the rail rides the battery down through 12.6 and toward 11; engine on, the alternator lifts everything to 14 and a half. Every accessory sold for the format learned to live inside that churn. Bulbs were sized for it, motors shrugged at it, electronics grew tolerant input stages to survive it. Twin-USB car adapters of the smartphone decade were engineered around the worst of that swing. That inherited toughness is one reason the catalogue survives decades of reuse. The 12 on the label always named a family of gear, loosely tied to any meter reading.

A power station rebuilds the rail from scratch. Its DC-DC stage takes whatever the lithium pack offers and holds the output near one figure, commonly in the low thirteens, from a full pack to an empty one. The figure at minute one is the figure at hour thirty. Load changes barely dent it. Pack decline never reaches it. Ripple stays small enough for radios and cameras, the gear fussiest about its feed. The held figure is a design constant, end to end. The stage producing it comes from the buck-converter family that runs the USB ports, sized bigger and tuned for one job.

Steadiness pays off first in the loads that watch their own supply. Compressor fridges ship with a low-voltage guard, a setting that watches for a sagging feed and cuts the compressor to protect whatever battery is upstream. A station’s rail hands the guard nothing to act on. The guard arms, watches a flat 13-and-a-bit for three days, and stands down untouched. Mystery midnight shutdowns, a staple of fridge forums, trace back to sagging vehicle feeds in thread after thread. Guard settings can stay on their factory defaults for the same reason. Nothing on a held rail ever walks the voltage down to where the settings live.

A multimeter across the port reads 13.2 to 13.6 on many machines. Factory intent puts the figure there. Lead-acid vehicle systems float in exactly that band, so the accessory world was built to drink it happily. A “12 volt” port holding 13.4 is a healthy port speaking its native dialect. Meter checks belong at the plug end of a suspect cord in any case; the port end almost always reads to spec. Cheap plug-in panel meters read a tenth high or low besides; the trend they show matters more than the digit. Meters clipped at the appliance end of a long lead tell the richer story, the cable’s drop appearing as the gap between the two readings.

Small change piles up elsewhere. LED lighting holds one brightness through the whole evening. Fans hold one note. Dash cameras go whole seasons without a reboot. Twelve volt gear on a regulated rail lives the easiest life it will ever live, and lasts accordingly. Repair shops see the difference in the gear that comes back years late for its first visit.

Two formats in the round port family

The cigarette-style barrel is the senior format. Contact rides on a sprung tip and two side leaves, a mechanism that tolerates vibration by design and rewards a firm, full seat into the socket. Plugs left half-seated meet the current through a sliver of metal. A sliver asked for ten amps runs warm. Marine-grade sockets with threaded collars exist for rough duty, holding the seat by force. The format’s whole reputation for flakiness traces to loose seating and undersized plugs; a quality plug pressed home carries its rating without drama for years. Plug quality shows in the tip spring and the leaf stiffness, felt as a firm push at insertion. Bargain-bin plugs give themselves away in the wrist. Sockets wear as well, a decade of insertions easing the grip; a plug that rocks visibly in a worn socket has found the true cause of its flicker.

Beside the big barrel, many stations add small coaxial DC outputs, the 5.5 millimetre barrels the electronics world knows as 5521 and 5525. Ratings sit near 3 to 5 amps each, sized for routers, modems, cameras, and small screens. Centre-positive wiring is the near-universal convention on stations, matching the symbol printed beside the port: a dot inside a broken circle, plus sign on the dot. Ten seconds with that symbol and the appliance label settles polarity before the first connection, the one check the small barrels ever ask for. Tip sizes matter as much as polarity: 2.1 and 2.5 millimetre centre pins look identical at arm’s length. A loose-feeling barrel that works intermittently is usually the wrong one of the two. Adapter tips between the two sizes exist and solve the mismatch for pennies.

The compressor fridge, flagship load

One appliance justifies this port by itself. A 12 volt compressor fridge, the 40 to 60 litre box that lives in vans and on campsites, draws 45 to 60 watts with its compressor running and nothing at all between runs. Duty cycle does the real accounting: a third of the time running in mild weather, more in heat, less at night. Lid seals and shade shift the split as much as the thermostat setting does. Averaged out, a healthy fridge asks a pack for 15 to 25 watts around the clock, refrigeration for the power budget of a light bulb. Pre-chilling on mains before departure trims the first day’s duty by a visible slice. Freezer duty roughly doubles the figures; a dual-zone box splits the difference.

Follow one fridge through one summer day on a 1024 watt-hour station and the numbers tell the whole story. Six in the morning, cabin cool, the compressor runs seven minutes in every twenty-five: the display shows 50 watts during a run, zero between, the average loafing near 16. Ten o’clock, sun on the van, duty climbs toward a third, the hourly cost toward 18 watt-hours. The display makes the physics visible in real time, watts flicking between 50 and zero, the average column doing the only arithmetic anyone needs. Lunch swings the lid a dozen times and every opening buys a compressor run to pay the warm air back; the afternoon hour reads 25 watt-hours, the priciest of the day. A towel over the lid through the afternoon peak, an old field trick, shaves the priciest hour by a watt or two. Evening cools the metal, duty slides back below a quarter; the overnight eight hours cost barely 130 watt-hours all told. The screen’s daily total lands near 420 watt-hours, four tenths of the pack, two and a bit days of cold from one charge with margin for the phone shelf. Nothing in that day tripped a guard, sagged a rail, or asked for a thought. That box, across that day, quietly profited from its supply: a steady 13.4 at the plug keeps compressor starts crisp, each start a shade shorter, each shorter start a shade cheaper, a small compounding discount unique to the regulated rail. The ledger is what a flagship load looks like, real work at small numbers, free of events. Morning six rolls around again with the pack reading 58 percent, the milk at four degrees, the compressor midway through its quietest hour of the whole cycle, set to repeat the entire unremarkable performance for another two days before the socket asks for a recharge.

Direct DC service is the fridge’s second advantage. Its cord ends in the cigarette plug, the port matches it pin for pin, the pack pays for compression alone. The habit generalises: a fridge with a 12 volt cord plugs into the 12 volt port first, the AC brick staying packed. The inverter’s idle appetite belongs to another ledger; the fridge leaves it asleep. One cord fewer in the drawer, one conversion stage fewer in the chain, one habit locked in. Fridge manuals bury matching advice in their power chapters, DC cord listed first for battery supplies.

One hundred twenty watts, worked as a ledger

Every plan for this port is one sum against one ceiling. Take a plausible evening: the fridge averaging 18 watts, a router at 12 keeping the house online, a dash camera at 5 topping its battery, a CPAP waiting for bedtime at 35. Added up, 70 watts; the ten amp port carries the lot with a third of its budget spare. Swap the CPAP for a 130 watt tyre inflator and the sum crosses the line; the inflator waits its turn or takes the port alone for its two loud minutes. The arithmetic never gets harder than that: draws in watts, added, held under 120. Margins behave like margins anywhere: loads near the ceiling deserve the port to themselves; the sum gets re-run whenever a new plug joins the evening. The ledger method transfers straight to every other output row on the machine.

The rest of the twelve volt household

CPAP machines made this port famous in the outage years. A machine breathing all night on pressure alone draws 30 to 40 watts, 280-odd watt-hours per eight hour night, three nights on a mid-size pack. The heated humidifier is the piece that changes everything: warming water all night doubles the draw on many machines. A cold passover setup, or the humidifier switched off for the duration of an outage, stretches one pack across the better part of a week of sleep. Sleep clinics hand out that advice with the machine; the port just makes it practical. Battery-backed nights also skip the machine’s own mains brick, one less warm box beside the bed. Pressure-only nights read their 280 watt-hours with a steadiness no other appliance matches.

Routers and modems turn the small barrels into an internet lifeline. The pair together draws 10 to 18 watts on nearly every home setup. A 1024 watt-hour pack carries 12 watts for close to three days. Grid down, fibre up, the house stays online from a box in the hallway. Remote workers have run whole storm weeks this way, the station recharging from a car or panel by day, the router never noticing any of it. Matching the barrel size and centre polarity once, then labelling the cord, turns the setup into a thirty-second drill for the next outage. Fibre terminals and mesh nodes join at matching barrel sizes, a second and third line on the label check.

Lighting rounds out the light-duty family. A string of 12 volt LED camp lights draws 5 to 15 watts for a bright site, evenings of light per charge on any pack in the range. Amp draw this small leaves the budget untouched. Thin festoon cable is the real limit, dimming the far end of long runs. Warm plug, bright start, dim tail: the string itself reports the wiring. Twelve volt strip lighting stuck under van cabinets runs on identical maths, metres of glow for single-digit watts.

The thermoelectric cool box sits in the same aisle as the compressor fridge and deserves its own line in any honest ledger. Peltier plates run whenever the box is on, a constant 40 to 60 watts with no duty cycle to soften it. A small fan on the hot side runs the whole time as well, part of the same constant bill. The chemistry behind them runs at about a quarter of the efficiency of compressor refrigeration, holding roughly 20 degrees below ambient at best. Twenty below a 35 degree afternoon still reads warm inside the box, a second surprise in its own right. Eight summer hours cost such a box around 440 watt-hours. The box was born for day trips fed by a running vehicle. Overnight on battery power, that constant draw is the port’s classic surprise. The table prices an August night in both boxes.

Common 12 V loads on a 1024 Wh pack (typical draws, ~90% conversion allowed)

Load	Typical draw	Duty pattern	8-hour cost	Runtime on 1024 Wh
Dash camera	5 W	constant	40 Wh	~7 days
Router + modem	12 W	constant	96 Wh	~3 days
Compressor fridge	50 W running	~35% duty	~140 Wh	~2.2 days
CPAP, pressure only	35 W	constant in sleep	~280 Wh	~3 nights
Thermoelectric box	55 W	constant	~440 Wh	~17 hours
Tyre inflator	100–135 W	2–4 min bursts	~5 Wh per tyre	hundreds of tyres

Inflators and 12 volt vacuums work the port in bursts. A tyre inflator surges past 100 watts and flirts with the ceiling on many models, two to four loud minutes per tyre, a trivial number of watt-hours despite the drama. Ports that cut out mid-inflation are enforcing their amp limit against the surge, nothing more. The amp row in the spec sheet says in advance which inflators fit which sockets. Burst loads spend almost nothing from the pack. The only number they stress is the ceiling itself. Two tyres a month cost less energy than one hour of the router. Keeping the inflator’s own lead short matters doubly; burst loads punish thin cable hardest.

Cable discipline at twelve volts

Low voltage makes every ohm expensive. At ten amps, a tenth of an ohm across a thin extension eats a full volt; a volt is eight percent of this rail. Low voltage makes the same ohm ten times as expensive as mains voltage makes it. That is the whole physics of a rule every van owner learns: 12 volt runs stay short and thick. Symptoms of a starved run read clearly once known. A fridge that clicks, tries to start, and retries every few seconds is drinking through a straw; an inflator that winds up slowly shares the cause. The cure is never a setting. Shorter lead, heavier gauge, straight into the port. Gauge charts put numbers on the rule: ten amps over three metres wants two and a half square millimetres of copper, twice the length twice the copper. Coiled extension drums add insult, resistance plus heat concentrated in the coil. A metre trimmed off a lead does the work of a gauge step up.

A cool plug tip after an hour of fridge duty is the entire cable test, passed.

When the output cuts out

Overload protection on this port acts fast and resets on its own. Electronic limiting backs the socket on modern stations: cross the amp ceiling and the output drops, wait a few seconds or toggle the DC button and it returns. The cutoff guards the converter stage first and the wiring after it, in the order the current meets them. The pattern diagnoses itself. A port that cuts out the instant one specific appliance starts is reporting that appliance’s surge. The evening ledger says which line item crossed the sum. Resets cost nothing; a glance at the display before replugging costs three seconds and names the culprit. Chronic tripping with no single culprit usually points at the shared family budget in the output row.

A dead appliance on a live port has one classic cause with a five-minute fix. The nose of nearly every cigarette-style plug unscrews; inside sits a small glass fuse, five amps on light gear, ten or fifteen on heavy. Vibration cracks them, age dulls them, surges pop them quietly. A dollar-store assortment of glass fuses fixes the majority of “the fridge died” evenings without a tool. Checking the plug tip comes before suspecting the appliance, the cord, or the port, in that order of likelihood and price. Identical fuse sizes live inside 12 volt splitters and extension leads, one more place a dead circuit hides a two-minute fix.

Heat at the plug deserves equally early attention. A loose or worn plug builds resistance right at the contact leaves. Ten amps through a bad contact makes a warm handle inside minutes. Reseating firmly, bending the side leaves gently outward, or retiring a worn plug ends the warmth. Dielectric grease on the tip, an old trailer trick, slows the wear on both sides. Plug bodies are consumables; the port behind them outlives a drawer full.

The output row’s fine print carries one last quiet rule. On many machines the cigarette socket and the small barrels draw from one internal 12 volt stage, a shared budget of 10 or 13 amps printed once for the group. Heavier DC appetites, the double-fridge and equipment-rack cases, have the Anderson connector as their own subject, the USB family likewise. Three openings, one printed promise.

Running native where native exists

A simple sorting rule gets the whole benefit of this port. Any appliance that ships with a 12 volt cord earns a first look at that cord: fridge, CPAP, router, camera, lights all arrive wired for DC. Native service spares the inverter, spares the double conversion, and leaves the AC sockets free for the loads that have no other home. The check costs one glance at a plug and pays in hours of runtime. The check takes longest the first time; after that the household’s DC gear sorts itself by memory.

Van and boat life runs its whole cold chain and lighting from this socket. Outage households run medicine and internet on it, loads where quiet hours count for more than big watts. Campsites hang lights, pumps, and cameras off it and let the inverter sleep through whole weekends. App usage graphs on off-grid units log more hours on the 12 volt rail than on every AC socket combined.

The 12 volt port never headlines a spec sheet, and its work happens in the small hours anyway: a compressor cycling at three in the morning, a router light steady through a storm, a CPAP holding pressure until daybreak, all of it on a socket drawing less than a reading lamp. By morning the display has barely moved.

AC Output Socket Types Across Countries

The socket row on a power station

The AC sockets on a power station copy the wall standard of the country the unit was built to be sold in. A unit built for the American market carries American three-prong faces at 120 volts. The same rule stamps every market’s version with its own wall standard, recessed Schuko faces at 230 on the German one among them. Shape and voltage travel together as one package, set at the factory, unchangeable afterward. The socket row is the one part of a power station that behaves like a piece of national infrastructure: fixed, regional, permanent. The faces on the panel outlive every revision a model receives, frozen by market certification on day one.

That single fact settles more buying questions than any other on the spec sheet. A power station is a wall that travels, carrying its home country’s wall wherever it goes. Every appliance plugged into it meets the same shape, the same voltage, and the same frequency it would have met in a house back in the unit’s home market. Nothing about crossing a border changes what comes out of those sockets. Owners moving between countries carry that wall along, for better on their own gear, with homework attached for anything bought locally.

The faces themselves raise every question that matters: which shapes exist, which markets ship which, what voltage stands behind each shape, and what the whole bundle means for buying, importing, and traveling with a unit. Watt allocation across ports, protection behaviour, and the DC side stand apart as subjects of their own.

Why the world’s walls disagree

Wall sockets grew up separately in each country through the early twentieth century, long before anyone imagined the gear would cross borders in suitcases. Grids picked voltages first. Plug shapes followed, each national committee solving safety its own way: some put shutters in the socket, some put the fuse in the plug, some recessed the whole face so fingers never reach a live pin. By the time international standards bodies arrived, every shape had a hundred million homes behind it. The shapes stayed. A century of proposals to standardise the world’s sockets all met the same costing: a rewiring of civilisation. Power stations inherit the map as it stands.

Travelers inherit the naming system the IEC maintains as a guide of letter designations: Type A and B for the flat-blade American family, Type C and F for the round-pin European family, Type G for the British rectangular three-pin, Type I for the slanted Australian pair. The letters name the shape only. Voltage and frequency ride separately from the letters. Two shapes can share a voltage. One shape can span two voltages, Type A across Japan’s 100 and America’s 120 among them. Letter, volts, and hertz always deserve three separate reads.

The five faces stations ship with

American-market units carry NEMA faces, Type B in the letter system: two flat blades and a round earth pin at 120 volts. Small and mid units use the 15 amp face, NEMA 5-15. Bigger units move to NEMA 5-20, the same face with a T-shaped neutral slot that accepts 15 and 20 amp plugs alike. The T-slot is load arithmetic made visible: 2000 watts at 120 volts is 16.7 amps, past what a 15 amp face is rated to carry, so any American unit with a 2000 watt inverter needs at least one 20 amp face to deliver its own headline through a single cord. Spotting the T-slot on a listing photo is the quick check that a big unit’s paper watts reach a real socket.

European-market units carry the Schuko face, Type F: a circular recess with two round holes and earthing clips along the sides. The recess is the safety story. A plug sits half-swallowed before its pins reach anything live. Earth clips along the recess make contact ahead of the pins themselves. Behind the face sits 230 volts, with the socket rated at 16 amps, which is why one ordinary-looking Schuko face can serve a full 3000 watt load. Higher voltage moves the same power at less current, the quiet arithmetic under every 230 volt market’s thinner cords and smaller faces.

British-market units carry BS 1363, Type G: three stout rectangular pins, shutters over the line and neutral holes, and a fuse inside every plug. The fuse-in-plug arrangement means each appliance cord protects itself at 3 or 13 amps, a layer carried entirely by the cords themselves. Shutters stay closed until an earth pin opens them, so nothing enters a British face without the full three-pin handshake. Station panels inherit the bulk along with the safety; the pins alone explain the size of a British plug in the hand.

Australian and New Zealand units carry Type I, two slanted flat blades over an earth pin at 230 volts, rated 10 amps as standard. Japanese units carry Type A, two vertical blades with no earth pin on the common face, at 100 volts, the lowest mains voltage in wide use. Japan splits its grid between 50 and 60 hertz by region as well, a wrinkle of its own. Both markets print the same lesson in different ink: the face, the volts, and the local rules arrive as one sealed bundle. Stations for smaller markets follow the same pattern with their own faces, Swiss, Italian, and South African types among them, each bundled to its own grid.

What a travel adapter changes

A travel adapter is a shape converter only: pins of one standard in, pins of another standard out, the voltage riding through untouched. Fitted to a power station’s socket, it lets a foreign plug seat mechanically. It converts nothing electrical. A 230 volt Schuko face wearing an American-shaped adapter is still a 230 volt face, now able to seat 120 volt plugs above a voltage their appliances never met. The adapter law settles half of all cross-border questions: shape is the negotiable half, a few dollars at any airport kiosk. Voltage is the permanent half. Devices that claim to convert voltage in a travel-plug format top out near a couple of hundred watts, kettle-class sockets far beyond them.

The voltage standing behind the pins

The world’s mains cluster in two bands. Japan and the Americas run 100 to 127 volts. Europe, Africa, Australia, and much of Asia run 220 to 240. A power station’s inverter is built for its home band and holds it: the shape on the panel announces the voltage behind it the way a flag announces a country. Reading the shape reads the voltage nine times in ten; the label supplies the tenth. The tenth case is mostly Type A, the one shape straddling two voltages an ocean apart.

Resistive appliances obey a square law that decides every mismatch. Power delivered scales with the square of the voltage ratio. A 2000 watt heater built for 230 volts, fed 120, delivers 27 percent of its heat, about 540 watts. Fed 100, it delivers 19 percent. The same square works ruinously in reverse: gear built for 100 volts, fed 230, tries to run at more than five times its design power. The square law is why the two directions of mismatch carry such different price tags.

Watch the law work through one grey import, a 100 volt Japanese-market station landed in a Berlin flat. The laptop charger goes in first and works without complaint; its own label reads 100-240 volts, 50-60 hertz, the wide-input badge of nearly all modern electronics, indifferent to which wall feeds it. The electric kettle goes in next. The kettle, a 2000 watt design for 230 volts, draws only about 380 on this supply: the water warms, eventually, a four minute boil stretched toward twenty, the kettle healthy by every test except the clock. A 1200 watt microwave on the same sockets tells the same story at lower stakes, its transformer humming low, its plate turning, its reheat running triple time. A hair clipper with a small synchronous motor hums at the wrong pitch and barely turns, mains-frequency gear lost without its designed volts and hertz. Run the import the other way and the arithmetic hardens. Picture the neighbour’s German-market station, 230 volts behind Schuko faces, hosting a 120 volt blender carried over from Chicago through a shape adapter: three point seven times design power, smoke inside a minute, motor windings gone with it. The smoke cost that flat a blender and taught it the label habit inside one afternoon. Every one of those outcomes was printed on the equipment before the first plug went in: on the station’s socket shape, on the appliance’s input label, in the two-line arithmetic of the square law. Bad luck plays no part in any of it. The whole outcome sat legible in advance, which is the entire case for reading shapes and labels before cords. The Berlin flat keeps the Japanese unit in the end, married to a shelf of 100-240 volt electronics it serves perfectly well, the kettle retired to decoration. Grey imports find their level as laptop-and-phone machines, whatever wattage the box once promised.

The input label is the sorting key for everything with a cord. Gear marked 100-240 volts runs on any station on earth through nothing more than a shape adapter; that covers phone bricks, laptop chargers, camera chargers, and nearly every USB power supply made this century. Switch-mode design earned that width; the input stage rectifies first and cares little what voltage arrives. Gear marked with a single voltage belongs to a single band. The label sits moulded into the brick or printed near the cord entry, one glance, settled.

Motors and heaters fill the single-voltage camp. Kettles, toasters, hair dryers, fans, fridges, and nearly every kitchen machine carry one design voltage, printed in one line. Dual-rated exceptions exist, travel kettles and shavers among them, their labels saying so plainly. Absent that marking, a single-voltage appliance and a foreign-band station make a pairing the square law has already priced.

Frequency and the dual-voltage case

Frequency belongs to the market as well, 50 or 60 hertz. No socket changes it. Clocks and motors care; switching is its own subject.

Dual-voltage stations exist as well, machines that offer both 120 and 230 from one chassis, their inner workings a subject of their own. The socket faces still follow the sold-in market. Even a dual-voltage unit ships wearing one country’s shapes, the adapter law governing everything plugged into it abroad. Even on a dual-band machine, the sales region sets the shapes.

The earth pin on a floating output

Four of the five common faces carry an earth path. On a power station that path does a quieter job than it does in a house. The bond that ties earth to neutral in a house’s panel, the highway fault current rides home on, has no counterpart inside a station. The inverter output floats, its neutral tied to nothing, the earth pins tied to the chassis alone. The earth pins on the panel connect appliance earth to station chassis and to each other, and stop there.

A three-light outlet tester pushed into a station’s socket reports the arrangement honestly: open ground, two of the tester’s three lights. First-time testers read it as a defect and start drafting the return email. Support desks field the open-ground question weekly, in every market, from owners holding working machines. The reading is the normal signature of a floating output, printed in the manual of nearly every maker. The unit behind it is working exactly as designed.

Floating output carries its own safety logic. With no bond between live conductors and earth, a person touching one output conductor and the ground stands outside any complete circuit; the first fault creates no return path. It is a different protection style from a house’s, complete on its own terms. The station’s own electronics watch for overload and short circuit on top, protection with rules of its own.

The exception arrives with fixed installations. Feeding a building’s transfer switch, or any wiring that expects a bonded neutral, can call for a bonding plug that makes the earth-neutral tie externally. That corner belongs to electricians and the station’s manual, in that order. Makers that support bonded use sell the plug as an accessory; silence in the manual means the answer is no. Portable use, cords into sockets, never needs it.

What portable use does need is intact earth paths. Three-prong appliance cords keep their third pin. Adapters in the chain keep the earth contact connected through. The cheap two-blade adapter that drops the earth pin stays in the drawer. The floating design covers one class of accident. Intact earth paths handle the rest, at the cost of nothing more than leaving cords unmodified.

Strips and adapters in daily use

A local power strip is the cleanest multiplier for a station’s sockets. One strip in the station’s own plug standard turns one face into four or six, keeps every earth pin connected, and adds a cord’s length of placement freedom. The strip’s rating has to cover the load it gathers, 10 or 13 or 15 amps printed on its back, the same reading discipline every other label gets. British strips carry their own plug fuse, one more layer in that market’s chain.

Adapters earn a quality check before they earn trust. A loose adapter holds pins by friction alone; a high-watt load through a loose joint builds heat exactly where nobody watches for it. Kettle-class loads deserve solid one-piece adapters with a firm grip. Universal multi-way cubes belong with phone chargers and little else. Warm plastic after ten minutes is the field test that matters. Cold pins after an hour of kettle duty mark an adapter that has earned a permanent place in the kit.

Stacking runs in one direction only. Strip into station, adapters onto the strip’s sockets as needed: one layer of shape conversion, close to the appliance. Adapter-onto-adapter towers wobble, arc, and concentrate resistance at the worst point in the chain. The watt arithmetic across everything plugged in at once is allocation’s own question. Shape conversion follows one rule: a single layer.

Buying across markets

A grey import carries its home market on its face forever. The attractive price on a foreign-market listing buys sockets that fit nothing in the destination house and a voltage band that may match nothing either, a combination no accessory repairs outright. Adapters fix the shape problem only. One rung up sits the transformer, sized to re-band a 2000 watt output at a meaningful fraction of the station’s own cost and weight. The discount rarely survives the arithmetic. Warranty service follows the market as well; a unit sold for one region often travels poorly through another region’s support channels.

Certification marks are the forensic read on any listing. UL or ETL marks a unit built for North America. PSE marks Japan. CE and UKCA mark the European and British markets, RCM the Australian one. The marks sit on the rating label beside the electrical figures, photographed or omitted in every online listing. They name the intended market more reliably than the listing text around them. A seller’s photos with the wrong marks for the buyer’s country close the question early.

Socket photographs settle the rest. Every legitimate listing shows the output panel. Counting faces and reading shapes takes seconds against the table below. Recessed round wells read as Europe, rectangles as Britain, slants as Australia, vertical blade pairs as America or Japan, with the volts trailing each shape. Model numbers help as well, many makers appending region letters to the same base model. On an honest listing the letters agree with the marks and the faces. Disagreement anywhere in that triangle is the signal to walk.

The five station-market socket standards at a glance

Market	IEC type	Standard	Socket rating	Mains	Faces per panel, typical
US / Canada	B	NEMA 5-15, 5-20 on big units	15 A / 20 A	120 V · 60 Hz	4–6
Europe	F	Schuko CEE 7/3	16 A	230 V · 50 Hz	2–3
UK	G	BS 1363, fuse in every plug	13 A	230 V · 50 Hz	2–3
Australia / NZ	I	AS/NZS 3112	10 A	230 V · 50 Hz	2–4
Japan	A	JIS C 8303	15 A	100 V · 50/60 Hz	3–6

Travel with a station stays on the easy side of all of it. The unit keeps its home voltage in every country, so the owner’s own appliances, bought in the same market, plug in abroad exactly as they did at home. A campervan crossing three borders in a week runs the same kettle off the same socket at every stop. Shape adapters cover any borrowed or local gear, subject to the input-label check. Importing owns the hard cases. A traveler with matched gear meets none of them.

Panel space and socket count

Socket standards spend panel space at different rates. A British face with its shutters and stout pins swallows roughly the area of two American faces. A Schuko recess digs volume as well as area. Output panels answer with different face counts for the same chassis, market by market; the counts column in the table above carries the spread. Socket count across versions of one model is packaging, the same inverter behind different national faces. Spec sheets list the counts per region for exactly this reason. Watt figures stay identical from region to region; face count is the one line that moves.

Spacing matters as much as count. Power bricks and timer plugs overhang their sockets, and a row of faces set tight goes half-unusable under two wall-warts. Panels that angle faces sideways or spread them wide trade a printed face or two for working room under real plugs. A short strip solves what a crowded panel cannot, at the cost of one more thing in the kit. Panel layouts reward one habit: big bricks on the end sockets, slim plugs in the middle rows.

Reading the AC line in a listing

The AC row of a spec sheet compresses the whole subject into one line: 2× AC 230 V, 50 Hz, 2000 W total, pure sine. Two faces, European band, European frequency, a shared watt budget across both sockets, and an inverter claim that is a story of its own. The shared total is the number newcomers miss. Two sockets never mean two full loads; the split across them is allocation’s own question.

Read in order of permanence: shape first, voltage second, frequency third, count and total last. The first three are unchangeable facts about the unit’s market. The last two are design choices inside it. A buyer who clears the first three lines never meets the expensive mistakes; the last two only size convenience. Five seconds of order beats an afternoon of returns paperwork.

The same order works in reverse on any secondhand or clearance unit with a vague listing. One clear photo of the output panel answers shape and usually count; the rating label answers band, frequency, and market marks. Five facts from two photographs, before a single question to the seller.

The socket as the market’s signature

All of it folds into one habit: treat the AC face as the unit’s passport. It names the home market, the voltage band, the frequency, the certification regime, and the appliances that were always meant to plug in. The socket row alone places the machine in the world.

Checked at purchase, the signature never needs checking again. The faces on the panel outlast firmware, batteries, and fashion, fixed from the factory floor to the recycling yard. Sixty seconds with the socket row and the input labels of the household’s own gear settles a station’s whole cross-border story in advance. The passport metaphor holds to the end: a machine crosses any border it likes and keeps one citizenship, printed on its faces.

MPPT Controller Voltage Window Range

The window printed beside the port

An MPPT controller’s voltage window is the span of panel voltage its solar port accepts, printed on the housing as a pair of numbers, 11 to 28 volts on a common small unit. Panels presenting a voltage inside that span get tracked, converted, and fed to the battery. The window is the compatibility contract between a power station and every panel that will ever plug into it. Voltage decides whether a panel’s rated watts ever flow. On the spec sheet the window hides in the input row, two small numbers beside the amp figure, doing more gatekeeping than everything printed above them. Shoppers comparing three stations on watt-hours alone have skipped the row three times without knowing it.

Both edges come from the converter behind the port: a wake-up threshold at the bottom, a component rating at the top. Between them stretches the working span where the tracker does its usual job of holding the panel at its best operating point. The edges themselves do no tracking. One edge decides when charging can begin at all. The other decides what the port survives. Behind the arrangement sits plain converter design. Stepping panel voltage down to battery level needs working room above that level, the origin of the bottom edge. Internal packs run at their own voltages, class by class, which is one reason windows sit where they do on each machine. Silicon inside the stage carries a hard voltage rating of its own, the origin of the top one. Nothing in settings or cabling relocates either edge. Updates tune tracking behaviour inside the span. The span itself is soldered in place.

Matching a panel to the window takes two label readings and one margin. Made once, at purchase time, the match holds for the life of the gear. Skipped, it produces the two classic solar failures: an array that never wakes the port, or an array that kills it. Every section below serves that one five-minute check. Owners who run it never meet the window again. Each new panel that enters the household gets the same sixty-second reading on arrival. The port wakes on schedule for years, on every panel the check approved, in every season the margin covered. Skipping it trades five minutes now for a gamble every cold morning after.

Two voltages on the back of a panel

A panel’s label carries two voltage figures. The window check uses both of them. The first, open-circuit voltage, listed as Voc, is the reading with no load attached, the highest voltage the panel produces. The second, maximum power voltage, listed as Vmp, is the level the panel holds while working under load. On a typical 100 watt folding panel the pair reads 22.5 and 18.6 volts. Both figures come from the maker’s lab flash test and sit printed side by side, on the back sticker and again on the datasheet’s electrical table. Real mornings move them a little in both directions. The label pair remains the planning baseline every check starts from. Lab figures assume bright standard light on cells at 25 degrees, conditions a spring noon roughly matches. Panels from any brand carry the same two rows, so the check works across every mix of maker and port.

Open-circuit voltage appears whenever light lands on an unloaded panel. Unplugged in the sun, freshly connected, sitting in dawn light too weak for real current: the panel sits at Voc through all of it. Every array crosses this state on the way into every working day. The port’s ceiling gets tested by Voc alone. A multimeter across an unplugged panel’s leads in sunshine reads Voc directly, a thirty-second habit before any first connection. Meter readings above the label figure on a cool day are normal physics, the exact behaviour the cold margin exists to cover. Shade, a bad connector, or a damaged cell string announces itself in the same test, as a reading far under the label, caught in the driveway with no port involved.

Maximum power voltage is where the tracker parks the panel once real charging runs. The controller holds the panel near a fixed fraction of its open-circuit voltage, around three quarters, hunting the exact point as light and heat move it. Vmp is the voltage of the working day. Its job in the window check is the floor: a panel working below the wake-up threshold never starts a charge. Heat pulls Vmp lower through the day, a volt or two on a baking afternoon. Floor margin covers that slide the way the cold tenth covers the ceiling. Hot-climate buyers weigh the floor harder for exactly that reason.

Each edge of the window gets its own reading. The ceiling check compares Voc against the top number, with a cold margin added. The floor check compares Vmp against the bottom number, with comfortable room above it. Running the two checks against the two label figures is the entire discipline. Margins have working sizes: a tenth on top of Voc for the ceiling, a couple of clear volts under Vmp for the floor. Tighter fits can run for years and fail on the one morning that finds the gap.

Every figure this page uses sits on two labels: the panel’s back and the port’s face.

One match, worked end to end

Take the 100 watt folding panel and a small station with an 11 to 28 volt window. Ceiling first: open-circuit voltage reads 22.5, and a tenth on top for cold mornings brings the planning figure to 24.9. That sits under 28 with three volts to spare, so the port is safe in any weather the panel will ever see. Floor next: maximum power voltage reads 18.6, well clear of the 11 volt threshold, so the panel holds the port awake even in weak light with its working voltage sagging a little. Both checks pass with margin. The pair is a match, settled for good, with nothing about the combination to think about again. The same two comparisons, run in the same order, settle any panel against any port in the aisle of a shop. Sixty seconds with two labels replaces every forum thread on solar compatibility. Shops see the reverse case weekly: a bigger panel bought on watts alone, its 45 volt string voltage waved at a 28 volt port, a return desk visit later the same week. Two label rows, read in the aisle, would have redirected the purchase toward a machine with the taller span.

Wiring panels into the window

Series wiring stacks voltage. Two of the worked panels joined end to end present 45 volts open-circuit and 37.2 working, at one panel’s current. Three in a string reach 67.5 open-circuit. Each panel added lifts the string by a full label’s figure, so strings climb toward any ceiling fast. Current staying at one panel’s level is the quiet gift of series wiring: the same thin extension cable carries a two-panel string at no extra loss, one plug into the port at the end of it. MC4 plugs chain panel to panel in seconds, positive to negative down the line.

Parallel wiring holds the label voltage steady. Two of the same panels side by side still present 22.5 volts open-circuit; the currents add, 5.4 amps each into 10.8 together. Ports carry a current limit beside the window figure, commonly 8 to 15 amps. A parallel pair meets that limit sooner than any voltage edge. Ports clip gracefully at their amp cap, taking what the limit allows from a stronger pair. Watts stop growing once either printed limit is reached. Branch connectors for a parallel pair cost little and wire in minutes. Past two branches the arithmetic tightens. Each added panel piles its full current onto the same small cap. Bigger parallel banks bring branch fusing into the picture as one more part to buy and fit.

Choosing between the two layouts is a window question first. A tall window, 60 volts and up, invites strings of two or three, which run their current low. A low ceiling forces single panels or parallel pairs. The pages on each product class print the exact spans; the wiring plan falls straight out of the printed pair of numbers. The worked pair lands cleanly on a 60 volt class port: 45 volts open-circuit, 49.7 on a frozen dawn, ten clear volts of ceiling margin left over. Layouts that drop out of the numbers this neatly tend to run for a decade untouched.

One rule stands over every layout. Stacked open-circuit voltage stays under the printed ceiling on the coldest morning of the year, with margin, or the layout is wrong. A string sized against a summer reading crosses the same ceiling on the first hard frost. Autumn gives such layouts a false season of good behaviour first. Voltage past the ceiling can destroy the input stage outright, a failure no fuse inside the port catches in time. Overvoltage damage sits outside warranty terms across the industry, a repair bill plus freight in the best case. One meter reading across the assembled string, taken before the first plug-in, proves the layout at the cost of a minute.

Cold mornings raise the voltage

Panel voltage runs on temperature. The colder the cells, the higher the open-circuit voltage climbs, at a rate the datasheet lists near a third of a percent per degree. From a 25 degree rating down to a minus 10 degree dawn is a 35 degree swing, enough to grow open-circuit voltage by a tenth or more. The 45 volt string of the wiring section reads 49.7 on that morning, one long stride closer to any ceiling. Datasheets print the exact rate on the electrical table as the temperature coefficient of Voc, a negative percentage per degree. Multiplying the swing by the coefficient gives the rise; skipping the row and using a flat tenth lands within a volt of the same answer on common panels.

The tenth-on-top margin exists for exactly this reading. Cold-checking takes one multiplication: open-circuit voltage times 1.1 for mild-winter country, a little more where dawns run below minus 20. Frost plus early sun is the season of dead solar ports, because the voltage peak lands in the first minutes of light, on cells at their coldest, before any current flows to pull the level down. Ski-trip mornings and desert winter dawns share the pattern. Sizing on the multiplied figure retires the whole scenario. Highland winters and prairie cold snaps push the working multiplier toward 1.15. Coastal mild-winter owners keep the plain tenth and move on. Installers in such places size strings one panel shorter than the summer arithmetic allows, trading a little midday harvest for a port that greets every January sunrise intact. The habit costs a few percent of the year’s harvest, cheap insurance for a port that has to meet January.

A day at the window’s edges

Dawn belongs to the floor. Voltage arrives ahead of power on a solar panel; thin early light lifts an unloaded array close to its open-circuit figure on a current still too small to use. On many controllers the wake threshold sits a little above the letting-go level, a deliberate gap that keeps the port from flapping on and off through twilight. The gap runs a volt or two on common designs. Twilight voltage crosses one line minutes before the other, so the port makes one clean decision at each end of the day. The flickering dozen never happens. Displays show the effect as one clean start time, repeatable to the minute in stable weather.

Watch one clear day from the port’s side of the cable. In full dark the panel presents nothing and the port sleeps on zero. First grey light puts volts on the wire almost at once, the unloaded array climbing past 15, past 18, brushing its open-circuit figure before the sun has cleared the hill. Reading that level, the port waits out its start delay, then closes the connection. Tracking begins with almost nothing to track: the controller loads the array and parks it near 18 volts, where the first watts arrive in single digits, enough to run the display that reports them. Through morning, brighter light means more amps, hour over hour. Working voltage spends that whole climb wandering less than a volt, current carrying the day’s drama on a nearly flat line. Midday puts the array at its warmest, the working voltage a shade lower, the amps at their peak, the port converting steadily a comfortable distance inside both edges. Heat moving the working point a volt is routine housekeeping for the tracker, invisible on the charge line. A cloud shelf crossing in the afternoon cuts the watts by two thirds in a minute; the loss lands on current, the port rides through without a restart, the sun’s return brings the figure straight back. Evening reverses the morning in slow motion, amps thinning first, the working point easing downward, until the level slips below the letting-go threshold and the controller opens the connection for the night. Somewhere in the last half hour the watts drop to single digits again, the same figures the dawn opened with, bookends around eight hours of quiet conversion. The array spends its dark hours presenting next to nothing to a port that has stopped listening. Nothing in the whole arc asked for a hand on the gear. The display told the story to anyone who cared to watch, watts rising through breakfast, sagging under the cloud shelf, gone by supper. Every reading traced back to where the panel’s voltage stood inside the printed span. Days like that one stack into seasons without a single intervention.

Heavy shade rehearses the evening in miniature. Deep overcast can drag a marginal array’s working voltage toward the floor. Down there, a panel whose Vmp barely clears the threshold drops out for the length of the squall. The port comes back on its own when the light does. Recovery takes the same start delay the dawn wake-up used, a few seconds to a minute on common firmware. Progress already banked stays banked through the gap.

Margin above the floor buys hours at the edges of the day. The higher a panel’s working voltage stands over the threshold, the earlier the port wakes into the dawn charge, the deeper into dusk it hangs on. Two extra volts of floor margin can lengthen a winter charging day noticeably at each end. Winter sun spends hours near the horizon, so the edges are exactly where December harvest lives. Arrays matched with lazy margin give those hours away unseen. Summer hides the difference; long bright days start every array early. The margin shows its value in the season that has none to spare.

None of the edge behaviour needs supervision. The controller wakes, tracks, holds through cloud, and lets go on its own schedule. The owner’s whole contribution was the label check at purchase time. Set-and-forget is the honest description, earned by one honest hour of reading two labels.

Reading the spec line

A solar input line reads like this: 12 to 60 volts, 10 amps, 400 watts max. Three limits, all live at once, the lowest one biting first. An array can sit mid-window on voltage and still hit the amp limit early, leaving the watt figure out of reach. Decoding a port means checking a plan against all three numbers, in the order voltage, current, watts. Run the worked panel against that line: a two-panel string presents 45 volts, mid-window, at 5.4 amps, half the current cap, for 200 rated watts, half the watt cap. Roomy clearance on all three numbers marks the layout as future-proof as well. Every number clears with room, the signature of a plan that will bore its owner for years. Plans that clear one limit by a whisker deserve a second look at the other two.

The buying workflow runs the checks off two documents. From the panel datasheet, open-circuit voltage times 1.1 against the window’s top, working voltage against the window’s floor with a couple of volts spare, string arithmetic on both when wiring in series. The worked configurations in the table below carry the pattern for the common cases. Datasheet rows carry standard names, Voc and Vmp for the voltages, Isc and Imp for the currents. The four sit together in one electrical table on any reputable sheet, the whole check contained in five printed lines. Sheets that bury or omit the electrical table say something about the panel behind them.

Worked window checks for a 100 W folding panel (Voc 22.5 V, Vmp 18.6 V, 5.4 A, cold at +10%)

Layout	Voc 25°C	Voc -10°C	Current	11-28 V port	12-60 V port
1 panel	22.5 V	24.9 V	5.4 A	fits, 3.1 V margin	fits, 35.1 V margin
2 in series	45.0 V	49.7 V	5.4 A	over the ceiling	fits, 10.3 V margin
3 in series	67.5 V	74.6 V	5.4 A	over the ceiling	over the ceiling
2 in parallel	22.5 V	24.9 V	10.8 A	fits under a 15 A cap	fits under a 15 A cap

Window figures also settle which upgrade path stays open. The taller the ceiling, the longer the add-a-panel road runs before a printed limit ends it. Ceilings near 28 volts end that road at a single parallel pair, closed off by the amp cap soon after. Buyers with expansion in mind read the top number first.

Windows across the classes

Small S class units keep the window low, in the 11 to 28 volt band, sized around one folding panel of the kind that travels in a car boot. The match is deliberate: one common panel, one window built around its label, no wiring decisions in the box. Cable in the box, panel on the lawn, sixty seconds from boot to first watts. Nothing in the class asks for a screwdriver or a diagram. Simplicity is the feature the low window buys. Travel weight rides on the same choice, one panel and one short cable covering the class’s whole solar story.

W class machines lift the span into the 12 to 60 volt band. Two panels in series land mid-window with cold margin intact, the layout the class is sized for. The taller ceiling turns a pair of boot-sized panels into a single quick-connecting string on a campsite table. One cable run replaces the branch harness: one plug at the port, current held at a single panel’s figure the whole way. Packing lists shrink accordingly on every trip the pair takes.

L class units run the ceiling toward 100 volts and beyond, with amp limits to match. Strings of three and four fit with winter margin. On the largest units, the second tracker gives an east and a west string each a window of its own. Roof arrays built for a cabin plug in without a repartition. Tall windows carry the cold arithmetic lightly as well. A three-panel string rising a tenth on a frozen dawn still sits far under a 100 volt ceiling, margin the class was designed to hold. Owners moving up from smaller units bring their old panels along, restrung taller into the wider span.

Across every class the discipline never changes. Two label voltages, one cold multiplication, two comparisons against one printed pair of numbers. The check travels with the owner from class to class, the same one-minute reading at every upgrade, on every mix of old panels and new ports a household accumulates. The window decides whether the solar half of a power station ever runs. Few lines on a spec sheet carry more.

Power Station 0 to 80 Fast Charging Time

The number on the box

Zero to eighty on a power station names the stretch of a charge that runs at full rated intake: from an empty battery to four fifths full, in one flat stretch of full power. A maker quoting fifty-five minutes is quoting this window, on this pack, at this input. Fast-charge marketing lives here for a plain reason. Inside the window, minutes follow watt-hours in a straight line anyone can check with a clock. Boxes, banners, and product pages all quote it in the same form, minutes to eighty percent from empty at the rated wall input. Fifty-five minutes on a mid-size unit is the shape of the whole subject in one number. Everything else on this page unpacks that one number into shape, causes, and uses.

Past the window, prediction gets murky. The final fifth of a charge follows a taper the firmware tunes, machine by machine. The printed 0-80 figure is the one part of the clock that transfers cleanly between machines. Quoting the flat window keeps the printed figure honest across a whole product line. Reading the figure the same way keeps a plan honest at home. None of it needs a login, an app, or a meter. A wall clock and the unit’s own display carry every check. The rest of this page works that window from every side: its shape, its arithmetic, its weather, and the claims built on top of it.

The shape of a charge from empty

From near empty, a healthy pack takes everything the charger offers. Intake sits pinned at the rated figure through the whole flat phase. State of charge climbs in a straight line. Each minute buys the same slice of capacity as the minute before it. Chargers hold this phase steady on purpose. On a display the phase is unmistakable: input watts frozen at one number, percent climbing at one speed, estimated time falling in step. Ten minutes of that steadiness says more about a unit’s health than any single number on the label.

Near eighty percent the line bends. Cell voltage has climbed close to its ceiling by then, so the pack begins stepping its intake down. Charging on lithium runs in two stages: a constant-current stage that ends near the mid-eighties of charge, then a saturation stage under falling current. The knee on a power station’s display is that handover, moved a little by chemistry and tuning. Charging literature puts the constant-current handover near the mid-eighties of charge for lithium generally, a mark conservative station tuning rounds down to eighty on many machines. Lithium iron phosphate packs, the common station chemistry, hold their flat line deep into that range before the bend shows. Nothing on the screen announces the handover in words. The falling input figure is the announcement.

Past the knee, watts fall in stages. A display that held 1000 through breakfast reads 700, then 400, then double digits near the top. The trickle at the end holds the last percent steady. Nothing about the fall is a fault. The curve was always going to bend there. First-time owners often read the fall as a fault and unplug into the mystery. Watching one full charge end to end teaches the shape better than any spec sheet. The estimated-time readout stretches through the taper for the same reason; falling watts buy fewer watt-hours per minute.

Every source rides the same curve. Wall power, solar, a car socket, a generator: each feeds the same two-stage shape through its own port. The knee belongs to the pack alone. Combined inputs obey it in one sum, a subject with its own page. What changes by source is only how high the flat line sits. The bend arrives at the same state of charge regardless. A generator-fed evening charge and a solar noon charge bend at the same percent on the same unit. Owners who learn the curve once carry it across every source they ever plug in.

Minutes, worked from the numbers

The arithmetic needs three figures. Pack size in watt-hours, rated intake in watts, and a tenth on top for the machinery’s own losses. Eighty percent of the pack, divided by the intake, times sixty, plus the tenth: the 0-80 minutes fall out of one line of a phone’s calculator. Watt-hours sit on the battery label. Rated intake sits on the input panel. The tenth is a working allowance that suits station hardware well. No other figure on the spec sheet enters into it. The table below carries the common sizes ready-worked.

Run it once on a common mid-size unit. A 1024 watt-hour pack charges at 1000 watts from the wall. Eighty percent of 1024 is 819 watt-hours. At 1000 watts flat, 819 watt-hours take forty-nine minutes; the tenth on top brings the figure to about fifty-five. Set a clock at the plug-in and the display tracks it: twenty percent near the fourteen-minute mark, forty near twenty-eight, sixty near forty-one, the knee arriving just before the hour. Intake starts easing there, on schedule. The remaining 205 watt-hours crawl in under falling watts, an average somewhere in the low hundreds. The tail runs half an hour or more on many units. Full lands around the ninety-minute mark. Read that clock again from the top: a fifth of the range took over a third of the time. Doubling the pack doubles the flat window at the same watts, a 2048 watt-hour unit posting one hundred and ten minutes to eighty on the same 1000 watt cord. Doubling the watts pulls the same window back down: 2048 watt-hours at 2000 watts posts near fifty-five again. Short sessions live entirely inside the flat window and inherit its straight line. Fifteen minutes at 1000 watts is 250-odd watt-hours into the pack, a quarter of the mid-size unit, every session the same size as the last. The one thing the arithmetic cannot promise is the tail, which is the exact reason the printed figure stops at eighty. One more reading rounds the picture out. At the forty-minute mark the display shows the percent in the low seventies with intake still pinned at 1000, a snapshot of the flat phase doing its plain work. Ten minutes on, the same screen shows the knee in progress, percent in the mid eighties, intake already down by a few hundred. Two glances, ten minutes apart, cover the whole story of the curve.

The last-fifth share is the planning fact to keep. On the worked example, waiting for one hundred percent stretches a fifty-five minute job past ninety minutes. The extra covers 205 watt-hours, an hour of a small fridge. Whether that hour of capacity justifies the wait depends on the day’s plan. The wait suits an idle evening far better than a ticking deadline. The held-back fifth also serves as cushion; a pack parked at eighty meets a surprise evening with real reserve. Refrigeration, lighting, and phone charging rarely miss that fifth on a day trip. Heavy loads, power tools and induction cooking among them, argue for the full pack when the day includes them.

Scaling stays honest in both directions. The bigger the pack, the more minutes at a fixed intake. The higher the intake, the fewer minutes on a fixed pack. No clever cable or setting bends the line; the flat window is chemistry plus arithmetic all the way through. The straight line is also why halfway charges take half the time. Twenty to sixty behaves exactly like zero to forty. Fixed intake means fixed cost per percent as well: on the worked unit every ten percent is 102 watt-hours and about seven minutes, from plug-in to the knee, morning or midnight.

Claimed minutes and measured minutes usually land close when the three figures behind them match. A shortfall traces back to one of the three: a smaller true intake, a bigger pack than the claim assumed, or losses past the usual tenth. Each cause shows up in the input figure on the display within the first five minutes. Measured minutes drifting longer across months point at pack age, the one variable the formula leaves out. Checked once, the plan holds.

Worked 0-80 minutes by pack size at rated intake (arithmetic + one tenth for losses)

Pack	Rated intake	80% of pack	0-80 worked	Tail 80-100, typical
512 Wh	500 W	410 Wh	~54 min	+25–35 min
1024 Wh	1000 W	819 Wh	~55 min	+30–40 min
2048 Wh	1500 W	1638 Wh	~72 min	+35–45 min
3600 Wh	1800 W	2880 Wh	~106 min	+40–60 min

Why the tail slows down

The slowdown protects the cells. Through the flat window, cell voltage climbs steadily under full current with room left above it. Near eighty percent that room runs out. Holding full current past the point would push voltage over the ceiling the chemistry tolerates, so intake falls to hold the voltage line. Voltage, held at that ceiling, does the regulating from there on. Current becomes the variable that gives way. The ceiling itself sits a shade over three and a half volts per cell on iron phosphate chemistry.

The taper trades minutes for pack life. Cells filled gently at the top age slower, hold capacity longer, and pass more cycles before fading. Firmware writers pick the trade deliberately. A machine that sprinted to one hundred at full watts would pay for its headline in years of pack life. Cycle-life tables in a spec sheet quietly assume the taper stays in place. Station firmware often tapers earlier and softer than a phone’s would, sized as it is for a decade of cycles.

On the display, the taper reads as input watts stepping down on their own. The wall cord did nothing. The breaker did nothing. A charge past the knee draws less on its own, all the way down to the trickle that tops off the final percent. Cell balancing rides in the same quiet stage, evening out small differences between cells before the display calls the pack full. Unplugging during the taper costs nothing except the unfinished percent; the pack holds whatever it reached. A pack left on the cord past one hundred sits at a float, drawing next to nothing.

Where the fast window ends

Past eighty percent the pack sets the pace, at falling watts. Rated input stops being the number that matters.

Temperature and the clock

Cold stretches the whole window. Chilled cells accept current reluctantly, so the flat phase runs below its rated figure from the first minute. The colder the pack, the wider the gap between printed minutes and real ones. A unit stored in a winter garage posts a slower 0-80 than the same unit warmed indoors. Ten degrees of pack temperature move the clock by minutes, twenty by a good deal more. The flat window keeps its straight line in the cold; the line starts lower and runs longer. Manuals print the working band for charging, commonly zero to forty-five degrees, with the honest pace living in the middle of it. A pack that spent the night in a van deserves the same hour indoors that a winter garage unit gets.

Near freezing, many stations step in harder. Charging pauses outright below zero on some models. Others hold intake to a trickle until the cells warm, a few heat the pack first on their own. Lithium plated by sub-zero charging never recovers. The firmware treats the risk accordingly. Winter routines adapt on their own: charge indoors, charge once the cabin has warmed the pack, give it an hour at room temperature ahead of the cord. An hour of warming often buys back half an hour of charging on the coldest days.

Heat trims from the other end of the scale. A pack baking on a summer job site pulls its intake down to keep cell temperature in band. The printed 0-80 assumes a room-temperature pack on full wall power. Winter mornings and August afternoons both deserve a margin on top of it. Shade and airflow claw part of the summer loss back. A unit charging out of the sun keeps more of its printed pace. The pack’s own charging heat adds a little on top in a hot room, one more reason the taper exists. Neither season moves the knee itself; the bend stays parked near eighty whatever the thermometer says.

Planning around the eighty mark

A ferry morning shows the mark at work. The boat leaves at nine; the station reads twelve percent at seven. Plugged in at breakfast, a 1024 watt-hour unit on 1000 watts climbs the flat line: forty by half past, sixty-five at eight, the knee a few minutes before nine. Departure lands at eighty-two percent. The tail would have cost another half hour past the sailing. Eighty was the right place to unplug. Nothing on board that morning needed the missing eighteen percent. The fridge, the phones, and the router all ran the day out with charge left over.

Departures rarely need the final fifth. The tail buys 200-odd watt-hours on a mid-size unit at the price of a third of the total clock. Loads that finish a trip on eighty percent finish it on time. Evenings own the stretch to one hundred, plugged in with nothing waiting on it. Framed that way, the tail stops being a delay at all. It becomes a background task for hours that had no other claim on the machine. Eighty as a default departure mark survives contact with nearly every real schedule. Mornings that need the full pack were provisioned the evening before by definition; the tail ran overnight, unwatched.

Many models make the mark a setting. A charge limit set at eighty stops the intake at the knee, on the same screen that shows the input watts. Daily cycling lives well there: the pack works inside its gentlest band, the clock stays inside the flat window, the tail never runs at all. The setting also steadies the arithmetic. Every charge ends at the same mark, so every wait matches the last one. Cells cycled shallow between twenty and eighty age at their slowest pace. Guests treat the limit as invisible; the unit behaves like any appliance that stops when done. Setting it takes under a minute on the display or in the companion app.

Full still has its seasons. Outage weeks, long off-grid stays, a forecast with a name on it: those call for one hundred percent and the patience it costs. Lifting the limit for the season takes a moment. The tail runs overnight, unwatched, on the days the last fifth earns its minutes. A calendar note at the season’s turn covers the whole discipline. Nothing about the pack minds the occasional full charge; the cost lives in making one hundred percent the daily habit.

Top-up habits fall out of the same shape. Short plug-ins land inside the flat window whenever the pack sits under eighty, so a lunch-break session buys a predictable slice every time. Fifteen minutes at full intake is a quarter of a mid-size pack. Three such sessions across a day keep a working unit topped without a single long sit. The same habit suits shops and film sets, anywhere the unit works through the day near a socket. Crews that live by call sheets tend to discover the habit within a week.

Reading a fast-charge claim

Every claim decodes with the same line of arithmetic. Take the pack’s watt-hours, multiply by 0.8, divide by the claimed minutes over sixty. Out comes the intake the claim assumes. A 512 watt-hour unit claiming eighty percent in twenty-five minutes is assuming near 1100 watts of real intake; the spec sheet’s input rating either backs that or it does not. Thirty seconds of decoding sorts marketing from engineering on any product page. A notebook of decoded claims makes short work of comparing a shortlist. The same line run backward sizes a purchase: minutes wanted, pack size chosen, intake required falls out. Implied intake past the sheet’s own rating marks a claim measured on a different pack or rounded past honesty. The arithmetic catches it either way.

Small packs post dazzling minutes by nature. Fewer watt-hours cross the line sooner at any given intake. The honest comparison across sizes is watts per watt-hour, or plainly the worked minutes on the pack size being bought. The arithmetic holds at every pack size. A 512 watt-hour pack at 500 watts and a 2048 at 2000 post the same minutes; the arithmetic says so before the stopwatch does.

Claims also assume their conditions. Room temperature, a wall socket at full rating, a start from near empty, no charge limit set: the printed minutes stand on all four. Each missing condition stretches the real figure. A winter garage alone can add a quarter to the clock. Claims read best as ceilings. A real morning lands somewhere under them. A claim footnoted with its test conditions reads as a good sign in itself. Reviewers time the window at room temperature for exactly this reason.

A home check settles any doubt. Time a charge from twenty percent to sixty and double the result; that estimates the 0-80 window with no need to drain the pack to zero. The measured figure sits within a few minutes of the decoded claim on a healthy unit. A wide miss usually names the source, the cable, or the temperature. The pack itself sits last on that list of suspects. Sudden shortfalls trace to sources and cables in nearly every case. The twenty-to-sixty stretch also sidesteps the taper entirely, keeping the doubled estimate inside the flat phase where the line holds straight.

Feeding the fast window

The flat window only runs flat on a source that covers the rated intake. A wall socket does it as a matter of course. Solar does it in strong sun on a big enough array, the car port does it within its own small ceiling, each source through its own door at its own width. Undersized sources still charge; the line runs shallower, stretching the window to match. Matching source to rated intake is its own subject, port by port, covered on the pages for each input. A source at half the rated intake doubles the flat window’s minutes with the same straight-line behaviour throughout. The stopwatch check from the previous section doubles as a source check: a flat window running under its printed pace names the door, the cable, or the sky. The battery earns suspicion only after those three clear. Ten such checks across a year of ownership cost less time than one afternoon of wondering.

Zero to eighty earns its place as the working number of the whole machine. Departures plan on it. Claims decode through it. Charge limits park at it. The tail keeps its uses on quiet evenings and ahead of hard weeks. The clock keeps its shape either way: a straight sprint to the knee, then a patient glide. Kitchen arithmetic covers the sprint. The sprint covers nearly everything a day asks of the battery. The number on the box, read the way this page reads it, turns out to be the one figure a household uses every week. Minutes to eighty, at rated watts, on this pack: three figures, one line, the whole plan.

Parallel Multi Input Charging Implementation

Two chargers at work on one battery

Parallel multi input charging runs two charging sources into a power station at once, their watts added on one battery. A wall cord occupies the AC port. Solar panels occupy the solar port. Both streams flow at the same moment, each through its own electronics, the sum governed by the machine itself. Combined intake is the whole idea: more watts per hour into the pack, every port inside its printed rating. On a dual-input machine the arrangement takes under a minute to set up. Two plugs go in. The screen shows two live figures the moment both doors carry power. Speed is half the point. The other half is flexibility, a machine that accepts whatever mix of grid, sun, and engine a day happens to offer.

Dual input ships on the bigger half of the market. W class machines carry an AC inlet beside a solar port as standard fit. L class machines widen both and add further doors beside them. On the housing the feature is plain to see: two input ports, two shapes, two labels, one battery behind them all. No accessory unlocks it. The capability sits in the unit from the first day. Owners find it on the spec sheet under combined input, a line many read for the first time months after buying.

Waits shrink in direct proportion. Intake watts divide into the pack’s watt-hours, an arithmetic that hands back the hours. Raise the intake and the hours fall. Parallel feeding raises intake past what any single door offers, the one lever left open after purchase. Everything else about a charge, chemistry, capacity, cable runs, was fixed at the factory. Intake is the term the rest of this page leans on: watts crossing into the battery each hour, whatever mix of doors supplies them. Two hundred watts more intake means the same fraction fewer minutes, an arithmetic with no exceptions.

Separate doors into the same room

Behind each port sits its own converter. The AC inlet feeds a rectifying charger that turns wall current into battery current. The solar port feeds an MPPT stage built around panel DC. A car port, where fitted, feeds a small DC-to-DC stage of its own. Separate hardware walks each source from plug to battery. Nothing inside one converter reaches into another. Each stage carries its own fuse, its own filtering, its own control loop. A fault inside one stage trips that stage’s own protection and nothing else. Charging continues on whatever doors remain healthy.

All of those converters empty into the same internal DC bus, the copper spine that feeds the battery. Watts from the wall meet watts from the sun on that spine, already converted, already matched to the pack’s voltage. Past the bus, the battery reads one combined current. Cells keep no record of the doors behind it. Bus voltage tracks the pack itself, a shared reference every converter aims at. Copper on this spine runs thick, sized for the total cap with reserve on top.

One-way flow keeps the doors honest. Each converter passes power toward the bus alone. Wall power cannot climb out through the solar port. A shaded panel cannot pull charge back out of the pack. Even a dead source on one port leaves the other port’s stream untouched. Diode behaviour at each stage output enforces the direction in hardware. Night proves the design daily: panels sit dark on the roof for ten hours with the pack holding every stored watt-hour behind the one-way wall.

Above the converters sits the charge controller, the piece that reads the battery’s limits and trims each door to fit. Its orders go out many times a second. Narrow the solar stage a step, hold the AC stage, follow the ceiling: the sum stays legal at every instant. Firmware carries the whole negotiation. Hands never enter it. Trim orders land on the converters as current targets, digital messages on an internal wire, the same mechanism single-source charging uses. Response beats any human reflex by three orders of magnitude.

Every watt lands in the same cells, whatever door it came through.

One ceiling, set at the battery

One number rules the merge. A lithium pack accepts charge up to a current ceiling set by its chemistry and its state, the figure a battery management system computes as its charge current limit. Two doors feeding at once still answer to that single figure. The sum of every input, converted and merged, stays under the ceiling the BMS names. Over-current during charging sits on the same system’s list of protections, the backstop under the whole arrangement. Everything above that line, ports, converters, firmware, exists to feed the pack quickly and leave the backstop untouched. The ceiling is the pack’s own property. Ports merely queue up behind it.

The ceiling moves through the day. A cold pack names a lower figure. A pack close to full names a lower figure again. Whatever the moment’s number, the controller shapes the combined intake to sit beneath it, trimming doors in whatever share the firmware picks. From the cells’ side, a two-door charge reads the same as a one-door charge held to the same line. Third-party meters clamped on the pack confirm as much: current under the ceiling, temperature in band, no signature of the second source at all. Summer heat moves the ceiling as well, in the same protective direction. Nothing about parallel input appears anywhere in the cell’s experience.

Port limits and the combined limit

Every port carries its own printed limit. An AC inlet on a large unit takes in the range of 1100 to 1800 watts. A solar port takes 400 on mid-size units, 800 and up on the L class. A car port holds near 120 watts. Printed on the spec sheet, those figures set each door’s width on its own. Width here means watts, the ceiling a port enforces on its own stream before the merge. Port limits live in hardware, in the converter each door owns, past any user setting.

Above the per-port figures sits one more number, the combined intake cap. A unit with an 1100 watt AC inlet and an 800 watt solar port may cap the pair at 1500 watts together. Offered 1900, it takes 1500. The total cap guards the pack and the chassis at a level the single ports cannot see from where they stand. Spec sheets print it near the input table, one line, easy to miss on a first read. The gap between 1900 offered and 1500 taken is not waste; panels idled at the margin lose nothing except time.

Feed it past the cap and the trim happens without a sound. No error shows. No light blinks. The firmware narrows one door until the sum fits, on many units the solar door first. The screen carries the only evidence: a solar figure sitting below the panel’s midday form of a moment before. Watching that figure for a minute settles any doubt about whether the cap is engaged. Cloud and clear sky call for different trim depths; the firmware recomputes the share each second, always enough to hold the sum at the printed figure.

Planning starts from the smaller of two sums. Add up the ports in use, then set that against the combined cap; the lower figure is the real intake. Divide the battery’s watt-hours by that figure for the honest wait. A margin of ten percent on top covers conversion losses and the slow tail near full. Worked once, the numbers make the plan.

Real intake and the wait it buys on a 2048 Wh pack (illustrative large dual-input unit)

Input mix	Ports offer	Combined cap	Real intake	2048 Wh from empty
Solar alone	400 W	1500 W	400 W	~5.6 h
Wall AC alone	1100 W	1500 W	1100 W	~2.1 h
AC + solar	1100 + 400 W	1500 W	1500 W	~1.5 h
AC + big solar	1100 + 800 W	1500 W	1500 W (400 W trimmed)	~1.5 h

A storm-prep fill, walked through

Take a concrete afternoon. A storm sits three hours out on the radar. In the hallway stands a 2048 watt-hour station at forty percent, 1229 watt-hours short of full. The wall cord goes in first: 1100 watts on the screen. The balcony panels go in next: 380 more, midday sun through thin haze. Combined intake reads 1480 watts, just under the unit’s 1500 watt cap, so nothing gets trimmed. Divide the missing 1229 by 1480 and the answer says fifty minutes at headline rate. Real charging stretches that a little. Past ninety percent the pack eases its intake to protect the cells, on any mix of doors. The last stretch crawls in at a few hundred watts. Call it seventy minutes end to end. Twenty minutes in, a cloud bank crosses; the combined figure sags to 1240, the loss all on the solar side, the fill carrying on with no restart and no complaint. Sun returns, 380 comes back, the clock tightens again. At the hour mark the screen shows ninety-six percent. The panels come off then, carried in ahead of the rain, leaving the cord to finish the tail alone. Storm arrives at six. The station sits at one hundred percent with the fridge already plugged into it. Run the same afternoon on the cord alone and the arithmetic lands near seventy minutes at headline rate before the same slow tail, a fill that meets the front with thinner margin. Two doors together shaved the wait by a clear quarter. Nothing in that hour asked for a setting, a menu, or a mode. Two plugs went in. One came out early. The bus took what each door offered, the ceiling watched over the sum, the screen reported the split the whole way through. Halfway in, the fan stepped up one notch, the sound of two converters sharing one chassis, then settled once the intake tapered. Laundry, a router, and a phone all charged off the same unit through the evening that followed, the whole reserve built inside a single hour of two-door intake. Multiply the story across a season of storms and the saved minutes turn into whole afternoons handed back. Parallel charging in practice is exactly that undramatic, an afternoon errand folded into an hour with margin to spare.

Pairs the ports allow

AC plus solar is the pairing nearly every dual-input unit ships with. Two dedicated ports cover the two sources with no overlap to manage. The wall carries the base rate, with daylight adding its share on top for as long as it lasts. Storm prep, weekend turnarounds, and winter top-ups all lean on this pair first. Hardware for it ships complete in the box on W class units: the AC cord, the solar lead, two ports already live. First-time owners usually meet parallel charging here, by accident, on the first sunny day the wall cord was already in.

Out on the road, the solar port and the car port make the second pair. Both run on DC, each behind its own converter. A roof array works the MPPT door at highway speed, wind and all. The dash socket adds its small stream through the DC door beside it. Together they turn a driving day into a steady all-day fill. Neither DC door minds the other. Separate converters keep the alternator’s rough supply well away from the panel’s clean one.

L class units go further with two solar ports on two separate trackers. Each array hangs at its own angle on its own string, so the east string and the west string each get their best hours of the same day. Harvest widens without a single panel moving. Two trackers also keep a mismatched pair of arrays from dragging each other down. Serious solar users rank this second tracker among the main reasons to step up to the larger chassis. Angled roofs, garden fences, and van sides all become usable at once when each string answers to its own electronics.

Small S class units play the same game through USB-C. A PD port rated near 100 watts runs beside the AC inlet. On a desk, a laptop charger and the wall cord fill the little unit through both doors at once. The PD ceiling itself is its own subject. For the small units, the pairing matters on work desks above all, where wall power and a spare laptop brick both sit in reach.

Anything that makes household AC occupies the AC door, a generator included. Solar keeps its own door beside it. Off-grid, engine plus panels form the same parallel pair the wall and the panels form at home. The bus reads identical arithmetic in both places. Any AC source of adequate quality plays the wall’s role; the firmware never learns the difference. Manuals fold the generator case into the same input table for exactly that reason.

Plugging in and dropping out

Mid-charge additions ask for no ceremony. Plug the second source in whenever it appears, midway through a wall fill, an hour before dusk, any moment at all. The bus folds the new stream into the old one inside a second. On the screen, the combined figure steps up by the new door’s share. Ten seconds of watching the display confirms the addition took. The same casualness covers removal: pull either plug mid-fill and the remaining door carries on at its own width.

Even with a cloud parked over the panels, the fill keeps moving on the remaining door, no restart, no error, no lost progress. The solar share returns on its own once the sky clears. Sources come and go all afternoon on an autumn day. The charge line on the display just keeps climbing at whatever slope the moment funds. Batteries are patient loads. Progress already banked stays banked through any interruption.

No order governs any of it. First plug, second plug, either sequence lands in the same place. The controller reads whatever stands present at each instant. Memory of who arrived first exists nowhere in the system. Households treat it accordingly: whoever passes the unit plugs in whatever source stands idle. Guests manage it without instruction.

Why the combined cap sits below the sum

Heat explains the combined cap. Two converters at full output share one chassis, one fan, one thermal budget, all of it sealed inside a box the size of a picnic cooler. Their losses land in the same enclosed air. A cap on the sum keeps that inside air at a temperature where the electronics live long lives. Fan speed at full combined intake tells the story to anyone standing near. Designers size that cap for a hot room in summer, which leaves margin in the cool. Cheaper single-converter designs dodge the problem by refusing parallel input altogether, one door open at a time by wiring.

Cell chemistry explains the rest. A pack rated near one C accepts roughly its own capacity in watts each hour, 2000-odd on a 2048 watt-hour pack at best, less when cold, less again near full. The combined cap sits at or under that chemistry line by design. The pack’s appetite is the scarce resource in the whole arrangement. Doubling the doors on the same pack would double nothing once the chemistry line was reached.

Where parallel charging pays

Turnaround time is the first payoff. Between an outage and the next warning, between a Saturday trip and a Sunday one, the station has to climb back to full inside a fixed gap. Combined intake shrinks that climb to fit the gap. Full arrives before the next departure does. Rental fleets and film crews run this arithmetic daily, with charge windows measured against booking sheets. A pack that turns around in ninety minutes fits into far more of a day’s plans than one that needs four hours.

Winter solar brings the second. A December sky offers three usable hours around noon. Add the wall to that same window and a big pack lands full with room to spare, the noon harvest folded in on top of the cord’s steady base. Short days stop dictating the schedule. Summer flips the same trick toward economy, panels shouldering the base with the cord topping off whatever the evening needs.

Forecast lead time is the third. Warnings arrive hours ahead. Hours-to-full, read off the combined rate, tells whether the station meets the front at one hundred percent. At 1500 watts a 2048 watt-hour pack crosses from near empty to full in about an hour and three quarters. Few warnings run shorter than that. Margin like that turns storm prep from a scramble into a checklist item. The same read works in reverse ahead of planned grid work announced a day early.

Departure mornings close the list. A trip that leaves at nine, decided at seven, leaves two hours to load a pack that sat unplugged all week. Two doors make two hours enough. The wall does its part at breakfast rate. The panels, already out on the lawn for the trip, do theirs. Nine o’clock arrives with the pack full and the panels folded on top of it.

Reading the screen, catching the quiet trims

The input screen settles every question about what the doors are doing. On dual-input units the display carries a figure per source, watts from AC, watts from solar, one line each, refreshed every second. Both lines move in real time. A glance shows which doors stand open and how wide. App dashboards mirror the same two lines for anyone away from the unit. Units without per-source lines still show combined intake, enough to verify the sum against expectation.

Quiet trims show up there first. With the AC door at full width on a 1500 watt unit, the solar line sits pinned near the 400 watt remainder, the combined cap paring that share on purpose. Nothing is broken. The cap is working as printed. Unplug the wall cord and the solar line climbs toward the panel’s own limit. Watching that climb is the cleanest demonstration of the cap a unit can give.

One check ends the setup. Combined intake on the screen, set against the spec sheet’s total, tells whether both doors run at width. Matching figures close the case. A shortfall points at a cable, a port limit, or the cap itself, in that order of likelihood. Five minutes with the screen beats an hour of guessing at the hardware. Cable faults announce themselves there long before any tool comes out.

Getting the setup right

Right cables finish the job. Solar goes in through the MC4-to-port lead sized for the array’s current. AC goes in through the cord from the box. Car charging keeps its dedicated lead. Rated adapters only; a thin third-party lead narrows a door invisibly. Port shapes prevent outright mistakes; nothing dangerous fits the wrong hole. The worst a wrong cable manages is a slow door. Length matters on the solar side above all; thin DC runs give up watts as heat before the door ever sees them.

Parallel charging is the fast lane the spec sheet already paid for. Two ports stand on the housing either way. Feeding both at once turns the printed combined cap into real minutes saved, on storm days, on departure mornings, on any afternoon with sun and a socket in reach. Plug both doors, read the two lines on the screen, let the bus do the adding. Every figure above came off standard dual-input hardware, no accessories, no settings, the machine as it left the box.

Hybrid Generator Charging for Power Station

An engine that stands in for the grid

A generator feeds a power station the same alternating current a wall socket does, made on the spot from a tank of petrol, propane, or diesel. Plug the station’s own wall charger into the generator’s household outlet and the two work together in the way the grid and the station would at home. Behind that outlet sits an engine burning fuel, the one fact that colours everything about the charge: how fast it goes in, how clean it arrives, and how much it costs to put there. Generator charging is wall charging fed by an engine a person carries into the field.

The appeal is range that never leans on the weather. A power station holds a fixed store of energy and then waits for a refill. A generator supplies that refill on demand, in the dark, in the rain, in a deep winter week when solar panels gather almost nothing, for as long as there is fuel in the can. That store of petrol waits out the whole trip, ready to become charge on the hour the battery calls for it. That independence from daylight is the reason to carry one at all.

Charging from a generator is rarely the entire plan. Off-grid setups pair the engine with solar panels, with the grid on the days the grid comes back, and with a battery large enough to coast for hours between runs. The generator covers the gap the other sources leave behind. One hour of run time can put back the charge a cloudy day failed to gather, and then the engine goes quiet again while the battery takes over. Hybrid is the honest word for how these pieces fit together in practice.

Power quality is what turns generator charging into its own subject, apart from plugging into a wall. A power station’s charger is a far fussier load than a kettle, a lamp, or a drill, paying close attention to the shape of the AC it is fed. Feed it clean power and it charges at its full rated speed. Feed it rough power and it slows down, sometimes to a crawl, or refuses the source and blinks an error where a charge should be. Everything else about running a generator into a station follows from that one demand for a clean wave.

Clean power the charger can use

The grid delivers a smooth sine wave at a rock-steady frequency. A power station’s charger is built around that exact shape. Fifty or sixty times every second the voltage rises and falls in a smooth rounded curve, a shape the charger’s electronics lean on to time their own switching. Hand them the wave they were designed for and they run at their rated input, drinking the full eight hundred or twelve hundred watts the station is rated to accept. The charger asks for nothing exotic. It asks only for the shape the grid has supplied all along. Given that shape, the charger has an easy time of it.

A generator’s task is to imitate that grid wave closely enough that the charger accepts it as the real thing. How closely a given generator manages the imitation is the question that decides the charge. Some designs reproduce the curve loosely, with steps and wobbles a charger can feel. Others rebuild it almost perfectly, indistinguishable from the mains as far as the electronics can tell. The distance between those two approaches is the distance between a station that charges at full rate off an engine and one that charges at a fraction of it, or not at all.

The inverter generator and the old kind

A conventional generator bolts its engine straight to the alternator that makes the power. Engine speed sets the output frequency directly, so a mechanical governor works to hold the engine at a fixed rpm and keep that frequency near its mark. Change the load, and the engine lurches for a moment before the governor can catch it. Every electrical wobble in the output traces straight back to that one mechanical linkage. Frequency and voltage sag and surge through every lurch, leaving a waveform that only ever approximates a true sine. On the cheapest open-frame units the wave comes out looking like a staircase.

Even the roughest output runs a work light or a heating element, loads that care only about raw watts. Inside a power station, the charger pays attention to the shape of the wave itself, catching what a simple load never feels. A charger meets a rough wave in one of two ways: quietly dropping its rate to cope, filling the battery slower than the label promises, or reading the drift and the spikes as a faulty supply and shutting the input down, an error showing where a charge should be. Which way a particular station reacts comes down to how forgiving its charger firmware was written to be.

An inverter generator reaches the outlet by a wholly different path. Its engine spins a small internal generator feeding a bank of electronics that build the AC wave fresh from scratch, in the way the power station itself builds the AC at its own sockets. Engine speed no longer ties to the output frequency at all. When the load climbs, the engine revs to meet it. Once the demand falls away, the engine settles back toward idle. Through every one of those speed changes the electronics hold the output wave rock steady, clean, and locked to its frequency.

The payoff of that design shows up the instant a power station is plugged in. Total harmonic distortion measures how far a waveform strays from a perfect sine, capturing the whole difference in a single number. A quality inverter generator holds its distortion under about three percent, close enough to grid power that a station treats the outlet as a wall socket and pulls its full rated input without hesitation. A conventional generator commonly runs several times that figure, past ten percent and past twenty at the cheap end, rough enough that a sensitive charger either backs its rate off or balks at the source outright. A station cannot clean up dirty input on its own. It accepts what the generator hands it, at whatever rate its charger judges safe, so the quality of the source sets a hard ceiling on the speed of the charge. Frequency stability counts for every bit as much as the shape of the wave. A charger watching for a steady fifty or sixty hertz gets exactly that from an inverter generator and settles straight into charging. Let the frequency wander each time the load changes, and the same charger holds back or drops out to guard itself. Variable engine speed pays a second dividend at the fuel tank. An inverter unit throttles its engine down to meet only the load in front of it, sipping fuel near idle and opening up just when the draw demands. Over a long charge that habit alone stretches a tank of petrol dramatically further and keeps the noise down to a soft hum for the bulk of the run. This is why nearly every power station manual names an inverter generator as the recommended source, and warns in plain language that a conventional one may charge slowly or refuse to charge at all.

Clean power, the one feature to buy for, comes from an inverter unit in the portable world.

Generator power quality by type, and how a power station’s charger responds (illustrative)

Source	Typical THD	Frequency under load swing	Station charge result
Grid (reference)	2–5%	±0.1 Hz	Full rated input
Inverter generator	< 3%	±0.1 Hz, held flat	Full rated input
Good conventional	5–10%	±1–2 Hz	Reduced, ~80–90%
Rough / open-frame	15–25%	±2–3 Hz	Slow, or input error

What rough power does to the charge rate

Give a station clean power and its charge rate climbs straight to the charger’s rated ceiling. Give it rough power and that rate falls, by a hair or by half, depending on how the charger was built to react. The cleaner the incoming wave, the closer the charge creeps to full speed. The rougher the wave, the further the rate slides away from it. Power quality works as a dial the charger reads, moving the rate up and down by degrees.

The slowdown is nothing but the charger guarding itself. Rough power carries voltage spikes and dips through every cycle. A charger pushed hard on that ragged diet heats up faster and ages sooner than one fed smooth power. Once the charger reads its input as poor, it throttles back to a rate it can hold without cooking its own components. The rougher the supply, the harder it holds itself back, trading a little charging speed for a longer working life.

Outright rejection is the harder stop to swallow. Some chargers set a firm floor under power quality and flatly refuse to run below it. The station throws up an input error and sits there doing nothing while fuel burns in the engine for no return. The only cure is a cleaner source. No cable, no menu setting, and no amount of patience will coax a charger past the quality floor its designers built into it. Swapping an open-frame unit for an inverter model is the one move that clears the error for good.

The station sits between engine and load

Here is the piece that makes the whole thing hybrid. The generator charges the battery. The battery, in turn, runs the loads. The two ends never have to meet directly or match each other watt for watt. A modest generator pours an even trickle into a large battery for an hour. Out of that same battery come the heavy bursts a power tool or a fridge demands. The buffer sitting in the middle is what lets a small engine do the work of one several times its size.

Sizing the generator to the input

The number a generator has to match is the station’s charge input. A power station might accept eight hundred watts of AC input at its ceiling. That ceiling is the whole target a generator aims at. Feed it from a unit rated at two thousand watts and it still draws only its eight hundred, leaving well over half the engine sitting idle. The loads on the sockets are the battery’s problem, buffered off separately, so they never enter the sizing sum. Paying for a generator past the input ceiling buys nothing but a heavier machine that drinks more fuel for no gain.

The floor to aim for is the input the station can take, plus a small cushion. Match the generator to that figure with a little headroom and the charge runs at full rate on the least fuel the job allows. A generator that can just cover the station’s input, with a margin left for a hot day and thin air, is the efficient pick every time. The unit to steer clear of is the one too small to hold its output steady once the charge pulls hard on it. Around that floor, a couple hundred watts of headroom is plenty. Piling on more brings no prize.

Altitude and heat quietly shrink the real output a generator can deliver. Thin mountain air and a hot afternoon each rob an engine of power it would make at sea level on a cool morning, often stripping away a tenth or more between them. A generator sized with no margin can come up short on exactly the high, hot, off-grid trips where a full charge cannot afford to fail. Reading a maker’s derating chart before a summer expedition turns that guesswork into a firm number. Adding a fifth on top of the bare requirement covers that loss and still leaves a little room for a surge.

Oversizing carries its own quiet costs. An oversized generator left loafing at a small fraction of its rated load burns fuel badly for the watts it makes. On many designs it wet-stacks as well, glazing its cylinders with unburnt fuel and oil that fouls the engine over time. Loading a generator to somewhere near its rated output, which a full-rate charge into a station tends to do, keeps it running hot enough to stay clean. Right-sizing looks after the engine’s health as much as it looks after the fuel budget. A load held near the rated figure gets the best work out of every litre.

The surge the battery swallows

Motor-driven loads spike hard at the instant they start. A fridge compressor, a water pump, or a power saw can pull several times its running wattage for a fraction of a second as the motor breaks into motion. Run that load straight off a generator and the engine has to swallow the entire surge in that instant or stall trying. Routed through the station, that same surge lands squarely on the battery, with the generator doing nothing but charging behind it. The engine behind the battery only ever feels the steady charging draw. Behind the scenes, the battery’s own power electronics deliver that violent half-second of current. The little engine never feels it happen.

This buffering is the reason a generator can run small. Sized only to the station’s input, it never has to meet a startup surge head-on. The battery stands squarely between the two, absorbing every spike and passing the generator a load that never jumps. Wire a little generator straight to a workshop saw and it stalls dead on the first pull. With the station’s battery slipped in between, the same generator runs the same saw without a stumble.

Fuel and the run-then-rest rhythm

A generator charges quickly. Its thirst for fuel is the reason to run it in short spells. Every hour the engine turns it drinks petrol whether the battery needs a lot of charge or a little. The efficient pattern is to run hard and then stop. Charge the station quickly up to a high level, shut the engine down, and let the loads run in silence off the battery until the charge falls low enough to call for another burst.

The battery is what makes that stop-start pattern workable in the first place. Take the battery away and a generator has to idle along all night just to cover a small base load, burning fuel through the quiet hours to keep a few watts flowing. Put a large battery in front of it and the whole shift changes: the engine works flat out for one hour and then rests for the next six while the battery carries the house. The longer the battery can shoulder the load on its own, the fewer hours the engine runs and the less a night off-grid costs in fuel.

The fuel a generator burns shapes how far off-grid it can wander. Petrol turns up almost anywhere and keeps a season in a sealed can. Propane keeps for years in the bottle and burns a touch cleaner. Diesel powers the biggest units through the longest hauls. Whatever fills the tank sets the real range of the whole setup, since the fuel runs dry long before the battery gives up. Between the three fuels, easy availability tends to count for more than the small gaps in how each one burns.

Runtime figures printed on a generator’s spec sheet almost always assume one fixed, gentle load. A unit rated for eight hours at a quarter of its capacity may give barely three when it runs flat out. Charging a power station pulls a near-full load from the generator for the entire length of the charge, so the honest number to plan fuel around is the heavy-load figure, the one that reflects a station on charge. A single spare jug of petrol in the boot can stretch a one-tank trip into a comfortable two-day stay.

Noise tracks the throttle closely on an inverter unit. Idling between charges, it settles to a low murmur. Opening up to charge, it lifts to a steady hum, well short of the flat-out roar a conventional generator makes while it holds full rpm all day. Running the engine in short bursts keeps those louder stretches brief. A campsite or a row of neighbours will forgive one hour of hum far sooner than they forgive a whole night of roar.

Hooking it up without trouble

Connecting the two is as plain as plugging the station’s wall charger into any household socket on the generator. No adapter, no special lead, and no wiring stands between them. The charger that shipped in the box with the station takes the generator’s AC in the way it takes the wall’s. Start the engine, give it a moment to find its feet, and plug the station in. From the station’s side, nothing about the source has changed. Beyond that first plug-in there is nothing to learn, since it behaves like any wall charge from then on.

A short warm-up spares the charger a rough jolt. A generator swings a little wild in its first few seconds, voltage and frequency both hunting around before the governor or the inverter board pulls them into line. Let the engine run for thirty seconds and steady itself before the station goes on. On the way out, reverse the order: pull the station’s plug first, and only then kill the engine, so the charger never rides the voltage spike a generator can throw as it spins down.

Grounding and placement finish the safe setup. A generator belongs outdoors at all times, well clear of every door, window, and vent, since its exhaust carries carbon monoxide that kills fast indoors and gives no warning. Follow the manual on grounding, which for a portable unit feeding a floating load like a power station rarely asks for more than the bonding already built in. Keep the whole run dry as well, the engine under a canopy when it rains and every connection lifted off the wet ground.

Where a generator fits a power setup

A generator comes into its own wherever the sun cannot be trusted to deliver. Long grey winters, the deep shade of thick woods, a job site tucked under a solid canopy: anywhere solar output falls short of the need, an engine fills the same battery on demand and on schedule. Pair a generator with panels and the two split the year between them. Sunlight does the work for free whenever it shows up. The engine covers the stretches when it does not. The battery in the middle never knows which source filled it.

For pure backup at home, the sums tilt back toward the battery. A house that loses power only a handful of times a year leans first on stored charge and solar, keeping a generator in reserve for the rare outage that drags on for days. Out on a daily off-grid site, the engine takes the main role, sized as the first source, with the battery smoothing the surges it cannot meet. The right split between battery, sun, and fuel follows the way a given setup gets used across a year. Match the source to the pattern of the days, and a power station stays full through all of them. Whatever the mix, the generator’s job stays the same: pour clean power into the battery on the days nothing else can.

Charging Power Station From 12V Car Socket

The 12-volt socket as a charge source

A power station can charge from the 12-volt socket in a car. The socket is the round port that once held a cigarette lighter or an accessory plug. A car-charge cable runs from that socket to the station’s DC input. Power flows in at a modest rate, enough to top up a battery over a long drive. Behind the dash, the socket is the same one that once lit a cigarette. Familiar and everywhere, it makes a ready charge point.

The socket makes a handy charge source on the road. No wall outlet is needed, no sun, no generator. A driver plugs in and gains power while the miles pass. The car does the charging as a side effect of driving. On a road trip, the charge comes free with the miles. Every hour of driving banks a little more power.

The rate is the thing to understand about car charging. A 12-volt socket carries far less power than a wall inlet. The charge comes in slowly, measured across a whole drive. Knowing that rate sets the right expectation before the plug goes in. Set that expectation, and car charging never disappoints.

Where the socket’s power comes from

The socket draws on the car’s own electrical system. Two things feed that system. The starter battery holds a store of 12-volt power. The alternator makes fresh power whenever the engine turns. Together they run everything electric in the car. Lights, pumps, screens, and the socket all draw on the same supply.

With the engine running, the alternator carries the load. It spins with the engine and makes far more current than a socket draws. The charge to the station comes from that fresh power. The starter battery stays full the whole time. Driving, in effect, charges the station for nothing.

With the engine off, the socket draws on the battery alone. No fresh power comes in. Every watt sent to the station leaves the starter battery. That small store is also the one battery that starts the car. Drain it too far, and the engine will not turn over. That risk is the whole reason to watch a parked charge.

The engine decides how safe car charging is. Run it, and the socket stays fed while the starter battery holds full. Leave it off, and the socket pulls only from that battery. More than anything, the engine sets whether the charge costs the car a thing. Running or parked changes everything about the charge.

The current limit of the socket

A 12-volt socket carries a limited current. A fuse guards it, set at 10 or 15 amps on many cars. At 12 volts, that fuse allows somewhere between 120 and 180 watts. The socket takes no more, whatever the station could accept. Behind that round port sit a fuse and a thin wire. Neither was built to carry big power for long.

The fuse is there to protect the car’s wiring. The thin wires behind a socket carry only a limited current before they heat. A fuse blows before the wiring is at risk. A draw past the fuse trips it. The charge ends there. Better a blown fuse than a smouldering wire. Cheap to replace, the fuse takes the hit first.

That limit puts a hard cap on car charging. A station able to take 500 watts from the wall still draws only 120 through the socket. The socket is the bottleneck, whatever the station allows. No cable or setting lifts a charge past what the fuse permits. Whatever the station’s own rating, the socket has the final say.

What that limit means for charge speed

At 120 watts, a car socket charges slowly. A 1000 watt-hour station needs the better part of a day at that rate. Real losses stretch the figure past ten hours. A full charge from empty is more than a single drive. Empty to full on a socket alone asks for an unusually long road. Few drivers ever charge a big station that way.

A top-up is what the socket does well. An hour of driving adds around 120 watt-hours to the station. A long day on the road adds a real share of a small battery. The charge keeps pace with light use along the way. Run a fridge and charge the station, and a drive keeps both going.

Charge time falls in proportion to the power. Double the input, and the hours halve. A 120-watt socket takes twice as long as a 240-watt one. The socket’s low power is the whole reason car charging runs slow. Nothing in the cable or the station changes that basic rate. Only a higher-current outlet lifts it at all.

Matching the charge to the battery keeps the wait sensible. The smaller the station, the further a drive’s charge goes. A 250 watt-hour unit gains a real share in a couple of hours of driving. The biggest units still lean on a wall charge for their main fill. Between those, a mid-size station gains a useful chunk each day. A day of errands can hold a 500 watt-hour unit steady.

Charging with the engine running

Charging while driving is the natural way to use the socket. The engine spins the alternator. The alternator makes far more power than the socket draws. The station takes its share. The car never feels the load. A hundred-odd watts is nothing against an engine’s output. The alternator hands it over without a flicker.

A long drive turns into a slow charge that costs nothing. Hours behind the wheel feed the station steadily. The power costs nothing beyond the fuel already burning. A road trip doubles as a charging session. By the end of a long day, the station has gained real ground. Six or eight hours of driving move a serious share of charge.

An alternator has current to spare. It makes 70 to 150 amps for the whole car. The socket’s 10 or 15 amps is a small slice of that. Plenty of headroom sits above the socket’s draw while the engine runs. Only a parked car ever feels the socket’s draw.

Charging with the engine off

With the engine off, the socket becomes a drain on the starter battery. Every watt to the station comes out of the small store meant to crank the engine. An hour at 120 watts pulls about 10 amp-hours, a large bite from a 50 amp-hour battery. A long stop can leave the car unable to start. Charging parked is a borrow against the one battery a driver cannot afford to flatten. The longer the engine stays off, the deeper the socket cuts into the crank battery.

The DC-to-DC step inside the station

The station converts the car’s 12 volts to its own. A power station’s battery sits at a higher voltage than 12. A DC-to-DC converter steps the input up to match. The conversion runs at high efficiency, with a small loss to heat. Inside the box, the conversion runs unseen. A little warmth on the case is the only sign of it.

The input accepts a range of voltages around 12. A typical DC input takes anything from 11 to 30 volts. That range covers a 12-volt car and a 24-volt truck alike. The converter sorts out the exact voltage on its own. A camper on 12 volts and a truck on 24 both plug into the same port.

The converter also guards against a rough car supply. Voltage from a socket is rough, sagging and spiking through a drive. The input smooths those swings away. The battery sees a steady charge. The converter turns a rough supply into a steady charge. Spikes and sags never reach the cells.

The car-charge cable and connectors

A car-charge cable links the socket to the station. At the car end sits a cigarette-lighter plug, at the far end the station’s DC connector. A fuse often sits inside the plug for a second layer of safety. Many stations ship the cable in the box. No special adapter is needed beyond that one cable.

Each brand picks its own connector at the station. A barrel jack, an XT60, or an Anderson plug all show up. The station’s manual names the one it takes. A matching cable is the only special part car charging needs. Get the connector right, and the rest is plug-and-go. One cable covers the whole job.

A thick cable keeps the small voltage from sagging. At 12 volts, even a little resistance costs a noticeable share. Heavy wire on a short run delivers nearly all the socket’s power. A thin or overlong lead gives some of it up to heat. At 12 volts, cable quality shows up more than at higher voltages.

As much as the cable, the plug’s own fuse matters. A plug rated for the full socket current carries it and stays cool through a long charge. Checking the plug’s rating avoids a slow or failing charge. A good plug pays for itself in every fast car charge. A quick look at the plug before a long trip saves a slow charge. The cable and the plug together set the real ceiling.

The 12-volt input on the station

A station takes the car charge through a dedicated DC input. Among the other inputs on the case sits the port. Its label names the voltage range and the current it accepts. That input feeds the same charger the wall and solar use. One charger inside handles every kind of input. Car, wall, or sun, the port sorts it out.

One DC port often serves both the car and a solar panel. The two share a voltage range.

Topping up on a road trip

A real road trip shows what car charging adds. Start with a 500 watt-hour station and a 12-volt socket fused at 15 amps, good for about 180 watts. Plug in at the start of a six-hour drive. At 180 watts, the station takes in around 180 watt-hours each hour. Over six hours, that comes to a little over 1000 watt-hours of raw input. Losses in the cable and the converter trim perhaps a tenth. What lands in the battery sits near 950 watt-hours across the day. For a 500 watt-hour station, the drive fills it and holds it there, with power to spare for a phone or a cooler along the way. The engine runs the whole time. The charge costs nothing beyond the fuel already burning. Nothing leaves the starter battery. The alternator carries the load without strain. Now picture the same six hours on a 10-amp socket, good for 120 watts. The input drops to about 120 watt-hours an hour, near 720 over the drive, close to 650 into the battery after losses. Still a full charge for a 500 watt-hour unit, with a little less to spare. Scale the battery up to 1000 watt-hours, and the same drive lands a solid half-charge. Scale it to 2000, and the drive tops up a fifth. The pattern holds: a drive adds a fixed pool of watt-hours set by the socket. A bigger battery just takes a smaller share of that pool. Big batteries treat the drive as a slow top-up. The smaller the battery, the more of it a single drive fills. The socket’s watts, the drive’s hours, and the battery’s size are the three numbers that matter. Multiply the first two for the pool. Divide by the third for the share. That quick sum turns a dashboard socket into a real charging plan. A driver who plans it that way is never surprised by the reading at the end of the road. Take a different trip: a two-hour errand run on a 10-amp socket. That adds only about 200 watt-hours, a small dent in any but the tiniest station. The socket does its best work over a long haul. Over a week of commuting, those small dents still add up. A station topped a little each day rarely runs low. The car becomes a steady charger that never asks for a wall plug.

Across cars and stations, the lesson holds. A drive adds watt-hours in proportion to the socket’s power and the hours driven. Against the battery’s size, that pool makes its dent. The smaller the battery, the bigger the dent from a single drive.

The table below sets a few cases side by side. It pairs a socket power with a battery size and a drive length. The watt-hours added and the share of the battery filled follow from those. Reading down it shows where car charging earns its keep. Set against a battery size, the socket’s watts tell the tale.

Charge added into a battery over a 6-hour drive, by car input (illustrative)

Car input	Fuse	Power	Added in a 6-hour drive
Cigarette socket	10 A	120 W	~650 Wh
Accessory socket	15 A	180 W	~950 Wh
High-amp outlet	20 A	240 W	~1300 Wh
DC-to-DC charger	30–50 A	400–600 W	~2500 Wh

For a small battery on a long drive, the numbers pay off. A modest station topped up over hours of driving reaches camp ready. A larger one still gains a useful margin from the same drive. Either way, the charge arrives for the price of the drive alone. No outlet, no fuel stop, no wait beyond the driving itself. The trip and the charge share the same hours. Nowhere does a driver pay twice for the same time.

One rule carries all of it. Watt-hours in equal the socket’s watts times the hours of driving, less a tenth for losses. That figure, against the battery’s size, is the charge a trip delivers. Everything else is detail. Hold that one sum, and any trip’s charge is easy to guess.

Protecting the car’s starter battery

During car charging, the starter battery deserves care. It exists to crank the engine, nothing more. A flat starter battery strands a car as surely as an empty tank. Car charging has to leave that battery able to do its job. A dead crank battery far from help is a bad day. Guarding the crank battery is the first rule of car charging.

Safest of all is to charge only with the engine running. A turning engine keeps the alternator feeding the socket. The starter battery stays topped up throughout. On power the car makes fresh, the station charges. Engine on, the starter battery never even notices. All the power comes fresh from the alternator.

A parked charge calls for a watchful eye. A brief top-up with the engine off does little harm. The longer it runs, the lower it pulls the starter battery. Watching the time, or the car’s voltage, keeps a parked charge safe. A glance at the voltage tells when to stop. Below about twelve volts, the parked charge has gone too far.

Some setups guard the starter battery on their own. A low-voltage cutoff stops the draw before the battery is too flat to start. A dual-battery system gives the socket a second battery to drain. Either one turns a risky parked charge into a safe one. Either guard lets a parked charge run without worry.

Where 12-volt charging fits

Car charging shines on the long road. A day of driving between stops feeds a station for free. An overlander far from any outlet leans on the car for power. Travel time turns into charging time at the socket. Miles on the road double as miles of charging. A long drive pays a real charging dividend.

Best beside the other inputs, the socket is a top-up. A wall charge at a hotel fills a station fast overnight. Solar adds power through a sunny afternoon. The car socket covers the hours in between, on the move. Together the three keep a station full on any trip. No single input has to carry the whole load. Each one covers the hours the others cannot. Between wall, sun, and socket, a station rarely runs dry.

Higher-power car inputs

Some cars offer more than the cigarette socket. A dedicated 12-volt outlet may carry 15 or 20 amps. A hardwired line from the battery can carry far more. Each lifts the ceiling above the standard socket. These outlets show up on some cars only. The cigarette socket stays the common default.

A DC-to-DC charger unlocks the highest car charging. Wired to the car’s system, it pulls 30 to 50 amps safely. It manages the alternator and the starter battery together. A serious overlander fits one for real charging on the move. Wired in once, it charges as fast as the car allows. Thirty to fifty amps beats the cigarette socket many times over.

These setups ask for wiring beyond a plug-in cable. An installer runs heavy cable from the engine bay. In return, the station gains a fast car charge. For a built-in rig, the effort pays back on every long drive. For a van that lives off-grid, the wiring pays off. Run once through the engine bay, the heavy cable lasts the life of the rig.

Reading the 12-volt spec

A station’s spec sheet names its car-charging input. A line gives the DC voltage range and the maximum current. The car socket’s own fuse sets the real limit, usually a lower number than the station’s own maximum. The lower of the two decides the charge. Read both numbers, and the slower one wins.

Ratings of their own ride on the cable and the plug. A plug fused at 10 amps caps the charge there. The station may accept more than the socket can give. Matching all three unlocks the full car charge. A mismatch anywhere holds the charge below the socket’s limit. Cable, plug, and port all have to agree. Line all three up, and the full car charge flows.

Getting the best from car charging

Car charging rewards a few simple habits. Charging with the engine running keeps it free and safe. Thick wire on a short run delivers the socket’s full power. A small station gains the biggest share from a day’s drive. A few small habits add up to a better car charge, each costing no more than a moment’s thought. Habit, more than gear, sets the car charge a driver gets.

The socket’s limit is the number to plan around. Twelve volts and 10 or 15 amps set the ceiling. A whole drive adds what an hour of wall charging would. Planning at that rate keeps expectations in line with the road. A drive is about an hour at the wall, no more.

A portable power station makes car charging a plug-and-go affair. A user connects the cable and the charge begins. Voltage, conversion, and limit are all the station’s to handle. From the dashboard socket comes a steady trickle of charge. Plug in at the start of a drive, and forget about it. The station tops up while the road rolls by. Hours later, the station reads fuller than it did.

Charging a power station from a 12-volt car socket turns driving into charging. The socket gives a slow, free feed while the engine runs. A short cable and a matched plug carry its full 120 or 180 watts. Over a long drive, that steady trickle fills a small station and adds a useful share to a larger one. Driving and charging become one and the same. That is the quiet appeal of the car socket.

Type-C PD Charging Input Power Cap

What the PD input cap is

A power station’s USB-C port can charge the station itself. The watts it pulls in stop at a fixed ceiling. That ceiling is the PD input cap. USB Power Delivery, or PD, is the standard that sets it. The cap sits somewhere between 60 and 240 watts, depending on the station. Past that cap, the port takes no more, whatever charger feeds it. Inside that ceiling lies the whole story of USB-C charging.

The cap matters because USB-C is the easy way in. The same charger that fills a laptop fills the station. No proprietary barrel plug is needed. A traveller carries one charger for everything. The ceiling on that port decides how fast the easy way works. For a traveller, one charger beats a bag of bricks.

The number comes from the PD standard and the hardware behind the port. PD lays out a ladder of power levels a port may offer. The station’s electronics pick the highest one its charger and cable can support. That top rung is the cap. Every level up to it is available to the station. Below the cap, the station takes whatever a charger offers.

Knowing the cap sets fair expectations for USB-C charging. The higher the cap, the sooner the station fills from a wall charger. The cap, the charger, and the cable together set the real speed. None of the three can be skipped. A weak link in any one holds the whole charge back. Match all three, and the port runs at its rated best.

How USB-C PD negotiates power

Every PD charge starts with a negotiation. The station and the charger talk over the USB-C cable before any real power flows. The charger lists the power levels it can supply. The station asks for the highest one it can use. A deal struck, the power begins. The whole handshake passes unseen in well under a second.

The talk runs on a thin signal line in the cable. Tiny messages cross it in milliseconds. The charger names each voltage and current it offers as a profile. The station reads the list and picks. The whole handshake finishes before a person sees the charge start. Over that one thin line travel all the terms of the deal.

The negotiation repeats whenever the need changes. Near empty, a station asks for full power. The closer it gets to full, the less it asks for. The charger follows each request within its own limits. Power on a PD link is a live agreement, settled fresh each time the need shifts. Should the charger change, the two talk again.

The voltage and current profiles

PD offers power as a set of fixed profiles. Each profile pairs a voltage with a maximum current. The base profile is 5 volts, the same as plain USB. Above it sit 9 volts, 15 volts, and 20 volts. A station picks the profile that charges it fastest within the cap. From 5 volts up to 20, each step opens more power.

Higher voltage carries more power down the same cable. The same cable carries 15 watts at 5 volts and 3 amps, and a full 100 at 20 volts and 5 amps. The cable moves that bigger load on a higher voltage, keeping the current modest. Thin wires handle real power this way. Raising the voltage is the trick behind it.

The station and charger meet at the best shared profile. A charger that tops out at 60 watts offers 20 volts at 3 amps. Reaching 100 watts takes a charger that offers 20 volts at 5 amps. The handshake lands on the highest level both sides allow. Neither side is forced past its own rating. Neither the charger nor the station bends beyond what it lists.

Fixed profiles cover the common cases cleanly. A laptop charger and a phone charger both speak the same language. A station reads any compliant charger and takes what it can. The profiles are a shared menu every PD device knows. Compatibility falls out of that shared menu. Plug any PD charger into any PD station, and they find a level.

The right profile depends on the station’s design. A station’s controller knows its own best voltage, somewhere from 20 volts up to 28 or beyond. It asks the charger for that level. The charger supplies it within its own range. Each pairing settles where the two overlap. Wherever the overlap lands, that level becomes the charge.

The 100-watt ceiling of standard PD

Standard PD tops out at 100 watts. That figure is 20 volts at 5 amps, the highest the original spec allows. For years, 100 watts was the ceiling for every USB-C charger. A station that follows that spec caps its USB-C input there. Many laptops and mid-size stations live happily under it. For years of USB-C, 100 watts was the whole story.

One hundred watts fills a small station in good time. A 256 watt-hour unit takes about three hours at that rate. A 500 watt-hour unit needs about double that time. The cap suits a station sized to match it. Bigger batteries start to feel the limit. Past a few hundred watt-hours, 100 watts begins to drag.

The 100-watt name is a round number for a real limit. The connector and the cable can carry 5 amps safely at 20 volts. Pushing past that asks for either more current or more voltage. The standard spec stops at 5 amps and 20 volts. Anything more waits for the extended range. Five amps at 20 volts is the wall the old spec hit.

The 240-watt extended range

The extended range lifts the ceiling to 240 watts. PD 3.1 added it, the version that broke past 100. New voltage profiles arrived: 28 volts, 36 volts, and 48 volts. At 48 volts and 5 amps, a port delivers the full 240. All of it rides on the higher voltage, the current still at 5 amps. Lifting the voltage to 48 is what unlocks the full 240.

Two hundred forty watts changes what USB-C can charge. A 1000 watt-hour station fills in around five hours at that rate. A laptop charges in a fraction of an hour. The extended range brings big-battery charging to the USB-C port. The barrel plug loses its old advantage. For the first time, USB-C fills a big battery on its own.

Extended-range charging asks more of the whole chain. The charger has to offer 28 volts or higher. The cable has to carry it safely. The station has to accept it. A weak link anywhere drops the charge back to a lower level. Miss any rung in the chain, and the charge settles lower.

Adoption of the extended range is still spreading. Newer stations and chargers carry it. A station that lists a 240-watt USB-C input speaks the newer spec. The number printed by the port tells which range a unit reaches. Reading it sets the right charger to buy. Printed plainly, the number leaves no guesswork.

The cable carries its own limit

The cable carries a limit of its own. A plain USB-C cable handles 3 amps, enough for 60 watts at 20 volts. Anything above 3 amps needs an e-marked cable, one with a chip that declares its rating. A 100-watt charge needs a 5-amp e-marked cable. A 240-watt charge needs one rated for the full 48 volts. Without the right cable, the fastest charger is held back.

A weak cable caps the charge no matter the charger. The handshake falls back to what the cable allows.

Fine voltage steps with PPS

PD also offers a flexible mode called PPS. Programmable Power Supply lets the voltage move in fine steps. A station asks for an exact voltage, tuned to the moment. The charger tracks that request closely. The charge runs a touch more efficiently for the fit. Tuned closely, the supply wastes a little less.

Fine control trims a little waste from the charge. A fixed profile leaves the station a small step to convert. PPS shrinks even that, handing over nearly the exact voltage wanted. Less conversion means less heat in the electronics. Over a long charge, that small saving adds up quietly.

PPS shows up mainly on phones and small gear. A power station may use it or stick to fixed profiles. The PD input cap holds either way, set by the top profile. PPS works on how cleanly the charge runs. It leaves the ceiling where the top profile set it. Either way, the top profile fixes the ceiling.

Why the cap exists

The cap exists because the connector and the cable have a thermal limit. The pins inside a small USB-C plug carry real current. Five amps through those pins makes heat. More current would make more. To reach higher power, the spec holds the current at 5 amps and raises the voltage. That ceiling on current is the real reason a USB-C port caps where it does. Holding the current and lifting the voltage is how USB-C reaches high power safely.

PD input next to the other ways in

USB-C PD is one of several ways to charge a station. Among them are a wall AC inlet, a barrel jack, a car socket, and solar. Each way carries its own typical power. The table below sets the common inputs side by side. USB-C PD sits in the middle of that range.

Typical charging power into a power station, by input (illustrative)

Input	Typical power	Notes
Wall AC inlet	500–1500 W	fastest; built-in or an external brick
Barrel jack (DC)	100–500 W	a dedicated adapter
USB-C PD	60–240 W	any PD charger; e-marked cable for 5 A
Car 12V socket	60–120 W	limited by the socket, around 10 A
Solar (MPPT)	100–400 W	varies with the panel and the sun

For raw speed, the wall inlet leads. A big station can take 1000 watts or more there. Over USB-C, the port reaches 100 or 240 watts. Each input trades speed against convenience in its own way. For raw watts, nothing on a station beats the wall inlet.

USB-C PD wins on convenience and reach. One charger powers a phone, a laptop, and the station. Airports and cafes carry USB-C chargers everywhere. A traveller leaves the bulky brick at home. One cable and one charger cover a whole bag of devices. Carried once, a single charger serves the whole trip.

Two kinds of input suit different days. Before a trip, a fast wall charge readies a big station. On the road, a USB-C top-up keeps a small one full from any charger around. The station accepts whichever is plugged in. Many units take more than one input at once for a faster combined fill. Stacked together, two inputs fill a station faster than either alone.

What the cap means in practice

Putting the cap to work means matching it to the battery. Take a 1000 watt-hour station with a 100-watt USB-C input. At 100 watts the math says about ten hours to fill, or eleven to twelve once real losses are counted in. A full day on USB-C alone fills a battery that size. Raise the cap to 240 watts, and the same battery fills in around five hours, losses and all. Drop to a 60-watt charger, and it stretches past sixteen. The cap moves the charge time in direct proportion: double the watts, halve the hours. The simplest check is to divide the watt-hours by the cap. A 500 watt-hour battery over a 100-watt cap gives five hours on paper, six in practice. The same battery over 240 watts gives close to two. That one division, watt-hours over watts, turns a spec into an afternoon plan. A small station tells a kinder story. A 256 watt-hour unit at 100 watts fills in under three hours. For a battery that size, even a modest USB-C charger keeps up with a day’s use. The match between the cap and the battery decides whether USB-C is a main charge or a top-up. Behind that single division sits the whole choice between a main charge and a top-up. Reading the two numbers together, the watt-hours and the cap, tells the whole story before the cable is even plugged in. A high cap for the battery size marks a station built to live on USB-C. The cap, read against the battery, tells which kind a station is. The port number does more than the battery size to set the charge time. A high cap fills the same battery in a fraction of the time a low one takes. For a buyer, the read is quick: find the watt-hours, find the USB-C cap, divide one by the other. The answer, plus a tenth for losses, is the hours a USB-C charge will run. A station whose answer comes out small lives easily on USB-C.

Best of all, the proportion is easy to hold onto. Twice the cap means half the time. Half the cap means twice the time. From the battery size as a starting point, the cap scales the time. Hold that one rule, and the spec sheet reads itself.

Losses bend the clean math a little. A USB-C charge runs at perhaps 90 percent into the battery. A ten-hour figure on paper lands near eleven in the room. Small enough to plan around, the bend rarely matters. A rough divide of watt-hours by watts still gets within an hour. Close enough for a plan, the rough divide rarely misleads.

Beyond the full charge, the cap also sets whether a top-up keeps pace with use. A station drained 200 watt-hours a day needs that much back. A 100-watt port returns it in a couple of hours. Any cap that refills the day’s draw in spare moments keeps a station ready. Refilled in spare moments, a small daily draw never falls behind.

Charging from a laptop charger or power bank

A laptop charger doubles as a station charger. Many modern laptop bricks speak PD at 65 or 100 watts. Plugged into the station, the brick charges it at that rate. A traveller already carrying a laptop charger needs nothing more. The station borrows the charger it brought anyway. For a laptop owner, the station charges from gear already in the bag.

A power bank can charge a station over USB-C too. A bank with a PD output pushes its charge into the station. By whichever holds more, the flow runs from the larger reserve to the smaller. A pair of USB-C batteries sorts itself out over one cable. Between two USB-C batteries, the fuller one feeds the emptier.

Phone chargers work, slowly. A 20-watt phone charger trickles into a station. In an hour it adds more to a small battery than to a large one. Any PD source adds something, sized to what it offers. Nothing with a USB-C plug is useless to a PD station. Even a phone brick adds its small share over time.

Two-way USB-C charging

A USB-C port often works both directions. One port both charges the station and powers a device from it. Inside, the station senses which way the energy should flow. Plug in a laptop, and the station charges the laptop. Plug in a wall charger, and the station charges itself. Sensing the direction, the port serves either role.

The port’s cap can take a different value in each direction. A station might take in 100 watts and put out 140. The two numbers come from separate circuits behind the one port. A spec sheet lists each one on its own. Reading both avoids a surprise either way. Listed apart, the two caps rarely match exactly.

Output over USB-C runs on the same PD ladder. The station becomes the charger for a phone or a laptop. It offers profiles the way a wall charger would. A device negotiates with the station as it would with any PD source. The roles swap. Acting as the charger, the station offers the same profiles to a device.

Two-way USB-C makes a station a hub. It charges from one source and powers several devices at once. A single port handles either job as needed. The cap on each direction sets how much it can move. One connector covers a whole desk of charging. From one port, a hub of charging runs both ways.

Reading the PD spec on a station

A station’s spec sheet names its USB-C input cap. A line reads something like a flat watt figure, or a voltage-and-current pair. That number is the ceiling the port will draw. A pair such as 20 volts at 5 amps spells out the top profile. Reading that line tells the fastest USB-C charge a station takes. Listed on the page, that ceiling needs no testing to know.

The same sheet often lists the cable and charger needed. A 100-watt input wants a 5-amp e-marked cable. A 240-watt input wants a 240-watt-rated one. In the fine print sits what to plug in for full speed. Matching the gear to the spec unlocks the cap. Matched to the spec, the gear lets the port run flat out.

When PD input is the right choice

USB-C PD shines for small and mid-size stations. A battery that fills in a few hours at 100 or 240 watts needs nothing faster. The one-charger convenience outweighs the modest speed. A unit sized for USB-C makes the port its main way in. For a station sized to it, USB-C is the whole charging story.

Travel rewards the single-charger setup. A bag with one USB-C charger powers a laptop, a phone, and the station. Airport plugs and seat-back ports all speak USB-C. A traveller charges everything from the same cable. Weight and clutter both drop. Down to one charger, a travel kit gets lighter.

Big stations treat USB-C as a useful backup. A 2000 watt-hour unit leans on the wall for its fastest charge. Its USB-C port serves as the backup, topping it up from a laptop charger in a pinch. A backup way in beats a dead battery far from a wall outlet. The port earns its place even on a unit it cannot fill alone. Even as a backup, a USB-C port saves a stranded battery.

Choosing and using the PD input

The PD input cap is the number to match to a need. The right cap depends on how a station will charge through its life. A unit meant to live on USB-C wants a high cap for its size. Read together, the watt-hours and the cap set the USB-C charge time. That pairing guides the buy. Read together, the two numbers settle the question.

Getting full speed means matching the whole chain. The charger has to offer the station’s top profile. The cable has to carry the current. The station has to accept the level. A gap in any link drops the charge to a lower rung. Strong in every link, the chain delivers the full cap.

A portable power station hides the negotiation behind a clean plug-in. A user connects a USB-C charger and watches the watts climb. The handshake, the profile, and the cap all settle in a blink. On the screen sits the rate the chain agreed on. Nothing about it asks for a manual. Behind the plug, the negotiation handles itself.

The Type-C PD input cap is the ceiling on the easy way in. PD negotiates the highest power the charger, the cable, and the station all allow. That ceiling, read against the battery, sets the USB-C charge time. A station and a charger matched to the same cap fill at the full speed the port was built for. Matched end to end, USB-C charging just works.

AC Fast Versus Slow Charging Efficiency Loss

Where the wall watt-hours go

Charging a power station from the wall loses a little energy along the way. The wall meter counts more watt-hours than the battery ends up holding. The difference turns to heat inside the charger and the cells. A full charge of a 1000 watt-hour station can pull 1100 or more from the wall. Inside that gap sits every loss the charge runs through. It all ends as warmth in the charger and the air around it.

The size of that loss is not fixed. The faster the charge runs, the more of it turns to heat. Each charge speed carries its own size of loss. A dial or an app setting picks the speed. The higher up the dial a charge sits, the more of each watt-hour ends as warmth. Picking the speed picks the loss in the same breath.

Knowing where the energy goes helps a user choose well. A few percent lost on every charge adds up over a year. The heat that loss makes shortens cell life by a touch. A charge speed sets the balance between a quick fill and a clean one. Many days leave room to pick either one on purpose.

The two jobs inside the charger

A charger does two jobs at once. It turns the wall’s AC into the DC a battery takes. It pushes that DC into the cells at a controlled rate. Each job leaks a little energy as heat. Neither one runs at a perfect hundred percent. Between them they set the whole loss. Conversion takes its flat cut. Delivery takes the rest.

The first job is conversion. Wall power arrives as alternating current at 120 or 230 volts. The cells want steady direct current at their own voltage. The charger’s electronics bridge the two. Switching transistors flip on and off thousands of times a second to do it. Each flip wastes a sliver of power. Added up over a charge, those slivers become a few percent.

The second job is delivery. A current has to flow from the charger into the cells. That current meets resistance in every wire, joint, and cell it crosses. Resistance turns a slice of the push into heat. Every amp that flows pays that resistive toll. Faster flow pays more of it. Doubled flow pays four times as much.

Both jobs run more cleanly at a gentle pace. Conversion holds a steady efficiency across nearly all of its range. A higher current drives the delivery loss up steeply. The pace of the charge decides how much each one costs. The gentler the charge, the lower both bills run.

The conversion step

Turning AC into DC costs a few percent. The switching electronics that do it run warm. A good charger converts at 92 to 95 percent. The few percent left behind leaves as heat from the brick or the case. Warmth on the charger body is that conversion loss made plain. Cool to the touch, a good brick wastes little there. A few percent here reads the same on a slow charge or a fast one.

Conversion loss stays roughly flat across speeds. The electronics draw their overhead whether the charge is fast or slow. A bigger charger spreads that overhead across more watts. The percentage holds fairly steady from a trickle to a full-power charge. The same small percentage applies at any speed.

A charger left plugged in keeps drawing a trickle. Standby electronics sip a watt or two doing nothing. Over weeks that adds a small waste of its own. Unplugging a finished charger closes that last leak. Pulled from the socket, a finished charger draws nothing at all.

Why loss grows with charge current

The heart of the fast-and-slow story is one law of physics. The power lost in a resistance equals the current squared, times that resistance. The squared part is what matters. Double the charging current, and the resistive loss quadruples. Triple the current, and the loss climbs ninefold. A charge that fills a battery in one hour pushes far more current than one that takes four. It pays a steep premium in heat for that speed. Picture a battery that charges happily at 10 amps with little loss. Raise the rate to 20 amps, and the heat in the wires and cells jumps to four times what it was. Raise it to 30 amps, and the loss is nine times the gentle figure. The faster the charge, the further the wasted energy outruns the delivered energy, because waste follows the square of the current. That gap is why a fast charge stores a smaller share of the energy it pulls from the wall. The resistance itself sits in the cells, the connectors, the cables, and the charger’s own output stage. None of it can be wished away. A thicker cable and a tighter joint trim the resistance a little. A cooler battery holds its resistance lower. The current itself is set by the charge speed. The squared law magnifies every extra amp. A power station that charges in an hour runs its electronics and cells hard. A noticeable fraction of the wall’s energy never reaches the battery. The same station on a gentle setting moves the same total charge at a lower current over more time. Far less of it scatters as heat. Speed and efficiency pull against each other through that one squared term. Engineers call that loss ohmic heating, the I-squared-R term in every power sum. Halving the charge current cuts it to a quarter, a four-to-one return for going slow. Doubling the current for half the time never breaks even, since the loss runs with the square. Two hours at 10 amps lands more energy in the cells than one hour at 20, on every count but the clock. That single squared term is the whole reason a fast charge costs more than the watt-hours it adds.

Resistance lives in many small places. The cells have an internal resistance of their own. The connectors and the cabling add a little. The charger’s output stage adds the last share. Summed together, those small resistances set the floor on every charge. None can be wished away. Only a slower current keeps them quiet.

Temperature nudges the internal resistance up and down. A cold cell carries more of it at the start of a charge. The charge warms the cell within minutes. A warm cell carries less. The middle of the charge often runs cleanest. Warmed by its own current, a pack carries less resistance partway through.

The squared law sets a hard limit on fast charging. Past a point, the heat rises faster than any cooling can clear it. The charger holds the current there to protect the cells. That ceiling is why a station fills the last stretch more slowly. Near full, the charger eases off to hold the heat in check.

Slowing the charge is the surest way to cut the loss. Half the current makes a quarter of the resistive heat. The trade is time. A user picks where to sit on that scale. Dropping the rate a notch pays back twice over in heat. Time is the only price. Paid in minutes, it buys back watt-hours and cell life.

Heat, the form the loss takes

Every watt of loss shows up as heat. The charger brick warms in the hand. The case of the station grows warm to the touch. Current crossing the cells heats them too. Nowhere does the lost energy vanish. It always surfaces as warmth somewhere. Heat is the loss in a form a hand can feel. The case, the brick, the cells: each carries its share.

Heat is the loss made visible. A cool charger is wasting little. The hotter a charge runs, the more power it sheds on the way. The warmth in the case is the wasted energy, leaving the only way it can. Felt through the case, the loss reads plainly on the skin.

Fast charging makes heat in two places at once. Higher throughput warms the charger’s electronics. Higher current warms the cells. Both need the heat carried away to stay safe. Two heat sources at once ask more of the cooling. A fan answers the call. Spun up, the fan holds the temperature safe.

A station limits its own heat by limiting the charge. Sensors watch the temperature of the cells and the electronics. A charge that runs too warm gets throttled back. The protection trades a little speed for a safe temperature. Backed off in time, a hot charge never reaches a danger point.

The cooling fan’s own draw

A fan spins to carry the heat away. The faster the charge, the harder the fan works. Its motor draws power of its own, a few watts to tens of watts. That draw counts as part of the charge’s overhead. Spinning hard, a fan can draw tens of watts of its own. Slow charging spares it the work.

A silent slow charge often needs no fan at all. The gentle heat drifts away on its own.

Putting a number on efficiency

Charging efficiency is a simple ratio. It divides the energy stored in the battery by the energy drawn from the wall. A station that stores 1000 watt-hours from 1100 at the wall runs at about 91 percent. The figure rolls every loss into one number. One percentage tells how much of the bill reaches the battery. The rest of the bill heats the air.

A watt meter at the wall reads the input directly. The station’s own screen shows the watt-hours going in. The gap between the wall figure and the stored figure is the loss. A clear afternoon of measuring settles the real efficiency of a setup. Read once at the wall and once on the screen, the loss falls right out.

A portable station usually lands between 85 and 93 percent on AC. The gentler the charge, the nearer the top of that band it sits. The model and the speed set the exact figure. A spec sheet rarely prints it. A meter tells the truth. Measured for real, a setup lands where the physics predicts.

The dial from slow to fast

Many stations put the charge speed in the owner’s hands. A switch or an app offers a slow, a standard, and a fast setting. The further up the dial, the sooner the fill and the more it wastes. Time against efficiency and heat is the trade the dial makes.

A worked comparison at two speeds

A worked example puts numbers on the trade. Below, the table sets a few charge speeds against the same 1000 watt-hour station. Each row gives the input power, the time to full, and the watt-hours drawn from the wall. The losses sit in the last column. Reading down it, the cost of speed stands out at a glance.

The same 1000 Wh battery, filled at four charge speeds (illustrative)

Setting	Input power	Time to full	Efficiency	Drawn from wall	Lost as heat
Eco	200 W	~5.5 h	93%	1075 Wh	75 Wh
Standard	500 W	~2.2 h	90%	1110 Wh	110 Wh
Fast	1000 W	~1.1 h	86%	1160 Wh	160 Wh
Turbo	1500 W	~0.8 h	84%	1190 Wh	190 Wh

Across the fast row runs a clear story. At 1000 watts the station fills in just over an hour. To store 1000, it draws about 1160 watt-hours. The 160 lost leave as heat from the case and the fan. Pushed in within the hour, that charge runs warm throughout. The fan runs with it the whole time.

Down the eco row, the numbers read gentler. At 200 watts the station takes around five and a half hours. For the same 1000 stored, it draws about 1075 watt-hours. The 75 lost barely warm the case. Trickled in over hours, the same energy lands with barely a degree of warmth. No fan stirs through a gentle fill.

Per charge, the difference looks small at first. Eighty-odd watt-hours separate the two on one fill. Over 300 charges a year, that grows to 25 kilowatt-hours, a real sum on a power bill. The heat saved adds up in cell life on top of that. Multiplied across a year of charges, that small per-charge gap grows into a real sum. Counted in dollars, it pays for a careful habit.

The cost in heat and cell life

Heat is the part of the loss that lingers. Gone for good are the wasted watt-hours. While it lasts, that warmth works on the cells. A battery charged hot, again and again, ages a little faster. Lingering in the cells, heat does its slow work over time.

Lithium cells dislike heat under charge. Every charge at a high temperature nibbles at the cell’s life. A gentle charge keeps the cells cooler throughout. In return, the cells give more cycles over the years. The cooler a pack stays through its charges, the longer it holds its capacity.

The effect here is real. The hotter a charging habit runs, the more it trims off a pack’s lifespan over the years. The effect compounds across hundreds of cycles. Over a pack’s whole life, the gentle charges show in the count. Compounded over years, a gentle habit shows in a healthier pack.

Speed costs more than energy alone. A fast charge spends extra watt-hours and a little cell life to buy its speed. The slower the charge, the more of both it keeps. Each user weighs that trade for their own needs. Whoever charges gently banks both energy and cell life.

Where fast charging earns its place

Fast charging earns its place when time is short. A station near empty before a trip fills in an hour and rides along full. Spent on speed, a few extra watt-hours buy a ready battery. Speed is the whole point in that moment. For a sudden departure, a ready battery beats a handful of saved watt-hours.

Some days leave no room for a slow charge. A cloudy stretch drains a pack faster than solar refills it. A grid charge at full power tops it up before the next need. The small loss is a fair price for being ready. Through a cloudy week, the wall keeps a pack alive when the sun cannot. A full-power top-up has the pack ready by the next need.

A fast charge also suits a brief window of cheap power. A short block of off-peak rates fills a battery quickly. The speed captures the cheap energy before the window closes. A higher loss still leaves the charge cheaper overall. Caught inside the off-peak window, the energy stays cheap even after the loss. Bought low and stored fast, the power still wins on price. Stored inside the cheap window, the energy beats a daytime fill.

Where a gentle charge pays

A gentle charge pays off on a quiet overnight. A station plugged in at bedtime has all night to fill. A low, slow current sips power and makes little heat. Morning finds the battery full and the cells cool. Plugged in at bedtime, a station has hours it never needs to rush. Eight hours of slack turn a fast job into a gentle one.

Daily charging rewards the gentle setting. A pack topped up slowly each day loses the least to heat. The cells stay cool through it. The pack earns more cycles for that care. The saved watt-hours add up quietly over a year. Topped up gently each day, a pack barely warms at all. Day by day, the gentle habit guards the pack.

A gentle charge runs silent on top of all that. The fan stays still with little heat to clear. A bedroom or an office keeps its quiet. The same charge that saves energy saves noise. Running fanless, an eco charge disturbs no one nearby. A bedroom or a desk stays as quiet as before. Through the night, nothing hums or whirs.

The eco mode switch

Many stations build the choice into an eco mode. A single setting caps the charge power low. The battery fills slowly, cool, and silent. Eco trades the speed a user may not need for the efficiency they keep. One press sets the cap and leaves it there.

An app often holds the same control. A slider sets the maximum charge watts. A lower cap stretches the time and lifts the efficiency. The number lives a tap away on the screen. Eased lower, the cap trades speed for a calmer fill.

Eco mode shines on solar and overnight charges. Neither one is in a hurry. Matched in pace, the slow fill suits the unhurried source. The setting and the situation fit each other well. Matched to an unhurried source, eco wastes the least. Solar and sleep both move at its pace.

Switching off eco mode takes one tap when speed is needed. The full-power charge returns at once. A user drops to eco again for the next quiet fill. The choice rides on the need of the moment. Tapped back to full power, the station fills fast again when it must. Back on eco afterward, it returns to its thrifty pace. One tap each way covers the whole range.

Cable, wall, and the things around the charge

A few things around the charge nudge the efficiency. A thin or coiled extension lead drops voltage and adds heat. A loose wall socket warms under a heavy draw. A sound mains lead of decent gauge loses the least. Coiled tight or run too thin, a lead warms and steals a little.

Wall voltage itself plays a small part. A charger runs a touch more efficiently at the higher of its rated voltages, by a margin too small to notice. A solid wall connection matters more than the exact voltage. Firmly seated, a plug carries the charge with no waste of its own. Snug in the socket, it stays cool through the longest charge. Run short on heavy wire, a lead barely warms.

Choosing a charge speed

The right charge speed follows the need of the day. Short on time, a user reaches for the fast setting. Given a whole night, eco does the job. The dial offers both at a tap. Whichever the day asks for, the station serves it up.

Efficiency and speed sit at opposite ends of one dial. The faster the setting, the sooner the fill and the larger the loss. Every setting in between splits the difference. A user slides to the point that fits the day. Somewhere on that scale sits the right charge for every need. Reading the need first points to the setting.

A portable power station hides all of this behind a clean charge. Behind the readout, the charger and the cells handle the losses without a fuss. A user sees the percentage climb and the time tick down. The watt-hours lost stay small on any sensible setting. Behind the clean readout, the squared law quietly does its work.

AC fast and slow charging comes down to one squared term. Push the current harder, and more of it scatters as heat. Ease the current, and the battery keeps a larger share. A charge speed chosen for the day fills a power station at the cost a user means to pay. Set with intent, a charge costs exactly what it should. No watt-hour leaks away unaccounted for. Paid knowingly, the loss stops being a surprise.

Real World Solar Charging Power Output

Why rated watts and real watts differ

A solar panel rated at 200 watts feeds a power station something closer to 140 on a good day. The rest leaks away in a string of losses, a little at each step from the panel to the battery. Sun strength, heat, angle, and the charger each take a share of the sixty missing watts. The label on the back is a lab number, a fair starting point for the real figure built up from it. That gap from label to battery holds steady enough to plan around.

The rating comes from a lab, under a fixed and generous set of conditions. Sun outdoors rarely matches the lab. Heat, angle, dust, and the charger’s own losses each take their cut. What reaches the battery is the rated number after all of them. Together those cuts set the real figure a panel delivers.

Real numbers set honest expectations. Chosen for its real output, a panel keeps a power station fed through a day. Each loss along the way has a cause and a rough size. Naming them turns a vague shortfall into a clear budget. A planner who knows the budget sizes a panel right the first time. The same budget flags a panel too small before it ships.

What the rating means

The number on the label is a Standard Test Condition rating. Engineers measure it under bright, even light of 1000 watts per square metre. They hold the panel at 25 degrees. They shine a fixed spectrum, the light of a clear midday sun straight overhead. Those four conditions almost never line up in a backyard.

Those conditions stack the deck in the panel’s favour. Full midday sun on a clear day reaches that 1000 figure for only a few hours. A panel sitting in the sun runs far hotter than 25 degrees. The label captures a best case, met outdoors only now and then. Treating the label as a daily figure leads straight to disappointment. Planning at the real fraction sets a panel up to satisfy.

Two panels with the same label can perform differently. Build quality, cell type, and the glass all play a part. Tolerance alone moves a panel a few percent off its label, in either direction. The rating names a target met within a band. Two units off the same line can sit a few watts apart.

STC still gives a fair way to compare panels. Every maker tests to the same standard. A 200-watt panel beats a 100-watt panel by the label, and keeps that lead in the field. The label ranks panels fairly against each other. For a real figure, a sunny afternoon and a meter beat any spec sheet. The real number shows up only outdoors.

Sunlight strength through the day

Sunlight drives everything a panel does. Its strength is measured in watts per square metre. At noon under a clear sky, it nears the 1000 of the lab. Morning and evening sun runs far weaker. A square metre of noon sun carries the energy of a small heater. Spread over a panel’s face, it adds up to real power.

The sun climbs and falls across the day. Low in the sky, its light crosses more air and arrives dimmer. Climbing higher, it sheds that loss and arrives at full strength. A panel follows that arc, rising through the morning to a midday peak and falling away after. By that same arc, a fixed panel meets the sun head-on only near midday.

Installers fold the day’s arc into one number, peak sun hours. It counts the hours of full 1000-strength sun a place receives. A spot with five peak sun hours gathers as much as five hours at full strength would give. The real day stretches that energy over more hours at uneven strength. Five peak sun hours might spread across ten hours of actual daylight.

Season and place set the peak sun hours for a spot. Across a year, a typical place averages three or four, more in clear summer months. The same panel gathers far more on a long bright day than on a short grey one. A daily harvest tells the real story better than any peak wattage. A bright winter noon can still out-produce a hazy summer morning.

Pointing the panel at the sun

A panel makes its rated power only when it faces the sun square on. Tilted away, it catches the light at a slant. The cosine of the angle between the panel and the sun sets how much power survives. Off by 30 degrees costs about a seventh of the output. Off by sixty degrees throws away half.

Aiming a portable panel pays well for the minute it takes. Propped to face the sun, a panel catches far more light than one laid flat on the ground. Through the day the sun moves. A fixed panel drifts off aim. A nudge every few hours holds it near square. A few seconds of aiming returns more than any other free move.

Some setups chase the sun for the last few percent. A motorized tracker turns a panel to follow the arc. For a portable panel, a hand and a few re-aims do the same job. Many users just aim well once at midday and leave it there. For a portable panel, a good noon aim captures the bulk of the day’s energy. The morning and evening tails matter less than the broad midday.

Heat and the panel

Heat is the quiet thief of solar power. A panel turns part of the sunlight into electricity. The rest becomes heat in the cells. Sitting in full sun, those cells climb well above the air around them. A panel can run thirty degrees hotter than the afternoon air. Dark glass in still air traps the heat fast.

Warm silicon makes less voltage. For every degree above 25, a typical cell drops about four-tenths of a percent. A panel at 60 degrees, common in summer sun, sits 35 degrees over the lab mark. That alone trims more than a tenth off the power. On a still, hot day that loss climbs higher still.

Airflow under a panel keeps the cells cool. Raised on a stand, a panel lets air carry the heat away. It runs cooler than the same panel flat against a hot roof. The same sun then yields a little more. A breeze across the back of a panel works like a quiet fan. Even a small gap makes a measurable difference.

Heat and bright sun arrive together, which softens the gain. A blazing summer noon brings the strongest light and the hottest cells at once. A clear, cold day suits a panel best. Spring and autumn often beat midsummer for a day’s harvest. Mild, sunny weather is a panel’s sweet spot.

The charge controller’s cut

Between the panel and the battery sits the charge controller. Sun and heat keep moving a panel’s best voltage. The controller hunts for that best point many times a second, a trick called maximum power point tracking. It then converts the panel’s voltage down to what the battery wants. That tracking marks the difference between a good harvest and a poor one. Without it, a panel and a battery rarely meet at the right voltage.

The conversion itself costs a little. A good MPPT controller runs at 95 to 99 percent. A few percent of the panel’s power turns to heat in the electronics. The rest passes through to the battery. A controller running cool wastes the least. Good heatsinking holds that loss near one percent.

An MPPT controller earns its keep by holding the panel at its best point. It converts the extra voltage into extra current. On a cold, sunny day that gain can run 20 to 30 percent above what a simple controller would pass. Nearly every power station that takes solar carries one. Its gain shows up best on cold, bright days, when panel voltage runs high.

Losses in the wiring and the glass

Small losses hide in the wiring. A long, thin cable drops a little voltage along its run. Every connector adds a touch of resistance. Together they cost a percent or two. Heavier wire on a short run gives nearly all of it back.

Dust shades a panel cell by cell. A film of grime can cost a few percent. A quick wipe brings it back.

The power station’s own input limit

Every power station caps its solar input. A model rated for 200 watts of solar takes no more, no matter how much a big array offers. Panels totalling 300 watts into a 200-watt port spend the extra on nothing. Matching the array to the port keeps every watt useful. A small margin covers the rare bright, cold peak. Sizing the array a touch under the port keeps every panel watt landing in the battery.

Clouds and partial shade

Clouds rewrite a panel’s output by the minute. A thin haze dims the sun and the power with it. A passing cloud can halve the output for a moment. Broken cloud sends the figure jumping up and down all afternoon. A solar input figure on a broken-cloud day rarely sits still.

Shade hurts more than its size suggests. The cells in a panel run in a series chain. One shaded cell chokes the current for the whole string, like a kink in a hose. A branch shadow across a corner can cost far more than its share of the area. Even a thin pole shadow can knock out a whole row. Trimming a nearby branch can pay for itself in a season.

Bypass diodes limit the damage from shade. Built into the panel, they route current around a blocked section. A shaded panel keeps making power from its lit parts. Clear ground around a panel keeps every cell in the sun.

What a panel delivers at noon

Putting the losses together gives a realistic noon figure. Start with a panel rated at 200 watts under lab light. Real noon sun on a clear day lands a little under the lab’s 1000. Take ninety percent of the label to begin, around 180 watts. The panel sits hot in that sun, 30-odd degrees over the lab mark. Heat trims another tenth or more, dropping it near 155. Aim runs close to square on a hand-propped panel, off by a few degrees. Those few degrees cost a little more, call it 150. The MPPT controller converts at 97 percent, shaving three watts. Cable and connectors take a watt or two. What lands in the battery sits near 145 watts. That figure is the honest peak, the best a clean, well-aimed panel sees around midday on a fine day. Push any factor the wrong way and the number falls further. A hazy sky, a flat-laid panel, a hot still afternoon: each pulls it down toward 100 or below. The same panel on a cold, clear, breezy day, aimed square, can reach a little higher, near 165. Real output lives in that band, somewhere near three-quarters of the label. A buyer who plans around 70 to 75 percent of the rated watts at a good noon plans about right. From that peak the rest of the day follows. An hour after sunrise the same panel makes only a third of its noon figure. Morning and evening and every passing cloud sit lower still. One honest noon figure anchors the whole picture. A buyer armed with that one number plans a panel with confidence. A power station needing 700 watt-hours back each day pairs with a panel that gives it. Guesswork falls away once the noon figure is known. From there, every other hour of the day scales off the peak.

Each step in that chain has a rough size. Sun below the lab strength takes the first and biggest cut. Heat takes the next. Aim, conversion, and wiring take the rest. Knowing the order tells a user which one to fix first. Chasing the small cuts before the big ones wastes effort.

The cheapest gains come from a user’s own hands. Aim costs nothing to fix. A stand for airflow costs little. A clean panel costs a wipe. Those three together can claw back a fair slice of the losses. None of those three costs a cent past a stand and a cloth.

Bigger panels move these numbers up in proportion. From a 100-watt panel peaking near 70 watts to a 400-watt array near 290, the same fraction holds. Close to three-quarters of the label is the rule at a fine noon. A bigger panel buys more watts at the same fraction. Doubling the panel doubles the watts and the daily harvest together.

One figure rules the others, the watts at a clear noon. It sets the ceiling every other hour falls below. A panel that peaks at 145 never beats that on the same day. Planning from the peak, then trimming for the time of day, gives a fair estimate. From one clean midday reading, the whole day falls into place.

What a panel gathers over a day

A peak wattage tells only part of the story. Charging a battery is about energy, measured in watt-hours. A 200-watt panel peaking at 145 does not hold 145 all day. The day’s total comes from the whole curve, summed hour by hour. Two panels with the same peak can gather different totals over a day. A broad, steady curve gathers more than a brief tall spike.

Peak sun hours turn a panel rating into a daily harvest. Multiply the panel’s watts by the peak sun hours, then trim for the real-world losses. A 200-watt panel in five peak sun hours gathers near 1000 watt-hours on paper. After losses, six to eight hundred reaches the battery. That daily figure decides whether a panel refills a battery by dusk. A panel that gathers more than the day’s draw keeps a battery topped.

The table below sets rough daily harvests against panel size and sun. Good sun means four to five peak sun hours and a clean, aimed panel. Poor sun means a short or cloudy day. The spread between the two columns shows how much the weather rules the harvest.

Rough real-world solar harvest by panel size (after losses)

Panel rating	Realistic noon peak	Good-sun day (4–5 PSH)	Poor-sun day (1–2 PSH)
100 W	60–80 W	300–450 Wh	80–150 Wh
200 W	120–160 W	600–900 Wh	150–300 Wh
400 W	240–320 W	1200–1800 Wh	300–600 Wh
600 W	360–480 W	1800–2700 Wh	450–900 Wh

A daily harvest sizes a panel to a need. A power station of 1000 watt-hours, run down each day, wants a panel that gathers that much back. In good sun a 200-watt panel comes close in a day. Poorer sun stretches the job to 400 watts or a second day. Sizing for the worst likely day keeps a system honest.

Measuring the real output

A power station’s own screen shows the solar input in watts. A glance at it under load tells the real figure for that moment. Watching it across a clear noon catches the true peak. The number on the screen settles every debate with the label. A glance at the watts under a clear noon ends the guessing.

A clamp meter or an inline watt meter reads the same thing outside the box. It sits between the panel and the input. It shows volts, amps, and watts in real time. A cheap one pays for itself in understanding a setup. Watching the number climb as a panel is aimed teaches the cosine rule fast.

One reading means little on its own. A figure of 100 watts under thick haze speaks better of a panel than 100 watts in blazing clear sun. Noting the sky and the time beside the watts makes a reading one to keep. A logbook of readings turns a hunch into a record. A week of noon readings paints a panel’s true character. Logged over weeks, a panel’s real output stops being a mystery.

Getting more from the same panel

Several free moves lift a panel’s real output. Aim leads the list. A square aim at midday can add a fifth over a flat-laid panel. A re-aim every couple of hours holds the gain. Aim repays the minute it costs many times over. A panel squared to the sun at noon starts the afternoon ahead.

Cooling comes next. A panel raised for airflow runs cooler. A gap of a few inches under the panel lets a breeze through. The same sun then makes a little more. A hand’s width of air under a panel does the trick. Cooler cells hold their voltage better.

Cleanliness and good cable round out the easy gains. A wiped panel catches every ray its glass allows. Heavy cable on a short run carries the power with little drop. A snug connector wastes nothing to resistance. Clean glass and a tight plug add a steady percent at no cost.

Wiring choice tunes an array to the input. Panels in series add their voltages, a help down a long cable run. Panels in parallel add their currents, a help over a short run. Matching the wiring to the power station’s solar input keeps every panel pulling its share. Either wiring works, picked to fit the cable run and the input.

A note on folding panels

Folding panels trade a little output for an easy carry. Their cells sit on cloth that holds heat more than an aluminium frame does. Their kickstands give a rough aim. A folding panel of a given label often lands a touch under a rigid one of the same. A few watts go to the cloth backing and the looser aim, a small gap of a handful on a 200-watt panel.

The trade still favours folding for a power station. A 200-watt folding panel rolls into a bag and rides in a car, ready to set down anywhere. For a trip, the bulk saved by folding beats the few watts it costs. For a car trip or a campsite, the folding panel wins on the whole.

Reading the numbers and setting expectations

A panel’s real output rewards a clear-eyed read of its label. The number on the back is a lab peak, measured under bright, cool, square light. Sun, heat, aim, and the charger each take a share before the battery sees it. A gap of a quarter to a third from label to battery is normal. Expecting it turns a letdown into a plan.

Honest expectations make solar charging satisfying. A panel planned at three-quarters of its label rarely disappoints. A day’s harvest planned at watts times peak sun hours, trimmed for losses, comes out close. Numbers set this way match what the screen shows. A panel that meets its real figure has done its job. A number met is a promise kept.

A portable power station and its matched panel ship tuned to each other. The maker sizes the panel’s output to the input port. The pairing lands near its rated solar figure in good sun. A user plugs in and watches the watts climb on the screen. No tuning or guesswork falls to the owner.

Real-world solar power output is the rated number after the day has had its say. Sun strength sets the starting size, then heat, aim, and the charger each pare it down. A panel read at its real figure, near three-quarters of the label at a good noon, charges a power station just as planned. Read for what it gives, a panel never disappoints.

Tiered Handling of BMS Abnormal Alarms

The shape of a tiered alarm

A battery management system answers trouble in graded steps. Out of its safe band drifts a reading. In answer, the BMS picks a response matched to how far the reading has gone. The further it strays, the firmer that response. Up the ladder the steps climb in a fixed order, each one firmer than the last. Three rungs hold the whole range, from the first notice to the final cutoff. The order never changes from one fault to the next.

Three levels cover the ground. First comes a warning, a flag raised for notice. Next comes protection, a real change to charge or discharge. Last comes a disconnect, the main switch thrown open. Each level carries its own trigger and its own action. As a fault deepens, one reading can climb all three in turn.

Proportion is what the ladder buys. From the gentlest notice over a cell a few millivolts high, the same framework reaches all the way to the hardest cutoff on a cell racing toward its limit. Every abnormal reading finds its rung. Nothing the BMS sees falls outside the scheme. A clear ladder covers the gentle drift and the hard fault alike.

Why the response is graded

A single hard cutoff would handle the worst faults on its own. It would also treat a momentary twitch the same as a true emergency. A brief spike, a cold morning, a short heavy draw: each would drop the power in full. Fitting the response to the size of the trouble is the job of the graded ladder. Each rung answers a different size of trouble.

The bulk of abnormal readings turn out minor. A load surges for a second when a motor starts. Near the top of a charge, a cell drifts high. On a winter morning, cold slows the chemistry. Logging each of these, a warning lets the system carry on. None of these minor readings calls for cutting the power.

Time is the other thing a graded response buys. While the reading is still mild, a warning reaches a person. There is room to shed a load, move the pack indoors, finish a task. Behind the warning, the protection tier waits in reserve. Each early step holds the next one back a little longer. Minutes of warning can save a shutdown later.

For the worst case, the hardest action stays ready. A dead short, a runaway cell, a sensor reading off the scale: these go straight to a disconnect. When the danger is immediate, the ladder skips its lower rungs. Speed and proportion live in the same system. A real emergency calls for speed before anything else.

The warning tier

Lightest of the rungs is the warning. It catches a reading that has just left its normal band. A flag goes up, a line goes to the log, an indicator lights. Through all of it, power keeps flowing the whole time. Nothing in the power path moves at this rung.

Notice is all a warning asks. The flag stands. Time and value go to the log. Steady through it, the power settings hold. A warning touches the record alone.

Closest to a limit are the readings that warn. A cell near the top of its voltage range. Under a long, heavy load, a pack running warm. Near its rated ceiling, a charge current. Set inside the safe zone, each warning line leaves margin to spare ahead of any harm. Room remains for a person to act before the next rung.

An early flag earns its keep through the head start it gives. Before the protection tier ever triggers, a person sees the warning and acts. A load gets trimmed. A charger gets unplugged. Back inside its band eases the reading. The warning clears on its own. No one need lift a finger for a warning that solves itself.

The protection tier

Protection is where the BMS moves from notice to action. A reading has pushed past the warning line and reached the next threshold. To pull it back, the BMS now changes the flow of power itself. On a cell climbing too high in voltage, it cuts the charge current or halts the charge outright. On a pack sagging too low, it trims the discharge or ends it. On a current above the safe ceiling, it caps the draw. On a temperature past its protection point, it pauses whatever drives the heat. Each action targets the one reading that crossed the line. Power does not vanish all at once. Reducing or pausing the single path that matters, the BMS leaves the rest of the system running where it safely can. A charge halted for a high cell still allows a discharge. A discharge trimmed for a sagging pack still allows a charge to come in. While the reading sits past the line, the protection holds. Once the reading returns to a safe level, the BMS lifts the action and lets normal flow resume. Inside the firmware the whole sequence runs, decided in milliseconds against thresholds set by the cell maker. Many protection limits carry a short delay, a second or two, enough that a brief spike never trips them. A current limit may fold back in stages, easing the draw down by steps. A charge paused for heat picks up again the moment the pack cools a few degrees. A dozen such rules fill the tier, one tuned to each kind of reading the BMS watches. Beyond a line in the log and a brief dip in available power, a person may never know it happened. Out of sight, this rung does more than any other to hold the cells inside their limits across an ordinary day.

Every protection action matches the reading that set it off. A voltage fault touches the charge or discharge path. A current fault caps the draw. A temperature fault pauses the source of the heat. Untouched, every other path holds at its normal setting. One fault moves one path.

Recovery runs the same threshold in reverse. While the reading sits past the protection line, the action stays in place. Back through a recovery point set a little inside the trip falls the reading. Releasing the action, the BMS watches for the fault to return. Set apart from the trip, the recovery point keeps the action from chattering on and off.

Repeated trips tell their own story. Firing again and again, a protection points to a cell or a sensor that needs attention. The BMS counts the trips and logs each one. A pattern in the log marks the part that keeps reaching its limit. A count in the log turns a stray trip into a clear signal.

Nothing is asked of a person for the protection tier to work. It runs on thresholds baked into the firmware. It acts, recovers, and logs on its own. Later, a user reads the result as a dip in power and a note in the history. Between the trip and the recovery, the work runs itself.

The disconnect tier

Top of the ladder is the disconnect, the BMS’s last resort. A reading has passed the protection threshold and reached the danger line. Opening its main switch, a MOSFET bank or a contactor, the BMS cuts the battery off from everything outside it. At the terminals, current stops. On both the charge and the discharge path, the switch opens together. One open switch covers the whole battery.

Some faults go straight to this rung. A dead short pulls current far past any safe number. In well under a millisecond, the BMS trips. A cell voltage in runaway leaves no time for a gentler step. The disconnect fires the instant the reading crosses the line. No warning precedes a fault this fast.

An open switch holds until the danger clears and something resets it. A latched disconnect waits for a deliberate clear, a charger plugged in or a button pressed. Isolated behind the open switch, the cells sit safe the whole time. Power returns once the BMS closes the switch again. Until then, the pack holds no danger for anything downstream.

Where each threshold sits

Behind every rung is a number that triggers it. The cell maker sets the safe limits. Inside them, the BMS designer places a warning line, a protection line, and a disconnect line. Far enough from the next sits each line, giving the ladder its steps. Spacing is what makes a ladder out of a single limit.

Typical of a lithium iron phosphate pack are the numbers below. Its own set rides in a real BMS, drawn from the cell datasheet and the pack design. The shape holds across nearly every pack: a warning inside the safe band, a protection step further out, a disconnect at the edge.

Typical tiered alarm thresholds for a LiFePO4 pack (per cell unless noted)

Fault	Warning	Protection	Disconnect
Cell overvoltage	3.60 V	3.65 V	3.75 V
Cell undervoltage	2.80 V	2.50 V	2.00 V
Charge overcurrent	1.05 C	1.2 C (delayed)	short circuit, instant
Discharge overcurrent	1.05 C	2.0 C (delayed)	short circuit, <1 ms
High temp, charge	45 °C	50 °C	55 °C
High temp, discharge	55 °C	60 °C	65 °C
Low temp, charge	5 °C	0 °C	charge blocked <0 °C
Cell imbalance (ΔV)	50 mV	100 mV	flag and balance

Down a column runs the ladder for one kind of fault. A cell overvoltage warns at 3.60 volts, protects at 3.65, disconnects at 3.75. Only hundredths of a volt apart run the steps. Each one adds a fresh margin of safety. Reading down, the ladder for that fault stands plain.

Across a row sits the spread of faults the BMS watches. Voltage, current, temperature, and the balance between cells each carry a ladder of their own. By chemistry and by pack the thresholds shift. Down every one repeats the structure of warn, protect, disconnect. Familiar from one fault, the pattern carries to the next. The same reading serves for every fault’s ladder.

Overvoltage up the ladder

As a cell fills past its limit, overvoltage climbs the ladder. Near the top of a charge, one cell can run ahead of the rest. Its voltage rises toward the ceiling the chemistry allows. Against all three lines, the BMS watches that highest cell. One cell out of many drives the whole overvoltage ladder.

The warning comes first, a flag on a cell near full. To ease the current, the BMS may lean on the charger. The protection line halts the charge for that cell. At the top, the disconnect waits for a cell that keeps climbing. Each rung gives the charger one more chance to back off.

Overvoltage protection saves a cell from the damage of overcharge. Held above its ceiling, a lithium cell degrades and, in the extreme, grows unsafe. Well ahead of that point, the ladder stops the charge. Balancing and a healthy charger keep nearly every cell from ever raising the first flag. Kept level, a healthy pack rarely climbs past the warning.

The instant short-circuit trip

A short circuit is the one fault that skips every lower rung. The moment two terminals meet through little resistance, current leaps to many times the rated draw. Sensing the surge, the BMS throws its switch open in microseconds, faster than any warning could form. Behind the open switch the cells fall dark, clear of the heat a sustained short would pour in. Speed alone protects against a fault this violent. A board that trips this fast needs no hand from a person.

Undervoltage up the ladder

As a pack runs down, undervoltage climbs the ladder. Late in a discharge, the lowest cell sags toward the floor of its range. Near the floor its voltage drops more steeply. Against the three lines, the BMS watches that lowest cell. The weakest cell sets the floor for the whole pack.

The warning marks a pack getting low. A flag rises on the lowest cell. Near empty reads the runtime gauge. For that cell, the protection line trims or ends the discharge. Each step gives a person one more chance to ease the load.

Undervoltage protection saves a cell from over-discharge. Drained below its floor, a lithium cell loses capacity. A deep enough drain ends its life. Ahead of the floor the ladder stops the draw. The disconnect stands ready for a load that ignores the warning. Deep drains are what wear a pack out fastest. A floor held is a cell saved.

Left to self-discharge in storage, a pack can drift down to the warning on its own. With no load attached, the BMS still raises the flag. A long enough rest reaches the protection line and opens the switch to guard the cells. A storage charge every few months keeps a resting pack clear of the bottom rung. Even at rest, the ladder keeps its watch.

Heat and cold

Temperature gives the BMS two ladders to watch. Among the cells sit sensors that read the pack’s heat. Into a set of lines for high temperature and a set for low the numbers feed. Charging and discharging each carry limits of their own. Heat and cold each carry a full ladder.

Heat builds when a pack works hard or sits in the sun. The warning flags a pack running warm under load. To let the pack cool, the protection line pauses the charge or eases the discharge. At the temperature where the cells face real harm, the disconnect waits. Airflow and shade keep a pack off the first heat rung.

Cold brings its own limits, sharpest around charging. Charged below freezing, a lithium cell can plate lithium and suffer for it. Well ahead of any damage, the BMS blocks the charge with the pack that cold. Discharge carries a lower cold limit, since pulling power warms a pack from the inside. Cold charging is the limit a winter pack meets first.

As the pack returns to a safe range, temperature alarms recover. Once the pack cools a few degrees, a charge paused for heat resumes. A charge blocked by cold waits for the pack to warm above its limit. Until the reading sits back inside the safe window, the BMS holds each pause. Patience at the threshold spares the cells either way.

Faults that clear themselves

Many alarms lift the moment the reading comes home. In real time, a self-clearing fault tracks its reading. While the value sits out of band, the flag stands. Once the reading returns inside its limit, the BMS drops the flag. No reset, no wait: the flag follows the reading.

A recovery threshold sits a little inside the trip. Well past that point the reading has to come back before the flag drops. The gap keeps a reading hovering at the threshold from flipping the flag on and off. Engineers call that gap hysteresis. A little gap buys a steady flag.

Self-clearing suits the everyday alarms. A warm pack cools. A surging load settles. After the charge tapers, a cell near full eases back. On its own the BMS clears each flag and writes the episode to the log. Everyday alarms come and go with no hand on them.

Faults that latch

Some faults hold their alarm until a person steps in. Even after the reading comes back to normal, a latched fault stays flagged. In place stays the protection or the disconnect. Clearing it takes a deliberate reset. A latch holds the guard in place past the moment of danger.

Latching guards the faults that mean real trouble. A short, a runaway cell, a sensor gone bad each latch until checked.

How the alarm reaches a person

Unseen, an alarm does a person no good. Through whatever channels the pack offers, the BMS carries the flag outward. A light on the case. A reading in an app. A tone from a buzzer. Off the board and to a human travels the signal. Light, screen, sound: the alarm finds a way out.

Simplest of the channels is a status light. A steady green for normal, an amber for a warning, a red for a protection or a fault: the colour tells the state at a glance. On many packs, the pattern of blinks names the fault. One look at the case reads the alarm. Colour alone tells a passer-by the state of the pack.

Detail is what an app or a screen carries. It names the fault, shows the cell or the sensor, gives the value that crossed the line. Back through past alarms scrolls a history. A reading like that turns a blinking light into a clear account. Numbers on a screen name the cell and the value at fault.

A buzzer reaches across a room. A tone marks a warning a person might miss on a light. An urgent pattern marks a fault that needs a hand. Where eyes are not already on the pack, sound carries the alarm. A tone reaches a person across a dark room. Even asleep, a person can hear the alarm.

The fault log

Behind the live alarms sits a written record. With a timestamp, the reading, and the action it took, the BMS logs each event. Warnings that cleared and faults that latched all land in the log. It builds a history of every time the pack left its safe band. Time-stamped and saved, each event waits for a later read.

A one-time scare becomes a pattern in the log. On its own a single warning means little. The same warning every afternoon points to a load too heavy for the pack. A cell that trips again and again names itself for replacement. Patterns in the log say what a single reading cannot.

Toward the fixes a pack needs the history points. A run of high-temperature warnings calls for better airflow. A repeat undervoltage points to a pack worked too hard. The log reads as a record of where the cells keep meeting their limits. A history points the way to the fix.

Reading the alarm table

On its datasheet shows a pack’s alarm behaviour. For each kind of fault, the spec lists the warning, protection, and disconnect points. It names which faults latch and which clear on their own. Written out, a full table reads as the whole ladder. Every threshold and every latch shows on the page.

A few marks set the good ladders apart. Far enough apart to act in proportion sit the steps. Real hysteresis rides on the recovery points. For a deliberate reset, the gravest faults latch. In plain numbers, a clear table names every threshold. Plain numbers mark a ladder built with care.

A portable power station settles all of it inside the box. Tuned to the cells it guards, the BMS ships with its ladder ready. A user meets the alarms as a status light, an app reading, a clean shutdown near a limit. With nothing to set, the tiers run their course. A buyer reads a clean result with the ladder out of sight.

A tiered alarm system is how a BMS keeps a pack safe without overreacting. A warning gives notice. Protection acts in proportion. For the worst, a disconnect stands ready. Rung by rung, the ladder fits the response to the fault, every time the pack steps out of its safe band. One scheme, three rungs, every fault in its place. That order keeps a battery both safe and useful.

Coordination Between BMS and Inverter

Why the two halves must agree

A power station runs on two parts that have to agree with each other. Watched over by its BMS, the battery holds the energy and guards the cells. Drawing on that energy, the inverter turns it into the AC a load needs. Each works to its own brief. Coordination is the running agreement that keeps the two briefs from pulling apart, struck and re-struck many times a second.

Each part knows something the other cannot see. Down at cell level, the BMS reads the voltage, the temperature, the charge left inside every cell. Out at the sockets, the inverter reads the load, the watts a user pulls at this moment. Between them they cover the whole machine. Put the two views together, and the pack can run safely right at the edge of what it can do.

Their goals line up nearly all the time. The BMS wants safe cells. The inverter wants steady power for the load. Drain a pack too hard or charge it too fast, and both goals fall into danger at once. Moment by moment, the two parts settle the terms between them to keep that from happening. A pack pushed past either goal pays for it in lost life or a dropped load.

The signals the BMS sends

In a handful of numbers, the BMS says all it needs to. State of charge, pack voltage, temperature, a fault flag for trouble: each one tells the inverter a single thing about the battery. None is hard to read. The inverter takes them in a fixed order, the fault flag first of all. Reading the fault first keeps the inverter from acting on a stale limit in an emergency. Speed is what counts in the instant when a fault appears.

Two of those numbers carry the heaviest weight. They work as limits, a step beyond a plain reading. The BMS sets a ceiling on charge current and a ceiling on discharge current, the safe maximum the cells will take in or give out at this instant. Neither ceiling stays fixed. A cold pack, or a nearly full one, carries lower ceilings than a warm, half-full one. Each change in the cells brings a new ceiling.

State of charge sets the broad plan for the day. The headline reads plainly. Near full, ease the charge. Near empty, wind the load down. Hours of runtime, the figure a user watches, ride on that same percent. Every other number gets weighed against it. A pack at eighty percent and one at twenty call for different handling. A full pack carries that load with room to spare.

One flag outranks all the rest. Should a cell cross a hard limit, the BMS raises a fault at once. To the inverter, that flag is a plain, absolute stop order. Every other number waits until the fault clears. Until a human or the BMS lifts it, the stop holds.

What the inverter does with each number

Numbers alone do nothing. Each one earns its place by changing how the inverter behaves. A current limit caps the watts the inverter may pull. A high temperature pulls that cap lower still. A low state of charge tells the inverter the end is near. No number reaches the inverter without a job to do. Each one maps to a single lever the inverter can pull.

Reading the current limit is the heart of it. The inverter checks the watts it pulls against the ceiling the BMS sets. Stay under, and it carries on at full tilt. Approach the ceiling, and it holds the load where it is. A managed approach to the ceiling beats a hard stop against it every time.

Voltage and charge guide the slower decisions. From the pack voltage the inverter judges how close charging is to done. From the state of charge it judges how much runtime is left. Neither calls for a sudden move. The slow numbers carry the plan. The fast ones handle the emergencies. A spike in load meets an answer in milliseconds.

Current limits, moment by moment

Of all the numbers, the current limits change the fastest. Many times a second, the BMS works out afresh how much the cells can safely give or take. Temperature feeds into the sum. State of charge feeds into it. The health of the cells feeds into it. Out comes a single figure in amps, fresh each instant. A figure a second old is old enough to matter on a hard load. The fast refresh keeps the inverter’s draw inside a limit that is always current.

A discharge limit guards the giving side. Pull more than the cells can spare, and their voltage starts to sag. To head that off, the BMS names the safe maximum before any strain shows. Under that line the inverter keeps the load. A sag the user never sees is a sag the limit caught in time.

A charge limit guards the taking side. Push more current than the cells can absorb, and lithium plates where it should not. To keep that from starting, the BMS caps the charge current. On its way to full the charger holds to the cap. The cap is there because plating never undoes itself once it starts. Held clear of it, the cells keep their capacity far into their life.

Both limits read in amps, or in C-rate. At one C the pack will give or take its full capacity in an hour. At half a C it takes two. Whatever the unit, the inverter reads the figure and shapes its current to fit. The same rule reads a fifty-amp pack and a two-hundred-amp one alike.

The closed-loop link

A closed-loop system wires the two parts into a conversation. Between the battery and the inverter runs a data cable. Across it the numbers flow many times a second. The link runs two ways. The BMS reports its state. The inverter acts on it. Nothing on either side runs on a guess.

Nearly all of these conversations ride on CAN bus. Born in the car industry, the protocol suits parts that must talk in real time. Messages cross in milliseconds, each one checked for errors as it arrives. A corrupted frame is caught and dropped before it misleads anyone. Share the CAN language between a battery and an inverter, and the two trade their numbers cleanly. The error check is built into every frame they send.

Only a thin cable carries the link. Often ending in an RJ45 plug, a single network-style cable runs the whole conversation between the two boxes. The plug is cheap. The wire is common. Familiar hardware does an unfamiliar job. The same plug serves a laptop and a battery bank.

Precision is what closed-loop coordination buys. Working from the cells’ real state, the inverter knows the exact limits of the moment. Charging tapers on the BMS’s word. The load winds down on the BMS’s word. Every move traces back to a measured number.

The protocols they speak

A shared language is what makes the link work. Raw numbers alone get the two parts nowhere. They need an agreed format, a protocol both sides read the same way. CAN bus is the common choice. RS485 carries a share of the links as well. A few makers run a protocol of their own on top of the same wires.

Each protocol fixes how a message looks. A frame holds an identifier, a few bytes of data, a check for errors. Into one frame the BMS packs the state of charge, into another the current limits. By the same rulebook the inverter unpacks them. A byte out of place would read as the wrong number. Both sides hold hard to one fixed format.

Matching protocols is the catch in the closed loop. A battery and an inverter that speak the same dialect link up at once. A pair that does not stays mute, dropping back to voltage alone. This is exactly why compatibility lists exist. Checking that list before buying saves a mute link later.

Coordination on voltage alone

An open-loop system skips the cable entirely. Between the battery and the inverter, no data passes at all. The inverter watches one thing on its own: the pack voltage at its terminals. From that single clue it judges the battery’s whole state. One voltage stands in for every number a wired link would carry.

Voltage tells only a coarse story. The inverter sets fixed thresholds in advance. Charge runs until the voltage reaches one figure. The load stops when it falls to another. Those thresholds are guesses at the pack’s real limits. They never move. They take no account of temperature or the age of the cells. A cold morning throws the same threshold off by a wide margin.

The two parts still work without a cable. A pure resistive load, a gentle charge, a pack well within its limits all run fine on voltage alone. The simple cases never test the limits of the coarse method. The cost of open-loop shows only when the pack is pushed to a corner. Those corners are exactly where a comms link earns its place.

Closed-loop and open-loop coordination compared

Aspect	Closed-loop	Open-loop
The link	a data cable (CAN bus or RS485)	none; voltage only
What the inverter knows	SOC, voltage, temperature, live current limits, faults	the pack voltage alone
The limits used	the BMS’s real-time limits	fixed voltage thresholds, set in advance
Near a limit	a graceful taper of power	full power until a hard cutoff
Tracks temperature and age	yes	no
Pairing	a matched, compatible battery and inverter	any battery and inverter

Easing the load near a limit

Near the bottom of the charge, the clearest payoff of coordination shows up. A pack running low cannot safely give the full power it gave when full. Through the last stretch of charge, the BMS lowers the discharge limit a little at a time, holding the cells back from the floor. Reading each new limit, the inverter follows it down, trimming the power it pulls to match. What a user sees is a soft landing. The figure on the screen slides toward zero, the available power easing off with it, a clear warning in plain sight. There is time to finish a task, to save a file, to wrap up before the output stops. The pack settles to empty without a single cell forced past the line that would harm it. The whole sequence runs quietly, the way good engineering tends to run. None of it happens by luck. The taper rides on the live discharge limit the BMS sends down the link, refreshed many times a second against the real state of the cells. Every step of the taper is a small message sent and a small action taken, dozens of them before the pack is empty. Each message runs a few bytes, sent and answered faster than an eye can blink. Through the whole descent the pack and the inverter stay in lockstep. No human hand touches the controls. The whole exchange plays out below the level a person could follow. The cells finish the discharge as evenly as they began it, none run down harder than the rest. A user notices none of the machinery, only that the power held and then bowed out cleanly. A battery that can warn its inverter, paired with an inverter that listens, turns a hard wall into a gentle slope. That gentle slope, beyond any single feature, is what coordination is for.

Heat draws the same kind of response. On a hot day a hard-working pack climbs in temperature. With the heat rising, the BMS pulls the current limit down. The inverter eases the load. A few hundred watts given up for a minute beats a shutdown that drops the whole load. The lights stay on through a moment that would otherwise drop them.

Full charge earns the gentle treatment too. A pack near the top cannot take full current safely. As the cell voltage climbs, the BMS pulls the charge current down. Backing off on cue, the charger tops the cells up slowly for the last few percent.

Every bit of this asks for the closed-loop link. Fine, moment-by-moment shaping of power runs on the live limits the BMS sends. An inverter cannot taper toward a limit it never hears about. Without the conversation, the gentle slope is plainly not on offer.

A graceful taper near a limit is the signature of two parts that talk. The power eases off. The work in hand gets a moment to finish. No cell feels the jolt of a sudden stop.

The hard cutoff

Some faults leave no room at all for a gentle taper. A dead short, a cell racing past its safe voltage, a temperature spike past the danger line: each one calls for an instant stop. In a moment the BMS opens its main switch and cuts the battery off. With no warning, the inverter loses its power source. Its output drops at once. When nothing slower will do, a hard cutoff is what protects the cells. That protection comes at a price: the abrupt loss of power, a load dropped mid-task. A whole day of coordination works to keep things from ever reaching that point.

Shaping the charge

As much as discharging, charging leans on coordination. A lithium pack wants a careful charge: full current at first, a steady taper near the top, a clean stop at full. The shape the cells want is what the BMS knows. Following it is the job of the charger inside the inverter.

Temperature reshapes a charge on the spot. A cold pack cannot take a fast charge safely. Down in the cold the BMS holds the charge current low. A warmer pack earns a higher current back. A pack left to warm regains its full charge current.

Cell balancing rides along with the charge. Near full, the BMS sets to evening out the cells. For that work, the charge has to hold near the top a while. The BMS asks the charger to wait. The charger holds the voltage steady.

A full pack has to stop taking charge. Past one hundred percent, more current does nothing but stress the cells. Calling the charge complete, the BMS drops the charge limit to zero. A full pack asks for no more current. The inverter offers none.

Many batteries, one voice

Big systems stack many batteries together. Feeding a single inverter, a rack of modules can hold a dozen packs, each with a BMS of its own. A dozen voices at once is more than the inverter can hear. The batteries have to speak as one. One voice is all the inverter can follow.

One BMS takes the lead. Linked in a chain, the modules choose one of their number to speak for the group. It gathers the state of every module, sums the currents, averages the rest, and reports a single virtual battery to the inverter.

What the inverter sees is one clean set of numbers. To it, the whole rack looks like a single large battery: one state of charge, one current limit, one fault line. The lead BMS builds that figure, packing the whole crowd of modules into it. Ten modules or one read the same to the inverter. Adding a module changes nothing the inverter can see.

A solar system in the real world

Picture an off-grid cabin running on solar. Panels feed a hybrid inverter. The inverter feeds the house and a wall of batteries. A comms cable ties the battery BMS to the inverter. Every part of the day leans on the link between them. That same link guides the charge and the discharge alike.

Morning brings the panels to life. As the sun climbs, the inverter pushes charge into the pack. The BMS watches the current and the cell voltages the whole time. Near full, the BMS calls for a taper. The inverter eases the charge to keep any cell from overfilling. By noon a homeowner sees a full battery and a quiet evening of power ahead.

Evening hands the load back to the battery. After dark, the house draws from the pack alone. The BMS counts it down. Low on charge, the BMS trims the discharge limit. The inverter sheds the heaviest loads first. The same routine repeats every sunny day, untouched by any hand.

Inside a single power station

A portable power station folds both parts into one box.

Sharing a circuit board, sometimes a single chip, the BMS and the inverter sit inches apart. No cable runs between them, no protocol to match. Over short traces the two talk at the speed of the silicon. Closed-loop by design, the pairing has the inverter built to read the BMS beside it. Nothing about it falls to a user to set up or check. Baked in from the factory, the graceful tapers and clean shutdowns are the work of one designer who drew both halves. Inside one sealed box the cable is short, the match guaranteed, the handshake quick. A buyer pairs nothing and matches nothing.

When the two fall out of step

Poor coordination shows itself in rough edges. Smooth tapers go missing. Power drops without warning. The pack hits its limits with a jolt.

Worst of all is an over-discharge. Blind to the real limit, an inverter can pull a low pack too hard. Down go the cells, below their safe floor, before the cutoff catches them. Drained that deep again and again, a pack loses life fast. A handful of deep discharges can cut its lifespan short.

Nuisance trips come from the other direction. Ignoring a derate request, an inverter keeps pulling full power into a limit. No gentle option is left to the BMS. It trips the hard cutoff. A load dies mid-task, lost to a fault the inverter would not help head off.

Behind much of this lie mismatched parts. A battery and an inverter from different makers may not share a protocol, or may read the same numbers differently. Falling back to open-loop, voltage alone, they lose the fine coordination a matched pair would have. Buy the pair as a pair, and the coordination comes built in.

Reading the spec and trusting the edges

Whether the two will talk shows on the spec sheet. A compatibility list names the inverters a battery can run closed-loop, by make and model. A mention of CAN bus or RS485 points to a comms link on board. A battery tied to one inverter brand carries that brand’s name on the page. Reading those lines before buying settles the match in advance. A name absent from the list is a warning in plain sight.

A portable power station hides all of it. Settled inside the box, the pairing has the BMS and inverter matched at the factory. A buyer reads the runtime, the surge rating, the clean low-battery behaviour. Each is a fruit of coordination. The plumbing behind it stays out of sight. A spec sheet rarely spells the coordination out. The behaviour near full and near empty tells what the sheet leaves unsaid.

Coordination is the quiet handshake that makes a battery and an inverter one system. Two things meet at that link: what the BMS knows about the cells, and the power the inverter sends to the load. A fast, two-way link between them lets each do its job. Neither half forces the other past a limit. The calm at the edges of a charge is that coordination, made plain.

State of Charge SOC Calculation Accuracy

What the charge percentage stands for

State of charge is the number a battery reports as the percent of energy it still holds. On a power station it shows as the figure on the screen, the fuel gauge a user checks before a long evening. No sensor reads that percent off directly. Working it out falls to the BMS, from the few things it can measure. Accuracy is won or lost inside that working-out.

Two signals a battery does hand over, the BMS reads straight off. Voltage at the terminals comes through on a wire. Current in and out shows up across a shunt. From those two raw numbers, plus a model of how the cell behaves, the system builds its estimate of the charge inside. Neither number is the answer on its own; each is only a clue the BMS has to read.

Lithium iron phosphate makes the job harder than other chemistries do. Across the middle of its range its voltage barely moves. The obvious clue, the terminal voltage, says almost nothing about how full a LiFePO4 cell is. Pulling an honest percent from such a pack takes more than a voltmeter. That is the whole subject here. Get it wrong, and a full pack can read half empty at the worst moment.

Why an accurate percent matters

Behind the accuracy chase lies a plain stake: a user plans around that number. Reach for a power station before an evening, and the percent on the screen is what says whether it will last the night. On that figure a user plans the whole night, rationing the battery hour by hour. The tighter the figure, the firmer the plan. Far from a socket, ten points of slack can be the difference between light and dark. A number a user can lean on is the whole point of carrying a gauge at all.

Down at the bottom of the range, the number guards the cells. To decide when a pack is nearly empty, a BMS leans on its own SOC estimate, easing the load off before the cells run too low. Let that estimate read high near empty, and a discharge can run clean past the safe floor, the kind of deep drain that wears lithium cells fast. A gauge honest at the bottom is what stands between a deep cycle and a damaged cell.

Runtime predictions ride on it as well. Hours remaining, the figure a station counts down, is the SOC times the capacity over the load of the moment. Feed that sum a soft SOC and the time estimate softens with it, promising an hour the pack cannot keep. Tighten the SOC and the hours-remaining figure tightens with it.

The flat curve that hides the charge

Every cell carries a resting voltage that tracks its charge. Let one sit with no load, and its open-circuit voltage settles to a value that maps to a state of charge. For a chemistry with a sloping curve, reading that map is easy. A single voltage lands the SOC within a few percent.

LiFePO4 draws almost no slope at all. From roughly 10 percent charge up to 90, its resting voltage clings near 3.2 to 3.3 volts and hardly stirs. Put a cell at 30 percent beside one at 70, and the two look almost identical on voltage alone. Tens of percent of charge can hide behind one steady voltage reading.

That flat stretch covers the better part of the working range. Only right at the top and right at the bottom, in the last handful of percent, does the curve turn steep. Across the broad middle, where a pack spends nearly all its life, voltage and charge come uncoupled. Through that band a voltmeter barely answers for the charge at all.

Put numbers to it and the trap stands out. Spanning that whole middle band is a few tens of millivolts, less than the noise riding on many current and voltage readings. To read SOC from voltage there is to read a signal fainter than the static around it. No cheap voltmeter can pick a real signal out of that much fog.

Reading charge from voltage

Voltage is still the first method anyone reaches for. At rest, a cell’s open-circuit voltage maps to a charge. A lookup table turns the one figure into the other. Cost is barely a factor, since the BMS already reads every cell’s voltage for its safety checks. No new sensor, no new wire; the reading is already on hand.

The snag is that the cell has to be resting. Any current at all shoves the terminal voltage off its true value, low under a load and high on a charge. Caught mid-cycle, a reading reflects that current as much as the charge beneath it. Only after the pack settles can the BMS trust a voltage-to-SOC lookup. Minutes of rest, sometimes an hour, is what a clean reading asks for.

Even at rest, the flat curve caps what voltage can say. Near full and near empty, where the curve runs steep, a resting reading pins the SOC down tightly. Each steep end gives the voltage real bite. The middle of the range, where a user lingers longest, is where voltage helps least.

Voltage alone earns its keep as a spot-check at the steep ends. Where the curve runs steep, that spot-check is gold. Many designs keep it for the anchor points, where the curve turns steep and a reading carries weight. For the percent shown second by second, the work passes to another method. For a rough check at the ends, a rested voltage still does its job.

Counting the coulombs in and out

The workhorse method counts charge as it moves. It keeps a running total of the charge, summing what flows in and what flows out. Measured against the pack’s full capacity, that total reads out as a live state of charge, good moment to moment. No rest, no settling; the count works straight through a busy load.

Current is the one signal this method needs. A shunt, a precise low-value resistor in the main battery lead, turns the current into a tiny voltage the BMS can read. The bigger the current, the bigger that millivolt signal. Sampling runs many times a second. Out of that stream of samples the running total grows, amp-second by amp-second.

Counting sidesteps the flat curve entirely. Never once does the method ask what the voltage means; it just tallies the charge that moves. Through the whole flat middle, where voltage is useless, the count tracks every amp in and out with the same precision it brings to the ends. Flat curve or steep, a coulomb is a coulomb to a counter.

In the short run, counting comes close to perfect. Give the BMS an accurate current reading and a true capacity figure, and the running total trails the real charge within a fraction of a percent across a single cycle. Take a pack from a known empty to a known full, count every amp on the way, and the charge ends with its SOC dead on. Strength comes from watching the one thing that does change the charge, the current itself. Nothing about the cell’s chemistry, its flat curve, or its quiet middle range troubles a count of amps. That is why nearly every modern BMS leans on coulomb counting for the live percent it shows. Down on the screen the figure slides smoothly under the load, each second’s draw shaving its share off the total. Whatever the load, light or heavy, the gauge mirrors the real drain in step. For the span of one charge and one discharge, a well-built counter hands a user a percent solid enough to plan a whole evening around. The trouble, the part the next section takes up, sets in once that single clean cycle stretches into many. A single clean cycle leaves the gauge as sharp as it ever gets. The cracks open only once that cycle has run a few hundred times over. Few packs ever see a clean run from full to empty anyway. Real use is a patchwork of partial charges and partial draws. That patchwork is the ground the counting has to hold. Hold it the counting does, for a while, with help from the resets the next sections describe. Each full charge hands the count a fresh truth to build on. Between those truths, the gauge rides on arithmetic alone. Each amp-second still counts, exactly as it did on the first clean cycle of the pack’s life.

Counting also needs a place to start. A running total is only a number stacked on wherever the count began. The BMS must know the SOC at the start to trust the SOC now. Begin from a wrong figure, and every later reading inherits the error. Pin the start at a full charge, where the SOC is known to be 100, and the count begins on solid ground.

Why the count drifts

A perfect count would never drift. Trouble is, no current reading is ever perfect. The small errors in it pile up cycle after cycle. Every sample carries a tiny offset. Add millions of them, and those offsets stack into one slowly growing error. None of it shows in any single reading; the harm is in the sum.

Offset starts in the current sensor itself. Read the current off by even one percent, and that bias builds steadily across hundreds of cycles, a slow creep the count cannot feel as it happens. The longer a pack runs between resets, the further the figure wanders from the truth. Quiet days of partial use are exactly when the gap grows widest.

Capacity itself refuses to hold still. Cold, a cell holds less charge than warm. Worn, it holds less than new. So the full-capacity figure the count divides by is itself a moving target. A count weighed against last year’s capacity reports a percent that no longer fits the cell. A fresh capacity figure has to find its way into the math, or the count slowly lies.

Slowness is what makes drift slippery. Wandering a percent a day, a gauge looks right all week. By the next week its reading is several percent wrong. Long after the smooth number has quietly lost touch with the charge inside, a user goes on trusting it. By the time the error finally shows, it has been building unseen for a week.

Resetting at the anchors

At the two ends of the curve sits the cure for drift. Where the cell runs nearly full or nearly empty, voltage turns steep again. There it reads a true SOC, clear of the flat-curve fog. A BMS treats those moments as anchors: reach full charge and it snaps the count to 100 percent, reach the cutoff and it snaps the count to 0. Each reset wipes the gathered error clean and starts the count fresh. So an occasional full charge does a pack’s gauge a real service; left to count for weeks without one, even a good BMS slowly loses the thread.

Three ways a BMS estimates state of charge

Method	How it works	Strength	Weakness
Voltage / OCV lookup	reads the resting voltage, looks up the SOC	simple and cheap; sharp near full and empty	useless across the flat middle; needs the cell at rest
Coulomb counting	adds up the current in and out via a shunt	accurate moment to moment; ignores the flat curve	drifts from sensor error; needs a known start and capacity
Hybrid / Kalman filter	fuses count, voltage, and a cell model	best accuracy; self-correcting; tracks capacity	needs more processing and a good cell model

Blending the methods

The best gauges put both signals to work at once. Coulomb counting carries the percent moment to moment. A voltage check at the steep ends drags that count back to truth whenever the pack passes near full or empty. Neither signal alone does the whole job; paired, they cover each other’s blind spots. One holds the moment to moment; the other nails down the anchors.

Tying the two together takes a model of the cell. Inside the fanciest BMS chips runs a Kalman filter, a piece of math that holds a best guess of the SOC and nudges it each instant against the measured voltage and current. Where the curve is flat the filter leans on the count, where it is steep it leans on the voltage, trusting each signal exactly where it is strong. Steadier than either signal could manage alone, the blended estimate is what the screen ends up showing.

What changes under the count, the model tracks too. A good filter keeps a live figure for the cell’s true capacity, lower in a worn cell than a fresh one, lower in the cold than the warm, and holds the number it divides by close to the real one. Each cycle it watches, it learns the pack a little better. Years of cycles teach a good filter the exact pack it lives in.

All this math pays off hardest on a flat-curve chemistry. On a cell like LiFePO4, only the fusion of count, voltage, and model holds the percent honest through the broad middle. The better the blend, the closer the gauge stays to the real charge across a long, partial, real-world life.

Relearning the pack’s true capacity

A count is only as good as the capacity it measures against. To reach a percent, the BMS divides the charge it has counted by the pack’s full capacity. Hand it a wrong capacity and every reading after skews with it. Knowing the true, current capacity counts for as much as counting the amps. No matter how perfect the count, a wrong capacity figure lands a wrong percent.

Through a pack’s life, a good BMS relearns that capacity. Each time the pack runs from a full reset down to an empty one, the system has counted the whole usable charge. That count is a fresh measure of what the pack holds now. It folds that figure into its capacity estimate, tracking the slow fade of age. A pack a year old gets judged against a year-old capacity, fresh from its own last full cycle.

Here is where state of charge meets state of health. The capacity the BMS keeps relearning is the pack’s health written as a number, the same figure that tells how far the battery has aged. Track that capacity well, and the gauge reports an honest percent even on a pack years into its life. The figure that tracks SOC and the figure that tracks health are, at bottom, the same capacity.

What pulls the estimate off

Several real-world forces gnaw at any SOC figure. Each bends a different part of the calculation. A gauge runs only as honest as its weakest input. Knowing the culprits is half of reading one wisely.

Temperature moves the target two ways at once. Cold shrinks the capacity a cell can deliver. The same counted charge then reads as a different slice of a smaller whole. Cold drops the resting voltage as well, nudging any voltage-based check off its table. Bring the pack back to room temperature, and both effects ease off.

Age thins the capacity for good. A cell that held its full rating when new gives back less after a few years. Should the BMS never relearn that capacity, it divides by a number too big. The percent it shows runs optimistic, the gauge claiming more runtime than the cell can deliver. Relearning the capacity is the one cure. A BMS that skips it ages badly on paper.

Under the whole count sits the current sensor, setting a floor on accuracy. Its offset and its gain error feed straight into the running total. No amount of clever math fully undoes a sensor that reads the current wrong. Cheap shunts and rough amplifiers show up right here, in a count that drifts a little faster than it ought to. Spend on the shunt and the amplifier, and the whole gauge steadies.

Partial cycling starves a gauge of its resets. Live between 30 and 70 percent, charged and drained inside that band, rarely taken to either end, and a pack never touches the anchors that would set it straight. Its count can drift for weeks with nothing to pull it back, until a single run to full sets the record straight.

The gauge across a real day

Watch the gauge through a day off-grid, and the methods show their hands. Morning sun pours charge into the pack. Amp by amp the count climbs toward full. Hit full, and the BMS snaps the figure to 100 percent, wiping the night’s drift in one clean reset. From that one fixed point, the day’s counting starts over.

Through the afternoon the pack floats near full. With the panels carrying the light loads, the gauge barely stirs. Evening turns the flow around. Once the sun drops, the loads pull from the pack alone. Slowly the count walks down through the flat middle of the curve.

Across that long evening slide, voltage is barely any help. Down in the flat middle the cells hold near 3.3 volts whether the pack sits at 60 percent or 40. Only the count knows the difference. Whatever the gauge reads at midnight is the morning’s reset plus a night of careful counting. Come the next morning’s sun, the whole cycle resets and runs again.

What good accuracy looks like

Accuracy is a moving target for SOC.

On a LiFePO4 pack, a well-built BMS holds the percent within a few points of the truth, often two or three, with fresh resets to lean on. Without those resets, across a week of partial use, the figure can wander five or ten percent off. What sits on the screen is an estimate doing its honest best. It is no fuel gauge dipping a tank. Read as an estimate, it serves a user well for years.

The gauge a user sees

On the screen, all this machinery shows up as one tidy percent. The figure ticks down under a load and climbs on a charge, smooth enough to plan an evening around. Behind that calm number sit a count, a voltage check, a model, and a stack of corrections. All of it boils down to one figure a user can read at a glance.

A sudden jump in the percent is the gauge correcting itself. Reach a full charge after a long stretch of partial cycling, and the reading may leap by several points as the reset lands. The jump looks like a glitch. In truth it is the gauge shedding gathered drift in a single step. Smooth all week, then a leap at the top: that is the reset at work.

An occasional full charge keeps the whole thing honest. Run the pack up to full now and then, and the BMS gets a clean anchor to reset against. For days afterward the gauge repays it with a tighter figure. A pack never taken to full drifts the furthest of all. Ten minutes at full, once a week, buys a month of honest readings.

A SOC figure is a careful estimate. Reading it well means knowing its limits. Trust it closely near full and near empty, lean on it loosely through the flat middle, and run the pack to a full charge often enough to keep it honest. Read that way, the percent on the screen earns its place among the numbers a power station shows.

Active Balancing of Multiple Series Cells

What balancing does for a series pack

Active balancing is the work a battery management system does to keep many cells, wired in series, charged to the same level. Stack a dozen lithium cells nose to tail and they will not stay matched on their own; small differences pull them apart, cycle by cycle. Balancing is how the pack closes that gap and keeps every cell in step. Without it, a long string is only ever as good as its poorest cell.

In a series string, the same current runs through every cell from end to end. What differs is where each cell lands afterward, its own charge settling a little above or below its neighbours. Left alone, those small gaps widen until the weakest cell holds the whole pack back.

The fix is to move charge around inside the pack, or to bleed a little off the top, leaving the cells level. A BMS watches the spread between cells and steps in when it grows too wide. Done well, balancing turns a stack of slightly mismatched cells into one that behaves like a single battery.

Why cells drift apart

No two cells leave the factory exactly alike. Even cells from the same batch differ a little in capacity and in internal resistance, by a percent or two the eye would never catch. Every imbalance that follows grows from a seed that small. One percent of spread at the start is all the cells need to drift from.

Heat drives the cells apart once they are working. A cell at the warm end of a pack ages faster and self-discharges quicker than one kept cool. Over the months it drifts away from the rest, set on a different path by nothing more than where it happened to sit.

Self-discharge does its own slow work. Every cell loses a trace of charge just sitting on the shelf, each at its own slightly different rate. Park a pack for a month and the cells come back spread a little wider than they went in.

Age widens whatever gaps have already opened. Once the cells have racked up many cycles, the weaker ones lose capacity faster. A pack that started nearly matched can drift noticeably apart after a few years. What balancing fights, in the end, is this steady pull toward disorder.

Matching the cells from the start

Good balancing begins before the cells are ever wired together. A careful pack maker sorts new cells by capacity and by internal resistance, grouping cells that measure nearly the same into one string. Cells matched this way start their life close together. The balancer then has far less to chase later on.

Matching trims the spread a pack starts with. Cells pulled from the same production run, then sorted into tight groups, sit within a percent or so of each other on day one. The closer the match at the start, the longer a pack holds together before any cell wanders far.

Even a perfectly matched pack drifts in the end. Matching sets a good starting point. From the first cycle, the slow forces of heat, self-discharge, and age go to work. This is the gap a balancer is built to close, day after day, for the life of the pack.

Capacity matching and live balancing work hand in hand. One sets the cells close at the factory; the other keeps them close through every cycle that follows. A pack that is both well matched and well balanced behaves, for years, as though it were a single large cell.

The cost of an imbalance

An imbalance costs the pack at both ends of every cycle. Charging has to stop the moment the fullest cell reaches its ceiling, even if the others still have room. Discharging has to stop the moment the emptiest cell hits its floor, even with charge left in the rest. The wider the spread, the more capacity sits locked away, untouchable at either end. Squeeze the cells far enough apart and a healthy pack can act half its size.

The weakest cell sets the limit for all of them. A pack is only as usable as its lowest cell on discharge and its highest cell on charge. One outlier drags the whole stack’s capacity down to its own. Four cells at 100, 82, 78, and 64 percent leave the pack behaving as though it were far smaller than its rating.

Runtime is the first thing a user loses. Whatever charge sits in cells that never fill or never empty is charge the load never sees. A pack rated for a long evening can come up short, delivering fewer hours than its rating promises.

The outlier cell takes a beating, too. Forced to the edges of its range each time the others coast, a weak cell works harder on every cycle and ages faster still. Left unchecked, the imbalance feeds on itself, the worst cell falling further behind the longer it runs.

Balancing exists to break that spiral. By pulling the cells back toward a common level, it frees the capacity that would otherwise stay locked away and spares the weakest cell the worst of the strain. A balanced pack spends its whole rated charge, cycle after cycle, with no cell carrying more than its share. Year after year, that even sharing is what keeps the pack near its rated capacity. Spread the work across matched cells and not one of them has to carry more than its share.

Passive balancing: bleeding the high cell

Passive balancing is the simpler of the two methods. When a cell climbs above the others near the top of charge, the BMS switches a resistor across it and lets the extra charge drain away as heat. The cell holds at the threshold until its neighbours catch up. Held there cycle after cycle, the high cells wait for the rest to come level.

The hardware is about as plain as it gets. Each cell gets a small resistor and a switch, a MOSFET the controller turns on when that cell runs high. A row of these bleed resistors sits right on the BMS board, one per cell, costing only pennies apiece.

All of this happens at the tail end of charging. Passive balancing does its work in the constant-voltage phase, up near 70 to 80 percent of charge and above, where the cells running ahead can be trimmed back down. Below that, with the cells far from full, there is little to balance and the resistors stay idle.

What passive balancing gives up is the energy it burns. The charge bled off a high cell turns into heat and leaves the pack for good. The method works by trimming the top cells down to meet the rest. For a pack that drifts only a little, that small loss buys an easy way to hold the cells in line, year in and year out.

Active balancing: moving the charge

Active balancing keeps the surplus charge inside the pack. When one cell holds more than the rest, the BMS carries that extra across to a cell that holds less. Energy travels from the full cell toward the low one. Battery University describes it plainly: active balancing shuttles the extra charge from higher-voltage cells to those with a lower voltage. Nothing is thrown away as heat; the charge that leaves a high cell lands in a low one and stays in service. Because the energy is conserved, active balancing can work in both directions of use. It lifts the laggards toward the leaders on the way up. It props the weak cells up from the strong on the way down. Either direction, the whole string is held together as the pack works. A controller running this scheme can keep the cells within a few millivolts of one another through an entire cycle. The closer it holds them, the more of the pack’s rated charge comes back out at the plug. On a large series string, that recovered capacity adds up to real extra runtime. The method asks more of the hardware than a bank of resistors does. What it returns is charge that would otherwise have been stranded or burned. Keeping that charge in play is what lets every cell pull its weight. The wider the spread it has to close, the more the method gives back. A pack that has drifted far benefits more from a balancer that can carry whole amps of correction where it is needed. On a hard-driven pack the balancer works the whole cycle through, quietly holding the string as one. Even at rest, it can nudge a high cell down toward its neighbours before the gap has a chance to grow. The work is never dramatic. This constant trimming is what keeps a big series pack whole over thousands of cycles.

Which cell gives and which cell takes shifts from one moment to the next. Many times a second, the controller reads the stack and sorts the cells with charge to spare from those that need it. Charge then flows wherever the spread calls for it, always from the fuller side toward the emptier. No cell stays a donor or a taker for long; as the pack works, the roles keep trading. Trace any single cell over an hour and it will have given and taken many times over.

Watch a pack under active balancing and the cells stay together. Held in a tight band, they keep the gaps between them small from the first cycle to the last. Even as each cell ages at its own rate, the balancer keeps drawing them back toward the middle. The spread that would build in an untended pack never gets a chance to open here.

The real muscle of active balancing lies in its current. Hundreds of milliamps, or whole amps on a large pack, is what an active balancer can move. That kind of current corrects a wide spread quickly and keeps pace with even the fastest-drifting cells. What a slow trickle would need many charges to fix, it can pull back into line within a cycle or two. That speed is what sets a redistributive balancer apart on a fast-drifting pack.

At any point in a cycle, active balancing can do its work. Charge, steady use, the long slide toward empty: the balancer acts through all of them, never waiting for a full battery first. Free to step in at any moment, it can hold a hard-working pack in tight order.

Inside the transfer element

At the heart of an active balancer sits a small energy store. A capacitor or an inductor takes on a packet of charge from one cell, then hands it to another, over and over, thousands of times a second. The store never holds much at once; it works by moving many tiny packets fast. Run fast enough, a small store can shift a surprising amount of charge over a cycle. Thousands of hand-offs a second add up to a steady current between the cells.

Simplest of all is the switched-capacitor balancer. To move charge, the controller wires its capacitor across a high cell to fill it, then flips it across a low cell to pour it out, step by step, until the two cells match. Just a few switches and one capacitor do the whole job, which is why small packs of a handful of cells so often use it.

An inductor sets a different rhythm. Charge from the high cell pours into the inductor’s magnetic field, then collapses back out into the low cell, a push and release that repeats at high speed. Because an inductor shrugs off larger currents, it suits a pack that needs a strong correction. The price is a little more circuitry wrapped around each one.

Transformers come in where many cells must be served at once. Through magnetic coupling, a transformer-coupled balancer can draw from the whole stack to feed a single weak cell, or move charge between groups of cells. All those extra windings and switches cost more to build, which is why transformers tend to show up in the largest packs, where one core can serve dozens of cells at once.

When balancing runs

Active balancing answers to the spread, whatever the hour. The moment the cells begin to drift, at any state of charge, on charge or discharge alike, it steps in to pull them back. Waiting for a full pack is never part of the deal. How hard the pack is driven decides how busy the balancer stays. The harder the work, the more constantly it runs.

What active balancing wins back

Usable capacity is the clearest thing active balancing wins back. Charge that would otherwise sit stranded in half-full cells stays in reach. More of the pack’s rating then reaches the load. On a power station that reads as real extra runtime. Over a deep overnight cycle, the reclaimed charge can be what carries the load all the way to morning.

Charging can run quicker, too. Holding the cells together as they fill, an active balancer keeps any single cell from racing ahead and forcing an early stop. The whole stack reaches full closer to the same moment. None of the cells has to idle at the top waiting for a laggard to crawl up and meet it. Shave even a few minutes off each charge and the saving mounts over a battery’s life.

Less heat comes off a pack that carries its charge across. The energy an active balancer shifts stays in the cells, with little left over to warm the board. Running cooler means less stress on the cells, and one fewer heat source for the BMS to track. Through a long charge, a cool-running balancer can keep working. The pack’s own warmth barely rises.

Over years, the gentler treatment shows in longer life. A pack whose cells stay matched shares the work evenly. No single cell wears out far ahead of the rest. Steady balancing, kept up over thousands of cycles, is part of what lets a good lithium pack last a decade. Spared the worst of the strain, every cell in the string ages at a gentler pace. Across thousands of cycles, that gentler pace is what separates a pack that fades early from one that goes the distance.

Signs a pack has fallen out of balance

An imbalance announces itself first as lost runtime. The pack begins to quit early, dropping the load well before its gauge reads empty. That gauge tracks the average cell. The weakest one hits its floor first and trips the cutoff for the whole string. To the user, the battery just seems to have shrunk.

Charging that quits too soon is the other tell. With one cell already high, charging hits its cutoff before the others are full; the gauge stalls short of 100 percent and will not climb. The fuller that one outlier runs, the sooner charging ends for everybody.

A smart BMS names the problem outright. Reading every cell on its own, the controller watches the spread widen and flags the imbalance long before anyone would notice the lost capacity. On the app the cells stand side by side, one short bar among the tall ones giving the whole thing away at a glance.

Caught early, an imbalance is easy to walk back. A balancer given a few cycles can close a modest spread on its own, with no hand from anyone. The sooner the drift is caught, the lighter the work of pulling the cells back into line. A balancer asked to close a spread it has fallen behind on works through several cycles to bring it in.

Passive and active balancing compared

Aspect	Passive balancing	Active balancing
What it does	bleeds the high cell through a resistor	shuttles charge from a high cell to a low one
The surplus charge	dissipated as heat	moved to a low cell, kept in the pack
Balancing current	~tens of mA	hundreds of mA to several A
When it runs	top of charge (CV phase, ~70–80% SoC and up)	any time, on charge or discharge
Heat produced	more	less
Usable capacity recovered	limited	higher
Hardware per cell	resistor + switch	inductor, capacitor, or transformer + switches
Cost and size	low, small	higher, larger

The price of active balancing

All of this carries a cost.

Energy-storage parts, extra switches, a controller clever enough to route charge cell by cell: an active balancer needs them all. The board and the bill both grow to fit. For many packs that cost is hard to justify. Active balancing pays for itself only where a pack runs large, works hard, or has to give back every watt-hour it holds. Between that demand and an easy life lies a wide middle ground where either choice can be defended.

Balancing in a real pack

In a finished power station, balancing runs unseen behind the cells. Inside sits a series string of lithium cells, each tapped by the same wires the BMS reads it with. The balancer works through those same taps. Nobody watching the unit ever sees it act; all that shows is the steady runtime and the long life it quietly buys. Open the case and the balancer looks like little: a few small parts on the board beside the cells.

The same taps serve reading and balancing alike. Through one lead per cell, the BMS measures a cell’s voltage and, when needed, routes balancing charge to or from it. Diagnosis and balancing lean on the same wiring, which is why a pack built to balance well is also a pack that reports well. One set of leads, doing double duty, keeps the parts count down and the pack honest about itself.

Scale is what makes balancing matter on a big pack. String sixteen or more cells together, as a large station does, and every cell added is one more that could wander off. The longer the series string, the harder a steady balancer has to work to keep it whole.

On the largest banks, the cells themselves dwarf anything in a portable unit. Utility strings built from cells of several hundred amp-hours apiece lean on balancing just as a small pack does, only with far more charge riding on each correction. The principle holds at every size: keep the cells together, and the whole string behaves as one. Whether the string holds four cells or four hundred, that one rule does not change.

Reading the spec and choosing

Rarely does a spec sheet name its balancing method outright. A few small clues, even so, give it away. A balancing current in the tens of milliamps, or any mention of bleed resistors, suggests the simpler passive design. Jump to hundreds of milliamps or whole amps, or spot the word active, and the design is a redistributive one. Read the number as a measure of how fast a pack can haul its cells back into line; the higher it runs, the harder the string it can keep up with.

Match the method to the life the pack will lead. Sip power and charge gently, and a passive bleed keeps the cells in line at almost no cost. Run heavy loads for hours, or cycle deep day after day, and the extra capacity and lower heat of active balancing start to pay. Many portable stations land somewhere in the middle, their needs set by how the owner runs them from day to day.

Balancing is the quiet discipline that keeps a series pack whole. Cell by cell, day after day, it trims the leaders or lifts the laggards, keeping the whole string in step. A power station that balances its cells well spends all the charge it carries and carries it for years to come.

Smart BMS Self Diagnosis on Faults

What self-diagnosis means

Self-diagnosis is the work a battery management system does to find trouble inside its own pack. Through every hour the pack is awake, the BMS keeps watch over each cell and over its own circuits. When a reading steps outside a safe range, the system records the fault, names what went wrong, and disconnects the pack the instant a limit is crossed. None of this shows on the outside of a healthy pack; the watch runs in silence until something needs attention.

Behind the watch sits a small processor. It samples the sensors many times a second, holds the safe limits in its memory, and weighs each fresh reading against them. A fault is nothing more than a reading that has crossed a limit. The processor catches it within a fraction of a second of its first appearance. That speed is what separates a small fault from a damaged pack.

Two layers fall under the same watch. One is the pack itself, read cell by cell across the whole stack. The other is the BMS hardware, the sensors and switches the system leans on to see. Should a fault appear in either layer, the unit raises a flag and reports it. Taken together, the two layers let a sealed battery account for its own condition. For long stretches both layers report nothing at all, which is exactly the news a healthy pack should give.

The signals a BMS reads

Almost everything the BMS knows comes from three signals: the voltage of each cell, the temperature at points in the pack, and the current flowing in and out. Trace any fault back far enough and it lands on one of these three numbers. Reading them well, and judging them fast, fills the rest of the system’s day.

Of the three, cell voltage runs deepest. A sense wire reaches the junction of every cell along the stack, letting the controller read each cell alone, one after another, dozens of times a second. Six cells mean six separate voltages to follow; sixteen cells mean sixteen. A cell’s voltage betrays its charge, its state of health, and the earliest hint of nearly any fault. That swing of barely more than a volt, floor to ceiling, also maps the cell from empty to full.

Temperature reaches the BMS through small thermistors pressed against the cells, several of them, set in the spots that tend to run warm. The controller leans on the hottest of these readings, since the worst spot in the pack sets the risk for all of it. A cell that begins to overheat can drag its neighbours toward trouble with it. Placing the sensors well, near the cells that heat first, matters as much as reading them.

Current is read across a shunt, a tiny resistor of known value sitting in the pack’s main path. When current flows through it, the shunt drops a small voltage that the controller turns straight into amps. That single figure tells the BMS both the direction of the flow and the load on the pack at any instant. A shunt this small wastes almost nothing of the pack’s own power to do the job.

How the BMS measures a cell

Every measurement begins at a sense wire. From each cell junction, a thin lead runs forward to the BMS board, one lead for every junction in the stack, each carrying its cell’s voltage to the chip that reads it. How clean that connection stays decides how honest every later reading will be. Corrosion or a cold joint at that point throws off the cell’s reading without touching the cell itself.

At the chip, an analog-to-digital converter turns each voltage into a number, often good to a millivolt or finer. A millivolt is resolution enough to catch a cell that has drifted by a hair. The converter repeats its sample many times a second on every cell. Fresh numbers arrive in a steady stream, fast enough for the BMS to move before a fault can grow.

All of this rests on one stable reference voltage. The converter measures every cell against that fixed internal anchor. Because the accuracy of the anchor sets the accuracy of every reading on the board, a smart BMS tests the reference itself, treating its own yardstick as one more thing that can drift. A drifting reference would lean on every channel at once, which is why it earns a check of its own.

The whole diagnosis runs as a loop with no end. On each pass the front end samples every channel and checks each reading against the limit held in memory. A reading past a bound drops out of the loop as a fault, named and coded in the same instant it is caught. Everything else flows on to the next pass. Over and over the loop turns, many times a second, for as long as the battery stays on.

Temperature and current ride the same front end. The same converter that reads the cells also samples the thermistors and the shunt, each on a channel of its own. A handful of channels, swept again and again, hands the controller a full account of the pack many times a second. Sharing one converter across the channels keeps the board small and the readings in step.

Faults a BMS watches for, with typical LiFePO4 thresholds

Fault	Typical threshold (LiFePO4)	Signal read	What the diagnosis says
Cell overvoltage	> ~3.65 V per cell	per-cell voltage	names the high cell
Cell undervoltage	< ~2.5 V per cell	per-cell voltage	names the low cell
Overcurrent (discharge)	> rated amps, e.g. 100 A	shunt current	trips the cutoff
Short circuit	huge current spike	shunt current	instant cutoff, under 1 ms
Over-temperature	> ~60 °C (charge > ~45 °C)	thermistor	names the hot sensor
Under-temperature (charge)	< ~0 °C	thermistor	blocks charging
Cell imbalance	gap > ~0.05 to 0.1 V	per-cell voltage	flags the outlier cell

The faults it watches for

The faults a BMS knows make a short, well-worn list. Each is a reading that has wandered out of its safe band. For each, the BMS keeps a limit in memory, fixed when the pack was designed. Cross one of those lines and a fault is born.

Voltage sits between a ceiling and a floor. For a LiFePO4 cell, the safe span runs from about 2.5 to 3.65 volts across its whole life. Step outside that span and the BMS raises a voltage fault, tagged with the exact cell that caused it, thanks to the per-cell wiring. Where exactly those limits sit is a balance the designer strikes for the cell chemistry.

Current meets a ceiling in each direction, one cap for charging and another for discharging, both tied to what the cells can take. Push past either cap and an overcurrent fault follows. A dead short is far more violent. It trips a separate, faster cutoff built only for speed. The faster the cutoff acts, the less heat a short can pour into the cells before the path opens.

Temperature, too, is bounded at both ends. Charging stays safe in a window near 0 to 45 degrees, with a little more room for ordinary use; stray past either edge and a temperature fault appears, pinned to the sensor that saw it. Of all the faults, heat does its damage the fastest, which is why the hottest sensor draws the closest watch.

Two faults remain. Let a single cell drift too far from the others over many cycles, and the gap itself reads as an imbalance fault. Let a sensor return something impossible, an open thermistor or a dead voltage tap, and the BMS flags a fault in its own hardware. Both, like the rest, carry a code of their own into the report. Catching an imbalance early is what keeps one weak cell from dragging the whole stack down.

Finding the one faulty cell

Precise diagnosis is possible only because of the per-cell wiring. The BMS treats the pack as a stack of single cells, each on its own wire to the controller. Down those wires the cells report their voltages, dozens of times a second, hour after hour. The controller holds a fresh figure for each. Sixteen cells become sixteen private windows into the battery, sixteen readings to weigh against the limits at every instant. From the richness of that picture comes everything a smart pack can say about itself. A fault here names one cell, one reading, one moment in time. The depth of the diagnosis mirrors the depth of the wiring, one sense lead for every junction in the stack. Wired this way, a pack can point a finger at the exact cell that needs a hand. No part of the stack stays hidden from it. The same leads that let the BMS balance the cells let it diagnose them, since both jobs come down to reading each cell alone. What a technician gets, in the end, is a battery that says where to look, down to the single cell, long before any trouble spreads. That precision is the whole of what self-diagnosis means in a modern pack. Knowing a pack cell by cell, a BMS can diagnose it cell by cell, tracing a fault to the one lead that carried the news. The hours a blind teardown would burn are saved by a single named line. On that one habit, reading each cell on its own, the entire value of a smart pack rests. Every junction in the stack earns its own lead. Through that one lead the controller gains a cell it can name out loud, by number and by volt. The more leads a pack carries, the more finely it can speak about itself.

Each fault arrives with a cell number attached. When one cell crosses its limit, the BMS knows which by the wire that carried the offending reading. What the technician sees is a line that says cell four, overvoltage, ready to act on at once. No guesswork stands between the report and the repair.

From there the named cell shapes the repair. A technician opens the pack to that one cell and leaves the rest untouched, since the log has already pointed the way. With the cause known before the cover even comes off, the work goes quickly. On a large pack of many cells, that head start can turn a day’s hunt into an hour’s job.

Heat and current point their own way to the source. A temperature fault carries the name of the sensor that ran hot, which fixes the trouble to one spot in the pack. A current fault, for its part, records the direction in which the line was crossed, charge or discharge. Each kind of signal, in other words, addresses its fault as squarely as voltage does.

Telling a real fault from a blip

Not every spike means a fault. The inrush of a starting motor, the brief sag of a cell on a cold morning, these come and go on their own. So the BMS holds back, waiting out a set span, anywhere from under a second to a few seconds, before it will call a reading a fault. A spike gone before that span runs out passes unremarked. Only a dead short skips the wait, caught and cut on its own fast path in well under a millisecond, where the danger leaves no time to spare. Tuning that span is its own fine art, long enough to ignore a motor’s kick, short enough to catch a fault as it forms.

Checking itself

The BMS turns its watch inward as well. A bad sensor or a stuck switch can mask a real fault or invent one that was never there. Before it trusts what it reads, the system puts itself to the test. A pack blind to its own eyes could never keep itself safe.

First comes a power-on self-test. As the pack wakes, the BMS checks its references, looks at each sensor for a believable value, and orders each switch to prove it still answers. Any check that fails throws a hardware fault before a single watt of load is allowed through.

Through the run, the checking never lets up. Readings that ought to match, like two sensors a finger apart, get compared. Any pair that has drifted apart raises a flag. A voltage tap gone open returns a value no real cell could ever show. The system knows at once it is staring at a broken reading. Cross-checks like these catch a fault hiding in the sensors themselves, the kind a single reading would never reveal.

The switches answer to a watch of their own. The BMS drives the cutoff transistors, then reads back whether they moved at all. A switch that will not open or close when told raises a fault as grave as any, since a protector that cannot break the current is no protector at all.

Faults a pack shows in real life

In practice, faults tend to creep in slowly, cycle by cycle. One cell, ageing a touch faster than its neighbours, begins to sag low under load; month by month the BMS watches the gap widen and flags the imbalance long before it could bite. Caught that early, a tired cell needs only a quick swap.

A loose sense lead is the classic fault of an ageing pack. Worked free at a cell junction, the lead feeds the BMS a wild or missing voltage; the BMS, reading the impossible, raises a fault on that exact tap. More often than not, reseating the wire clears it on the spot. Spotting it for what it is, a wiring fault, saves the cells from blame they never earned.

A loosening power terminal shows up as heat. When the terminal works loose, its resistance climbs and it runs hot under load, far hotter than the cells around it; a sensor nearby catches the rise and raises a temperature fault. The diagnosis then sends a technician straight to the terminal.

A dead thermistor reads as a hardware fault outright. Failing open or shorted, the sensor hands back a value the BMS knows cannot be real. The system flags the sensor itself. Swap in a new one and the BMS has its full set of eyes again.

Reporting the fault

A fault does no good until it is spoken. The BMS renders each one as a code, a number or a name that points at the cause, then pushes that code out on every channel it has. Locked away inside the chip, a fault helps no one.

The plainest channels are a light and a screen. A status LED blinks out a pattern for the fault; a unit with a display spells out a short message in words. Either one, at a glance, gives the broad shape of the trouble.

A smart BMS tells the whole story to an app. Over a Bluetooth or wireless link it streams the live cell voltages, the temperatures, the current, and the fault code to a phone, where the app lays out the named cell beside the exact reading that tripped it. The full picture lands in a hand within seconds. From there a user can scroll back through the readings or zoom in on the one cell that raised the alarm.

What a smart BMS adds

What makes a smart BMS smart is the processor behind it and the memory at its side. In one small chip it measures, records, judges, and speaks, carrying the diagnosis well past the simple cutoff a plain protector would manage. A row of bare cells becomes, through that chip, a system able to explain itself.

Memory is what turns scattered faults into a pattern. Logging the cells day after day, week after week, a smart BMS can spot a slow drift in one of them long before it ever trips a limit. That early notice is a warning with time still left to act on it. Day-old data is what makes that possible; without a record, each reading would stand alone, its meaning lost by the next pass.

Communication carries the whole diagnosis out of the box. A link to a phone or a controller passes the readings along in real time, putting the health of every cell within reach from across the room. The sealed box, once mute, now shows its state at a glance.

A few smart units go further still, toward prediction. By tracking how a cell’s resistance creeps up over the months, such a BMS can mark a cell on its way to failing, long before the failure turns sharp. The mark arrives as a soft, early word, well ahead of any hard fault. A cell caught on the way down can be swapped at a time of one’s choosing.

To the user, the app is the face of the whole pack. It draws the cells as a row of bars, each tipped with its live voltage, and paints the named fault in red for the eye to find at once. A wall of raw numbers turns, on that screen, into a shape anyone can take in.

The fault log and its history

Every fault the pack has ever seen lives in the log. Each entry sets down a time, a code, and the cluster of readings around the instant it tripped, written the moment the fault appears and left in memory for whoever comes to read it. Plenty of faults that a glance at the screen would miss sit waiting there in full. Costing the BMS almost nothing to keep, the log can stretch back over months of running.

A history is what turns one fault into a story. A cell that trips an overvoltage every week is telling something a single trip never could; the log lays out how often, how hard, and how lately each fault has struck. Read that pattern and the true cause tends to surface.

The log is as good at tracking what stops as what goes on. A fault born of a one-off, a single cold night, shows up once and then falls silent; a pattern that fades tells the technician the trouble has lifted. Either way, the whole timeline stays on hand for a later look.

After a fault is found

Diagnosis is only the first move.

Naming a fault, the BMS moves in the same breath to protect the pack, its response scaled to how grave the reading is, from a quiet warning at one end to a full cutoff at the other. How those levels are drawn is a study in itself. The same flag can travel on to the inverter or the charger, easing or cutting the flow. In the end the diagnosis is the first link in a chain that closes on a pack kept safe.

Reading the diagnosis

A fault code is where the answer starts. It names the fault, and usually the cell behind it; a manual or an app translates the code into plain words. Behind that short code lies the full state of the pack.

Richest of all is the read through the app. One tap brings up the live cell voltages, the temperatures, and the fault history together in a single view, the named cell sitting right beside the reading that gives it away. What once took a meter and a long afternoon now takes a minute. Nothing in the pack stays out of reach of that single screen.

Self-diagnosis, in the end, is what lets anyone trust a lithium pack. Watching every cell, testing its own senses, reporting in plain terms, a BMS makes a sealed box into something that can speak for itself. Read its fault code on a screen or in an app, and the pack says plainly what it found and where. A battery that diagnoses itself is one to lean on for years.

50Hz Versus 60Hz Frequency Switching

What frequency switching changes

Frequency switching sets how many times a second the inverter’s output wave rises and falls. A 50-hertz setting makes the wave complete fifty cycles each second. A 60-hertz setting makes it complete sixty. The switch on a power station picks the one its appliances were built for. The choice is one line in a menu, simple to set and simple to change.

The figure travels with the region a device comes from. A power station sold across regions carries both 50 and 60 hertz, set by a switch or a menu. The same unit serves a home grid and a foreign appliance from the one battery. The setting picks whichever of the two an appliance was built around.

The switch makes its biggest difference to what spins or keeps time. A device that turns a motor or counts mains cycles follows the frequency closely. The setting lines the output up with the speed and timing the appliance was built around. The right figure greets the appliance at its first cycle.

Why the grid runs at 50 or 60

The two frequencies are an accident of history more than a choice of physics. Early power systems ran at many frequencies, from below 30 hertz to well over 100, each builder picking its own. Two values won out over time and froze into the standards a power station meets today. The two numbers have stood unchanged for over a century.

Sixty hertz took hold in the United States. The engineers at Westinghouse settled on 60 hertz in the 1890s, as a balance between flicker in the lamps and loss in the iron. The figure spread across the Americas with the equipment built around it. Canada and much of Latin America followed the same path. The 60-hertz standard reached across North America in time.

Fifty hertz took hold in Europe. The German firm AEG built its early system at 50 hertz. The round number suited the metric habits of the continent. The standard carried out across Europe, Africa and much of Asia as those grids grew.

Neither figure is better for a home. Both light a room and run a motor well. The split survives because a grid is too large to change once it is built, with millions of devices wound for its frequency. A power station bridges the two only because it builds its wave fresh from a battery. The unit owes no allegiance to the grid it stands near.

Why a motor cares about frequency

A motor reads the frequency as its pace. An alternating-current motor turns in step with the rising and falling of the wave. The number of cycles each second sets the speed of the shaft. The tie is a simple piece of arithmetic. The synchronous speed of a motor equals 120 times the frequency, divided by the number of magnetic poles built into it. A two-pole motor on 60 hertz turns at 3600 turns a minute. The same motor on 50 hertz turns at 3000. The drop tracks the frequency, a fall of one-sixth from 60 down to 50. Every alternating-current motor follows the same rule, from the compressor in a refrigerator to the pump in a well. A change in frequency moves the speed of all of them by the same fraction. The frequency reaches the magnetic field as well. The magnetic field inside the motor depends on the voltage and the frequency together, in a ratio the designer fixes. A motor built for a certain voltage at a certain frequency expects that pairing on its terminals. Feeding it the same voltage at a lower frequency pushes the ratio up. The iron core then drives toward saturation. Saturation pulls a surge of extra current and turns it into heat. Heat wears a motor down over the years. The frequency on the label, then, is part of a matched pair the motor was wound to run on. A power station set to the right frequency hands the motor the pace and the field it was built around. The motor turns at its design speed, draws its design current and runs at the temperature its maker planned for. A power station holds that pairing exactly when its frequency matches the motor’s label. The motor then asks for nothing it was not built to give. The same voltage that suits the motor at its design frequency would overdrive it at a lower one. The match of frequency to label keeps the field, the speed and the heat all where the maker set them.

Synchronous motors hold the tie tightest. A synchronous motor locks its shaft exactly to the frequency, turning at the synchronous speed with no slip at all. A clock driven by such a motor keeps time by counting the cycles of the mains.

Induction motors run a touch below the synchronous speed. An induction motor turns a little under that figure, by a few percent, under its load. The slip stays roughly the same fraction as the frequency changes. A higher frequency turns the shaft faster. A lower frequency turns it slower. A change in the hertz shows up at once in the shaft speed.

The load on the motor feels the speed change. A fan turning faster moves more air. A pump turning faster pushes more water. A faster shaft does more work and pulls more power to do it.

The frequency is built into the motor at the factory. The number of poles, the windings and the iron are all chosen for one frequency and one voltage. A motor run at its design frequency sits in the spot its maker aimed for. The label names that frequency for anyone matching a supply to it. The figure is fixed in copper and iron, not a thing to change in the field. A rewind shop can alter the poles, a job far beyond any setting on a panel.

The cost of the wrong frequency to a motor

A motor on the wrong frequency runs at the wrong speed first. A 60-hertz motor fed 50 hertz turns near a sixth slower than its label promises. A clock geared to it loses time. A saw or a tool spins down and cuts with less bite. The slowdown is steady, a fixed fraction set by the frequency. A sixth off the speed is the same whatever the motor drives.

The heat is the deeper cost. A motor fed a lower frequency at its full voltage carries a higher field than its core was built for. The extra magnetism pulls a surge of current that warms the windings. A motor held there for long runs hot enough to age its insulation early. The damage builds over long hours on the wrong wave, out of sight until it bites.

The fix lives in the voltage. A motor moved to a lower frequency wants a lower voltage to match, enough to hold the original ratio of volts to hertz. Engineering practice corrects the ratio by lowering the voltage with a transformer when a motor crosses frequencies. The lower voltage returns the field to the level the windings expect.

A higher frequency speeds a motor up. A 50-hertz motor run on 60 hertz turns near a fifth faster than its label. The extra speed can push a load past its safe limit. The bearings and the driven machine take the strain. A load rated for one speed dislikes a sudden fifth more of it.

The clocks and timers that drift

A mains clock keeps time by the frequency itself. A synchronous clock motor turns one notch for each cycle of the wave. The hands move at a pace set by the hertz. The grid holds its average frequency tight over a day, which keeps such a clock accurate to the second over weeks. The mains becomes the pendulum for every synchronous clock on it.

A clock built for one frequency drifts on the other. A 60-hertz clock run on 50 hertz counts short and falls behind, by around ten minutes every hour. An old oven timer, a heating controller, or a motor-driven appliance clock can wander the same way. The drift adds up to a quarter of an hour across a working day. A clock off by that much each hour falls far behind by nightfall.

The other devices that follow the frequency

Other gear follows the frequency in its own way.

A transformer answers to the frequency in its iron. A mains transformer is wound for a frequency. A lower frequency drives its core harder toward saturation. A transformer run below its design frequency heats and hums beyond its plan. A transformer-based charger or a small mains adapter feels this same pull.

Older audio and lighting gear can show the frequency. A turntable driven by a synchronous motor spins at a speed set by the hertz. A wrong frequency shifts its pitch. A fluorescent tube flickers at twice the line frequency, at 100 hertz on 50 or 120 hertz on 60. The flicker is too fast for the eye in either case.

Some appliance timers and shop tools count on the frequency too. A mechanical washer timer or a bench grinder steps or spins at a pace the hertz sets. A wrong setting stretches a wash step or slows a grinding wheel. The trouble lands only on the gear that counts the cycles. The count of mains cycles is what such a timer turns into elapsed time.

The devices that ignore it

A large share of modern gear pays the frequency no mind. A switching power supply rectifies the incoming wave to direct current in its first stage. A 50 or 60 hertz input reaches the same smoothed rail inside it. A phone charger, a laptop brick, an LED driver and the bulk of consumer electronics carry this kind of supply and run on either frequency. A pure heater, a kettle and an incandescent bulb care even less, since a resistive load turns volts into heat or light at any frequency.

How a power station sets its frequency

A power station builds its output frequency from scratch. The inverter switches the battery’s direct current into an alternating wave. A timing circuit decides how fast that wave rises and falls. The frequency is a number the electronics hold, set by the switch on the panel. The wave is born inside the unit, shaped entirely by its electronics.

A crystal reference keeps the figure exact. A small quartz oscillator, the same kind that runs a watch, times the switching to a tight tolerance. The output sits on its 50.0 or 60.0 hertz far more steadily than a public grid does through a busy day. The figure barely wanders from one reading to the next.

The switch changes a setting in the firmware. Choosing 50 or 60 hertz tells the timing circuit a new target. The next cycle leaves the inverter at the new rate. The hardware stays exactly as it is. The same circuit serves both rates from one design.

A fuel generator handles frequency a harder way. A generator ties its frequency to the speed of its engine. A governor holds that engine near a fixed rate. A portable power station carries no spinning part. It holds its frequency from the electronics alone and switches it with a button. The change takes a moment and needs only a press from the user.

How devices respond to a 50/60 Hz mismatch

Device type	Follows frequency?	Effect of the wrong frequency	Typical rating
AC motor (fridge, pump, fan)	Yes, speed = 120 × f / poles	~20% speed change, overheating risk	50Hz or 60Hz
Synchronous clock or timer	Yes, counts cycles	gains or loses ~10 min per hour	50Hz or 60Hz
Mains transformer	Yes, core flux	extra heat and hum, saturation at lower Hz	50Hz or 60Hz
Switching supply (charger, laptop)	No	none	50/60Hz
Resistive load (heater, kettle, bulb)	No	none	any
LED drivers and other electronics	No	none	50/60Hz

Matching the frequency to the region

Matching begins at the appliance. A nameplate names the frequency the device was built for, printed as 50 hertz, 60 hertz, or 50/60 hertz. The setting on the power station goes to that figure.

The region a device came from points the way when a label is unclear. Much of the world runs 50 hertz, across Europe, Africa, much of Asia and Australia. The Americas run 60 hertz, along with parts of Japan and a few other spots. A device bought in a 60-hertz country was built for 60. A glance at the origin settles the setting when the print has worn away.

Japan splits its own grid between the two, 50 hertz in the east and 60 in the west, a divide left from two early suppliers. A traveller within Japan meets both standards in one country. A power station that switches frequency suits either side of that line.

The power station carries the choice for travel and mixed gear. A unit used across borders sets its output to match whatever it powers at the time. A 60-hertz appliance carried into a 50-hertz country still gets its 60 hertz from the station. The station builds that frequency from its battery, the same anywhere it travels.

A label reading 50/60 hertz frees the choice. A device rated for both runs correctly on either setting. The frequency stops mattering for that device. Setting the station to the local standard suits such gear with no fuss.

Dual-frequency gear

A great deal of modern equipment carries a dual-frequency rating. A label that reads 100 to 240 volts and 50/60 hertz marks a universal-input supply, the kind found on a great many phone chargers, laptops and small electronics. The rating prints right on the brick for anyone to read. The same line lists the voltage range and the current draw beside it.

The switching supply inside makes the wide rating possible. The supply turns the incoming wave straight to direct current, then chops it at a high frequency of its own, far above the mains. The frequency of the wall supply never reaches the sensitive parts downstream. The wide input is why one charger serves a traveller across every grid.

A dual rating makes the frequency switch a convenience for such gear. A laptop or a phone charger on a power station works the same on 50 or 60 hertz. The setting can sit at the local standard and stay there for all the universal-input devices in the bag. One setting covers the phone, the laptop and the camera alike.

A reading of the input line settles any doubt. A label that shows 50/60 hertz needs no thought about the setting. A label that shows one frequency alone asks for the switch to be set to it.

Frequency and voltage travel together

Frequency and voltage come as a regional pair. A 60-hertz region usually runs near 120 volts. A 50-hertz region usually runs near 230. A power station built for travel switches both to match the appliance and its home grid. The two figures belong together on the panel.

The pairing comes to a head when a motor crosses frequencies. A motor carries the field its volts-per-hertz sets. A change in frequency calls for a change in voltage to hold that ratio. A unit that switches voltage along with frequency keeps a foreign motor in its safe range. The two settings move together on a unit built for travel.

Travelling between the two standards

A traveller meets the frequency question at the border. A device packed in a 60-hertz country expects 60 hertz at the far end, whatever the local grid runs. The power station carried along supplies that same 60 hertz anywhere the trip goes. The grid at the destination changes nothing the station puts out.

A motor tool from the Americas keeps its speed on the road. A drill or a saw built for 60 hertz, run from a station set to 60, turns at its rated speed in a 50-hertz country. The tool runs as its maker intended, far from home. The station setting carries its home frequency along for the trip.

A clock or a timer needs the same care abroad. A travel alarm with a synchronous motor, or an appliance with a mains-driven timer, keeps true time only on its home frequency. The station setting holds that timing wherever the trip goes. A clock keeps its rhythm as long as the station keeps the hertz.

Universal-input electronics travel free of the question. A laptop, a phone charger and a camera battery charger run on either frequency with no setting to mind. The station can stay on the local standard for all of them, with the switch saved for the one motor or clock in the bag. The list of fussy devices in a typical bag is short.

Setting and using the switch

The frequency control sits in the unit’s settings. A switch on the panel or a line in the menu picks 50 or 60 hertz. The choice takes effect on the output the moment it is set. The output frequency follows the chosen figure from that point on.

The setting belongs before the appliance goes on. Choosing the frequency with the output off, then connecting the device, spares the appliance any moment on the wrong wave. A motor or a clock meets the right frequency from its first cycle.

The local standard makes a sound default. A station set to the frequency of its home country runs the local gear with no thought. The setting needs a change only for a visiting device from the other standard.

Mixed gear takes the frequency of the fussy device. A load of universal-input electronics runs on either setting. The switch then follows the one motor or clock in the group that cares.

The display confirms the setting at a glance. A power station shows its output frequency on the screen, beside the voltage and the watts. A quick look tells whether the unit sits on 50 or 60 before a motor goes on. The figure on the screen is the surest check before a sensitive load connects.

The wrong setting shows itself in use. A motor running slow or hot, a clock drifting off, or a transformer humming hard points back to a frequency that does not match the load. A glance at the setting and a switch to the right figure clears it. The cure is a setting, never a part to replace.

Reading the label and planning

The frequency hides in plain sight on the nameplate. The line shows hertz next to the voltage, as 120V 60Hz, 230V 50Hz, or 100-240V 50/60Hz. The figure tells the setting the device wants in one glance. The hertz figure sits in the same small print as the voltage and the watts.

A short inventory settles the plan before a trip. A list of the gear, a note of each frequency and a check for any single-frequency motor or clock name the setting the station should hold. The universal-input devices follow along on whatever it picks. A minute with the labels saves an hour of puzzling on the road.

The frequency setting decides how an appliance runs. A power station set to the frequency an appliance was built for hands a motor its design speed, a clock its true time and a transformer its rated field. A reading of the nameplate and a switch to the matching figure keep the gear running the way its makers drew it up.

Surge Support for Starting Heavy Appliances

What surge support does for a hard start

Surge support is the brief burst of extra power an inverter can deliver to start a heavy appliance. A motor-driven appliance pulls several times its running watts in the first instant it switches on. The inverter covers that gulp for a fraction of a second, then settles back to the running level. The surge rating is the size of the burst the unit can hold.

The startup gulp explains a common surprise. A power station runs a refrigerator without trouble once the compressor spins. The hard moment comes earlier, in the instant the compressor first kicks in. That instant decides whether the appliance starts at all.

An appliance pulls its hardest in the moment it starts. The demand falls to the running level once the motor is up to speed. The running figure on a label describes the easy part of the job. The start hides behind it, several times larger and gone in under a second.

Surge support is what carries a heavy appliance through that start. A unit with enough headroom takes the gulp in stride and settles into the steady run. The size of that headroom decides whether the start succeeds. A unit sized for the running watts alone can leave a heavy motor dead at the switch. A few hundred watts of surge headroom can be the line between a clean start and a dead switch.

The appliances that demand a surge

A surge is the signature of a motor. Any appliance that spins a motor to do its work pulls a hard gulp at startup. The list covers nearly every heavy load a power station is asked to run away from the wall.

A refrigerator or a freezer leads the list in a power station’s world. The compressor inside is a sealed motor that slams from rest to full speed in an instant. Its start pulls several times the modest running watts, for under a second, every time the thermostat calls for cooling. A chest freezer behaves the same way, its compressor pulling a hard gulp each time it wakes.

An air conditioner carries the same kind of compressor, sized larger. A window unit or a small split draws a steady few hundred watts during cooling. Its compressor start needs around three times that figure for the brief moment it spins up. A larger central unit climbs well beyond the reach of a portable station at its start. A portable station meets a window unit best with a soft starter on the compressor.

A water pump or a well pump hides a strong motor behind a small body. The motor works against water pressure from its first turn. Its start pulls a heavy surge. A deep well pump can ask for a few thousand watts in the instant it starts, far above its running draw.

An air compressor and a power tool round out the common heavy loads. A compressor motor starts against the pressure already in its tank and pulls a large surge on each cycle. A circular saw or a large drill spikes as its motor spins the blade or bit up to speed from a dead stop.

A few heavy loads start without a gulp. A space heater, a kettle and an incandescent lamp are simple resistive loads that draw their full watts from the first instant and hold steady there. These loads lean on the continuous rating of an inverter. The surge rating barely enters the picture for them.

The size of the startup gulp

The gulp is measured in starting watts, set beside the running watts on a sizing chart. A motor’s start often runs to three times its running watts. A stubborn motor under load can spike to five or seven times for the briefest moment. The exact multiple depends on the motor, the load on it and the way it is built.

The surge is short. A motor pulls its starting watts for a fraction of a second to a second or two, until it reaches speed. The draw falls back to the running level as soon as the rotor is turning freely. A motor at rest holds no momentum. The first turn from a dead stop is the hardest pull of the cycle. The whole event passes faster than an eye can follow.

The numbers reward a quick check before a start. A fridge at 150 running watts can demand 700 at its start. A well pump at 1000 running watts can demand 3000. The running figure on its own hides the size of the gulp the inverter has to cover. A reading taken from the start figure keeps the inverter inside its limits.

How an inverter holds the surge

Surge support rests on a brief overload the inverter is built to survive. For a fraction of a second the unit lets far more current than its steady rating leave the battery, push through the power stage and reach the appliance. The transistors carry the extra current. The battery delivers the extra power. The control circuit holds the output wave steady through the strain. A typical portable inverter can hold roughly twice its continuous rating for a few seconds. Some designs reach higher for a shorter window. A 2000-watt unit might offer 4000 watts of surge. A 3000-watt unit might offer 6000. The exact figure and the exact time both sit in the spec sheet, since the two trade against each other. A larger overload can be held only for a shorter moment. The limit comes from heat. The extra current warms the transistors fast. The inverter watches their temperature as the surge runs. The unit holds the overload as long as the parts stay within their safe range, then it either settles to the running load or shuts the output down to protect itself. A start that finishes inside the window goes unnoticed. The appliance spins up. The draw falls to the running level. The inverter returns to its easy steady state. The whole event lasts less than a second on a typical motor. The surge rating is the promise that the unit can pour out that brief flood of power on demand, again and again, every time a heavy appliance calls for its start. The number on the spec sheet, a figure like 4000 watts of surge on a 2000-watt unit, is that promise written down. A buyer reads it as the largest motor the station can wake from rest. A unit with a higher surge figure wakes a heavier motor. The figure earns a close look on any unit meant to start a compressor or a pump.

The surge lives in time. A unit promises its surge watts for a stated number of seconds, long enough to cover a normal start. A start that drags past that window pushes the inverter toward its protection. The time figure on the spec sheet matters as much as the watts.

The battery has to back the surge. A brief flood of watts pulls a brief flood of amps from the cells. A weak or cold battery can sag under that pull. A healthy pack with room to give holds its voltage through the start and lets the inverter do its work. A pack near empty has less to give and can fall short of a start it would have made at full charge.

The inverter design sets the surge it can promise. A unit built with strong transistors and a stout transformer carries a higher surge than a lean design of the same continuous rating. The surge figure is a real part of what separates two units that share a wattage on the box. Two boxes marked the same wattage can promise different starts.

The surge is there for the start and nothing more. Once the appliance runs, the inverter coasts at the running load. Its full headroom returns to reserve. The next start finds the surge ready again.

What the battery brings to a start

The surge draws on the battery as hard as on the inverter. A burst of output watts pulls a matching burst of current from the cells, many times the steady draw, for the same brief moment. The pack has to give up that current the instant the appliance calls for it. A cell rated for high discharge gives that current more readily than one tuned for a slow trickle.

A battery management system guards the cells with a current limit. The limit caps how many amps the pack will pour out at once. A surge that asks for more runs into that wall. A pack with a generous current limit backs a strong surge. A pack held to a tight limit can choke a start the inverter alone could have made.

Voltage sag is the battery’s answer to a hard pull. A heavy current drags the pack voltage down for the length of the surge. A deep sag leaves the inverter less to work with. A large healthy pack barely dips and holds the inverter steady through the start. The inverter reads that sagging voltage and works to hold its output steady against it.

Cold and age both weaken a start. A cold battery moves its charge slowly and sags harder under a surge. An old pack with worn cells gives up less current than it did when new. A healthy battery near full charge, kept warm, starts the heaviest loads a unit can handle.

A bigger battery tends to start bigger loads. A large pack carries more cells in parallel. More cells share the surge current with less strain on each. A small pack leans on fewer cells for the same burst and reaches its current limit sooner. The pack size sits quietly behind every surge figure a station can promise.

The half-second that decides it

The whole question of a heavy appliance comes down to one half-second. The motor demands its peak in the instant it breaks from rest. The inverter either meets that demand or trips. Everything after the start is the easy part, a steady run the unit handles without strain. The match between a power station and a heavy appliance is settled in that first brief gulp.

Running watts, starting watts, and the startup surge by appliance

Appliance	Running watts	Starting watts	Start as multiple of running	Surge duration
Refrigerator (compressor)	100–200 W	600–1200 W	~5–6×	under 1 s
Window air conditioner	700–900 W	~2160 W	~3×	1–2 s
Deep well pump (1/2 HP)	800–1000 W	2000–3000 W	~3×	1–2 s
Air compressor	1000–1500 W	2800–4000 W	~3×	1–2 s
Circular saw or large drill	1200–1500 W	2000–2300 W	~1.5×	under 1 s
Inverter (variable-speed) fridge	100–150 W	150–200 W	~1×	gentle ramp

Matching the surge to the heaviest start

Matching starts with the heaviest single start in the plan. A user lists the appliances, finds the one with the largest starting watts and checks it against the inverter’s surge rating. The surge rating has to clear that largest start with room to spare. A single number, the largest start in the plan, sets the bar the surge rating has to meet.

The running loads ride underneath the start. The inverter has to carry whatever is already running plus the surge of the appliance starting on top. A station running 500 watts of lights and electronics, then starting a 2000-watt-surge pump, has to find 2500 watts at that instant. The standard sizing rule adds the steady running total to the single largest starting surge. A surge rating that clears the heaviest start leaves the running loads easy to carry.

Reading a motor’s starting demand

A motor rarely prints its starting watts on the label. The running watts or the running amps sit there in plain view. The start has to be reckoned from them. A safe rule multiplies the running watts by three for a plain induction motor.

A nameplate code letter tells the rest of the story. A NEMA code letter, from A through V, sets the locked-rotor demand of the motor in kilovolt-amperes per horsepower. A higher letter marks a motor that pulls a harder start for its size. The letter rewards a glance on any motor whose start has to be planned.

Horsepower gives a rough path to watts. A motor’s horsepower times 746 gives its mechanical output in watts. The motor’s losses push the electrical draw higher still. A half-horsepower pump near 700 running watts can be read for a start near 2000 to 3000.

An amp figure converts straight to watts. The running amps times the voltage give the running watts. The start lands at a few times that figure. A pump drawing 8 amps at 120 volts runs near 960 watts and can spike past 2800 at its start. The same arithmetic turns any nameplate current into a starting figure a buyer can plan around.

A clamp meter settles the question for good. A clamp around the motor’s supply wire reads the running amps directly. A meter that holds a peak can catch the brief starting spike. The measured numbers beat any estimate from a label. A motor measured once needs no guessing for the next start.

When the surge falls short

A surge that falls short shows itself at the switch.

The motor may hum and stall. It draws hard and never reaches speed. A stalled motor keeps pulling its locked-rotor current and heats fast, since the rotor never breaks free to ease the draw. A motor left stalled for more than a moment risks heat damage to its windings.

The inverter may trip to protect itself. Its overload protection reads the surge as a fault and cuts the output. An error code follows on the display. The unit waits for a reset before it tries again. A repeated trip on the same load is a clear sign the start sits above the surge rating.

The voltage may sag through the attempt. A unit pushed past its surge can drop its output voltage under the strain. The dip can blink other devices or reset them. Repeated failed starts heat both the motor and the inverter. A string of attempts is a poor way to force a start.

Soft start and inverter-driven appliances

A soft start changes the shape of the demand. A soft starter feeds a motor a rising voltage over a second or two. The motor builds speed gently. Its peak draw stays far below a direct start.

The lower peak fits a smaller inverter. A motor that needs 3000 watts to start cold can come up on a fraction of that through a soft starter. The gentler ramp brings a heavy motor within reach of a smaller power station.

Air conditioners often take a soft starter as an add-on. A small device wired at the compressor cuts the start surge of a window or mini-split unit by half or more, which brings the unit inside the surge rating of a mid-size station. The same trick lets a modest power station run a unit it could never start on its own. The device costs a fraction of a larger power station and travels with the appliance.

Inverter-driven appliances solve the surge at the source. An inverter compressor in a modern fridge or air conditioner runs at variable speed. It starts by ramping up from a crawl. The hard locked-rotor gulp of a fixed-speed compressor never appears.

These appliances ask far less of a power station at start. An inverter fridge can ease on with almost no visible surge, a draw close to its running watts from the first second. The label on a modern unit often names it an inverter type, a strong hint of a gentle start. A buyer can read the word inverter on the appliance as a sign of an easy start.

A capacitor-start motor sits in the middle. The capacitor gives the motor a stronger first turn and trims the surge somewhat. The start still pulls a real gulp, smaller than a plain induction motor of the same size.

A soft starter pays off on a borderline match. A motor just past the surge rating of a station can come into reach with a soft starter, at a small cost and a little wiring at the appliance. A user who plans to run one heavy motor on a portable station often finds the soft starter the cheapest path to a reliable start.

Starting heavy appliances in the field

A job site puts surge support to a daily test. A circular saw spikes each time the trigger pulls. An air compressor kicks its motor in against tank pressure on its own schedule. A station sized for the saw’s steady run can stall at the saw’s start. A compressor cutting in during a cut stacks a second surge on the first.

An off-grid cabin leans on a fridge and a well pump. The fridge cycles through the day on its thermostat. The pump runs whenever a tap opens. Either one can start at any moment. The two starting together set the hardest demand of the day.

An RV carries its own heavy starter in the rooftop air conditioner. The compressor on an RV air conditioner pulls a stiff surge that has stopped many a power station at the switch. A soft starter fitted to the unit is the common cure. It drops the rooftop start within reach of a mid-size station.

Each scene rewards the same short list of habits. A reading of the heaviest start, a check of the surge rating against it, a soft starter on a borderline motor and a staggered start for two motors together carry the heavy loads through. The plan holds whether the loads sit in a workshop, a cabin, or a camp.

A food truck or a market stall stacks a fridge, a freezer and a blender on one station. The compressors cycle on their own clocks through a busy service. A blender adds a sharp start whenever an order calls for one. A station with surge headroom over the largest compressor, plus the running total of the rest, carries the stall through the rush.

Staggering starts and reading the spec

Two motors starting together double the trouble. The surges stack when a fridge and a pump kick in at the same instant. The combined gulp can dwarf either one alone. Staggering the starts keeps the peaks apart, with a few seconds between each. Each surge passes before the next begins.

The spec sheet names the surge in watts and the seconds it lasts. A line reading 4000 watts of surge for several seconds tells what start the unit can cover. The time figure matters as much as the watts, since a slow start needs the headroom held longer. A surge figure with no time beside it tells only half the story of a start.

Starting a heavy appliance is a question of headroom, settled in a moment. A power station with surge watts above the heaviest start carries the appliance up and into a steady run. A reading of the surge rating, a soft starter where it helps and a staggered start for two motors together cover the hard half-second every heavy appliance asks for.

Idle Power Consumption Impact on Runtime

Where the runtime goes when nothing runs

An inverter spends power the moment it is switched on, before any device draws a single watt. That quiet draw is the idle power. Over a long evening or a slow weekend it is the cost that empties the battery between real jobs. A power station left on with nothing plugged in can lose a real part of its charge between dusk and morning.

The number behind this looks small on paper. A portable inverter idles at a few watts. A large 5000-watt unit idles at twenty to fifty watts. Set against a 5000-watt rating, that figure reads like a rounding error. It earns little attention on a busy spec sheet.

Runtime turns the small number into a large one. Idle power runs around the clock, hour after hour. A single watt left on for a day removes twenty-four watt-hours from the pack. Across a full night of standby the idle draw becomes a real share of the stored energy, the part of the runtime that quietly disappears.

What the inverter spends on itself

The idle watts pay for the work of staying ready. An inverter holds a 110-volt or 220-volt wave at its output at every moment the switch is on. Building and holding that wave costs power, even when no device takes it. The cost is the price of readiness, paid for every second the output stays live.

The control board runs first. A small processor watches the output, times the switching and reads the temperature and the battery. This circuitry draws a steady trickle the whole time the unit stays awake. The trickle looks like nothing on a meter. It never stops as long as the power is on.

The power stage adds the next share. The transistors that chop the DC into AC switch tens of thousands of times a second. Each switch loses a little energy as heat. Those switching losses run whether the output carries a load or sits empty, since the switching itself never pauses on a live inverter. The loss is the tax a switching converter pays on every hour it stays powered.

A transformer, in a unit that uses one, draws its own idle current. A magnetic core takes power to stay magnetized through every cycle. That core loss continues with the output open. The core hums along on the battery the whole time the inverter holds its wave.

A cooling fan can join the list. Some inverters spin the fan on a timer or a temperature step. The fan pulls several watts each time it runs. On a warm day the fan lifts the idle figure well above its quiet-room value, since the unit works harder to shed heat in the warmth.

The standby draw beyond the inverter

The inverter is not the only part awake during standby. A modern power station runs a small computer of its own. That computer stays partly awake the whole time the unit is on. Its draw adds to the inverter’s idle on the same battery. An honest runtime estimate for the unit counts this draw beside the inverter’s own.

The screen takes a share whenever it lights. A bright display can pull a couple of watts on its own. Many stations dim the screen after a minute and wake it on a touch, which trims the cost during the long idle hours. The reading on that screen costs a little energy each time a hand wakes it.

The battery management system draws a steady sip of its own. This circuit watches each cell, balances the pack and reads the temperature at all times. Its draw is small, in the range of a watt or less. It runs even with the inverter switched off, since the pack needs watching whenever charge sits inside it.

A wireless radio adds the last sip on a connected unit. A station that holds a Bluetooth or Wi-Fi link for its app keeps a radio listening around the clock. Turning the radio off in the app removes that part of the standby draw for anyone who skips the phone link. The link is a convenience that carries a small standing cost. A unit kept fully offline trims its standby draw to the lowest it can reach.

Inverter design and the idle floor

The build of the inverter sets where the idle floor sits. A heavy low-frequency design uses a large mains transformer. That transformer draws a magnetizing current every cycle. The current holds the idle floor higher on this kind of unit, even before any other part wakes.

A high-frequency design swaps the heavy transformer for small parts that switch at tens of kilohertz. The smaller magnetics draw less standby current. Many portable stations use this design for a lower idle floor and a lighter case. The result is a no-load figure measured in single watts on many of these compact units, low enough to leave the unit ready for hours at little cost. The choice of topology shapes the no-load number long before a buyer ever sees it.

Either design still spends something at idle. The control logic and the switching never reach zero on a live output. The floor depends on the design, the size and the quality of the parts. A careful maker trims each piece of it, since the sum decides how a unit holds charge overnight.

A draw that does not scale down

Idle power does not shrink to match a light load. The control board, the switching and the core loss run at much the same level whether the inverter feeds a 2000-watt tool or a 5-watt phone charger. The floor stays where it sits, no matter how small the job riding on top of it. The floor sits at the same height for a heavy tool and a single phone charger.

A bigger inverter sets a higher floor. A 5000-watt unit carries larger transistors and a heavier transformer than a 1000-watt unit. Both raise the idle draw. The common rule of thumb across mid-size inverters places the no-load figure near one percent of the rated power. A larger rating tends to carry a larger standing cost. The pattern holds from small units up to the largest portable packs.

Idle draw and what it costs over time

Idle draw	Over a 10-hour night	Over 24 hours	Share of a 1000 Wh pack per night	Days to empty a 2000 Wh pack, idle only
5 W (sleep)	50 Wh	120 Wh	5%	~16.7 days
20 W	200 Wh	480 Wh	20%	~4.2 days
30 W	300 Wh	720 Wh	30%	~2.8 days
40 W	400 Wh	960 Wh	40%	~2.1 days
60 W	600 Wh	1440 Wh	60%	~1.4 days

Putting idle power into the runtime sum

Runtime follows one short sum. The usable energy in the battery, in watt-hours, divides by the total draw in watts. The answer is the hours the pack lasts. Idle power sits inside that total draw at all times, in the denominator of every runtime figure a unit can claim. The same short sum governs a phone charger and a refrigerator alike, since both pull their watts from the one battery through the one inverter.

With nothing plugged in, idle power alone sets the runtime. A 2000-watt-hour pack behind an inverter that idles at forty watts drains in about fifty hours, a little over two days, before any device has run. The same forty watts running through one night removes close to 480 watt-hours, near a quarter of the pack.

A real load shares the sum with the idle draw. A 100-watt load on the same forty-watt inverter pulls 140 watts from the battery. The runtime falls in step with the larger total. The idle adds forty percent on top of the work the load itself needs. That surcharge rides along for the whole session.

The lighter the load, the louder idle power speaks. A few extra watts barely touch a 100-watt load. On a 10-watt load behind a 40-watt inverter, the total draw reaches fifty watts. The inverter itself claims four-fifths of that fifty. Only the last fifth reaches the device.

The cost of leaving it on overnight

A unit left on through the night is the clearest case of idle drain. Eight hours of standby at forty watts removes about 320 watt-hours before breakfast, energy that powered nothing. A power station switched off at bedtime and back on at dawn keeps that 320 watt-hours for the morning coffee. The habit of switching off between real jobs is the single largest idle saving a user controls. A single forgotten night can cost more charge than a careful day of real use saves. The number repeats every night the switch stays on, a standing charge against the morning reserve.

Why a light load wastes the battery

The waste at light load comes from a fixed cost meeting a small job. Idle power is that fixed cost. It runs at the same forty or fifty watts whether the load is large or close to nothing. A heavy load spreads the fixed cost across a lot of useful work. The share lost to idle then stays small. A light load has little useful work to spread it across. The fixed cost swallows a large slice of every watt-hour the battery gives up. Picture a phone charger that needs five watts. On its own the charger would empty little of a power station across a night. Placed behind an inverter that idles at thirty watts, the charger now travels with a thirty-five-watt total draw. The battery sees thirty-five watts leave it for every five watts that reach the phone. Seven units of energy go out of the pack for one unit of charging. A 1000-watt-hour station that might hold the charger for a week on a clean five-watt draw now lasts a little over a day, because the inverter spends the rest. The same pattern shows up with any small overnight load. A 10-watt router, a 3-watt clock and a 15-watt string of lights each ride on top of the idle draw. Each one pays the same fixed toll. The cure is rarely a bigger battery. A bigger battery feeds the idle draw for longer at the same level of waste. The cure is a lower idle draw, a small power path for small loads, or an inverter that sleeps between jobs. A portable station that carries USB and 12-volt outputs can run a phone or a router straight from the battery. The AC inverter stays off. Its idle cost disappears for that job.

Heat makes the light-load waste a little worse. A transformer-based inverter runs least efficiently when it is barely loaded. A small share of even the load’s own watts turns to heat on the way through. The battery covers the idle draw, the conversion loss and only then the device.

The lesson points at every watt that runs through the inverter overnight. A load that genuinely needs the AC wave has a reason to be there. A load that could run from a DC outlet pays a heavy premium for the inverter underneath it.

Numbers make the case concrete. A 30-watt idle draw over a 10-hour night is 300 watt-hours. On a 1000-watt-hour station that is near a third of the pack, gone before any device counted. Cutting the idle draw to 5 watts in sleep mode brings that night down to 50 watt-hours.

The waste also hides from a quick check. A user who plugs in a small load, watches it run, then unplugs it never notices the idle draw underneath. The drain shows only across hours of standby, on the morning charge reading.

A runtime plan that leaves the idle number out gives a figure that always reads too high. A sum that counts only the load promises more hours than the pack delivers. Folding the idle draw into the total brings the estimate back to the figure the morning will show.

Idle power through a night off-grid

A night away from the grid shows idle power in plain numbers. A camper plugs a 12-volt fridge into the inverter at dusk. The fridge cycles on and off through the night and averages perhaps forty watts of real work. The inverter underneath it idles at thirty watts the whole time.

The idle draw runs every one of those hours, awake behind the fridge. Over a ten-hour night the fridge itself might use 400 watt-hours. The inverter adds close to 300 watt-hours of idle on top. The night costs near 700 watt-hours. Almost half of that paid for the inverter staying ready. The battery meter counts both draws together as one falling number through the night.

Solar hides the idle draw by day. Panels in the sun can pour in more than the inverter spends. The pack holds its charge or climbs through the daylight hours. The standing cost barely registers during the hours the input runs ahead of it.

The dark hours send the bill. After sunset the battery carries the fridge and the idle draw alone. A camper who moves the fridge to its own 12-volt socket, away from the inverter, drops the idle cost from the night entirely. The same fridge then runs straight off the pack for a longer stay. The move costs nothing in setup. It adds hours to the cold box by morning.

Why the idle figure gets overlooked

Idle power slips past many buyers for a simple reason. A spec sheet leads with the headline numbers, the peak watts and the battery size. The no-load draw sits far down the list, in small type, named in a way that hides its weight.

The draw also hides in normal use. A device plugged in and running masks the idle underneath it, since the meter shows the total and never splits out the inverter’s share. The idle only steps forward in the quiet hours. Nothing else draws then. The battery still falls. A long night of slow drain is the one time the idle draw stands alone on the meter.

The habit of reading runtime from the load alone makes the gap worse. A buyer multiplies the battery size by the load and reads a runtime from that figure alone. The field delivers fewer hours than the sum promised. The missing hours went to the idle draw that never entered the calculation.

Sleep mode and the search threshold

Many inverters answer idle drain with a sleep mode. The unit drops much of its circuitry to a low-power state. It sends out a short pulse every second or so to check for a load. Search mode, eco mode and standby are the common names for the same trick. The pulse is brief enough to cost almost nothing on its own across an idle hour.

Sleep mode cuts the idle draw hard. A unit that idles at forty watts awake can sit at five to ten watts asleep. That change turns a 960-watt-hour daily idle loss into something near 150. It buys days of extra standby on the same battery.

The threshold sets the limit of the trick. The inverter wakes only when the pulse detects a draw above some minimum, often in the range of ten to fifty watts. A load lighter than that minimum can fail to wake the unit, or can make it stutter between sleep and wake. A tiny device sometimes needs the inverter held fully awake, at the full idle cost, to run at all.

Cutting the idle drain in practice

A few habits keep idle power from quietly draining a pack. Each one chases the same goal of fewer idle watts.

Switching off between jobs is the first and largest. An inverter draws nothing when its main switch is off. The idle cost falls to zero for every hour the unit rests. A power station used in bursts through the day gains the largest cut from this one habit. A unit that sits off for the afternoon spends nothing at all in those hours.

Enabling eco or search mode is the second. The setting lives in the menu or on a switch on many units. It holds the inverter in its low-power state until a real load appears. A user who leaves the unit on for convenience still saves much of the idle cost this way.

Matching the inverter to the load is the third. A 5000-watt inverter run for a 50-watt load carries a high idle floor for a tiny job. A smaller inverter, or a second small one kept for light duty, sets a lower floor for the hours the big loads sleep.

Running small loads on the DC outlets is the fourth. A portable station feeds its USB and 12-volt sockets straight from the battery. No inverter sits in that path. A phone, a fan, a router, or a light on those outlets escapes the idle cost of the AC wave.

Grouping the AC loads in time is the fifth. Running the AC jobs together in one window spends the idle cost across a single busy hour. Switching the inverter off after that window ends the idle draw for the rest of the day.

Measuring the real idle draw is the sixth. The station’s own battery or input display, read with nothing plugged in, shows the watts the inverter spends on itself. A cheap plug-in energy meter can log the same draw over a night for a clearer picture. A measured idle number turns runtime planning from a guess into a sum.

Reading the idle figure on the spec sheet

The idle draw hides in the fine print of the spec sheet. The line reads no-load current, no-load power, standby consumption, or quiescent draw, in watts or in amps from the battery. A figure given in amps multiplies by the battery voltage to reach watts.

A no-load current in amps tells the same story as a watt figure. A reading of 0.8 amps from a 48-volt battery works out to about 38 watts of idle draw. The same 0.8 amps from a 12-volt battery is under 10 watts, because the lower voltage carries less power at the same current.

Two inverters of the same wattage can list idle figures far apart. A unit built for off-grid life often shows a low no-load draw and a strong sleep mode, since its makers know the figure decides the overnight drain. A reading of the standby line before buying separates a unit that sips at idle from one that gulps. The gap between a frugal unit and a thirsty one shows up only after many nights on the same charge.

Idle power is the quiet line on the runtime ledger. It runs whenever the inverter is awake. A larger unit carries a larger idle draw. The figure decides how much charge survives a night of standby. A buyer who reads the no-load figure, switches off between jobs and leans on sleep mode keeps the battery for the work that matters.

Why Precision Equipment Needs Pure Sine Wave

What precision equipment means here

Precision equipment is gear that depends on the exact shape of its power as much as on its energy. A medical breathing machine, a hi-fi amplifier, a variable-speed motor, and a lab instrument all read the power wave closely. These devices were designed around the smooth sine wave of the grid. A pure sine inverter hands them that same wave. This page sets out why the clean shape matters to them, mechanism by mechanism. The clean wave is part of the design these devices were built into.

Precision gear reads more than the energy in a wave. It reads the timing, the peaks, and the smoothness of the wave to do its work. A wave that strays from a clean sine feeds that gear the wrong information. The shape of the wave is part of the information a precise device works from. A plain heater takes the energy at any shape and turns it into heat. A precise device asks for the shape on top of the energy.

Harmonics, the hidden problem

A wave that is not a clean sine carries harmonics. A harmonic is an extra wave at a multiple of the mains frequency. A 60-hertz wave with sharp edges carries energy at 180 hertz, 300 hertz, and higher. Those extra frequencies ride on top of the main wave. The chart shows them as a row of smaller peaks beside the fundamental. The harmonics are the price a wave pays for its sharp edges. Sharp edges and harmonics are the same thing in two views.

The harmonics are energy at frequencies a device never asked for. One reference on power quality notes that non-linear loads draw current in abrupt pulses and send harmonic currents back into the power system. Those currents, the same source notes, can overheat a transformer, sometimes catastrophically. The harmonics are the root of the harm a distorted wave does to gear. The harmonics flow where the power flows, into every device on the line.

The number and size of the harmonics set how far a wave strays from a clean sine. A wave full of sharp steps carries strong harmonics. The total of all the harmonics is the total harmonic distortion, the figure a clean inverter keeps low. The harmonics hide inside the shape of the wave, invisible on the surface. The table lists the first few and what each one does. A clean inverter holds that figure low. A low figure marks a wave close to a clean sine.

Each harmonic does its own kind of harm. The lower harmonics, the third and the fifth, carry the heaviest energy and do the worst damage. They heat windings, disturb controls, and add noise. The higher harmonics fade in strength and in effect. The sections below follow the harm from heat to misreading to noise. Each section follows one path the harmonics take into a device. The harm sorts into heat, misreading, and noise.

Harmonics in a distorted power wave (60-hertz base)

Harmonic	Frequency	Effect on equipment
Fundamental	60 Hz	the wanted power
3rd	180 Hz	neutral overload, transformer heat
5th	300 Hz	motor heating, torque dip
7th	420 Hz	motor heating, control noise
9th and 11th	540 and 660 Hz	added heat and noise

Heat in windings

The first harm is heat in any winding the wave reaches. A motor, a transformer, and a coil all carry windings of copper around iron. A winding has its normal losses at the mains frequency. The harmonics add losses on top, from eddy currents and from the iron’s hysteresis. Those extra losses become heat the winding cannot easily shed. The heat is the harmonics turned into a load on the iron. Every harmonic adds its own small heat to the part. The heat from each one stacks onto the rest.

A higher harmonic frequency drives stronger eddy currents in the winding. A winding fed a wave full of harmonics runs hotter than its rating expects. The heat shortens the life of the insulation and the iron. A motor or transformer on a dirty wave ages faster and can fail early. The harmonics turn into heat the design never planned for. A winding fed clean power stays within the heat it was rated for. A clean wave holds the winding at its rated heat. Rated heat is the heat a part can carry for years.

Precision gear often hides a transformer or a motor inside. A medical pump runs a small motor. An audio amplifier holds a power transformer. A lab supply carries coils that shape its output. The harmonics heat those inner parts the same way they heat a large motor. A device built for a clean wave trusts its inner parts to stay cool on one. The harmonics reach those inner parts as surely as a big motor. An inner coil feels the harmonics like any other winding.

Misreading the wave

The second harm is a device misreading the wave it is fed. Many precision devices look at the wave to set their timing. They watch for the moment the wave crosses zero, twice each cycle, at two clean points on a sine. A distorted wave blurs and multiplies those crossings. A device counting them reads the wrong count. A wrong count sets the device a step out of true.

A dimmer reads the zero crossing to time its switching. A clock built around the mains counts the crossings to keep time. A motor control reads the wave to set its speed. Each of these devices leans on a clean crossing it can trust. A wave with extra crossings throws each of them off. A clean crossing is the beat each of them keeps time to. A clean beat keeps each device on its own schedule. A device times itself by the beat it reads.

Other devices read the size of the wave, its peak or its average. A cheap meter reads the peak and scales it to an RMS figure. A charger reads the wave to set its charging. A device that reads the peak of a distorted wave reads a peak in the wrong place. The reading comes out wrong. The device then acts on a wrong number. A wrong number leads a precise device to a wrong act.

The harm here is quiet and easy to miss. A device on a distorted wave keeps running with slightly wrong readings. A clock gains or loses time. A dimmer flickers or buzzes. A charger fills to the wrong level. Small errors pile up over a long run.

A pure sine wave carries clean crossings and a true peak. A device reads them straight. The wave crosses zero at two points and peaks once, as the device expects. The readings come out right. A device that reads the wave needs a wave it can read without error. The clean shape is the reference the device was built to trust.

The misreading runs deeper than a single wrong number. A precision device builds its whole behaviour on the wave it reads. A motor control reads the wave many times a second to hold a speed. It expects a clean crossing at a known instant, twice a cycle, like the tick of a clock. A distorted wave hands it extra crossings, early and late, scattered around the true ones. The control reads those false ticks as real and corrects a speed error that does not exist. The motor hunts and jitters. A clock built on the mains counts the same crossings to mark the seconds. A wave with double crossings runs that clock fast. The time drifts ahead through the day. A dimmer fires its switch a fixed delay after each crossing to set a brightness. False crossings fire the dimmer at the wrong moments. A flicker or a buzz follows. A charger reads the peak of the wave to judge a battery. A charger reading a distorted peak fills the battery to the wrong mark. Each of these devices was built around a wave it could trust. The clean sine gives a known crossing and a known peak, the same on every cycle. The device reads them and acts on solid ground. The same device on a distorted wave finds that ground shifting under it. The readings wander. The behaviour wanders with them. The harm rarely strikes all at once. It builds as a slow drift away from the right answer, a device doing its job a little wrong, cycle after cycle, until the error grows large enough to notice. The clean wave keeps the device on solid ground from one cycle to the next. A precise device asks for nothing more than a wave it can read the same way every time. The wave it can trust is the whole of what it needs from the power. A readable wave is the one thing a precise device asks of its power.

A device that reads the wave’s average or RMS can be fooled the same way. A simple meter assumes a sine and works back from one point to the whole. A distorted wave breaks that assumption. The meter reads a figure that does not match the real power. A device acting on that figure sets itself a little wrong. The clean wave matches the meter’s own assumption. A meter on a clean wave reads the true power. The reading and the real power agree.

The shape of the wave is information.

Noise and interference

The third harm is electrical noise the harmonics carry into a circuit. The sharp edges of a distorted wave radiate energy across a band of frequencies. That energy couples into nearby wires and circuits as interference. A sensitive circuit picks up the noise on top of its own signal. The noise rides along with the power, unwanted. The harmonics carry their own static into a quiet circuit. A quiet circuit hears the harmonics as noise. Noise on the power becomes noise in the work. A clean wave brings no noise of its own.

The noise spreads further than the wire it starts in. A sharp edge in the wave is a burst of high-frequency energy. That energy radiates from the wires as a weak radio signal. It couples into any nearby cable or circuit board. A sensitive front end picks it up as a hum, a buzz, or a stray reading.

Audio gear shows the noise plainly. An amplifier on a distorted wave can hum or buzz through its speakers. The harmonics leak into the audio path and ride out as sound. A clean wave leaves the audio path quiet. An audio system on a pure sine inverter plays the signal alone. The clean wave keeps the power out of the sound. Silence in the speakers is the mark of a clean wave. A clean wave plays no part of its own in the sound. The sound carries the signal and nothing more.

Measurement and communication gear suffers the same noise. A precise instrument reads a small signal against the power’s noise floor. A radio or a data link picks up the interference as static. The harmonics raise the noise floor the gear has to work above. A clean wave keeps that floor low. Fine signals stand clear above a quiet floor.

Every fine measurement works against a floor of noise. A clean wave keeps that floor low. A signal close to the floor stands clear when the floor is quiet. The harmonics lift the floor and bury the smallest signals. A device that needs to read a faint input needs the floor a clean wave leaves. The clean wave is the silence fine signals stand out against.

The devices that need a clean wave

Some classes of device need the clean wave by their nature. A medical device at home, like a breathing machine or an oxygen concentrator, lists a pure sine wave in its manual. The maker tests it on a clean wave and warns against a dirty one. A clean wave keeps its motor, its sensors, and its timing inside spec. A medical device is the clearest case for a pure sine inverter. A medical maker writes the clean wave into its instructions. The instruction is the maker’s tested word on the power. A medical maker tests on the wave it then names.

Audio and video gear belongs on the clean wave too. An amplifier, a turntable, and a fine speaker all carry the power’s noise into the sound. A pure sine wave leaves the sound clean. A screen or a projector holds a steadier image on a clean wave. The clean shape protects the quality the gear was built to deliver. Quality power gives quality output. A clean input is the start of a clean result. The output is only as clean as the power behind it.

A modern appliance often hides a precision part inside a plain shell. A fridge with a variable compressor runs a control board and a sensing circuit. A washing machine times its cycle on the mains. A furnace runs a board that reads the wave. These everyday machines have joined the list of devices that read their power. A plain shell can hide a precise circuit inside. The board inside reads the wave like any other.

Variable-speed motors and their controls need the clean wave as well. A motor that changes speed reads the wave to set that speed. A drive that controls a motor leans on a clean reference. The harmonics of a dirty wave heat the motor and confuse the control. A clean wave lets a variable-speed motor run cool. The clean wave gives the control a reference it can trust. A control reads a clean wave and holds its speed.

Fine electronics and chargers round out the list. A laser printer, a sensitive charger, and a lab instrument read the wave closely. A microwave oven cooks unevenly on a dirty wave. A clean wave lets each of these run as its maker intended. The list grows as more devices carry boards and motors inside.

A charger or a power supply reads the wave to do its job. A laptop supply spans a wide voltage range and reads the wave to set its output. A battery charger reads the peak to judge a full charge. A fine supply for a lab holds a steady output by watching its input. Each of these reads the wave and trusts its shape.

A camera, a games console, and a fine television all read their power closely. Each holds a board that the harmonics can disturb. A clean wave keeps the picture and the sound steady. The list of clean-wave gear grows with every smart device sold. A modern home fills with devices that read the wave. Each new smart device adds to the clean-wave list. The clean wave serves the whole modern home.

What a clean wave gives

A pure sine wave gives a precision device the exact power it was designed around. The wave matches the grid the maker tested against. The device sees clean crossings, a true peak, and no harmonics at all. Every part inside works the way its design assumed. A pure sine inverter takes the power itself off the list of things that can go wrong for precision gear. The device meets the wave it was tested against. A pure sine inverter brings the grid’s own wave to a battery. The battery then powers precise gear the way the grid would. A precise device cannot tell the inverter from the wall. The inverter passes for the grid in the device’s eyes. The device runs as it would at home on the wall.

Mistakes about precision gear and power

A few mistakes follow from the power a precision device needs. The first is putting sensitive gear on a cheap, distorted wave. The distorted wave harms the gear over time. The saving on the inverter turns into a bigger loss on a damaged device. A precision device earns the clean wave it asks for. The clean wave is the right power for the gear.

The second is judging a device by whether it powers on. A device on a dirty wave often powers on and runs as normal. The harm builds unseen inside it, month by month. A motor heats slowly. A reading drifts slowly. The trouble shows up after the device has run for a time.

The third is ignoring the device manual. A maker that needs a pure sine wave says so in the manual. A line calling for a sine wave, or warning against a modified one, is the maker’s own word. A buyer who reads the manual learns the wave the device needs. The manual settles the question before any damage. The manual carries the answer in plain print. A line in the manual ends the guessing. The maker names the wave in plain words.

The fourth is assuming all inverters carry a clean wave. Two inverters at the same wattage can carry two different waves. A buyer who reads only the watts can buy a dirty wave by mistake. The wave type sits in the spec, beside the wattage. A precision load asks the buyer to read the wave as well as the watts. The wave type sits one line over from the wattage.

The fifth is mixing precision gear with simple loads on a dirty wave. A heater runs fine on a modified wave, so a buyer trusts the whole load to it. The sensitive device in the same load suffers the harm. A mixed load with one precision device calls for the clean wave. One sensitive load sets the wave for the whole inverter. One precise device decides the wave for the mix. The mix follows its single sensitive member. One precise load decides the wave for the whole set. The one sensitive load names the wave. Its needs set the wave for everything beside it. The mix rises or falls to its finest part.

The sixth is trusting a device to protect itself. A device built for a clean wave assumes a clean wave at its input. It rarely checks the shape of the power it is fed. The harm lands on it with no warning. The protection lives in the choice of inverter. The device leans on the buyer to supply a clean wave.

The seventh is forgetting the gear that joins a load later. A clean simple load today may gain a precision device tomorrow. A pure sine inverter bought early covers the new gear with no surprise. A buyer who plans for precision gear leans to the clean wave from the start.

Continuous Load Versus Peak Surge Power

Two power numbers on an inverter

An inverter spec sheet carries two power numbers, the continuous rating and the surge rating. The continuous rating is the power the inverter holds without a time limit. The surge rating is a higher power the inverter holds for a brief moment. A spec might read 5000 watts continuous and 10000 watts surge. The two numbers serve two different jobs. This page sets out each one on its own, then lines them up against a load. The two figures together describe what an inverter can carry. Both numbers belong to the same inverter. The two figures together describe what an inverter can carry. Both numbers belong to the same inverter. One unit carries both, the steady and the brief.

The continuous rating answers one question, how much the inverter runs hour after hour. The surge rating answers another, how big a brief spike it can survive. A load brings a steady draw. Some loads also bring a short spike at startup. The inverter has to cover both with room to spare. A good fit clears the steady draw and the brief spike alike. The match is read on the two figures together. A buyer who reads both sizes the inverter right.

The continuous rating

The continuous rating is the power an inverter holds for as long as the load runs. A 5000-watt continuous rating means 5000 watts, hour after hour, with no time limit. The inverter is built to carry that power and stay cool. The cooling, the wiring, and the switches are all sized for it. The continuous figure is the one a steady load lives under. It is the number an inverter is named by. A 5000-watt inverter wears that figure as its name.

The continuous rating is the figure a maker leads with. It marks the inverter’s class and its price. A 3000-watt unit and a 5000-watt unit sit in different tiers by their continuous figure. The number names the steady work the unit was built for. A buyer reads it first to size the everyday load. The figure sets the buyer’s expectation of the unit. The continuous watts head the spec for a reason. The figure is the first line a buyer reads.

This rating sets the size of the everyday job. A fridge, a few lights, a laptop, and a fan add up to a steady draw. The total of those running watts has to sit under the continuous rating. An inverter rated 5000 watts continuous runs any mix of loads that totals under 5000 watts, all day. The steady total is the first thing to check against this number. The running total is the daily measure of the load. Every device on at once adds into that total.

The continuous rating is the honest measure of an inverter’s size. It names the work the unit does for hours on end. A higher continuous rating runs a heavier steady load. The figure rests on the parts that carry the power and shed the heat. A 5000-watt continuous inverter is a 5000-watt machine at its core. The figure names the size in one clean number. A buyer compares units by this one figure first.

A load held at the continuous rating runs warm and steady. The inverter sheds the heat of that power through its cooling. A load below the rating leaves headroom and runs cooler. The continuous figure is a limit the inverter can sit at indefinitely. A steady load planned under it never troubles the unit. A steady load under the rating is the inverter’s easy day. The unit runs cool with a load below its rating.

The continuous rating rests on the inverter’s power to shed heat. A unit at its rating sheds the heat of that power without a pause. The heatsink and the fan are sized to keep up at the full continuous load. A unit that could not shed the heat would have to throttle below its rating. The cooling sets the ceiling the continuous figure sits at. The fan and the heatsink hold that ceiling in place. The cooling is what lets the rating stand all day. Without the cooling, the rating would have to drop.

The surge rating

The surge rating is a higher power the inverter holds for a brief moment. A 10000-watt surge rating means the inverter can pass 10000 watts for a short spell. The spell runs from a fraction of a second to a few seconds, by the design. The surge figure runs near twice the continuous one. It exists for the brief spikes a load can throw. The figure is the inverter’s reserve for a sudden demand. The reserve waits idle until a spike calls on it. It costs nothing until a load needs it. The reserve sits ready for the next startup.

The surge holds for seconds, never for the long haul. The inverter pushes near twice its power for a moment, on its margin and its capacitors. The heat of that power would build past safe limits in more than a brief spell. The surge is a sprint, run for a second or two and then over. The brief window is the whole nature of the surge number. The window is measured in seconds, never in hours. Seconds are all the surge ever lasts. No surge runs into minutes.

The surge figure covers the moment a load switches on. Some loads draw far more power in their first instant than in steady running. The surge headroom catches that opening spike. A load that spikes high at startup needs an inverter whose surge clears the spike. The surge rating is the inverter’s answer to a sudden, brief demand. The opening instant of a load is what the surge is for. A load draws on the surge only at its first instant. After that instant, the load lives on the continuous figure.

The surge rating is set by what the inverter can survive briefly. Its switches and capacitors can carry a heavy current for a short burst. A controller watches the current and cuts off if a surge runs too long or too high. The surge figure is a tested limit with a fixed window. The inverter holds it for the rated window and no longer. The controller enforces that window on every surge. A surge that overruns the window meets a cutoff. The cutoff guards the inverter from a long overload. A long overload is stopped at the window’s end.

Why the surge headroom exists

The surge headroom covers the inrush of motors and similar loads. A motor draws a heavy current the moment it starts, before it spins up. One reference on inrush current notes that AC motors and transformers may draw several times their normal full-load current when first energized, for a few cycles. That heavy opening draw is the spike the surge rating covers. The surge is the inverter’s room for that first heavy moment.

The inrush comes from a motor at a standstill. A stopped motor offers little resistance to the current, so a large current rushes in at switch-on. The current falls once the motor picks up speed. The whole spike lasts a fraction of a second to a second or so. The inverter’s surge has to ride out that spike and hold steady. The spike passes in a breath and the load runs on.

The inrush deserves a closer look, since it sets the whole reason for the surge number. A motor at rest behaves almost like a short circuit for an instant. Its windings present only their bare resistance, with none of the opposing voltage that a spinning motor builds. The supply sees that low resistance and pushes a large current through, several times the current the motor draws once it runs. The rotor begins to turn. A turning rotor builds a voltage of its own that opposes the supply. That opposing voltage throttles the current back down. The whole rise and fall plays out in a fraction of a second to a second or so, faster than the eye can follow. A compressor adds its own twist, since it has to start against the pressure already in its lines. A pump starts against the water in its pipe. A saw or a grinder starts against the inertia of its blade or its wheel. Each of these loads asks the supply for a heavy opening pull before it settles into its steady draw. The inverter behind them has to meet that pull and hold its voltage. The surge rating is the size of the pull the inverter promises to meet. A surge well above the spike lets the motor start clean and the inverter hold steady. The brief spike barely shows on a meter that reads slowly. The surge number was built to answer that hidden demand. A motor never asks for that pull twice in the same start. The supply meets it once, at the opening instant. The motor runs quiet after. The continuous parts of the inverter never feel the spike, since the surge parts and the capacitors absorb it for that brief moment. The whole event is a heartbeat in the life of a running motor. A motor spends almost all its life past that first beat.

The size of the inrush spike depends on the load. A motor throws a spike of several times its running power. The spike is brief in every case, gone within a second or so. The surge rating has to top the largest spike the load will throw. A bigger motor calls for a bigger surge margin. The largest motor on the load sets the surge a buyer needs. A buyer sizes the surge to the worst startup on the list. The worst startup sets the surge the load needs.

Not every load draws a surge. A heater, a kettle, or a bulb takes its rated power from the first instant. These resistive loads have no startup spike to cover. A load of only resistive devices fits under the continuous rating alone. The surge rating matters for the loads with a motor or a transformer inside. A purely resistive load leaves the surge rating idle. A heater calls on the continuous rating and nothing more. Its draw is flat from the first instant to the last. A flat draw never tests the surge at all.

The time behind the numbers

The two ratings live on two timescales, the long run and the brief moment. The chart shows a load’s power over time. A startup spike rises under the surge line for a second or two. A steady draw then settles under the continuous line. The shape of that trace ties the two numbers together, the brief peak above and the steady level below. The trace reads the same story the two numbers tell. Time is the axis that sets the surge apart from the continuous. The chart reads left to right as the load starts and settles. The spike sits at the left edge, the steady draw fills the rest.

Continuous and surge ratings, side by side

Property	Continuous rating	Surge rating
Power, example	5000 W	10000 W
Held for	hours, no limit	0.5 to 5 seconds
Typical level	the base figure	about twice the continuous
Covers	the steady load	the startup spike
Matters for	every load	loads with a motor

Reading both numbers

A spec sheet lists both numbers, side by side, often as one figure for continuous and one for surge. A reader takes both from the sheet. A load tests both, so both matter to the match. The table sets the two ratings against a load’s two demands. A number missing from the sheet is a number to ask after. A full spec carries the continuous watts, the surge watts, and the surge seconds. A reader looks for all three before trusting the claim. The three figures together describe the inverter’s reach. A reader who has all three can size any load.

The surge number rewards a careful read of its window. A surge figure means little without the seconds it holds for. A spec that names the surge and its duration tells the whole story. A surge with no time behind it is a soft claim. A reader checks for both the surge watts and the surge seconds. Both halves of the surge claim matter to a hard start. A surge claim without its window is half a figure.

The ratio between the two numbers hints at the design. A surge near twice the continuous is the common build. A buyer reads the surge against the size of the spike it must clear. A surge with the watts and the window both named is the honest figure. The ratio alone is a start. The window finishes the read. A buyer reads the ratio and the window as one claim. The two together tell what the surge can do.

Sizing a load to both numbers

A load fits an inverter when it clears both numbers. The steady draw has to sit under the continuous rating. The startup spike has to sit under the surge rating. A load that clears both runs and starts on the inverter. A load that fails either one is too big for the unit. The fit is a pass on both numbers at once. A load that clears only one of the two does not fit.

The steady total comes first. A buyer adds the running watts of every device on at once. The sum has to fit under the continuous rating, with a margin. A running total near the continuous limit leaves the inverter no room. A total well under the limit runs cool and steady. The steady sum is the floor the continuous rating has to clear. The continuous rating sits above that floor with room. Room over the floor keeps the inverter steady.

The startup spike comes next. The largest single spike is the one to size against. A device with a motor adds its startup surge on top of the steady draw of the rest. The peak of the running total plus the largest startup has to clear the surge rating. The worst moment is one big motor starting on top of the others already running. That single moment is the surge a load asks for in the end.

A worked case shows the two checks. A toolkit runs a 1500-watt saw, a 500-watt light rig, and a 300-watt fan, for a steady 2300 watts. The saw’s motor throws a startup spike near 4500 watts for a moment. Both totals clear their limits, the steady 2300 watts under the 5000-watt continuous rating and the 4500-watt spike under the 10000-watt surge rating. The toolkit clears both numbers, so it runs and starts. The two checks pass. The toolkit works. Both numbers have headroom over the load.

Resistive loads make the sizing simple. A load of heaters and bulbs has no startup spike. Its total draw is the same at the first instant as at the steadiest hour. A resistive load only has to clear the continuous rating. The surge rating sits unused for a load with no motor in it.

A margin on both numbers is the safe build. A buyer sizes the continuous rating above the steady total. The buyer sizes the surge rating above the largest spike. The margin covers a surprise load or a hard startup. An inverter chosen with headroom on both numbers starts and runs the load without strain.

A buyer builds the margin into the choice from the start. A continuous rating a step above the steady total holds a surprise load. A surge rating well above the largest spike starts a stubborn motor without strain. The two margins cost a little more inverter for a lot less tripping. A unit sized with room on both numbers earns its keep over years.

Mistakes with the two ratings

A few mistakes follow from the two numbers. The first is sizing only to the continuous rating. A load that fits the continuous figure can still trip the inverter at startup. The startup spike has to clear the surge rating too. A buyer who checks only the steady draw misses the spike. The startup is a test the steady draw never runs.

The second is treating the surge as a second continuous rating. The surge is a brief window of seconds. A load run steadily at the surge figure overheats the inverter fast. The surge is for the opening spike alone. A steady load belongs under the continuous number. The surge has no place holding a steady load.

The third is forgetting that some loads have no surge. A heater or a kettle draws its full power from the first instant. A buyer who pads the surge for a resistive load buys headroom that load never uses. The resistive total only needs to clear the continuous rating. The surge matters for the loads with a motor inside. A resistive load asks nothing of the surge.

The fourth is ignoring the surge window in the spec. A surge figure with no seconds behind it is half a number. A long-running motor that needs a full second of surge tests a short window. A buyer reads the surge watts and the surge time together. The window is part of the surge claim. A surge with no window named is hard to size against.

The fifth is summing startup spikes that never overlap. Two motors rarely start in the same instant. A buyer who adds every startup spike at once oversizes the inverter. The real worst case is the largest single spike on top of the steady draw. The surge needs to clear that one worst moment. The worst case is the single largest spike. One single spike sets the surge to plan for.

Two numbers, two checks, one fit. Two numbers, two checks, one fit.

The sixth is reading the surge as a continuous boost. The surge adds nothing to the steady power the inverter can hold. A load that needs more steady power needs a bigger continuous rating. The surge raises only the brief peak. The continuous number is the one that grows the daily capacity.

The seventh is buying a big surge on too small a continuous rating. The surge starts a motor the inverter cannot then keep running. The motor spins up on the surge. It stalls once the continuous limit takes over. The two numbers have to fit the load together. A big surge needs a continuous rating to match. Each number alone tells half the story of the fit. A fit needs both numbers in proportion. The right pair starts and runs the load.

Dual Voltage 110V 220V Output Implementation

What dual-voltage output means

A dual-voltage inverter puts out two nominal voltages, near 110 volts and near 220 volts. The world runs on two main mains voltages, one near 110 and one near 220. Different regions settled on different figures long ago. A portable power station sold across regions offers both, so one unit serves a device from either world. The dual output is built into the inverter, set by how its transformer and control are wired. This page lays out the ways an inverter makes both voltages. The choice of method shapes the unit size, weight, and panel. A buyer rarely sees the method, only its two voltages at the sockets.

A dual-voltage inverter is the answer to a split world. It carries the two standards inside one box. A user crossing from a 110-volt country to a 220-volt one keeps the same power station. The output bends to the new region. The hardware that bends it is the subject of this page. The two standards live side by side inside the one case. A flick of a switch, or a wired-in tap, calls up one or the other. The two voltages wait inside for the one a device needs.

The two voltages do the same job at different levels. Each one delivers power to a device through a wall-style socket. A device carries its rated voltage on its label. The inverter has to meet that voltage. A dual-voltage unit holds both voltages ready. It matches the output to the device in front of it.

The implementation lives in the inverter’s output stage. The earlier stages build the AC wave at one working level. The output stage then sets that wave to 110 or 220 volts, through a transformer or the control. The way it sets the voltage decides whether the unit gives one voltage at a time or both at once. The sections below take each method in turn. Each method reaches the same two voltages by its own path.

The center-tapped transformer

A direct way to two voltages is a center-tapped transformer. The transformer’s output winding has three connection points. The two ends carry the full voltage between them. A tap at the centre of the winding splits that voltage in half. One reference on split-phase power notes that either end to the centre has half the voltage of end to end. That single rule is the root of the whole method.

The numbers fall out of the tap. The full winding, end to end, gives 220 volts. Each half, an end to the centre, gives 110 volts. The centre point becomes the neutral. The two ends become the two live lines. One winding then carries 110 volts on each half and 220 volts across the whole. The same coil serves both voltages with no second winding. The economy of one winding is the charm of the center tap.

The center tap is a wire brought out from the middle of the winding. The winding is a coil of many turns. The tap connects at the turn halfway along. Each half of the coil holds half the turns, so each half makes half the voltage. The position of the tap sets the split. A tap at dead centre gives two equal halves of 110 volts. The transformer here is a heavy, low-frequency type with an iron core.

This layout gives both voltages at the same time. The neutral and one line make a 110-volt socket. The two lines make a 220-volt socket. Both sockets stay live together, fed by the one winding. A device of either voltage plugs in and runs, with no switch to set.

This is the split-phase system behind North American power. A home there takes 240 volts on two lines from the utility. The same two lines give 120 volts each to the ordinary sockets. A dual-voltage inverter built this way brings the same arrangement to a battery. The 120 and 240 of North America are the 110 and 220 of the inverter, at a slightly different nominal figure. The method holds the same whether the figures read 110 or 120. The split into two voltages is the constant across them.

The selectable tap

A second method gives one voltage at a time, picked by a switch. The transformer carries taps for both 110 and 220 volts. A selector switch, or a relay the control drives, connects the output to one tap. The user sets the switch to the voltage the region needs. The inverter then puts out that one voltage. The tap holds its setting until a hand or a relay moves it.

This method suits a unit that moves between regions. A traveller sets the inverter to 110 in North America and to 220 in Europe. Only one voltage leaves the sockets at a time. The selector makes the unit a single-voltage inverter at whichever setting it holds. The switch carries a clear label, since the wrong setting can harm a device. The label by the switch names each setting in plain figures. A glance at the switch tells which voltage is live.

The software-set voltage

A third method sets the voltage in the control, with no tap to switch. A high-frequency inverter shapes its output by fast switching, so the controller can set the output to the level it is told. A setting in the firmware, or a button on the panel, picks 110 or 220 volts. The controller drives the switching to hold that level. The voltage becomes a number the software chooses, free of a mechanical tap. The same controller that shapes the wave also sets its height. A firmware figure fixes the output level.

The sockets and the plugs

The voltage is only half of fitting a device. The plug has to fit the socket as well. Each region built its own plug and socket shape over the years. A dual-voltage inverter has to offer sockets a regional plug will enter. The shape of the slots is a separate question from the voltage behind them. The slot shape and the live voltage are set up by separate parts of the unit.

Plug shapes run to a dozen common types around the world. The flat-blade Type A and Type B plugs serve North American sockets. The round-pin Type C and Type F plugs serve European sockets. The three-pin Type G plug serves the United Kingdom. A dual-voltage station picks the socket shapes for the markets it sells into.

Some units carry a set of region sockets. A panel might hold a North American socket, a European socket, and a universal one. A device plugs into the socket that fits its plug. The voltage behind each socket matches the region that socket serves. The user reads the panel for the right socket. The panel is the map a user reads each time.

The number of sockets shapes the panel. A small station might carry two or three sockets. A large one carries a row of them, some at 110 and some at 220. The panel groups the sockets by voltage, with each group marked. A user learns the panel once and reads it at a glance after.

A universal socket takes more than one plug shape. Its slots accept the pins of several regions at once. A universal socket on a 220-volt setting feeds a 220-volt device of any plug. A universal socket solves the plug shape on its own. The voltage behind it still has to match the device.

A universal socket is a clever piece of moulding. Its slots overlap the patterns of several plug types. A flat blade, a round pin, or an angled pin all find a path in. The contact behind the slots carries the voltage to whichever plug enters. One universal socket can replace a panel of region-specific ones.

The voltage of a region is a settled fact a user can look up before a trip. A quick search names the figure for any country. A traveller notes the figure for the destination and sets the inverter to it. The figure rarely changes, so the note holds for years. A user who checks once travels with the right setting. The local voltage is a fact to note before a trip.

The plug shape carries no voltage of its own. A plug fits a socket by its pins alone. The voltage comes from the inverter behind the socket. A travel adaptor changes the plug shape to fit a socket. It leaves the voltage for the inverter to set.

A dual-voltage unit reads best with the voltage marked on each socket. The mark tells the user the voltage before a plug goes in. Each socket carries the voltage printed beside it. Clear marking is the simplest guard against the wrong voltage. The label on the socket is the last check before the plug.

The marking on a socket does quiet work all day. A small printed figure, a colour, or a moulded number tells the voltage of that socket. A user glances at the mark and reads the voltage without a meter. The marking turns a panel of look-alike sockets into a clear set of choices. A good panel never leaves the voltage to memory. A marked socket answers the voltage question on its own. The mark is read in an instant, plug in hand.

Current at each voltage

The choice of voltage changes the current for the same power. Power is voltage times current, so the higher voltage carries a lower current for the same watts. A 1000-watt load draws about 9 amps at 110 volts. The same load draws about 4.5 amps at 220 volts, half as many. The watts stay the same across the two voltages. The lower the voltage, the higher the current for a fixed power. The two numbers trade off around the fixed wattage.

The lower current at 220 volts thins the wiring. A 220-volt circuit moves its power on a thinner wire than a 110-volt one. The sockets, the cords, and the output parts run cooler at the lower current. The 220-volt side of a dual unit carries its power with less copper. The same power costs more current at 110 volts. The copper in a cord is sized to the current it must carry. A thicker cord carries a higher current without heating.

The current weighs heaviest at high power. A 5000-watt inverter at 110 volts pushes about 45 amps through its output. That heavy current calls for thick output wiring. The same inverter at 220 volts pushes about 23 amps, near half as much. The lower current eases the wiring on the 220-volt side. The output wiring is sized for the worst-case current at each voltage. The gauge follows the amps the output can pass.

110-volt and 220-volt output, side by side

Property	110 V output	220 V output
Nominal range	110 to 120 V	220 to 240 V
Used in	North America, Japan	Europe, China, Africa
Current at 1000 W	about 9 A	about 4.5 A
Current at 5000 W	about 45 A	about 23 A
Output wire	thicker	thinner

Getting the voltage right

The voltage has to match the device, every time. A device carries its rated voltage on a label or a plate. The inverter output has to read the same figure as that label. The match of output to device is the whole point of a dual-voltage unit. A buyer checks the label, then sets or picks the matching output.

The device label is the one source of truth. It names the voltage the device needs, in plain figures. A reading of 120 V, or 220 to 240 V, or 100 to 240 V, tells the whole story. The user matches the inverter output to that range. The label is read once and the match is made.

The region a unit ships to often sets its default. A station arrives from the factory set to the voltage of its market. The default saves the first-time user a step. A careful user still checks the setting before the first heavy load. The factory setting is a starting point the user confirms. A new place is the time to check the setting.

Many devices today take a wide range of voltage on their own. A laptop charger marked 100 to 240 volts runs on either output. A phone charger does the same. These devices read the voltage and adjust inside. A wide-range device frees the user from the voltage question, on either setting of the inverter.

A single-voltage device needs its own voltage and nothing else. A device marked for one voltage runs only on the matching output. The label names that voltage, so the inverter has to supply it. The label settles the matter in a glance. A single-voltage device on the wrong output fails or burns.

Some inverters take the guesswork out with auto-detection or a fixed region build. An auto-sensing unit reads the load or the region and sets the voltage on its own. A region-fixed unit ships set to one voltage for its market. A clear panel and a careful read cover the rest. The voltage match is a habit a user builds with the unit.

A clear panel does much of the work for the user. It groups the sockets, marks the voltages, and shows the current setting. A glance at the panel answers the voltage question before a plug moves. The best panels leave nothing to memory or to guess. A user trusts a well-marked panel after the first read. The panel becomes second nature within a day of use.

A traveller’s kit shows the matching in action. A wide-range laptop and phone run on either output anywhere. A region-bound device, like some hair dryers, runs only at its home voltage. The traveller sets the inverter, or picks the socket, to match each device. The kit that crosses borders leans hardest on a dual-voltage output.

Matching the device to the output is the habit that makes a dual-voltage unit safe and useful. The match starts with the label on the device. Every mains device carries a rating somewhere on its body, on a moulded plate, a printed sticker, or the body of its plug. The rating names the voltage the device was built to take. The user reads that rating first, before any plug goes near a socket. The reading tells the user which output the device needs from the inverter. A device built for one figure runs safely only on the output set to that figure. Any other output brings it heat, smoke, or a quick death in a moment. The match is the guard against that result. The label puts it in plain sight. The modern world has eased the task a great deal. Laptops, phones, cameras, and their chargers now ship with a power supply that spans the globe, from a hundred volts up to two hundred and forty. A user with a bag of such gear barely thinks about the voltage at all. The supply reads the incoming voltage and adjusts on its own, on either setting of the inverter. The older and the simpler devices hold to one voltage still. A heater, a kettle, a hair dryer, or a motor names a single figure and asks the user to meet it. The habit of reading the label, once learned, takes a second at each plug. The reward is a device that runs on the power it was made for, in any country the user carries it to. The dual-voltage output makes that match possible. The user own read makes it happen. A power station that bends to either world is no use without that one read. The output and the read together close the loop.

Mistakes with dual-voltage output

A few mistakes follow from the two voltages. The first is plugging a 110-volt device into a 220-volt output. The device takes twice its rated voltage and can burn out in an instant. The fix is to read the device label and set the matching output. A moment’s check saves the device. The label is always there to read before the plug.

The second is leaving a unit on the wrong region setting. A selectable inverter set to 220 sends 220 to every socket. A 110-volt device on it meets twice its voltage. The user sets the selector to the region before the first plug goes in. The setting is the first thing to check in a new place. A new country is a new check of the selector.

The third is trusting the plug shape to guard the voltage. A plug that fits a socket says nothing about the voltage behind it. A travel adaptor makes any plug fit, voltage unseen. The fit of the plug and the match of the voltage are two separate checks. A plug that goes in is no proof of the right voltage. The voltage is checked at the panel before the plug.

The fourth is forgetting that some sockets carry 220 at all times. A split-phase unit keeps its 220-volt socket live beside the 110-volt ones. A user reaching for a 110-volt socket has to find the right one. The marking on each socket is the guide. A 220-volt socket in a row of 110s is a trap for a careless reach.

The fifth is ignoring the current on the 110-volt side. A heavy load at 110 volts draws a high current through the cord and the socket. A thin cord on that load runs warm. The 110-volt side asks for a cord sized to its current. The high current at 110 volts is the reason to watch the cord there.

The sixth is buying a separate voltage converter for a device. A dual-voltage inverter already supplies both voltages at the source. The right output, set or selected, gives the device its voltage with no extra box. A converter adds a part that the dual output makes needless. The inverter own output is the cleaner path.

The seventh is rigging two 110-volt sockets together for 220. A makeshift join of two outputs is no safe 220-volt source. The 220-volt output comes from the transformer, by design. A user takes 220 from the marked socket. A home-made link is never the way.

An eighth slip is forgetting the neutral on a split-phase unit. The 110-volt sockets draw from a line and the neutral together. A missing or loose neutral starves those sockets. The neutral is as much a part of the wiring as the two lines. A sound split-phase build treats the neutral with the same care. The neutral carries the return for every 110-volt socket. A loose neutral is a fault to rule out first.

The voltage match is one habit, learned once.

How to Read Inverter Efficiency Rating

What an efficiency rating means

An inverter’s efficiency is the share of power it passes through to the output. Power goes in from the battery as DC. Power comes out to the device as AC. The two are never equal, since the inverter keeps a little for itself as heat. Efficiency is the output power divided by the input power, written as a percentage. A 90-percent inverter turns 1000 watts of input into 900 watts of output. The other 100 watts leaves as heat. The rating is one number that sums up that loss. It rides every watt the inverter passes. A point of efficiency is a point of the battery kept. The number earns its place at the top of the spec. It belongs among the headline figures. The percentage is the buyer’s quick read on the inverter’s class.

The rating matters because the loss comes out of the battery. The power lost to heat is power drawn from the battery for nothing. A higher efficiency leaves more of the battery for the device. The efficiency rating tells a buyer how much of the battery reaches the device. Reading the rating right separates a true figure from a marketing one. The battery feels the difference between a good rating and a poor one. Every point of efficiency is a point of battery saved. The rating is the buyer’s first look at that saving. The efficiency rating earns its place at the top of the spec sheet.

The number on the spec sheet

The big number on a spec sheet is usually the peak efficiency. Peak efficiency is the best the inverter reaches, at one ideal load. The inverter rarely holds that one point on its curve. The peak is the highest figure a maker can show, so the peak is the figure that lands on the box.

The peak reads better than the everyday number. A peak of 95 percent looks stronger than a real average of 90. A buyer lives with the efficiency across the whole day, at every load the device draws. A peak alone leaves the rest of that story out. A buyer who reads only the peak reads one line of a longer page. The full read takes the curve or a weighted figure. The peak says nothing about where it sits. An inverter hits its peak at one load on its curve. The peak number gives no hint of that spread. A spec sheet that lists only a peak leaves the curve unsaid. The load that gives the peak is rarely the load a device draws all day. The gap between the peak load and the real load is where the surprise hides. A light real load can sit well below the peak.

The peak is easy to measure and easy to print. A maker tests the inverter at the load that gives the best number. That one figure goes on the box in large type. The loads below and above the peak rarely appear beside it. A buyer who stops at the peak reads only the inverter’s best moment.

A peak figure still has its place in a quick scan. A higher peak rarely comes from a worse design. The peak gives a fast hint of the inverter’s class. The deeper read comes from the curve or the weighted number. The peak opens the conversation. The curve finishes it. A scan starts with the peak. A choice ends with the weighted figure. A buyer reads the peak first and the weighted figure second.

The efficiency curve

Efficiency is a curve that changes with the load. The curve runs low at a light load. It climbs through the middle loads to a peak. It droops a little at the heaviest load. The curve is the real picture of the inverter’s efficiency. A line on a graph says more than a number on a box.

The light-load end is low for a clear reason. The inverter draws some power just to run itself. That self-draw stays about the same whether the load is light or heavy. At a light load, the self-draw is a big share of a small total. The efficiency runs low there, because the inverter’s own circuits take a large cut of a light load. A tiny load barely feeds the device past the inverter’s own appetite. The efficiency there can fall well below the peak. A light load is the costly end of the curve for a big inverter.

The peak sits where the inverter runs best. The self-draw becomes a small share once the load is large. The switching and wiring losses stay low through the middle loads. The two effects meet at a peak, often between half and three-quarters of the rated load. That peak is the number the spec sheet shows. The middle of the range is the inverter’s home ground. A load placed there draws its power cleanly. Home ground is where the inverter gives its best for the longest stretch.

The full-load end droops a little. The current is highest at full load. The losses in the switches and wires climb at that high current. The efficiency slips a few points from its peak in a good inverter.

The shape of the curve repeats across nearly every inverter. The left end, at a light load, climbs fast from a low start. A small load shares the input with the inverter’s own draw. Little of a small input reaches the device. The efficiency rises through the middle loads toward the peak. The middle of the curve is broad and high. Across a wide band of loads, often from a quarter to three-quarters of rated power, the efficiency sits near its best. This broad band is where a well-matched inverter spends its hours. The right end, at full load, eases down a little. The heavy current at full load raises the losses in the switches and the wires. The drop stays gentle in a good inverter. The whole curve tells a buyer where an inverter runs at its best. A load near the broad middle draws power at the inverter’s best efficiency. The peak is one point on this curve, at the top. The everyday efficiency is the part of the curve the load sits on. A spec sheet that prints the curve, or a set of named load points, hands the buyer the whole shape. A reader who pictures the curve reads the peak in its place, as the top of a hill the inverter climbs and descends with the load. Every load the inverter runs sits somewhere on that hill. The broad middle is the place to keep the load. A load parked in that middle runs at the inverter’s best efficiency. The curve holds its shape from one inverter to the next. The peak and the band shift with the design. A reading at any load on the curve is the true efficiency at that load. The whole curve is the inverter’s full report on itself.

Weighted efficiency, a fairer number

A weighted efficiency captures the curve in one number. One reference describes the CEC and European ratings as a weighted average efficiency across a range of typical operating conditions and power levels. The weighting puts more weight on the common loads, the ones an inverter runs at for hours. A weighted number sits below the peak, closer to the day-to-day average. The weighted figure is the curve folded into one honest number. It carries the busy loads inside it. The one weighted figure does the averaging for the buyer. No mental math is left to do.

The CEC weighting leans on the busy load points. It samples the efficiency at six loads, from a tenth of rated power up to full. It puts the heaviest weight near three-quarters of the rated load, where many inverters spend their hours. The light and the full loads carry a small share of the weight. The result is a number that tracks real use better than the peak. The weights came from real operating hours. A buyer inherits that real-world tuning in the one figure. The standard did the weighting once for everyone. The buyer reads the result.

A buyer reads the weighted number as the honest one. A peak of 93 and a weighted figure of 91 can describe the same inverter, the best case and the everyday case in two numbers. The weighted figure is the one to compare across models. The table sets a sample curve and its weights side by side. The numbers in the table multiply out to the weighted figure. The heavy weight at three-quarters load pulls the average toward that point. The weighted figure lands where the inverter does its real work.

The European efficiency is a close cousin of the CEC number. It uses the same idea, a weighted average across loads, with weights tuned to European conditions. The two land near each other for a given inverter. A spec sheet may print either one. Either weighted figure beats a bare peak for judging real performance.

A weighted number works like a grade average. A grade average smooths the luck out of any single test score. The weighted efficiency averages the inverter across its loads. The one figure earns more trust than any single point. The grade average and the weighted efficiency share the same logic. Both smooth out the luck of a single reading. One number, well weighted, beats a dozen scattered points.

A sample efficiency curve and its CEC weights (peak 93%, weighted near 91%)

Load	Efficiency	CEC weight
10%	74%	0.04
20%	84%	0.05
30%	89%	0.12
50%	92%	0.21
75%	93%	0.53
100%	90%	0.05

The power an inverter keeps for itself

Every inverter draws some power to run itself. The controller, the cooling, and the idle switching all take a small, steady draw. This no-load draw runs from a few watts up to tens of watts, by the size of the inverter. It sets the floor under the efficiency curve, since it is pure loss at a light load. The no-load draw is the reason a big inverter wastes power running a tiny load. The self-draw is a fixed cost the inverter pays to stay on. A big inverter pays a bigger fixed cost. The fixed cost stands out at a light load. The inverter’s own draw never sleeps once it is on. That steady draw is the first watt the battery spends. The inverter pays that draw the moment it switches on. The draw stays steady from the moment of power-on.

What efficiency costs at the battery

Efficiency turns straight into battery draw. A device needs its watts no matter the inverter. The inverter adds its loss on top, drawn from the battery. A 90-percent inverter draws about 11 percent more from the battery than the device needs. A 95-percent inverter draws about 5 percent more. The lower number costs more battery for the same work.

A gap that looks small at a glance adds up over a long run. A 5000-watt inverter at 90 percent draws about 5560 watts from the battery at full load. That is near 300 watts more than the same inverter would draw at 95 percent. The 300-watt gap runs the whole time the load is on. Over a long run, that gap is real battery capacity spent on heat. A small percentage on a big inverter is a large number of watts. A bigger load opens a bigger gap. A big load on a low-efficiency inverter wastes a lot. The waste is real watts off the battery. The bigger the inverter, the bigger the watts at stake.

The cost is heaviest where the inverter runs least efficiently. A light load on a big inverter runs at the low end of the curve. The battery there feeds the inverter’s own draw on top of the small load. Matching the inverter size to the usual load keeps it on the efficient part of the curve. A right-sized inverter spends less of the battery on its own losses. A right-sized inverter is an efficient inverter in practice. The size match does as much as a high peak. The size of the inverter is a choice the buyer fully controls. A matched size is the surest way onto the efficient part of the curve.

Efficiency is one piece of the runtime picture. The battery capacity, the load, and the efficiency together set how long a system runs. A higher efficiency stretches the runtime for a given battery. The efficiency rating is the part a buyer reads off the inverter. The battery and the load fill in the rest.

A worked day shows the cost in real terms. A 1000-watt load runs for eight hours on an inverter. At 90 percent, the inverter draws about 8900 watt-hours from the battery over the day. That is near 500 watt-hours more than the same job would take at 95 percent. The gap is a slice of battery spent on the inverter’s heat. A higher efficiency hands that slice back to the runtime.

The cost scales with the hours of use. A pack run hard for hours a day shows the gap plainly. The efficiency weighs heaviest on a system that works long shifts. A light, brief load barely feels the difference.

Efficiency is a slice taken from every watt-hour.

Reading an efficiency claim honestly

A spec sheet rewards a careful read. A buyer looks for a weighted efficiency, or the efficiency listed at named loads. The weighted figure is the one to trust across models. A bare peak with no load point behind it tells little on its own. The bold number on the front is only the start of the read. The careful read moves past the headline to the load points. The weighted figure waits a line or two down, where the honest figure lives.

The load point behind a number is the key. An efficiency means nothing without the load it was measured at. A figure given with its load, like 93 percent at half load, is a real claim. A buyer asks one question of any efficiency number: at what load. A number with no load behind it answers nothing. A number floats free without its load. The load anchors it to a real claim. The load is the anchor that gives the percentage its meaning.

A weighted figure already answers that question. The CEC or European number bakes the load points into one figure. A buyer can compare two weighted numbers straight across. The weighted figure carries its loads inside it. That makes it the fairest number for a quick comparison. A buyer lines up the weighted numbers and reads them straight. No load lookup is needed for that compare. The weighted figure is ready to compare on sight. A buyer lines up the weighted numbers and reads them straight. No load lookup is needed for that compare. The weighted figure is ready to compare on sight. A buyer reads it once and moves on.

Mistakes with the efficiency rating

A few mistakes follow from the efficiency number. The first is trusting the peak as the everyday figure. The peak sits at one ideal load. A buyer who plans around the peak plans around a number the inverter rarely holds. The weighted figure is the safer base for a plan. A plan built on the weighted figure holds up in daily use. The everyday load is what the plan has to cover. A plan that covers the everyday load covers the real need. The everyday figure is the one to size against. A plan that covers the everyday load covers the real need. The everyday figure is the one to size against. The plan rests on the load the inverter meets each day.

The second is ignoring the load point. A 96-percent claim with no load behind it can hide a poor light-load curve. The number means something only with its load named. A buyer reads the load point before the percentage.

The third is buying a big inverter for a small load. A 5000-watt inverter run at 200 watts sits at the low end of its curve. The battery feeds the inverter’s own draw on top of the small load. A size matched to the usual load runs on the efficient part of the curve. The right size saves more than a high peak does. The load decides where the inverter sits on its curve. A matched load keeps it high on the curve. The load and the size together decide the real efficiency.

The fourth is comparing a peak to a weighted number. Two inverters can look close at 95 and 94 percent. The two numbers may be of two different kinds, a peak and a weighted average. A fair compare puts the same kind of number against the same kind. A peak belongs next to a peak.

The fifth is forgetting that the loss is heat in the room. The watts an inverter loses leave as heat from its case. A low-efficiency inverter under a heavy load warms the space around it. The heat is the same power the battery spent for nothing. A high efficiency keeps that waste, and that heat, low. The wasted watts warm the room and drain the battery at once. A high efficiency cuts both at the source. Less heat and more runtime come from the same gain. The two payoffs arrive together with a higher rating. Less heat and more runtime come from the same gain. A higher rating quietly improves both at once.

The sixth is reading efficiency without the rest of the sheet. The efficiency is one number on a long spec. The wave type, the surge rating, and the no-load draw sit beside it. A buyer who reads the whole sheet reads the efficiency in context. The single number is one trait among several that make a good inverter. The efficiency reads best alongside the rest of the spec sheet.

The seventh is mixing the inverter’s efficiency with the charger’s. A system charges the battery, then discharges it through the inverter. Each step keeps its own efficiency. The round trip multiplies the two together. A buyer who counts only the inverter misses the loss on the way in. The charge step and the discharge step each take a cut. The battery loses a little at both ends of its day. The full system efficiency runs lower than the inverter figure alone. The round-trip number is the one a long plan leans on.
