Working Principles and Applications of Reciprocating Piston Air Compressors

Compression in a reciprocating piston compressor proceeds through four phases per crankshaft revolution. Suction: as the piston moves away from the cylinder head, pressure drops below the suction line, the intake valve opens, and gas flows into the cylinder. Compression: the piston reverses direction, pressure rises, the intake valve closes. Discharge: when cylinder pressure exceeds discharge line pressure plus valve cracking pressure, the discharge valve opens and gas leaves the cylinder. Re-expansion: the piston returns toward the head, gas trapped in the clearance volume re-expands, pressure drops, and the cycle repeats.

Clearance volume—the gas trapped between the piston at top dead center and the cylinder head, including valve pockets—is the dominant loss mechanism. Volumetric efficiency, the ratio of actual gas drawn in per stroke to displacement volume, drops as clearance volume rises. A typical industrial reciprocating compressor stage holds clearance volume to 4–8% of swept volume. At 7 bar discharge from 1 bar suction, that translates to volumetric efficiency around 80–85%; at higher pressure ratios, the gap widens.

Intake and discharge valves are the most failure-prone components in any reciprocating compressor. Plate valves, the most common design, use thin spring-loaded steel plates that lift on pressure differential and seat back closed when flow reverses. Each valve cycles once per revolution, so a 1,000 rpm machine runs each valve through 1.4 million cycles per day. Plate fatigue, seat wear, and valve plate fracture are routine failure modes. Inspection intervals run 2,000 to 4,000 operating hours depending on duty cycle and service.

Piston rings seal the gas chamber from the crankcase. In oil-lubricated machines, an oil film between rings and cylinder bore handles the sealing and reduces wear. In oil-free machines, PTFE or other polymer rings ride directly on the bore. Polymer rings are sacrificial: they wear at predictable rates and are replaced on schedule, typically every 8,000 to 16,000 hours depending on pressure and duty.

Crosshead designs—where the piston rod passes through a packed seal between cylinder and crankcase—are standard above about 30 kW and mandatory for oil-free service. The packing acts as a labyrinth seal preventing gas leakage along the rod. Trunk piston designs (no crosshead) are simpler and used in smaller machines, but allow oil splash from the crankcase to enter the compression chamber, ruling them out for oil-free applications.

Compression heats gas. A single stage compressing air from 1 bar to 8 bar produces discharge temperatures around 200°C without intercooling. Heat is rejected through cylinder jacket water cooling, finned cylinder air cooling, and intercoolers between stages. The choice between water and air cooling depends on duty cycle, ambient conditions, and ease of installation. Water cooling is more compact and effective; air cooling avoids the complexity of a cooling water loop.

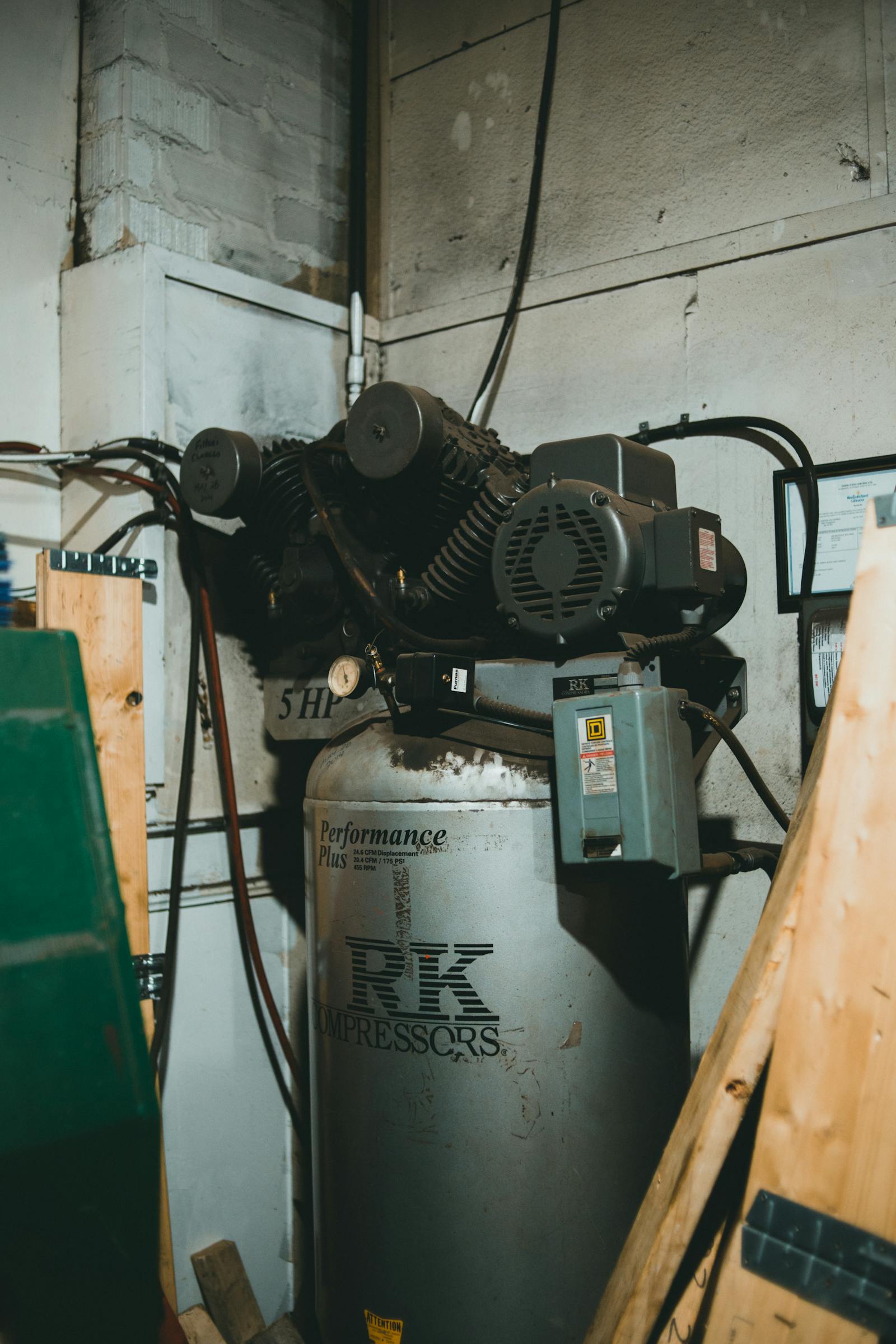

Three application categories keep reciprocating compressors in active use against newer alternatives. High-pressure service: above 30 bar, the energy efficiency and packaging advantage over screw or centrifugal designs is decisive. Breathing air systems for diving and fire service, CNG fueling stations, and PET bottle blow molding all run on reciprocating multi-stage compressors. Intermittent duty: small workshop compressors that run a few hours per day at low utilization don’t justify the higher purchase price of screw machines. Process gas compression: ethylene, hydrogen, refining gases, and many specialty chemicals use reciprocating machines for their tight discharge pressure control and predictable flow per stroke.

Reciprocating service maintenance has not changed dramatically in fifty years. Valve replacement, ring replacement, periodic alignment checks, oil sampling. Skilled mechanics can rebuild most reciprocating compressors with shop tools and OEM parts kits. The maintenance footprint is broad and shallow: many small interventions across the year rather than a single annual outage. Plants with established mechanical maintenance teams find this rhythm comfortable. Plants without those teams—or wanting to minimize maintenance touch points—lean toward screw and centrifugal alternatives.

The reciprocating compressor’s longevity comes from a simple truth: the technology fits applications that newer designs cannot serve as well, and the installed base is so large that parts, service, and operator knowledge remain abundant. Engineering improvements continue—polymer ring materials, valve dynamics modeling, online diagnostics—but the basic architecture is mature. For pressure ratios, intermittent duty, and process gas compression, reciprocating piston compressors remain the right tool.
