Weighing the Renesas RA Against the RX for Migration

The Renesas RA and RX are the company’s two 32-bit microcontroller families, built on two different cores: the RA on Arm Cortex-M, the RX on Renesas’s own RX core. A team with years of RX code now looks at a move to the RA. Whether that move pays off turns on the size of the RX codebase and the road the product is heading down.

Two Renesas families, two architectures

Both families come from Renesas. The company sells them side by side, with overlapping markets in industrial, automotive, and consumer control. The RX has the longer history and the larger installed base. Renesas built the RA on Arm to reach the wider Cortex-M market. Fresh designs at Renesas pick between them on the merits. An existing RX design faces the migration question. Renesas itself came together from earlier Japanese chip makers. The RX core traces back through those lines. The company carried that core forward as its flagship 32-bit design for years. The RA arrived later, once the market had settled on Arm for a growing share of new designs. Renesas now develops both, so a customer is not pushed off either one.

The migration question is not unique to Renesas. Any team on a proprietary core meets it when the market moves toward Arm. The pull toward Arm is real: a common instruction set, a deep tool market, and a large pool of engineers who already know it. The pull to stay is also real: a working codebase, a known toolchain, and a core whose quirks the team has already learned. Both pulls are real. The right answer depends on the product and the team. Cost rarely settles it on its own, since both families reach similar price bands. The deciding factors sit in the software and the supply. Talent is one factor: Arm skills are common in the hiring market. Lock-in is another: a proprietary core ties a team to one vendor’s tools. The decision balances those soft factors against the hard cost of a rewrite.

The RA, Renesas on Arm

The RA is Renesas’s Arm Cortex-M family. It launched in 2019 and grew into a full range. The line runs from the low-power RA0 and RA2 on the Cortex-M23, through the mainstream RA4 and RA6 on the Cortex-M33, up to the RA8 on the Cortex-M85 with Helium. Picking a point on that range follows the performance and power needs. The whole family shares one set of peripherals and one software package. RA0 is the newest and lowest-cost entry, aimed at simple control on a tight budget. RA2 and RA4 fill the low-power and mainstream middle. RA6 carries the rich-peripheral parts, with Ethernet, high-speed USB, and a graphics interface on the larger devices. Numbering climbs with capability, so a higher number signals more performance and more memory. Renesas groups the RA by series number, from RA0 through RA8, each with its own pin and memory options. The series share a common peripheral set, so a move within the RA keeps the firmware. One family covers the spread of a product line.

The draw of the RA is the Arm ecosystem around it. The Cortex-M core runs the same instruction set as every other Cortex-M part. The compilers, the debuggers, the RTOS choices, and the third-party libraries all work the same way. Hiring draws from a large pool of engineers who already know Arm. The RA puts Renesas silicon inside that familiar world. Portability is the heart of that draw. Code written to the Arm CMSIS standard moves between Cortex-M vendors with modest effort. A bug found by one Arm team often has a known fix in the wider community. Off-the-shelf middleware, from TLS stacks to file systems, builds on Arm without a port. The RA inherits all of that by running a Cortex-M core.

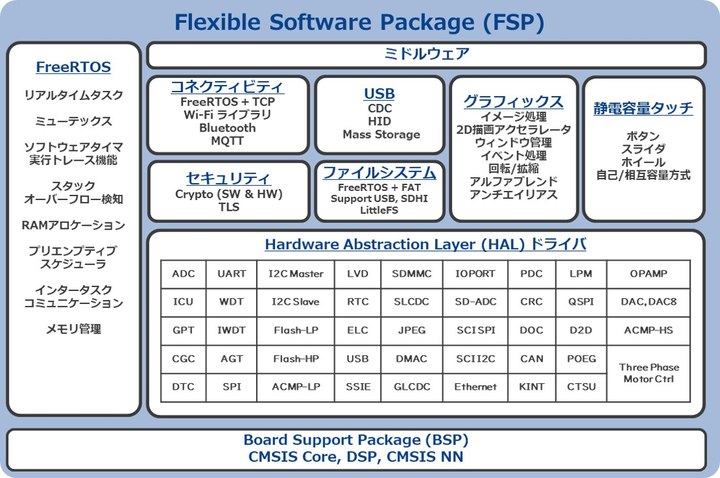

Renesas built the RA with its own peripheral set, the same blocks the company refined over its earlier families. The RA wraps the Renesas safety features, the security blocks, and the analog the company is known for around an Arm core. The Flexible Software Package, Renesas’s free SDK, configures those peripherals from a graphical tool. A new RA project starts from generated code and a board-support package. Security comes built into the mid and high RA parts. The Cortex-M33 brings Arm TrustZone, which splits the chip into secure and non-secure worlds. Renesas adds its own security IP on top, with key storage and crypto acceleration. Keys and firmware stay protected on the part itself. The FSP ships with FreeRTOS, and it supports Azure RTOS as an option. Middleware for USB, Ethernet, file systems, and TLS comes in the package. Renesas runs a partner program that adds third-party stacks and tools around the RA. The software story matches the silicon.

The RA8 marks how far the family reaches. The Cortex-M85 with Helium runs vector math for edge AI and signal work. That performance arrives on an Arm core, inside the Renesas catalogue. The RA spans the low-power node and the high-compute node on one architecture and one toolchain. Helium is the vector extension Arm added for the Cortex-M85. It accelerates the matrix and filter math that machine-learning and audio code lean on. The RA8 brings that to a microcontroller, at a clock near 480 MHz. Edge AI on the RA8 runs without a separate accelerator chip.

The RA answers the team that wants Arm and a Renesas relationship at once. The RA puts the company’s own peripherals on an Arm core, inside the Renesas supply line. The RA is the path to the Arm ecosystem that keeps the vendor in place. For a fresh design at Renesas, it is often the default choice now. The RA also fits a team with no Renesas history at all. Anyone choosing a Cortex-M part can land on the RA for its peripherals, its safety features, or its supply. The Arm core lowers the switching cost from another vendor’s Cortex-M. The RA competes in the open Cortex-M market on those terms. Renesas markets the RA against the mainstream Cortex-M lines from ST, NXP, and others. Its pitch is the Renesas peripheral set and analog on a standard Arm core. The RA wins design-ins where those Renesas strengths matter to the product.

The RX, Renesas’s own core

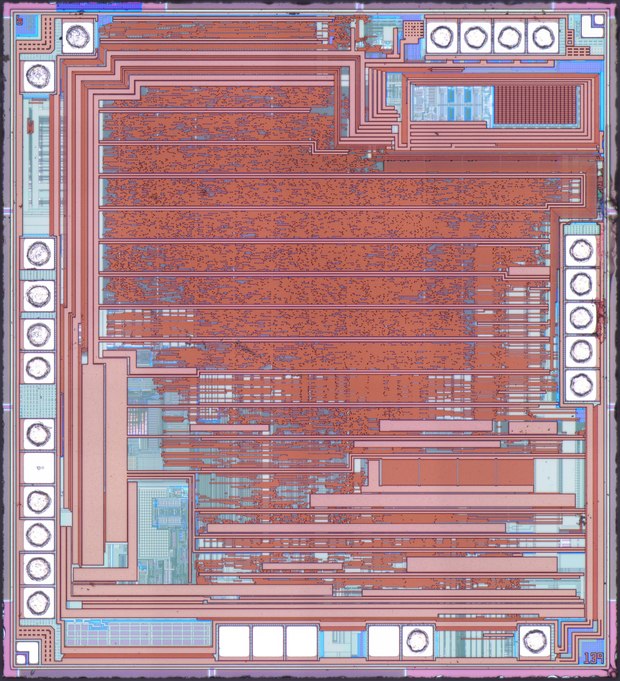

The RX runs a core Renesas designed itself. The RX core is a CISC design, with strong code density and a single-cycle multiply-accumulate for signal work. It carries a heritage from Renesas’s earlier cores, refined over many years. The RX holds a large installed base in industrial and automotive designs, strong in Japan and across the world. The RX core comes tuned over a long line of products. The RX core sits between the small RL78 and the Arm parts in the Renesas range. Its value is efficiency: high performance per megahertz and tight code. The RXv3 generation, on the RX700 parts, raised the clock and added floating-point and DSP gains. Designers in motor control, metering, and industrial automation lean on those traits heavily. RX100 parts cover the low-power end on the RXv1 core. RX600 and RX700 parts carry the mainstream and high-performance work on RXv2 and RXv3. The RX72 group adds a double-precision floating-point unit for heavier math. Numbering rises with capability across the line. Low interrupt latency is part of the RX appeal, a trait real-time control depends on. Single-cycle access to internal RAM keeps the timing tight. Deterministic response is the quality industrial designs prize.

The RX strengths are real and specific. The code density keeps the flash size down. A smaller flash lowers the part cost. The DSP and floating-point hardware handle motor control and signal work without a separate part. The CC-RX compiler squeezes tight, efficient code from the core. Designs built on those strengths have a reason to keep them. Code density is more than a cost point. Tight code fits more function in a given flash, which matters in a high-volume part. The CC-RX compiler, refined over years on the core, knows the architecture deeply. Renesas backs the RX with safety libraries certified for appliance and industrial standards. Those certifications save a regulated design months of its own work. Code density also eases the supply side, since a smaller flash can mean a cheaper, more available part.

The RX also carries the weight of an existing codebase. Years of RX firmware, drivers, and tooling add up to a large investment in the core. The CC-RX toolchain, the debug setup, and the engineers’ familiarity all sit on the RX. That investment is the strongest reason a team stays. The RX is not a legacy part; Renesas still develops the line. New RX devices ship on a regular cadence. The family gets fresh parts, new peripherals, and process updates year over year. A team on the RX rides a line under active development. The investment a team made in the RX keeps paying off on the next product. Functional-safety support runs deep on the RX. Self-test libraries and hardware monitors meet IEC 60730 for appliances and the industrial safety standards. The certification work done once carries forward across RX generations.

What a migration moves, and what it keeps

A move from the RX to the RA changes the core, so the compiled code does not carry over. The RX instruction set and the Arm instruction set are different, which means a recompile alone will not do the job. The migration touches two layers. The application logic in C ports across with edits. The peripheral drivers get reworked for the RA’s blocks. Renesas eases that rework with one tool: the company documents the Flexible Software Package as scalable across its RA, RX, and select RZ parts, so a team meets a similar configuration model on both sides. The migration reworks the low-level layer. The application design stays. The split is the key to a sane migration. Business logic, state machines, and algorithms live above the hardware, so they move with edits to the build setup. Register-level code, interrupt handlers, and driver calls bind to the chip, so they get rewritten on the RA. The FSP generates much of that low-level code. The manual part shrinks. A clean separation of layers in the original RX code makes the whole move faster. CMSIS, the Arm standard layer, gives the RA drivers a familiar shape. Clean hardware abstractions in the RX code port with less friction. The cleaner the original layering, the lighter the rework on the RA.

The case for each direction

The case to migrate to the RA starts with the ecosystem. The RA delivers the Arm tool market, the larger talent pool, and code that ports to other Cortex-M vendors. Second-sourcing finds more Cortex-M vendors than RX-core vendors. A roadmap toward edge AI reaches the Cortex-M85 and Helium on the RA8. For a team betting on the Arm world, the RA is the move. The talent argument carries real weight. Universities and bootcamps teach Arm, so new graduates arrive knowing the Cortex-M model. Universities and bootcamps teach Arm, so new graduates arrive knowing the Cortex-M model. Hiring for an Arm project draws from a wide pool. A proprietary core narrows that pool to engineers who learned it on the job. Over a product’s life, the easier hiring shows up as lower risk and faster staffing.

The case to stay on the RX starts with the code. A mature RX codebase avoids a rewrite by staying put. The CC-RX toolchain and the team’s familiarity keep their value. The RX strengths in code density and efficiency hold for the next design. A product that runs well on the RX, with no pull toward Arm, has little reason to move. The rewrite cost is concrete and countable. Scoping covers the peripheral layer, the driver count, and the test suite before the decision. The application logic, already in C, carries the smaller share of the cost. That number feeds straight into the decision. A move with a clear, bounded cost is easier to justify than an open-ended one. Obsolescence risk sits on the other side of the ledger. A proprietary core depends on one vendor’s commitment to keep it alive. Renesas has kept the RX current for over a decade. That record lowers the worry.

The size of the codebase usually decides the weight. The bigger the RX codebase, the higher the cost of a move, and the higher the bar the Arm ecosystem has to clear. A small project or a new design carries little of that cost. The honest read sets the cost of the move against the value of the Arm ecosystem. Time pressure shifts the answer too. A tight deadline leans toward the RX a team already knows. Room in the schedule opens space for the RA learning curve. The roadmap matters as much as the deadline: a product heading toward AI or wide connectivity leans toward the Arm side. The five-year roadmap often outweighs the launch deadline in that read.

Neither direction is wrong on its own. The right one follows from the team’s starting point and the product’s road ahead. Naming its own situation honestly, the team reads the choice off that. Following a trend, with no look at the migration cost, is the one wrong move. Many teams land in the middle, with a phased answer. New products go to the RA. The current RX line ships unchanged through the move. This spreads the migration cost over time and lets the team learn the RA on lower-stakes work. The decision is rarely all-or-nothing in practice.

Doing the migration

A migration runs in stages. The work starts with the application logic, the part that is already in portable C. It then rebuilds the peripheral layer on the RA’s drivers, through the FSP configuration tool. The debug and test setup moves to the Arm tools last. Renesas’s e2 studio supports both the RX and the RA, which keeps one IDE across the move. The first port is the hardest, since the team learns the FSP and the Arm tools at once. A pilot project absorbs that learning on a small scale. Later ports run faster, once the patterns are known. The team’s own RX drivers become the reference for the RA versions. Re-validation is part of the work. The migrated product goes back through its test suite on the new silicon. Timing-sensitive code gets the closest look, since the core and the clocking change. The test effort scales with how safety-critical the product is. Test coverage from the RX project carries over as the specification for the RA version. The same requirements, re-run on the new silicon, confirm the port. A clean RX test suite becomes the acceptance test for the RA build.

Migration need not happen all at once. A product line keeps its RX parts in production and starts new designs on the RA. A team pilots the RA on one product before it commits the whole line. The two families under one vendor make a gradual move easier than a jump to an outside vendor would be. Staying inside Renesas keeps the supply and support lines in place through the move. The same distributor account, the same field engineers, and the same quality records carry over. A migration to an outside Arm vendor would reset all of that. The single-vendor path trades a smaller ecosystem jump for a steadier supply story. Renesas publishes migration notes and peripheral-mapping guides for teams moving within its range. Those documents shorten the learning at the start of a port.

The weighing needs two honest numbers. One is the cost of the rewrite, set by the size and the age of the RX codebase. The other is the value of the Arm ecosystem to the product’s future. A team that has both numbers makes the call without much agonising. The RA and the RX are both strong families; the right one is the one that fits the team holding the decision. The choice is not permanent either. A team can start on one family and revisit the question as its products and its market change. The RA and the RX both have long roadmaps at Renesas. A decision made well today leaves room to adjust later. The two families share enough that the bridge between them stays short. One vendor, one IDE, one software package, and a common C application layer all soften the move. The numbers settle the direction, ahead of any trend. The team that does that arithmetic rarely regrets the call. Both the RA and the RX have years of Renesas support ahead.
