Urinary Retention Ultrasound Assessment Handheld Probe

What urinary retention is

Urinary retention is the failure of a bladder to empty. A person tries to pass water and cannot clear the bladder. Ultrasound assesses retention at the bedside. The probe goes low on the belly and brings the bladder into view. A full, tense bladder confirms the retention on the screen. The scan does more than confirm it. It sizes the trapped urine. It finds the cause at the outlet. It checks the kidneys above for harm from the backed-up bladder. One handheld carries the whole assessment to the patient in a few minutes. The answer comes where the person lies. The bladder keeps urine back after every try to void. The probe finds that held urine low behind the pubic bone and sizes it in seconds. The view needs no needle and no wait. A clinician learns it early. The bladder makes a large, shallow target and shows up plainly.

The residual is the urine left after the bladder tries to empty. It climbs into the hundreds of millilitres in retention. The scan puts a figure on it. The trapped urine fills the pelvis as a large dark pocket. That figure starts the assessment. A residual past a few hundred millilitres marks a bladder that has stopped doing its work. A second scan confirms the number. The figure alone does not say how the bladder reached this state. The rest of the assessment goes after the cause. A bladder caught full once can clear fine the next time. A figure that holds high across two careful scans carries real weight. The residual reads in millilitres. A drained catheter measures in the same unit. The scan and the catheter speak one language. A residual of five hundred millilitres sets a clinician moving. The number gives both the urgency and the size of the problem at one glance. A residual reads the same on any machine. The number means one thing from one scan to the next. A clinician hands it on and compares it over time. The scan times itself to the void. It follows within a few minutes of the person passing water. The kidneys would otherwise refill the bladder and lift the figure off its true mark.

Retention comes in two forms, a sudden acute emergency and a slow, silent chronic build. The state of the bladder, its wall, and the kidneys above sorts one form from the other. Each form keeps its own tempo and its own urgency. Each form takes its own plan. The two sections below take them one at a time. A clinician who knows the form reads the scan with the right question in mind. The two forms can run together. A chronic bladder stretched for years can tip into a sudden, painful block. This is acute-on-chronic retention. The thick wall of the old problem shows under the tense fullness of the new one. The bladder holds its history for a clinician to find. The scan takes that layered picture in one pass.

The handheld brings this assessment to wherever retention turns up. An emergency department, a ward, a clinic, and a care home all see it. A nurse or a clinician sizes a bladder in seconds. The scan needs no radiology slot and no trip down a corridor. It answers the first question. Is the bladder full and stalled. It then answers the harder ones. Why has it stalled, and what has the stalling cost. Each answer turns into a decision. A catheter is passed. A cause is chased. A kidney is watched. The whole study asks little of the person. It needs a slip of gel and a light press. It repeats as often as the care needs with no fresh risk. A bladder scan is among the first things a handheld is reached for. The view comes quick and the answer comes quick. The dark of a full bladder shows plainly low in the pelvis. A clinician new to ultrasound can find it. Retention is one of the conditions a handheld answers fastest. The answer once waited on a department. Now it comes at the bedside in a minute.

The acute emergency

Acute urinary retention strikes in hours. A person cannot pass water at all. The bladder swells past its limit. The stretch makes the lower belly ache. Few pains in urology run louder. The person doubles over and aches for relief. The screen shows a bladder stretched well past half a litre. It often reaches toward a full litre. It sits taut against the belly wall. The figure confirms the diagnosis in one frame. It shows how urgently the bladder needs draining. A handheld settles the question at the trolley. A busy department would otherwise wait on a formal scan. The relief no longer waits in a queue. The bladder empties once the catheter passes and the pain eases. Acute retention falls oftenest on older men. The prostate is the usual trigger. A urinary infection, a constipating drug, recent surgery, or sheer over-distension can each bring it on. A pelvic mass, a prolapse, or a problem with the bladder’s nerves can put a woman into retention too. The scan sizes the same tense bladder in anyone. The volume comes first and the picture comes next. A bladder this full is unmistakable. A black dome fills the lower belly. The finding turns a frantic guess into a plain fact. The pain and the swelling already tell the person something is wrong. The scan adds its minute by sizing the problem and naming its cause. A blind catheter becomes a considered one.

A catheter relieves the bladder on the spot. The trapped urine runs out through a thin tube. The same scan that confirmed the retention often catches why it happened. An enlarged prostate bulges into the bladder base. A clot blocks the way out after bleeding. A stone wedges at the neck. Relief and the first look at the cause come in one visit. The volume drained guides the next step. A figure past a litre and a half raises the question of damage further up the tract. A bladder that drained a great deal earns a look at the kidneys before the visit ends. The high volume hints that the retention is older and more dangerous than a single acute episode. The relief brings its own watchpoint. A bladder that gave up a litre or more can pour out salt and water for a day or two. This is a post-obstructive diuresis. It needs the person watched and the fluids kept up. The scan that found the retention also frames what comes after. A clinician carries the drained volume into the hours that follow. The picture taken before the catheter sets a baseline. The recovery is measured against it once the bladder has had its rest. The amount the catheter drains is logged against the scan’s estimate. The two figures rarely fall far apart. Each one checks the other.

The quiet kind

Chronic retention builds quietly over months or years. A bladder empties part way and banks a steady residual. It stretches by slow degrees with little pain to raise the alarm. A person can pass water and still leave a pint behind and never know it. The danger sits upstream. The standing urine pushes its pressure back toward the kidneys over time. The American Urological Association marks chronic retention at a residual over three hundred millilitres, found on at least two scans across six months. A handheld catches that number on a routine pass long before any symptom forces the issue. The first sign chronic retention gives is often no sign at all. A scan done for another reason finds the bladder full. A symptom can mislead when it does come. A constant dribble of overflow gets taken for ordinary leaking. The bladder has filled so full that it spills at the brim. The scan cuts through that. The large residual shows plainly on the screen whatever the person reports. A quiet bladder holding half a litre is a finding to chase down. The harm it does upstream runs out of all proportion to the little it is felt. A bladder can hold a litre or two in chronic retention. The muscle stretches so far that it forgets how to squeeze. The damage past two litres may not come back. The bladder is left slack for good. A scan that finds a quiet bladder at half a litre finds it with time still left to act. A handheld finds the quiet bladder with no symptom to point the way. A nurse can scan a frail person where they sit. The check costs a minute and asks nothing of the patient. It catches the harm with a kidney still able to recover. A bladder that holds urine breeds infection in the pool left behind. It can form stones in the stagnant urine. The standing urine is a hazard on its own.

What the scan reads beyond the number

A bare volume names the retention. The picture behind the number explains it and steers the care. Ultrasound shows the bladder itself. It shows the cause at the outlet. It shows the state of the wall. It shows the kidneys the bladder may be harming. Each one feeds a different part of the plan. A scan that shows only a number leaves the why of the retention untouched. The why decides what happens next. The assessment runs past the volume into four plain questions. Where is the block. How long has it been there. How far has the bladder changed. Have the kidneys been hurt. The one short scan that measured the urine answers all four. The four questions run in order, and the scan walks a clinician down them in one pass. A clinician needs every answer before settling on a plan.

The cause usually sits at the outlet. An enlarged prostate is the commonest one. The gland thickens over the years and squeezes the passage below the bladder until it shuts. The scan shows the prostate bulging up into the bladder base. The gland makes a rounded mass and lifts the floor. A clot can block the outlet after bleeding. A stone can wedge in the neck. A stricture can narrow the passage to a thread. Each one turns up on the picture as its own kind of obstruction. Naming the cause makes the catheter the first step of a plan. The treatment that clears the block can be aimed straight at it. A weak bladder is the other root of retention. The muscle no longer drives hard enough to empty. A nerve injury from diabetes, a spinal problem, or surgery can leave the bladder full with no urge to pass water. The residual climbs and the outlet stays open. The scan separates the blocked bladder from the weak one as much by the outlet as by the bladder. A clear passage below a full bladder puts the blame on the nerves and clears the gland. Each cause feeds a different treatment. A drug or an operation answers the gland. A draining routine answers the numb bladder. A clearance answers the stone or the stricture. A clinician picks the route from the cause the scan named. The same picture confirms the retention and points the way out of it.

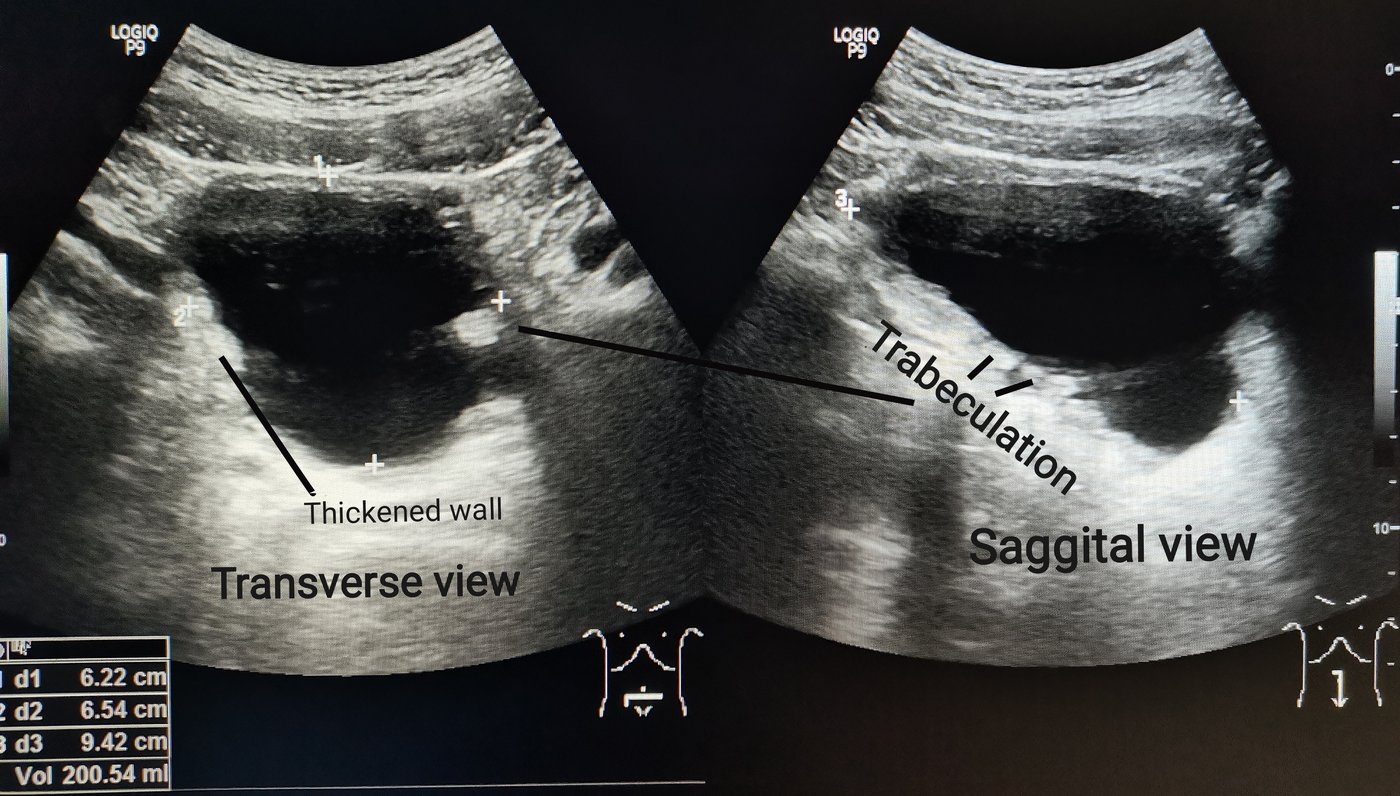

The bladder wall carries the record of a long fight. A bladder pushes against a block for years. It thickens its muscle and throws it into ridges. These trabeculations stand out on the screen as a rough, banded wall. Small pouches can balloon out between the ridges. Sediment can settle in urine that never fully clears. A thick, trabeculated wall dates the obstruction. It marks a bladder worn down over a long time. The wall tells a clinician that the retention is old whatever the day’s volume reads. An old retention carries the upstream risk. A fresh retention has not yet had time to build it. The wall says more than its thickness. A pouch off the wall, a diverticulum, can hold urine of its own and feed the residual from the side. A mass on the wall turns up in the same pass. A stone sitting in the pool turns up too. The wall and the contents come free with the volume. The one scan takes the bladder inside and out before the probe leaves the skin. A clinician reads the age of the problem off the wall. A thick, ridged wall points to a block that has stood for years.

The kidneys carry the gravest stake in chronic retention. A bladder under steady high pressure passes that pressure back up the ureters. The kidneys swell behind it. The dark fingers of hydronephrosis spread through the bright core of each. This is high-pressure chronic retention. It is the dangerous form. The bladder has filled past eight hundred millilitres. It holds that volume at a pressure the kidneys cannot push against. The scan up the flank catches the swollen kidneys. The swelling is often the first hard sign that a quiet bladder has done real harm. Bilateral hydronephrosis over a large residual turns a routine finding into an urgent one. The bladder needs draining before the kidneys lose ground they may never regain. A clinician who sizes a high residual takes the probe straight to the kidneys. The bladder volume on its own cannot show the pressure behind it. The harm stays silent to the patient and builds slowly. The kidneys fail over months and no pain marks the loss. A large drainage on catheterisation, past a litre and a half, flags the same risk. It sends a clinician looking for the hydronephrosis that confirms it. Draining the bladder eases the person. The same drainage can save a kidney. A urologist takes the high-pressure case in hand. The bladder gets watched and the kidneys get followed until the pressure eases and the swelling settles. The first scan that catches it can be the one that saves a kidney. The flank goes under the probe whenever a residual runs high. Hydronephrosis shows plainly enough on a handheld to act on. A swollen kidney is unmistakable even to a quick look. A formal scan grades it in full. The number where the danger begins is not fixed. The kidneys mark the line. A flank view costs a clinician another half-minute. It answers the one question the bladder cannot. Has the retention begun to cost a person their kidneys. A worrying residual sends the probe straight up the flank in the same sitting. The bladder and the kidneys make one connected system. The finding changes the tempo of the whole visit. A routine retention becomes an urgent decompression.

Retention is never only a number. It is a bladder, a block, a wall, and two kidneys at stake.

Assessment at the bedside

The assessment starts before any catheter. A scan confirms a full, stalled bladder. It spares a needless catheter where the bladder sits empty and the symptom comes from something else. The picture answers the question a blind catheter cannot. Is there anything there to drain at all. A tube passed on a confirmed retention goes in with the cause already half known. The prostate or the clot or the stone gets marked before the urine has finished running out. A clinician who scans first catheterises with intent. The tube aims at a bladder known to be full and a cause already in view. Nothing about the assessment slows the relief. The whole scan takes the minute it takes to open a catheter pack. The figure stands as the baseline. The recovery reads against it. The record notes the pre-drainage volume beside the amount the catheter gives back. The scan and the catheter work as a pair. The scan finds and sizes the bladder. The figure becomes the baseline the recovery is measured against.

The scan follows the bladder after drainage too. A residual checked once a catheter comes out shows whether the bladder has taken up its work again. The tube stays out when the bladder holds itself empty. It goes back when the residual climbs. The same quick scan repeats as the care needs. It tracks a bladder through its recovery or its relapse. A handheld makes the repeat cheap and quick. A bladder gets rechecked at the bedside as often as the question comes up. A bladder still finding its feet gets a scan daily. A settled one gets one less often. The post-drainage scan answers a question that shapes a person’s next weeks. Should the catheter stay, should a trial of removal go ahead, or should a longer-term route be planned. A bladder stretched too far and too long may not win back its squeeze. The scan that tracks it tells a clinician early which way the recovery heads. The figure repeats again and again. It turns a snapshot into a story a clinician can follow. A trial without a catheter rests on that story. The bladder gets let to manage on its own once the scan shows it can. A figure taken a few days after the tube comes out settles the trial. A bladder that recovers needs no more tubes. A clinician watches the figure settle and closes the case.

Retention turns up wherever people are cared for. A handheld meets it there. A nurse on a ward round sizes a stalled bladder in seconds. An emergency clinician confirms acute retention at the trolley. A clinic with no scanning room of its own assesses a chronic high residual at the bedside and refers the dangerous ones on. The scan brings the whole assessment of retention into a few minutes. The volume, the cause, the wall, and the kidneys all come on one short scan. The patient already lies where the scan happens. The scan turns a complaint into an answer given on the spot, with no wait, no referral, and no guess. The same handheld covers the kidneys, the prostate, and the wall with no change of probe. One wand carries the whole urinary assessment. A person met in a care home, a rural clinic, or a crowded ward gets the assessment a teaching hospital would give. It comes to the bedside in a few minutes. Retention is a problem ultrasound answers well. A handheld puts that answer in any clinician’s hand. The probe goes from bladder to flank in one motion. It assesses retention top to bottom with no second machine and no second visit. A handheld brings the assessment to a person who cannot travel to a department. The scan repeats at no cost and no risk. Retention gets watched at the bedside for as long as the care runs. The same machine that found it follows it.
