Small Bowel Obstruction Ultrasound Assessment Handheld Probe

Finding the blocked gut

A small bowel obstruction is a gut that has stopped passing its contents. Ultrasound shows the block at the bedside in minutes, on a probe that fans across a tense belly. Swollen loops of small bowel, full of trapped fluid, fill the screen above the blockage. The bowel beyond the block sits flat and empty. Between the wide gut and the flat lies the point of the trouble. The scan turns a painful belly into a clear picture of the gut inside it. A bedside look runs at the trolley, on the ward, or in a clinic with no other imaging. Bands of scar from old surgery, a hernia trapping a loop, and a tumour narrowing the bowel lead the list of causes. The probe finds the swollen loops first and hunts the cause second. A few minutes of careful fanning give up the answer the belly hides. A blocked gut is a leading surgical cause of a sudden swollen belly. A fast bedside answer shapes the course of care. Adhesions from old surgery lead the causes by a wide margin. Hernias and tumours follow behind them. A first operation often seeds the bands that block the gut years later, so a scar on the belly tilts the picture toward a band from the start.

Speed matters in a blocked gut. A loop that loses its blood supply dies within hours. An early find moves the person toward treatment before the bowel turns. The scan also calms a false alarm: quiet loops of a normal width over a soft belly point away from obstruction. The grade of the block and the plan for it follow from a CT and a surgeon. A worrying belly gets a fresh look an hour on, the loops watched for a widening that tightens the case. A strangled loop runs from a living gut to a dead one over a handful of hours. The bowel above a tight block fills and stretches until the wall thins and the blood supply gives. An early answer at the bedside buys the hours that decide whether a loop lives. The danger of a block climbs each hour it holds. A clear scan over a soft belly with quiet loops sends a person home with advice and a date to return. The bedside answer turns a long anxious wait into a short look and a plan.

A handheld brings this scan to the patient. A clinic with no scanner of its own checks a blocked gut at the bedside. A rural clinician arranges transfer with the picture in hand. An emergency team scans in the resus bay while the bloods run. The whole belly comes under the probe in long passes, up one side and down the other, like a lawnmower over a field. All four quarters fall under the sweep to catch a loop hiding in a corner. A deep belly in a heavy build asks for a lower frequency and a firmer press. Steady pressure pushes the gut gas aside and opens a window onto the loops. A curved probe carries the depth for the back of the belly. The bowel comes into focus a few centimetres down. Graded compression earns the window: a firm press, leaned in over a few seconds, parts the gas and brings a deep loop forward. A loop that hides behind a gassy stretch comes clear from a fresh angle. The probe works around the gas to reach the bowel the first pass missed.

The widest loop, the wall thickness, and any free fluid go into the note. A saved clip of the churning bowel carries weight in a referral, the motion shown where a written line can only describe it. One device covers the blocked gut and its neighbours in a single visit, the bladder and the aorta swept to clear a mimic. The measurements and a clip of the motion reach the surgeon ahead of the patient. A handover built on a saved clip carries more than a line of text, the swollen loops and the to-and-fro there for a second eye to see. A still image freezes the width. A short clip holds the motion that names the block. The record keeps both for the team that takes over.

When a loop fills and stretches

The first sign of a block is a loop too wide for a normal gut. Measured across its outer walls, a small bowel loop over two and a half centimetres marks an obstruction. The loop fills with fluid and turns dark on the screen. Several swollen loops stack through the belly, each followed along its length to learn how far the block reaches. The contents churn inside an early block. The widest loop, measured and timed in the note, becomes a number the team can track. A loop that grows from one scan to the next shows a block that is tightening. Small bubbles of gas trapped in the fluid along the upper edge line up in a row, a sign of a high block in the jejunum. The bowel measures widest across the short axis, straight through the middle of the loop, away from a tapered end. A normal small bowel runs under three centimetres and collapses under the probe. A large bowel obstruction widens the colon past six centimetres. The outer pouches of the colon set it apart from the fine folds of the small gut. A measurement taken at the true peak of the loop keeps the number honest. A tapering shoulder gives a figure below the true width.

A press on a swollen loop tests it. An obstructed loop stays round under steady pressure, its fluid centre a smooth dark pool. Bright specks of floating debris drift in the fluid and settle along the back wall of a still gut. The map of swollen loops builds across the belly, traced in two directions to follow their winding path. A belly full of wide loops down to the pelvis carries a long stretch of blocked gut. The bowel signature shows on a good loop as fine stripes of wall around the dark fluid. A loop that fills wall to wall with fluid shows its folds in clean relief against the black. The widest loops gather where the fluid pools the deepest, low in a long block. A sweep down into the pelvis finds the gut at its widest. The lowest loops fill last and empty last once the block clears.

The wall and the folds

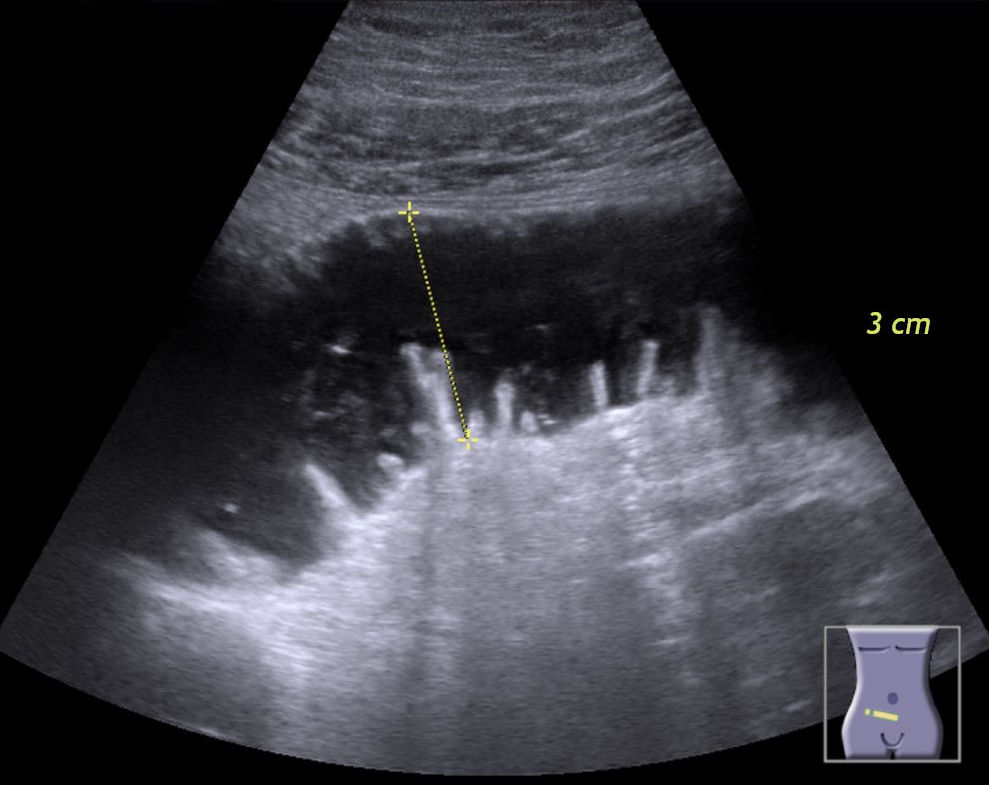

The wall of the loop carries its own signs. A bowel wall thickened past three millimetres warns of a gut under strain. The folds inside the loop stand out as the bowel fills. The valvulae conniventes, the circular folds of the small bowel, project into the dark fluid like the keys of a keyboard. This keyboard sign marks dilated upper small bowel. The folds keep their regular spacing in a gut under pressure. A wall that loses its fine layers and turns uniform points to a gut short of blood. The flat featureless look of that wall, weighed against the pain and the fever, raises the worry of a loop in trouble. The healthy bowel wall shows fine layers under a good probe, a striped gut signature. The loss of those layers, a wall flattened to a single grey band, points to a gut starved of blood. A wall that thickens past three millimetres and stops moving carries the gravest warning of the lot. Colour flow over a healthy wall shows a faint blush of blood through it. A wall left dark on the colour box has lost its supply and warns of a loop on its way to death. The blush fades from the edge inward as the strangling tightens.

Bright specks of debris float and swirl in the dark fluid. The folds of mesentery between the loops can swell and brighten in a strained gut. Free fluid pooling between several loops gathers in the lowest part of the belly. A clip of the folds and the fluid travels with the referral, the picture showing the surgeon the loop the words describe. The amount of free fluid gauges how hard the gut is straining. Free fluid grows from a thin rim between two loops to a pool that fills the flanks as a block worsens. A trace early gives way to a gathering pool once the bowel begins to fail. The depth of that fluid, watched across scans, tracks the gut toward trouble.

A loop that has gone quiet

Free fluid between the loops is the first warning of a strangled gut. A loop that has stopped moving sits dead until proven otherwise.

The back-and-forth that names a block

The live scan shows a sign no still picture can. Held on a swollen loop, the probe catches the contents in motion. In a mechanical block the bowel keeps squeezing against the obstruction. The trapped fluid swings forward down the loop, then washes back. This back-and-forth churn, the to-and-fro sign, marks a gut straining against a blockage downstream. Bright debris travels one way along the loop and returns on the next squeeze. The motion confirms a working bowel pushing against a fixed obstruction. Early in a block the squeezing runs strong. The contents race back and forth through the loop. The to-and-fro fades over the hours. A tiring bowel churns less and moves its load more weakly. A loop that still churns holds a living gut. The strength of the motion gauges how the bowel is coping. A backward wash, the reverse peristalsis of a gut trying to clear a block it cannot pass, shows on the live scan too. The real-time look gives the handheld an edge over a single frozen image. The way the gut moves tells as much as the way it looks. Held still over one loop for a few breaths, the probe lets the bowel perform under it, the churn plain on the screen even when the belly lies quiet under the hand. The live picture carries to the surgeon in a saved clip that a still film can never match. Reverse peristalsis, the gut driving its load backward against a block it cannot clear, shows on the live scan as a churn that runs the wrong way. The strength of the churn times the block roughly to its age. The churn runs strong early. It softens over the hours. A loop that has fallen silent warns of a stretch that has lost its fight.

The block maps out by following the loops. Swollen loops lead down to the point of the trouble, traced until the wide gut meets a collapsed one. That meeting point, the transition point, marks where the block sits, studied for its cause: a tight band, a twist, or a mass. The groin and the old scars come under the probe for a loop trapped in a hernia. A loop caught in a hernia shows a transition right at the defect. A gentle press tells whether the trapped loop slides back. A loop that will not slide back marks an incarcerated hernia for urgent repair. The transition point gives the surgeon a place to start the search. A loop trapped in a groin hernia sits below the crease, a swollen segment with a neck at the defect. A femoral hernia rides low and to the inner side, a common trap in an older woman. The probe presses over the bulge to test whether the loop reduces. A loop that holds fast under a gentle press marks an incarceration heading for strangulation.

The transition point names the kind of block. A single tight point with a twist of bowel points to a strangling closed loop. A gradual narrowing points to a band of scar from old surgery. A closed loop traps bowel at two points at once and swells the stretch between them, the gravest kind of block. A C-shaped or U-shaped run of trapped loops, with a swirl of mesentery on colour flow, marks it. The colour box over a dying loop shows little or no flow in the wall. A loop with no flow on Doppler has run out of time. The surgeon hears of it the moment the flow drops out. A swirl of twisted mesentery at the heart of a closed loop, lit on colour flow, names a volvulus turning toward gangrene. The tighter the whirl, the closer the gut sits to death. A loop caught in that twist swells fast and silences within hours.

Obstruction or a quiet ileus

A blocked gut and a lazy gut look alike at first glance. The motion tells them apart. A mechanical obstruction keeps its peristalsis: the loops squeeze and the contents churn back and forth above the block. The wide gut meets a collapsed loop at a transition point. The swelling stops at the block. Beyond it the bowel stays flat. Together the churn and the transition point name a gut fighting a fixed wall. The danger signs send it straight along the surgical path. The fingerprint of a mechanical block is a working bowel pushing against a wall it cannot pass. The bowel beyond the block, collapsed and emptied of its load, confirms the cut-off. A block seen this way at the bedside moves with its danger signs straight toward the surgeon.

A paralytic ileus tells a different story. The whole gut lies swollen from the stomach to the colon, the loops still, no churn and no transition point. The swelling runs the length of the gut, so no single point of change appears. A lazy gut follows surgery, an infection, or a salt imbalance in the blood. The treatment turns to the cause behind the stalled bowel: the salts corrected, the infection treated, the gut left to wake. The first wave of motion through a quiet gut, caught on a morning scan, marks an ileus on the mend. A long ileus follows a big operation, a belly infection, or a low potassium in the blood. The cure lies in the cause: the salts put right, the infection cleared, the bowel rested until it stirs. A morning scan times the return of the churn and the fall of the swollen loops. The pain of an ileus runs duller than the cramp of a mechanical block. A gut that lies silent end to end, with no point of change, points away from a band and toward a stalled bowel. Motion returning over a day backs the call of an ileus settling on its own.

From the scan to the operating room

The scan sits inside the workup of a blocked belly. The swollen loops, the widest measured, the wall and the fluid checked, confirm the block at the bedside. A CT then maps the exact level and the cause for the surgeon. Bedside ultrasound catches a small bowel obstruction in about nine in ten people who have one. The swollen loops and the to-and-fro call the block early. The bedside look sorts who needs the scanner now and who can wait. Gas and a heavy build can hide a deep loop, so a clean scan over a worrying belly goes on to a CT. A sick patient with a soft scan still earns the CT and a close watch. A closed loop hides behind the gas on a bedside scan and shows clearest on the CT, so a high worry sends a person on whatever the wand shows. The two tests answer different parts of one question, the wand fast at the door, the scanner second for the full map.

A handheld reaches the answer faster than a plain X-ray. A fluid-filled obstructed loop holds little gas, so a supine film can look near normal. The scan sees that fluid directly on the screen. The radiation stays saved for the CT that plans the surgery. The chest X-ray keeps its place for the free air under the diaphragm of a perforation. A young patient or a slim adult brings the bowel close to the probe and shows the loops well to a patient hand. The bedside scan spares that body the dose of a CT on a thin story. The reach of the wand widens in a clinic far from a scanner, the one tool that names a block where none stood before.

Many blocks settle without surgery. The gut rests, a tube drains the stomach, and fluid runs into a vein. The swollen loops shrink once the block eases. A daily scan watches the loops come down. A falling loop width and returning gut motion show a block that is settling. A dose of water-soluble contrast into the tube can help a partial block open and shows up on the follow-up scan. The handheld tracks that recovery at the bedside without another CT, the trend followed off the width day by day. A loop that keeps widening on the watch moves the plan toward surgery. A trial of rest, a tube, and fluid settles many a partial block over a day or two. A swallow of water-soluble contrast can ease a partial block open and shows its progress on the follow-up scan. A block that holds past two or three days, or a pain that climbs against the watch, turns the plan toward the operating room.

Some blocks go straight to surgery. A closed loop with a twist cuts off its own blood supply and dies fast. Free fluid, a thick wall, and a still loop together call the surgeon at once. A complete block that fails to settle on a tube also needs an operation. The danger signs sort the urgent block from the one that can wait. The scan brings the dangerous one to the front of the queue, the strangling signs marked in the note and on a saved clip. A volvulus and an incarcerated hernia each turn a block into a race, the loop strangled within hours. The free fluid, the thick wall, and the still loop together mark the bowel that cannot wait for the morning list. A clear picture of the danger, sent ahead, has the theatre ready when the patient arrives.

One probe holds the whole assessment of a blocked gut, from the first look to the last. A clinic with no scanner checks a blocked gut and refers the dangerous ones on. The scan repeats through the night at no cost and no radiation. A belly watched hour by hour gives up a loop that turns. A nurse, a junior doctor, or a rural clinician each learns the swollen-loop look in a handful of scans. The same probe that found the block follows it to its end. A training of a few scans builds the swollen-loop look into a habit. That eye carries into every tense belly of a shift. One wand, learned once, serves a clinician across a career of blocked guts.
