Aortic Stenosis Continuous Wave Doppler Handheld Ultrasound Assessment

Continuous wave Doppler grades aortic stenosis by the speed of the blood through the narrowed valve. A tight valve speeds the blood that crosses it. That speed reads as a number on the trace. A handheld scanner carries the same Doppler to the bedside. A clinician finds the valve, aims the beam down the jet, and grades the stenosis from the speed it reads.

What aortic stenosis is

Aortic stenosis is a narrowing of the valve between the left ventricle and the aorta. The leaflets grow stiff over years. The opening shrinks. The ventricle pushes harder to drive blood through the narrowed gap. Calcium settling on the leaflets turns each supple cusp into a rigid plate that barely parts. Aortic sclerosis, a thickened valve that does not yet narrow the flow, is the early stage of the same process. A clinician meets the disease usually in older patients, where calcium builds on a valve that started life normal. A younger patient can carry it on a valve born with only two leaflets. Rheumatic disease scars the valve where it stays common, fusing the leaflets along their edges. The disease reaches a few in every hundred people past seventy-five. The narrowing creeps on over a decade or more. A bicuspid valve wears out sooner, often stenosing decades earlier, and it turns up in a young adult with a murmur.

The tight valve makes the heart work against a standing load. The ventricle answers by growing its walls thicker. The thicker muscle keeps the output up for years, with no symptom to show for the strain. A clinician sees a patient who feels well through the quiet years of narrowing. The wall growth has a limit. The muscle stiffens, the chamber fills poorly, and the pressure backs up toward the lungs. The classic symptoms are three: chest pain on effort, blackouts, and breathlessness. Angina can come on even with clean coronary arteries, since the thick muscle outstrips its blood supply. The fixed, tight valve cannot raise the output on demand, which brings on a blackout with effort. Once the ventricle begins to fail, breathlessness sets in. A clinician treats that first symptom of severe stenosis as a turning point. The three symptoms each mark a step toward a failing heart.

The narrowing shows itself in the speed of the blood through the valve. A tight gap forces the same blood through a smaller hole, so it speeds up. The tighter the valve, the faster the jet on the far side. Continuous wave Doppler reads that speed at any value, which makes it the tool for the job. A clinician turns the speed into the pressure the ventricle builds across the valve. The number grades the stenosis and tracks it over the years. The murmur is a harsh sound in mid-systole that carries up to the neck. A clinician hears it loudest as the jet peaks. The louder and longer the murmur, the tighter the valve tends to be. The Doppler puts a number on the murmur. The bedside grade guides the next step with no wait for the lab. A clinician confirms the murmur’s cause with the Doppler in the same visit.

A graded valve drives the decisions that follow. A clinician grades the valve to answer one question: how close is this patient to needing a new one. The grade marks where a patient sits on the path from a yearly watch to a valve replacement. A clinician who grades the valve early can plan the follow-up and catch the turn toward severe disease. The output of the heart rides on the valve. The stakes climb the tighter it gets. A patient with severe stenosis and symptoms faces a poor outlook without a new valve. A new valve can go in by open surgery or through a catheter from the groin. A clinician weighs the patient’s age, frailty, and other illness to choose between the two routes. A clinician reads the numbers with that weight in mind. The grade and the symptoms together decide the timing of any operation.

Reading the aortic jet with continuous wave

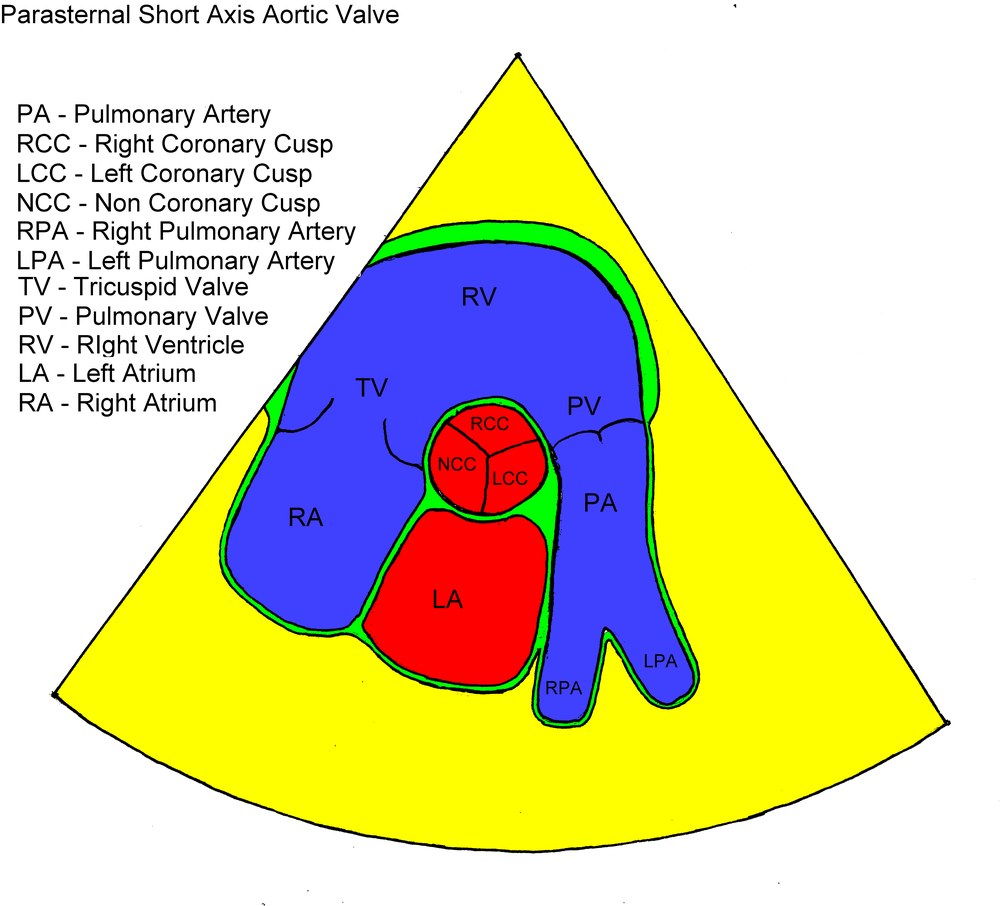

A clinician finds the aortic valve first on the two-dimensional image. The parasternal and apical windows both show it. In the short-axis view the valve sits at the centre as three cusps that open in a triangle. A calcified valve glares bright on the image. Its stiff leaflets barely part. A clinician centres the valve and tilts the probe until all three cusps show at once. A foreshortened view hides the true opening and reads the valve as tighter than it is. The image shows where the jet will run, from the ventricle through the narrowed opening into the aorta. The colour box laid over the valve shows the jet as a turbulent stream through the gap. A clinician uses that stream to aim the continuous wave beam down its core. A clinician zooms the valve to fill the screen for the clearest leaflets.

The apex gives the cleanest line to the aortic jet. The jet runs from the ventricle straight away from the probe there. A clinician sits the beam along it and reads the trace below the baseline. The continuous beam reads the fastest blood anywhere on the line, which suits a jet that can run fast. A clinician swings the probe in small arcs to catch the highest speed. The right parasternal edge and the suprasternal notch each give another look at the same jet. A clinician moves between them with the handheld pressed to each spot. A handheld reads the jet through its own live image, so a clinician sees the valve before reading the speed. A clinician angles the beam through a rib space to clear the bone over the heart. The window that yields the loudest signal and the tallest trace holds the real peak. A clinician marks the best window in the notes for the next study to follow.

The aortic jet has its own signature. It runs fast, fast enough to need a mode with no ceiling. The trace fills in as a dense envelope below the baseline. The peak sits at the outer edge, where a clinician marks it. The signal comes through loud when the beam sits right. A clinician keeps the sweep wide to read the shape of each beat. A clinician reads the peak speed first, then traces the whole envelope for the mean. The filled look of the envelope marks a strong jet through a tight valve. A clinician reads two or three steady beats and keeps the cleanest. An irregular rhythm calls for an average across several beats. A clinician turns the gain down to keep the envelope clean at its edge.

The numbers that grade it

Three numbers grade an aortic stenosis. The peak velocity is the fastest speed of the jet, read at the outer edge of the trace. The mean gradient is the average pressure across the valve over the beat, traced from the whole envelope. The valve area is the size of the opening, worked out from the flow. Each number reads the same valve from a different angle. A clinician gathers all three on the handheld in a single study. The numbers carry more weight together than any one alone. A clinician trusts a grade best when all three agree. A clinician starts with the peak velocity and builds the grade from there. The cut-offs in the table follow the EACVI and ASE recommendations on aortic valve stenosis, the standard a clinician grades by.

The peak velocity carries the greatest weight of the three. A clinician reads it straight off the tip of the trace, with no calculation. The number runs higher in a tighter valve. A clinician squares the peak and multiplies by four for the matching peak gradient. A clinician trusts the peak only from a well-aligned beam, since an off-axis beam reads it low. A clinician hunts every window for the highest clean peak, since the true speed hides in the best-aligned view. A clinician reads the peak in metres per second and keeps the same units across visits. A clinician repeats the reading across several beats to be sure of the top number. The handheld marks the peak with a tap once the trace is clean. The table sets out where each peak falls on the scale of severity. A clinician reads the same beat the machine measures, to keep the peak honest.

The mean gradient comes from the whole envelope. A clinician traces the outline of the trace across one beat. The machine averages the pressure over that time. The mean runs lower than the peak gradient, since it covers the slower parts of the beat too. It tracks the burden on the ventricle across the whole ejection. A clean trace gives a clean mean, so a clinician retraces a noisy beat. A finger tracing that strays inflates the mean, so a clinician keeps to the bright outer edge. The two gradients move up together. The handheld traces the envelope on screen with a finger or a stylus and reports the mean to the nearest millimetre of mercury. The mean gradient steadies a grade that a single peak might overstate.

A clinician takes the three numbers as one picture. They line up in the usual valve, with the velocity, the gradient, and the area all pointing to the same grade. A clinician gains confidence when the three agree. The peak velocity and the mean gradient rise together through the disease. The valve area drops along the same course. A clinician who sees all three move the expected way grades the valve with little doubt. A clinician indexes the valve area to body size, since a larger body carries a larger normal valve. A clinician notes any number that sits out of step with the rest. An odd number out points to a measurement to repeat or a flow problem to weigh. A clinician repeats any reading that stands apart before trusting it.

A clinician works the numbers in a set order at the bedside. The peak velocity comes first, off the tallest clean beat. The mean gradient follows, from a traced envelope. A clinician records the window that gave the highest peak, since the next scan should match it. The handheld stores the trace and the numbers with the study. A clinician saves a clip of the valve with each visit, so the next reader sees the same view. A clinician compares today’s numbers with the last visit’s to see the trend. A rising peak over a year marks a valve on the move. A clinician dates each reading so the climb stands clear over the years. A clinician carries the whole trend from visit to visit in the device.

Valve area by the continuity equation

The valve area pins down the stenosis when the gradient alone leaves doubt. A clinician works it out from a simple rule: the blood that enters the valve must leave it. The flow through the outflow tract below the valve equals the flow through the valve itself. A clinician measures the outflow and the valve speeds and solves for the area. This is the continuity equation, the backbone of valve-area work. The method holds even when the heart pumps weakly. The area answers how narrow the valve has become, in plain square centimetres. A clinician reads it as the size of the hole the blood must cross, and reaches for it whenever the gradient and the symptoms do not match. A smaller area marks a tighter valve. A clinician follows that number over the years.

The outflow tract sits below the valve. A clinician measures its width on the two-dimensional image and reads its flow speed with pulsed wave. The pulsed gate sits in the tract, where the flow runs slow enough to read clean. A clinician reads the valve jet itself with continuous wave, since only that mode reads the fast speed whole. The handheld switches between the two modes with a tap, so a clinician takes both speeds in one sitting. The two speeds and the tract width feed the area. A clinician sets the calipers across the tract in a zoomed view for the cleanest width. The tract enters the sum as a circle, so a small slip in the width feeds through the area twice over. A clinician reads the outflow speed from the apex, in line with the flow.

The dimensionless index skips the width altogether. A clinician divides the outflow speed by the valve speed. The ratio grades the valve on its own. A low ratio means the valve speed towers over the outflow speed, which marks a tight valve. The index needs no measurement of the tract, so it sidesteps the main source of error. A clinician reads the ratio as the fraction of the outflow speed that survives the valve. A high-grade valve drops the ratio well below a half. A small ratio carries the same weight as a small valve area. The handheld gives both speeds, so the ratio falls out at the bedside. A clinician reports the ratio beside the area for a fuller grade.

The continuity area and the dimensionless index round out the grade. A clinician leans on them when the body habitus or a weak pump muddies the gradient. The area speaks to the valve itself, apart from how hard the heart drives it. A clinician reads a severe area as a strong sign even when the gradient sits low. The handheld carries every piece: the tract width, the outflow speed, and the valve speed. A clinician pairs the area with the gradient for a grade that stands on two legs. A clinician builds the whole grade from one bedside study, on numbers that take only minutes to gather. A clinician trusts a grade that two independent numbers support.

When the gradient and the area disagree

Sometimes the numbers split. A valve can show a severe area. The gradient on the same valve can stay modest. This is low-flow, low-gradient stenosis, and it traps the unwary. The low gradient comes from a weak pump. A heart that ejects little blood drives a low speed through even a tight valve. A clinician who reads the gradient alone calls such a valve mild and misses severe disease. A small ventricle with thick walls can hold a low flow at a normal ejection fraction, a pattern that hides severe disease behind ordinary-looking numbers. The area and the dimensionless index hold the truth here, since they lean less on the flow rate. A clinician checks the stroke volume to spot a low-flow state. A low output flags the valve for a closer look. A clinician keeps the diagnosis open until the area and the flow agree.

A clinician confirms the grade when the numbers disagree. The stroke volume index sorts a true low-flow state from a measuring error. A low ejection fraction points to a weak pump behind the low gradient. A dobutamine infusion lifts a weak heart’s output to test whether the gradient rises with it. A valve that climbs into the severe range under that stress earns the severe grade. A calcium score from a CT scan grades the valve apart from the flow. A clinician brings these tools in when the bedside numbers leave doubt. A clinician treats a mismatch as a prompt to dig deeper. The handheld flags that mismatch first, which sends the patient for the next test. A clinician reads the contractile reserve from the rise in stroke volume under stress.

The shape and timing of the jet

The shape of the trace adds to the numbers. A tight valve drives a late-peaking jet that crests in mid-ejection, a rounded dome on the trace. The time to that peak grows in a tighter valve. A tighter valve gives a longer acceleration time, from the start of the jet to its peak. A long acceleration time backs up a severe grade from the shape alone. A clinician reads a late peak as a sign of severe disease on its own. The fill of the envelope adds another clue, since a dense trace marks a strong jet through a narrow gap. A clinician weighs the shape alongside the peak and the mean for a fuller picture. The handheld shows the whole envelope on screen, so a clinician times the peak by eye and reads a severe jet on sight. A clinician compares the shape across visits to read the trend.

Following it and knowing when to act

A graded valve needs a plan to follow it. A clinician sets the next scan by the grade and by how fast the numbers have moved. A tighter valve and a faster climb both pull the next visit sooner. A valve tends to tighten by a small step in peak speed each year. A clinician who knows that rate sets the watch to match the valve’s pace. The handheld makes that watch easy, since a clinician can grade the valve in the clinic itself. A clinician records the peak and the mean each visit and plots the trend over the years. A steady climb in the peak warns of a valve heading for surgery. A clinician shortens the interval the moment it turns severe. A clinician hands the patient a clear date for the next scan.

The turn that matters above all is the first symptom. A patient with severe stenosis who starts to feel chest pain, faintness, or breathlessness has crossed a line. The outlook without a new valve falls sharply from there. A clinician treats that first symptom as the signal to refer for a valve replacement. Surgery or a catheter valve can follow, by the patient’s age and risk. A symptom-free patient with a severe valve still needs a close watch, since the first symptom can arrive without warning. A clinician counsels the patient to report any new chest pain, faintness, or breathlessness at once. A clinician who grades the valve at the bedside and tracks the symptoms catches that turn early, with the grade and the trend in reach at every visit. A clinician records the date symptoms began as the marker for action.

Common questions about aortic stenosis on Doppler

How does continuous wave Doppler grade aortic stenosis?

Continuous wave Doppler reads the speed of the jet through the narrowed valve. A clinician takes the peak velocity off the tip of the trace and the mean gradient from the whole envelope. A faster jet and a higher gradient mark a tighter valve. A clinician reads a peak at or past four metres a second as severe stenosis and confirms it with the valve area.

What peak velocity counts as severe aortic stenosis?

A peak velocity at or above four metres a second marks severe aortic stenosis. A reading past five metres a second marks a very severe valve. A clinician reads the matching mean gradient, at or above forty millimetres of mercury for severe disease. The valve area sits below one square centimetre at that grade. A clinician looks for the numbers to agree before settling on severe.

Can a handheld scanner assess aortic stenosis?

Yes. A handheld with continuous wave Doppler reads the jet speed and the gradient at the bedside. A clinician finds the valve on the image, aims the beam down the jet, and reads the peak and the mean. The handheld also runs the pulsed wave and the two-dimensional measures for the valve area. A clinician grades the stenosis from one bedside study, with no cart and no referral.

What is low-flow, low-gradient aortic stenosis?

Low-flow, low-gradient aortic stenosis is a tight valve that shows only a modest gradient. The low gradient comes from a weak pump that drives little blood through the valve. A clinician who reads the gradient alone can miss the severe disease. The valve area and the dimensionless index hold the grade here, since they lean less on the flow. A clinician checks the stroke volume and the ejection fraction to spot the low-flow state.

How often should aortic stenosis be rescanned?

A clinician sets the interval by the grade and by how fast the valve has changed. A milder valve can wait a year or two between scans. A higher grade shortens the interval, down to every six months for a severe valve with no symptoms. A clinician scans sooner the moment a symptom appears, since the first symptom of severe stenosis changes the plan. The handheld makes a frequent check easy in the clinic.
